TORQUE CONVERTER SHIMS (SPACERS)

SHIMS (SPACERS) Full Listing
Part ID Outside Dia. (inch) Inside Dia. (inch) Thick (inch)
D-10-1
D-24 0.010
FW-2-010 2.350 1.482 0.010
FW-2-020 2.350 1.482 0.020
FW-2-030 2.350 1.482 0.030

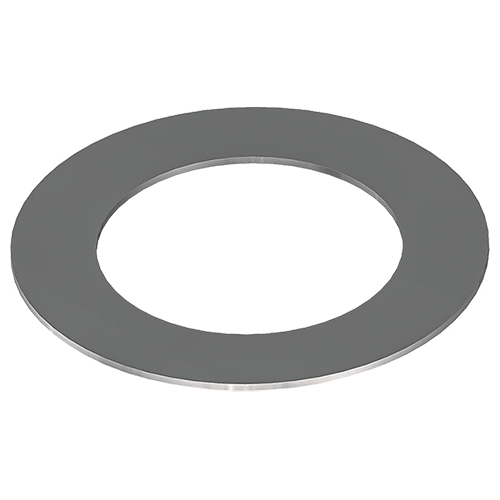

FW-2-17 2.700 1.880 0.050

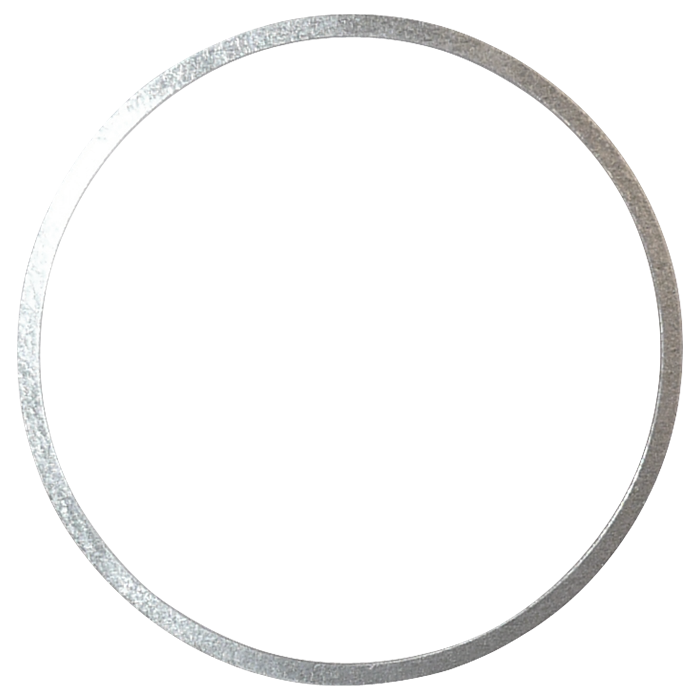

FW-9-18 2.582 2.406 0.020
FW-9-21A 2.360 2.050 0.083
FW-9-21B 2.360 2.050 0.067
FW-9-21C 2.360 2.050 0.051
FW-9-21G 2.360 2.050 0.035
FW-9-21H 2.360 2.050 0.020
FW-9-22 2.370 2.065 0.050
FW-9-23 2.590 2.415 0.020
FW-9-24 2.000 1.750 0.020

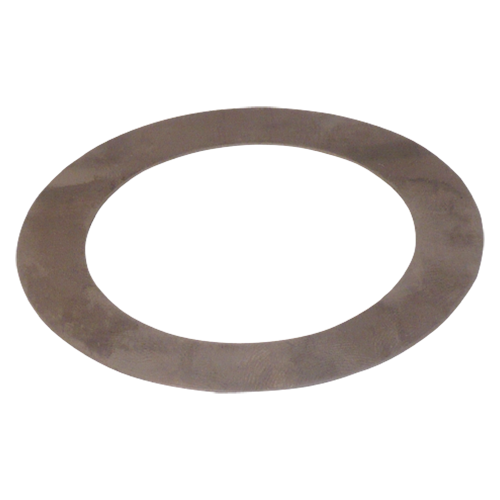

HW-2-10 2.410 1.700 0.010

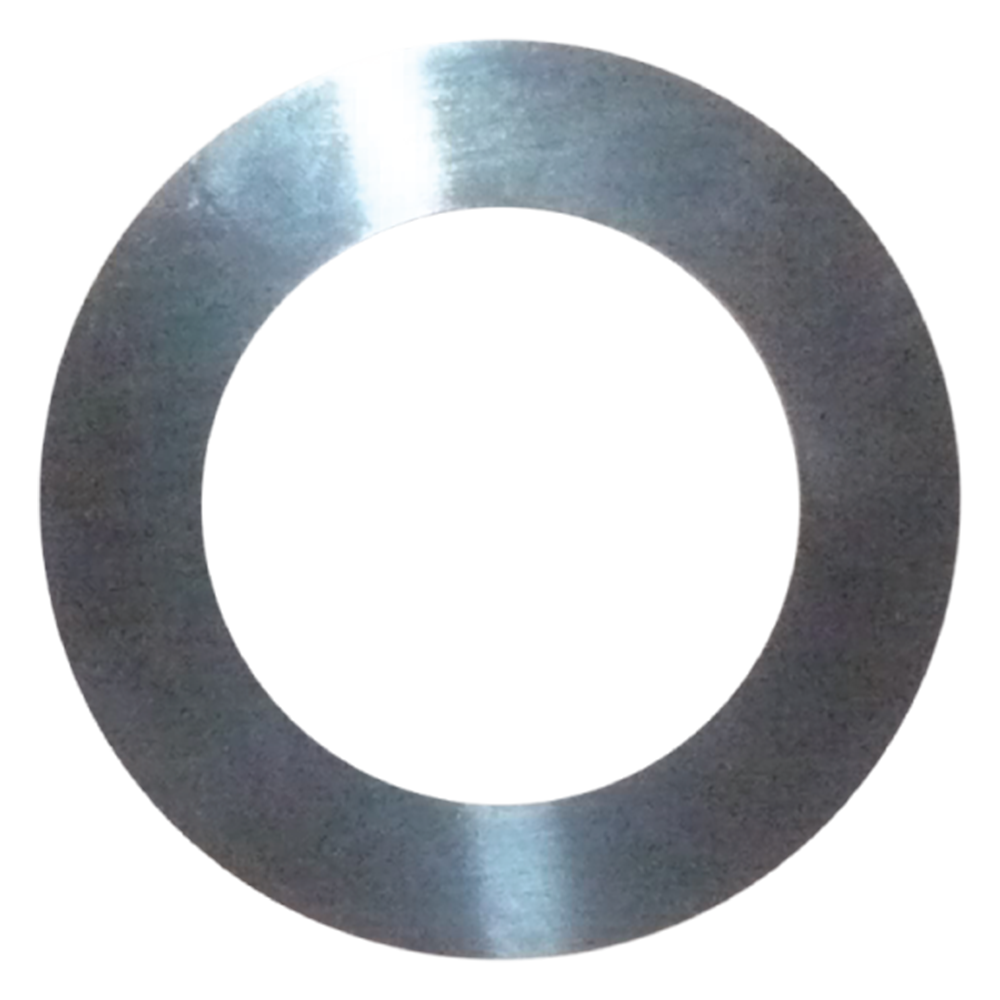

MW-2-10 2.938 1.875 0.010
MW-2-2 3.750 2.000 0.050

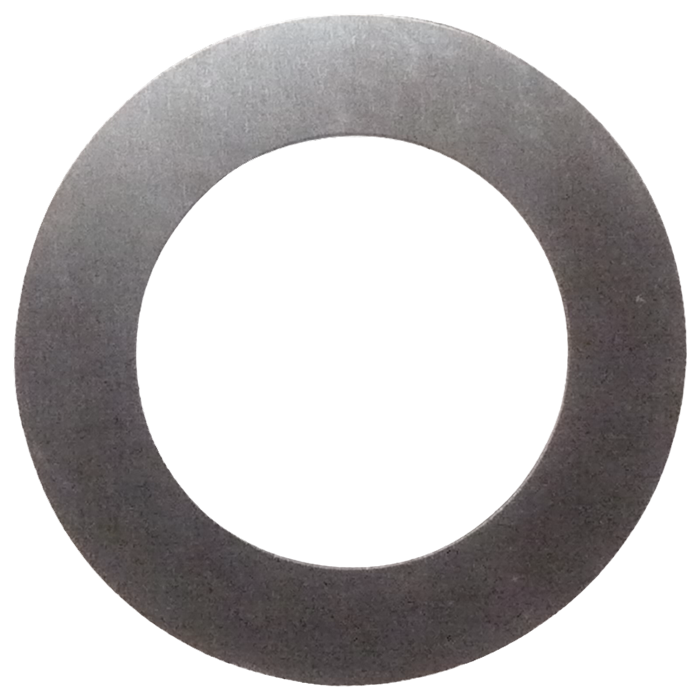

MW-2-20 2.938 1.875 0.020

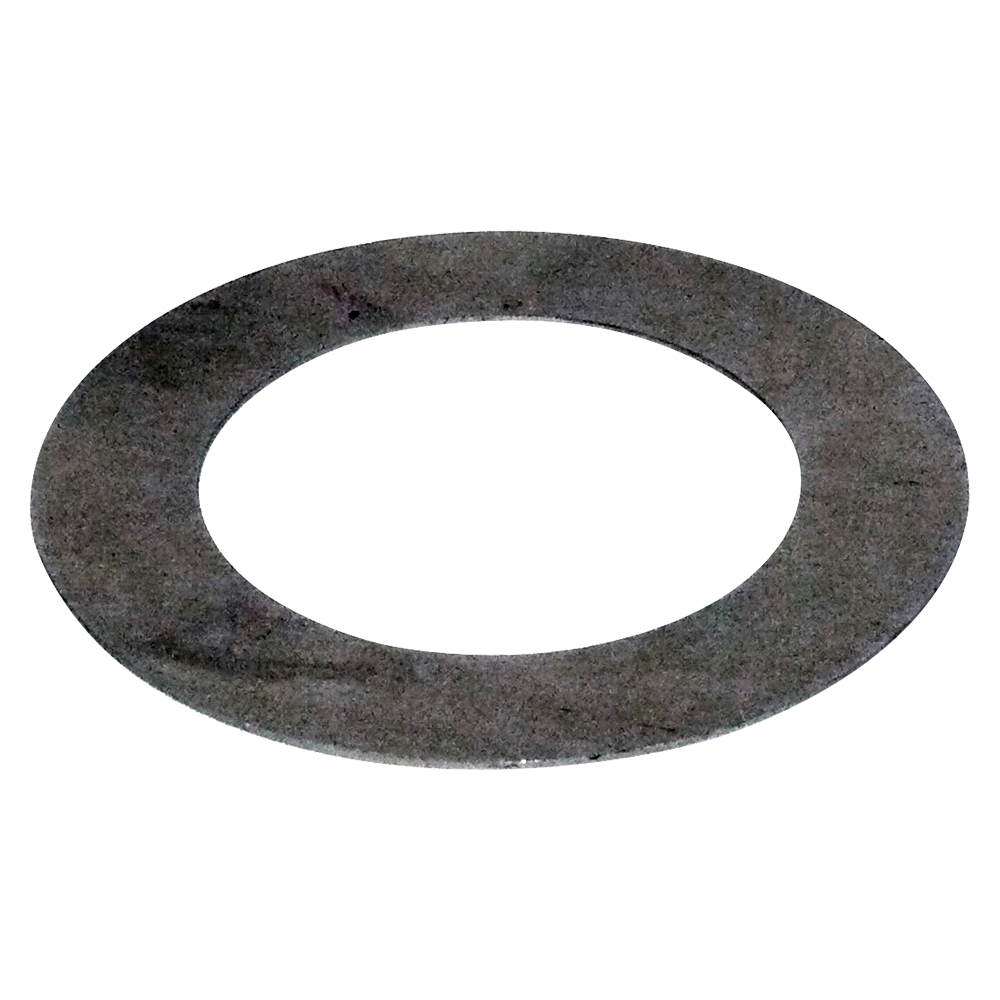

MW-2-30 2.938 1.875 0.030

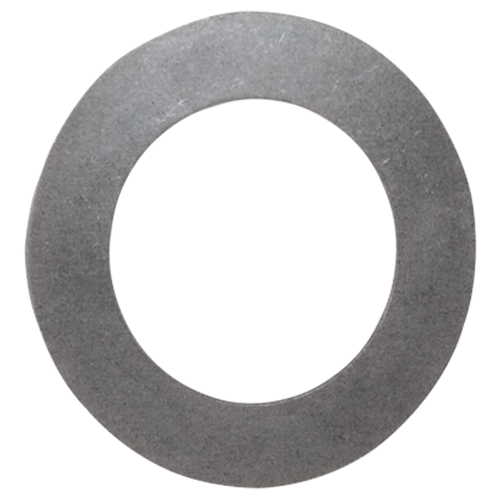

MW-2-50 2.938 1.875 0.050

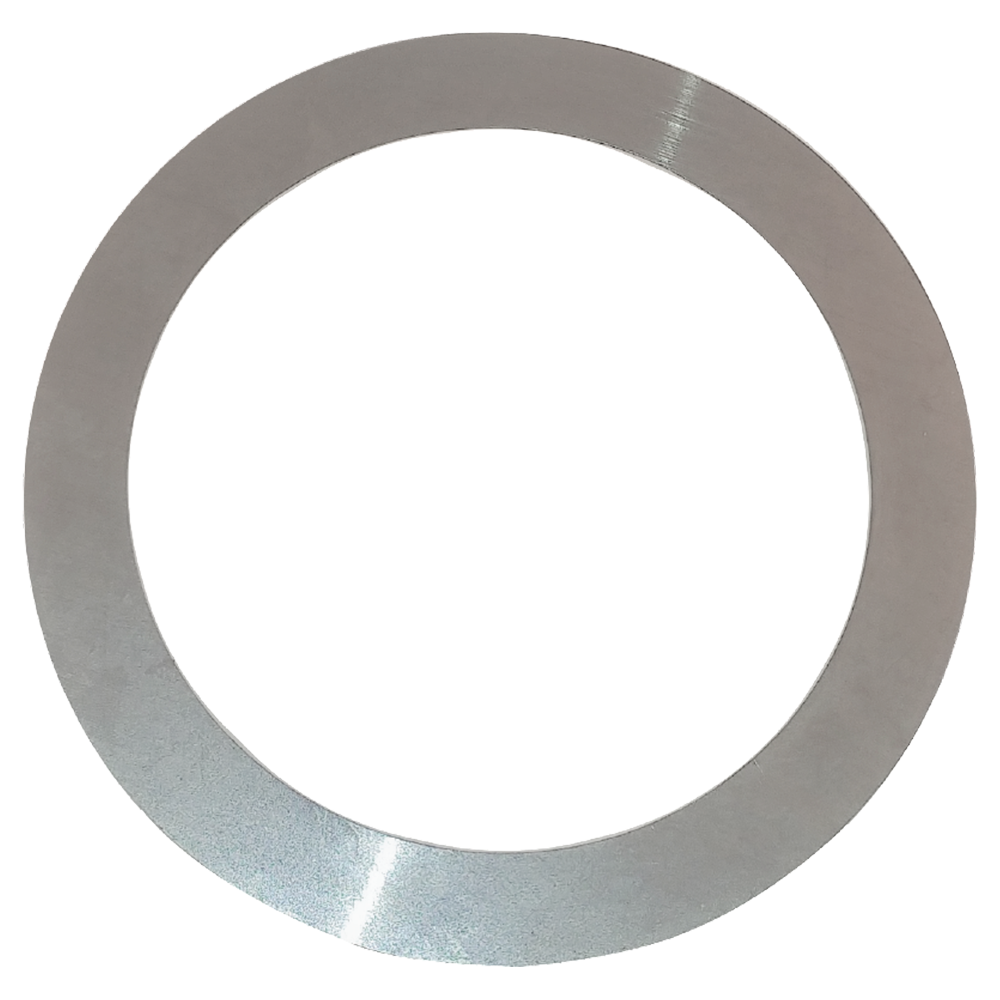

PX-8-1 4.050 3.150 0.008

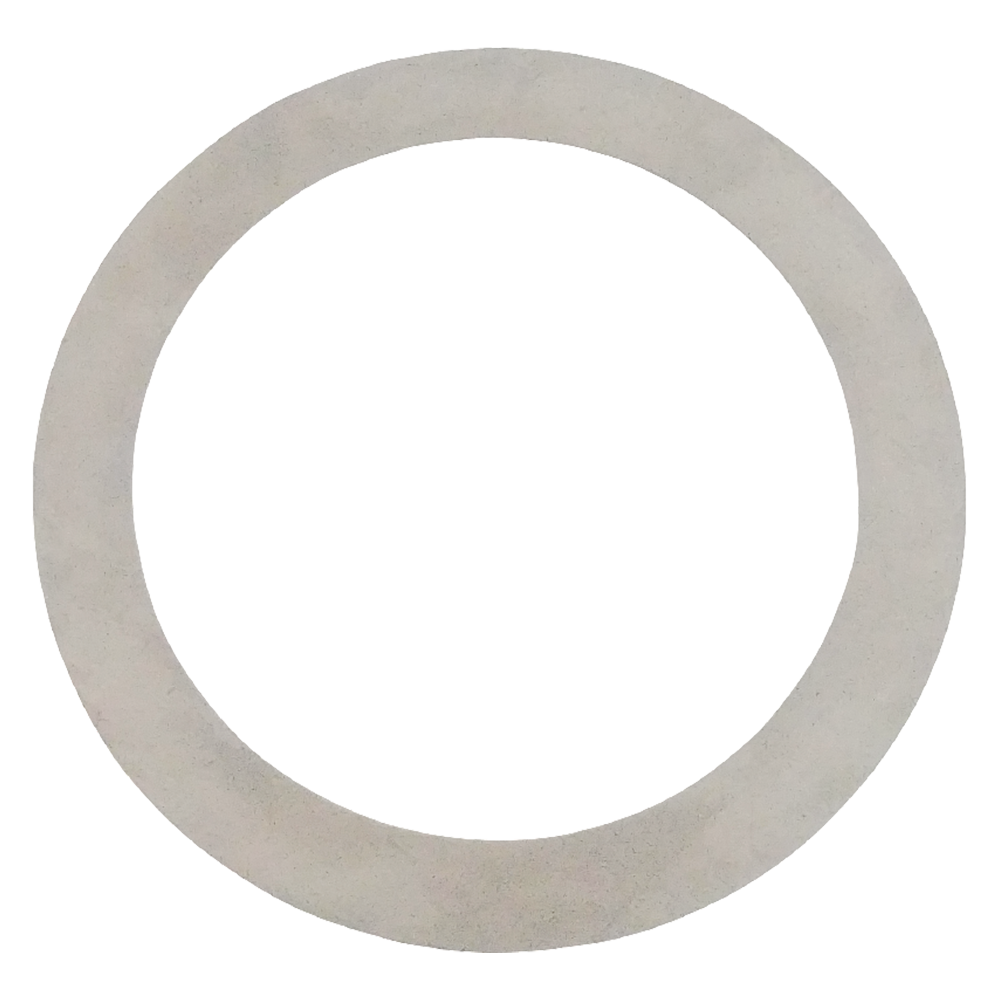

PX-8-1A 4.050 3.150 0.020

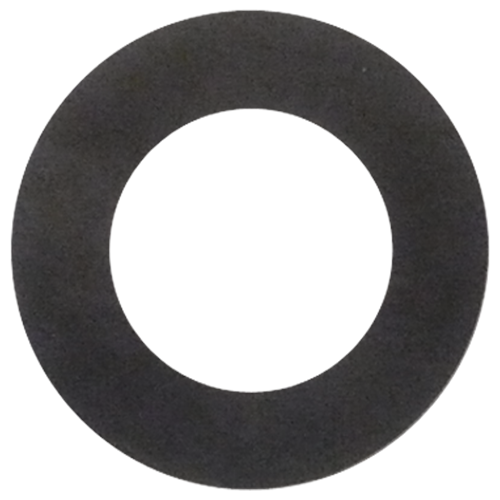

SW-2-010 2.750 1.585 0.010

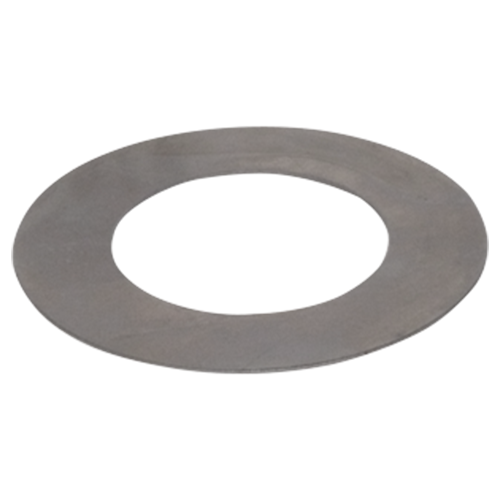

SW-2-020 2.750 1.585 0.020

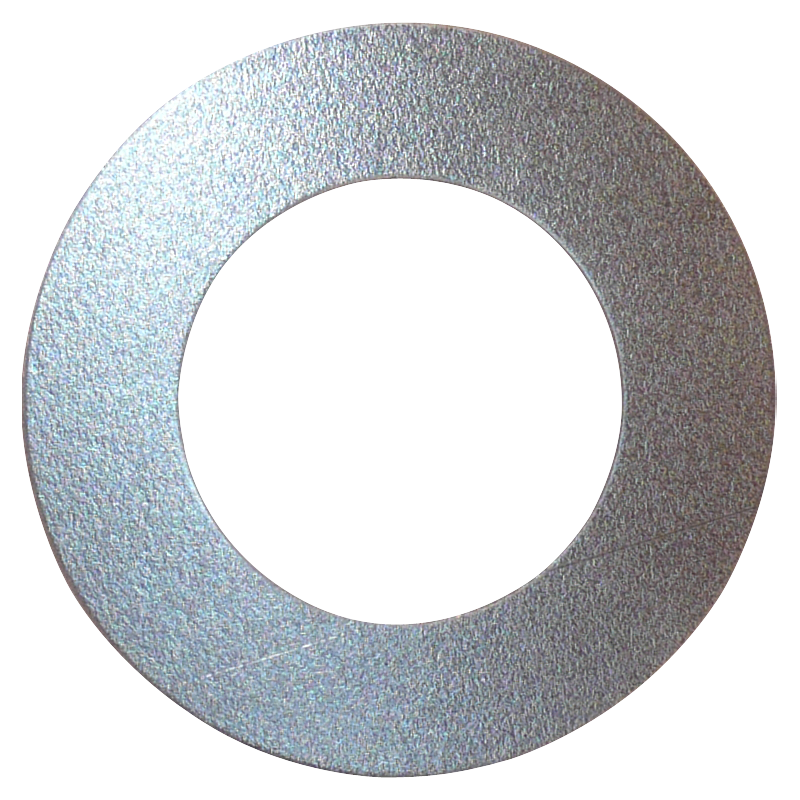

SW-2-030 2.750 1.585 0.030

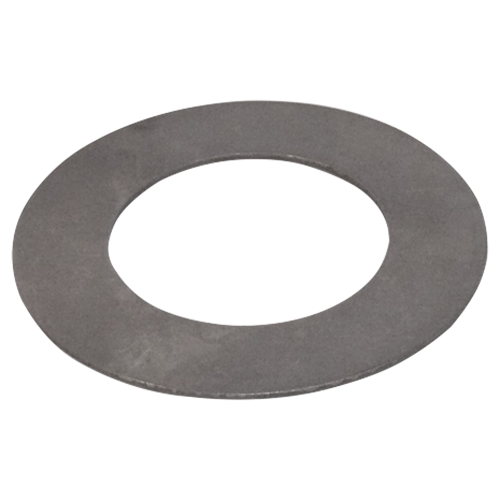

SW-2-050 2.750 1.585 0.050

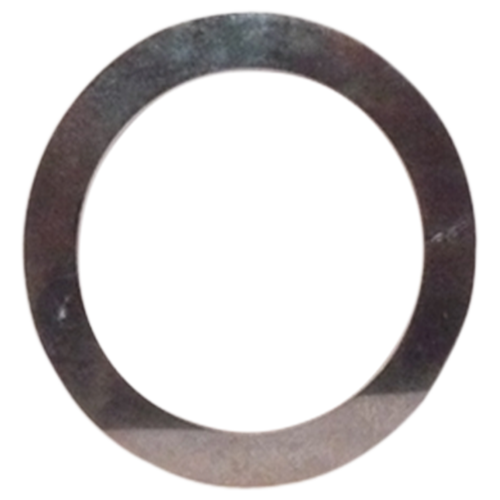

SW-2-110 3.275 2.500 0.010

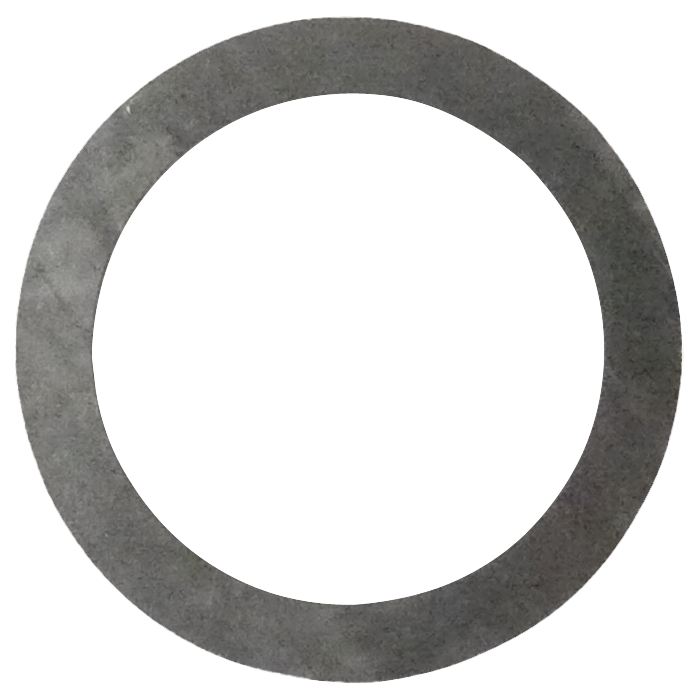

SW-2-120 3.275 2.500 0.020

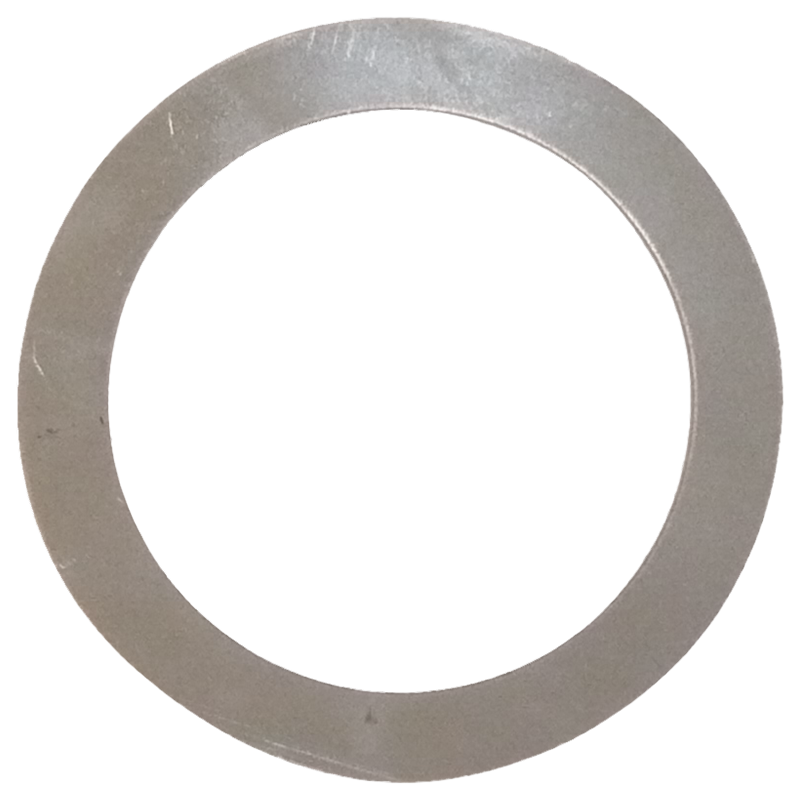

SW-2-130 3.275 2.500 0.030
SW-2-17 2.950 2.400 0.020
SW-2-210 2.950 2.400 0.010

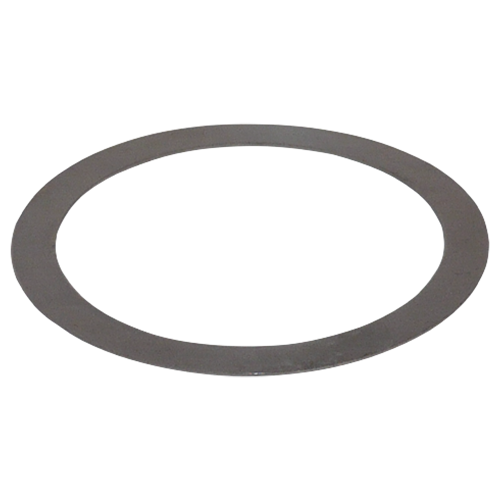

SW-2-220 2.950 2.400 0.020

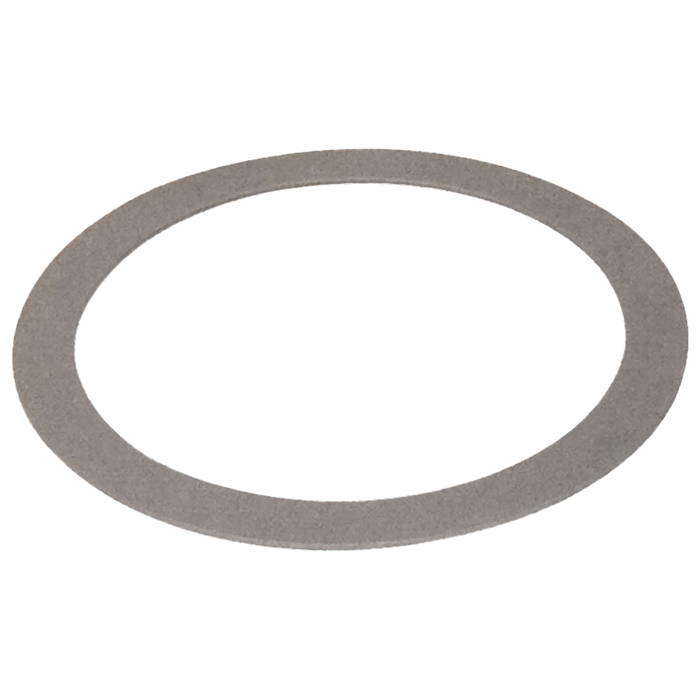

SW-2-230 2.950 2.400 0.030

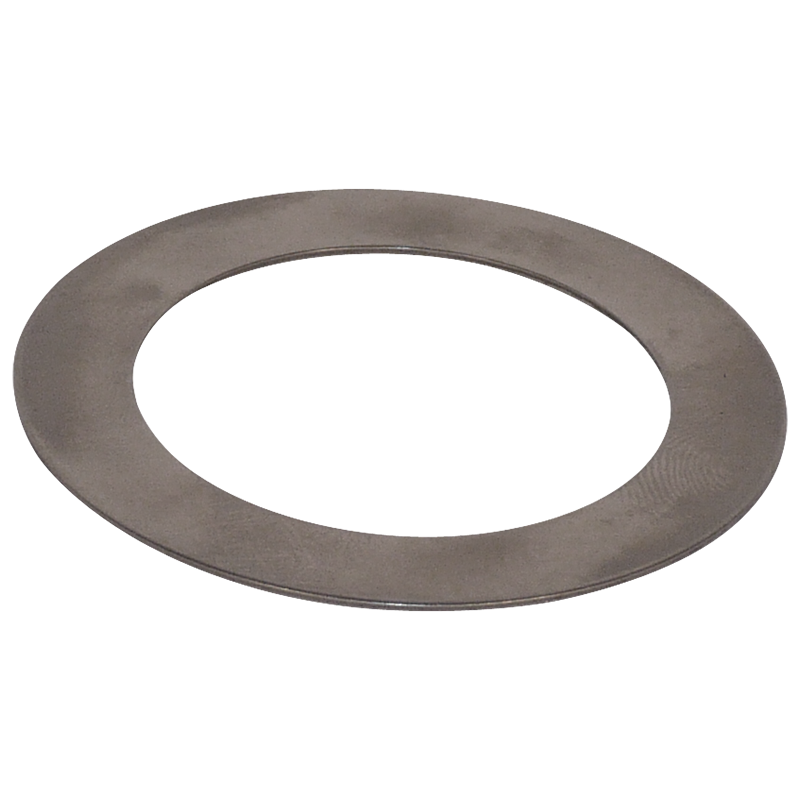

SW-2-30 2.175 1.510 0.030

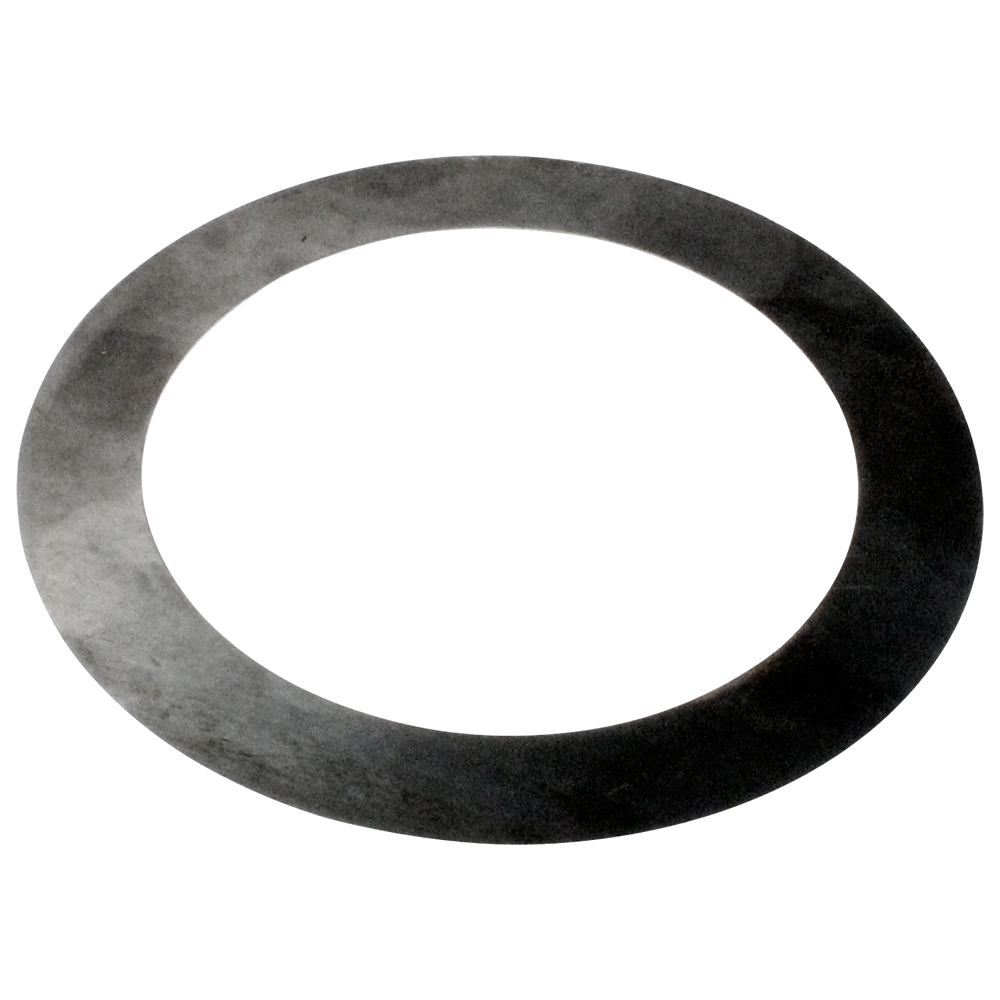

SW-2-310 3.725 2.750 0.010

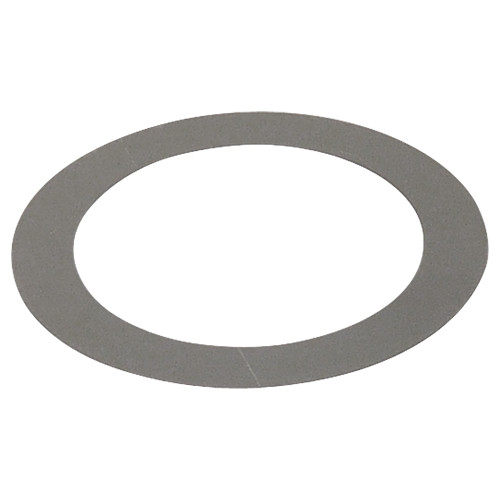

SW-2-320 3.725 2.750 0.020

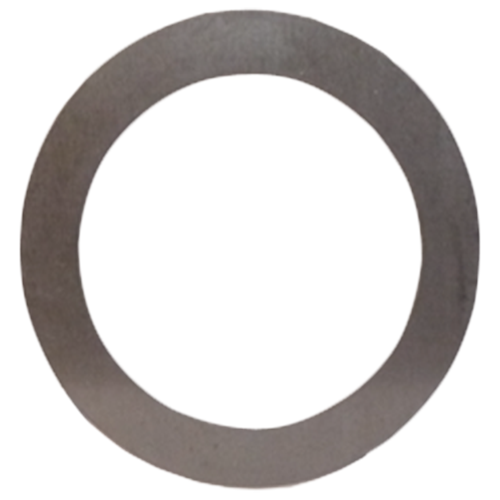

SW-2-330 3.725 2.750 0.030

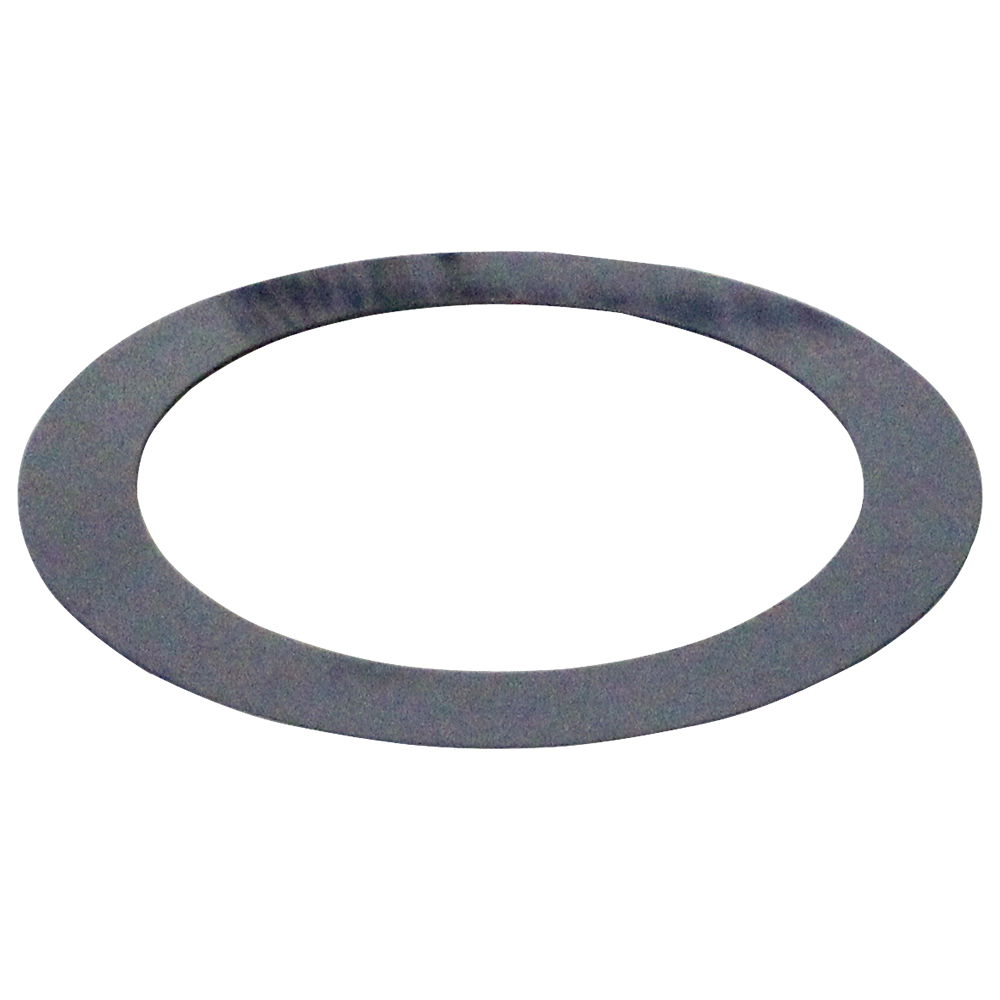

SW-2-410 3.440 2.590 0.010

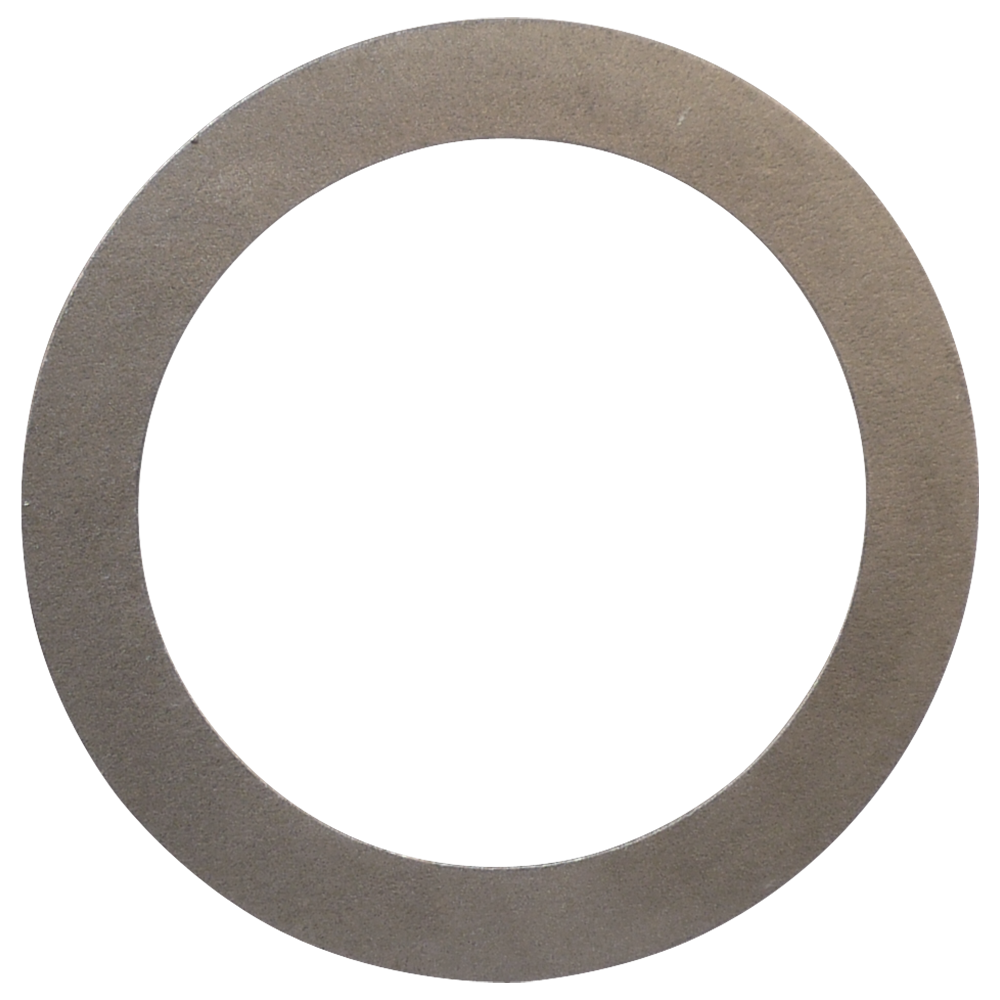

SW-2-420 3.440 2.590 0.020

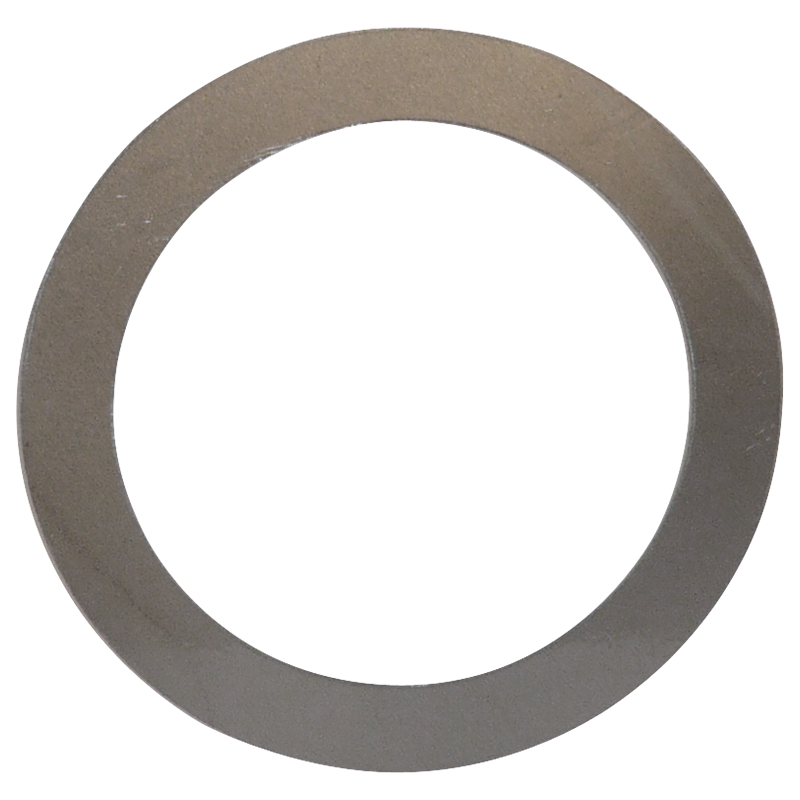

SW-2-430 3.440 2.590 0.030

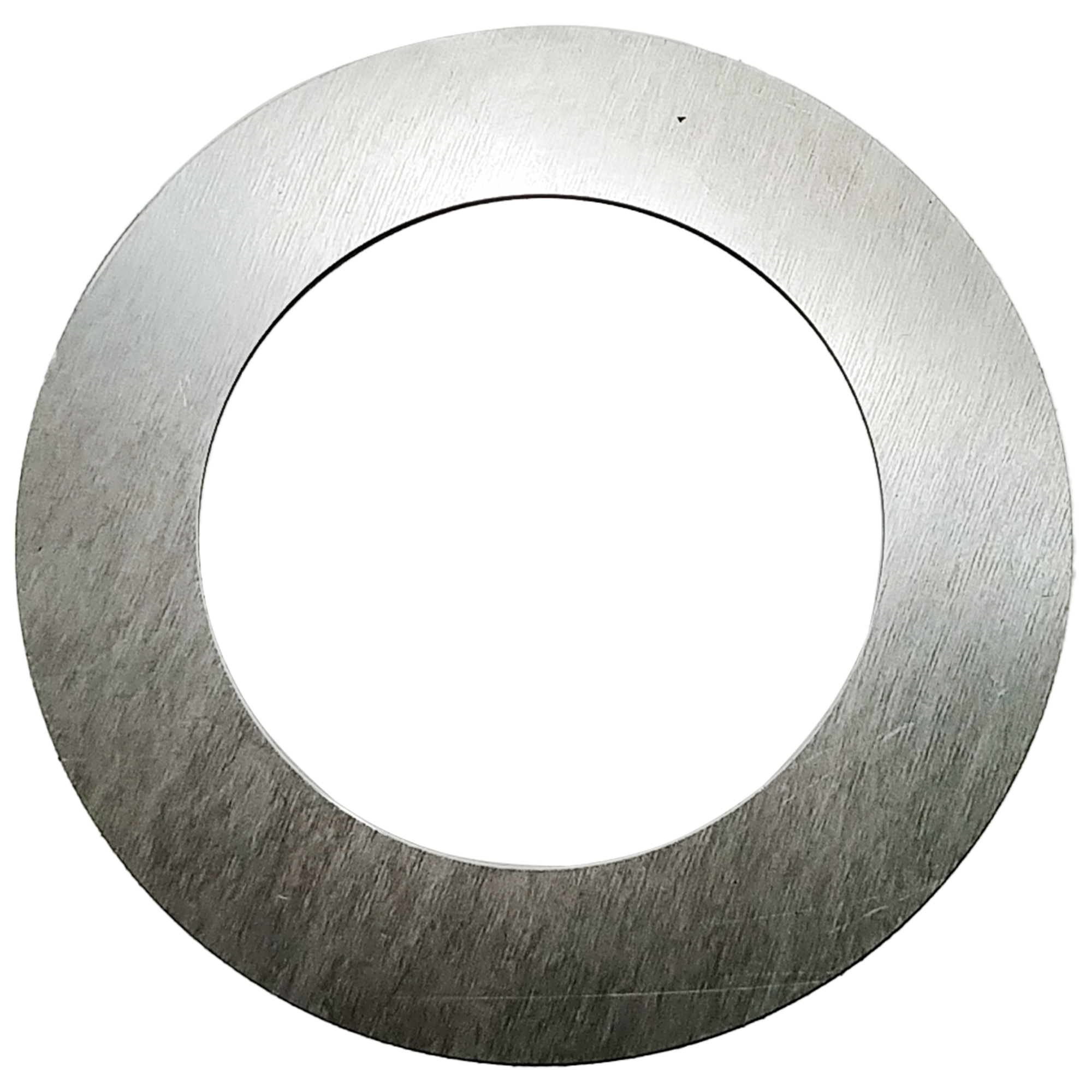

SW-2-44 3.600 2.350 0.010

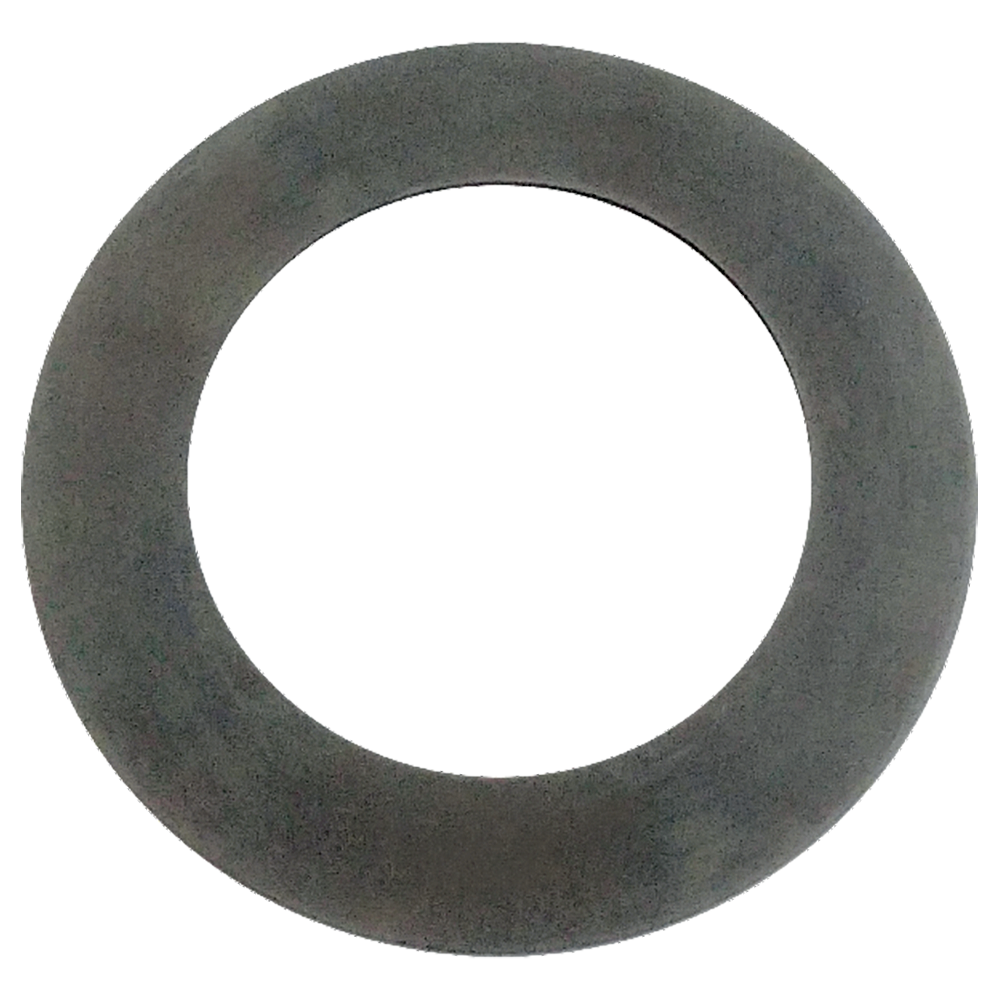

SW-2-45 3.600 2.350 0.039

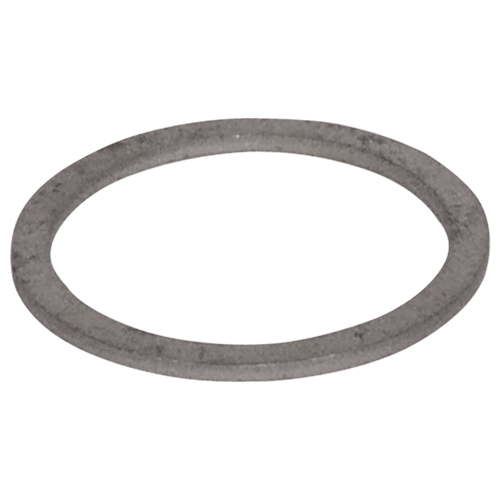

SW-9-11S 1.350 1.122 0.056

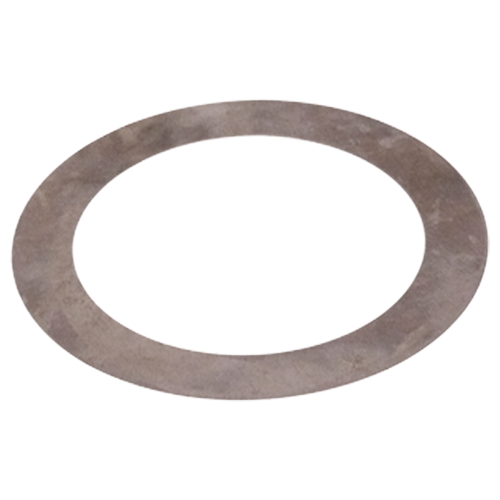

TW-2-10 2.950 2.160 0.010

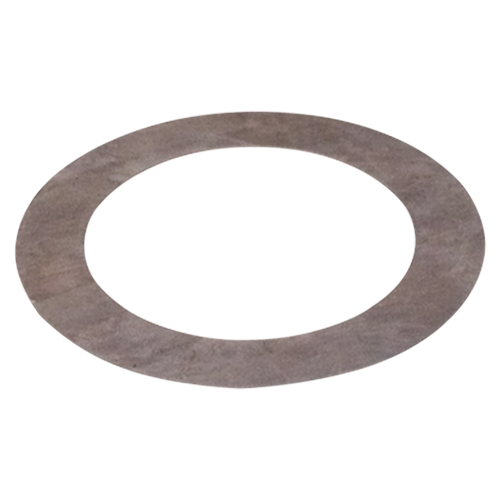

TW-2-110 2.820 1.975 0.010

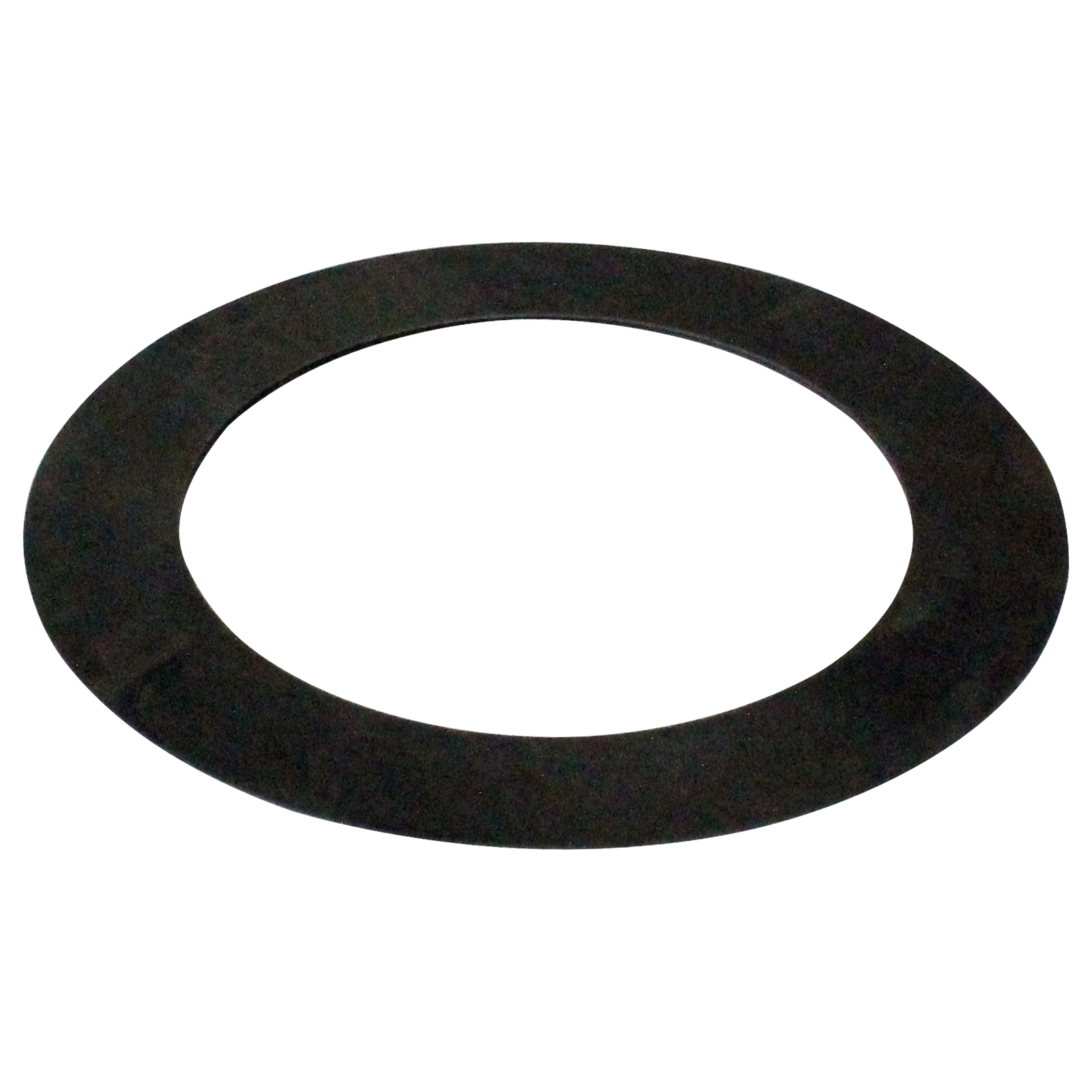

TW-2-110A 2.820 1.975

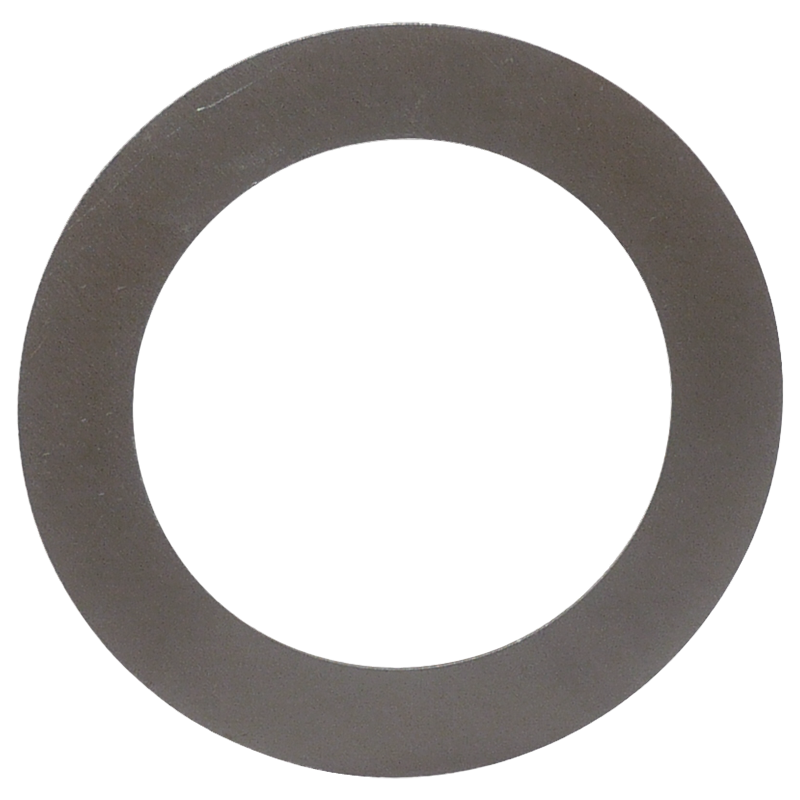

TW-2-120 2.820 1.975 0.020
TW-2-120A 2.820 1.975

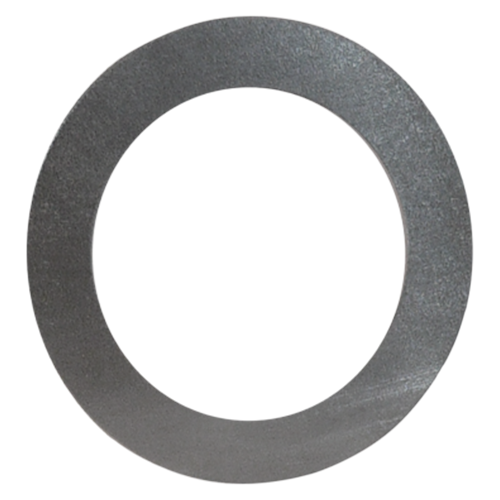

TW-2-130 2.820 1.975 0.030

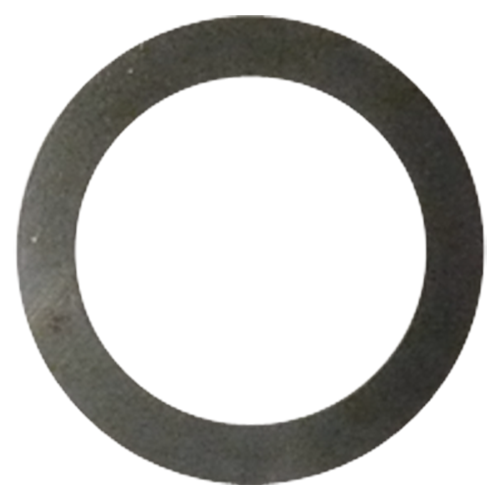

TW-2-20 2.950 2.160 0.020
TW-2-20A 2.950 2.160

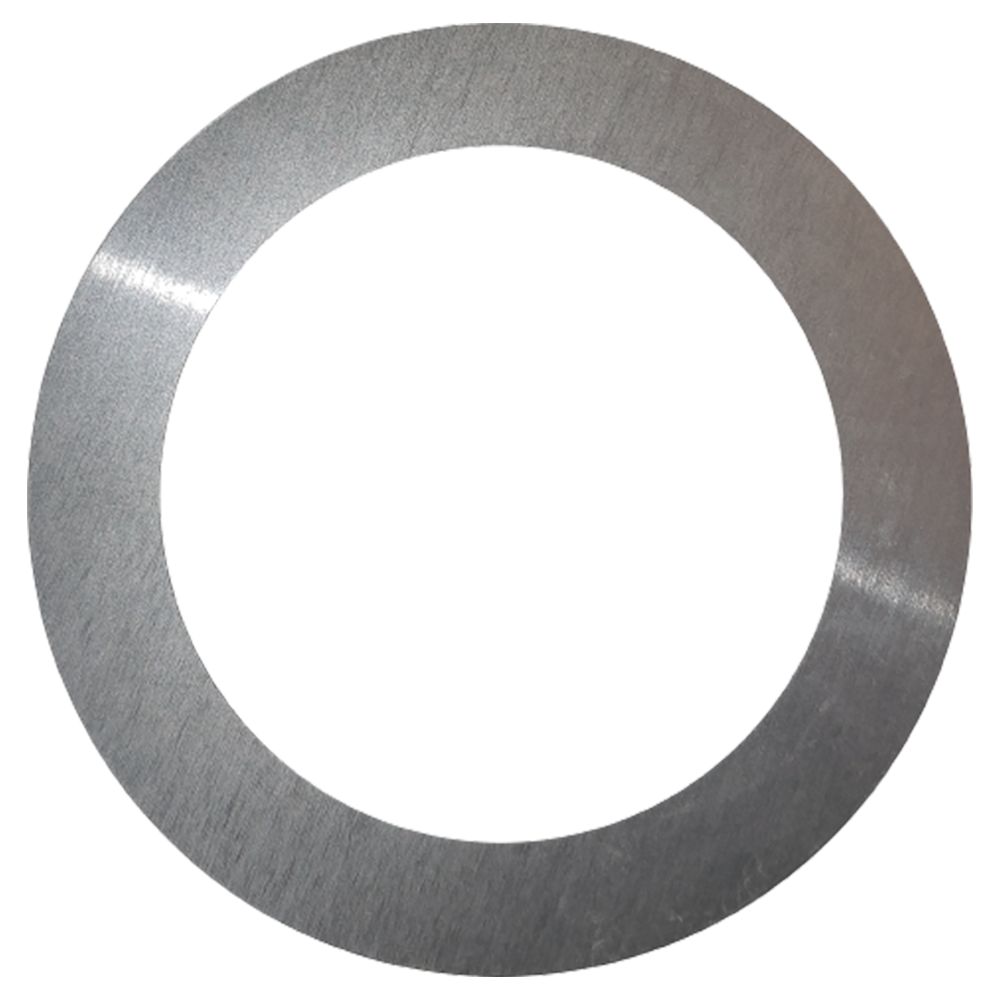

TW-2-210 2.870 2.073 0.010

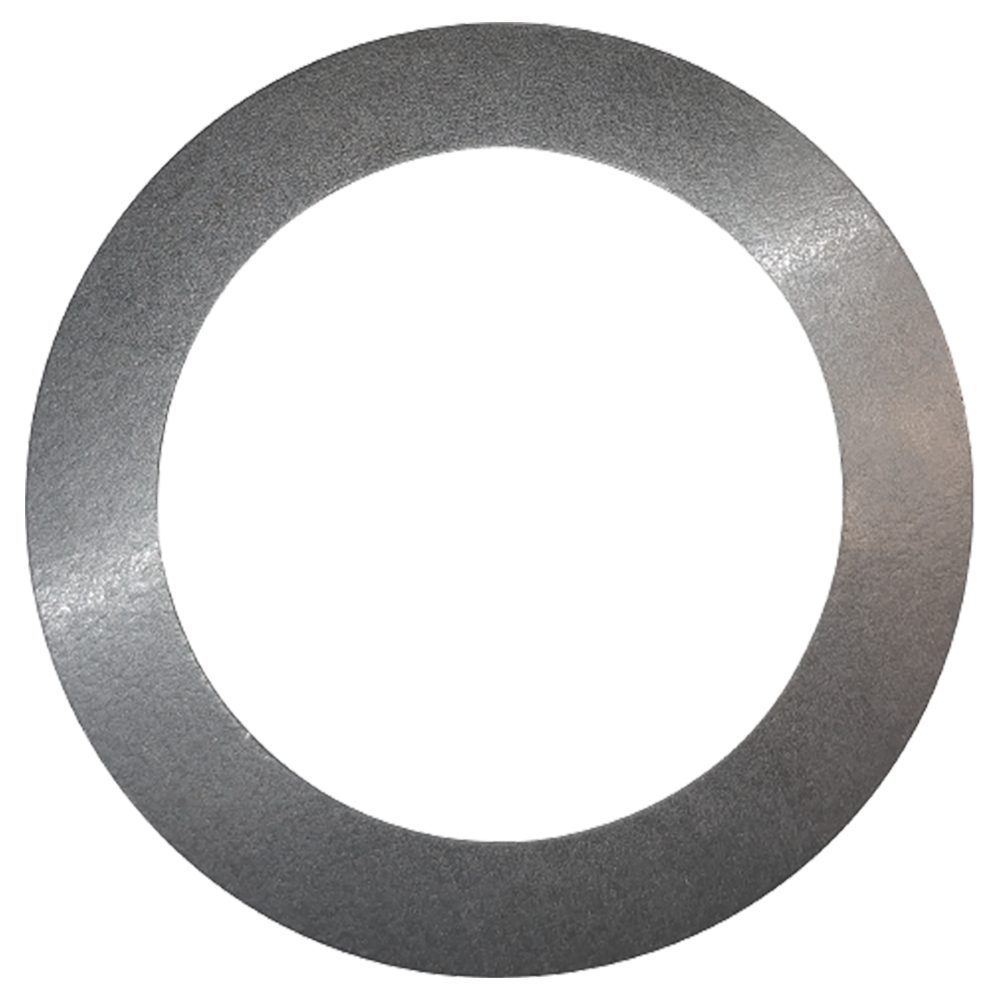

TW-2-220 2.870 2.073 0.020

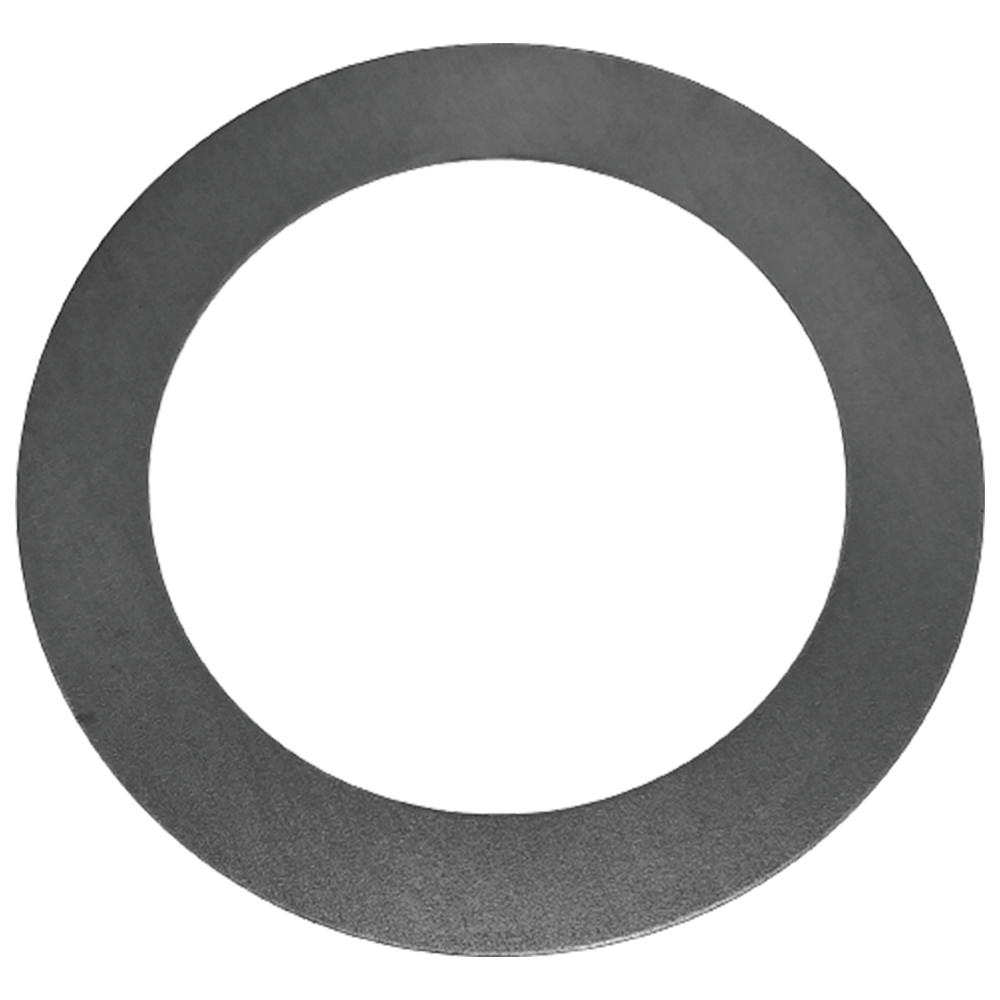

TW-2-230 2.870 2.073 0.030

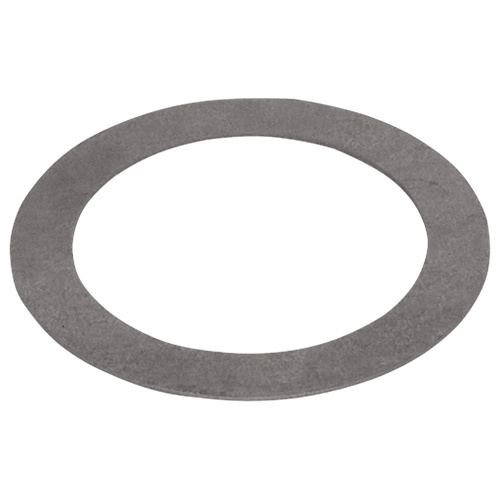

TW-2-30 2.950 2.160 0.030

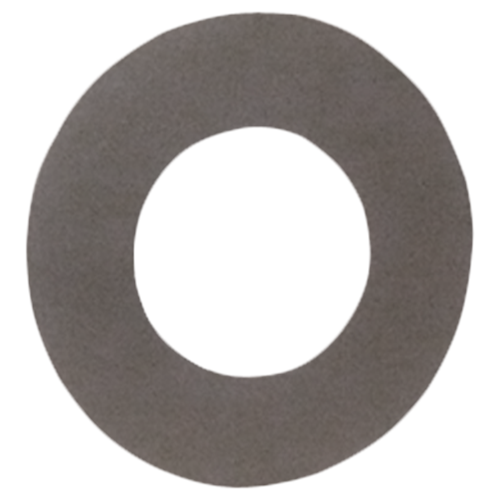

TW-2X 2.875 1.469 0.020

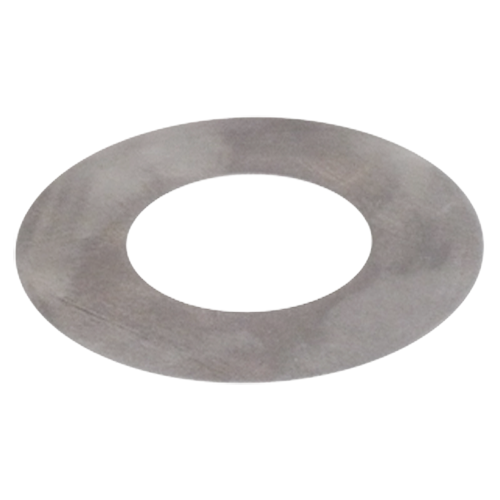

TW-2X10 2.875 1.469 0.010

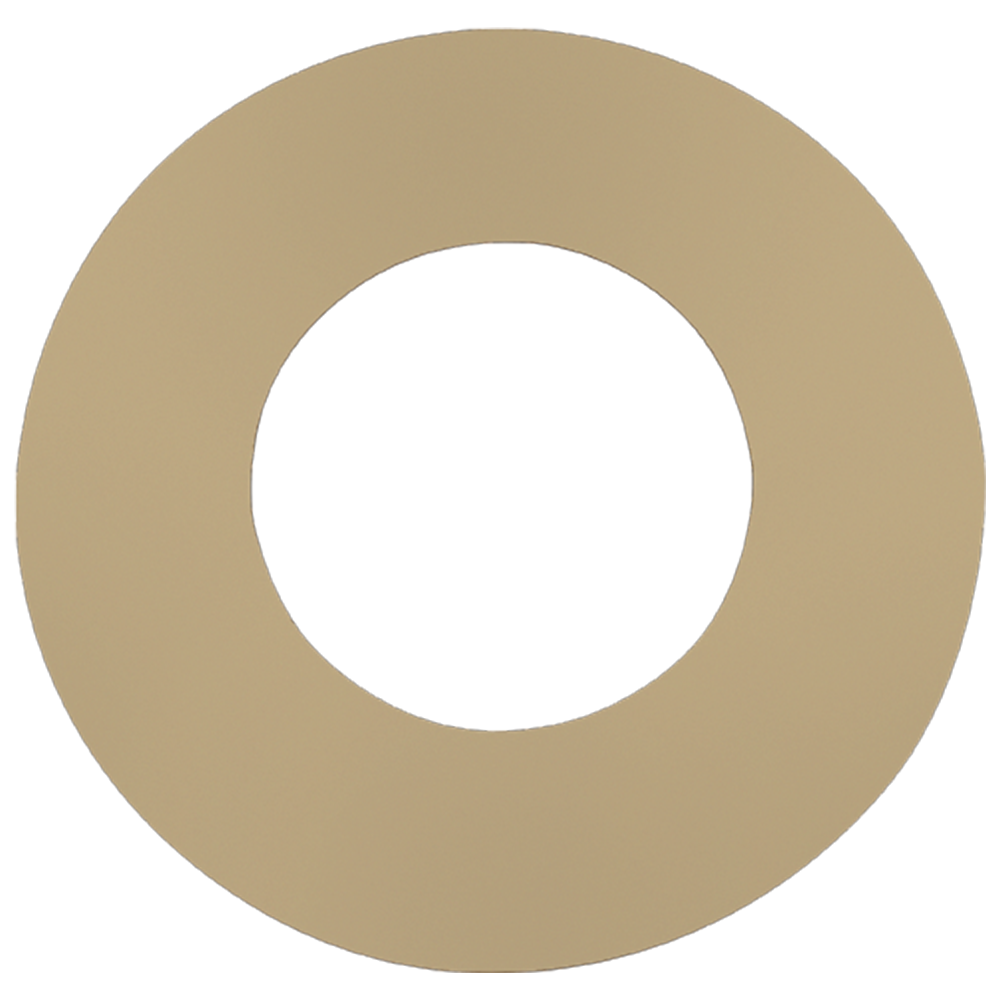

TW-2X30 2.875 1.469 0.030

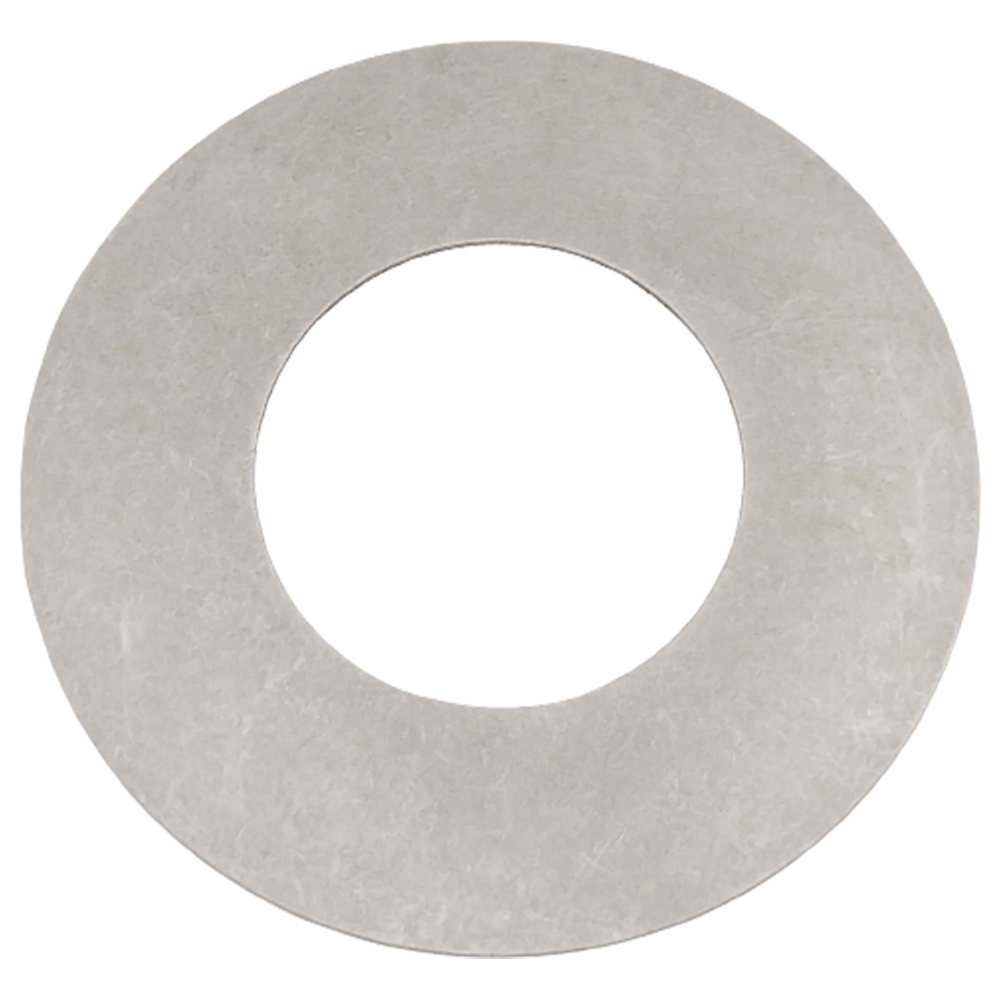

TW-2X-30 2.875 1.497

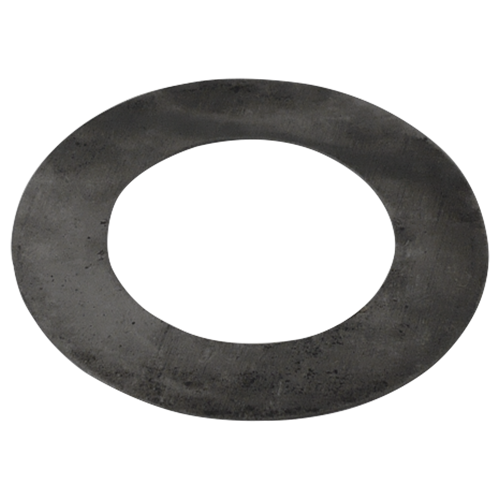

TW-9-010 2.400 1.452 0.010

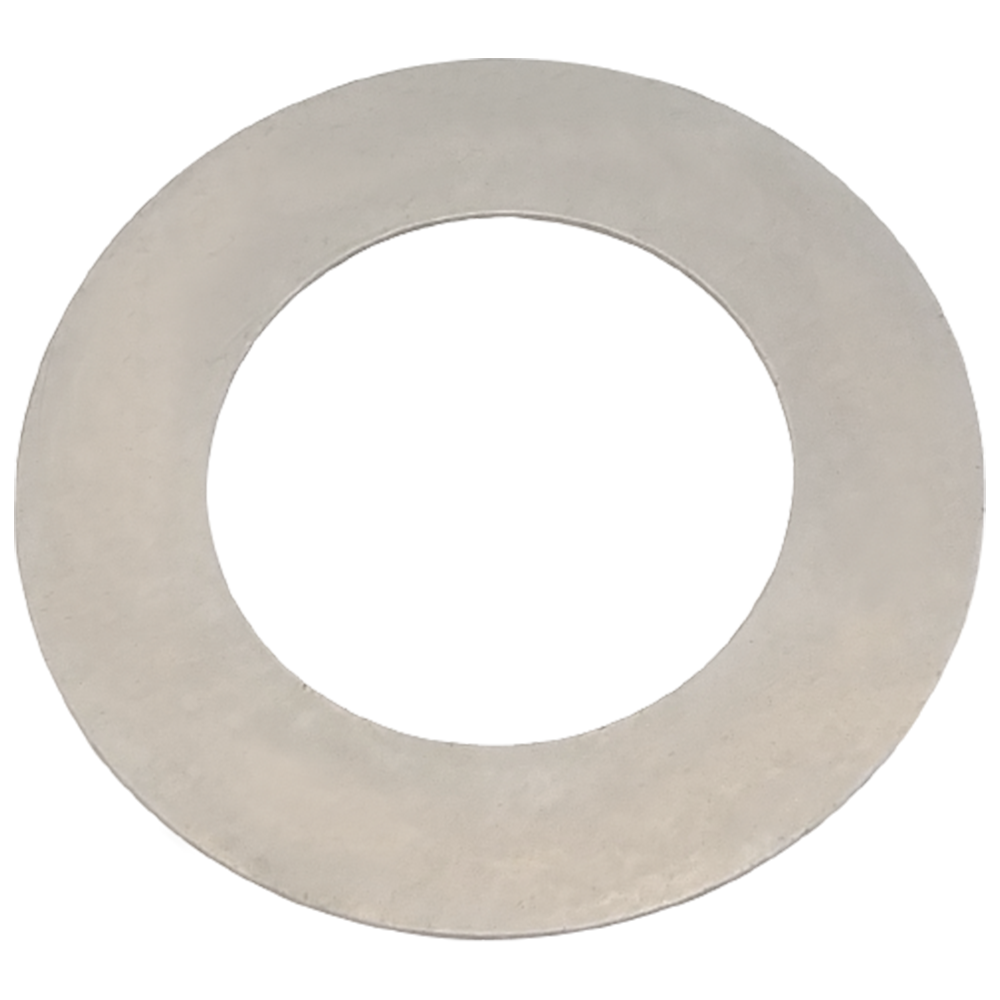

TW-9-020 2.400 1.452 0.020

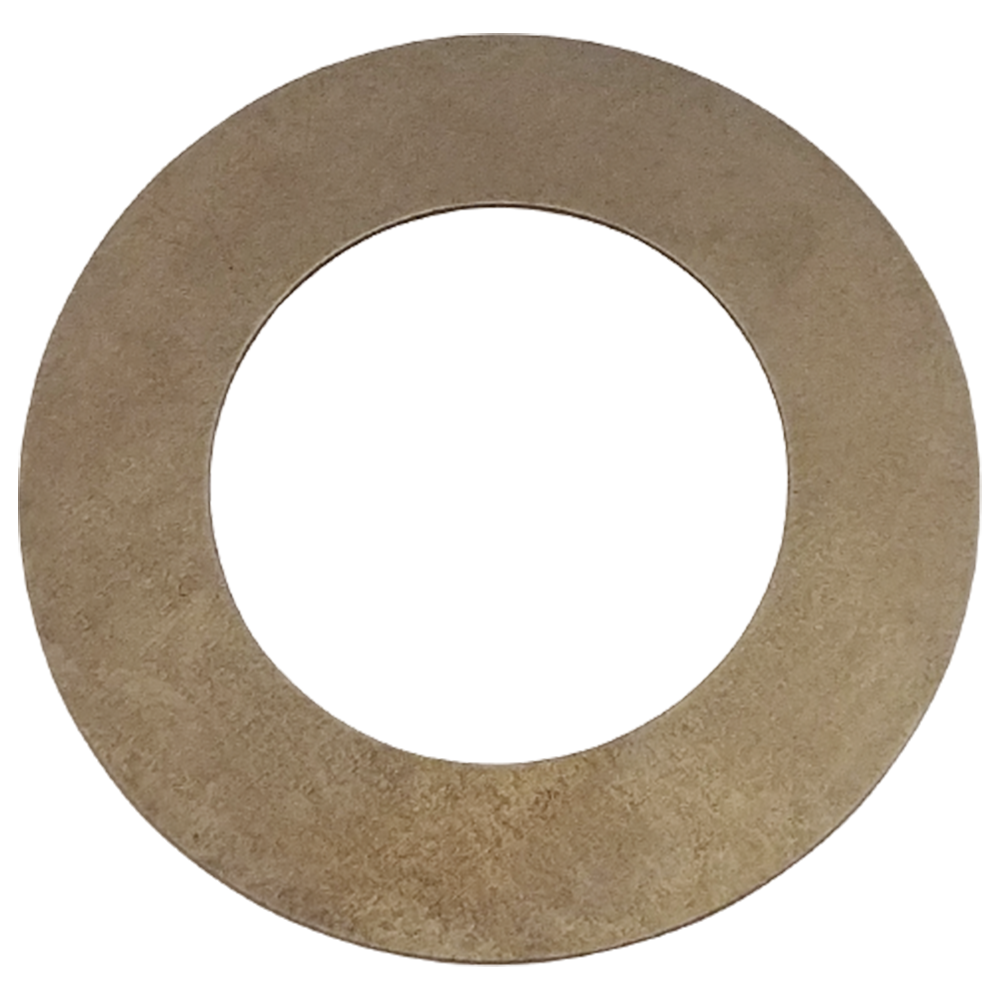

TW-9-030 2.400 1.452 0.030

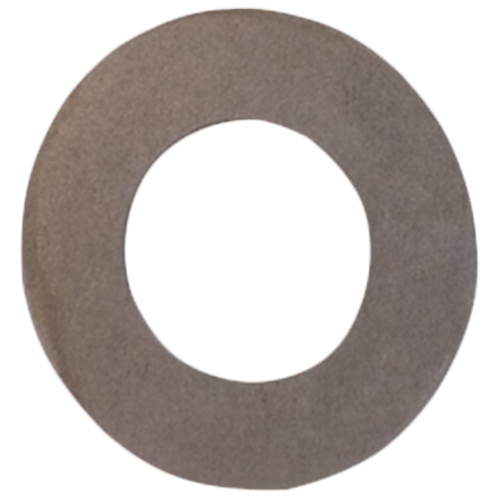

TW-9-14 2.000 1.075 0.020
TW-9-9 2.400 1.450 0.012

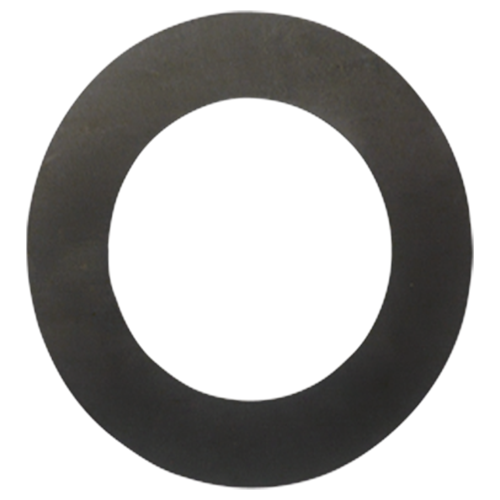

VW-2-10 2.500 1.575 0.010

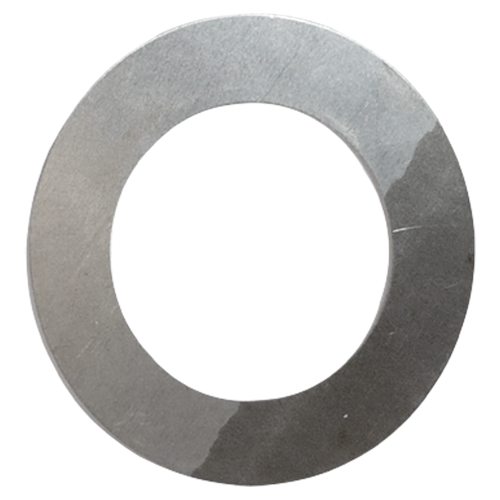

VW-2-20 2.500 1.575 0.020

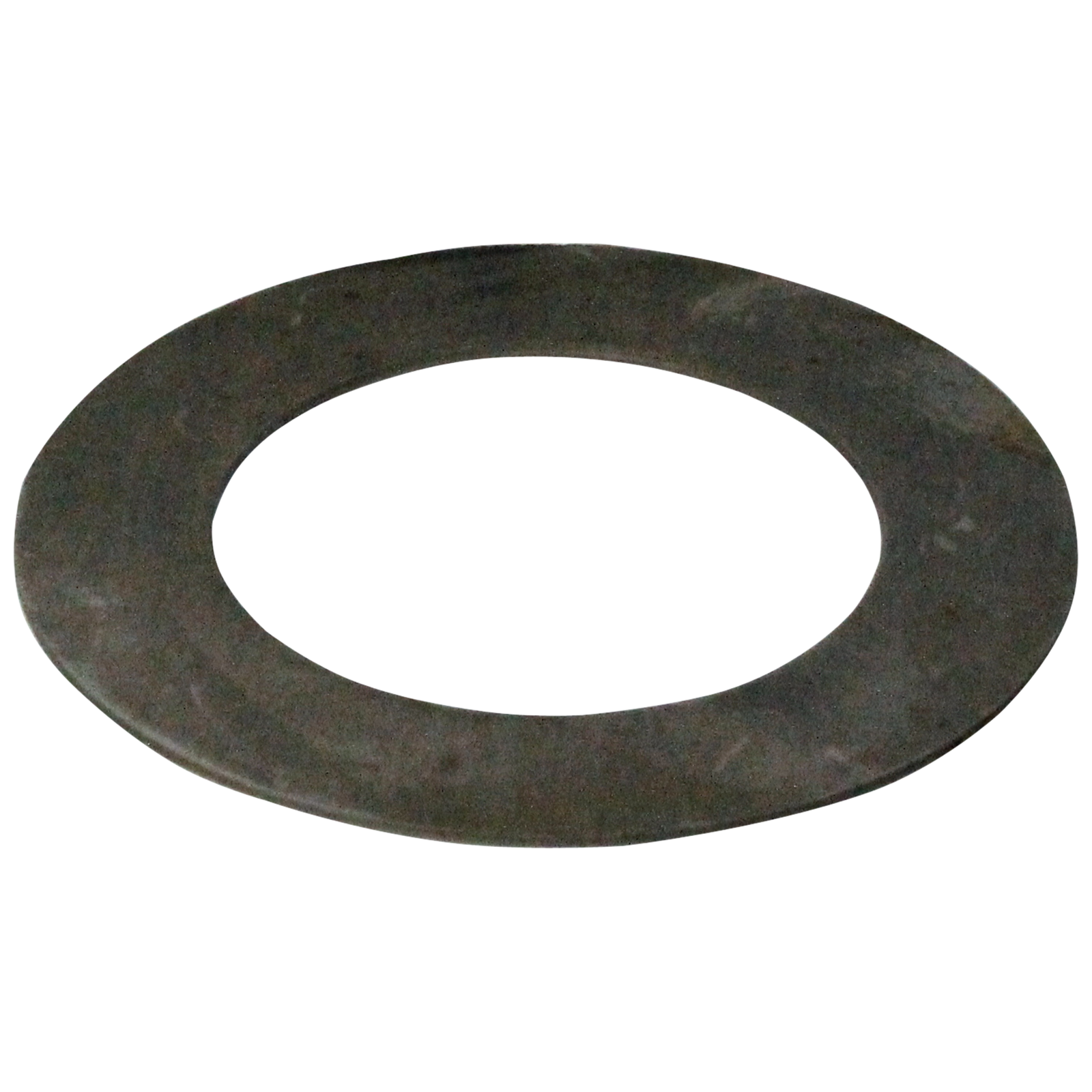

VW-2-30 2.500 1.575 0.030
VW-9-2 2.380 1.350 0.010

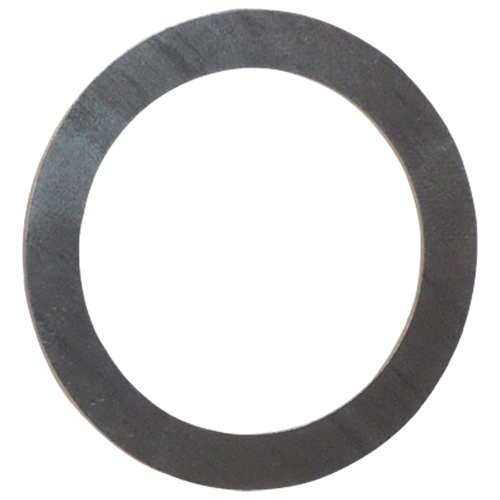

WW-9-1 1.910 1.450 0.012

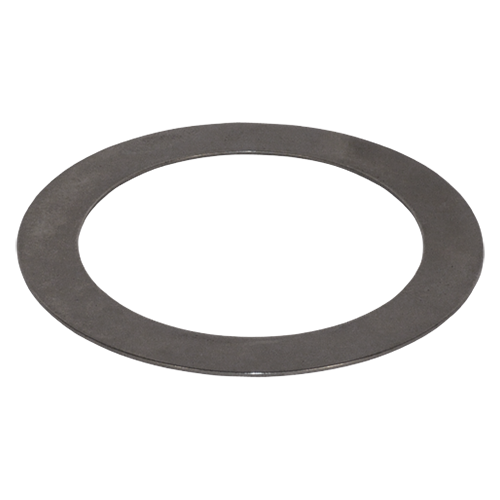

WW-9-5 2.720 2.000 0.030
