TORQUE CONVERTER RIVETS

RIVETS Full Listing
Part ID Shank Dia. (inch) Shank Length Rivet Head Dia. (inch) Rivet Head Rivet Head Thickness (inch) Type
3141249 0.231 0.358 0.303 Solid
3142230 0.193 0.905 0.193 Tubular

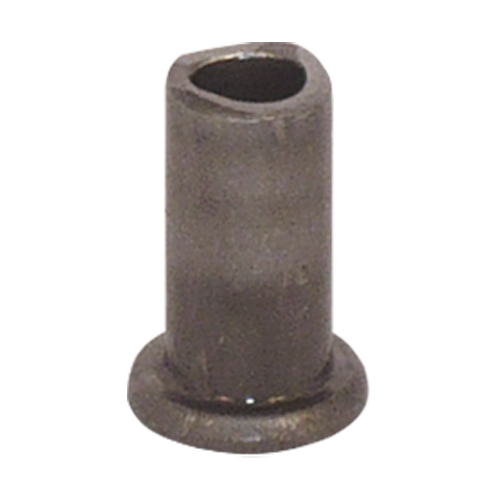

FX-12 0.214 0.312 0.312 Tubular

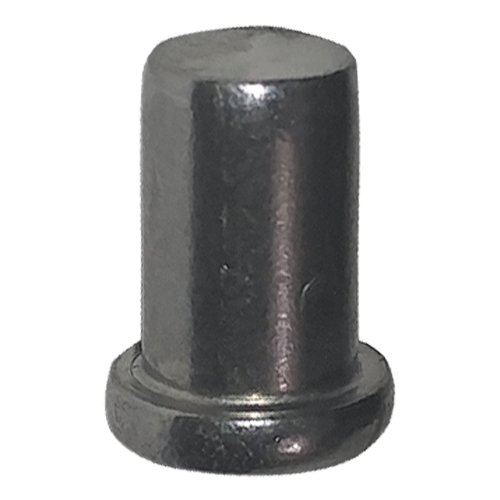

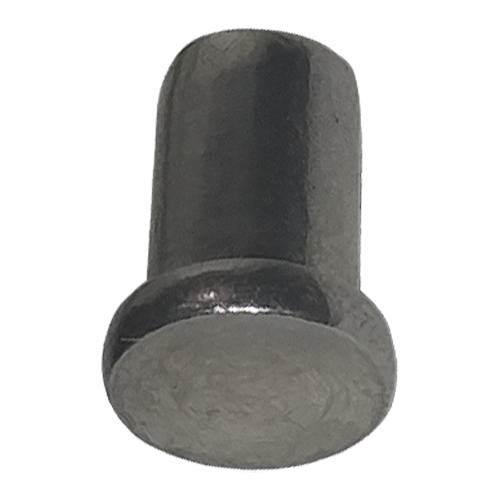

FX-12-10 0.283 0.432 0.378 Flat Solid

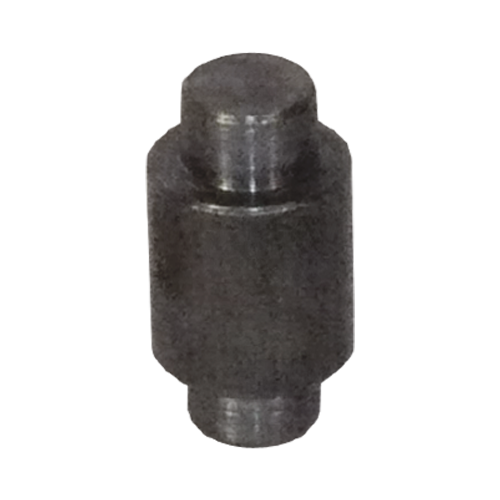

FX-12-3 0.248 0.705 0.248 Solid

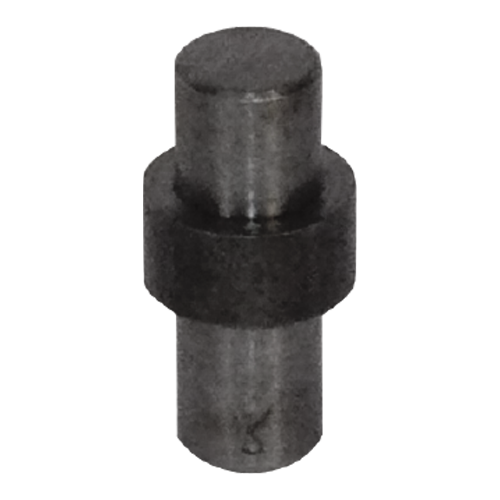

FX-12-4 0.274 0.840 Solid
FX-12-4A 0.276 1.000 0.276
FX-12-5 0.230

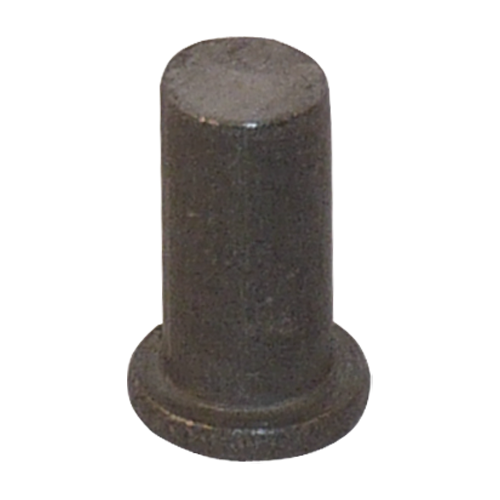

FX-12-6 0.220 0.440 0.315 Solid

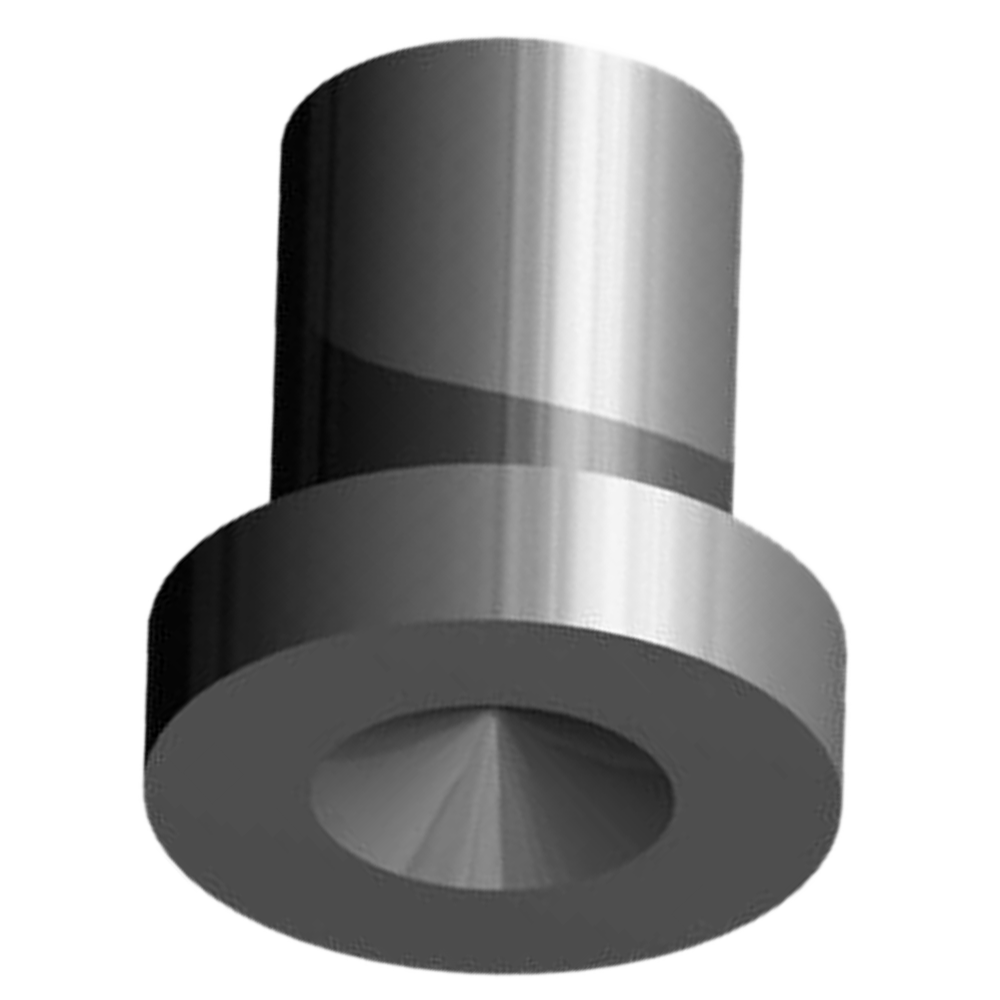

FX-12-8 0.310 0.375 0.470 Solid with a notch

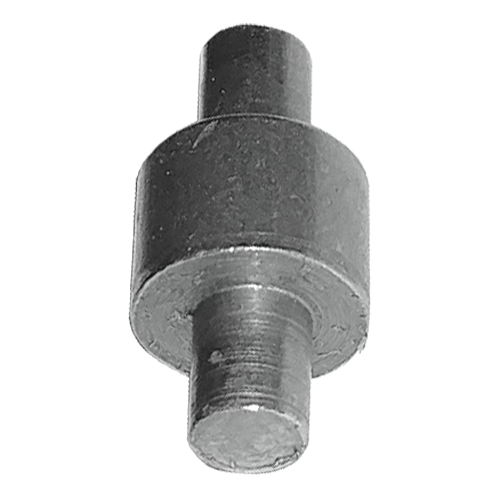

FX-12-9

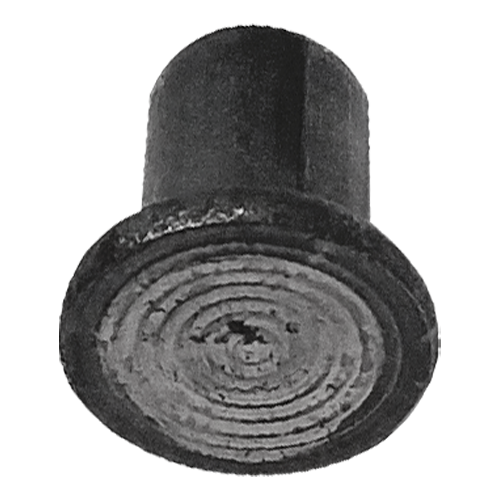

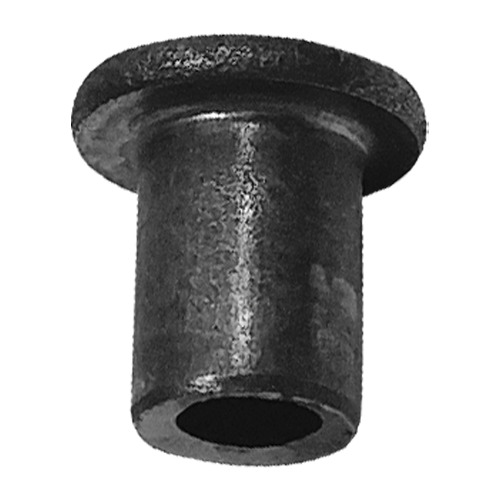

FX-12F 0.230 0.312 0.380 Tubular

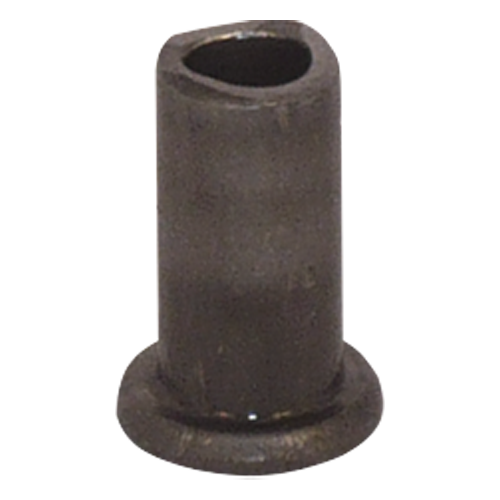

FX-12L 0.214 0.385 0.312 Tubular

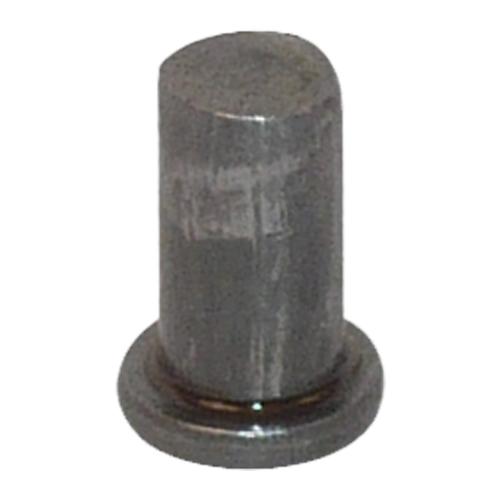

FX-12LS 0.214 0.385 0.312 Solid

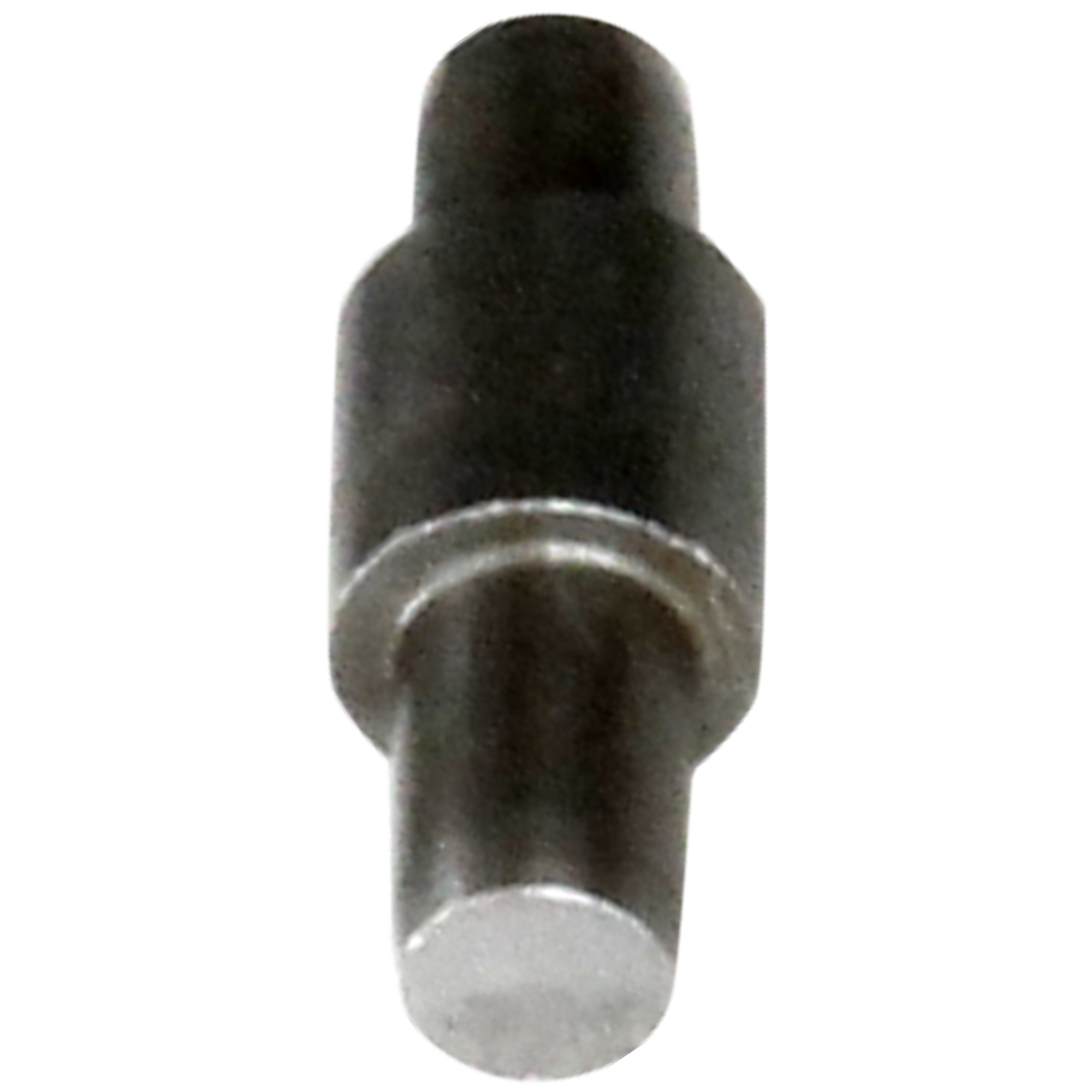

FX-22-2 0.200 0.840 0.200 Tubular
HX-12A 0.233 0.475 0.400 Solid
HX-12LA 0.233 0.710 0.400 Solid
HX-12LS 0.233 0.710 0.400 Solid
HX-12S 0.233 0.475 0.400 Solid

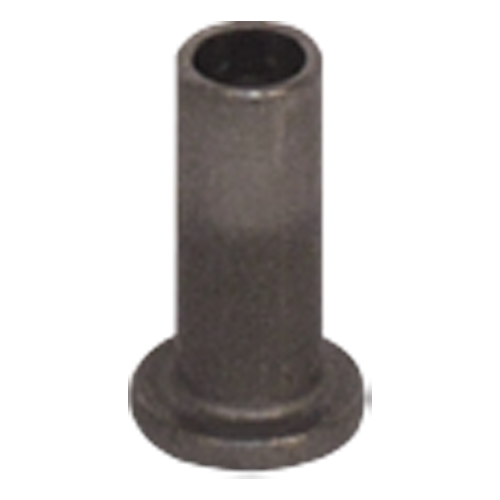

JX-12 0.193 0.500 0.312 Tubular

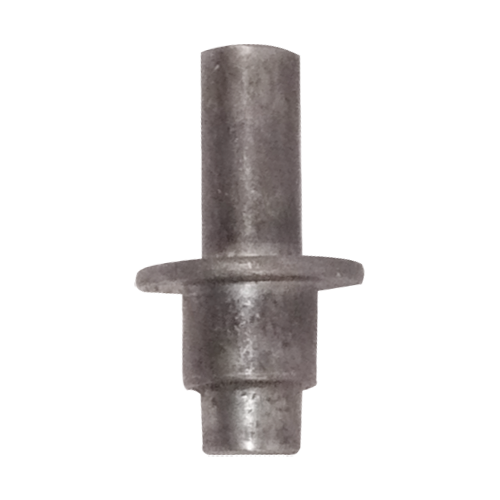

JX-12-3 0.238 1.025 0.320 Solid

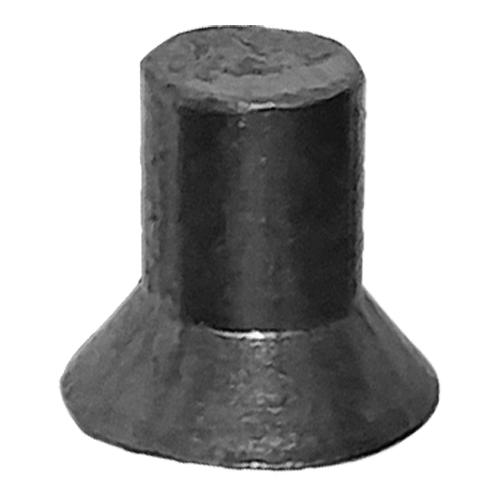

JX-12-4 0.193 0.322 0.343 Solid
JX-12-5 0.250 0.400
JX-12-7 0.158 0.285 0.220 Flat Solid

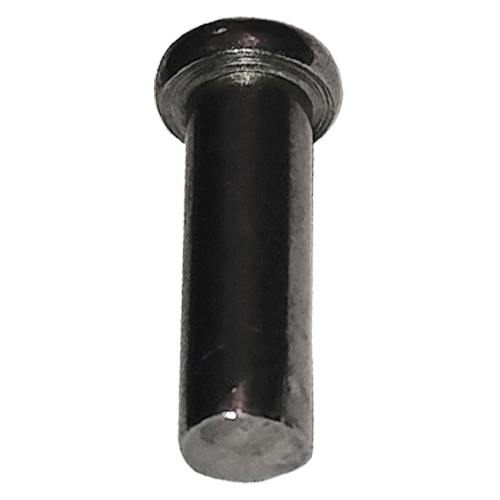

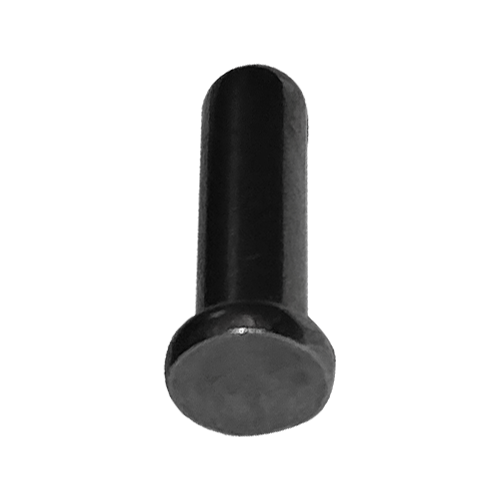

JX-12-8 0.198 0.631 0.290 Solid

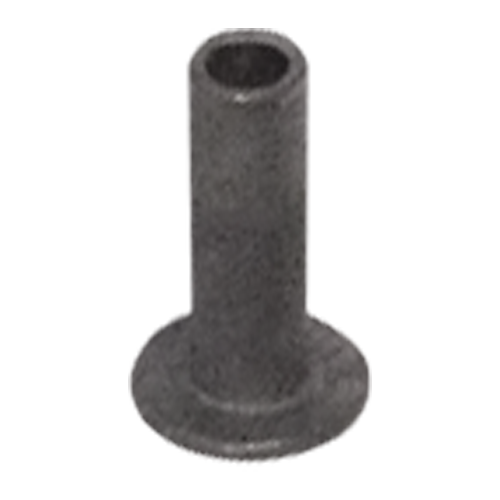

JX-12L 0.193 0.625 0.400 Tubular

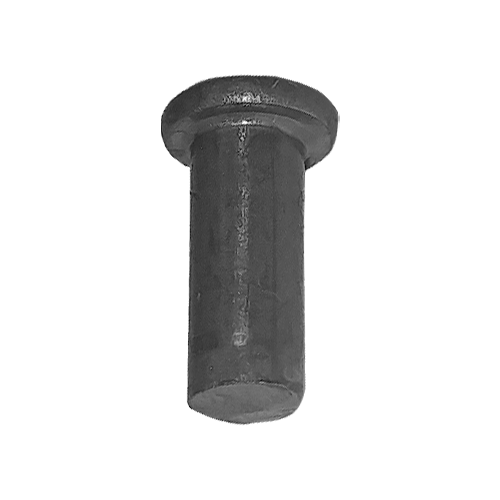

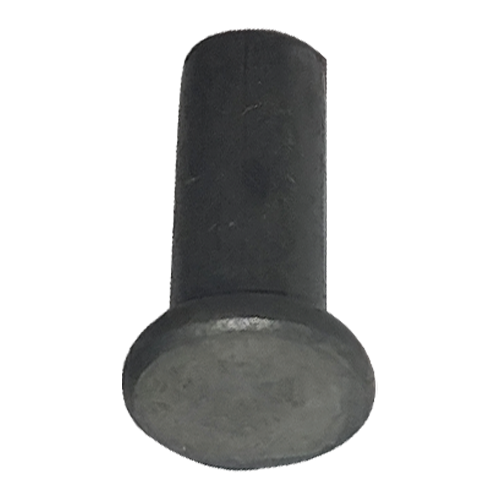

JX-12S 0.193 0.500 0.312 Solid

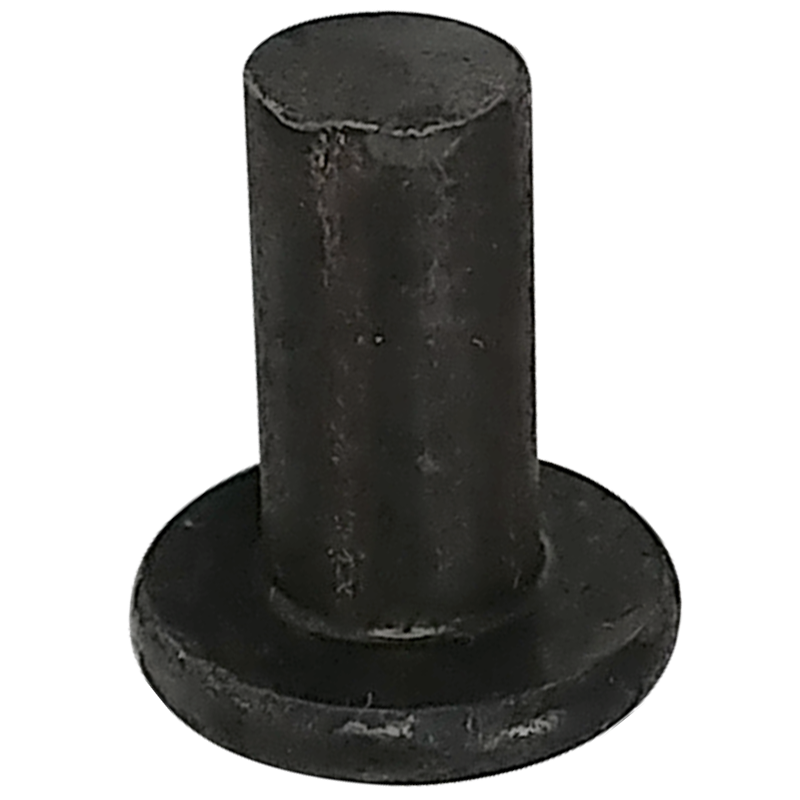

MAL-R-1 0.304 0.685 0.625 Solid
MAL-RI 0.304 0.685 0.625 Solid

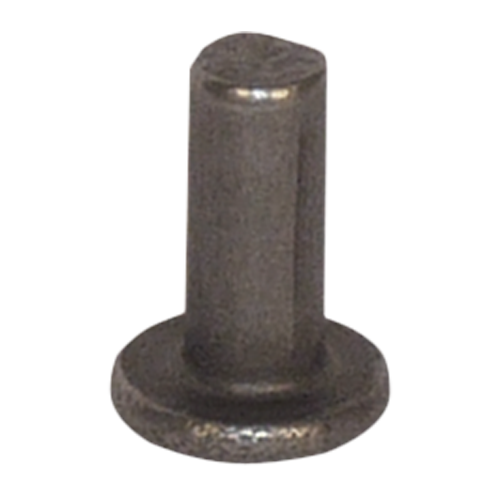

PX-12 0.168 0.370 0.300 Solid

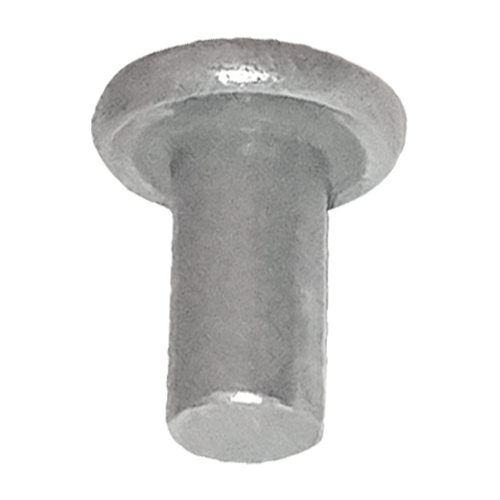

PX-12-1 0.202 0.270 0.280 Tubular
PX-12-1L 0.160 0.350

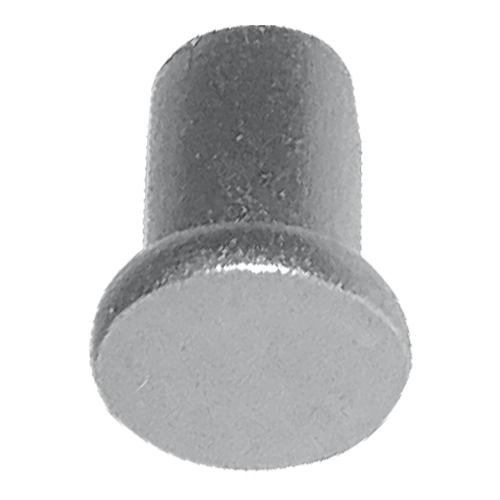

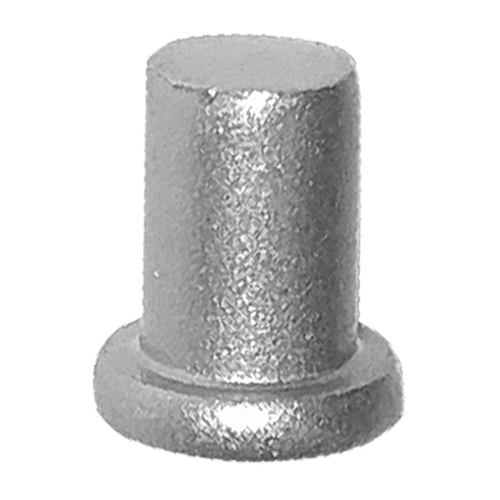

PX-12-2 0.200 0.272 0.280 Flat Solid
PX-12-4 0.238 0.278 0.355 Flat Solid

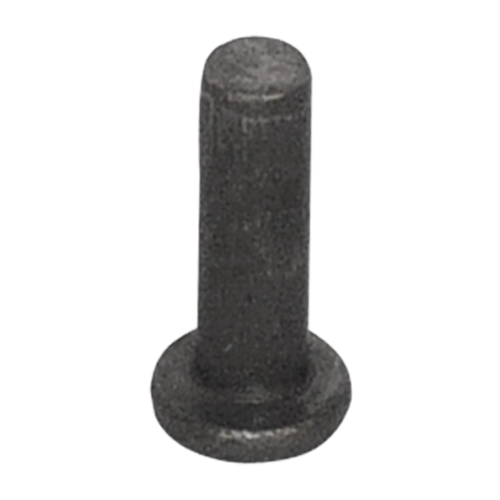

PX-12L 0.168 0.500 0.300 Solid

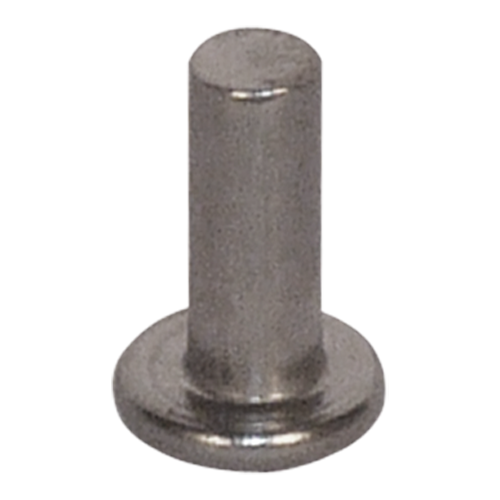

RX-12 0.160 0.360 0.283 Solid

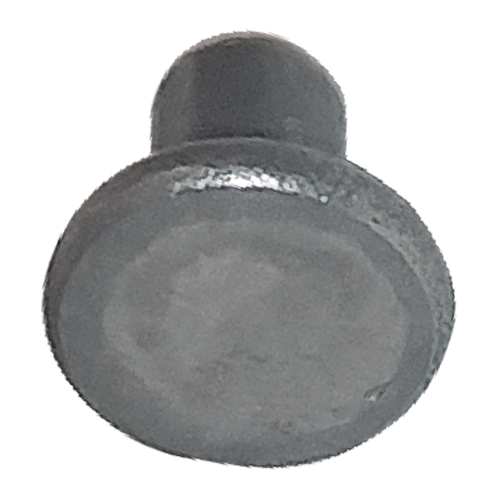

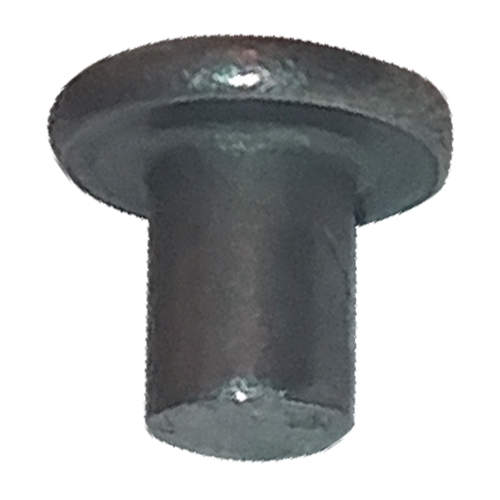

RX-12-1 0.187 0.250 0.387 Tubular

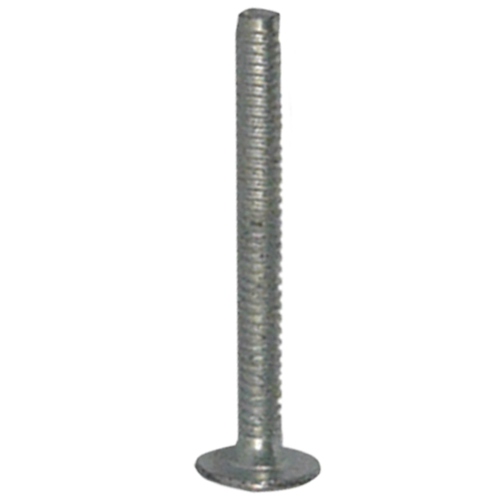

RX-22-3 0.185 1.800 0.470 Solid

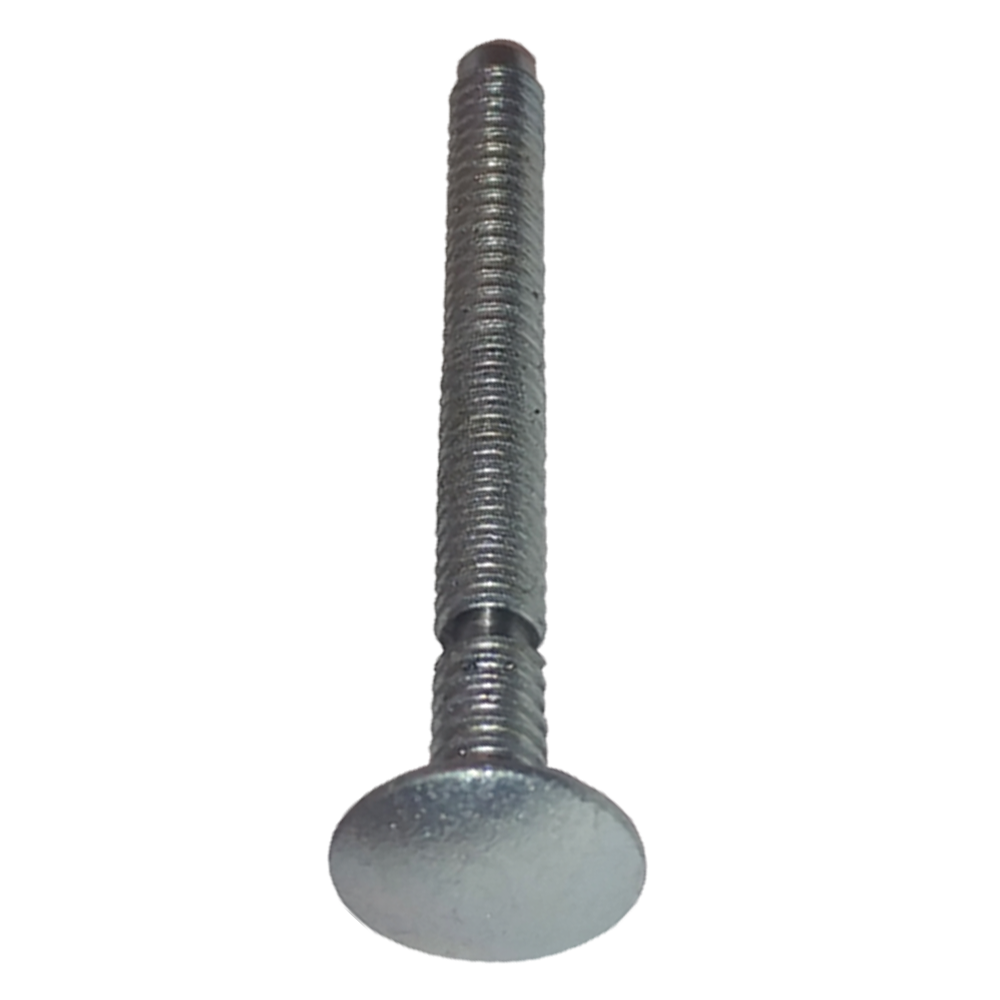

RX-22-4 0.185 1.814 0.470 Round Solid

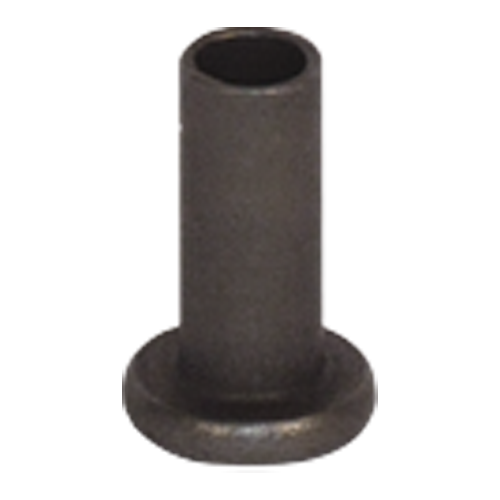

SX-12 0.214 0.500 0.370 Tubular

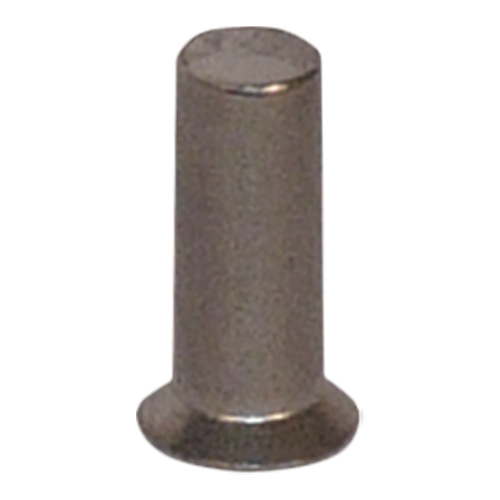

SX-12-10 0.224 0.445 0.328 Solid

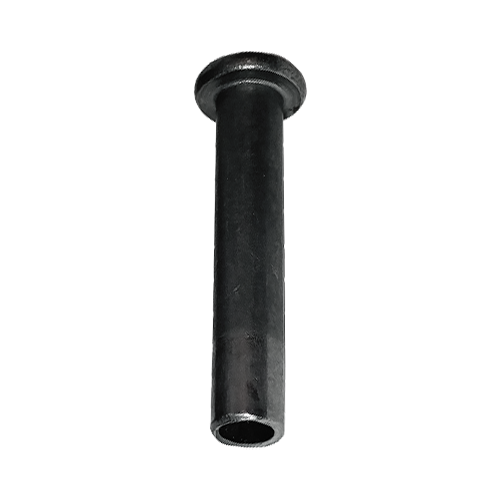

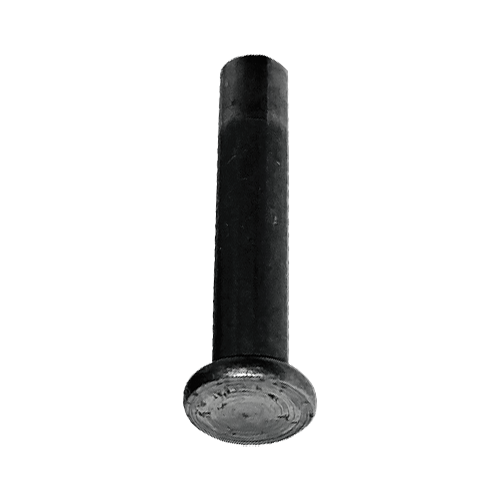

SX-12-11 0.183 1.000 0.308 Tubular
SX-12-12 0.170 0.270 0.260 Solid

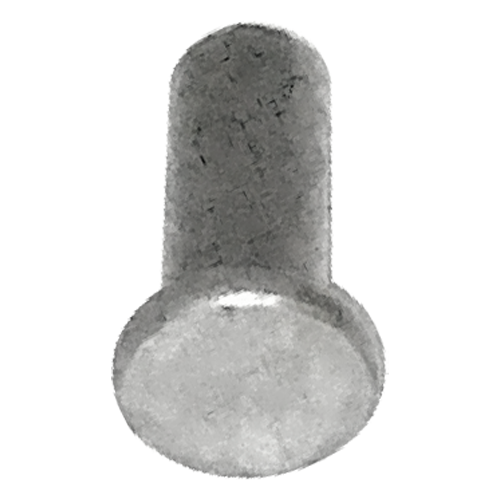

SX-12-14 0.198 0.515 0.300 Flat Solid

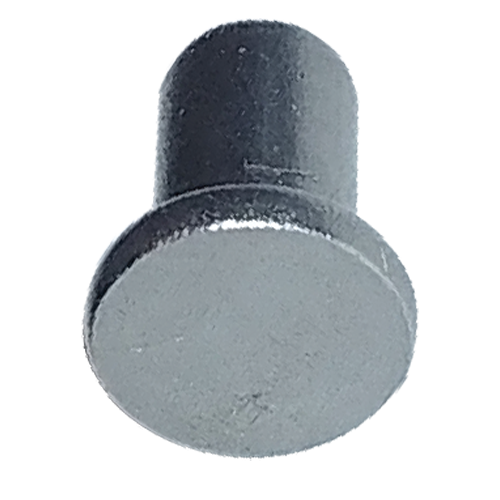

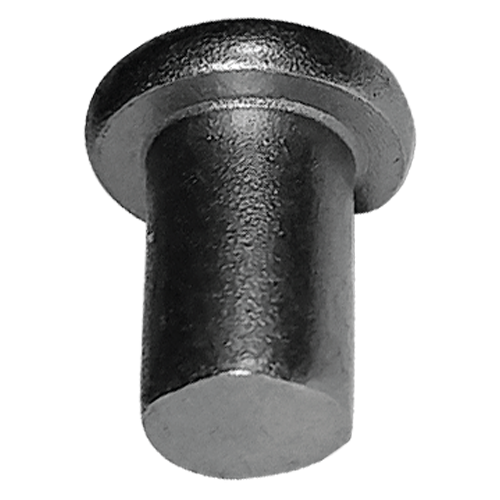

SX-12-15 0.196 0.296 0.310 Flat Solid

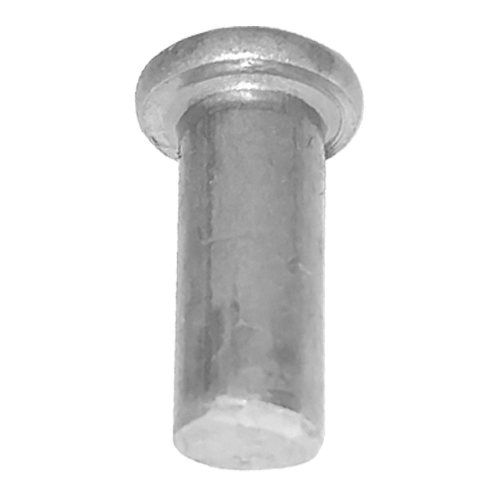

SX-12-16 0.193 0.500 0.333 Flat Solid

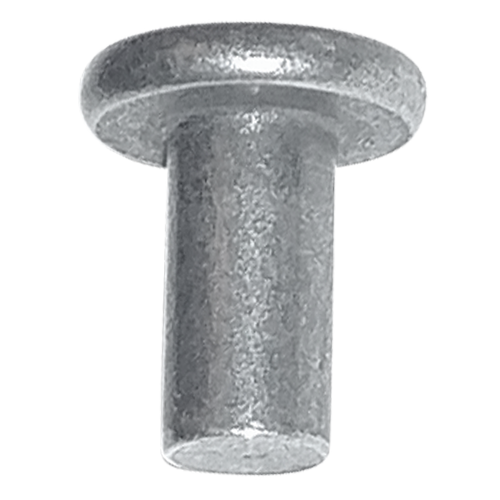

SX-12-17 0.218 0.438 0.438 Flat Solid

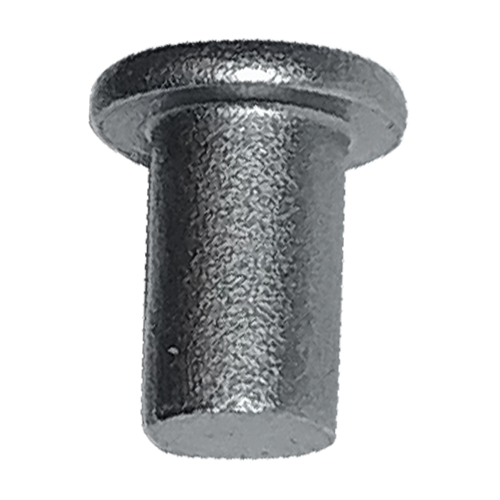

SX-12-18 0.238 0.380 0.380 Flat Solid

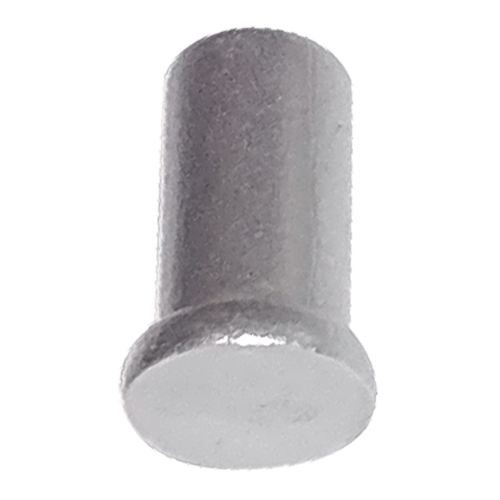

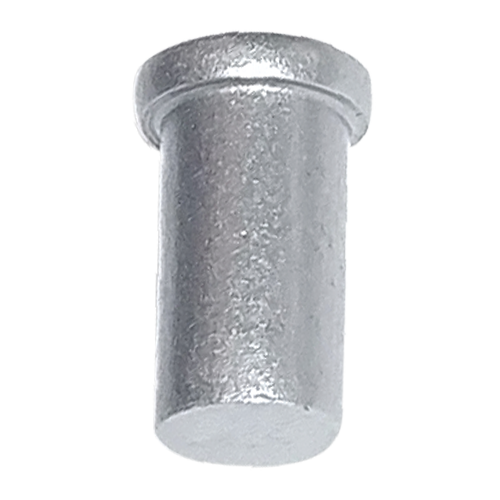

SX-12-19 0.235 0.485 0.300 Flat Solid

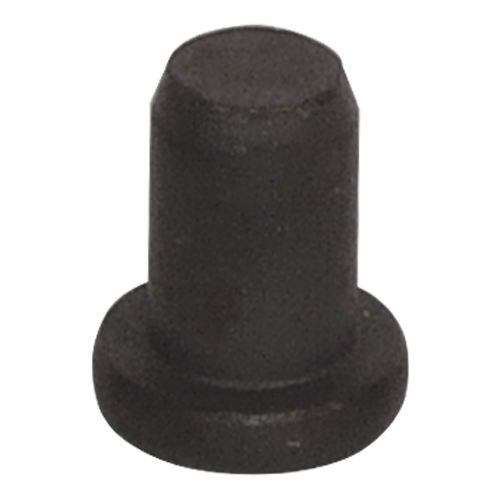

SX-12-2 0.323 0.440 0.500 Solid
SX-12-20 0.235 0.574 0.300 Solid

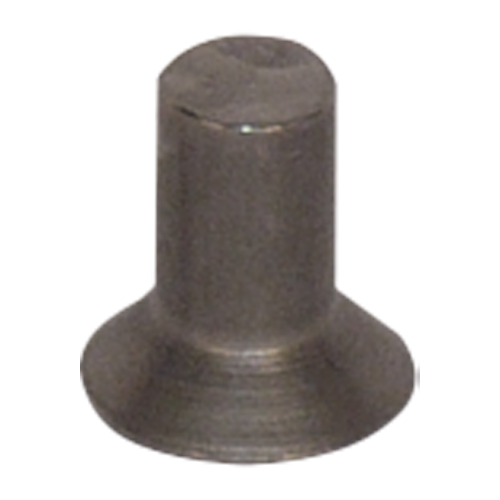

SX-12-4 0.183 0.353 0.341 Solid

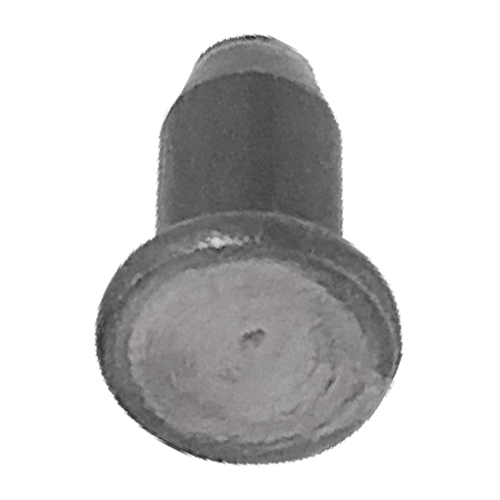

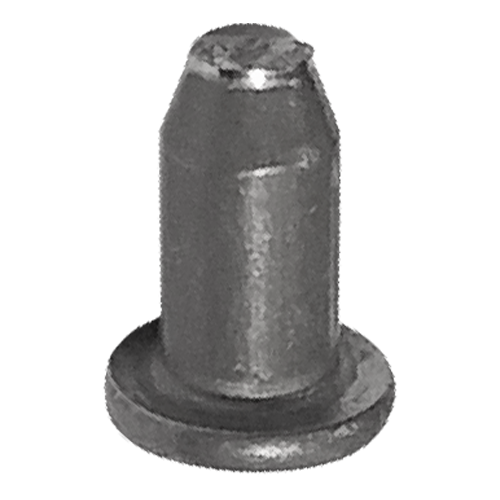

SX-12-5 0.170 0.340 0.281 Solid

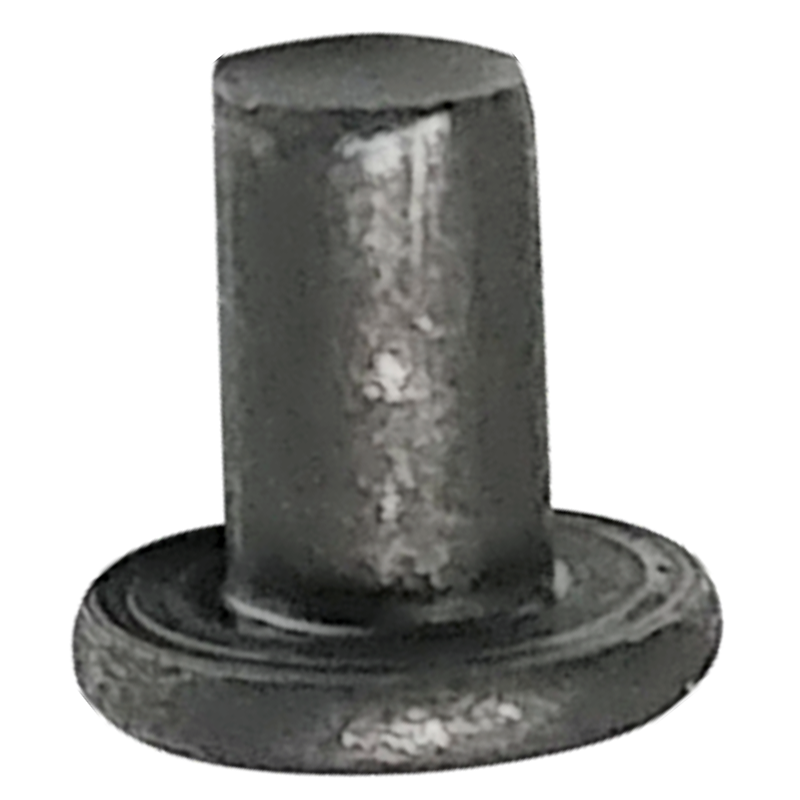

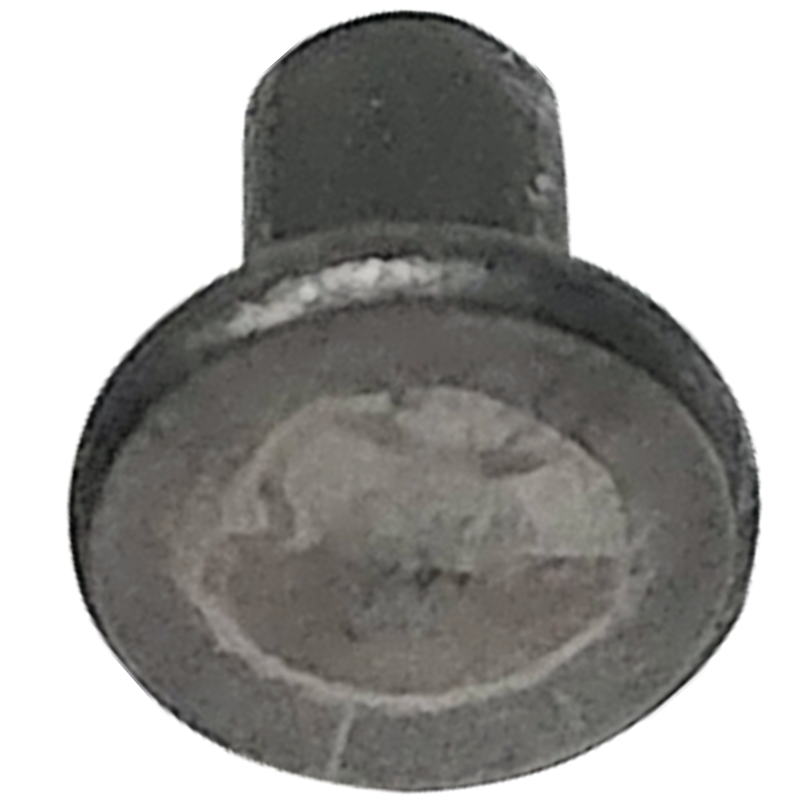

SX-12-6 0.156 0.220 0.356 Solid

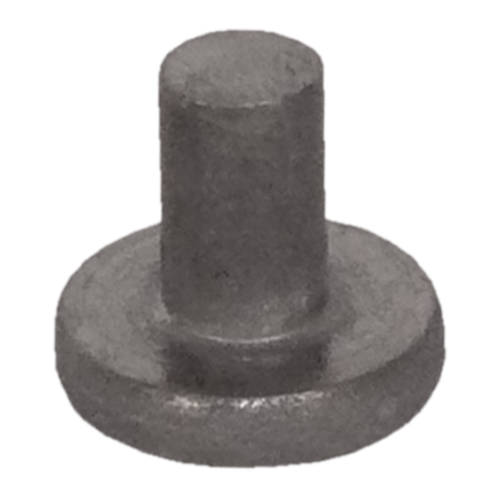

SX-12-7 0.245 0.370 0.580 Solid

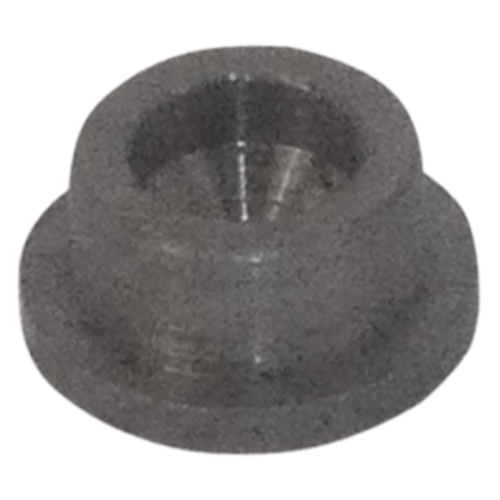

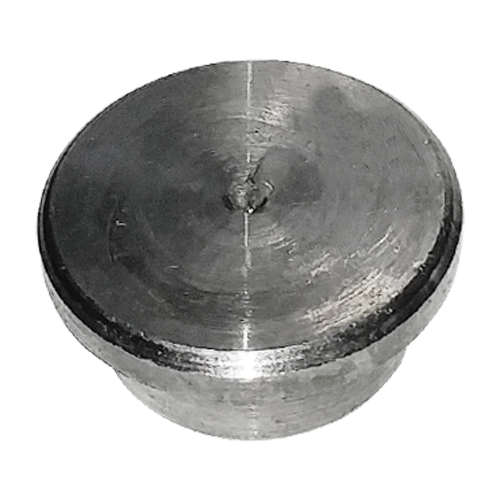

SX-12-9 0.486 0.250 0.625 Solid
TX-12-1 0.183 1.576 0.315 Tubular

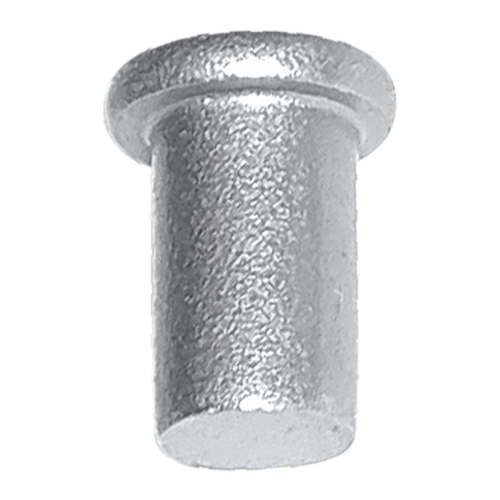

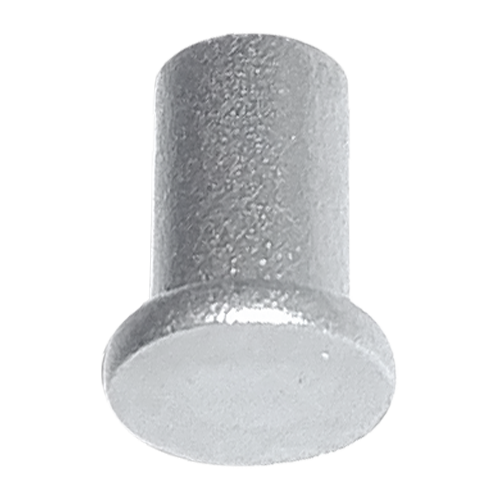

TX-12-10 0.240 0.370 0.340 Flat Solid

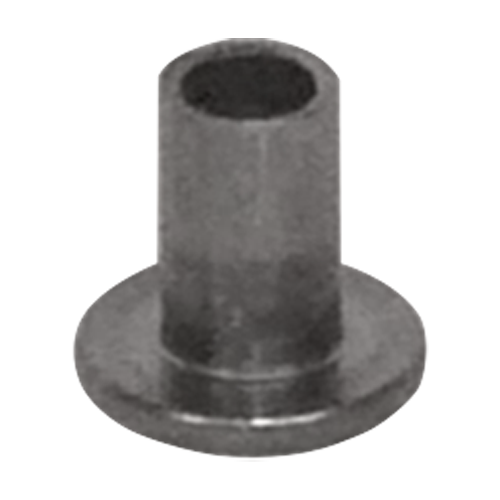

TX-12-2 0.250 0.476 0.475 Flat Tubular

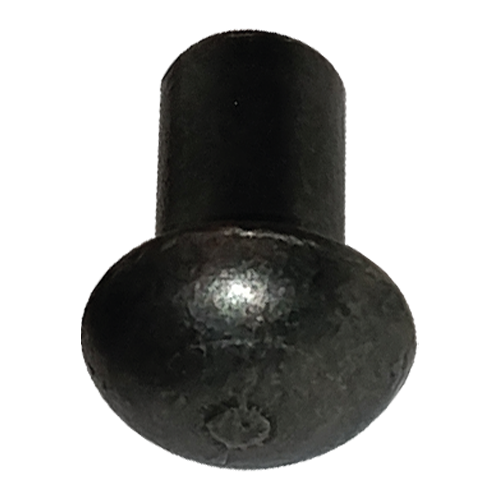

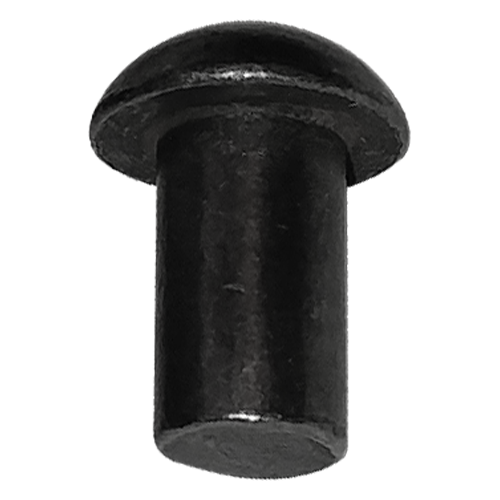

TX-12-3 0.233 0.394 0.400 Solid

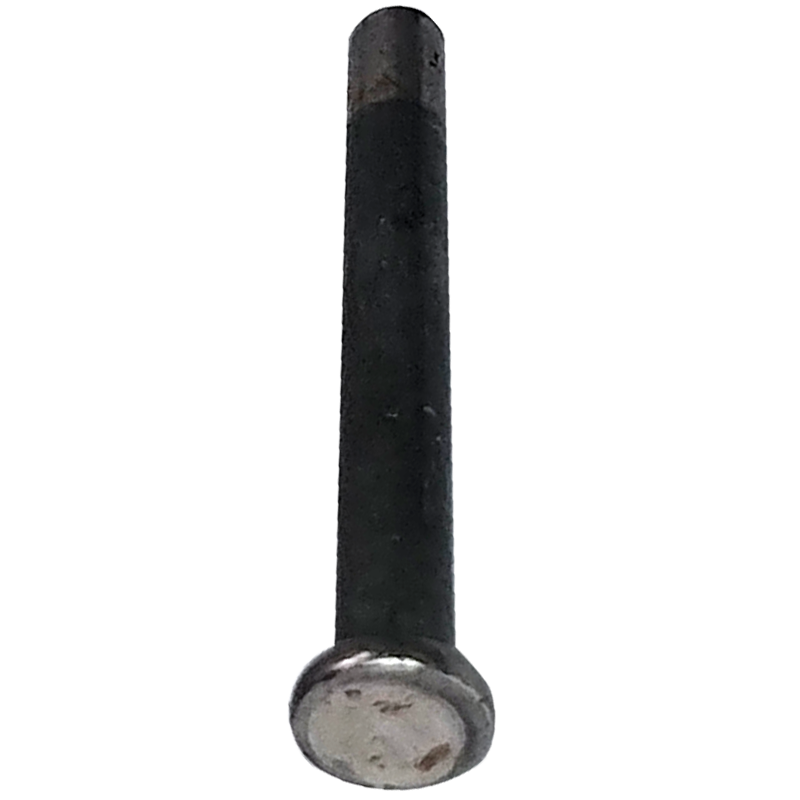

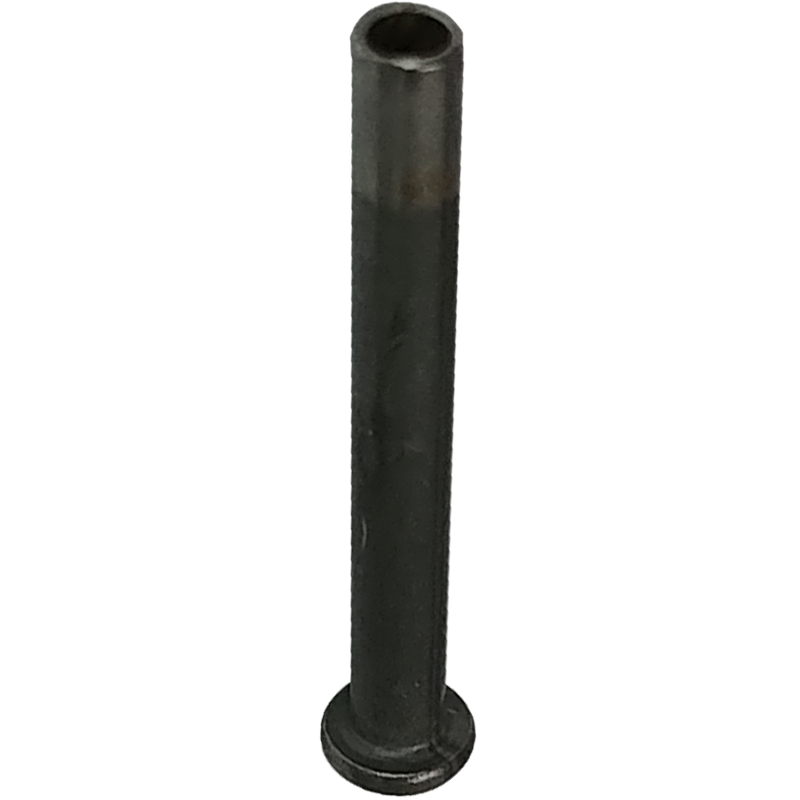

TX-12-32

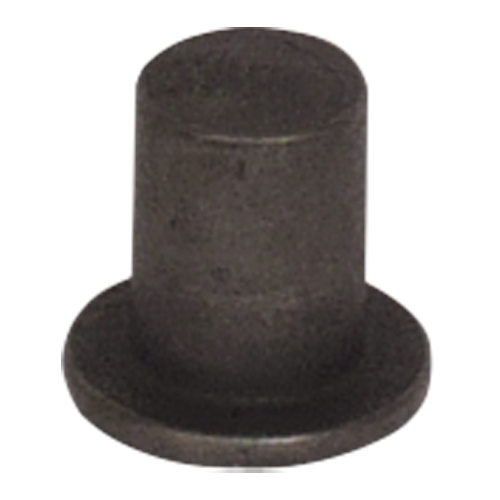

TX-12-4 0.224 0.285 0.356 Solid

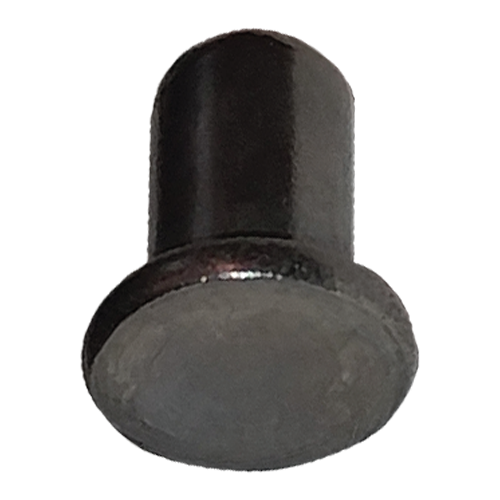

TX-12-4L 0.226 0.343 0.352 Flat Solid

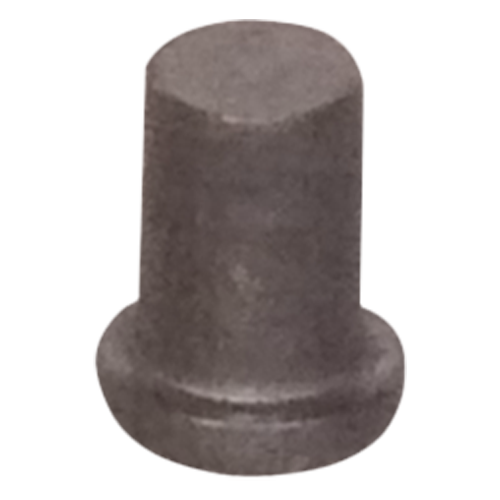

TX-12-5 0.214 0.300 0.295 Solid

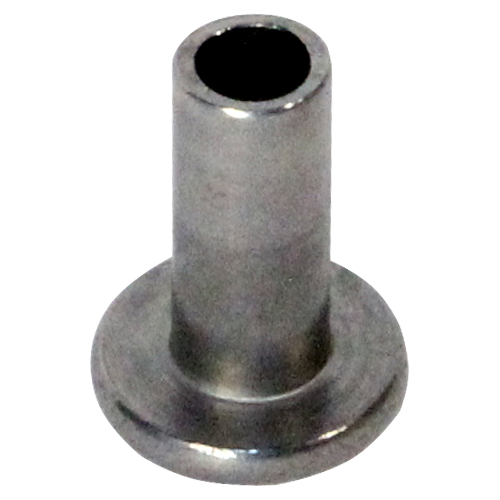

TX-12-6 0.249 0.594 0.490 Tubular
TX-12-7 0.165 0.344 0.325 Flat Solid
TX-12-8 0.298 1.050 0.413 Standoff Standoff

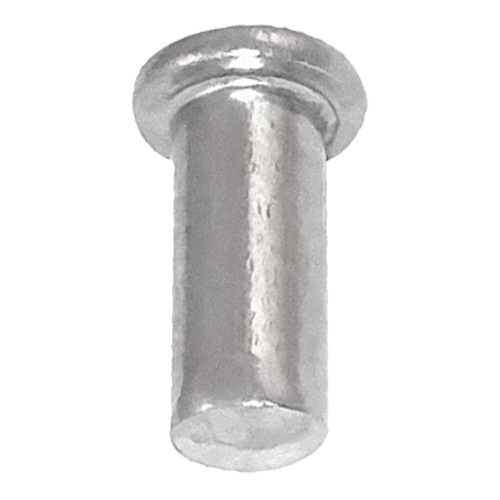

TX-12-9 0.225 0.515 0.344 Flat Solid

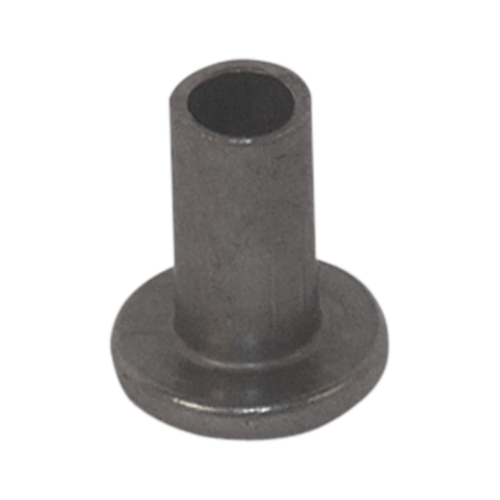

TX-12L 0.250 0.440 0.500 Tubular

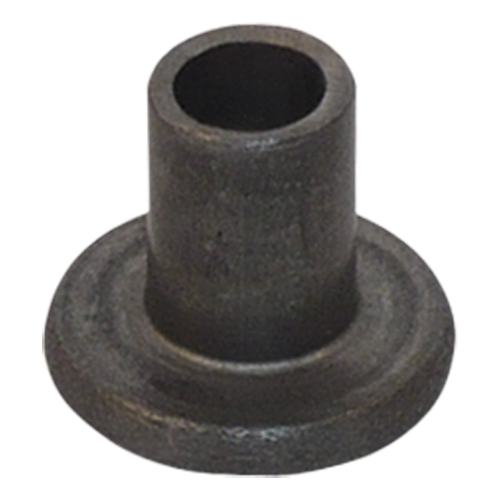

TX-12S 0.250 0.325 0.500 Tubular
VX-12 0.158 0.316 0.261 Solid
VX-12-1 0.238 0.380 0.430 Solid

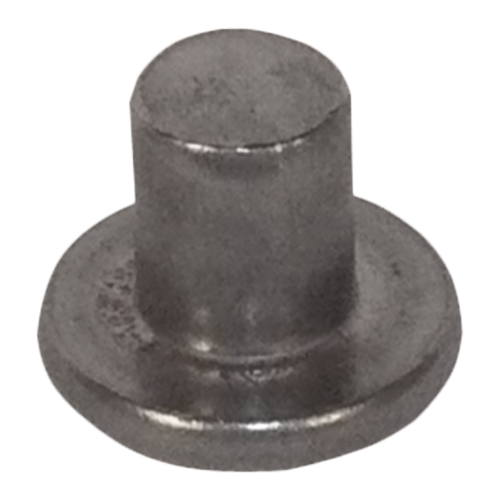

WX-10-1 0.345 0.360 0.668 Solid
WX-10-1A

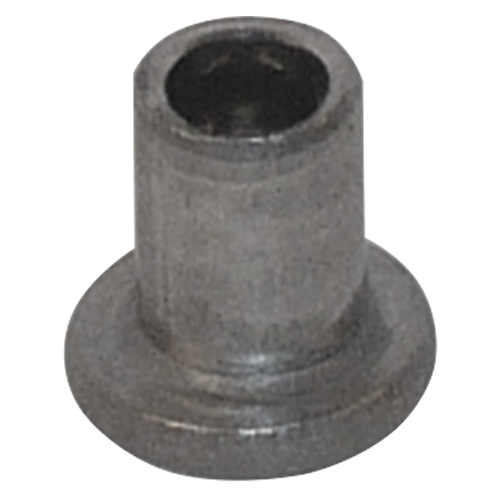

WX-12 0.193 0.218 0.312 Tubular

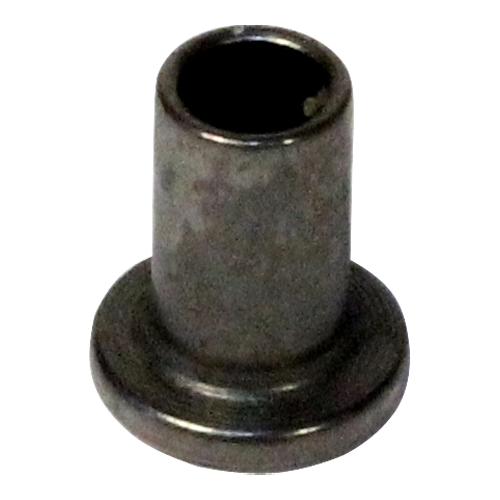

WX-12A 0.193 0.310 0.312 Tubular

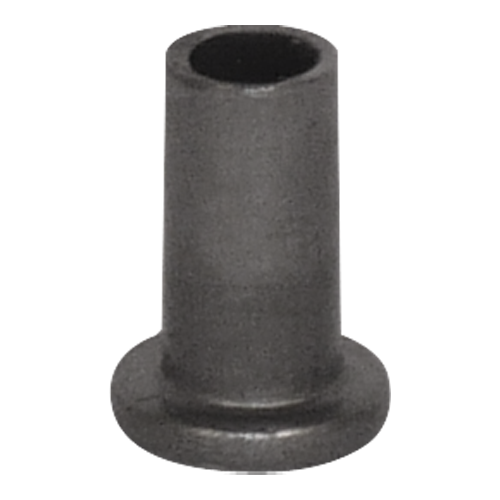

WX-12B 0.193 0.380 0.312 Tubular

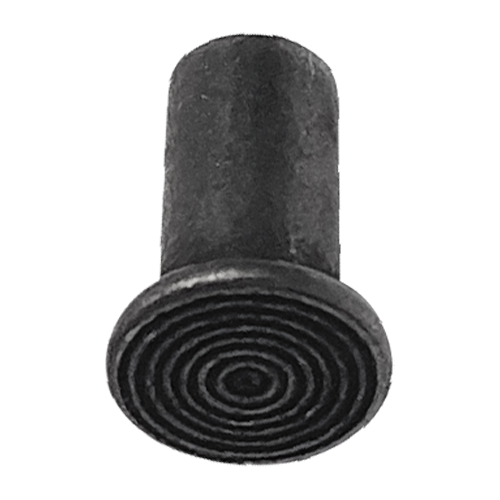

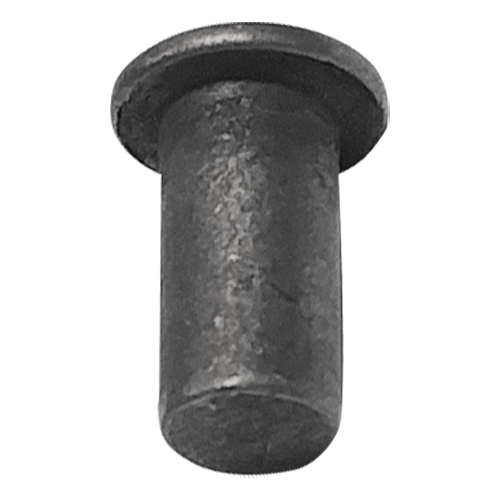

WX-12BS 0.193 0.380 0.312 Solid

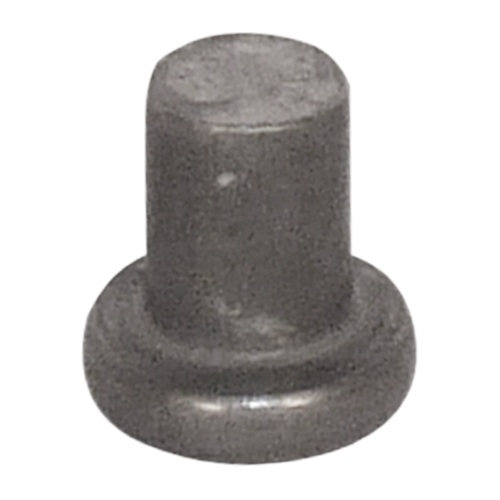

YX-12 0.245 0.295 0.400 Solid

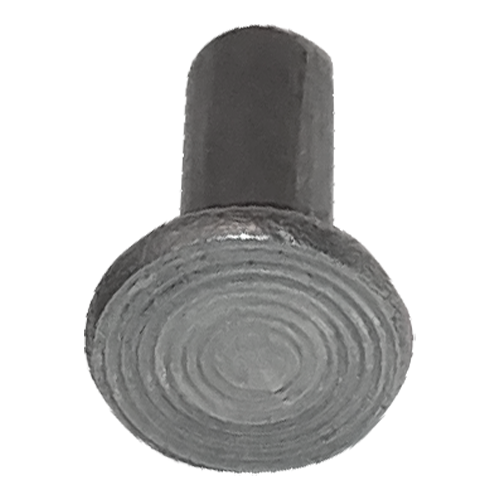

YX-12-1 0.249 0.620 0.500 Flat Solid

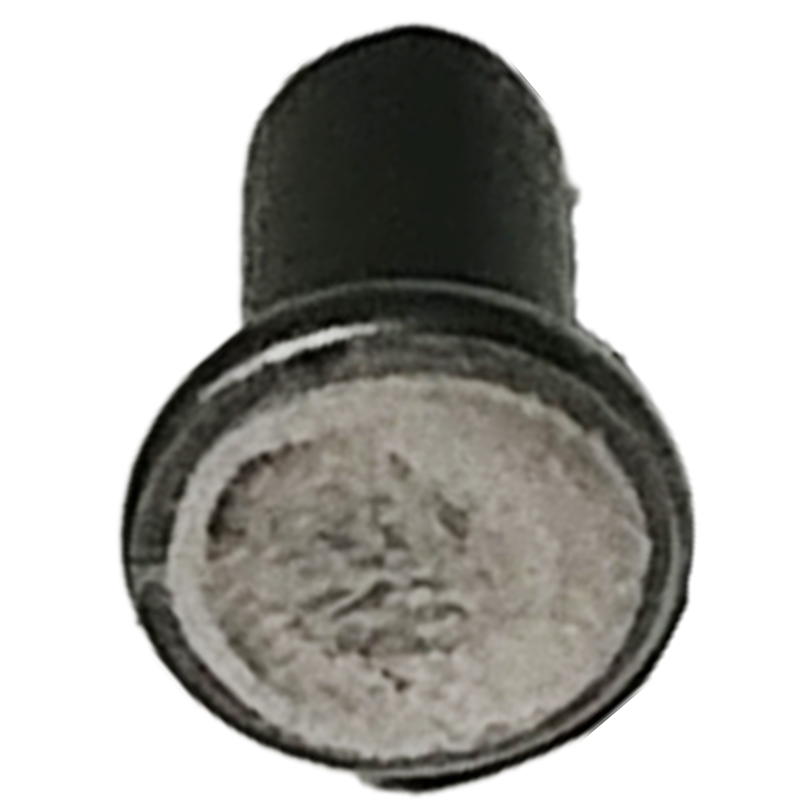

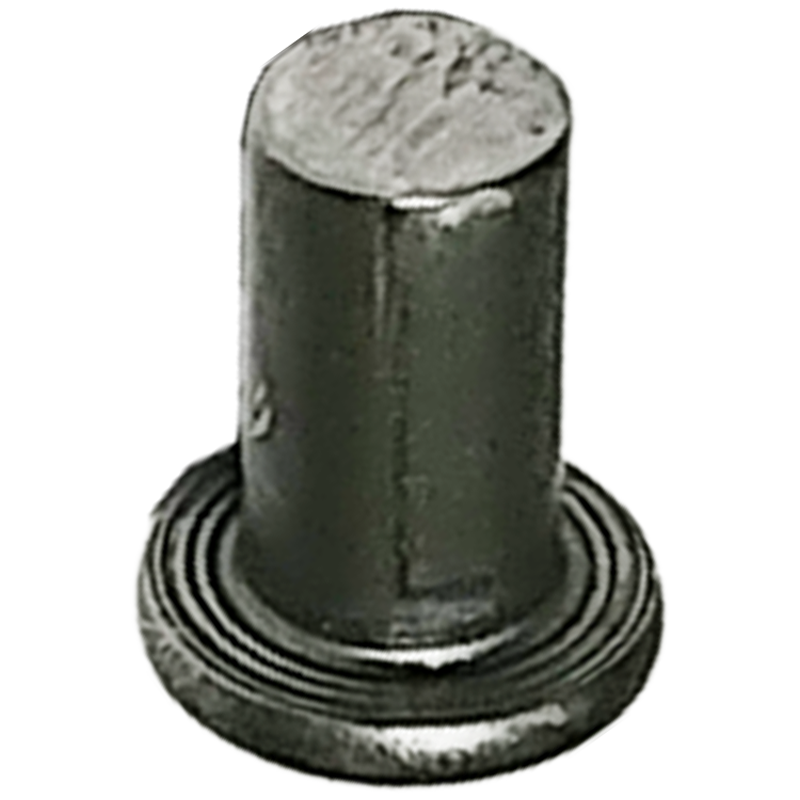

YX-12-2 0.203 0.352 0.340 Flat Solid

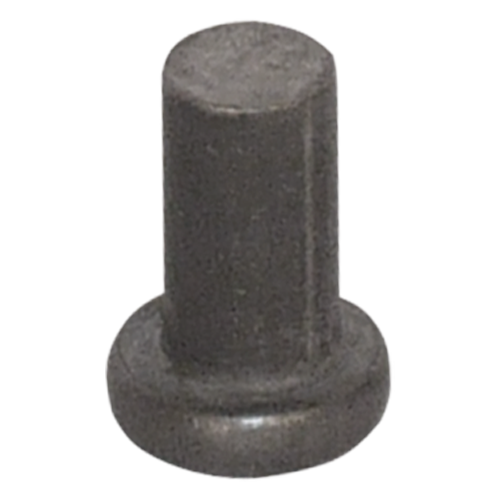

YX-12L 0.245 0.425 0.400 Solid
