TORQUE CONVERTER BUSHINGS

BUSHINGS Full Listing

Tri’s torque converter bushings are manufactured in accordance with OEM specifications. In several torque converter applications we have made aftermarket upgrades for improved performance. Bushings are available in steel, bronze and bi-metallic materials in a variety in sizes. Torque converter bushings are always measured by the diameter of their mating parts.

Part ID Housing Dia. Shaft Dia. (inch) Thick (inch) Type Material

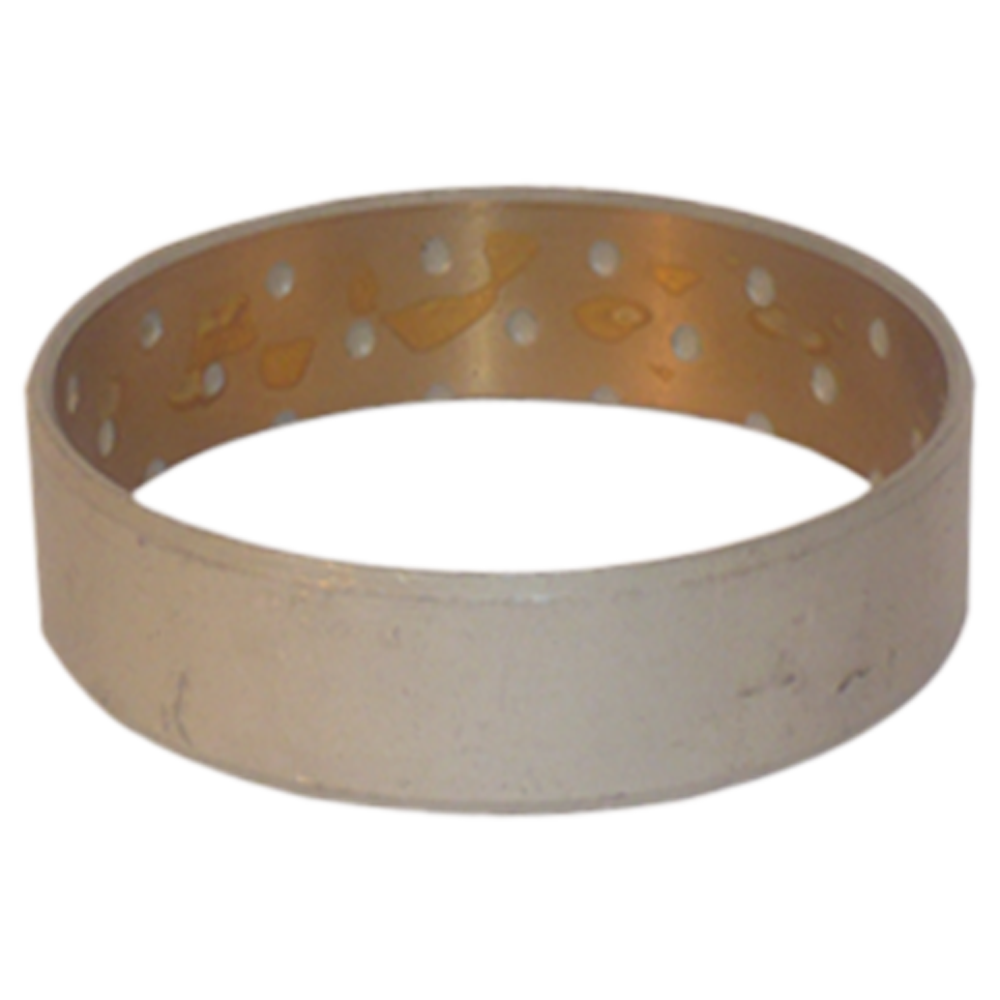

49003 1.890 1.772 0.354 Babbit

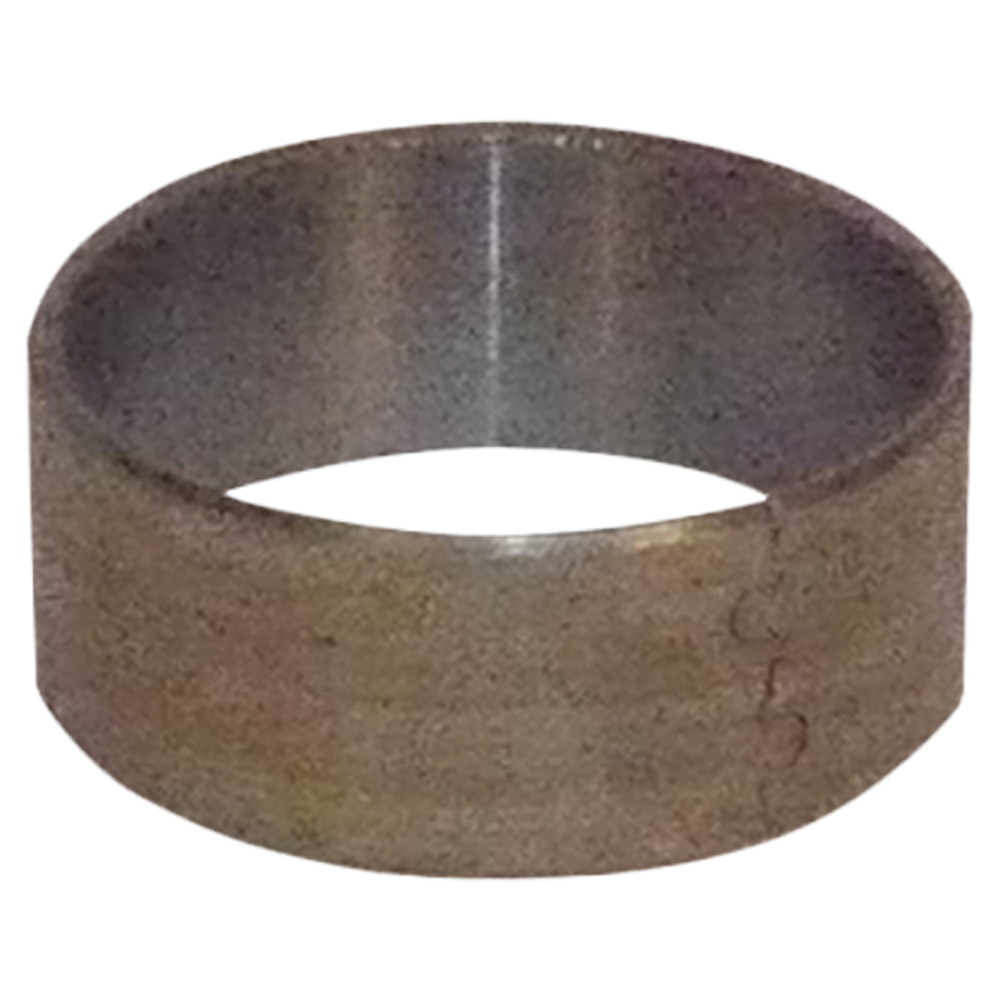

75005

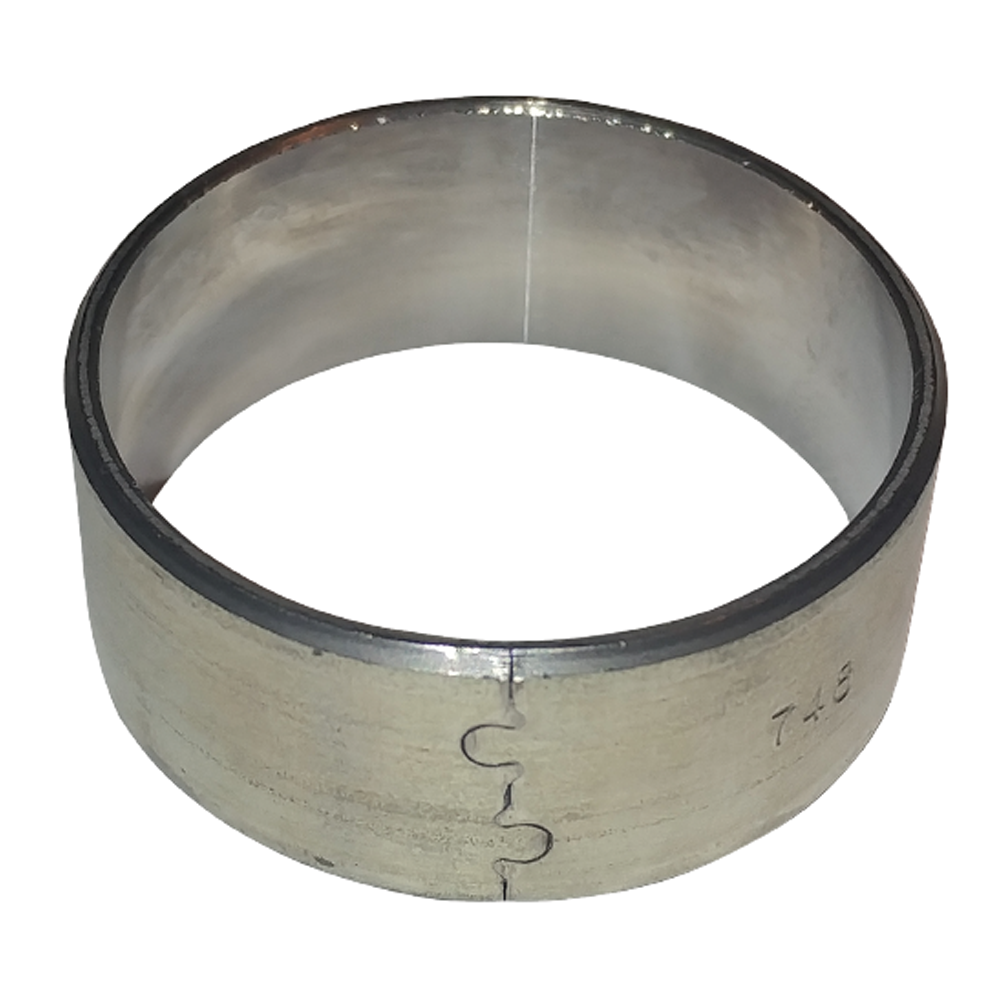

75005A
83005
86001
8618136
BB-18 1.405 1.281 0.678 Babbit
BSH-1HP

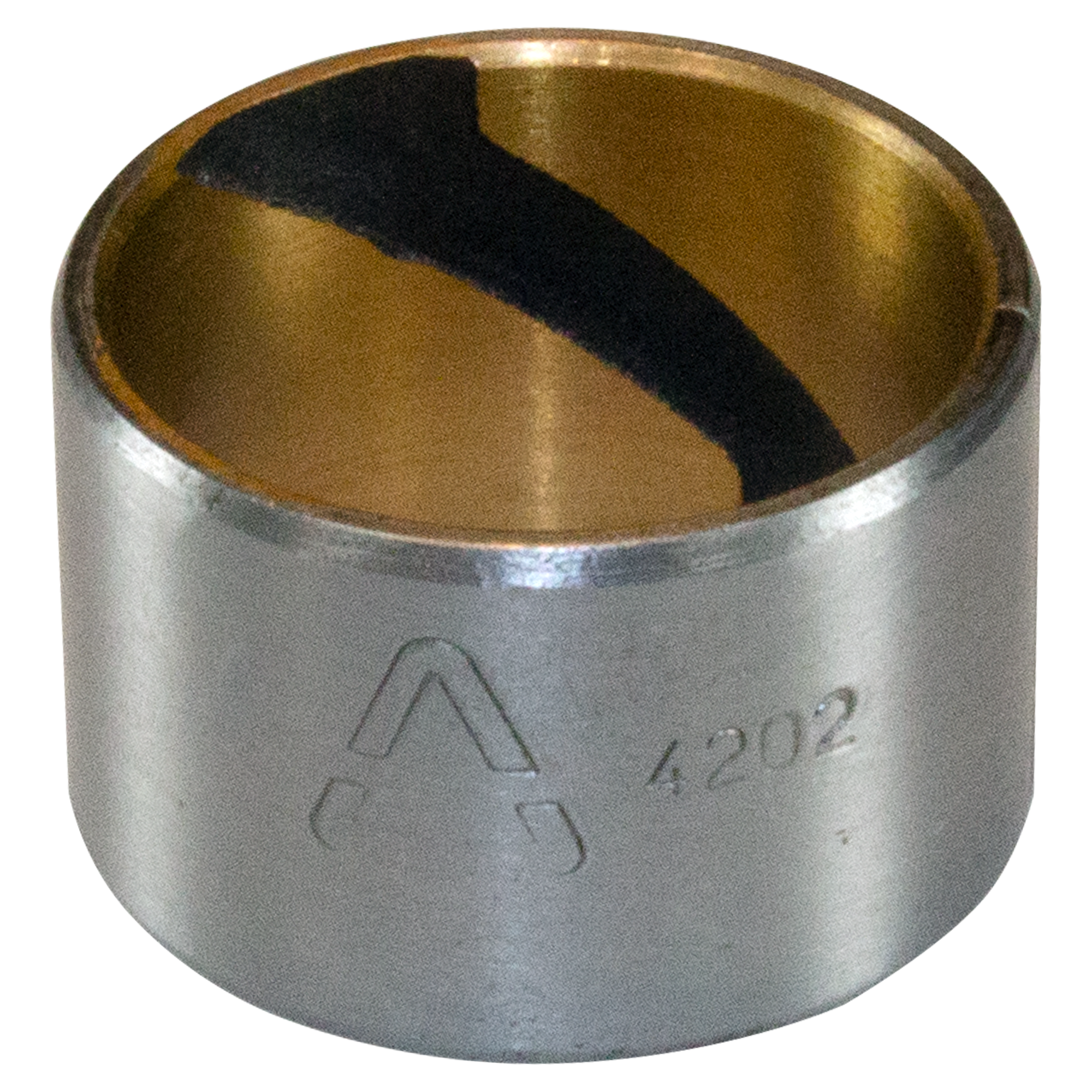

C1640B

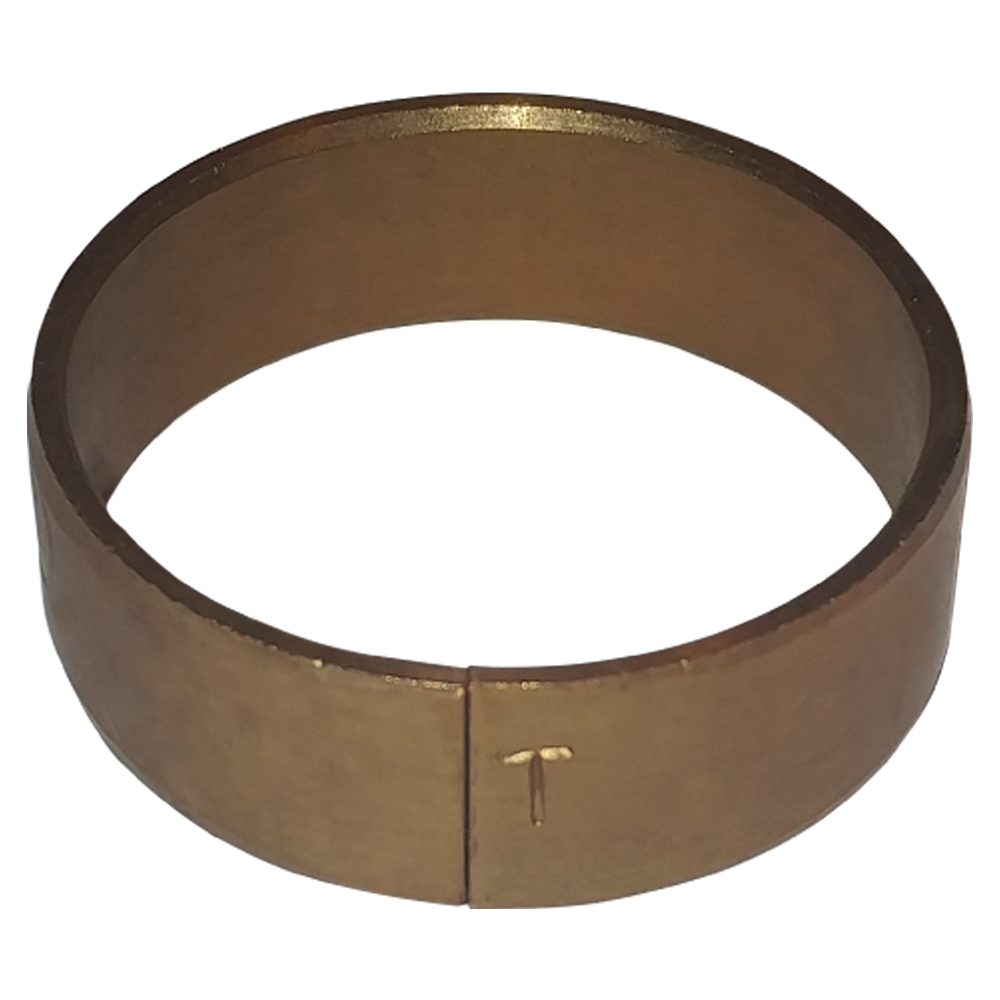

CB-18 1.375 1.246 0.437 Precision Babbit

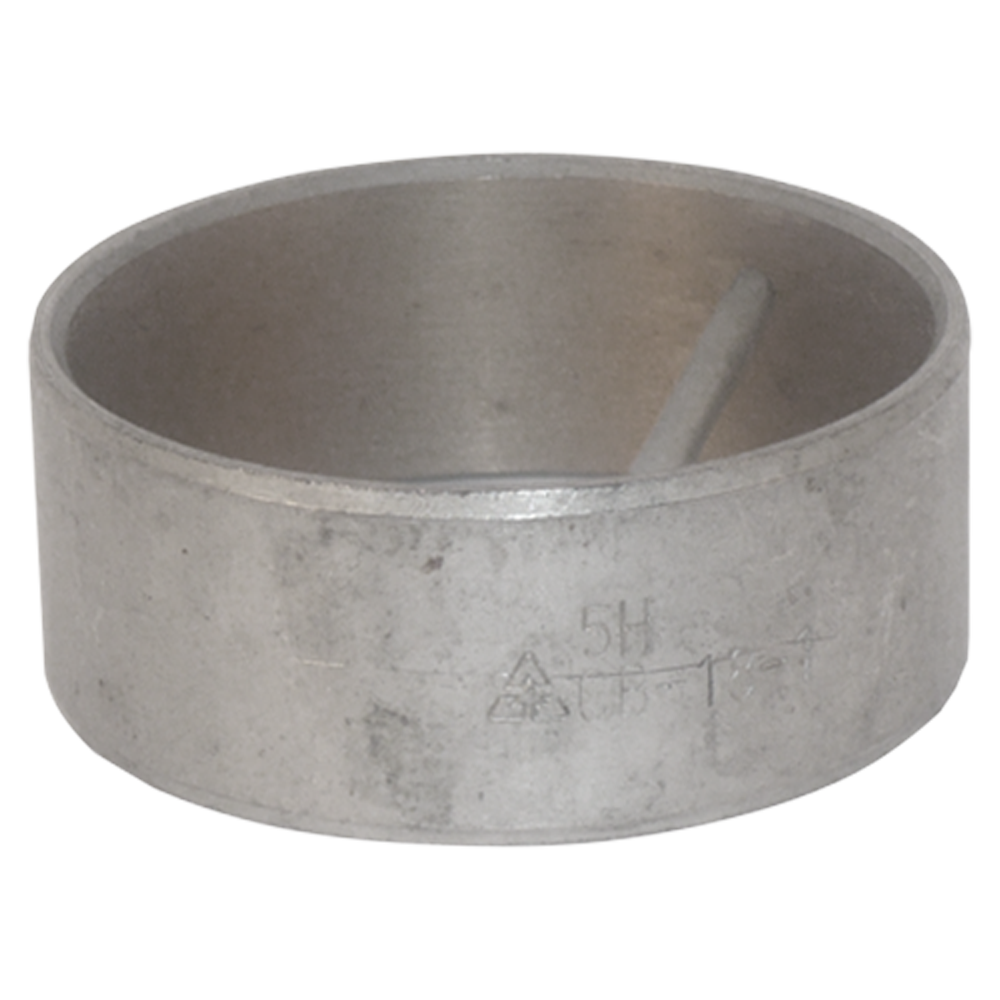

CB-18-1 1.536 1.409 0.560 Bronze

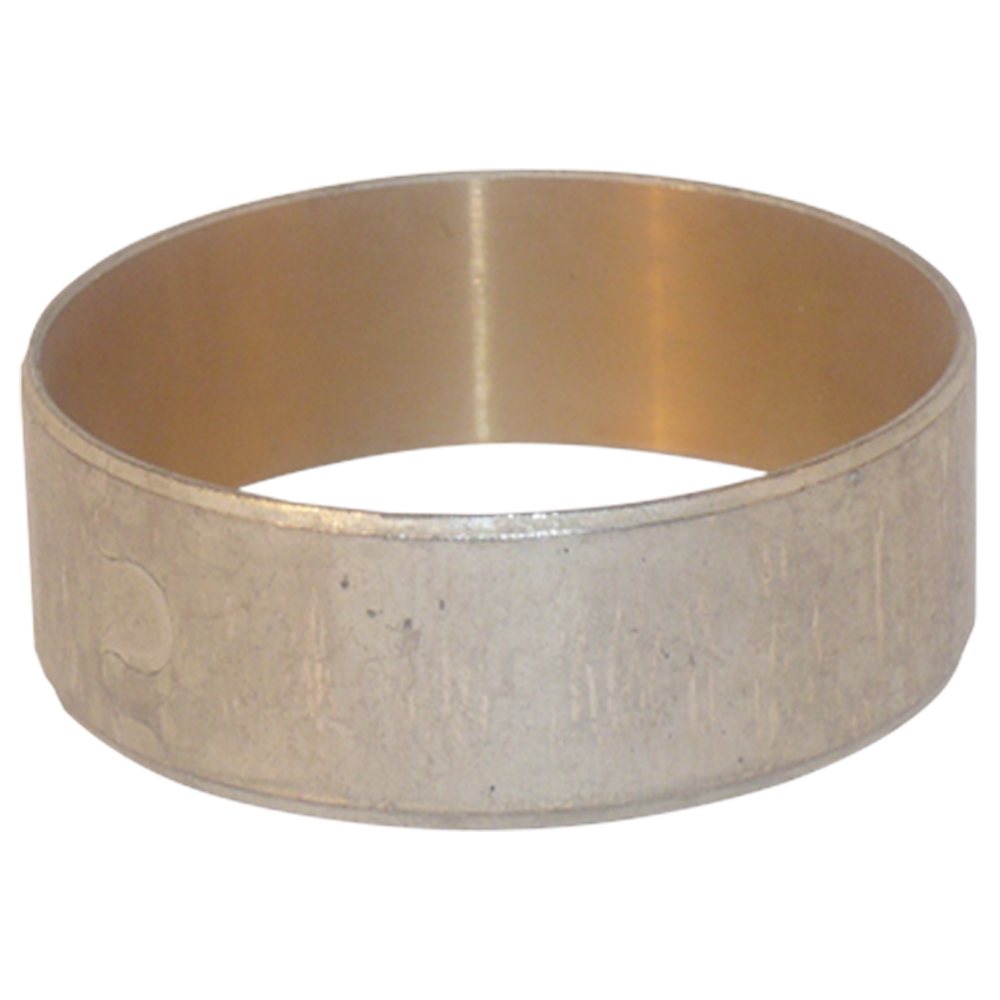

CB-18-2 1.771 1.686 0.560 Bronze
CB-18-3 0.625 0.495 0.495 Babbit

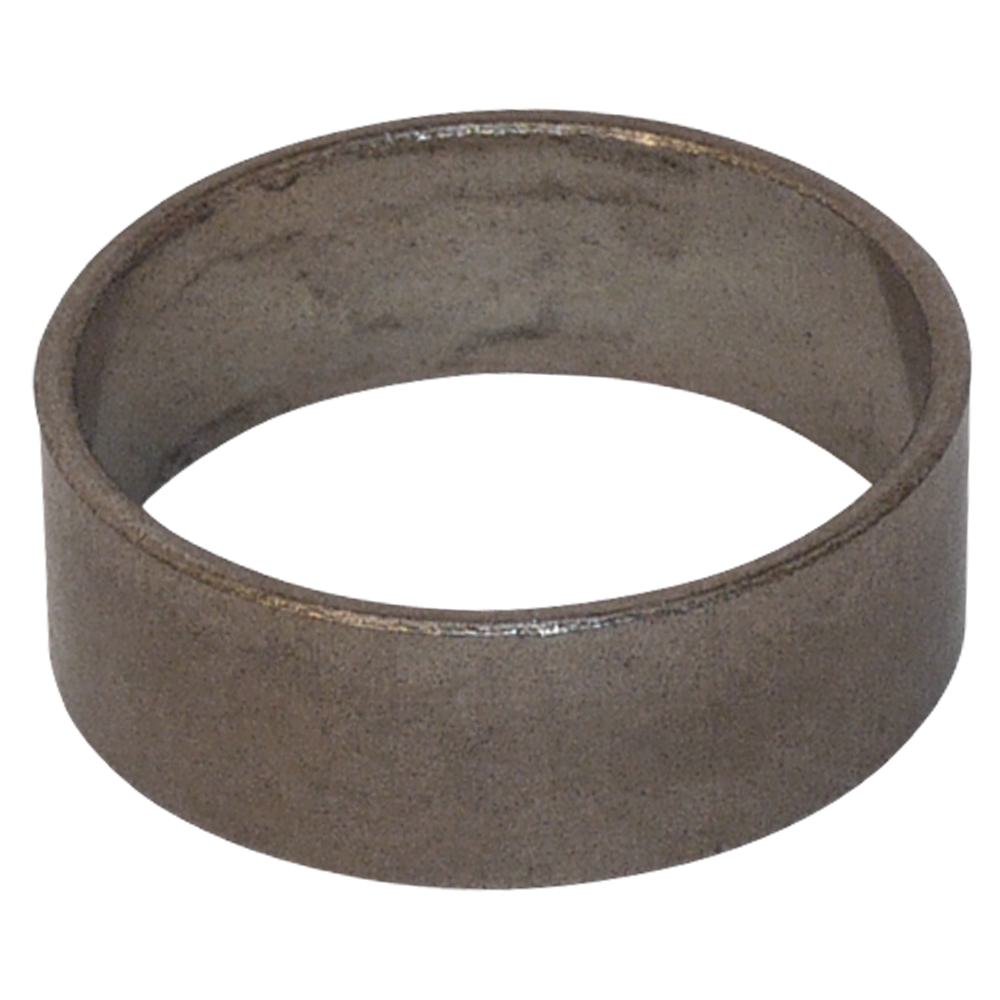

CB-18P
D-11

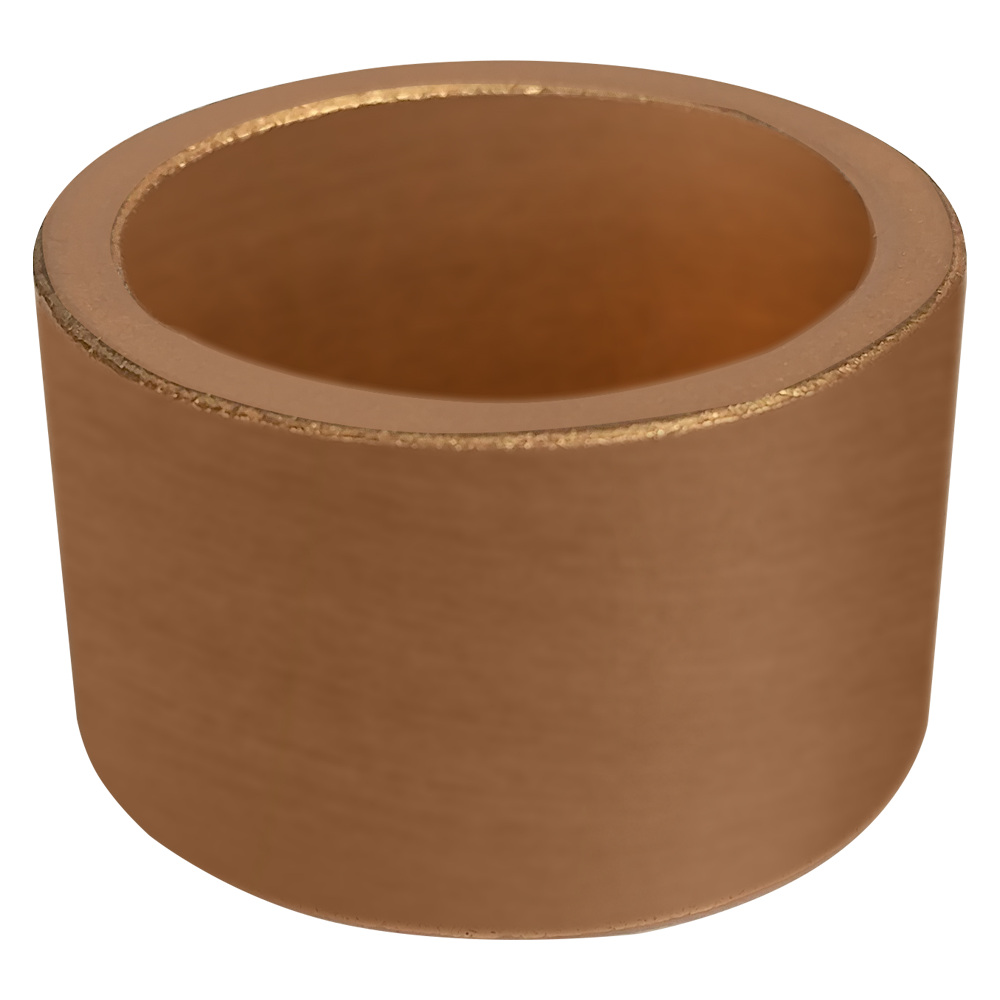

D-11B
D-12

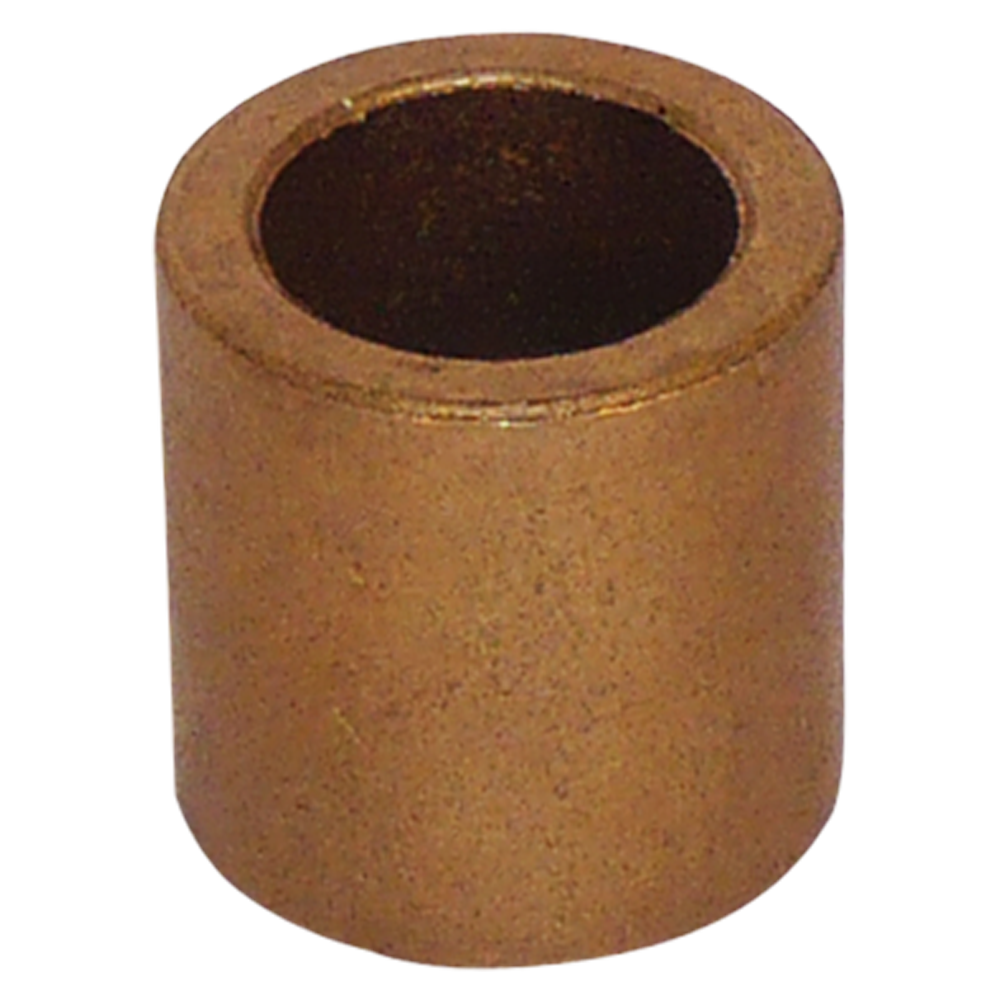

D-12B

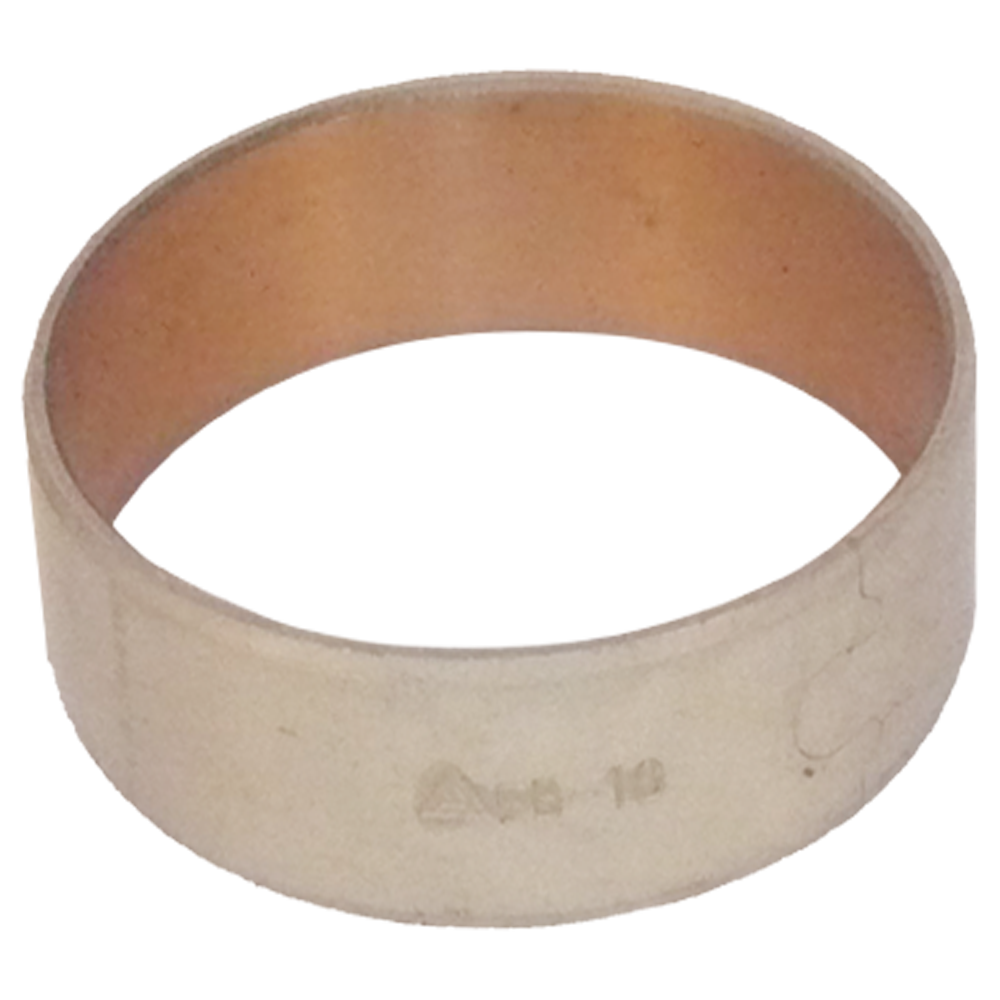

EB-18 1.740 1.618 0.583 Babbit

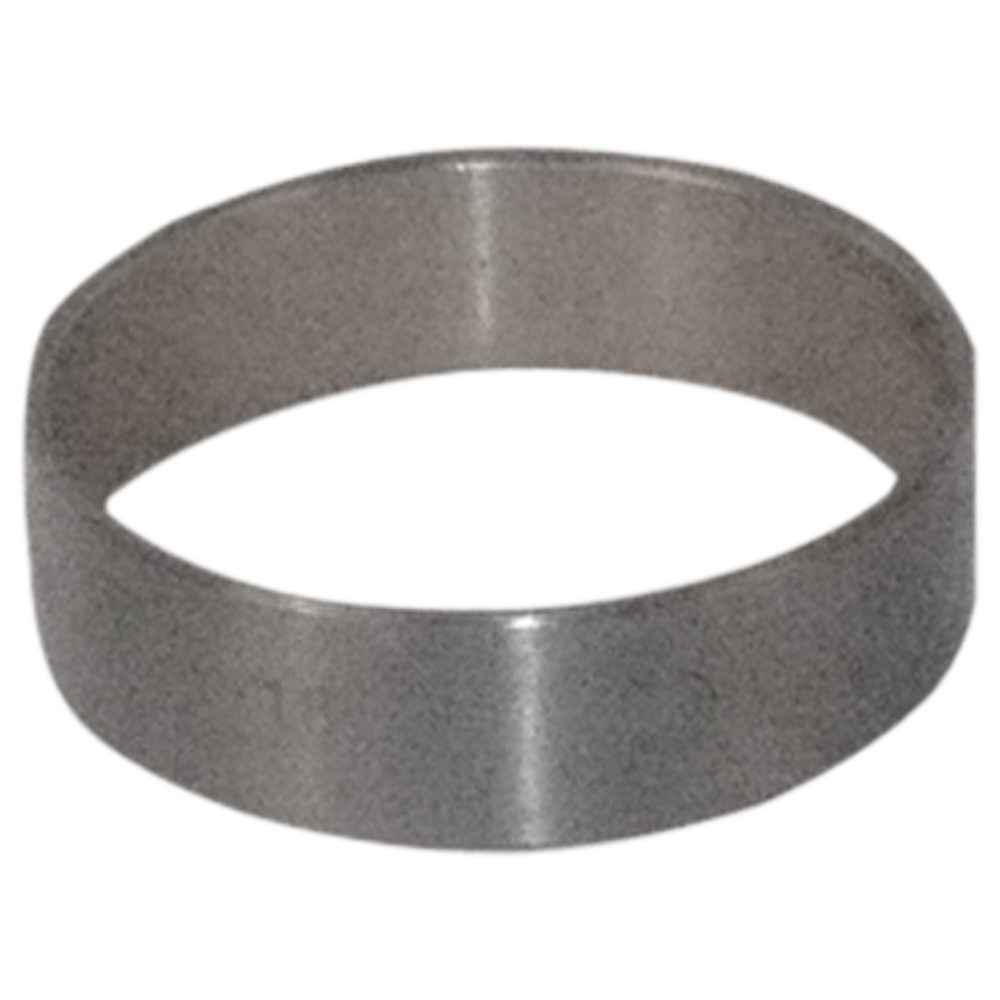

FB-18 2.063 1.941 0.531 Bronze

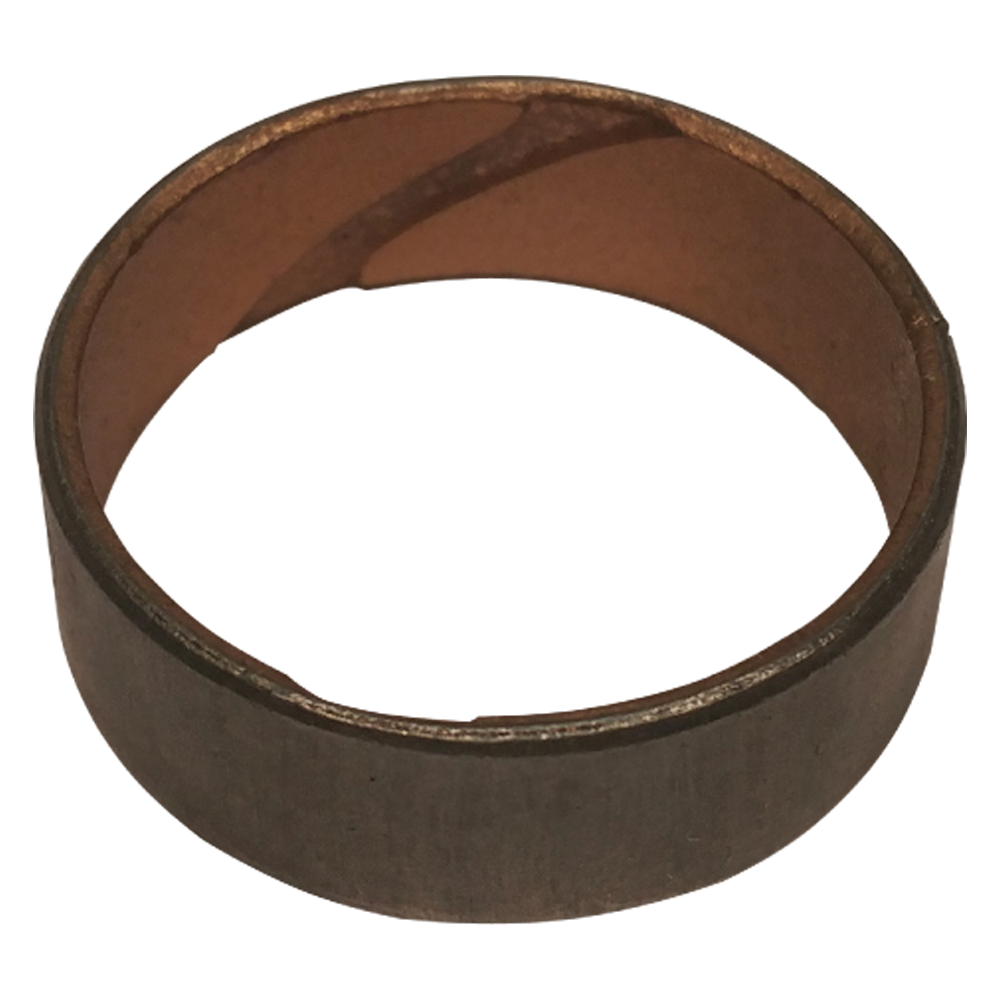

FB-18-1 1.281 1.159 0.408 Bronze
FB-18-10 2.479 2.323 0.660 Precision Bi-metal
FB-18-2 3.878 3.721 0.311 Precision Bronze

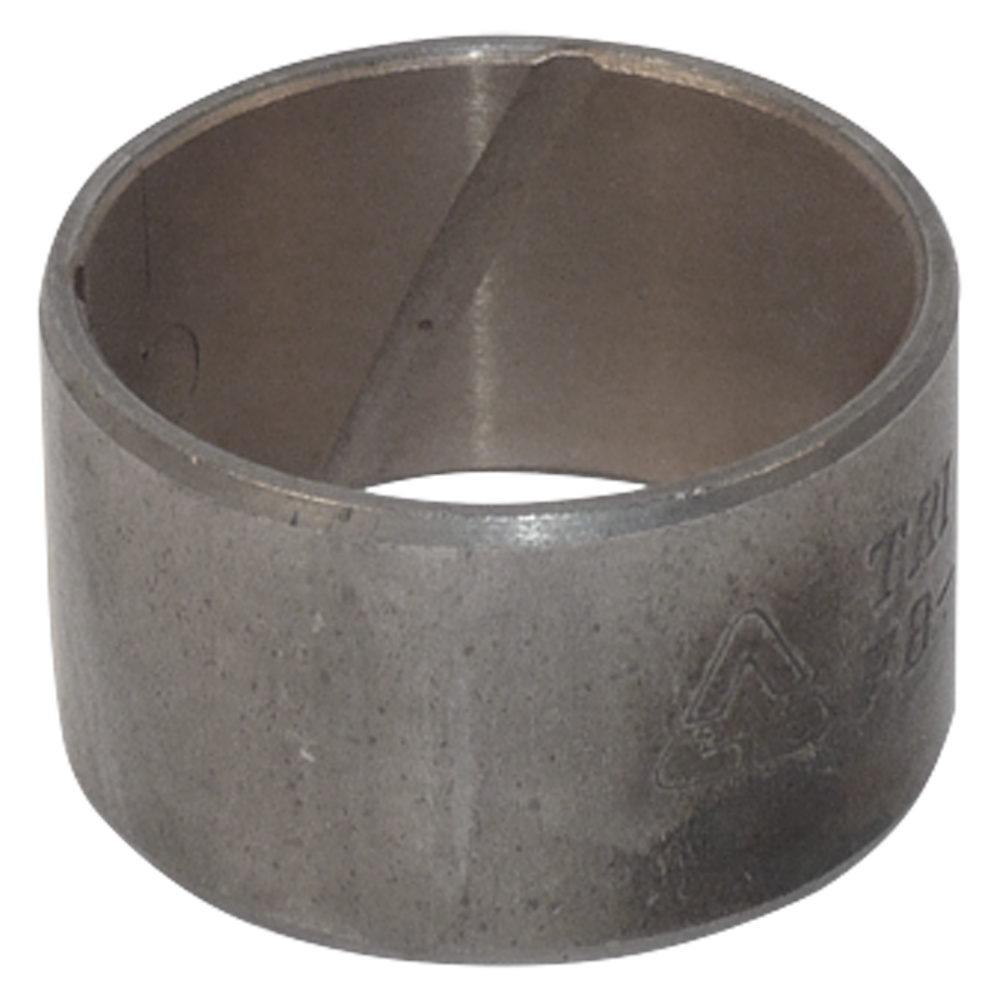

FB-18-3 1.170 1.048 0.625 Bronze

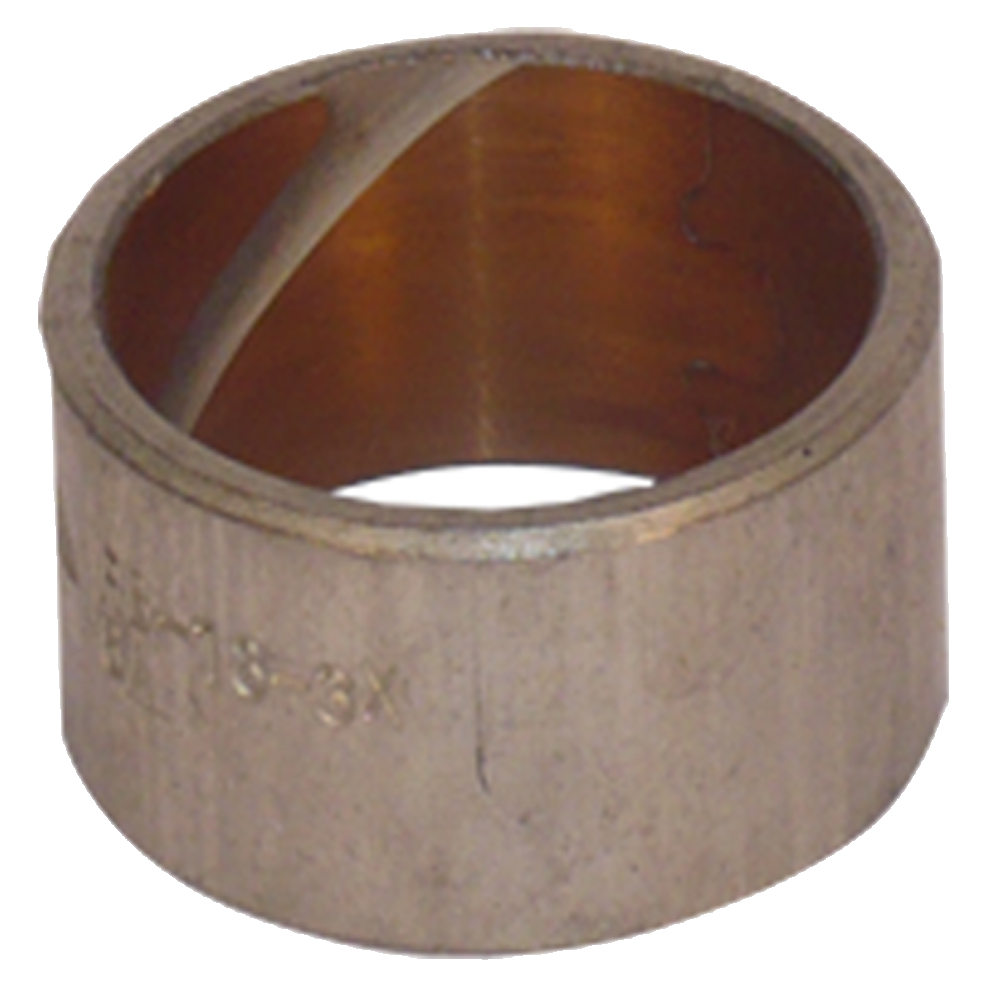

FB-18-3X 1.170 1.048 0.625 oversized O.D.

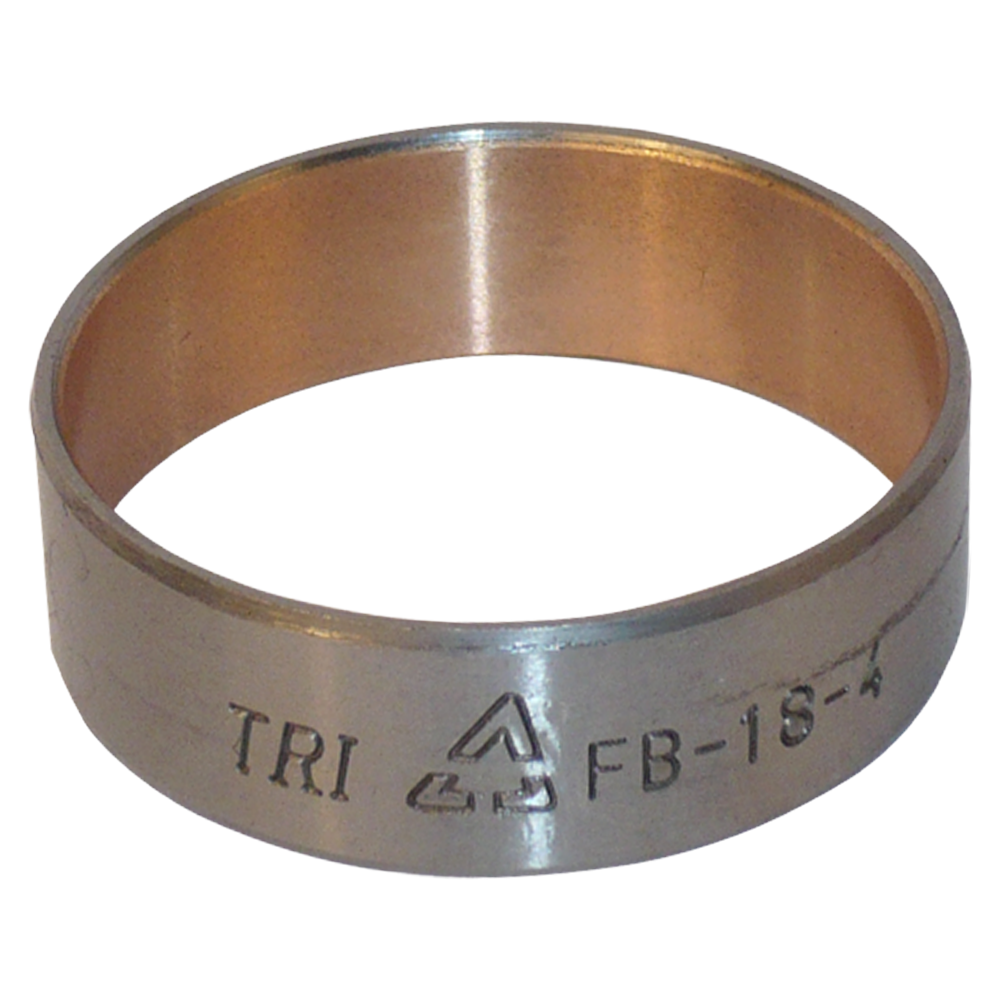

FB-18-4 1.779 1.652 0.505 Precision Bronze

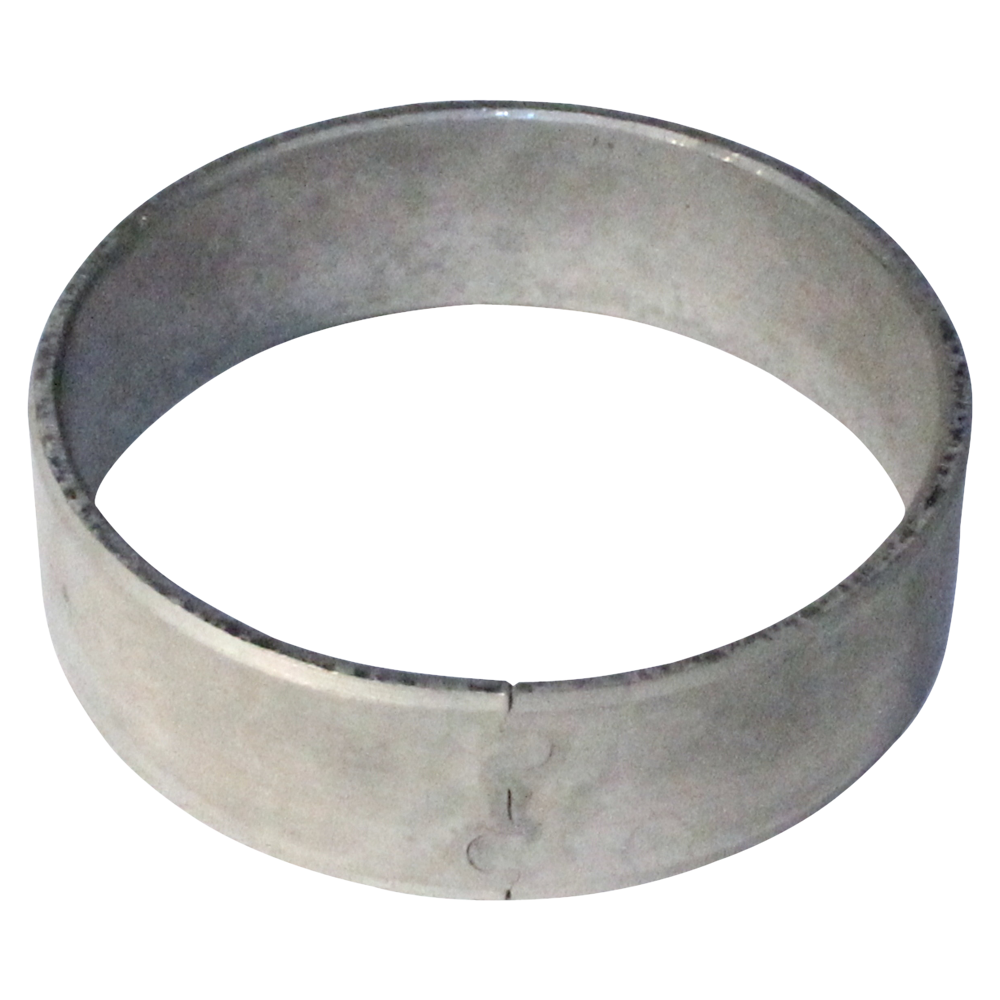

FB-18-4X 1.779 1.652 0.500 oversized O.D. Bi-metal

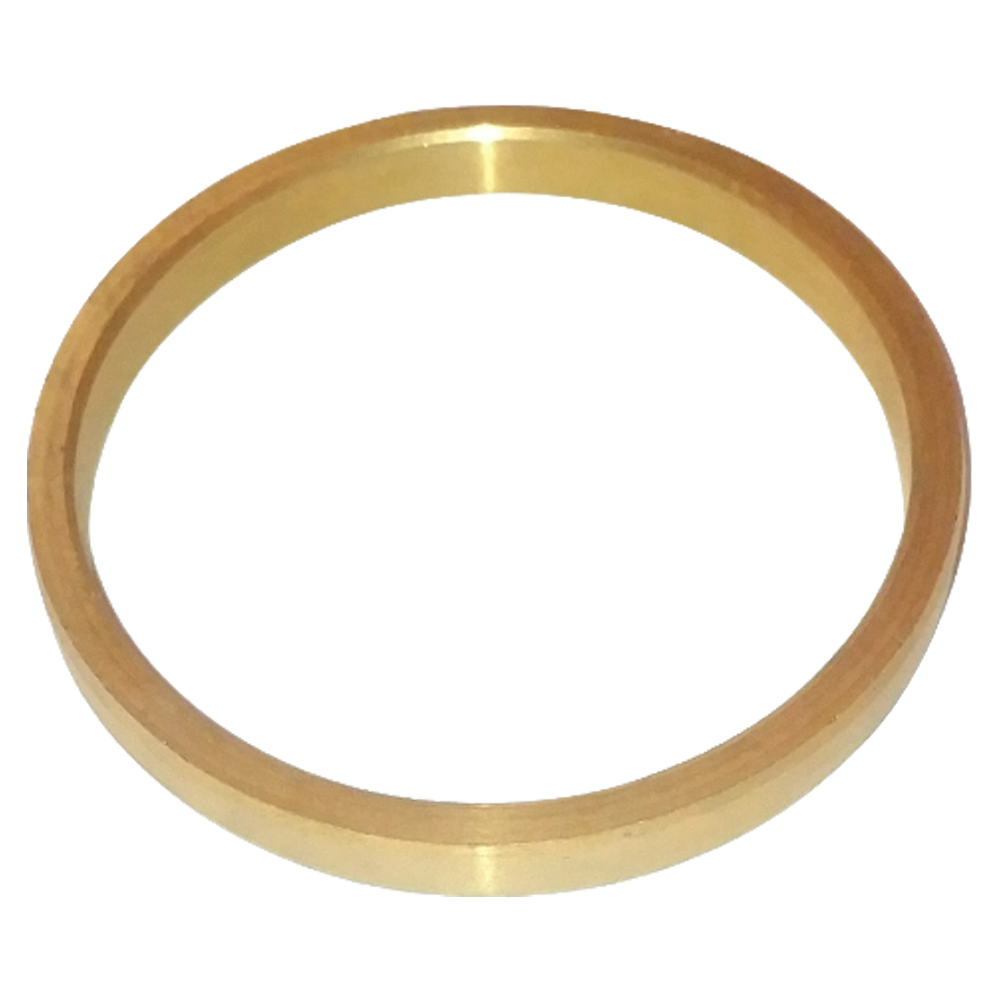

FB-18-5 2.679 2.480 0.300 Bronze

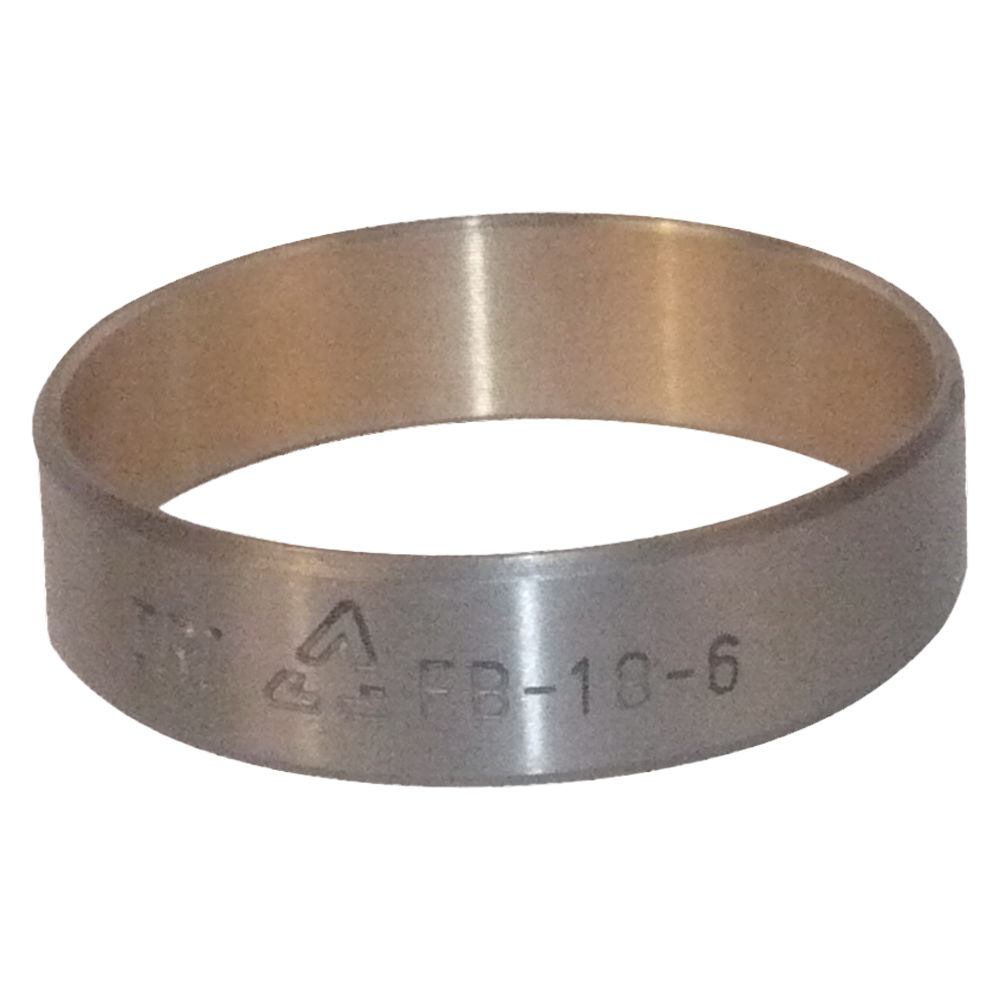

FB-18-6 1.891 1.764 0.500 Precision Bronze

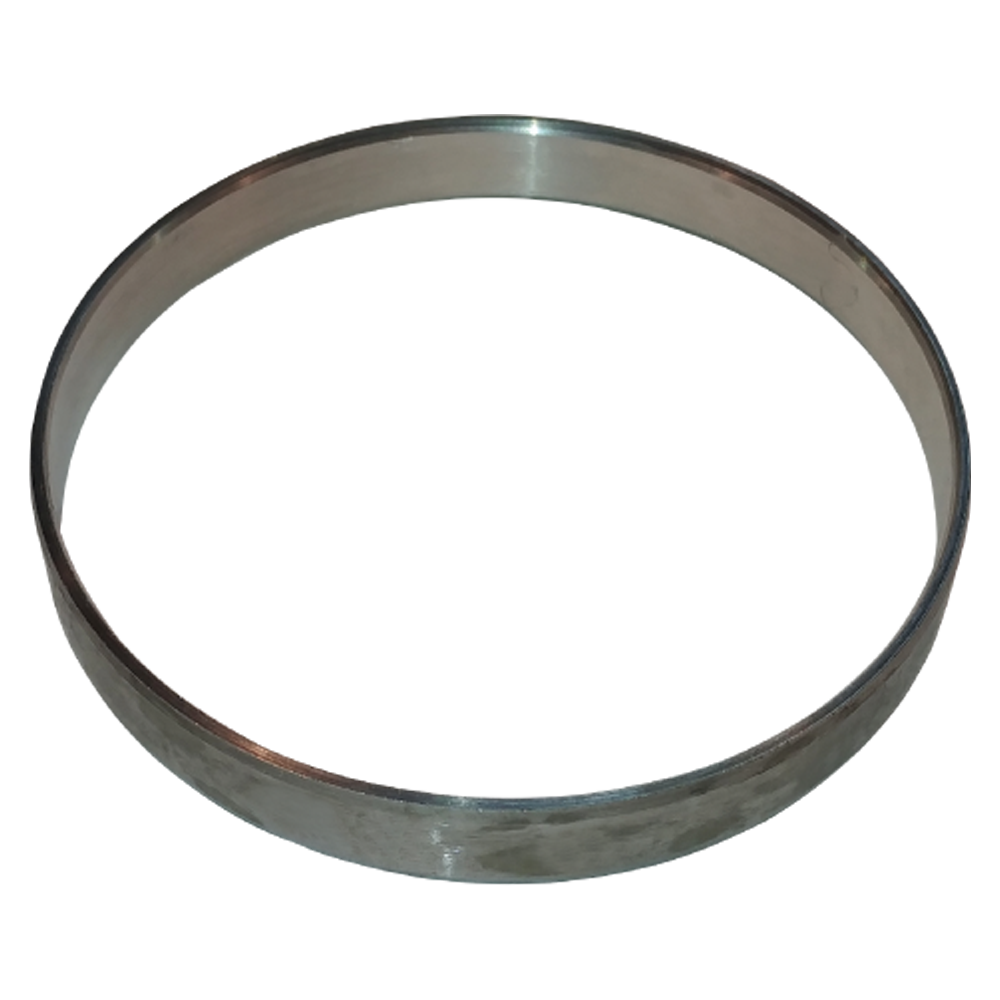

FB-18-7 2.835 2.708 0.366 Precision Bi-metal
FB-18-8 1.892 1.764 0.510 Precision Bi-metal
FB-18-9 1.969 1.772 0.620 Precision Bi-metal

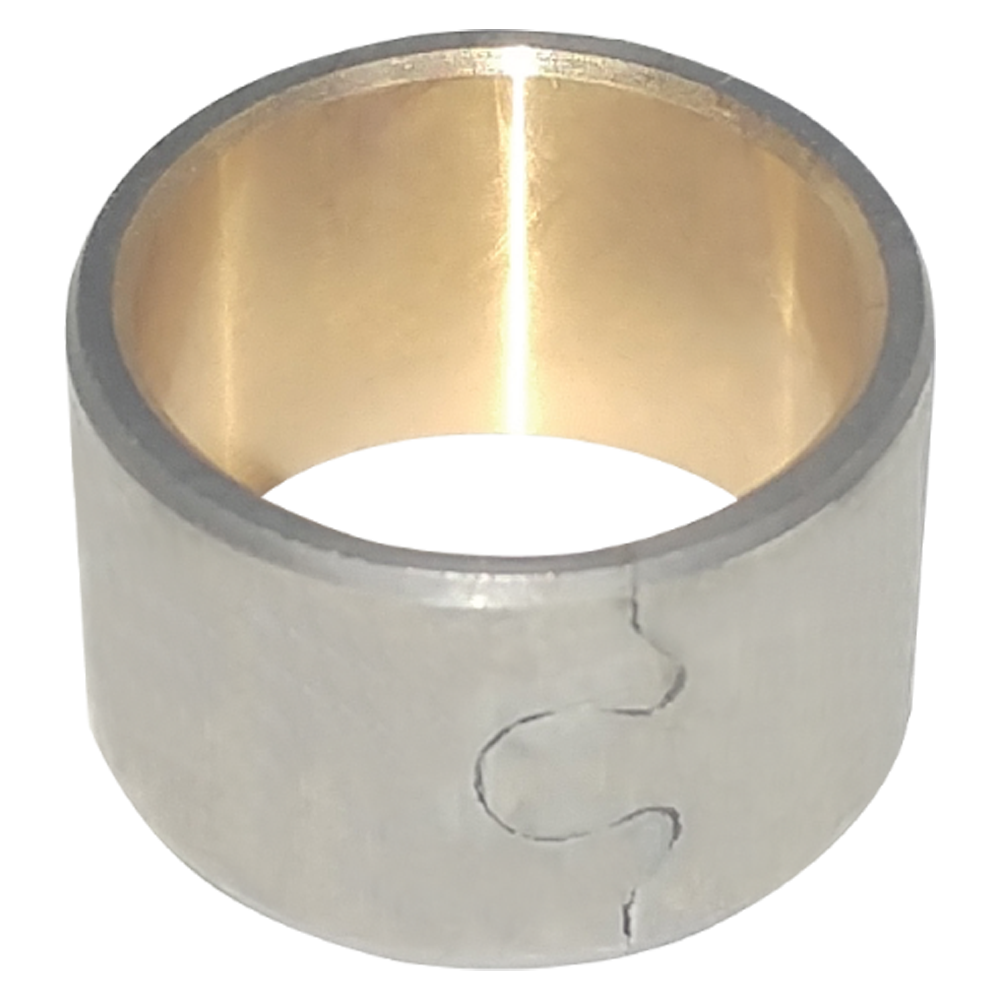

HB-18 0.787 0.661 0.488 Precision Bi-metal

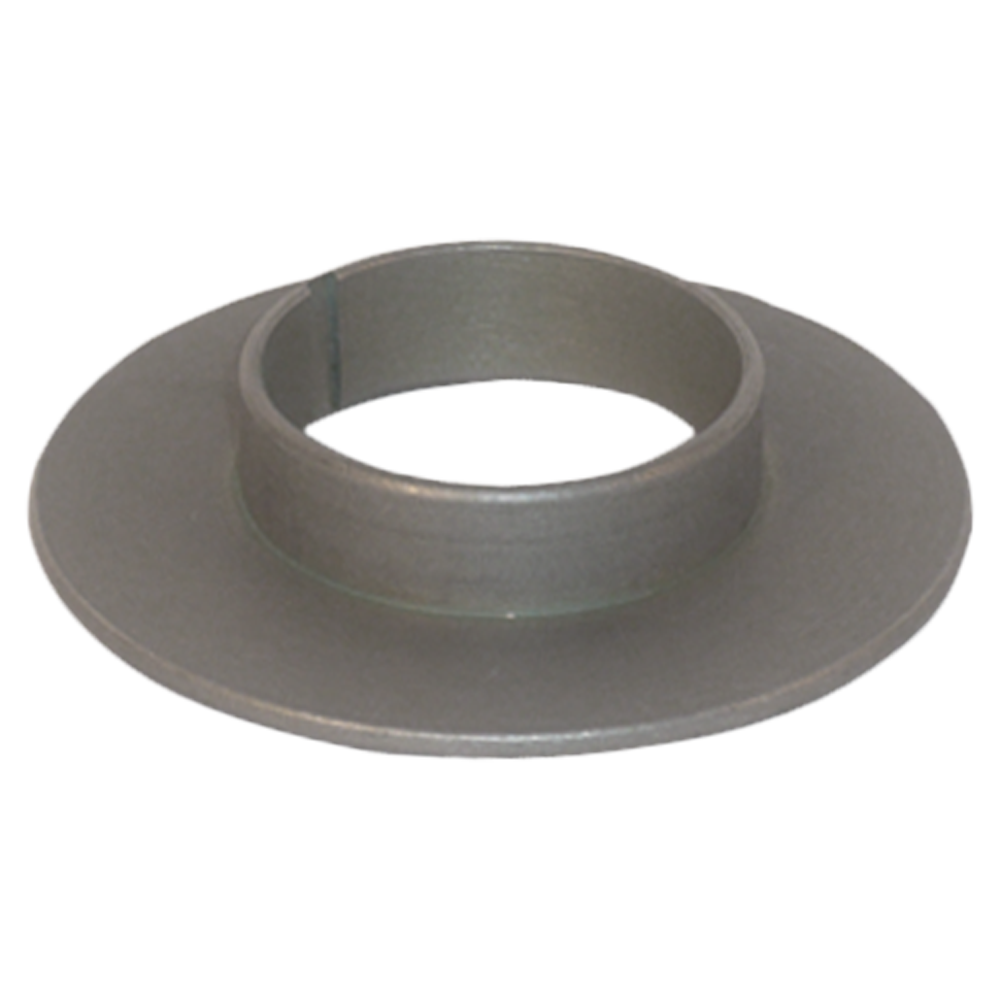

JB-18 1.302 1.180 0.390 Babbit

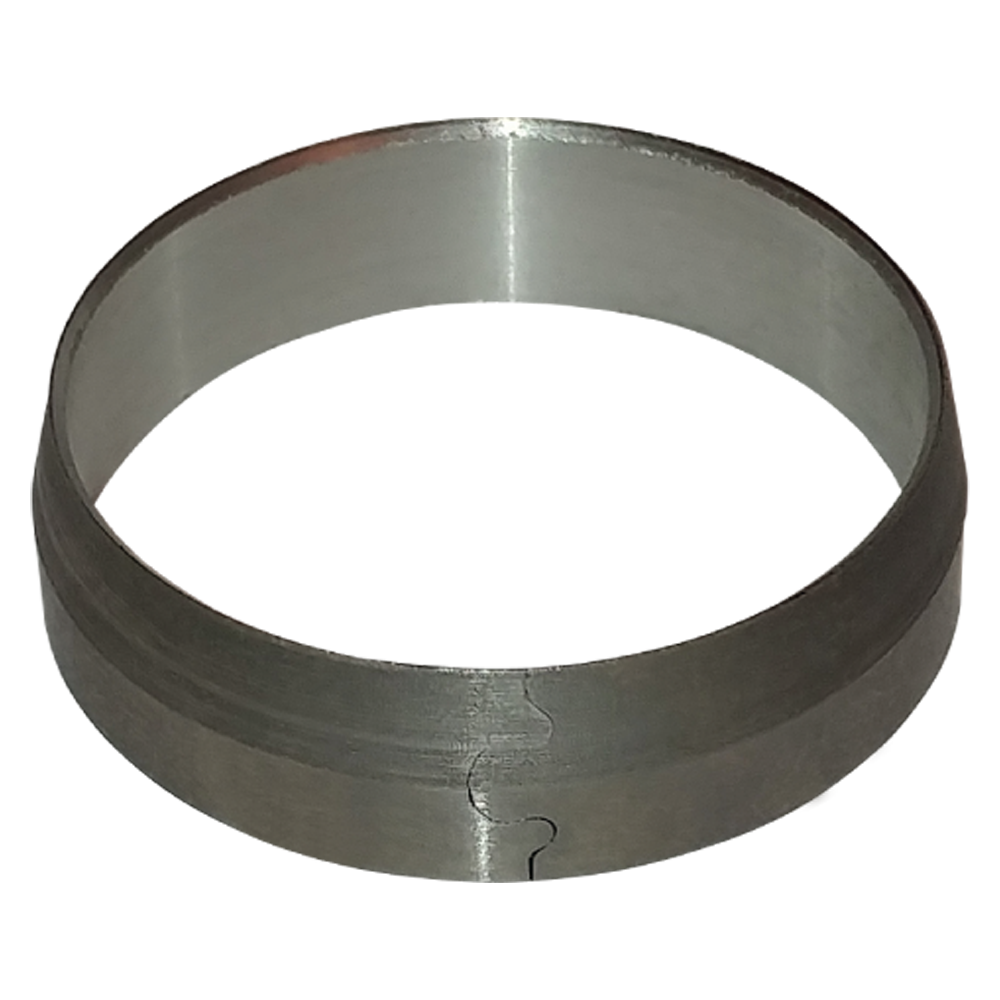

JB-18-1 1.299 1.179 0.342 Babbit

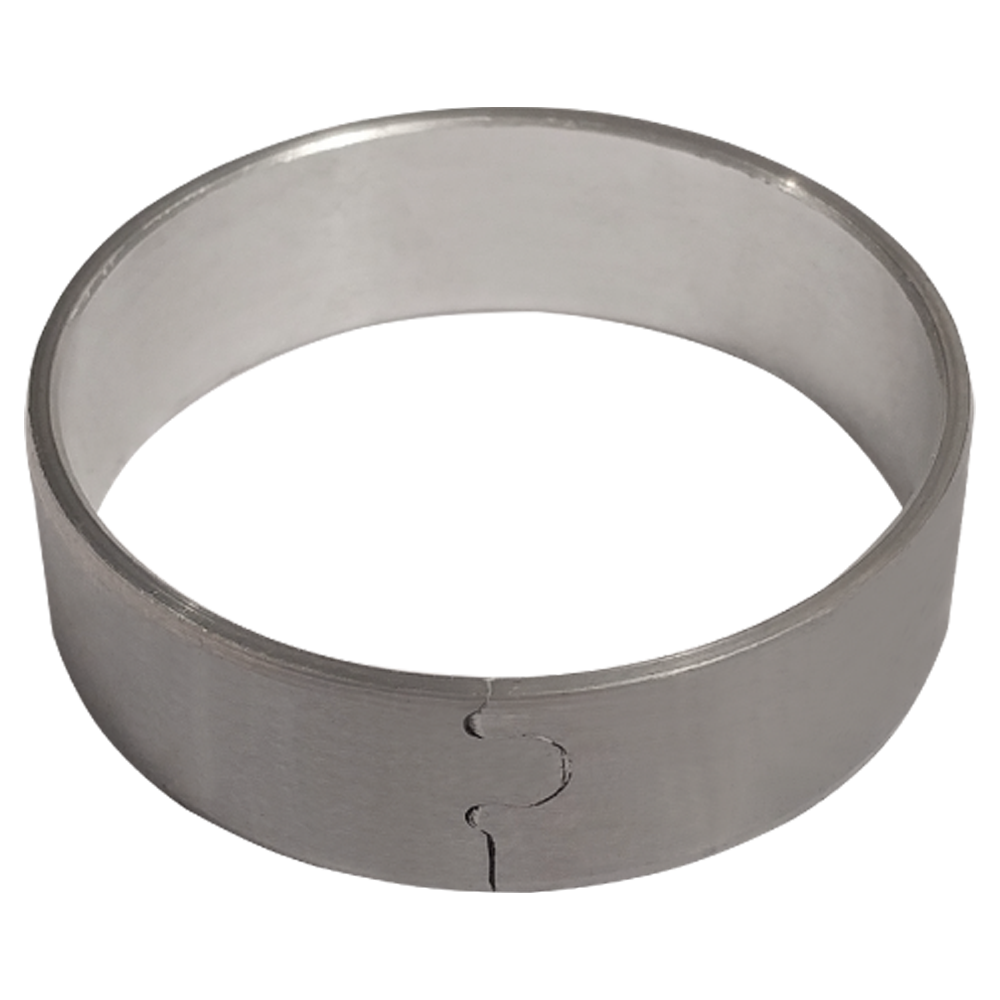

JB-18-10 1.559 1.439 0.438 Precision Bi-metal

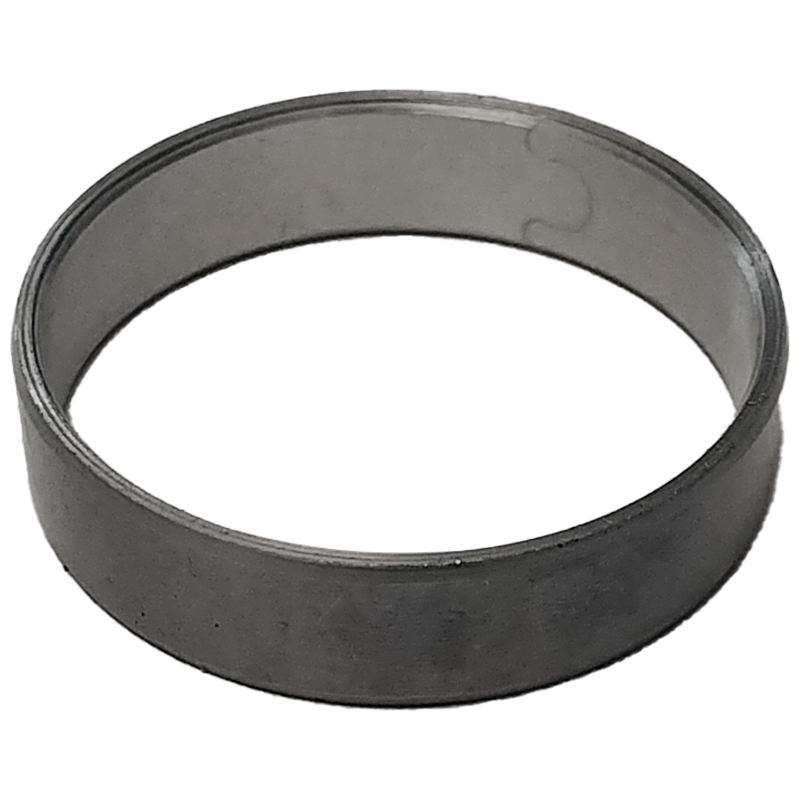

JB-18-11 1.678 1.537 0.400 Precision Bi-metal

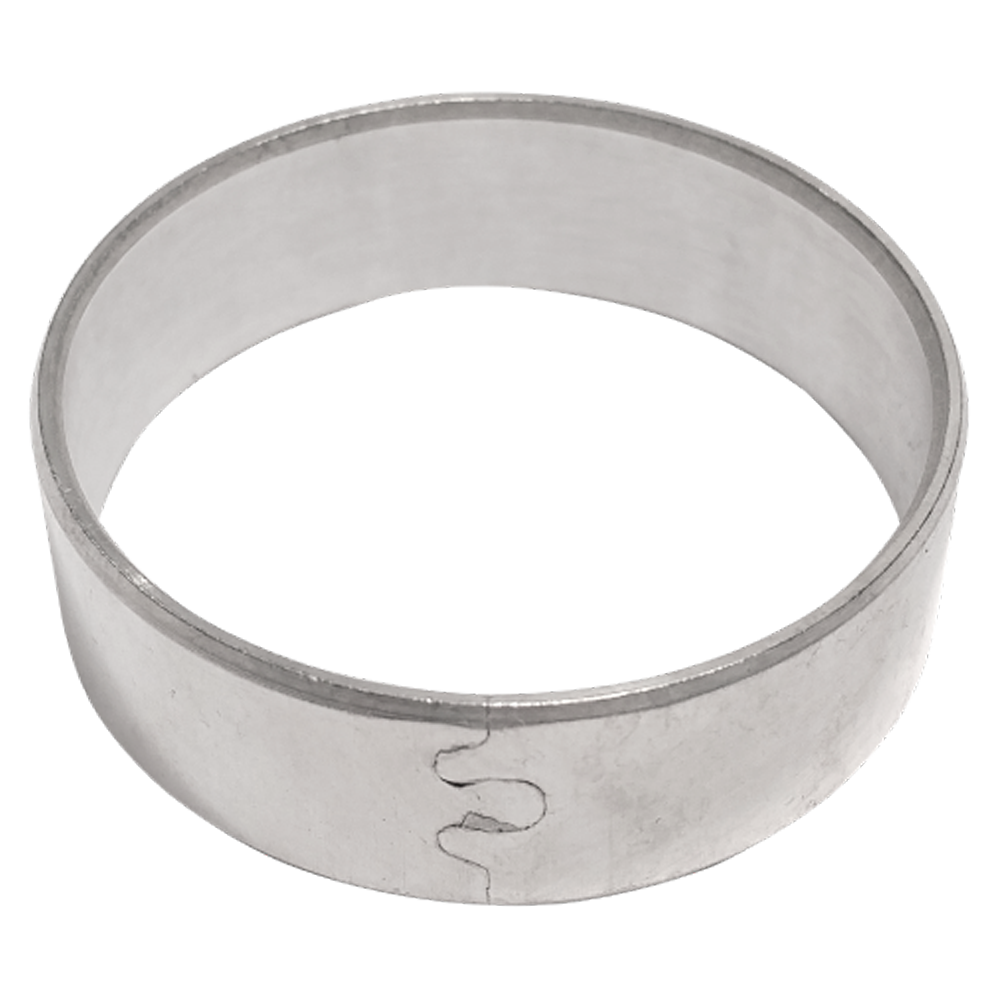

JB-18-2 1.654 1.534 0.504 Babbit

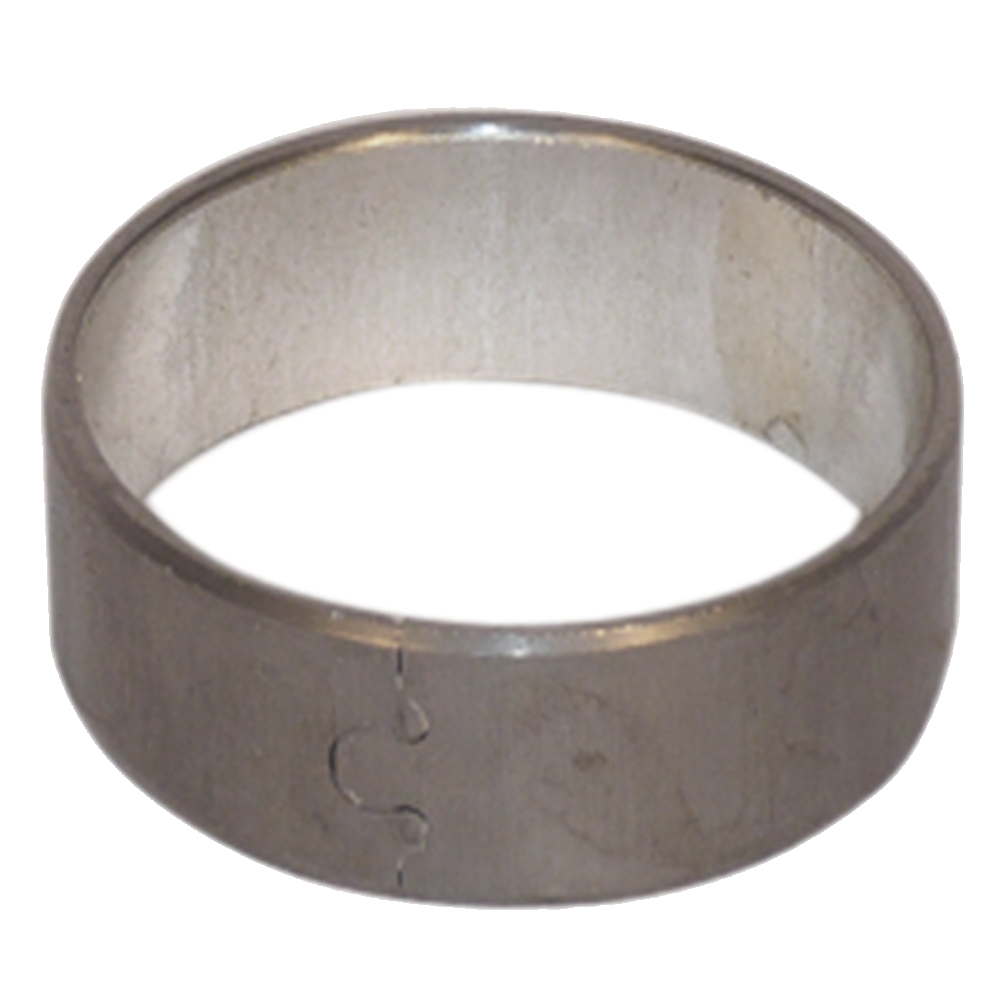

JB-18-3 1.416 1.296 0.465 Babbit

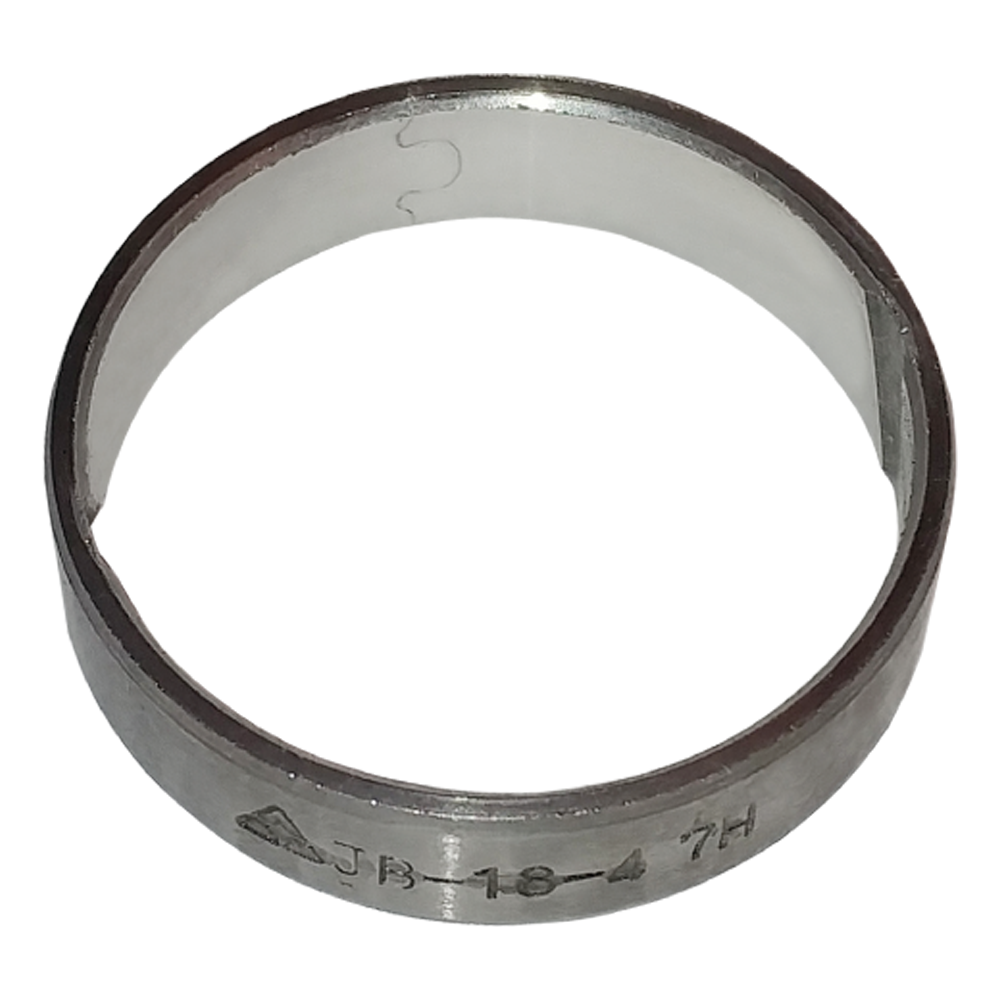

JB-18-4 1.246 1.125 0.312 Babbit

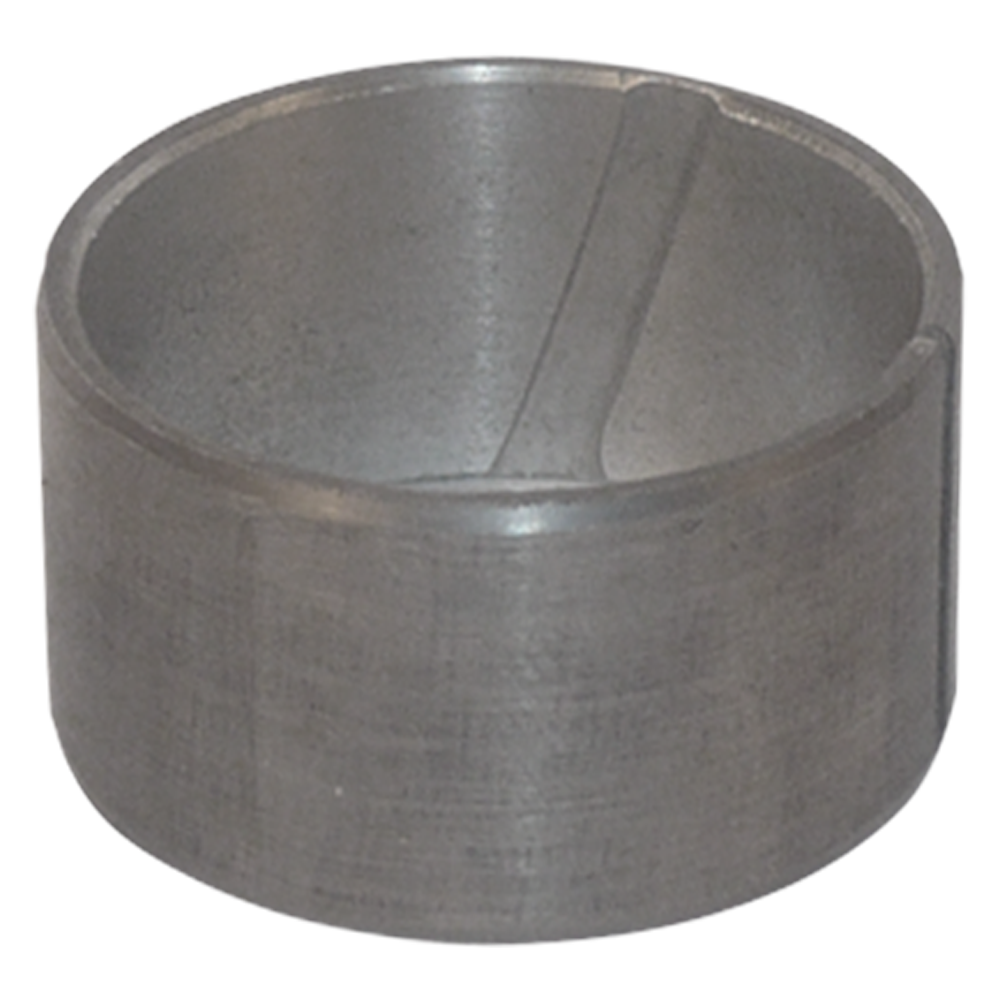

JB-18-5 1.246 1.125 0.625 Babbit

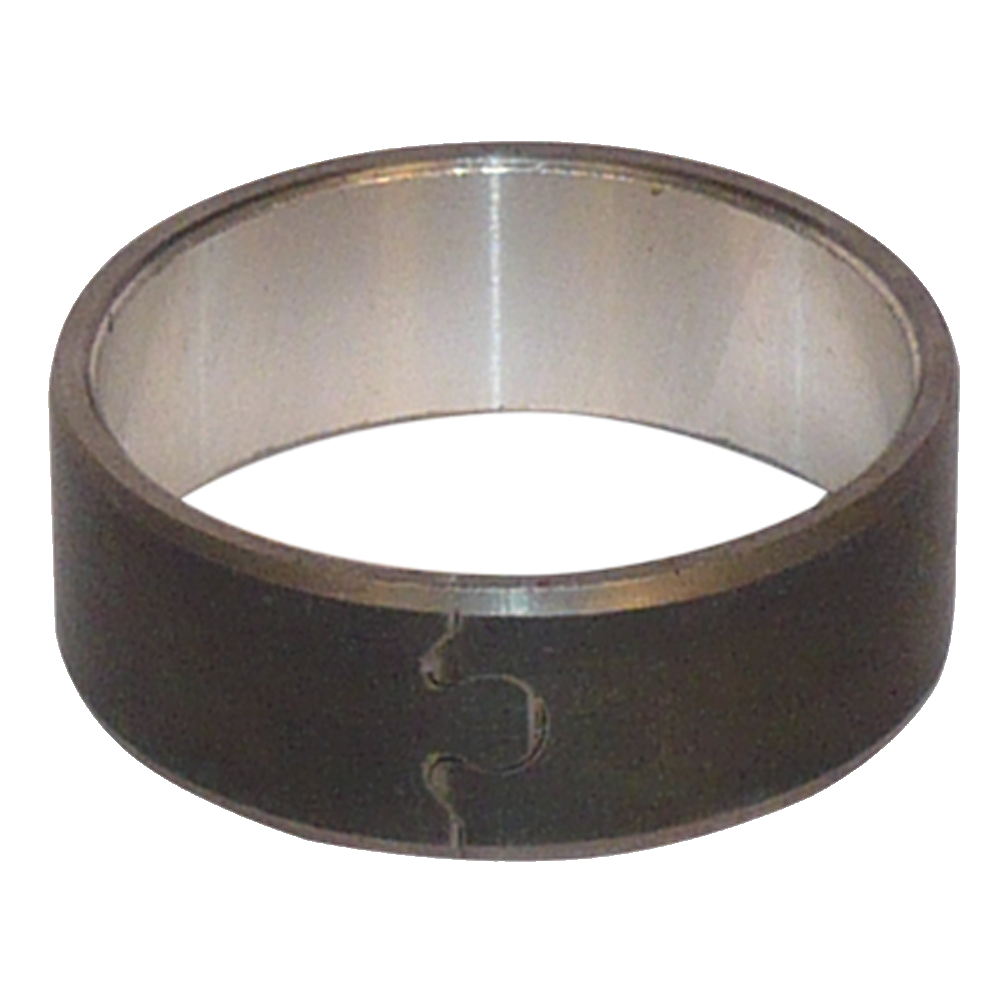

JB-18-6 1.456 1.298 0.475 Babbit

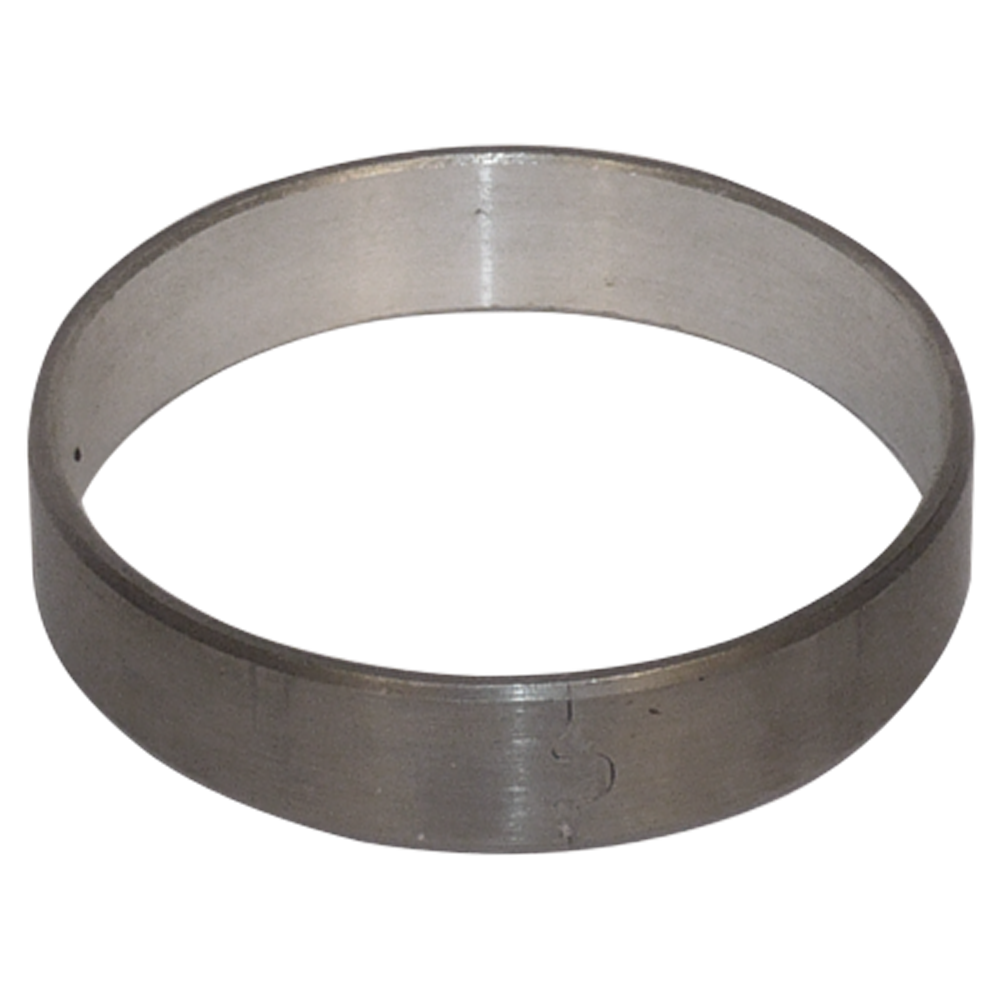

JB-18-7 2.402 2.243 0.461 Precision Babbit
JB-18-8 2.245 2.088 0.472 Precision Babbit

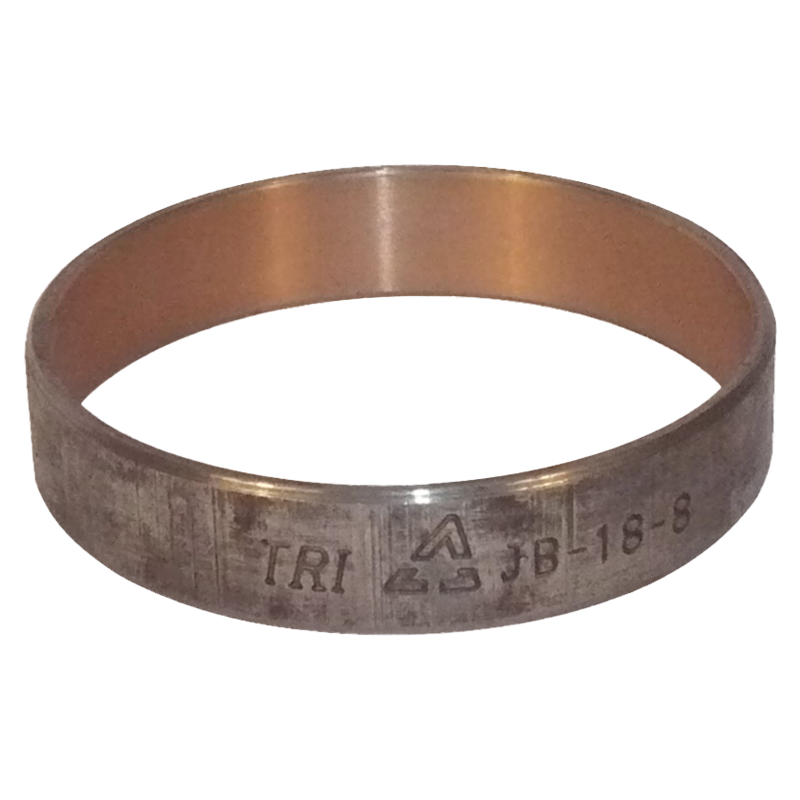

JB-18-8B 2.245 2.088 0.472 Precision Bronze

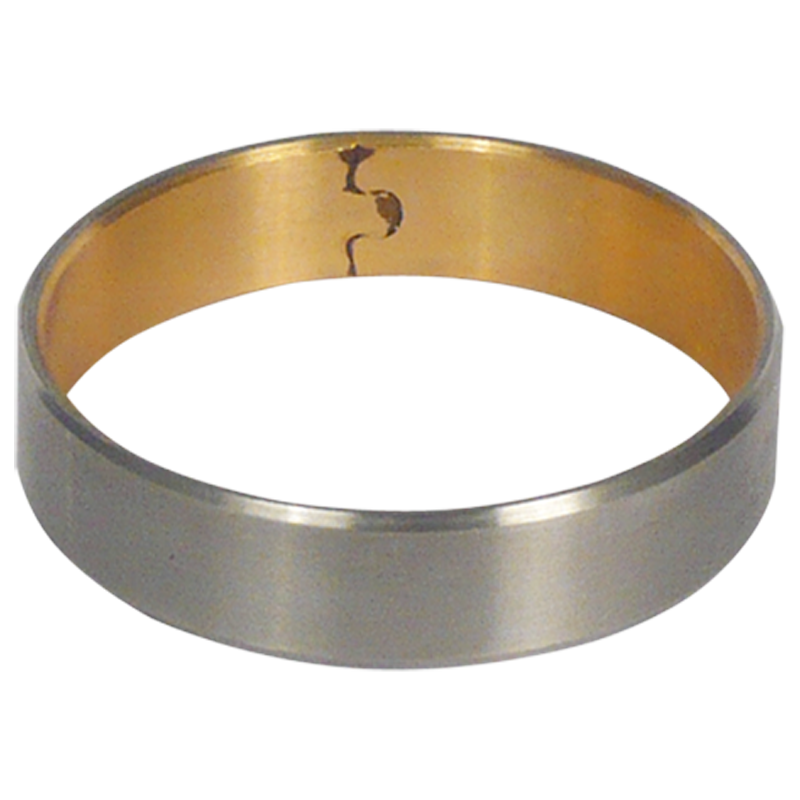

JB-18-8BX 2.245 2.088 0.472 undersized I.D Bronze (Replaces Babbit)
JB-18-8X 2.243 0.472 Unfinished Bi-metal
JB-18-9 2.240 2.088 0.472 Precision Bronze

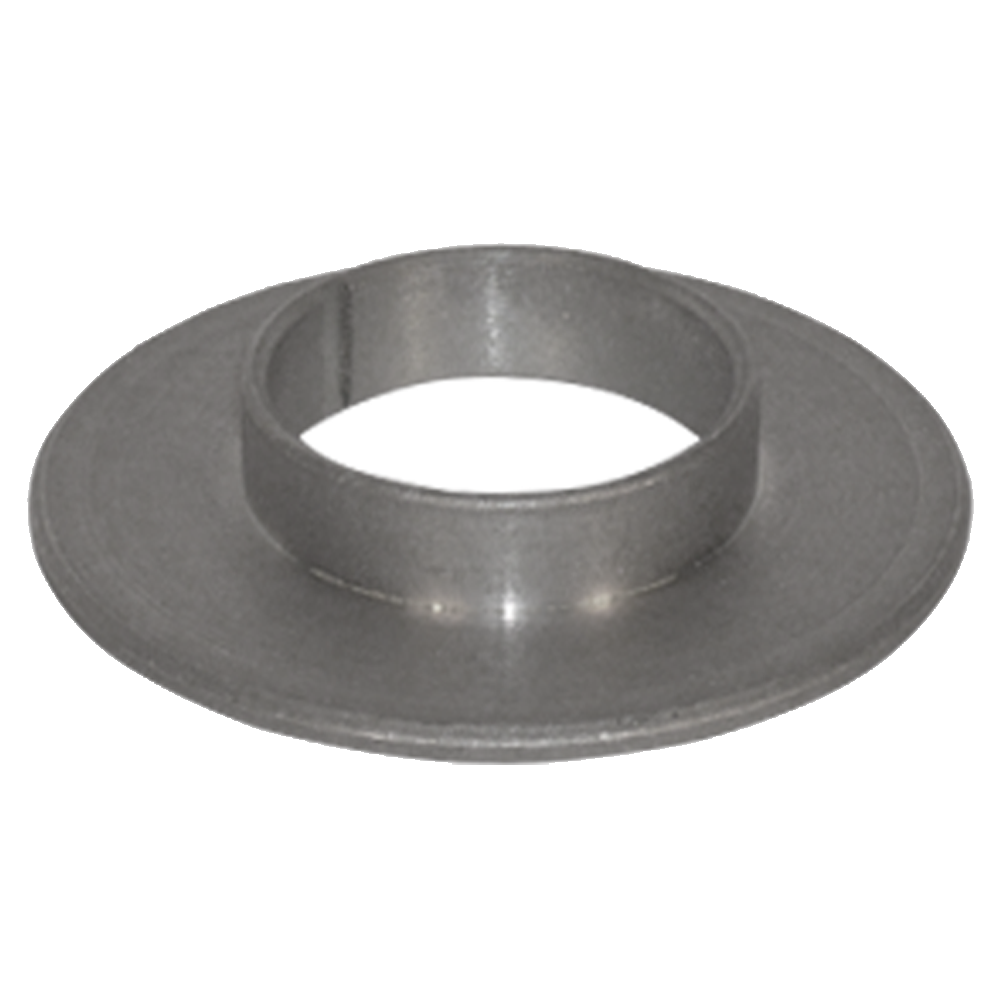

JB-18X 1.302 1.180 0.390
JR-7-5

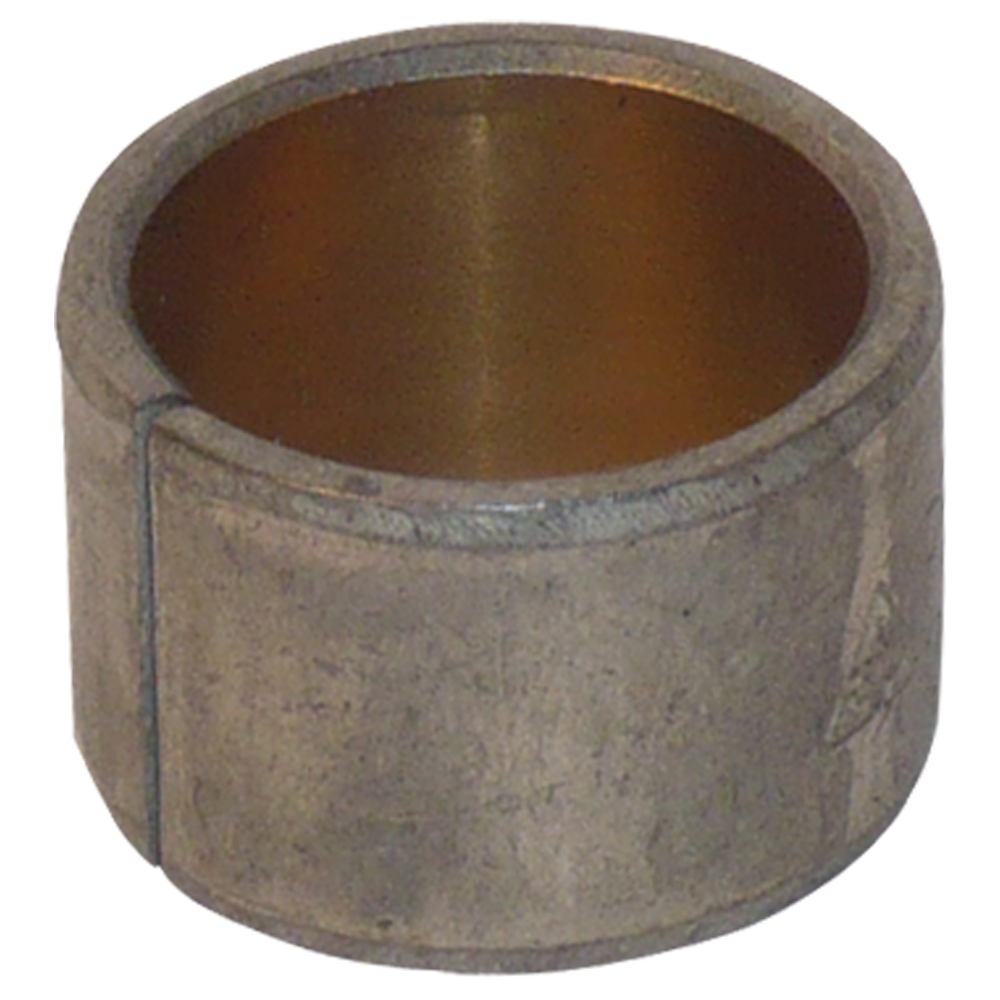

PB-18 0.670 0.550 0.393 Bronze
PB-18-1 1.536 1.420 0.590 Steel/Bronze
PB-18-2 1.536 1.377 0.470 Steel/Bronze
PB-18-3
RB-18 1.623 1.500 0.624 Bronze

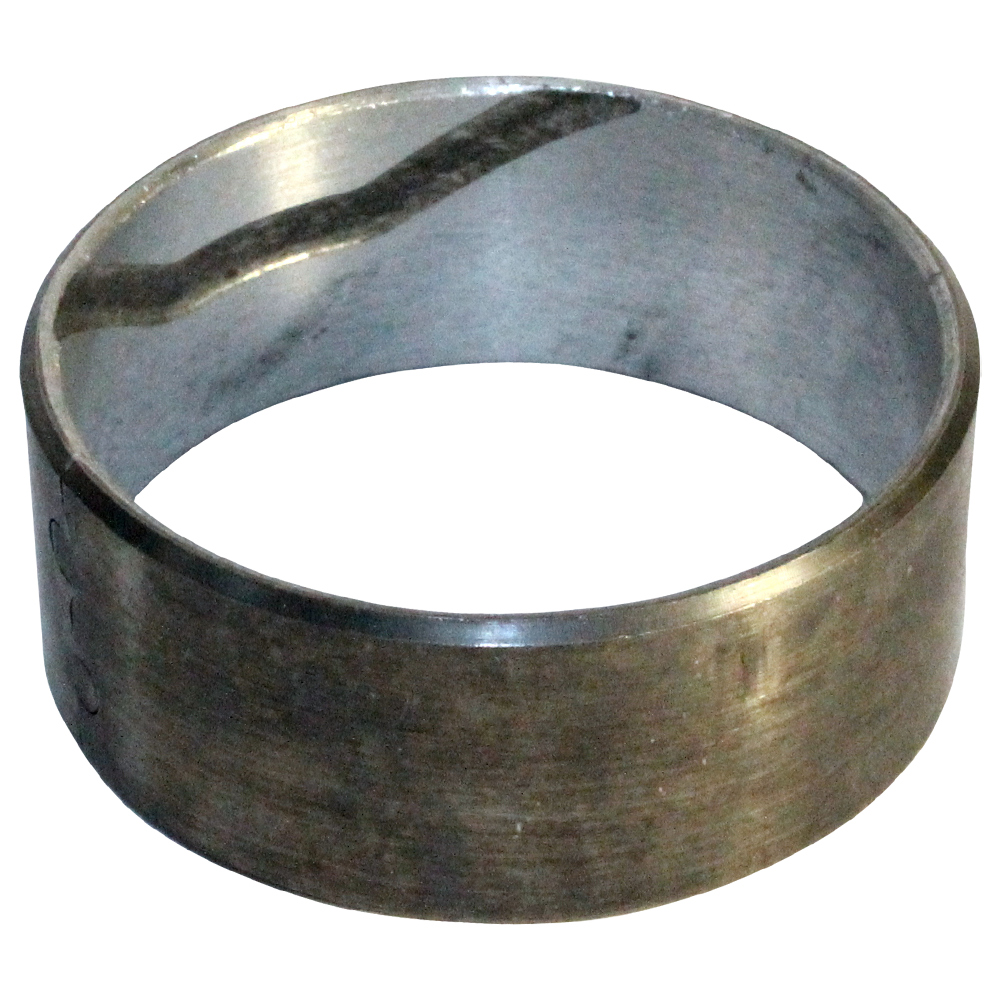

SB-18 1.550 1.430 0.438 Babbit

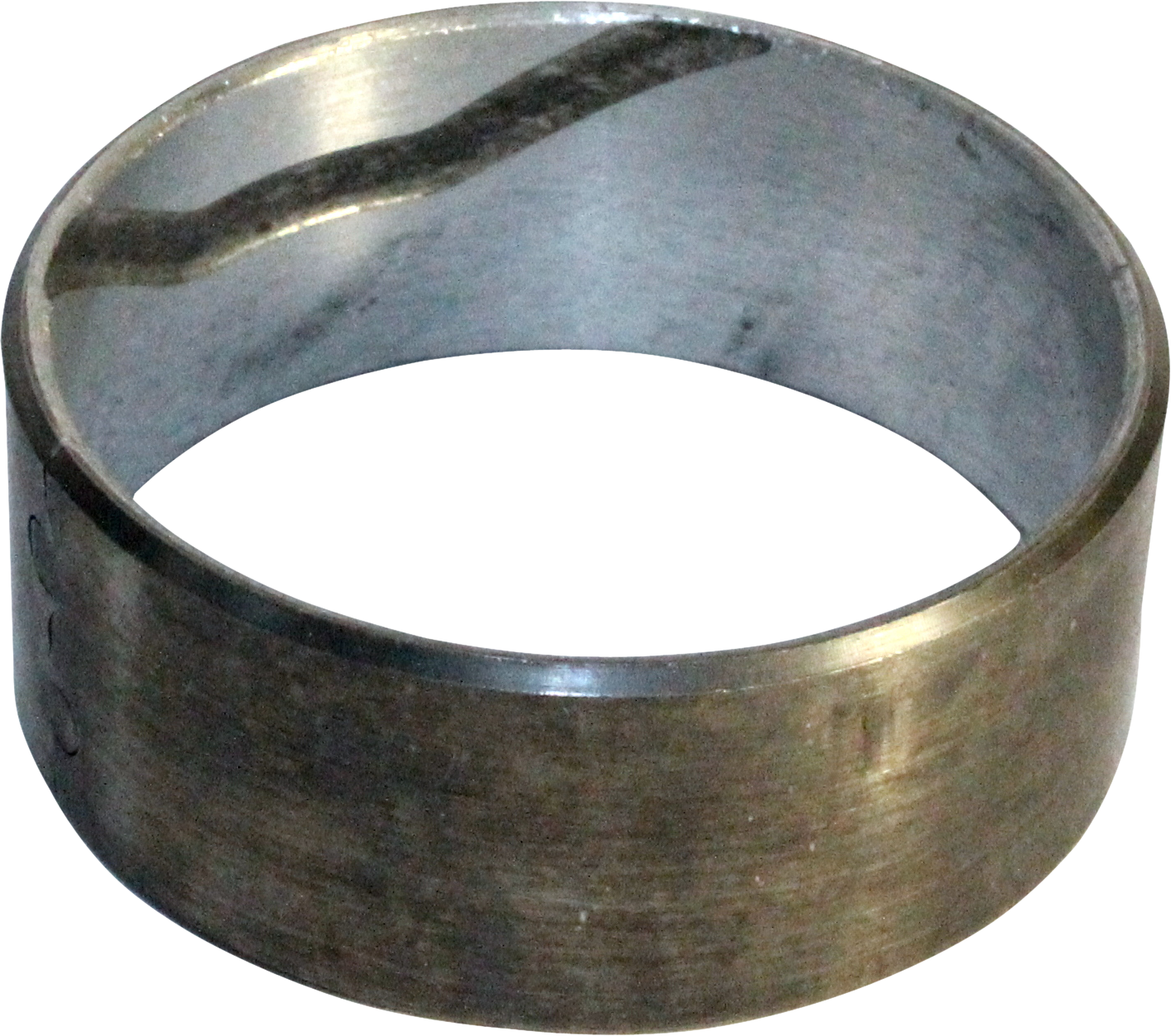

SB-18-1 1.528 1.399 0.606 Babbit

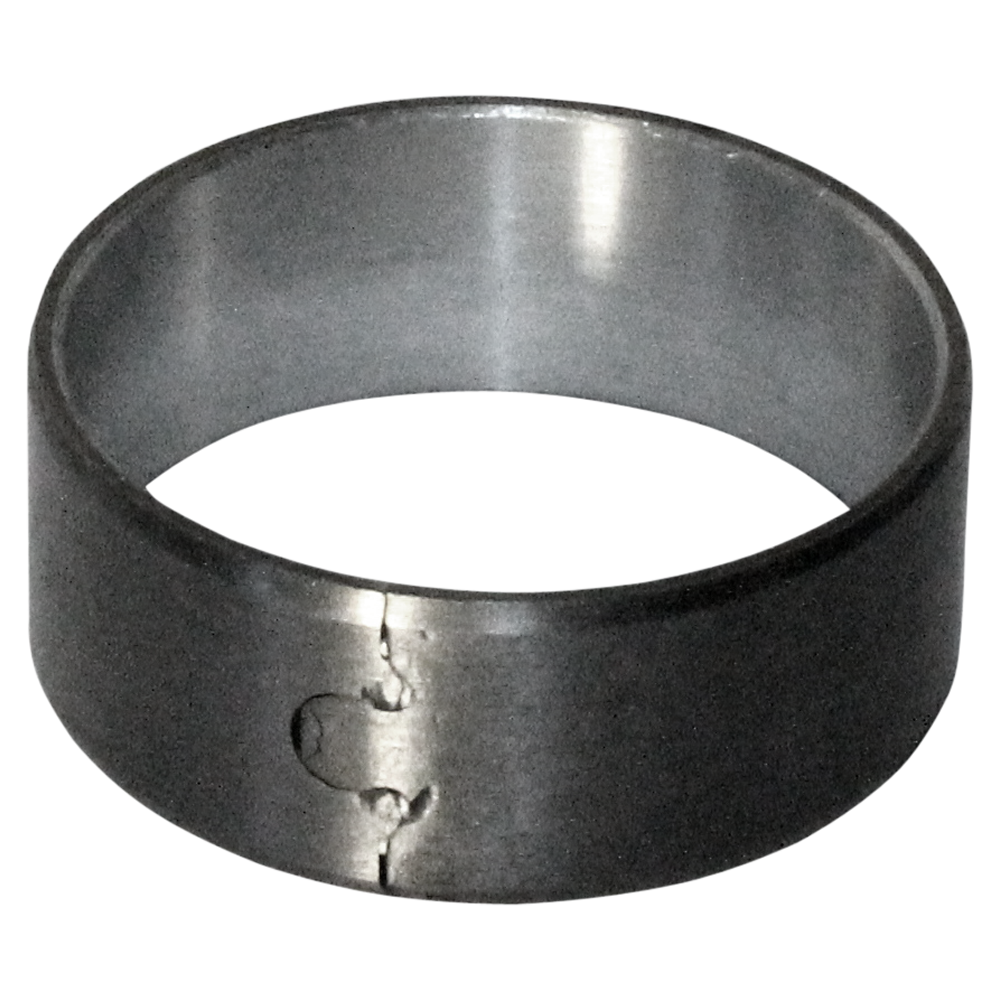

SB-18-2 1.563 1.437 0.610 Precision Babbit

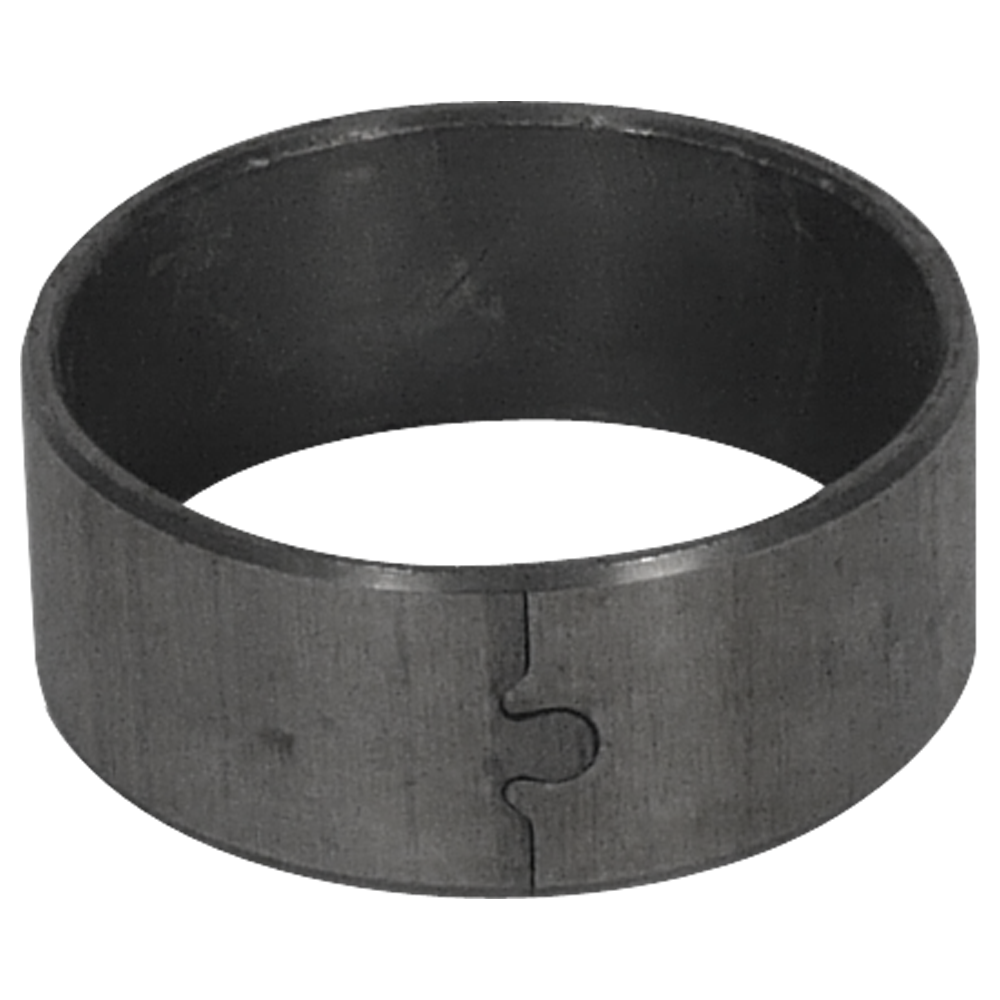

SB-18-2-10 1.563 1.437 0.610 Oversized O.D. (.01) Babbit

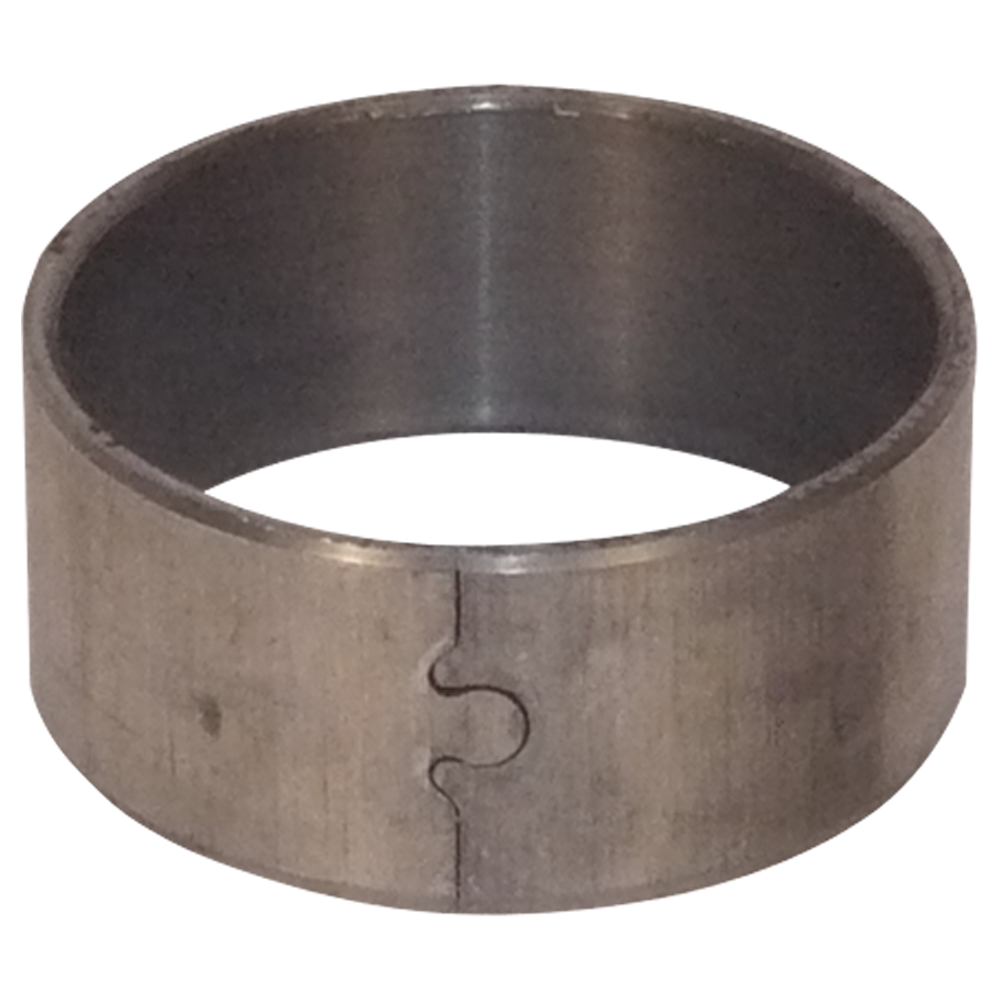

SB-18-2-2 1.563 1.437 0.615 Oversized O.D. (.002 Babbit

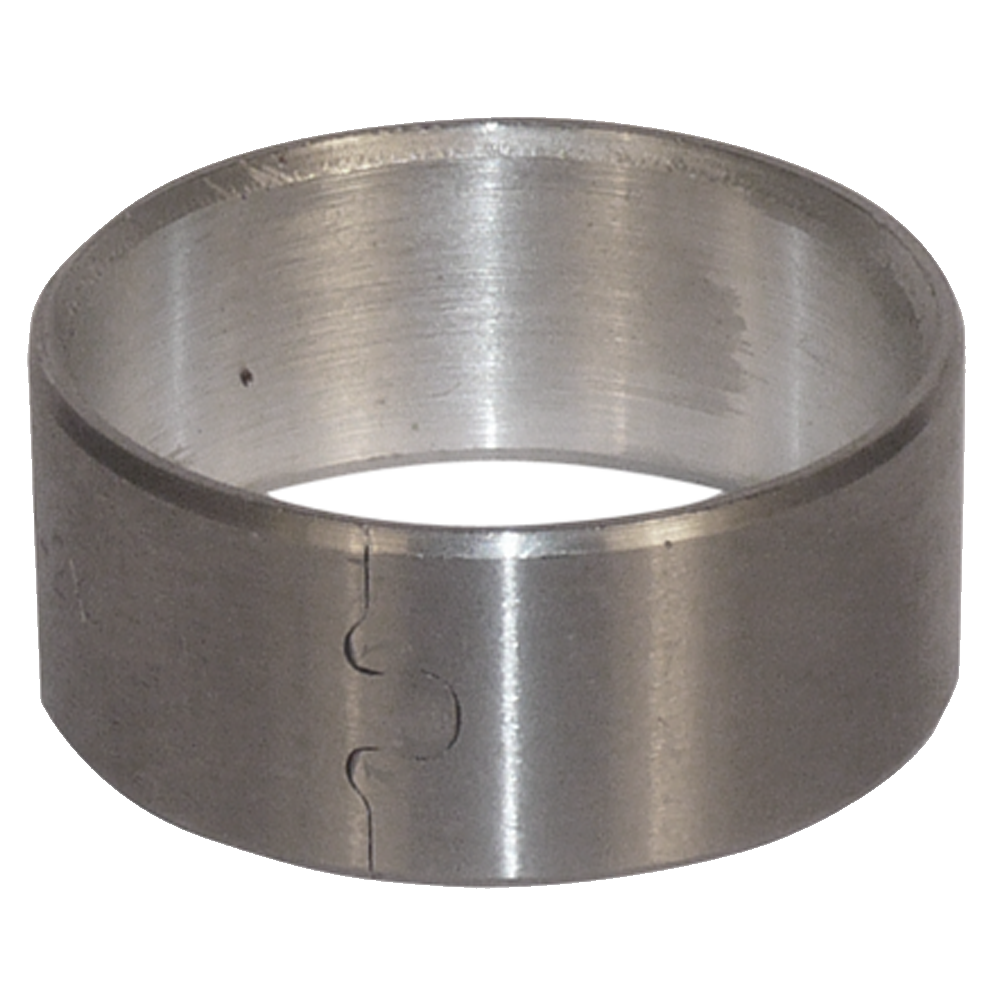

SB-18-2X 1.563 1.436 0.600 Undersized (Semi-Finished I.D.) Bi-metal

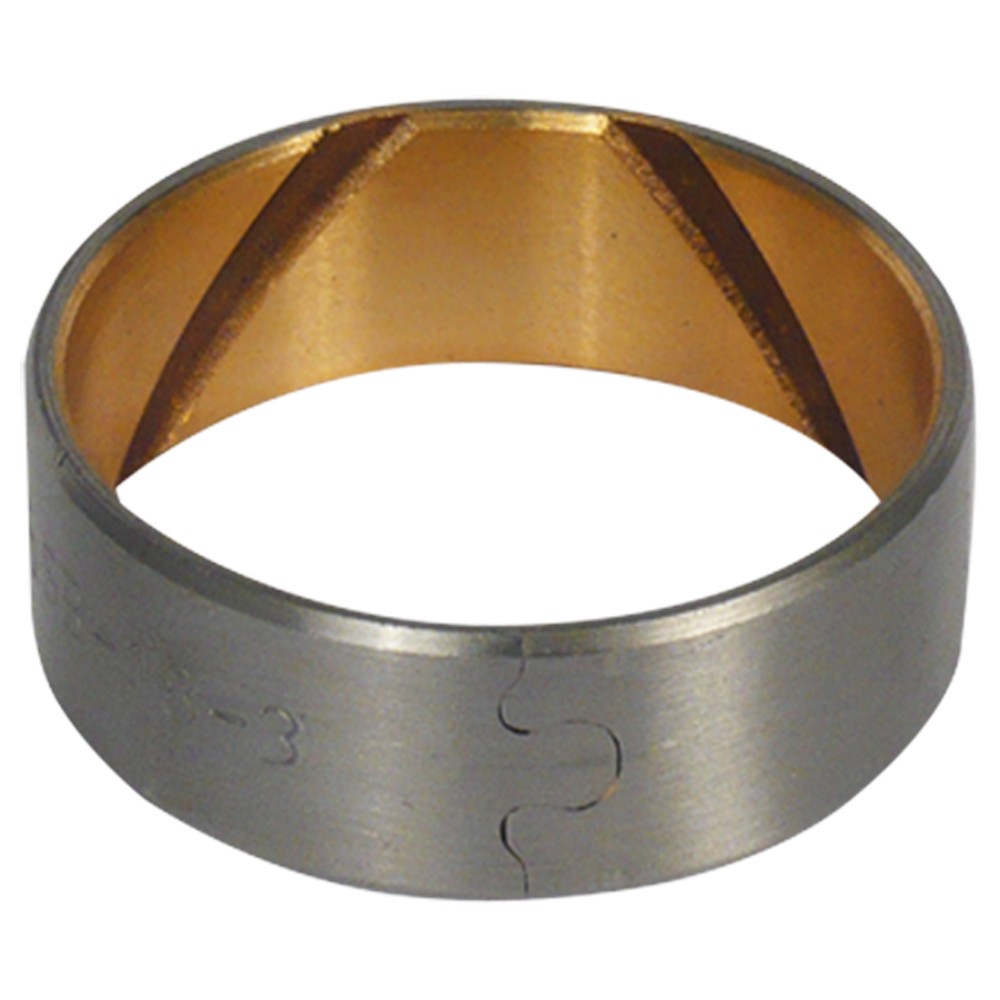

SB-18-3 1.500 1.365 0.475 Precision Bi-metal

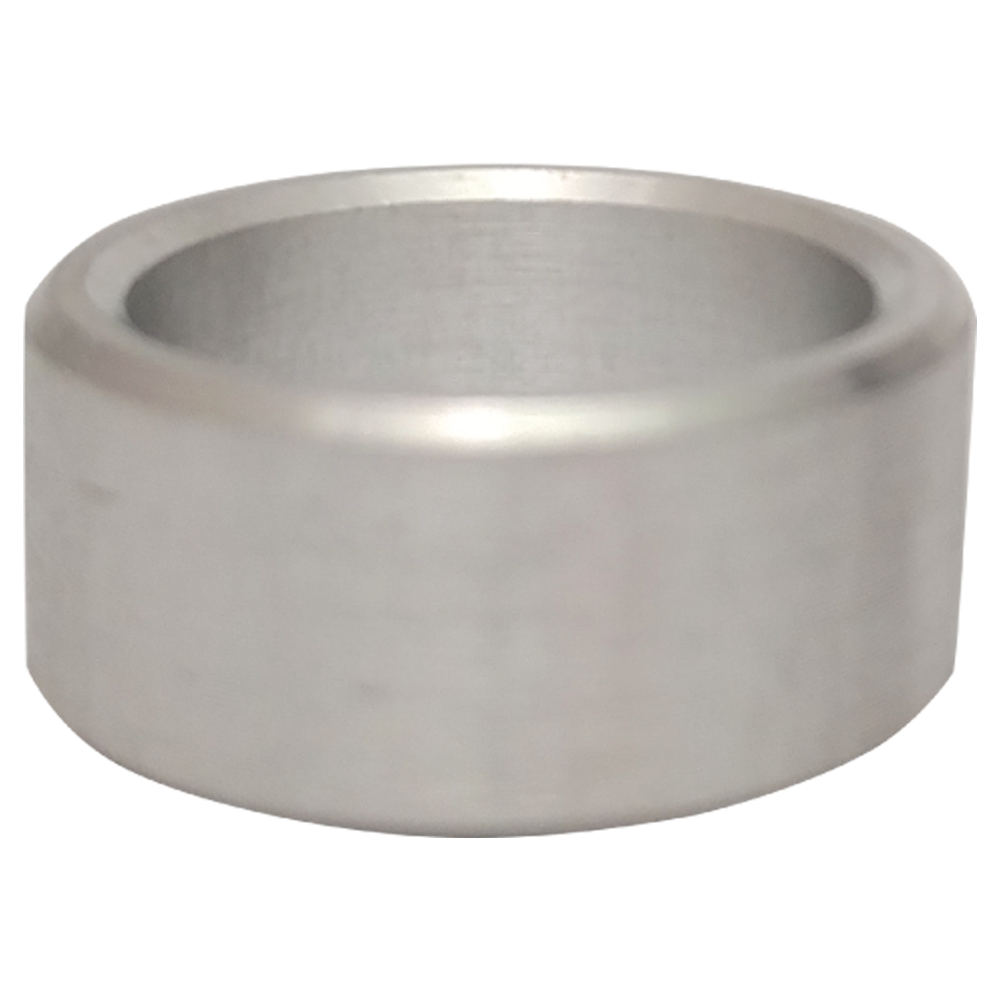

SB-18-4 0.730 0.574 0.312 Aluminum
SB-18-5T 1.919 1.796 0.476 Precision

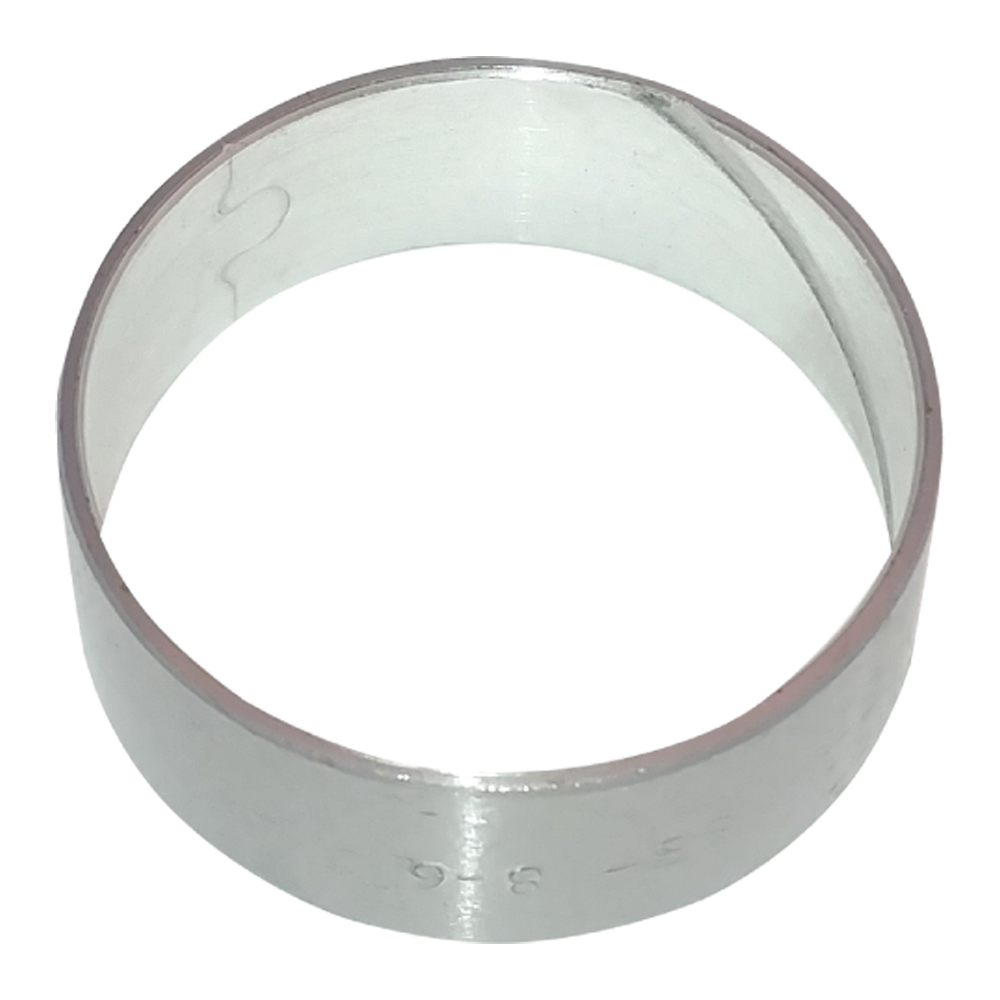

SB-18-6 1.740 1.622 0.615 Precision Steel-Backed Alloy

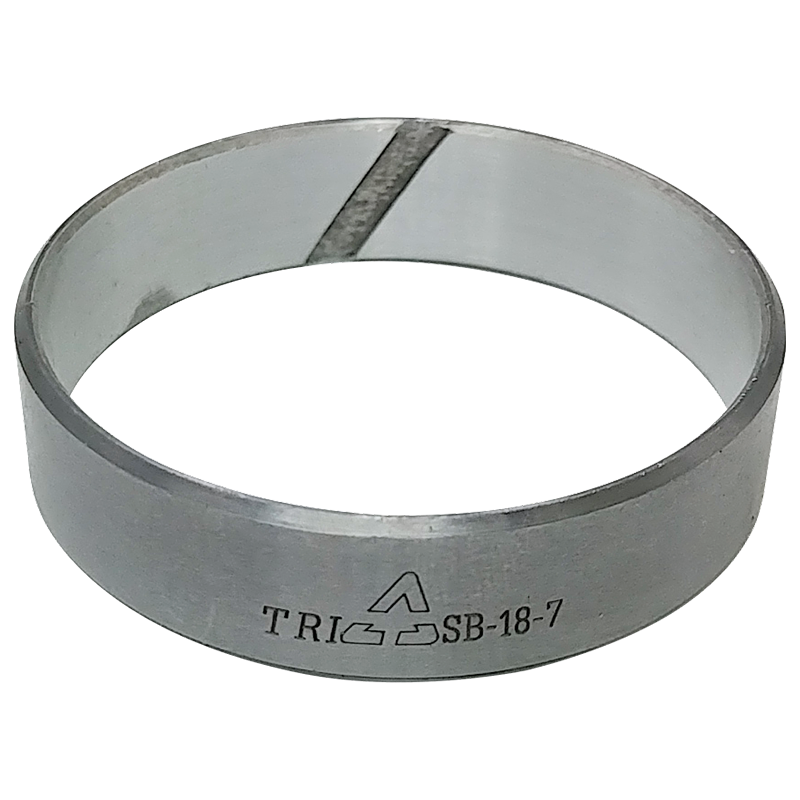

SB-18-7 1.900 1.771 0.460 Precision Bi-metal

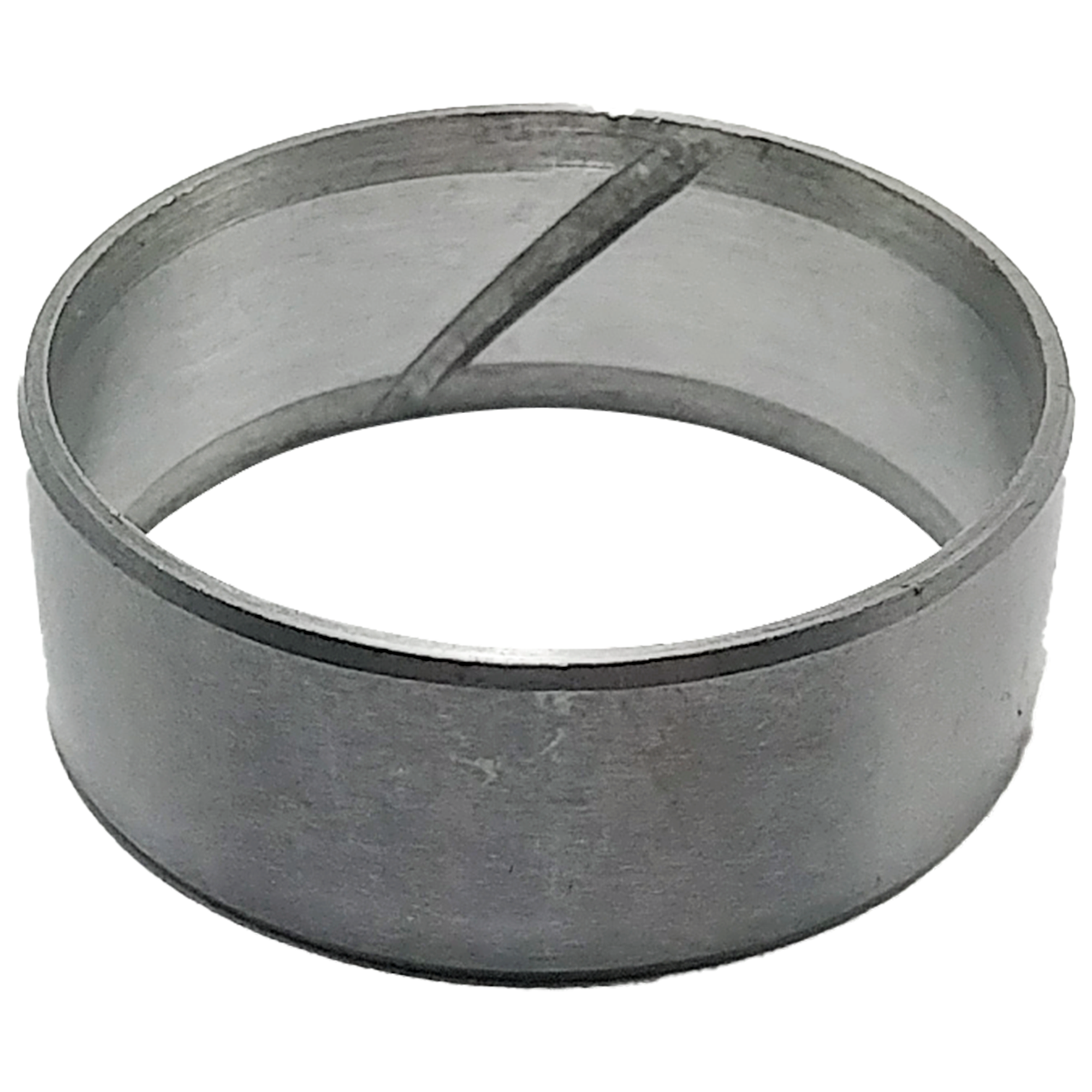

SB-18-8 1.603 1.476 0.585 Precision Bi-metal

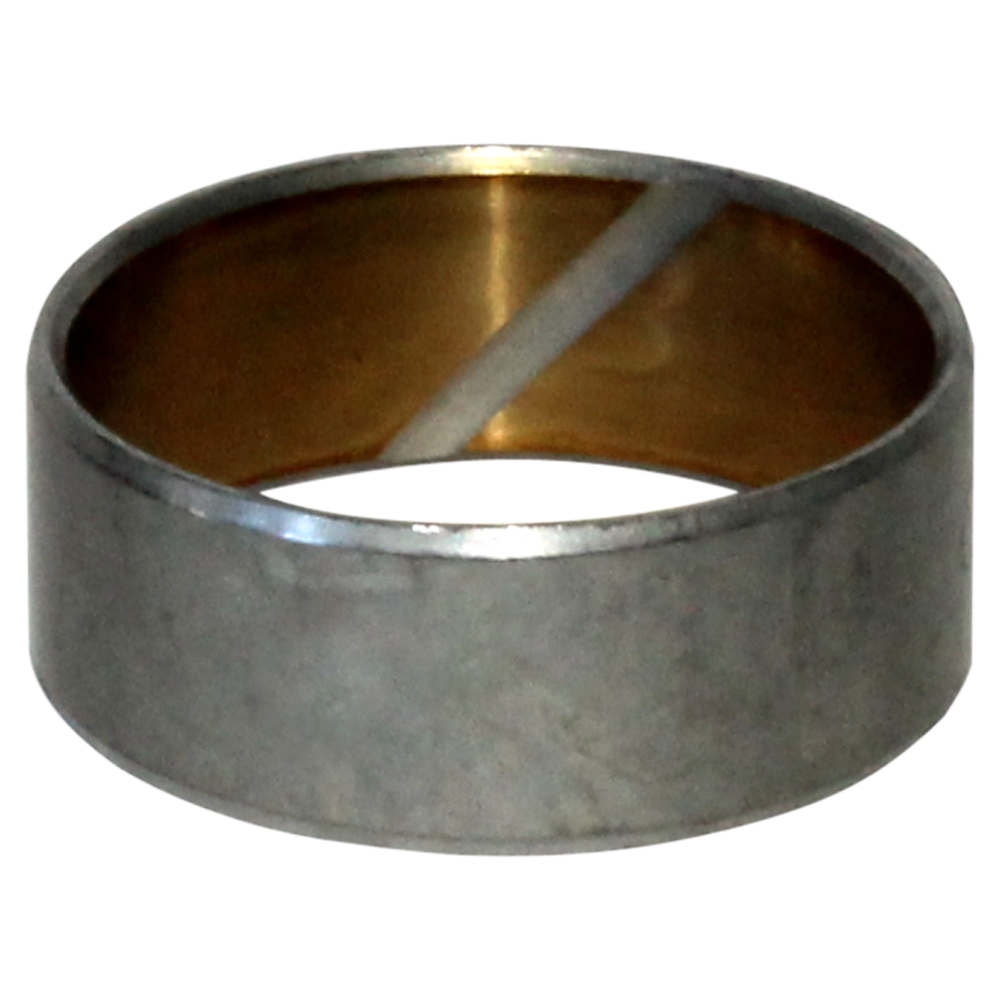

TB-18 1.324 1.206 0.500 Bronze

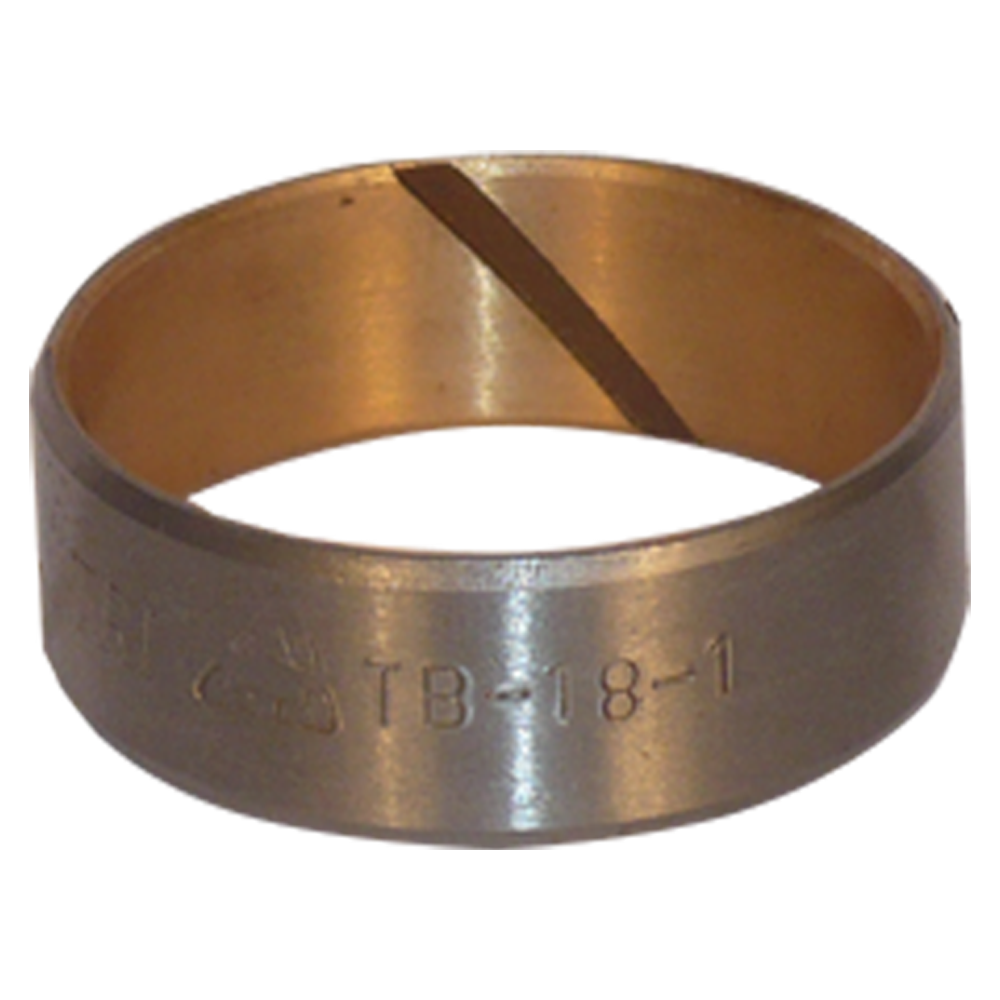

TB-18-1 1.569 1.445 0.500 Precision Bronze

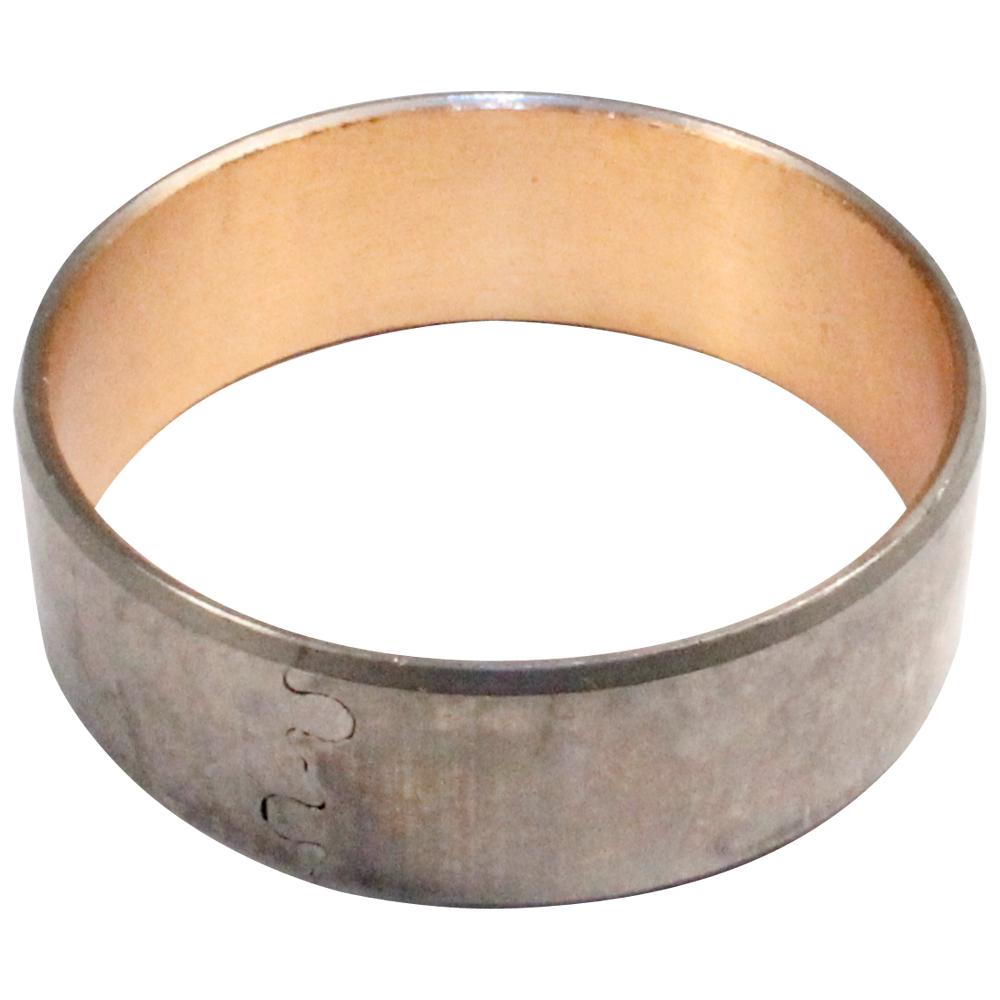

TB-18-10 1.620 1.498 0.530 Bronze

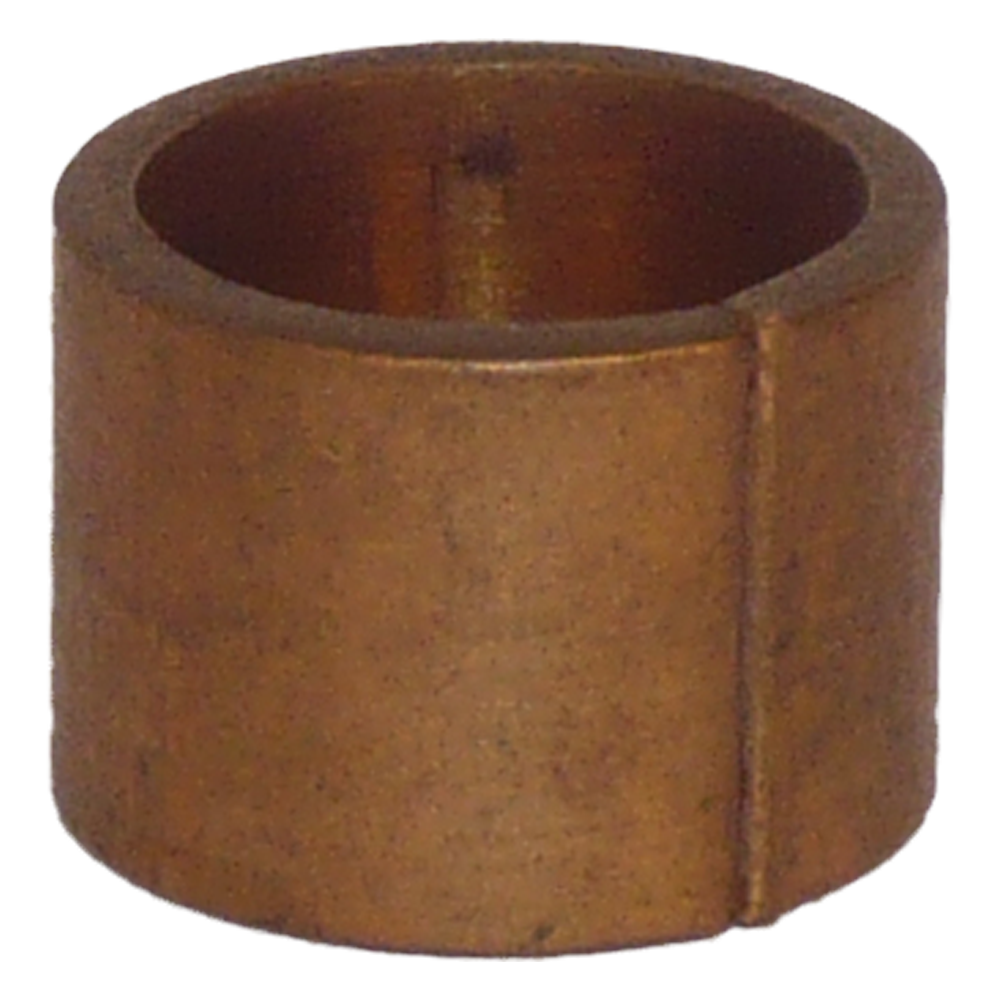

TB-18-11 0.589 0.471 0.437 Babbit

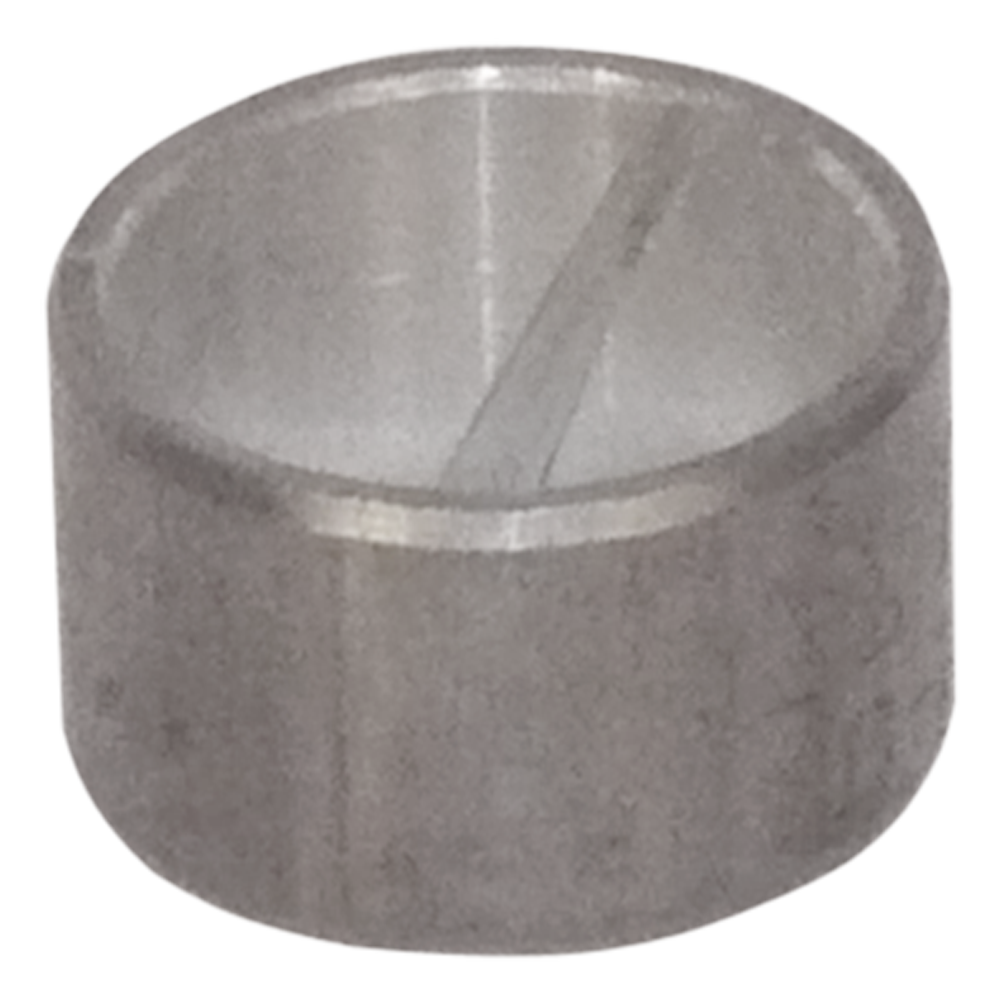

TB-18-12 0.788 0.671 0.437 Babbit

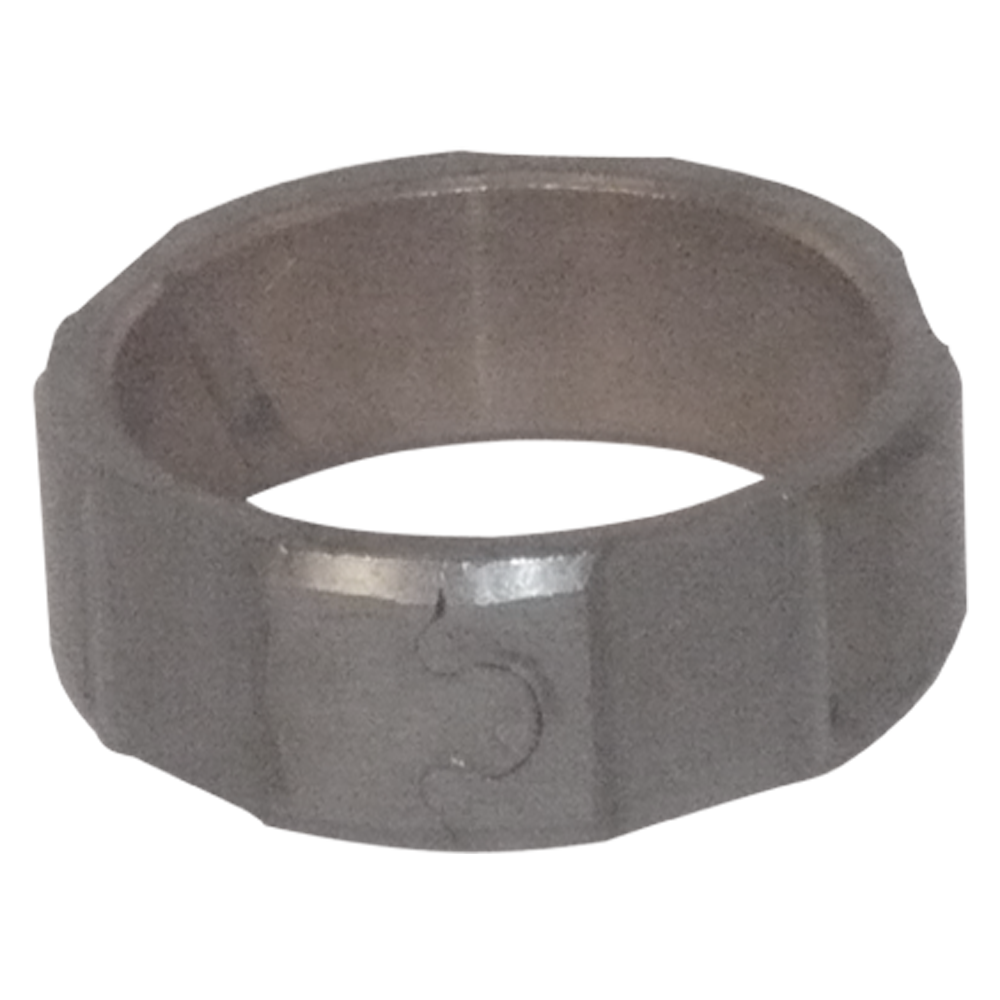

TB-18-13 1.294 1.063 0.413 Precision Steel - backed alloy
TB-18-14 1.294 1.063 0.360 Oversized O.D. & Undersized I.D. Steel- backed bronze alloy

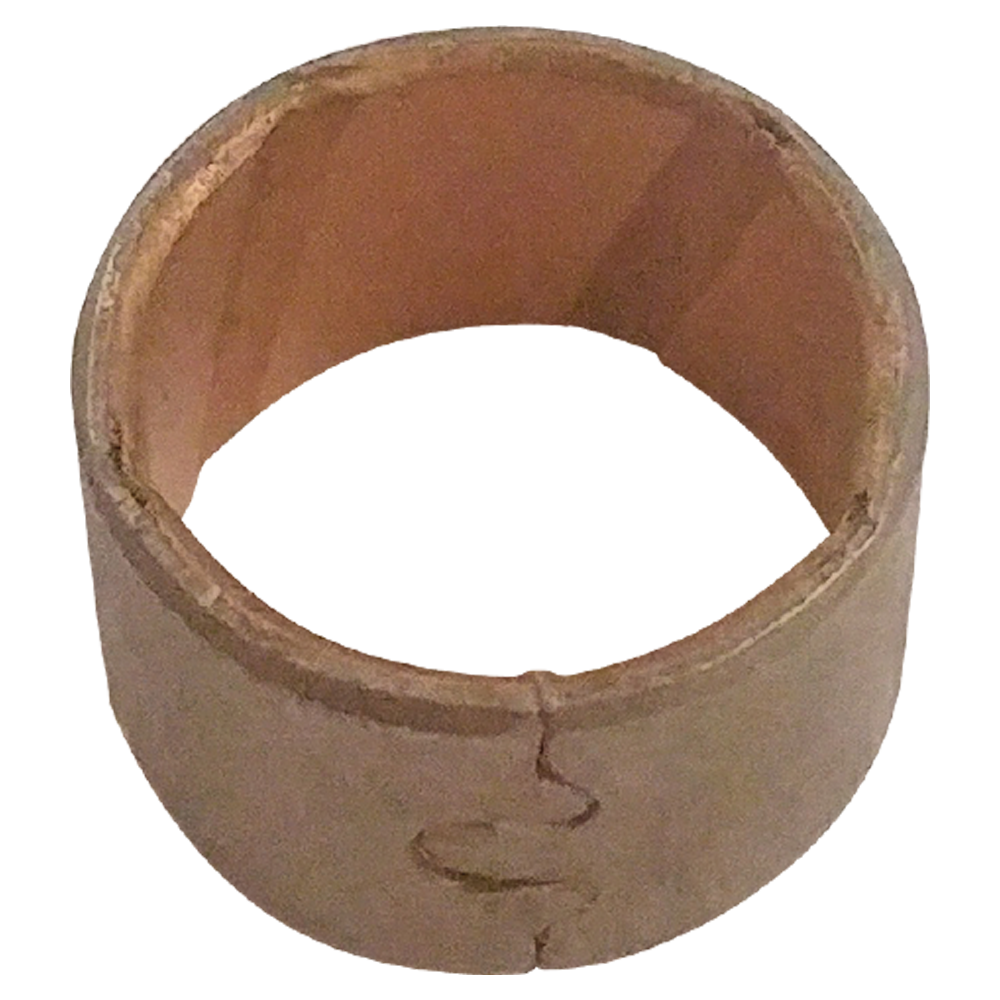

TB-18-1A 1.607 1.400 0.500 Oversized (Unfinished) Bronze

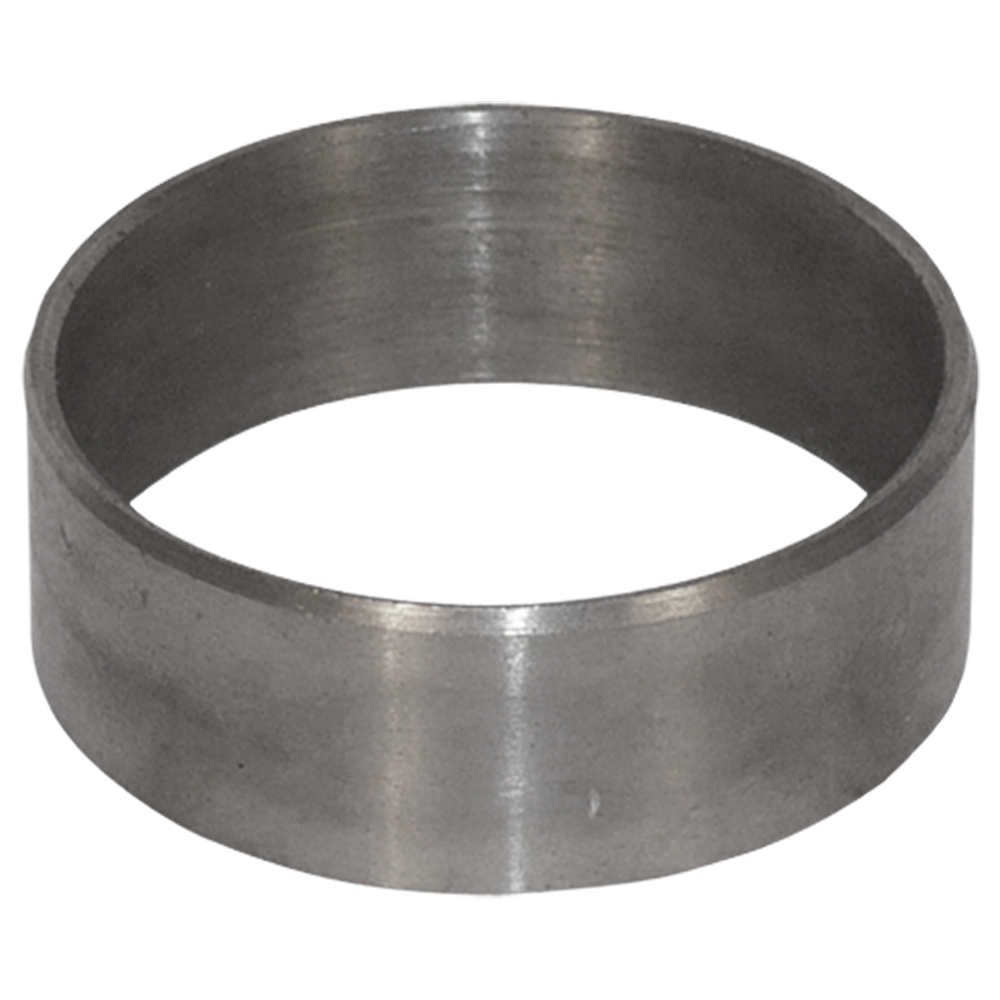

TB-18-1P 1.610 1.405 0.500 Oversized (Unfinished) Bi-metal
TB-18-1S 1.574 1.447 0.500 Precision
TB-18-1X 0.500 Oversized (Unfinished)

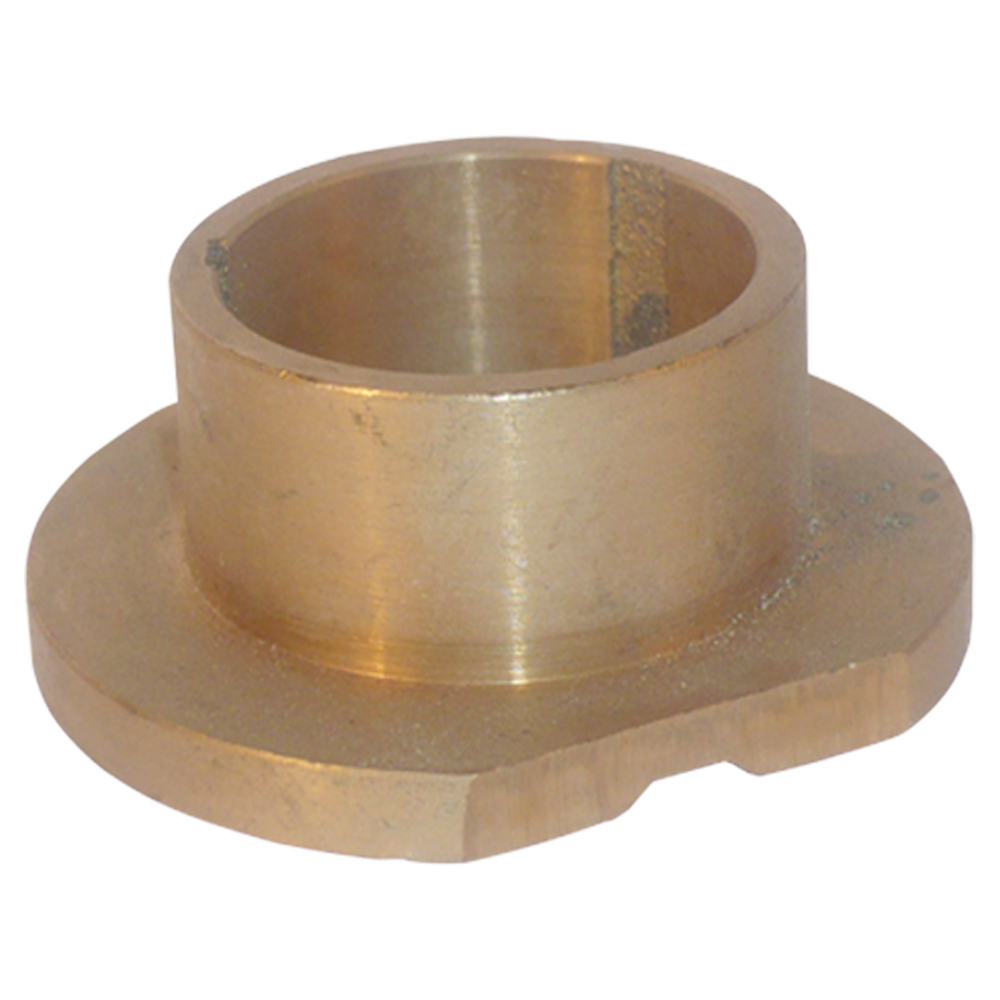

TB-18-2
TB-18-3 1.569 1.448 0.375 Bronze

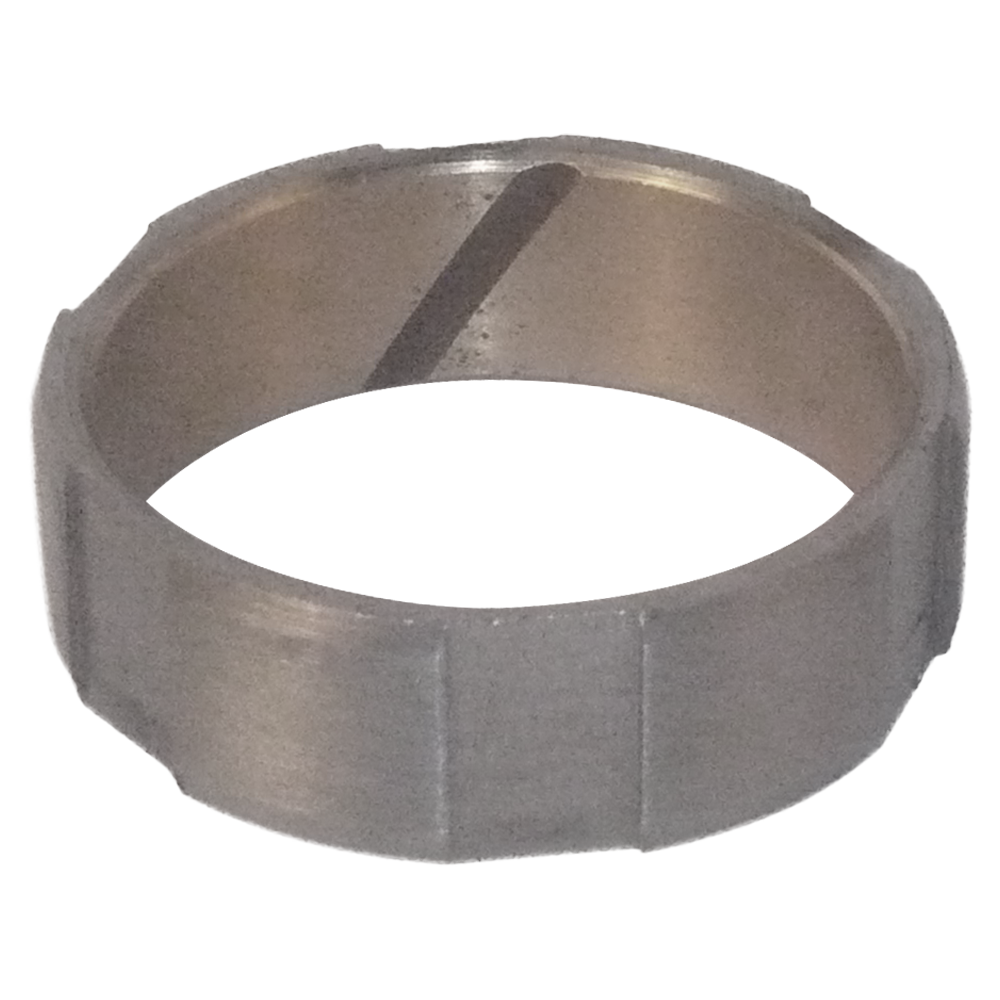

TB-18-4 1.610 1.385 0.503 Precision Bronze

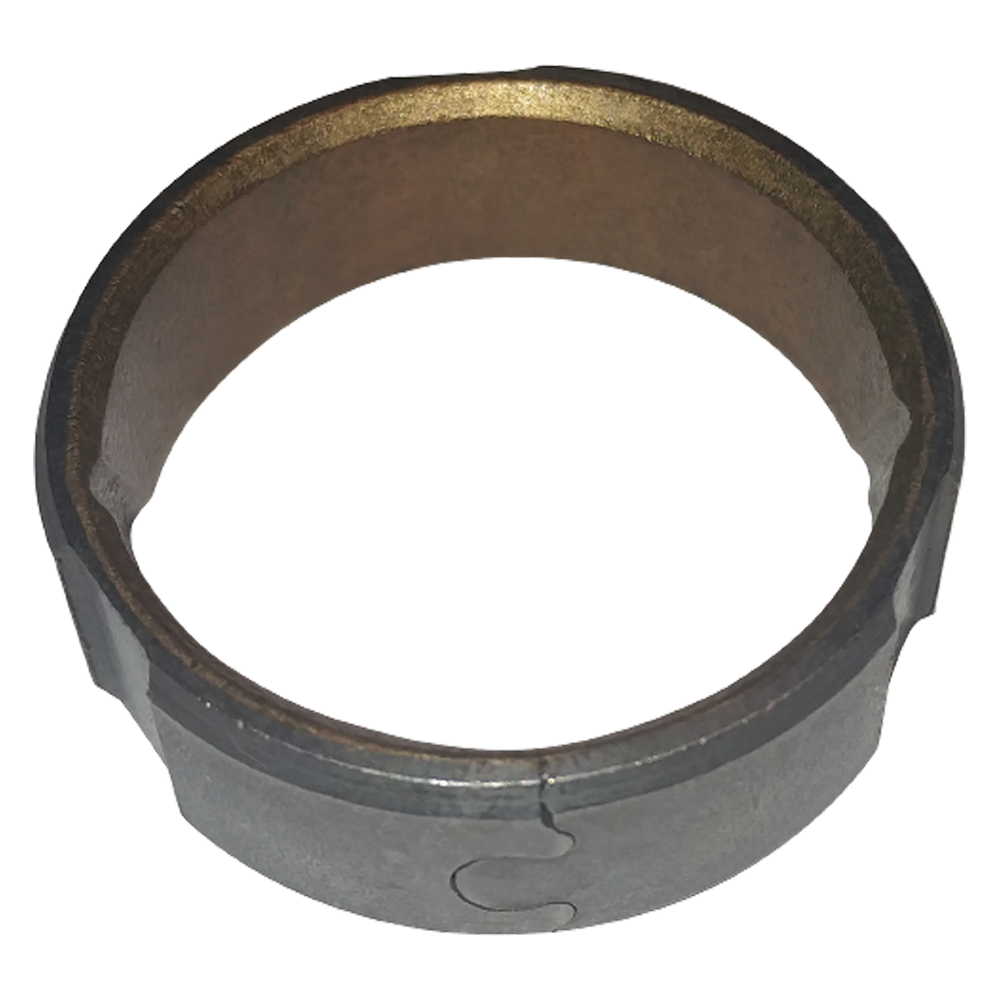

TB-18-4X 1.610 1.385 0.503 Undersized I.D. (Unfinished) Bronze

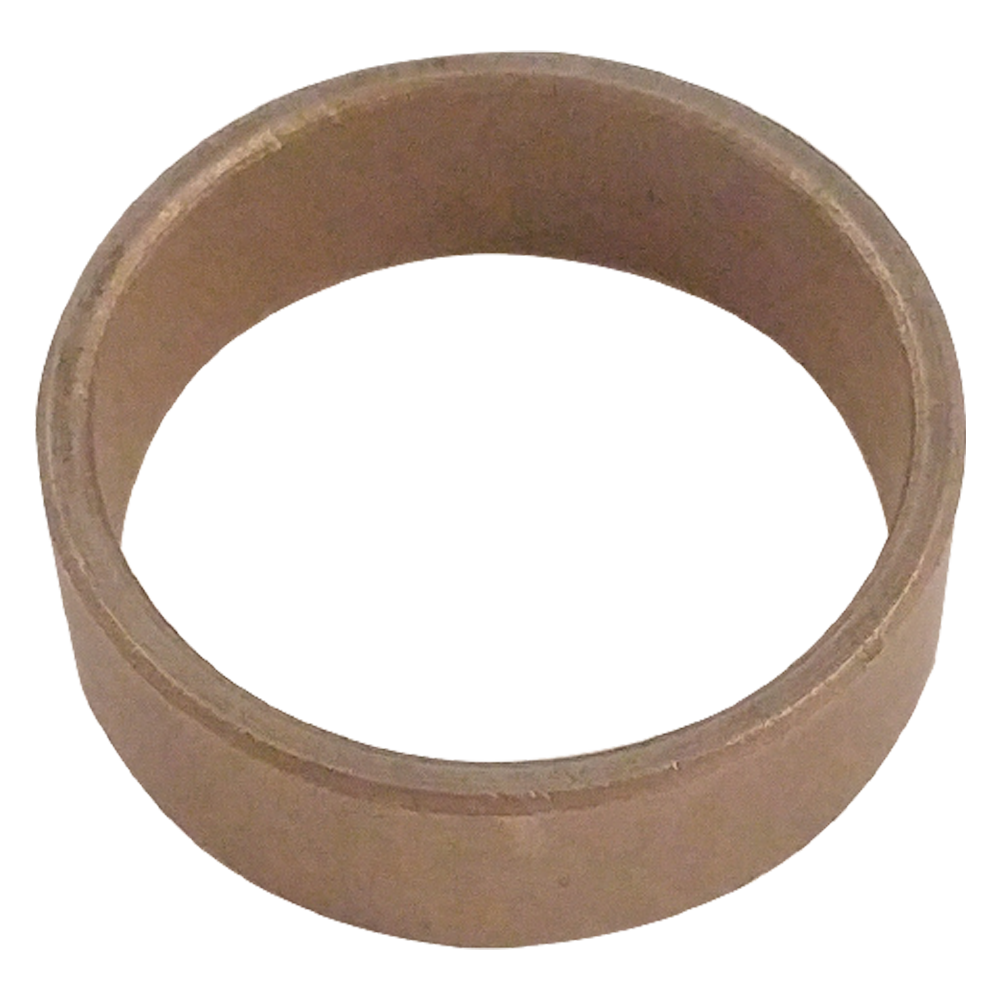

TB-18-5 0.743 0.630 0.466 Bronze

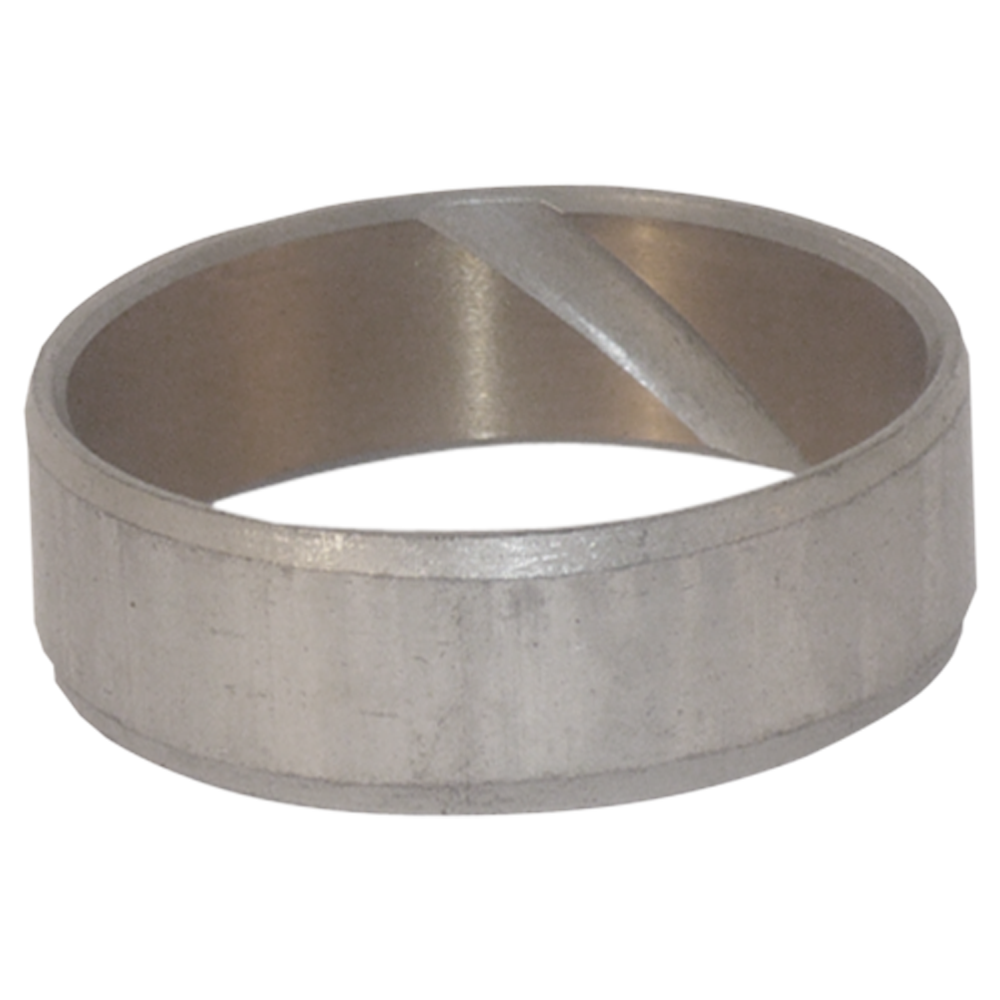

TB-18-7 1.291 1.169 0.367 Bronze

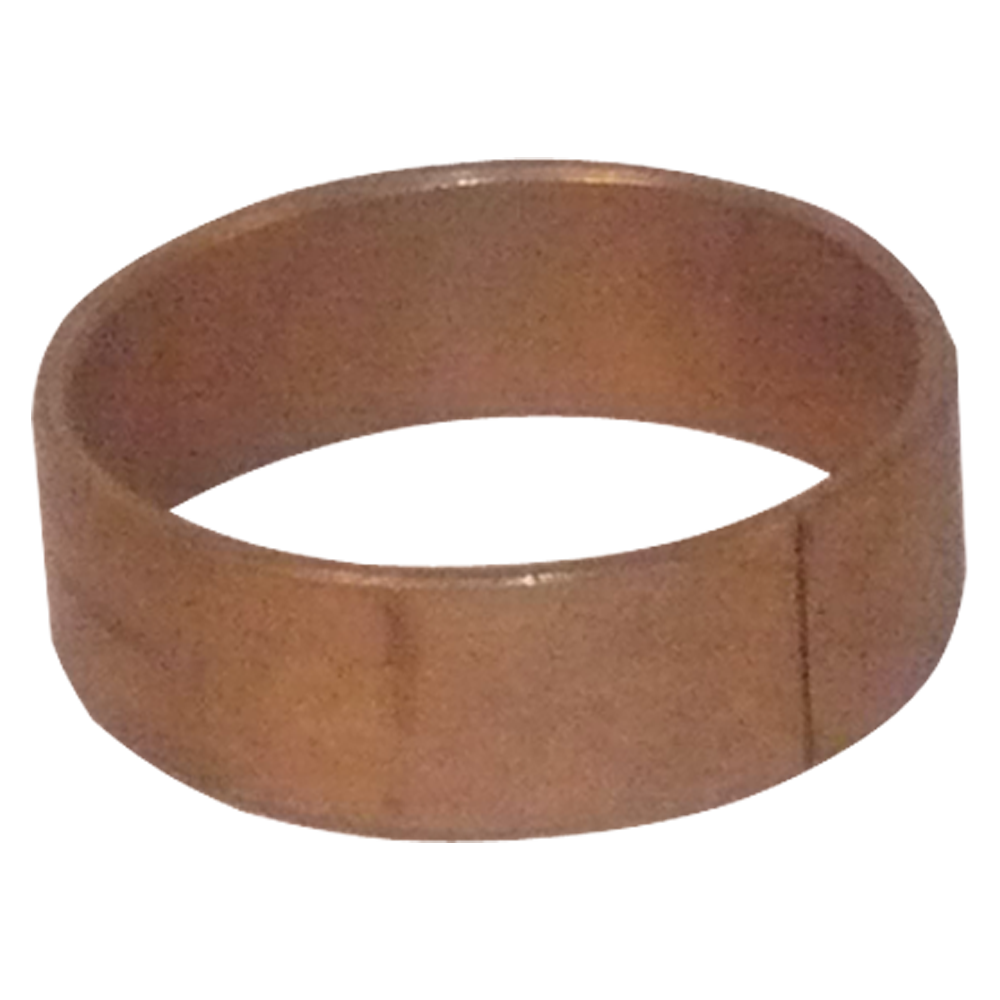

TB-18-9 1.375 1.245 0.440 Bronze

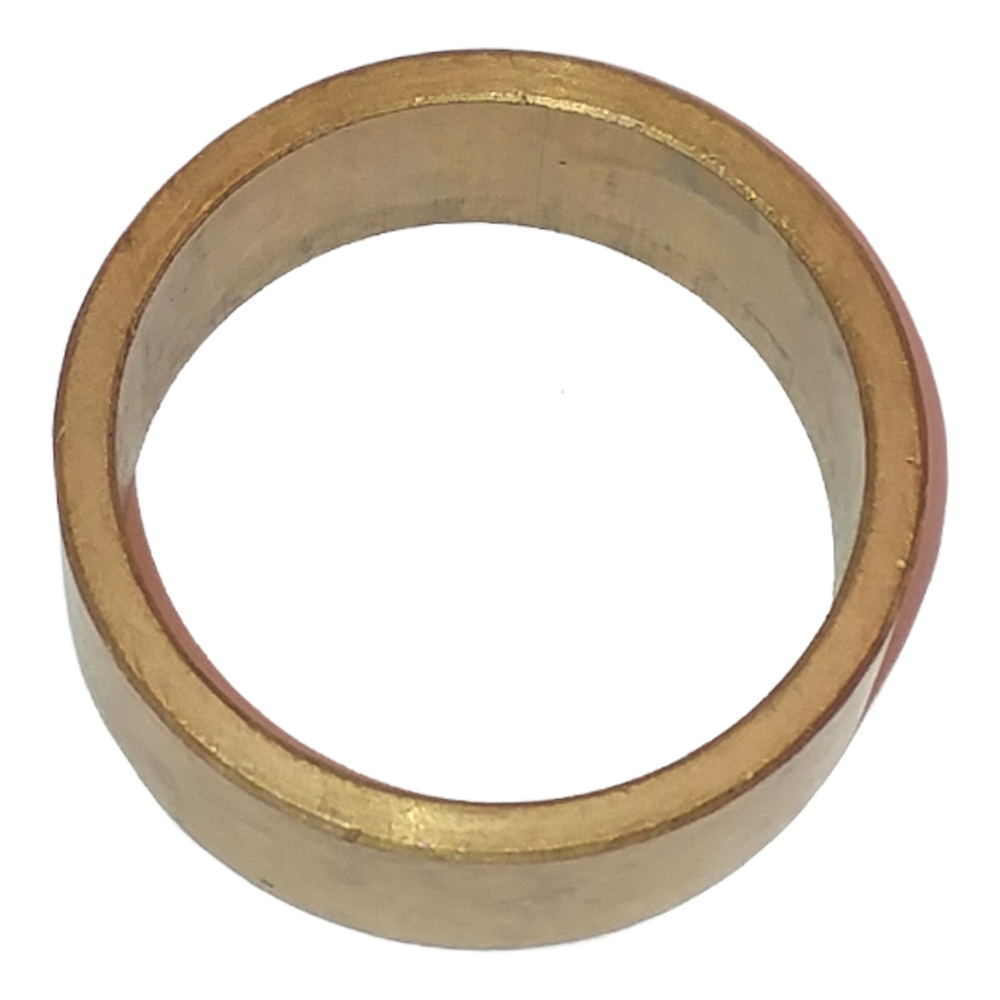

TB-18A

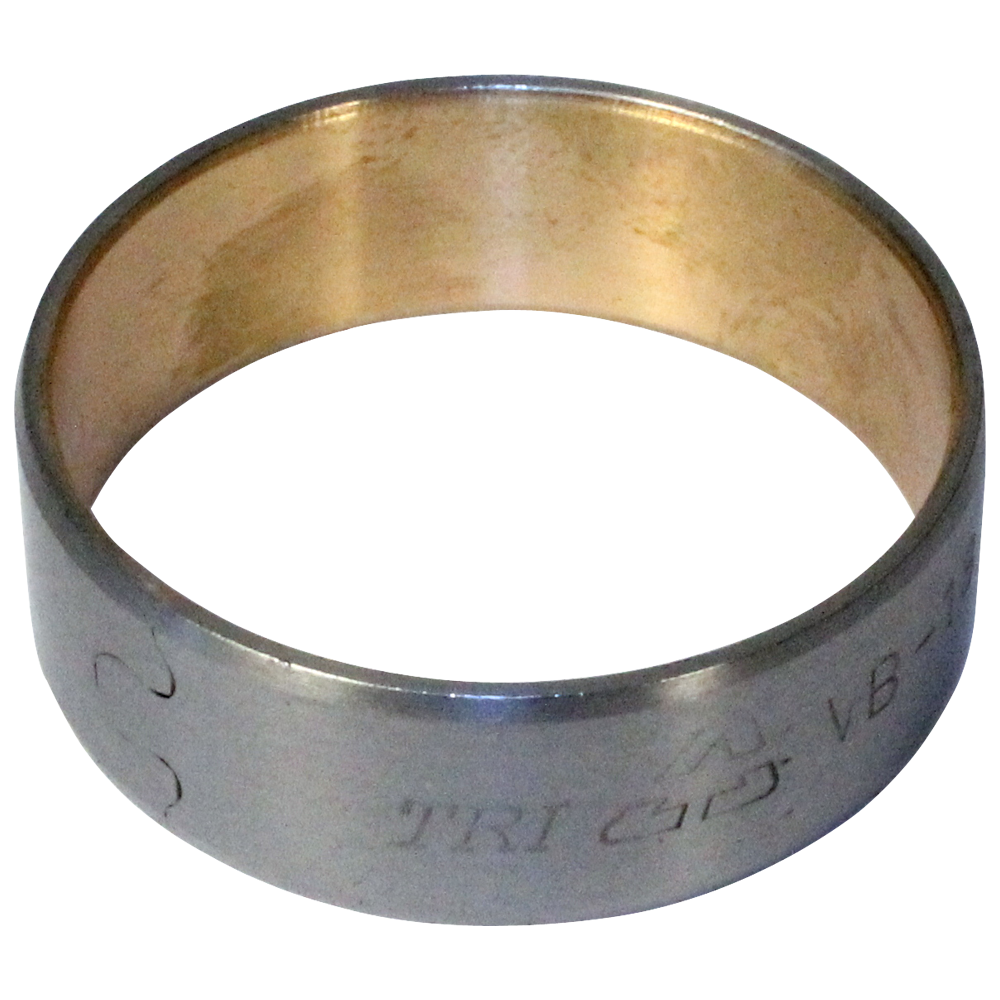

VB-18 1.457 1.337 0.472 Precision Bronze

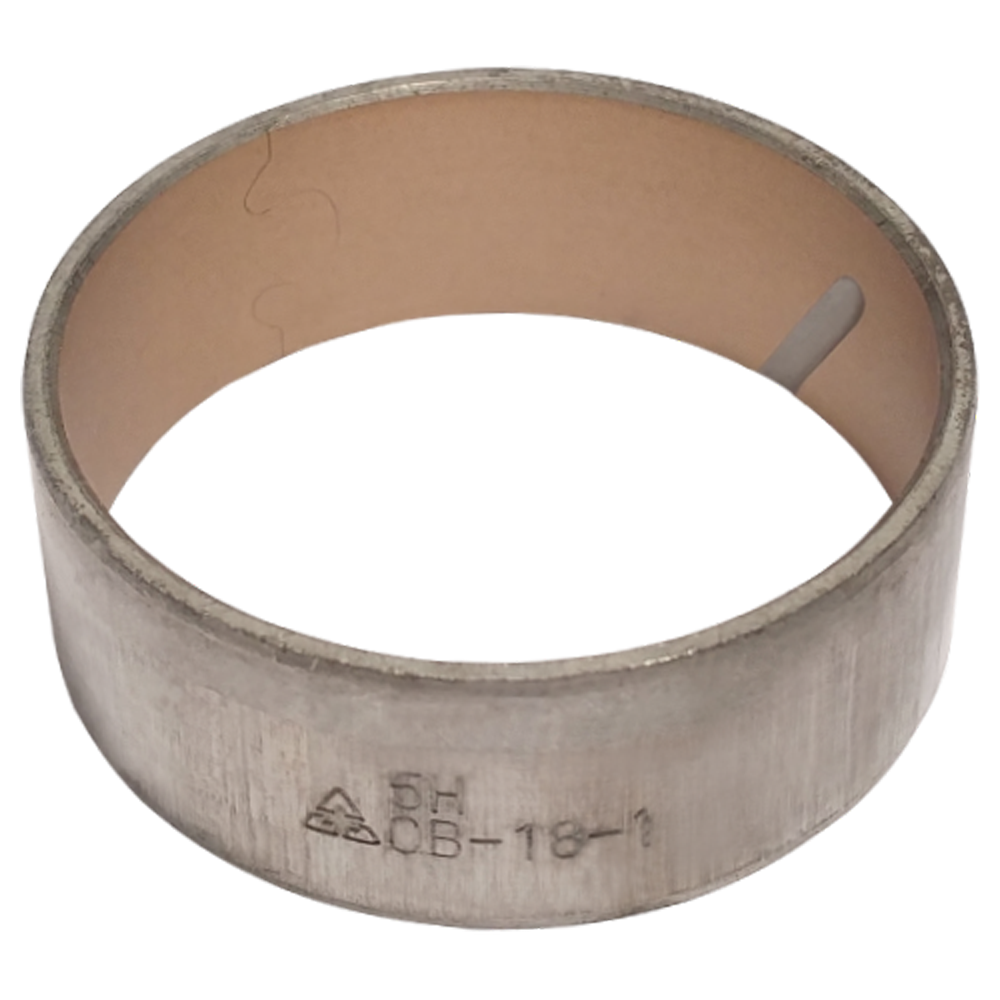

VB-18-1 1.535 1.415 0.551 Bronze
WB-18B 0.615 Bronze

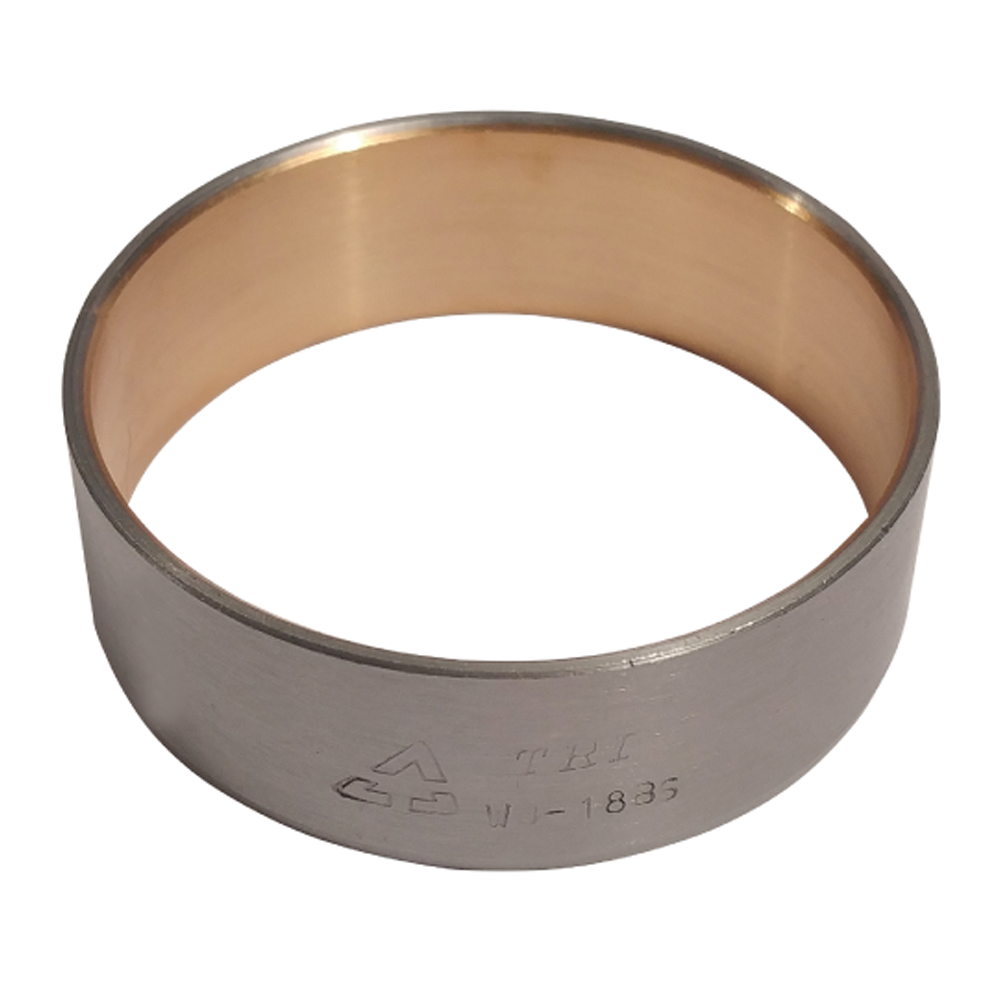

WB-18BS 1.941 1.809 0.625 Bronze

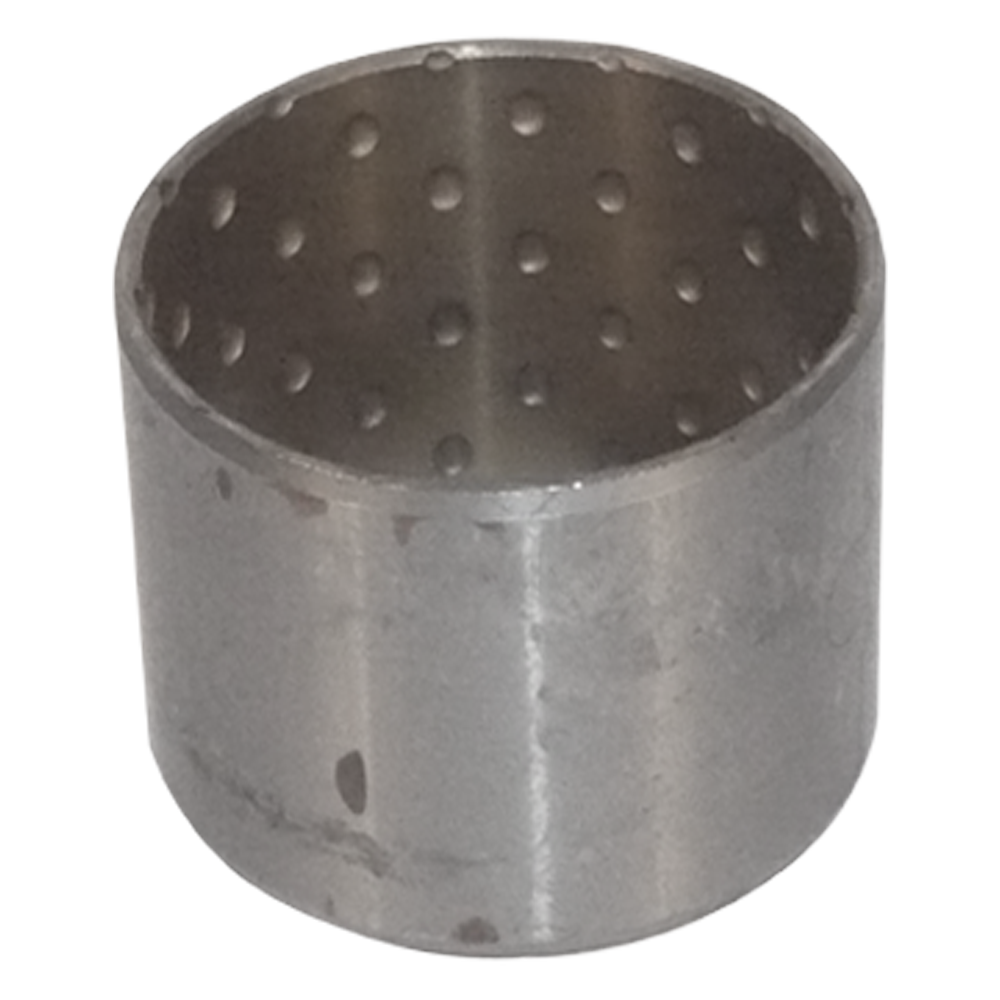

YB-18

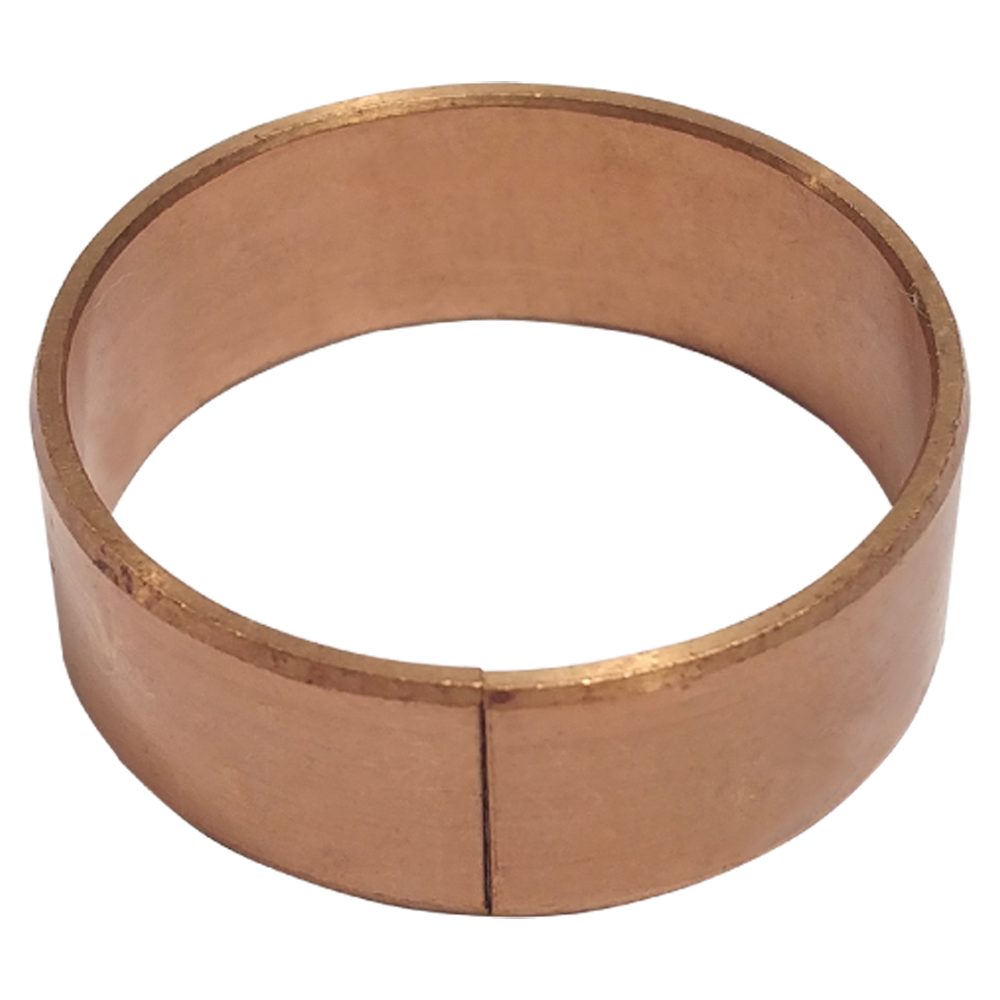

ZB-18 1.371 1.250 0.464 Bronze
