TORQUE CONVERTER BEARINGS

BEARINGS Full Listing

We provide both OEM and our own brand of TRI needle roller bearings, to the torque converter rebuilding industry, at very competitive prices. We provide thrust bearings that are enclosed, semi-enclosed and exposed, as well as torque converter bearing & race kits. Many of our bearings are manufactured and assembled in our own factory. You can always rest assured that if your bearing bears the name "Tri Component", then it is the highest quality bearing on the market.

Part ID Outside Dia (inch) Inside Dia (inch) Thick (inch) Design

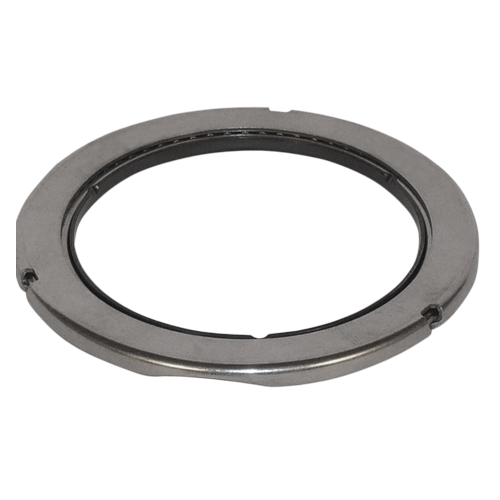

35400C 2.890 2.138 0.141 Enclosed

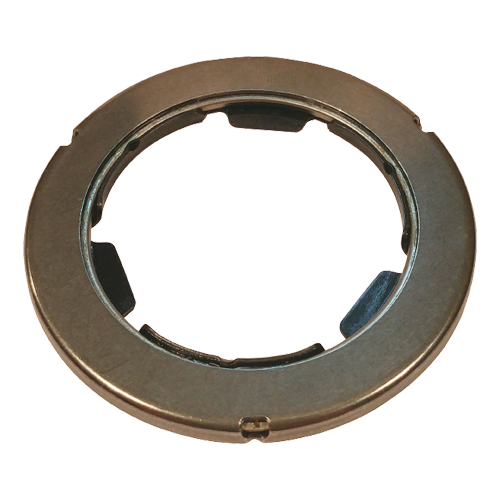

35402B 2.470 1.670 0.140 Enclosed, 3 I.D Tags

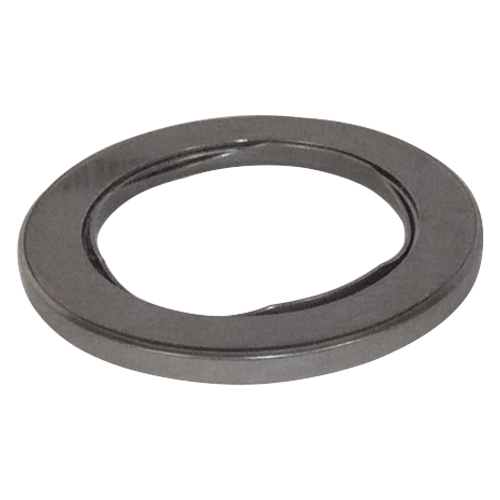

35403B 2.640 1.760 0.160 Enclosed
35404 2.500 1.670 0.140 Enclosed

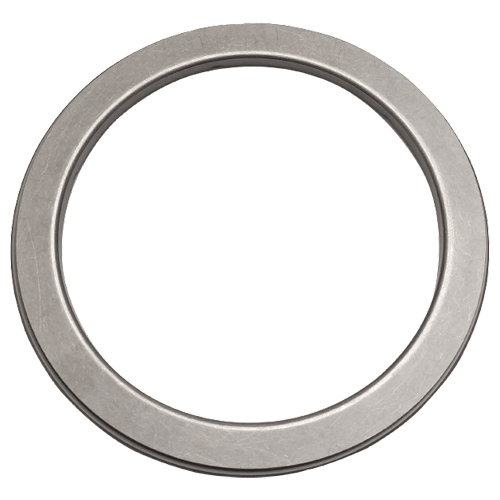

AW-2-1 4.449 3.543 0.197 Enclosed

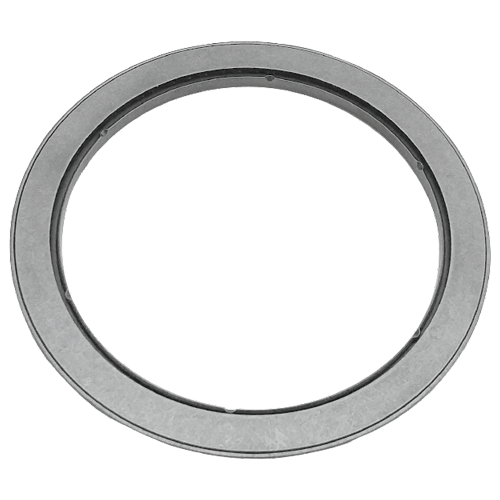

AW-2-2 4.213 3.347 0.197 Enclosed

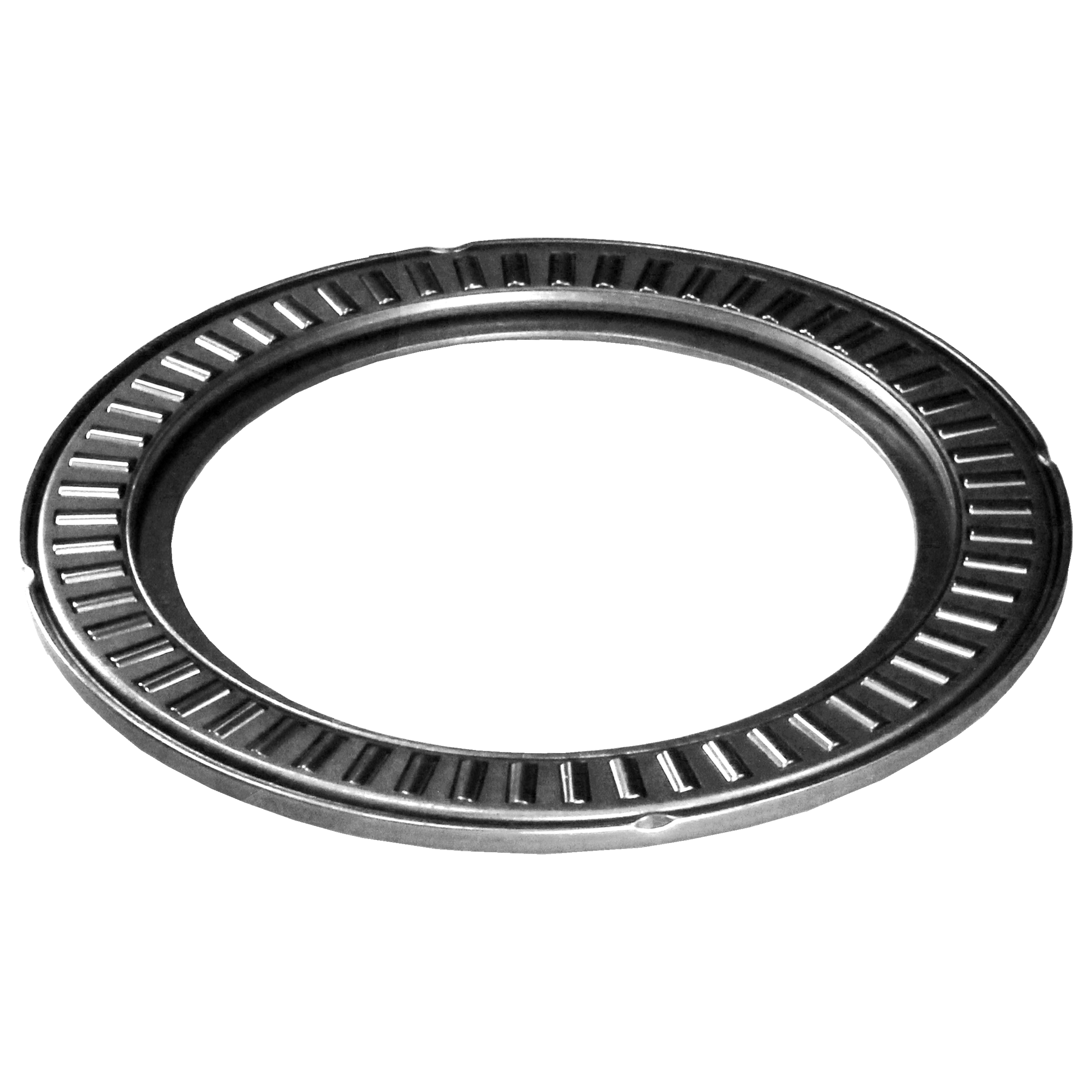

AW-2-3 3.440 2.430 0.129 Semi-Enclosed

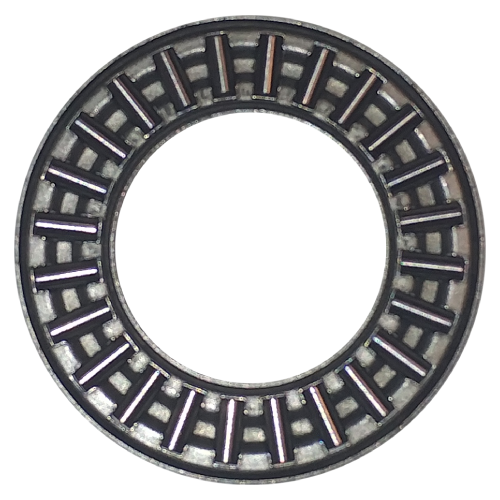

AXK-2035 1.378 0.787 0.079 Exposed
AXK-5070 2.755 1.968 0.118 Exposed

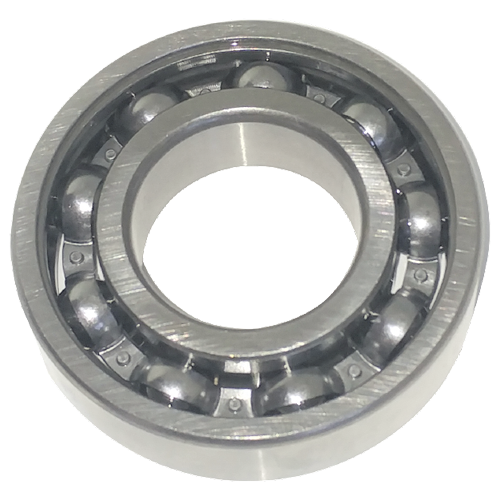

D-22A

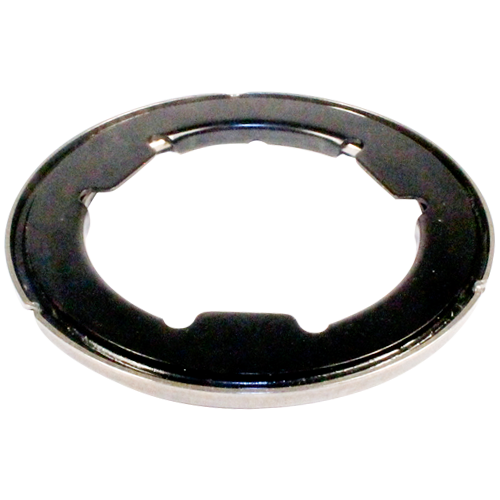

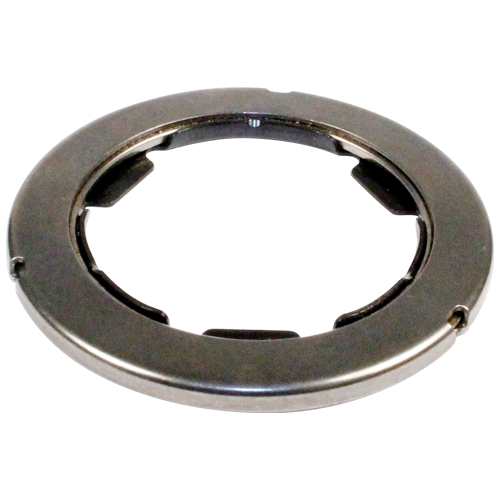

FH-49401 2.470 1.670
FNT-4060 2.360 1.575 0.125 Exposed
FNT-5578 3.070 2.165 0.118 Bearing
FNT-75100 3.937 2.953 0.157 Exposed

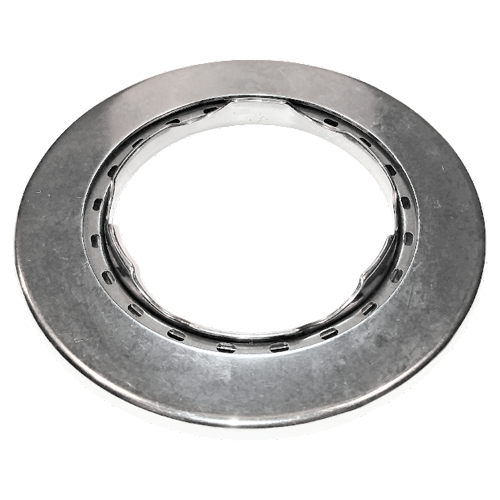

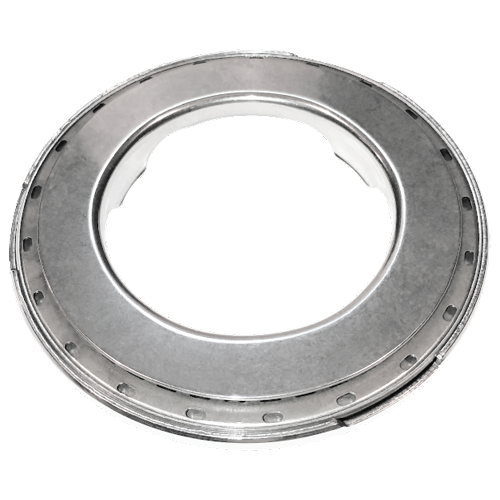

FW-2-10 3.120 1.879 0.206 Enclosed

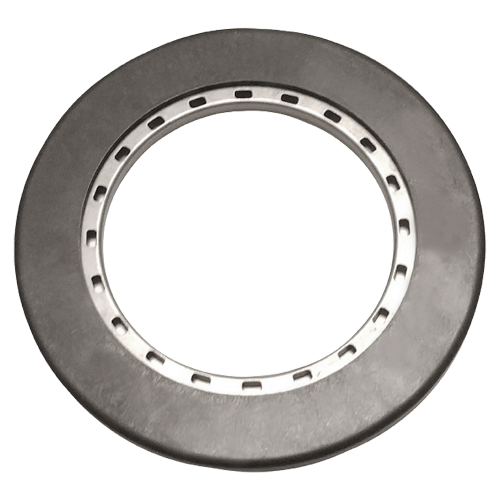

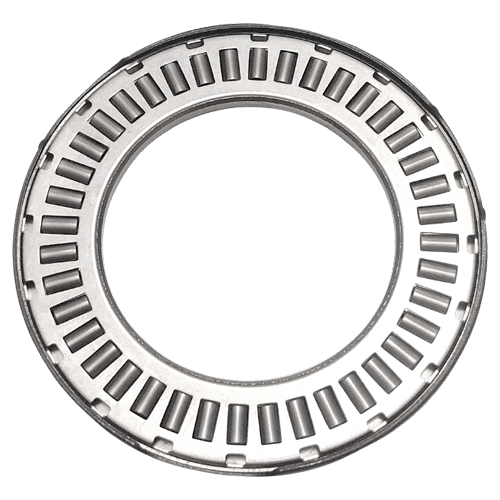

FW-2-11 3.126 1.939 0.179 Semi-Enclosed

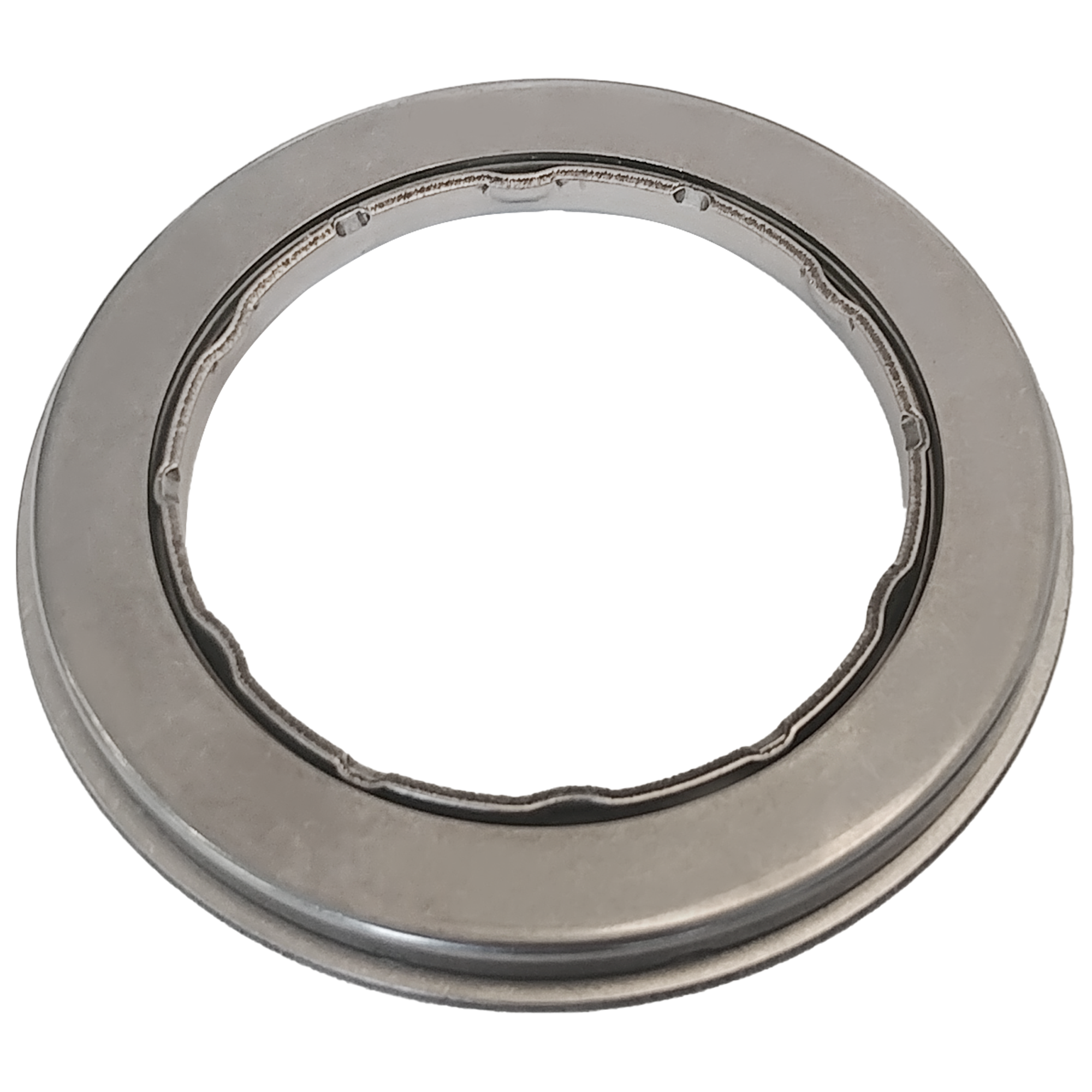

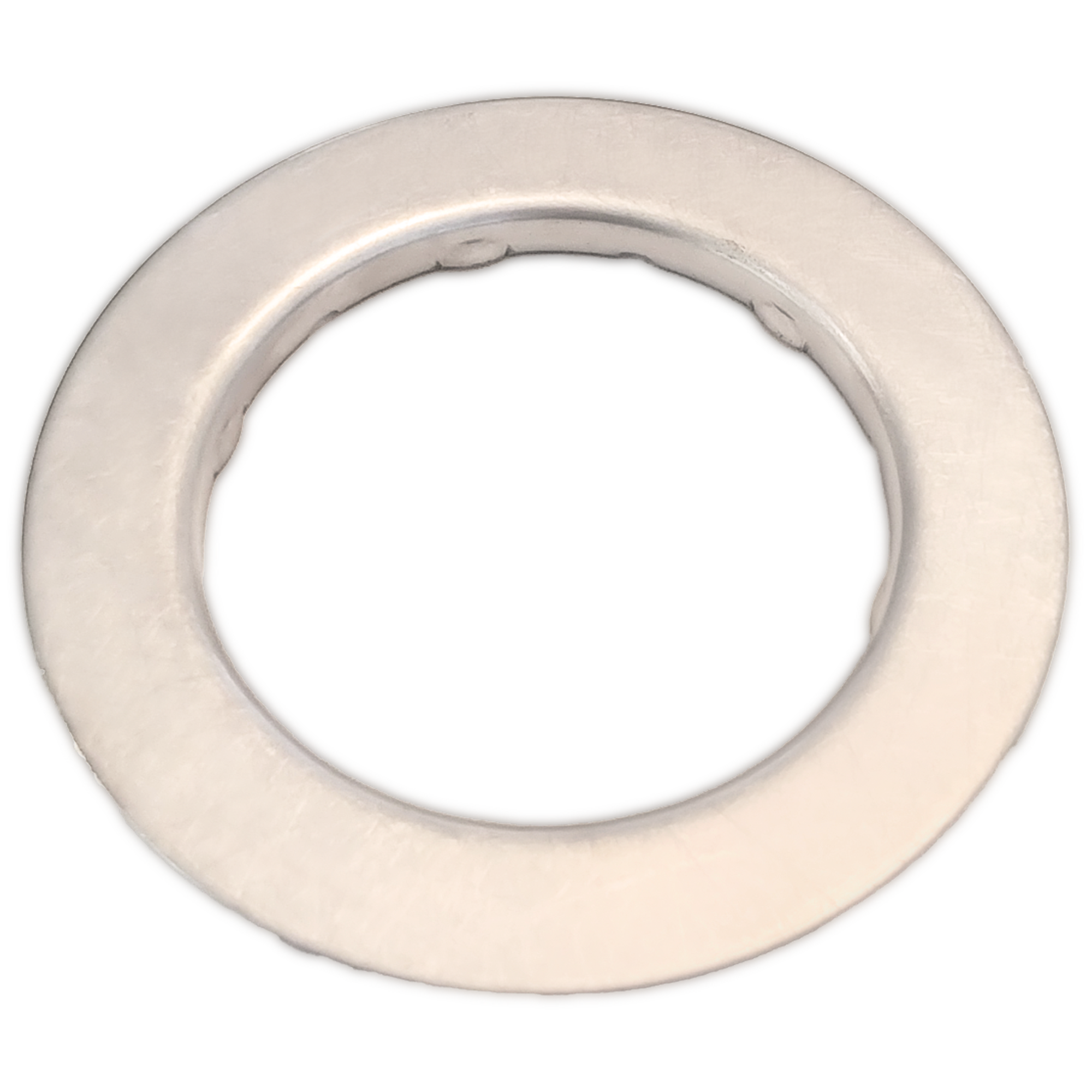

FW-2-12 3.771 2.673 0.288 Enclosed

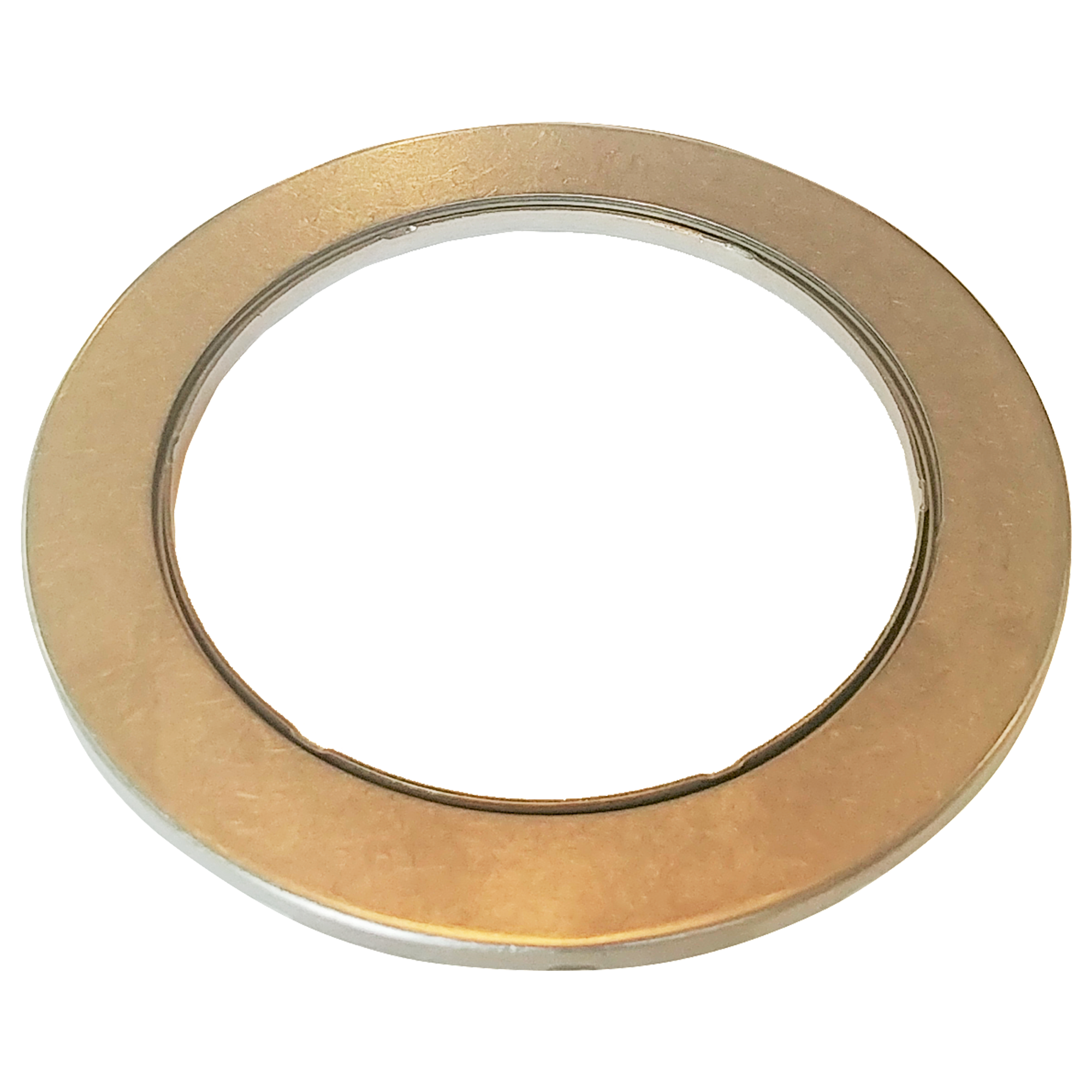

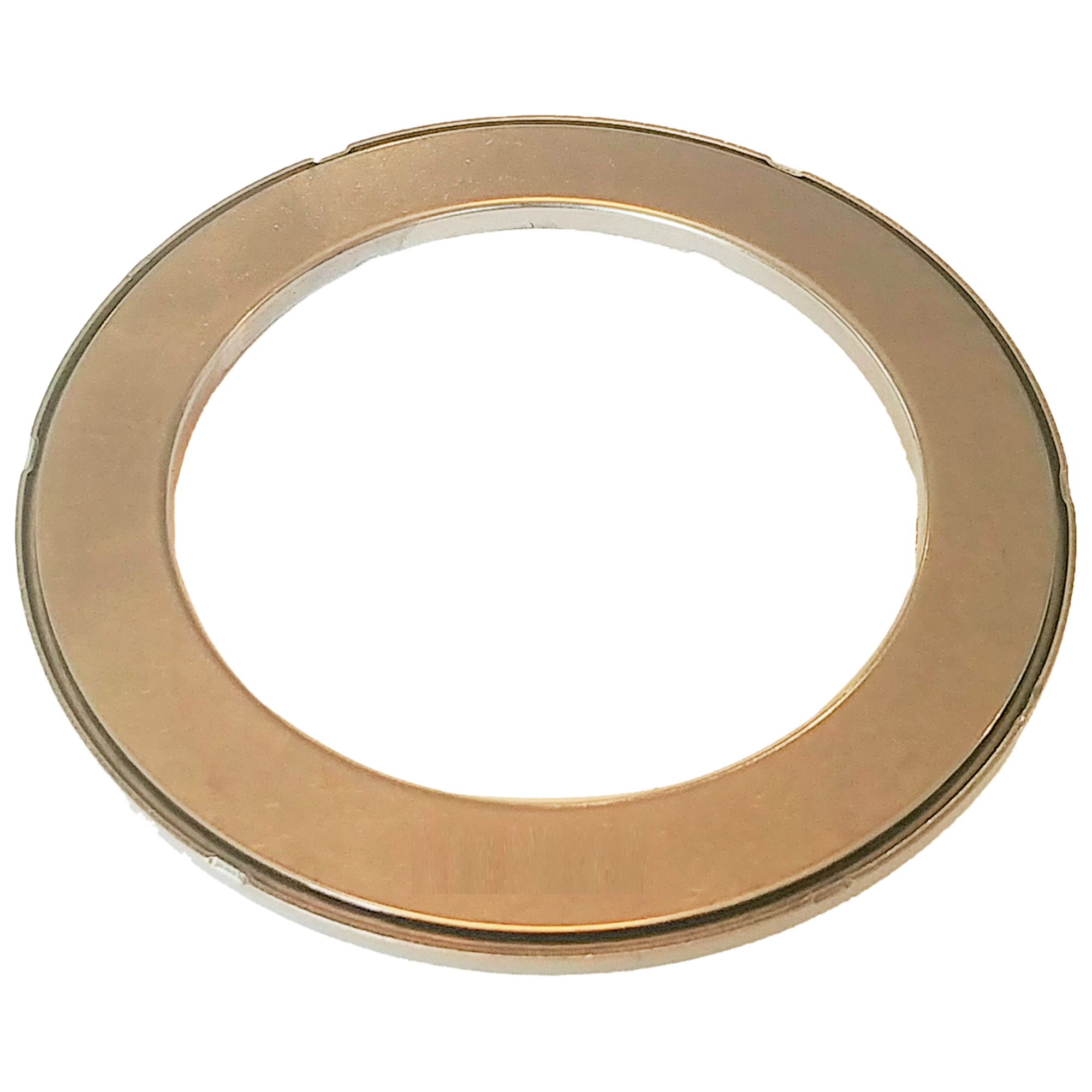

FW-2-13 3.670 2.620 0.162 Enclosed

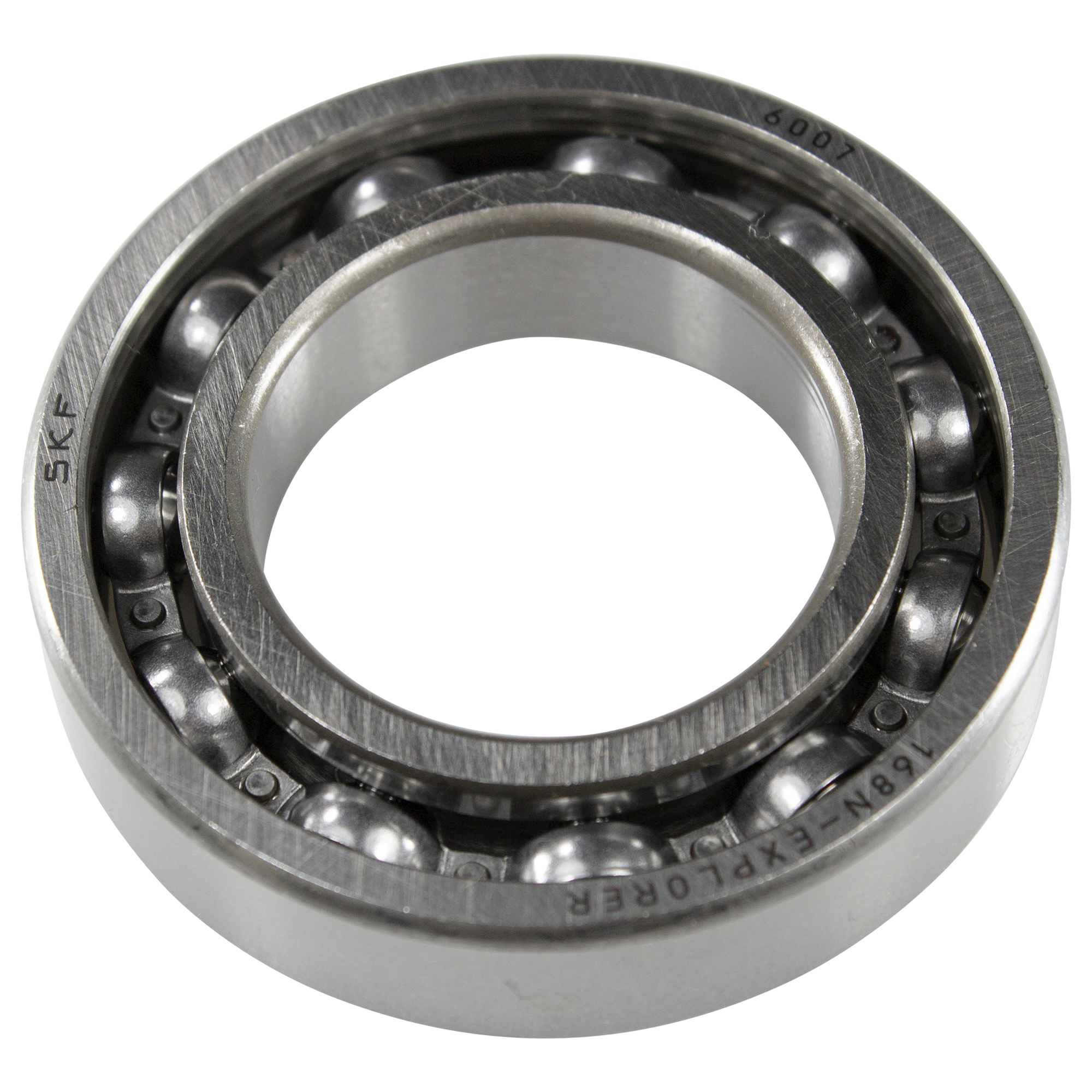

FW-2-14 2.440 1.380 0.550 Ball Bearing

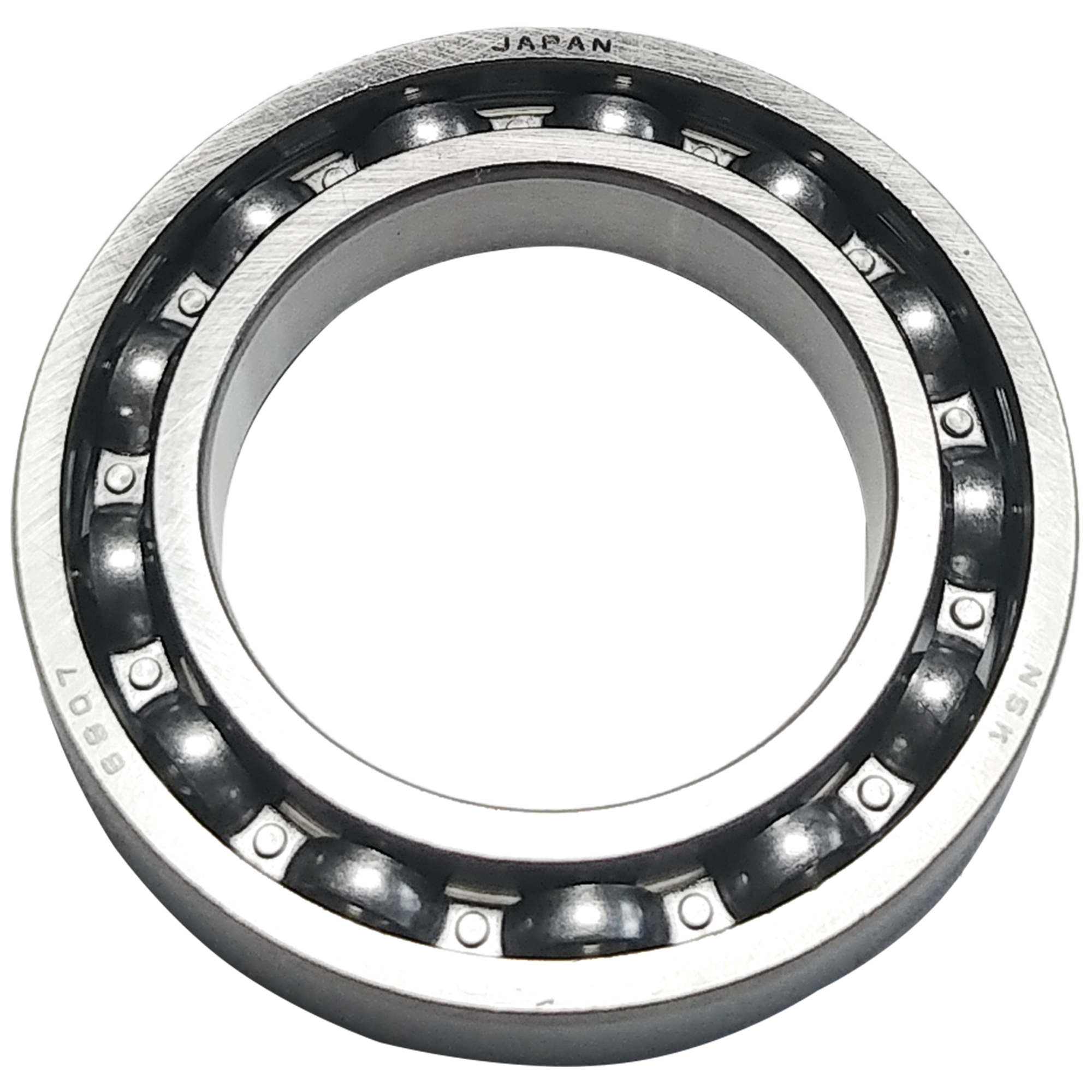

FW-2-16 2.165 1.378 0.394 Ball Bearing
FW-2-5 2.784 1.840 0.163 Enclosed

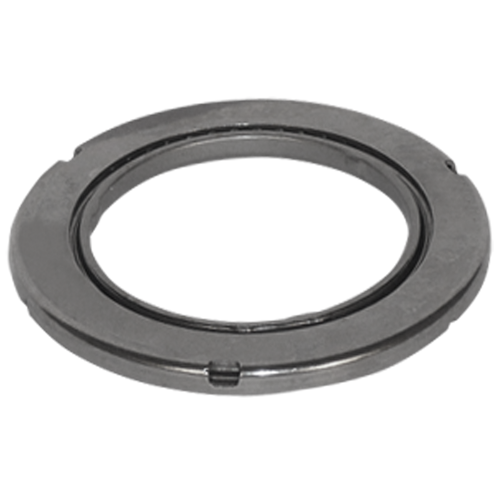

FW-2-6 2.350 1.560 0.150 Enclosed

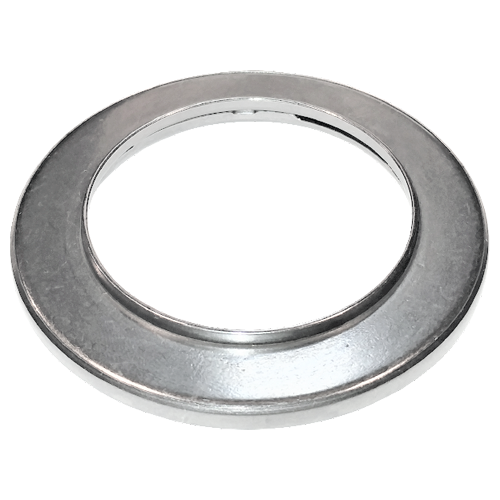

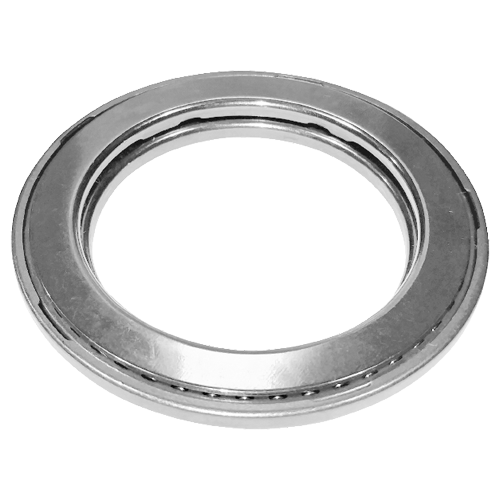

FW-2-8 2.290 1.540 0.143 Enclosed
FW-2-9 2.880 1.992 0.197 Enclosed

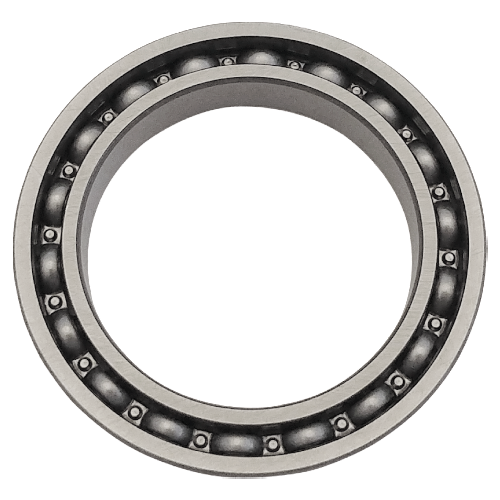

FW-9-29 1.654 1.181 0.276 Ball Bearing

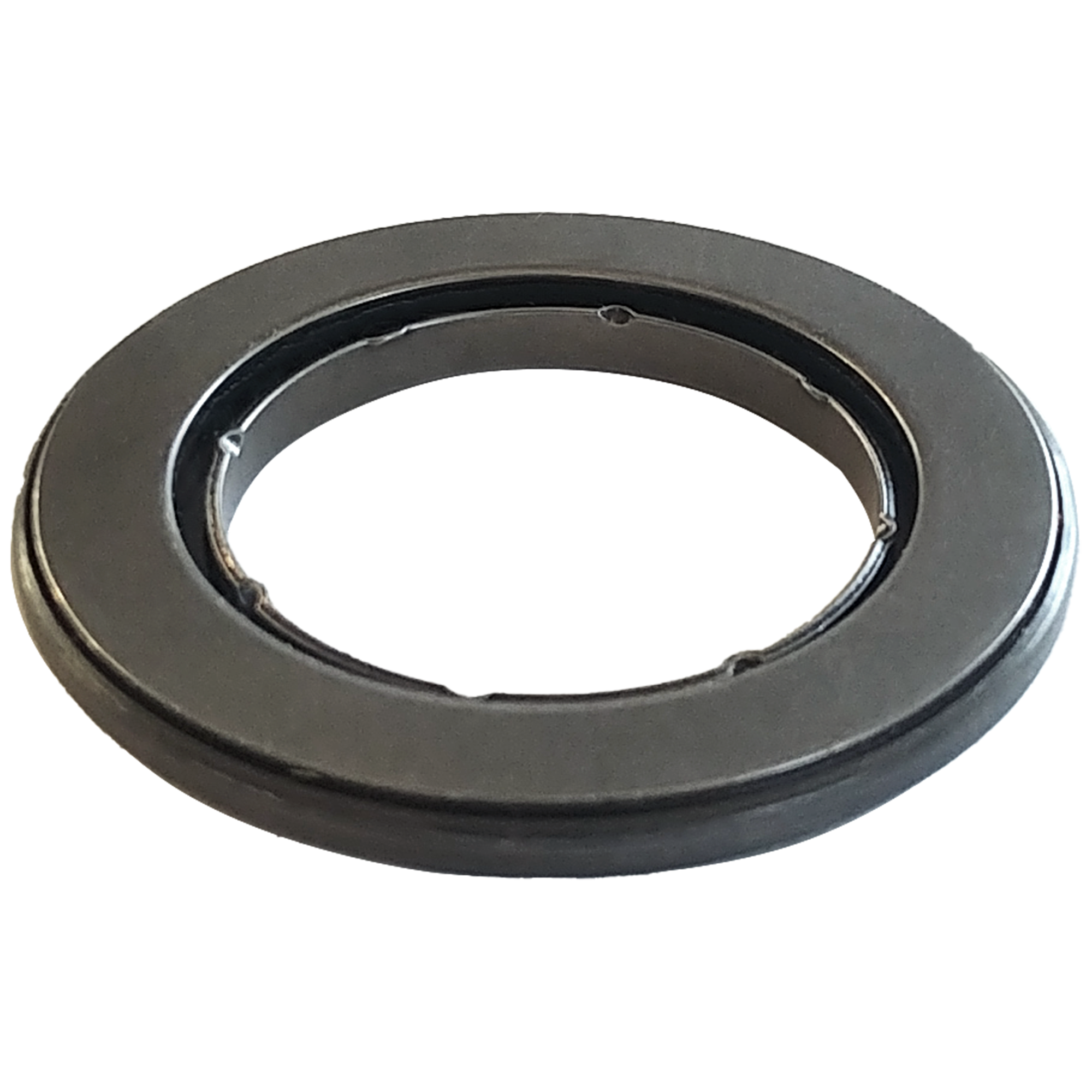

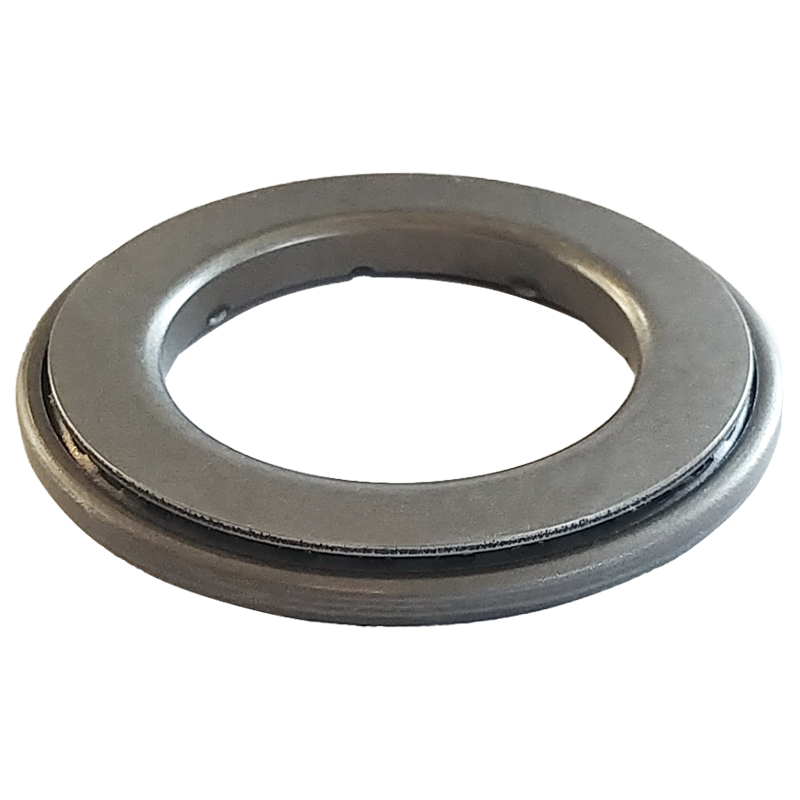

FW-9-31 2.047 1.260 0.208 Enclosed

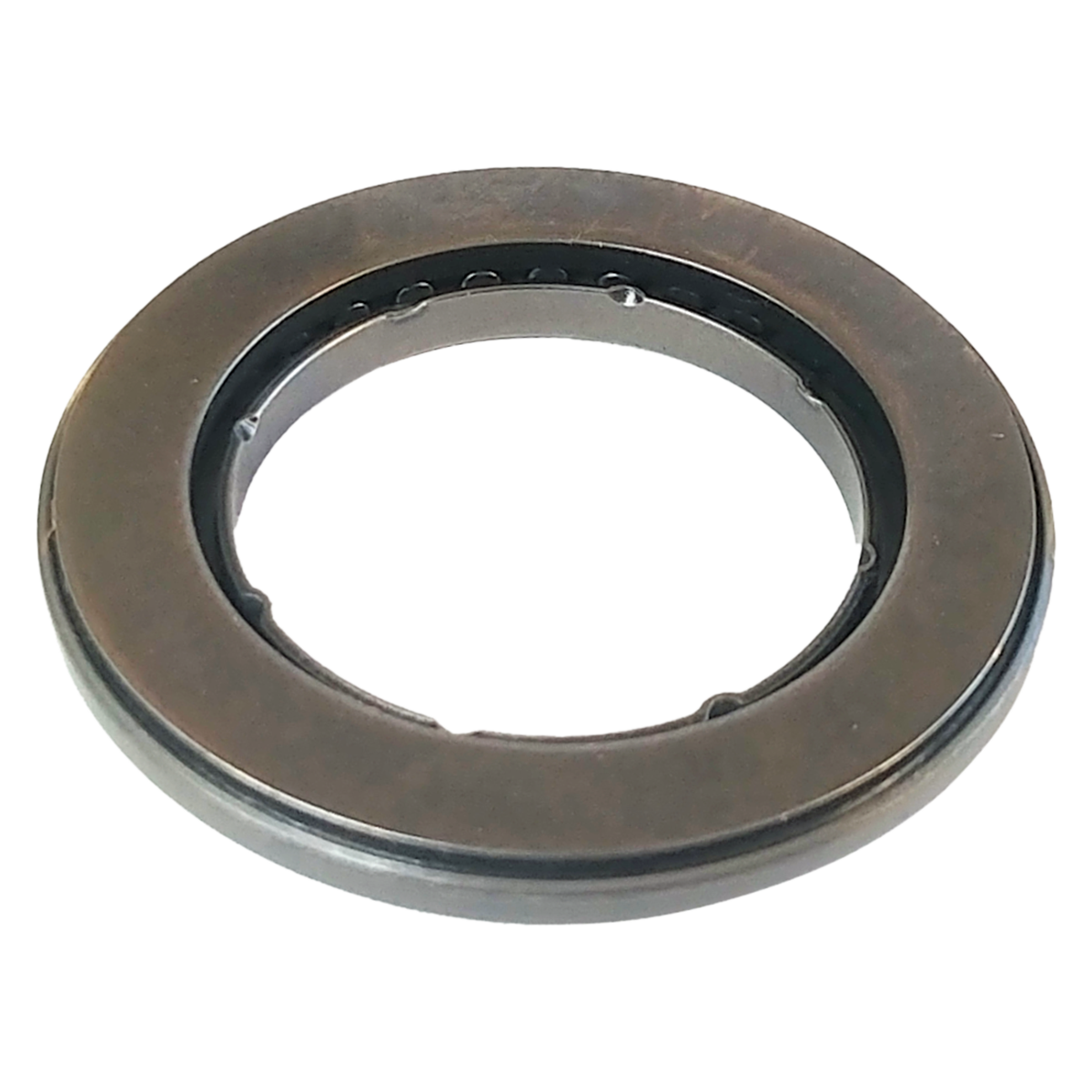

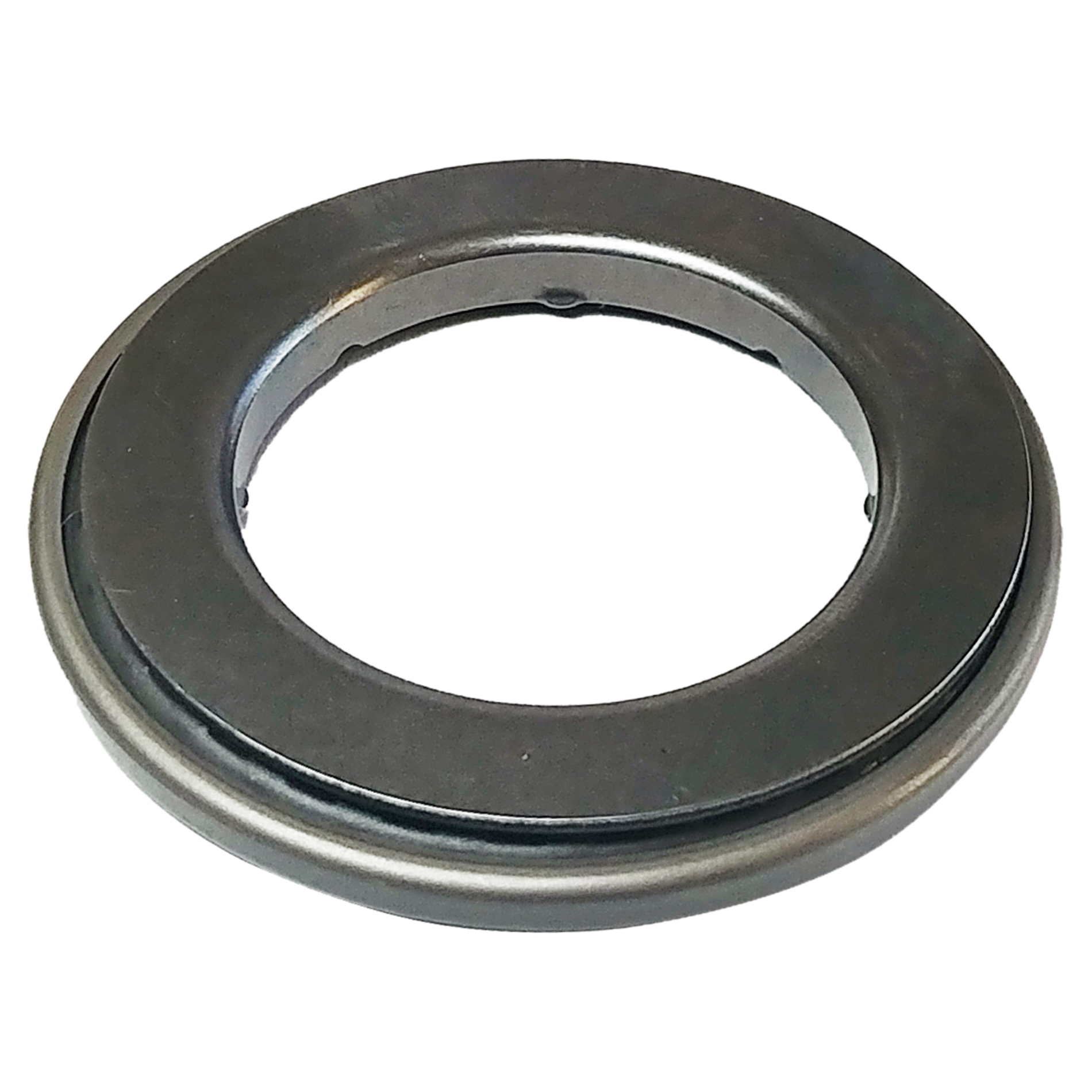

FW-9-32 2.047 1.260 0.216
HK-5020 2.283 1.968 0.787 Ball Bearing

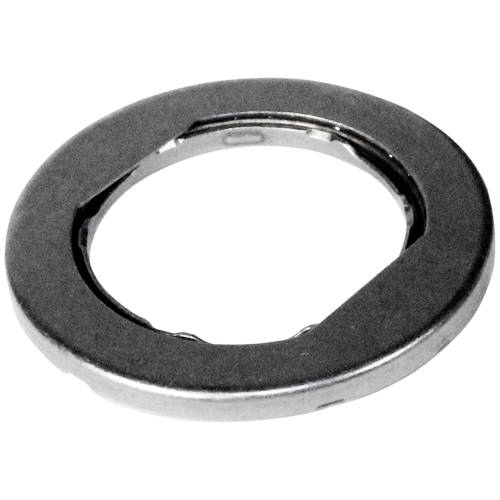

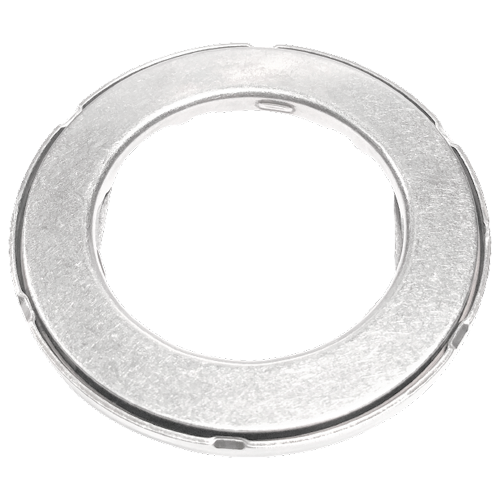

HW-2-1 2.020 1.311 0.161 Enclosed
HW-2-11 2.808 1.580 0.275 Enclosed

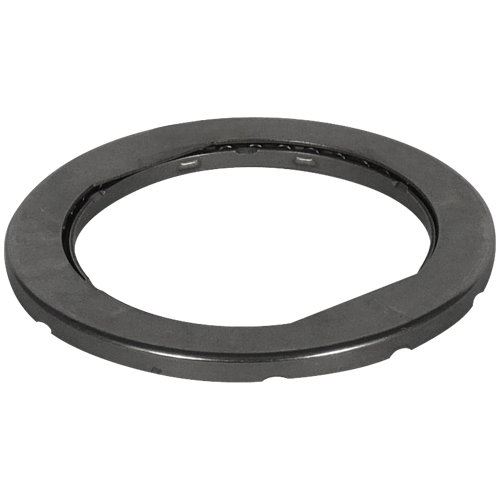

HW-2-2 2.983 2.167 0.195 Enclosed

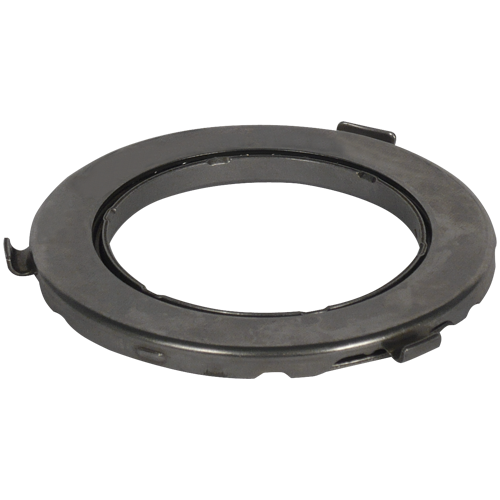

HW-2-3 2.587 1.728 0.200 Enclosed
HW-2-4 3.100 2.360 0.138 Enclosed
HW-2-5 2.320 1.580 0.210 Enclosed

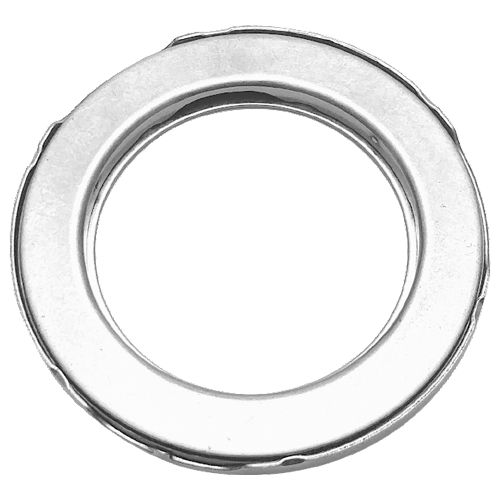

HW-2-6 2.273 1.500 0.184 Enclosed

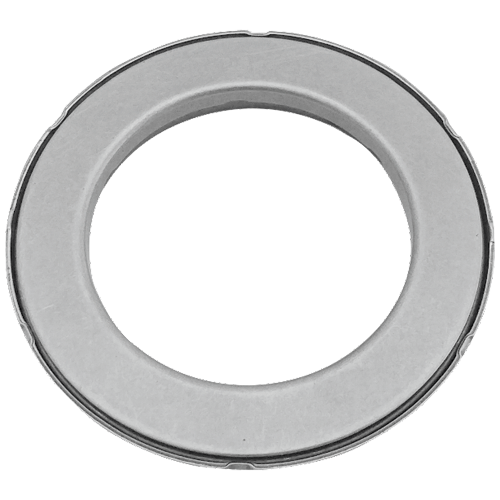

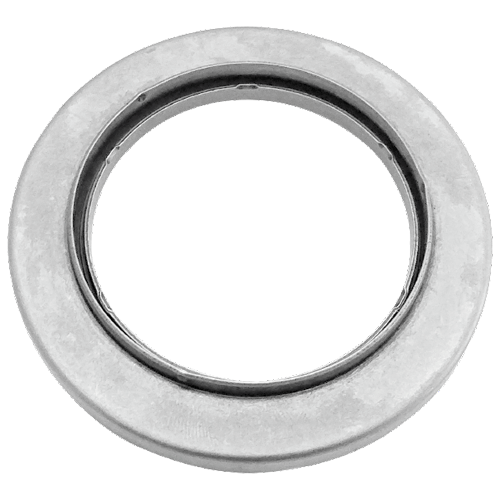

HW-2-7 2.825 1.897 0.195 Enclosed
HW-2-8 2.275 1.505 0.185 Enclosed
HW-2-9 2.995 0.198 Enclosed

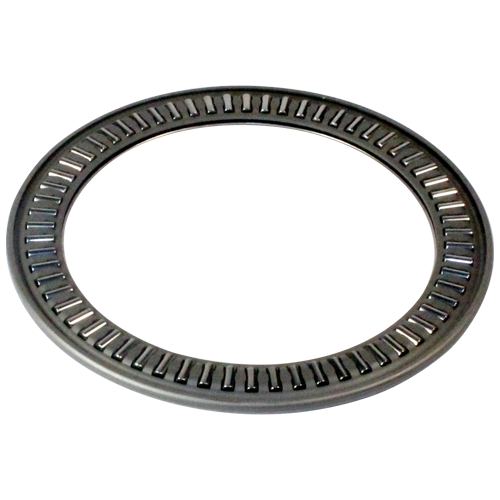

JW-2-12 3.220 2.445 0.118 Semi- Enclosed

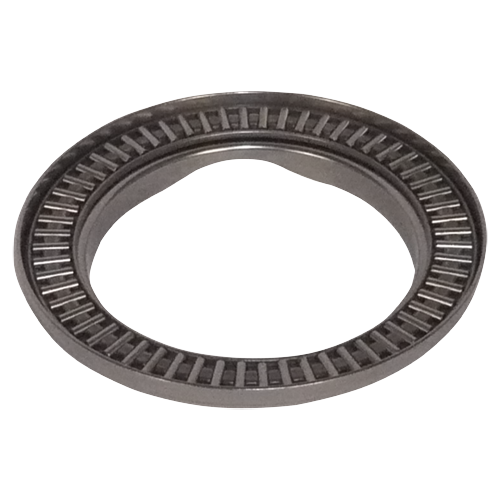

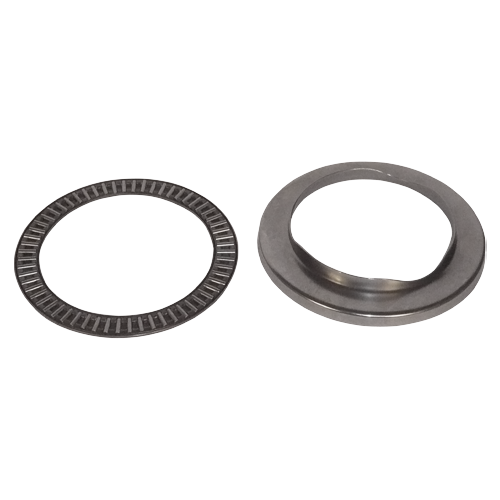

JW-2-13 3.228 2.393 0.110 Semi- Enclosed

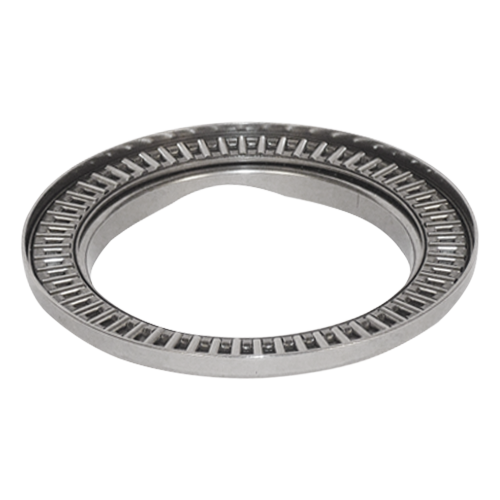

JW-2-13A 3.220 2.445

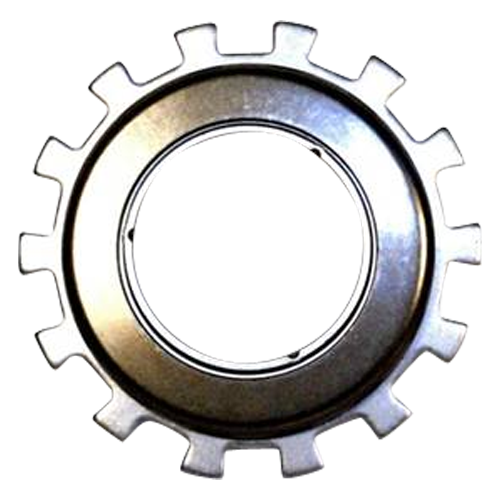

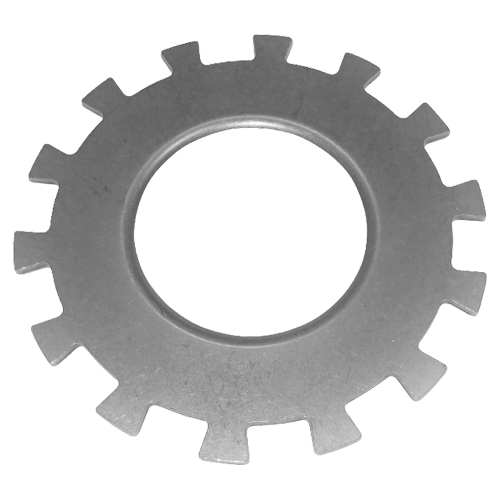

JW-2-14 2.713 1.654 0.276 Enclosed, 14 Tangs
JW-2-15 2.643 1.657 0.236 Enclosed, 12 Tangs

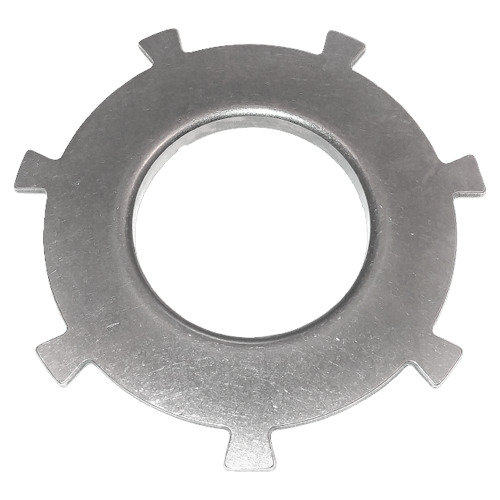

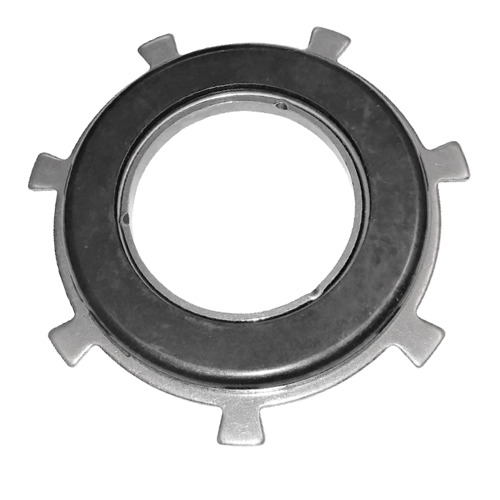

JW-2-16 2.713 1.654 0.276 Enclosed, 7 Tangs

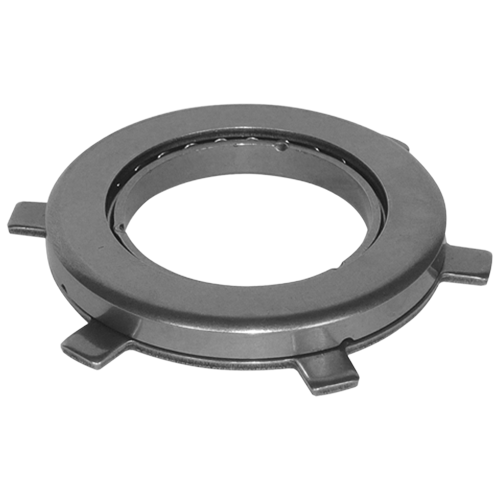

JW-2-17 2.598 1.614 0.315 Enclosed, 6 Tangs
JW-2-18 2.900 1.650 0.220 Enclosed, 12 Tangs
JW-2-19 3.530 2.050 0.240 Enclosed, 14 Tangs

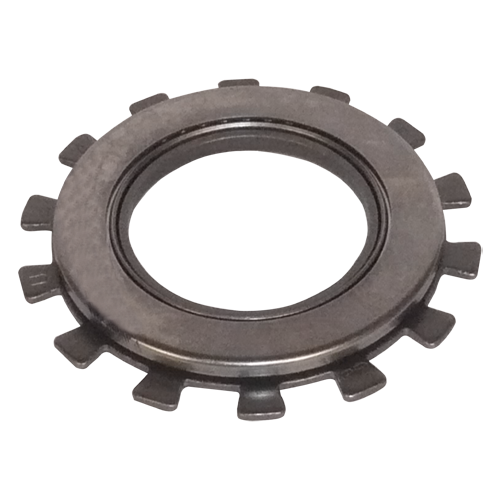

JW-2-2 3.027 2.047 0.236 Enclosed, 14 Tangs

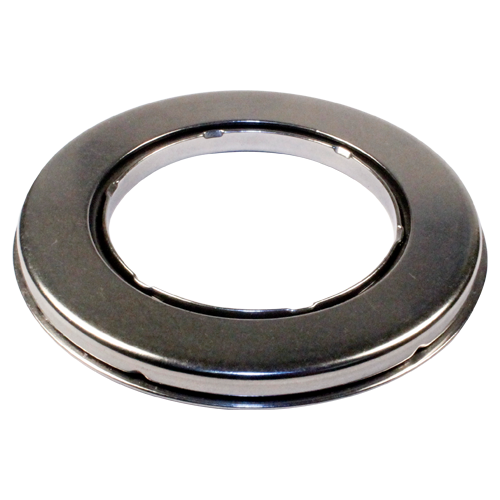

JW-2-20 2.441 1.496 0.197 Enclosed

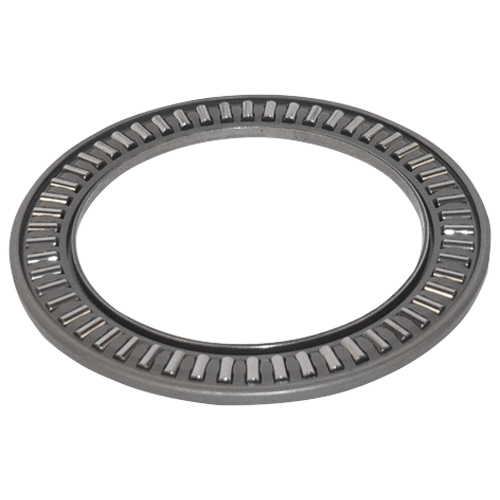

JW-2-22 2.638 1.890 0.118 Semi- Enclosed

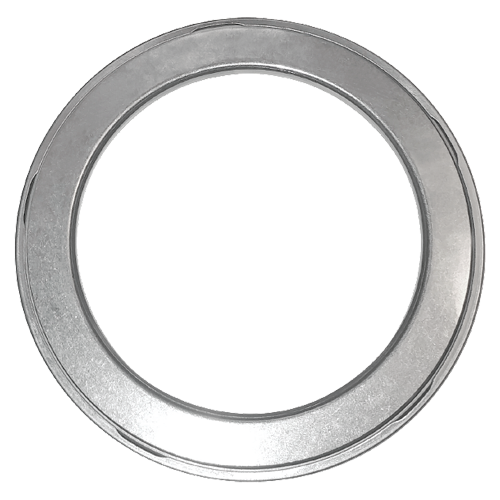

JW-2-24 3.330 2.560 0.190 Enclosed
JW-2-25 2.560 1.730 0.220 Enclosed
JW-2-26 3.025 2.042 0.237 Enclosed
JW-2-27 2.633 1.737 0.195 Enclosed

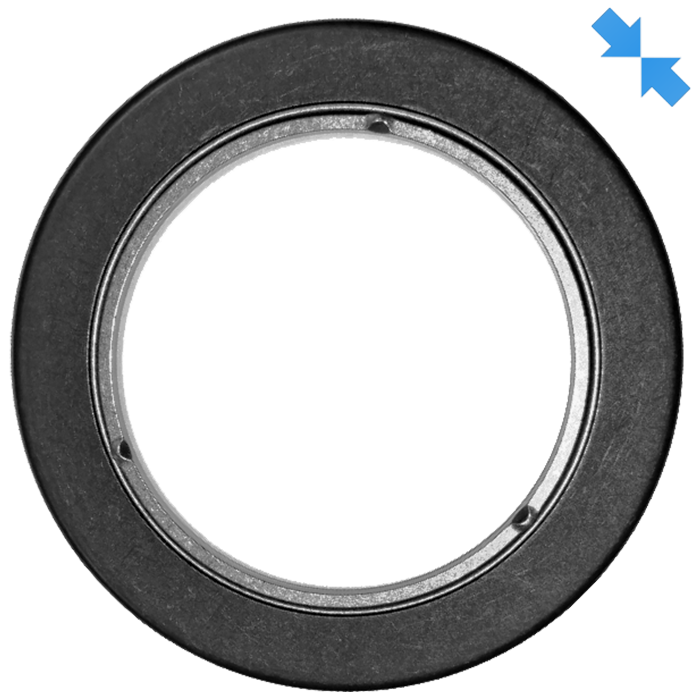

JW-2-28 3.228 2.213 0.236 Enclosed

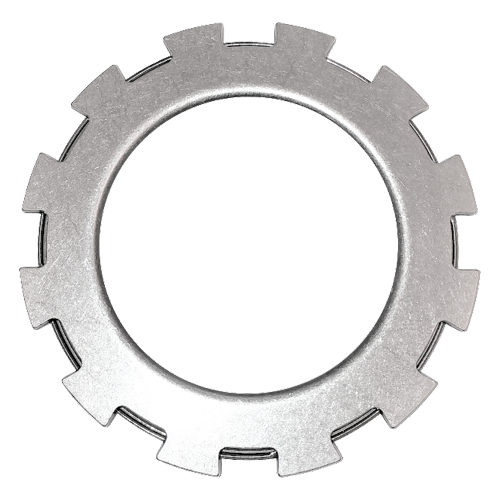

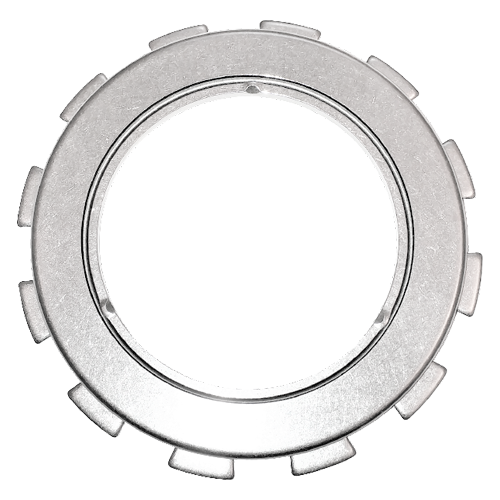

JW-2-29 3.228 2.213 0.236 Enclosed

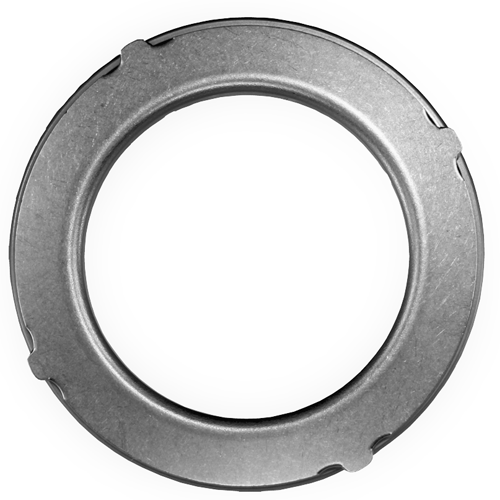

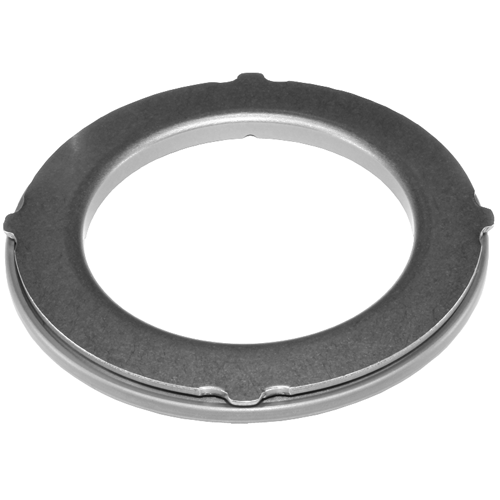

JW-2-30 3.150 2.126 0.213 Enclosed

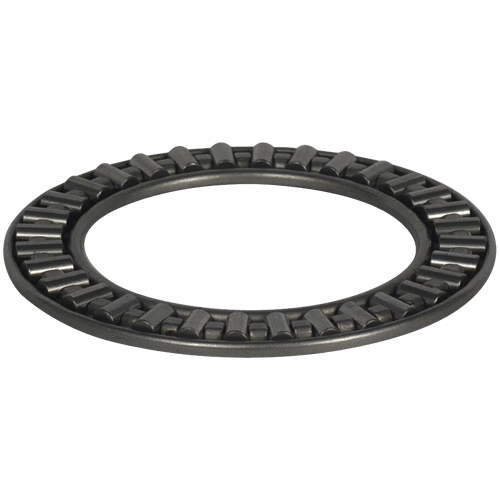

JW-2N 2.362 1.575 0.118 Exposed

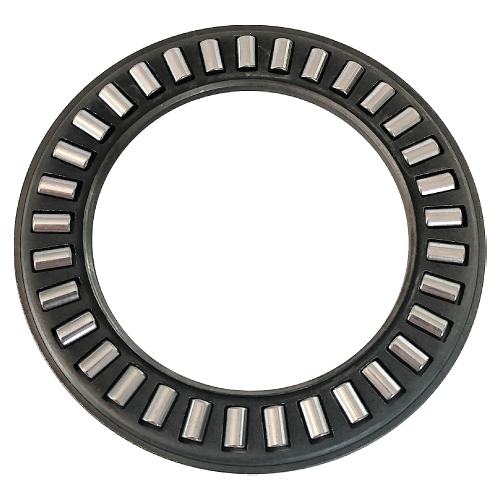

JW-2ND 2.360 1.570 0.125 Exposed

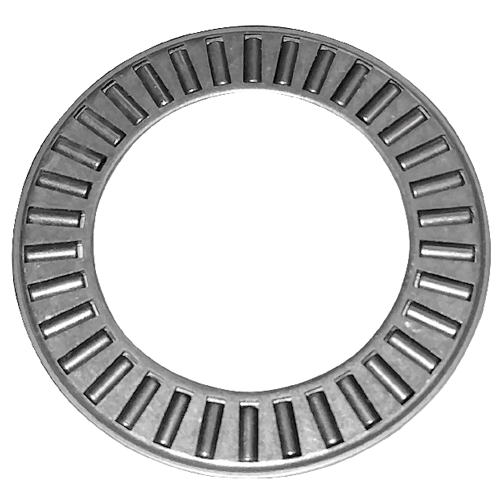

JW-9-3 1.740 1.130 0.078 Exposed
MB-6012 3.740 2.362 0.709 Ball Bearing
MB-6209 3.346 1.771 0.748 Ball Bearing
MB-6210 3.543 1.968 0.787 Ball Bearing
MB-6304 2.047 0.787 0.591 Ball Bearing

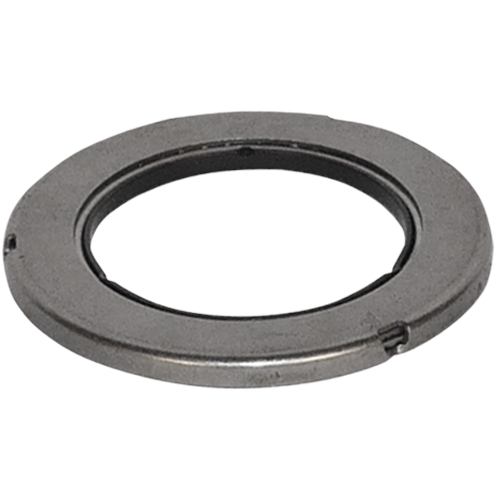

MW-2-1 2.250 1.436 0.134 Enclosed

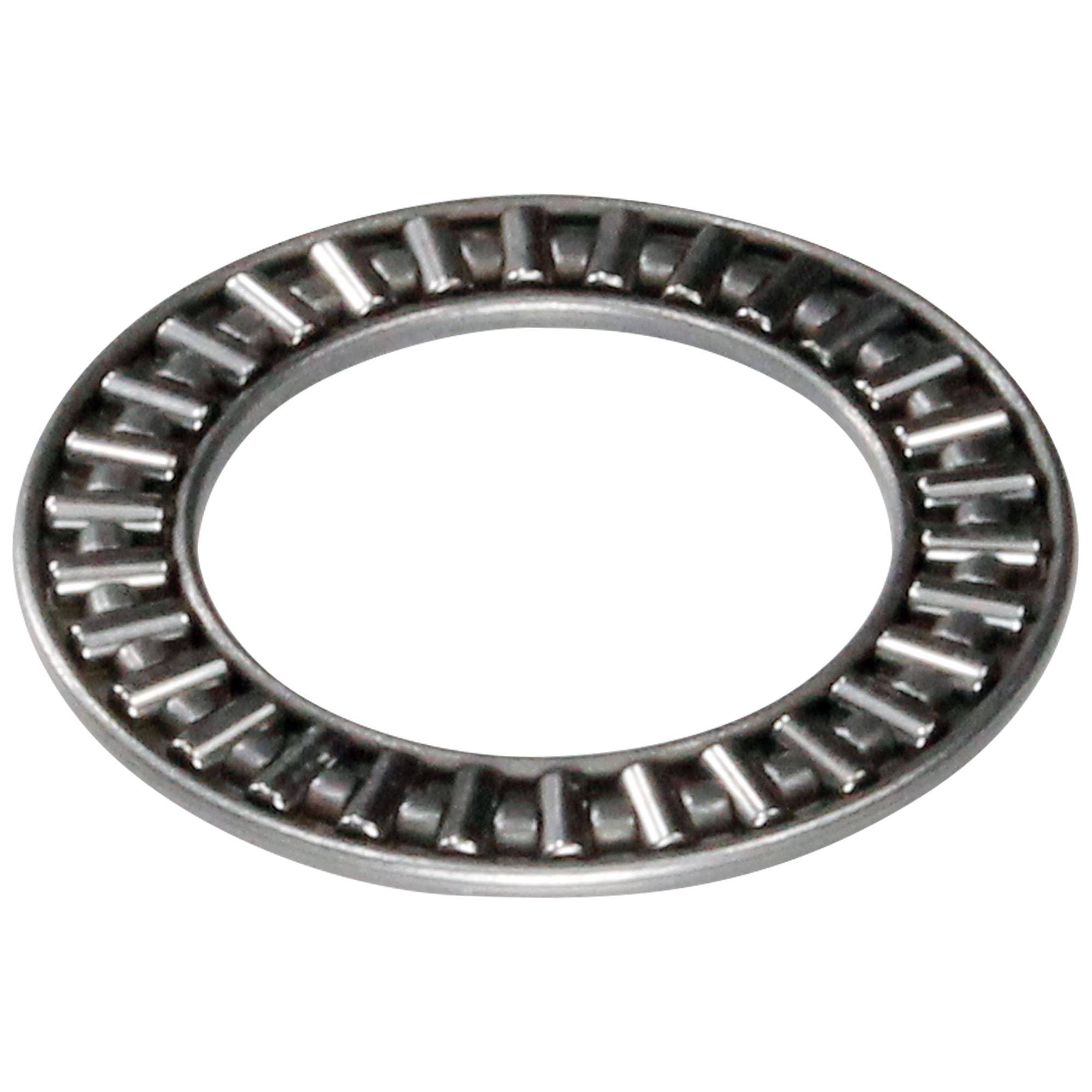

NTA-1625 1.563 1.000 0.078
NTA-1828 1.750 1.125 0.078 Exposed

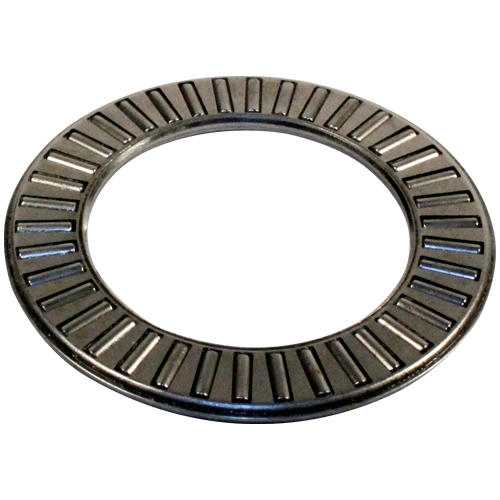

NTA-2031 1.938 1.250 0.078 Exposed

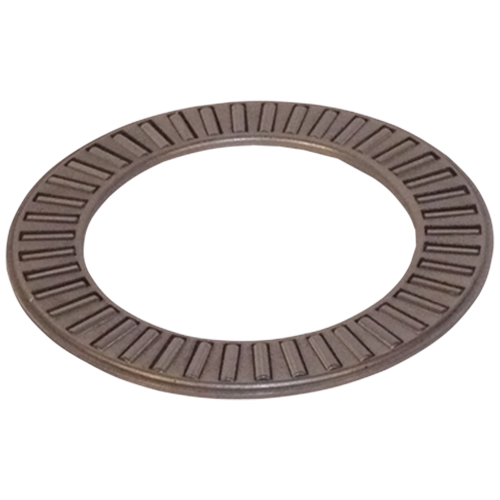

NTA-2233 2.062 1.375 0.078 Exposed
NTA-2435 2.170 1.500 0.078 Exposed
NTA-2840 2.500 1.750 0.078 Exposed

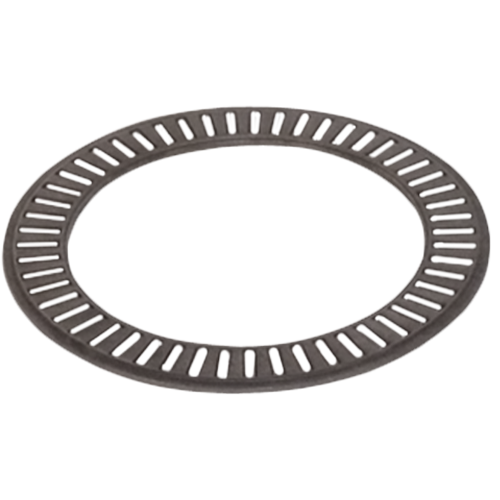

NTA-3244 2.750 2.000 0.078 Exposed

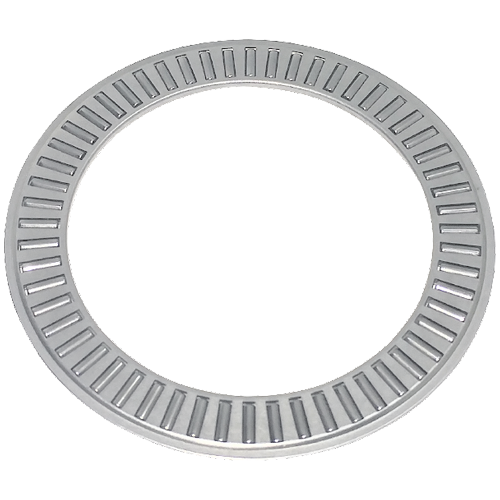

NTA-3446 2.880 2.130 0.078 Exposed
NTA-4860 3.725 3.000 0.078 Exposed

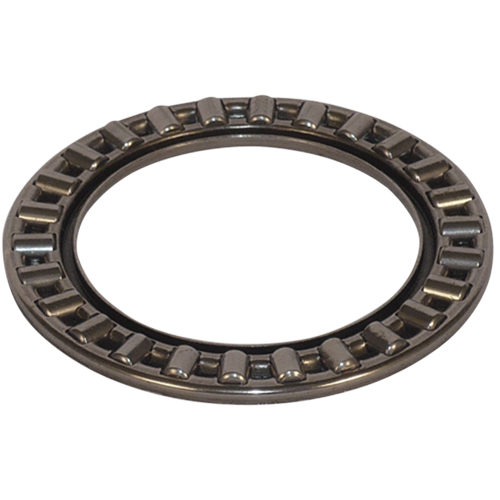

NW-2 2.547 1.775 0.157 Exposed

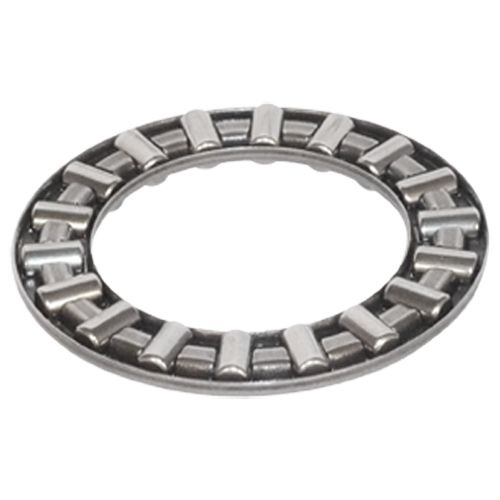

NW-2-1 2.560 1.700 0.190 Exposed

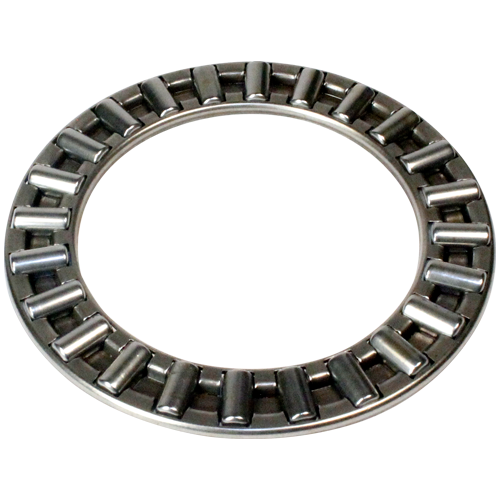

NW-2-2 2.846 1.972 0.177 Exposed

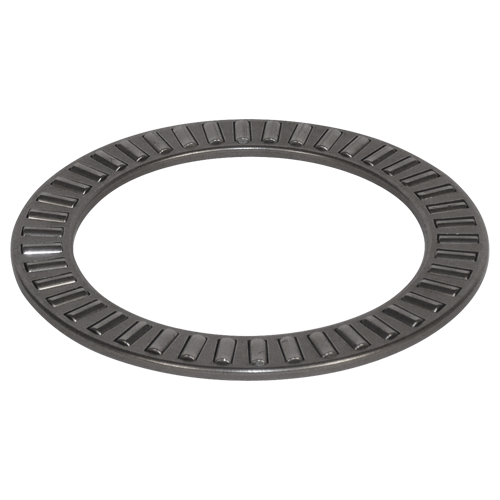

NW-2-3 2.943 2.172 0.118 Exposed, Double Cage

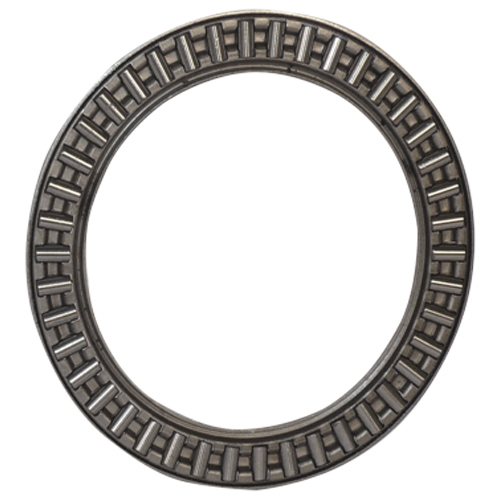

NW-2-3A 2.943 2.172 0.118 Exposed, Single Cage

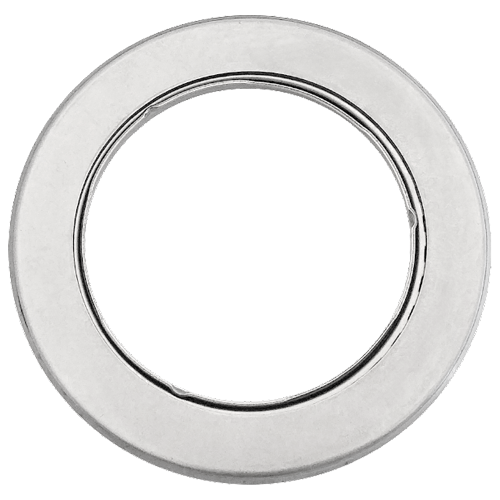

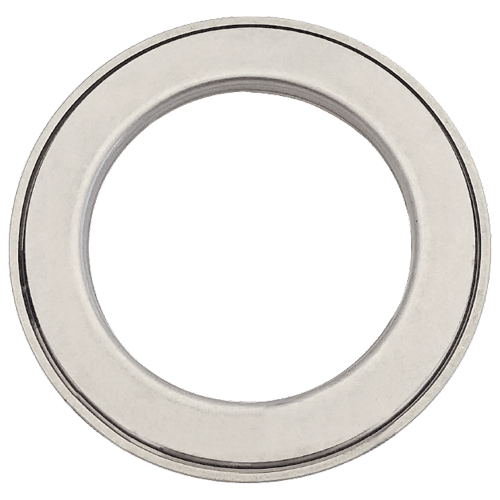

NW-2-4 3.226 2.182 0.188 Enclosed

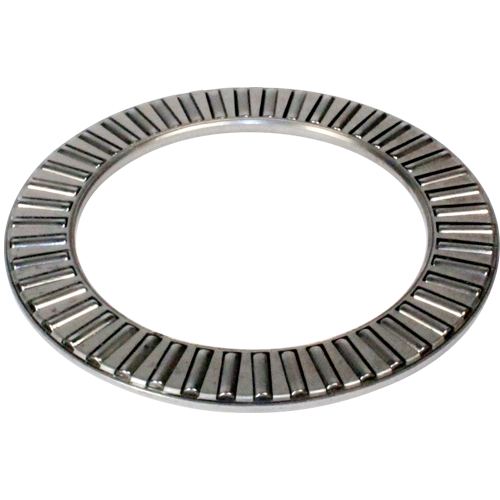

NW-2-5 3.061 2.165 0.118 Enclosed
NW-2-6 3.031 2.087 0.197 Enclosed
NW-9 1.370 0.800 0.110 Semi- Enclosed
NW-9-1 1.610 0.910 0.110 Semi- Enclosed

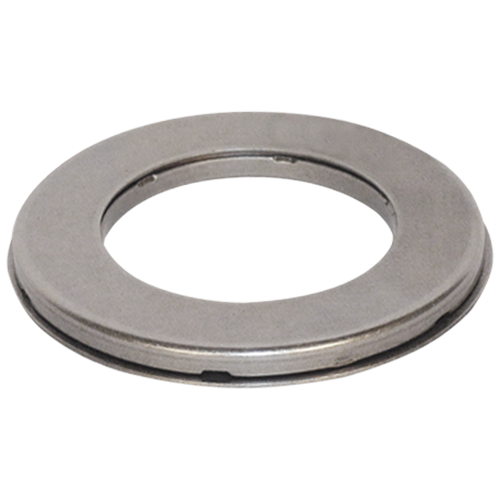

PW-2-10 2.430 1.510 0.180 Enclosed

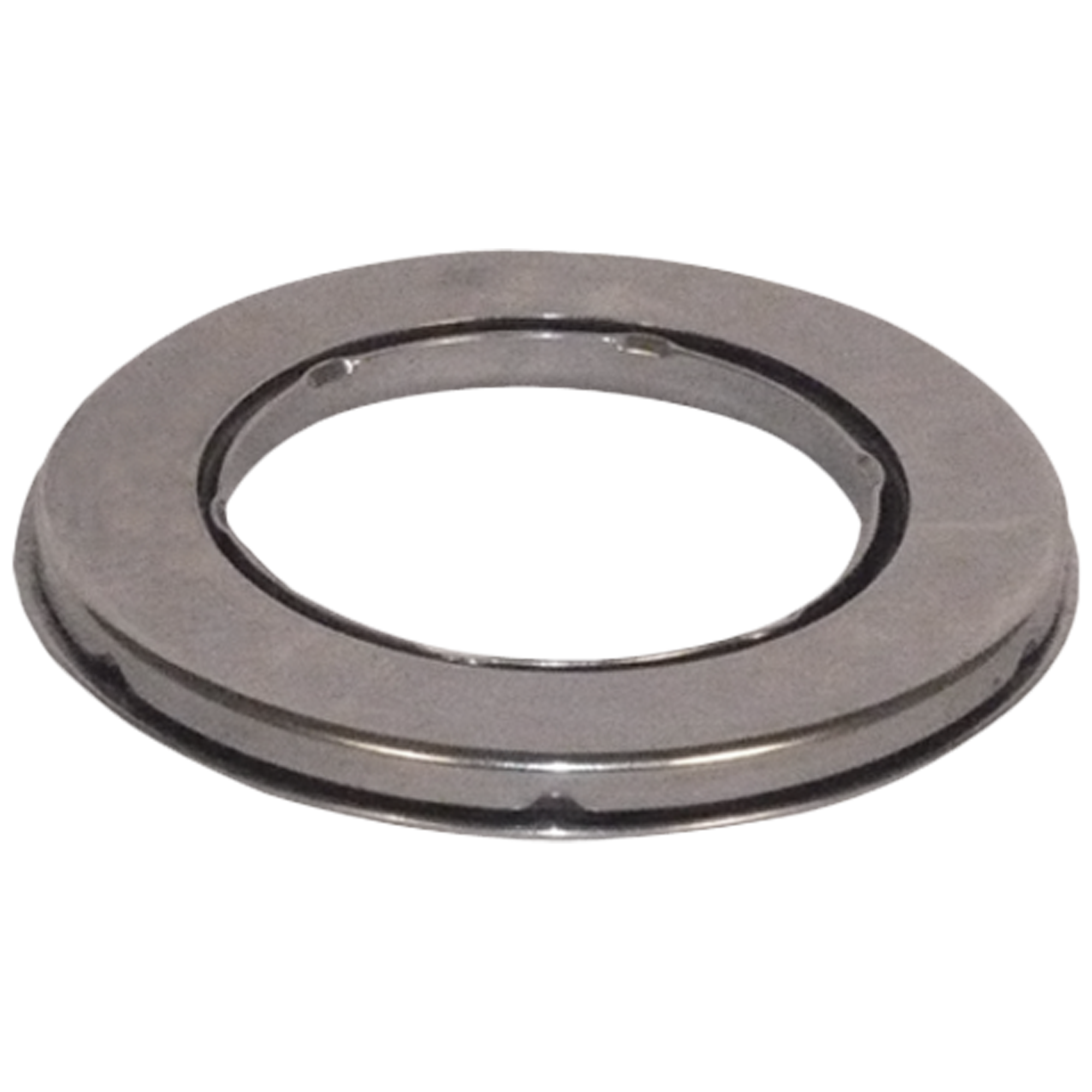

PW-2-10HD 2.430 1.510 0.188 Enclosed
PW-2-11 2.190 1.390 0.161 Enclosed
PW-2-12 2.430 1.310 0.150 Semi-Enclosed
PW-2-14 2.780 1.900 0.151 Semi- Enclosed
PW-2-17
PW-2-6 2.362 1.574 0.079 Exposed

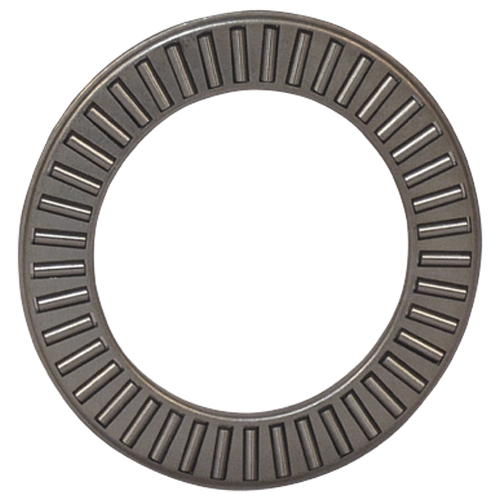

PW-2-7 2.037 1.384 0.078 Exposed

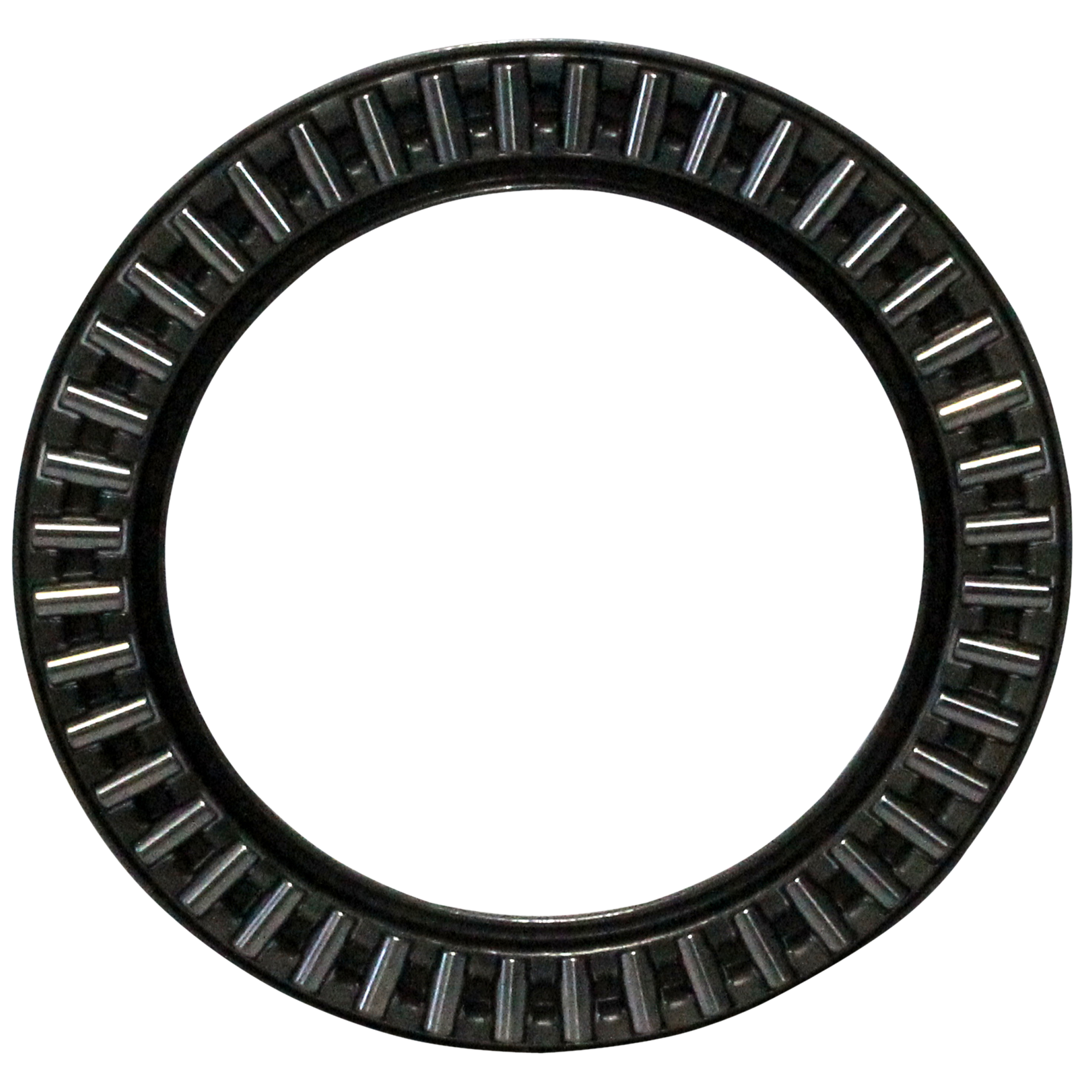

PW-9-4 3.030 2.160 0.120 Exposed

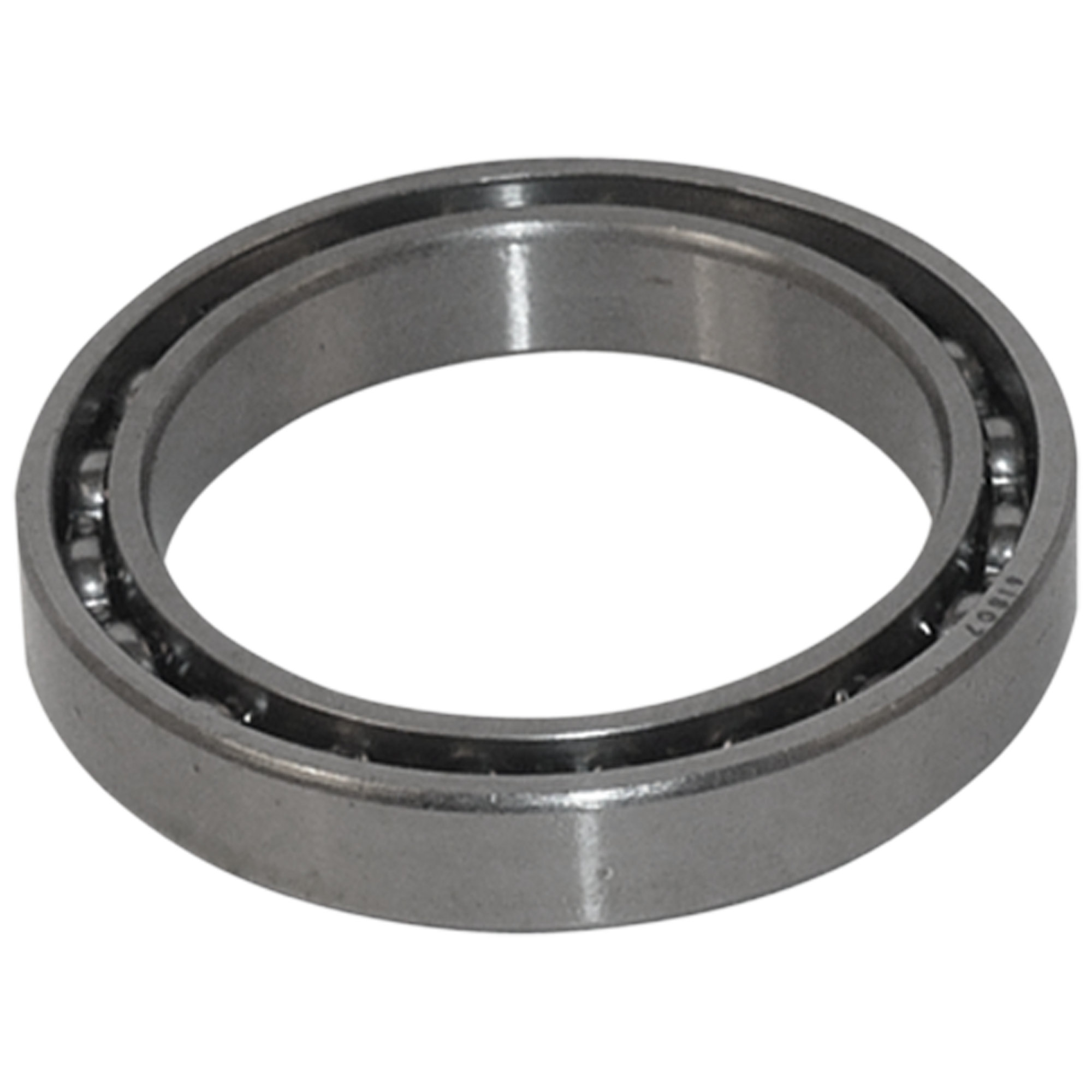

PW-9-7 1.850 1.378 0.276 Ball Bearing

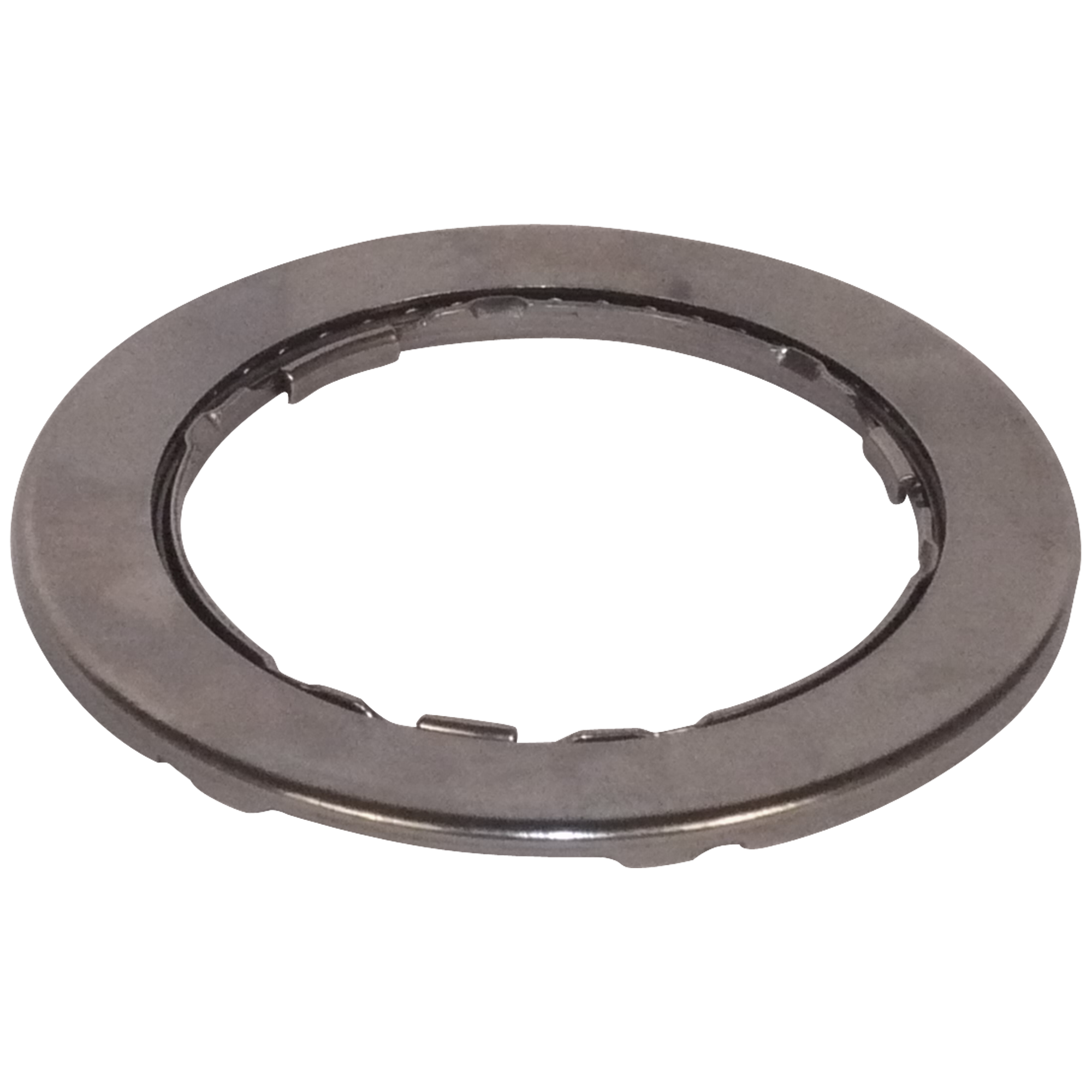

RW-2-1 2.968 2.062 0.143 Enclosed
RW-2-2 2.087 1.408 0.156 Enclosed
SW-2 2.170 1.500 0.078 Exposed

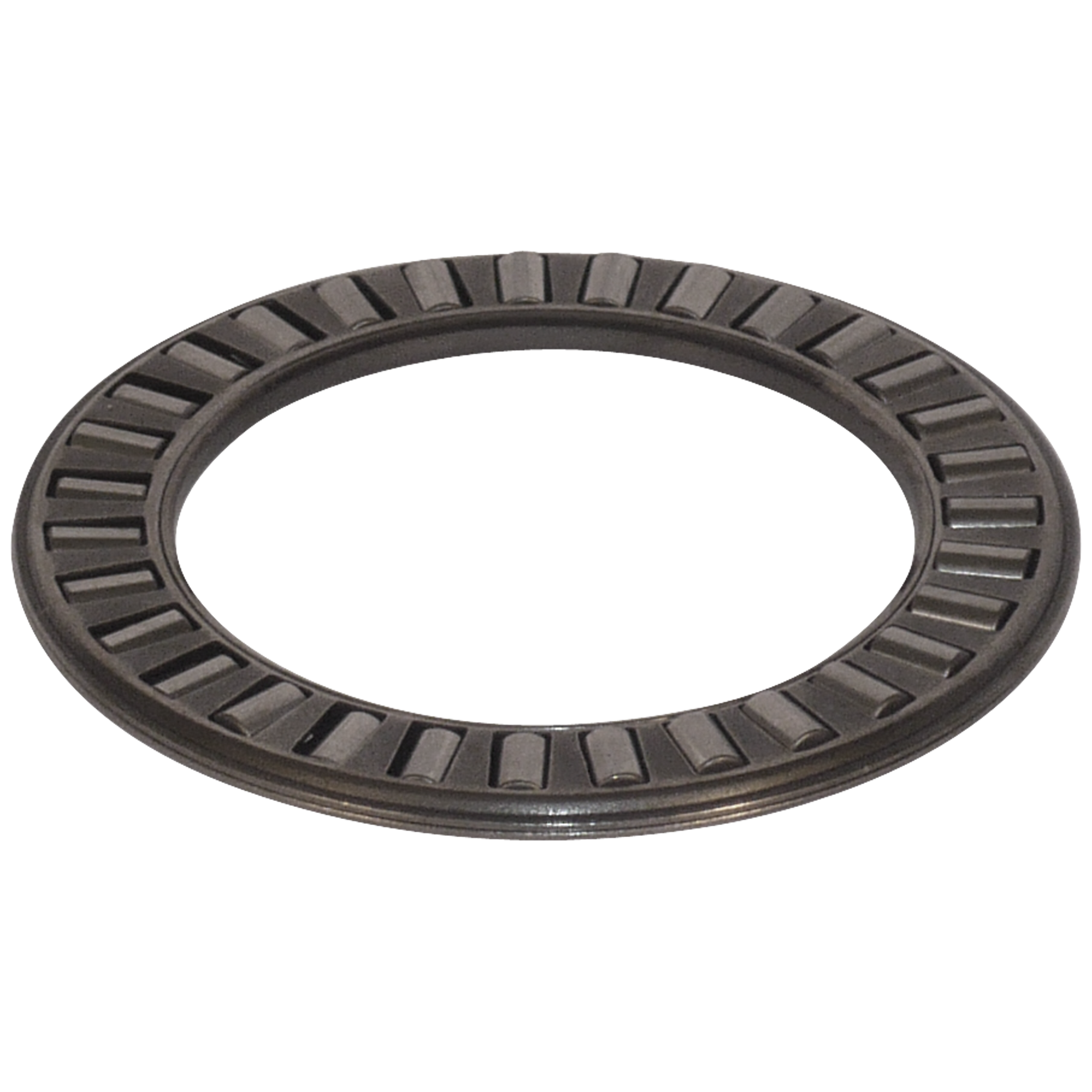

SW-2-1 2.175 1.506 0.125 Exposed

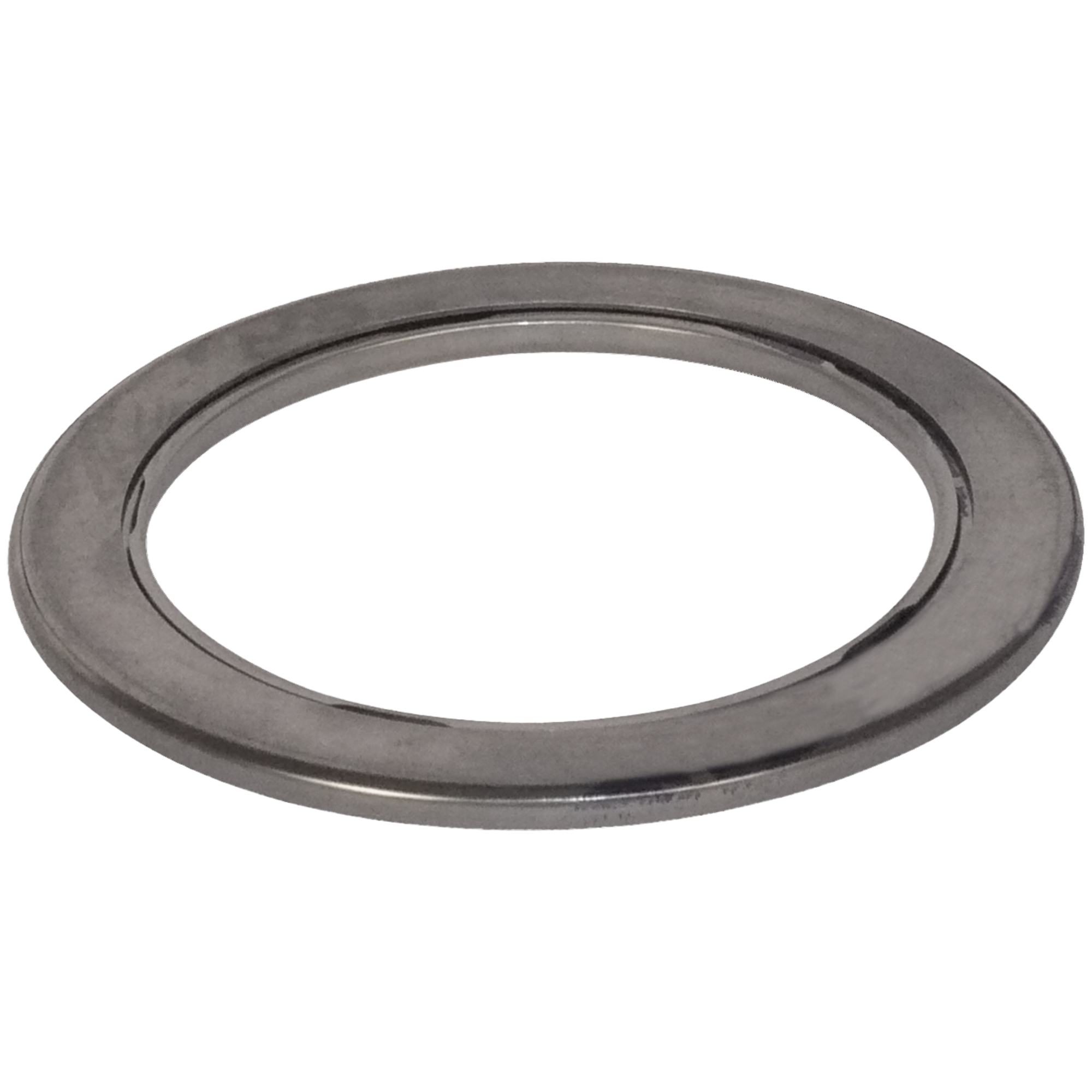

SW-2-11 3.380 2.500 0.150 Enclosed

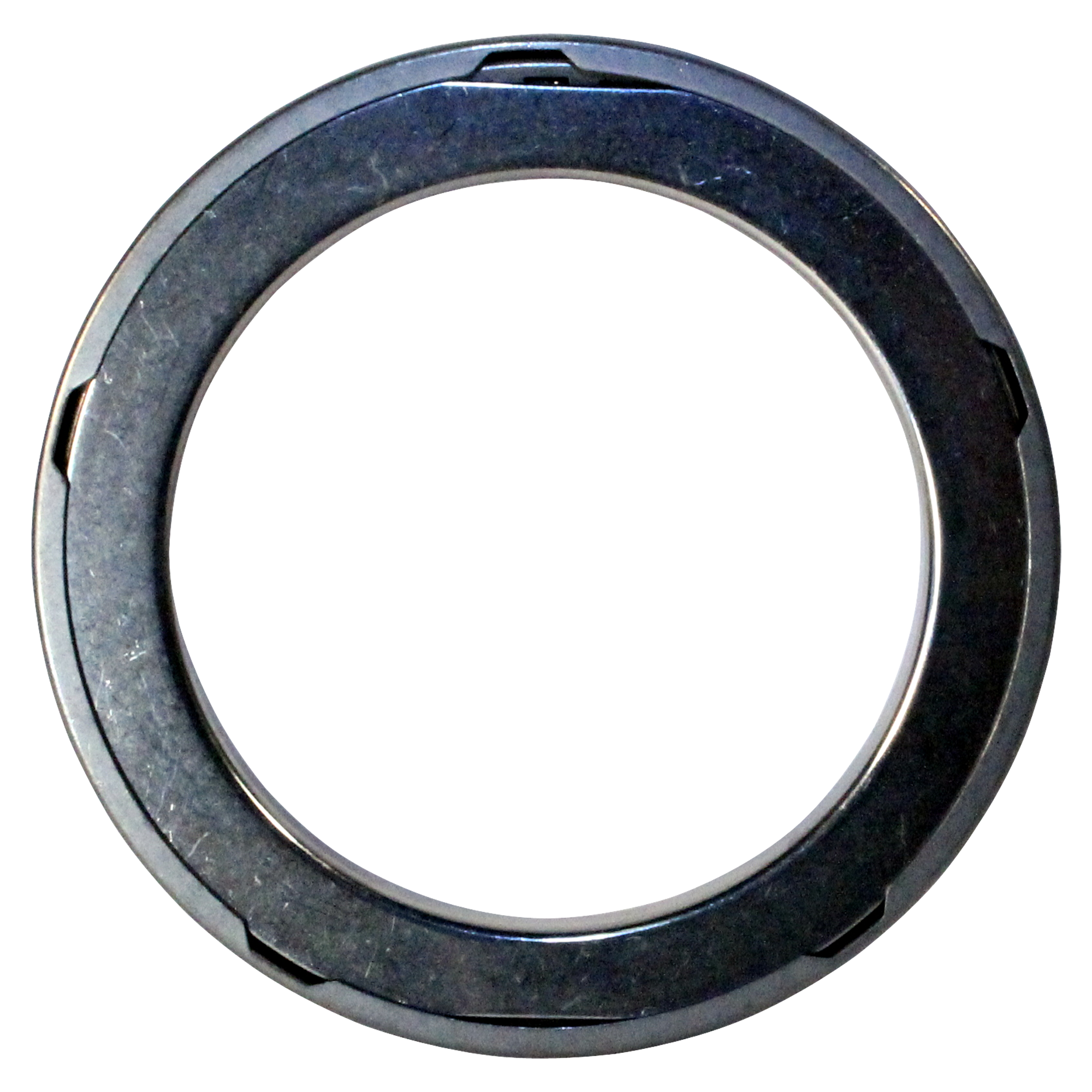

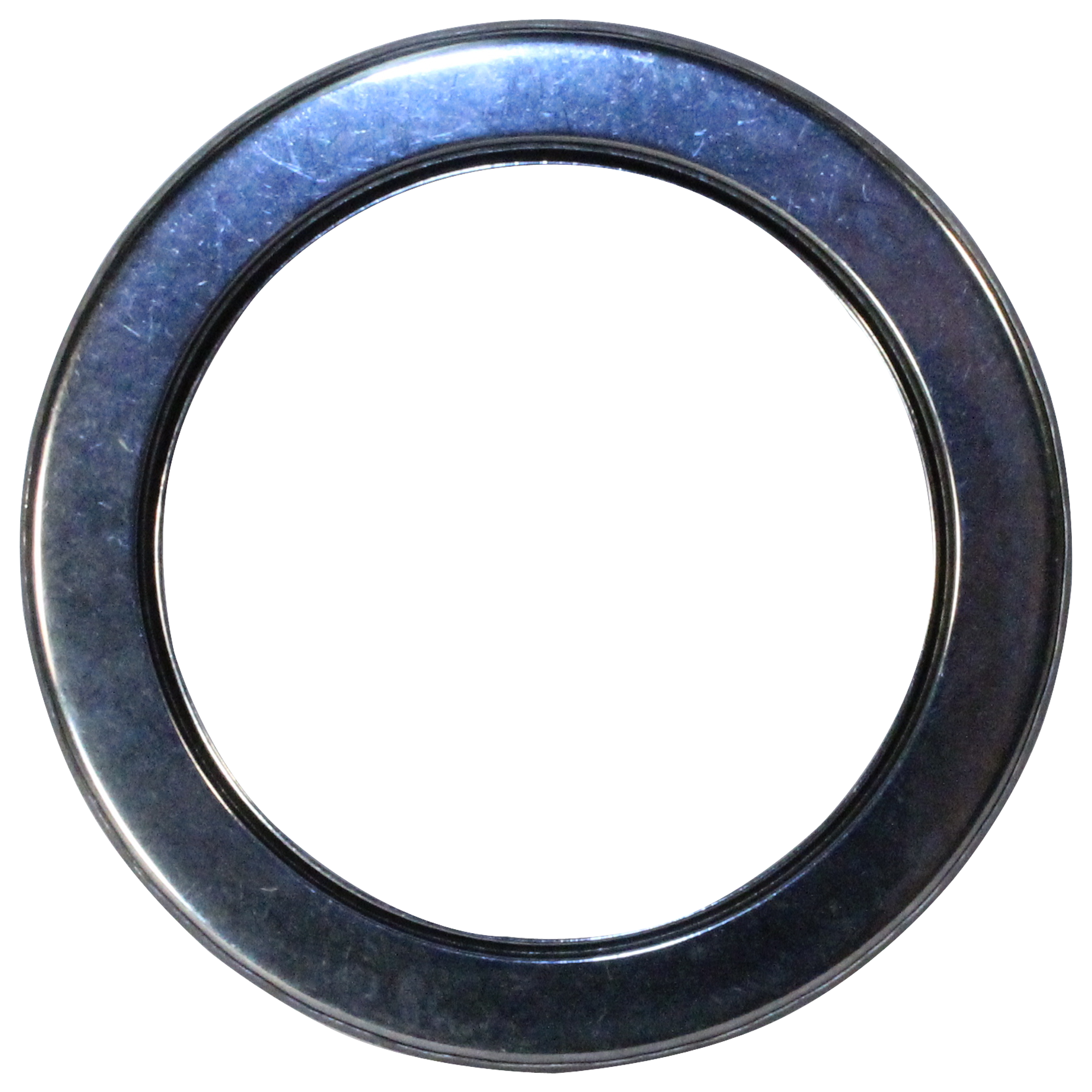

SW-2-12 3.280 2.388 0.255 Enclosed
SW-2-12G

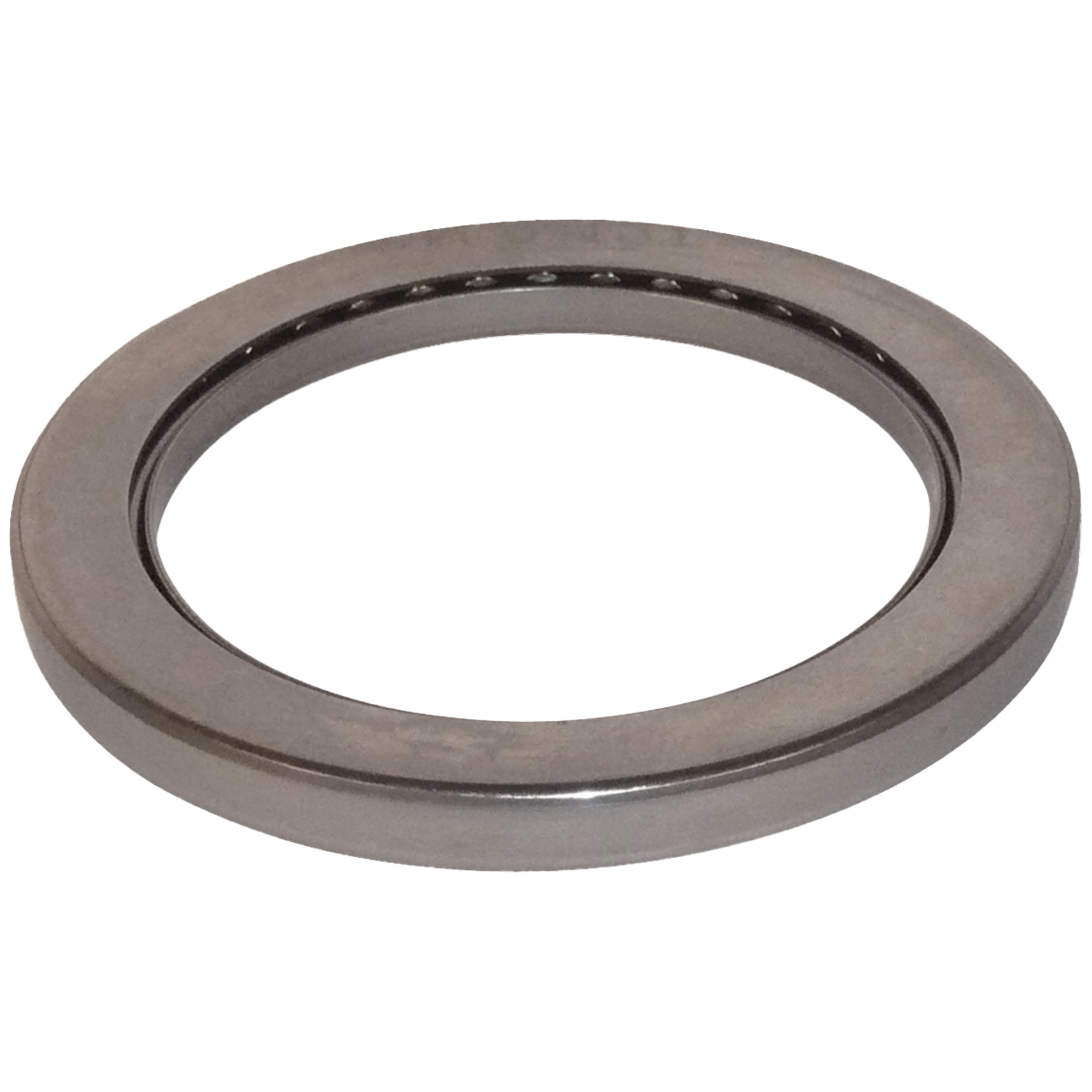

SW-2-12T 3.280 2.390 0.250 Enclosed
SW-2-12T-BOX200 3.280 2.390

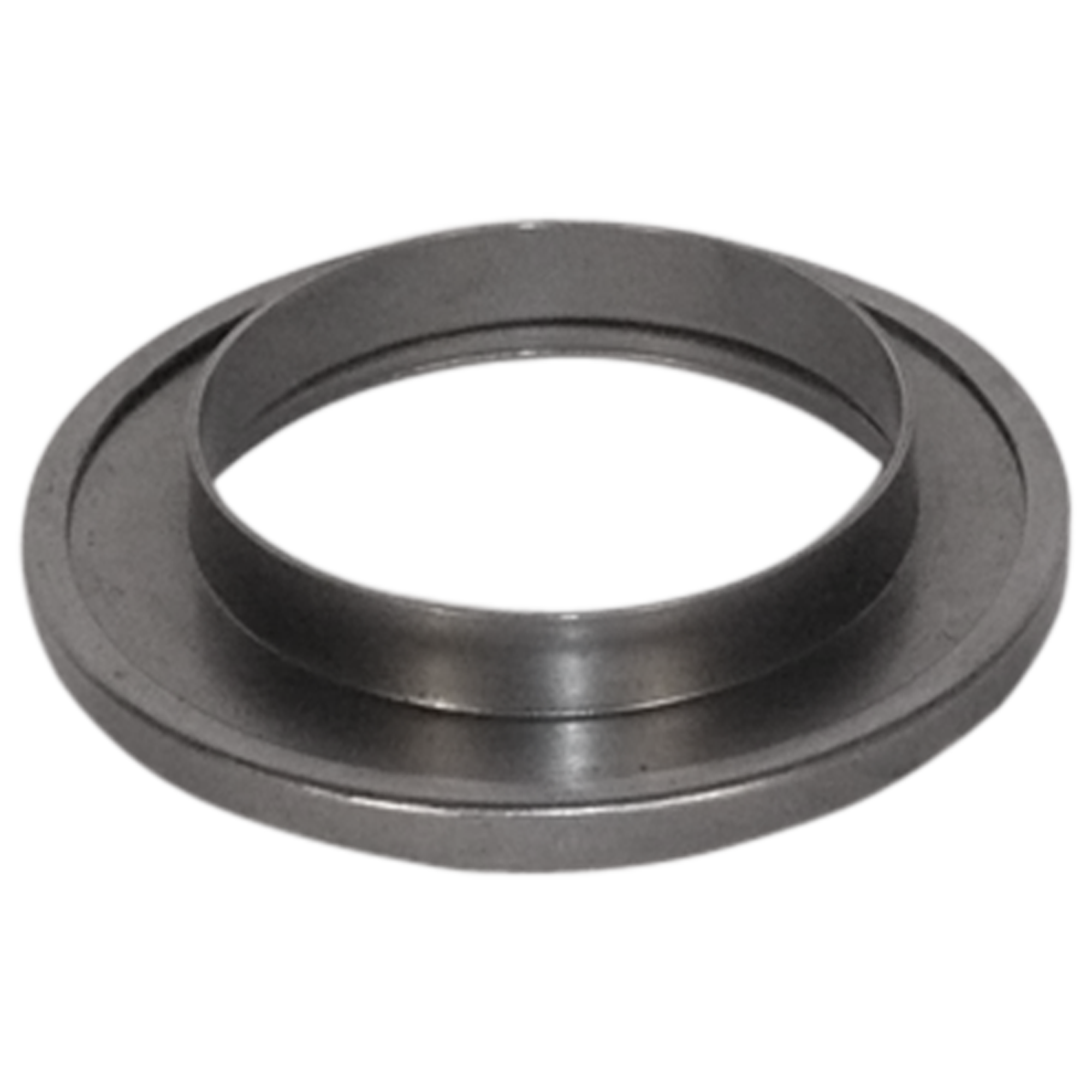

SW-2-13 2.500 1.660 0.175 Enclosed, I.D. Lip

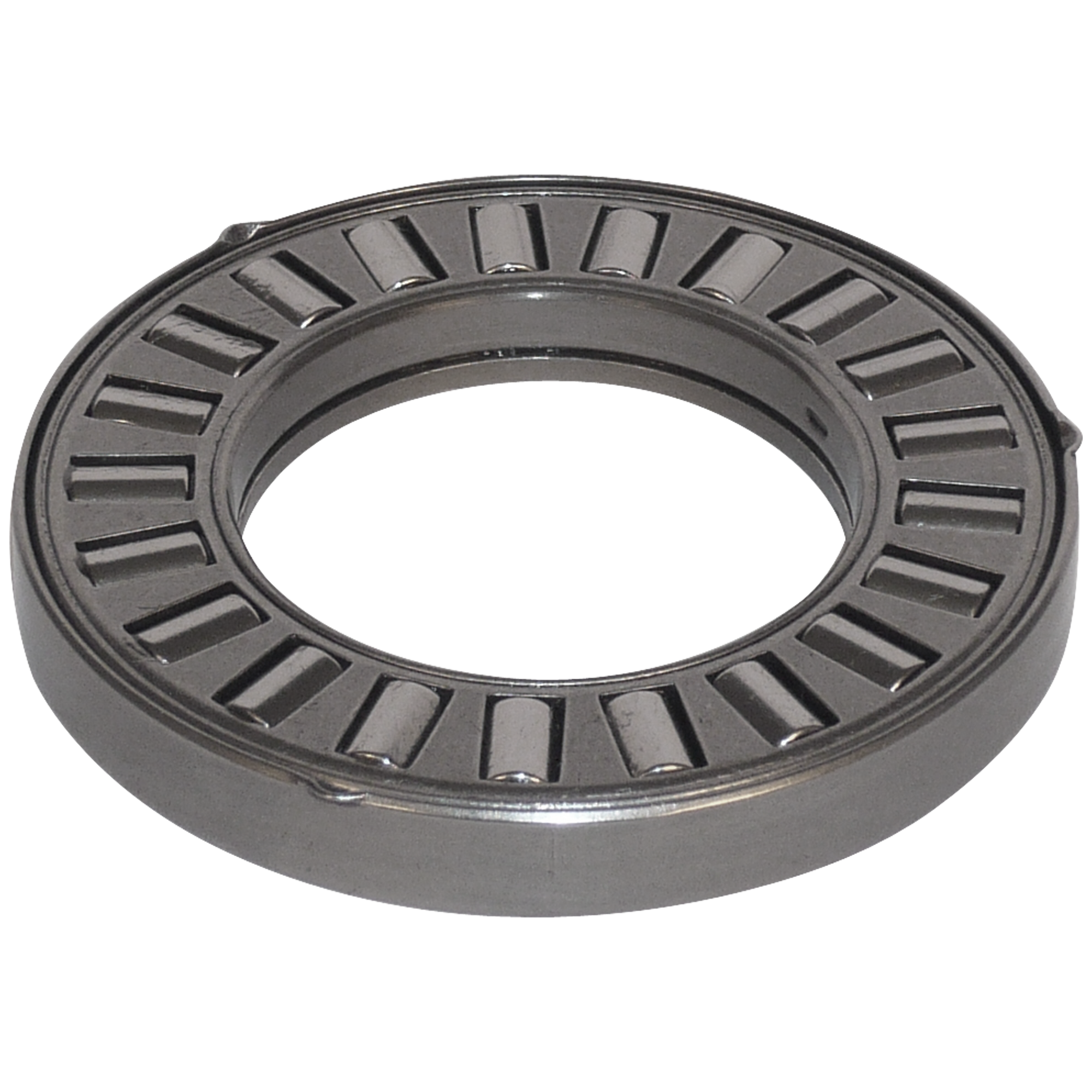

SW-2-14 3.082 1.770 0.394 Semi- Enclosed
SW-2-14T 3.090 1.770 0.394

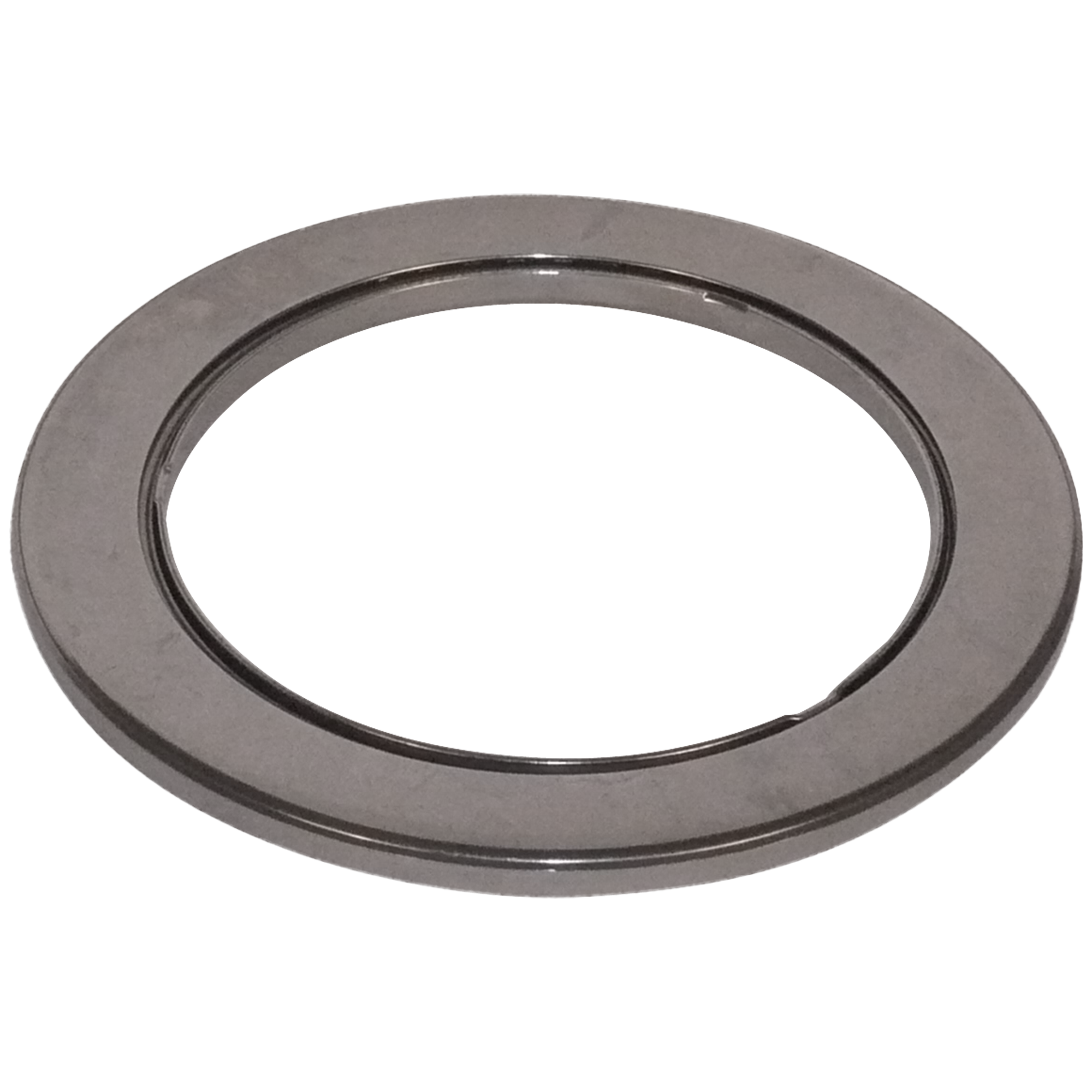

SW-2-18 3.838 2.728 0.188 Enclosed

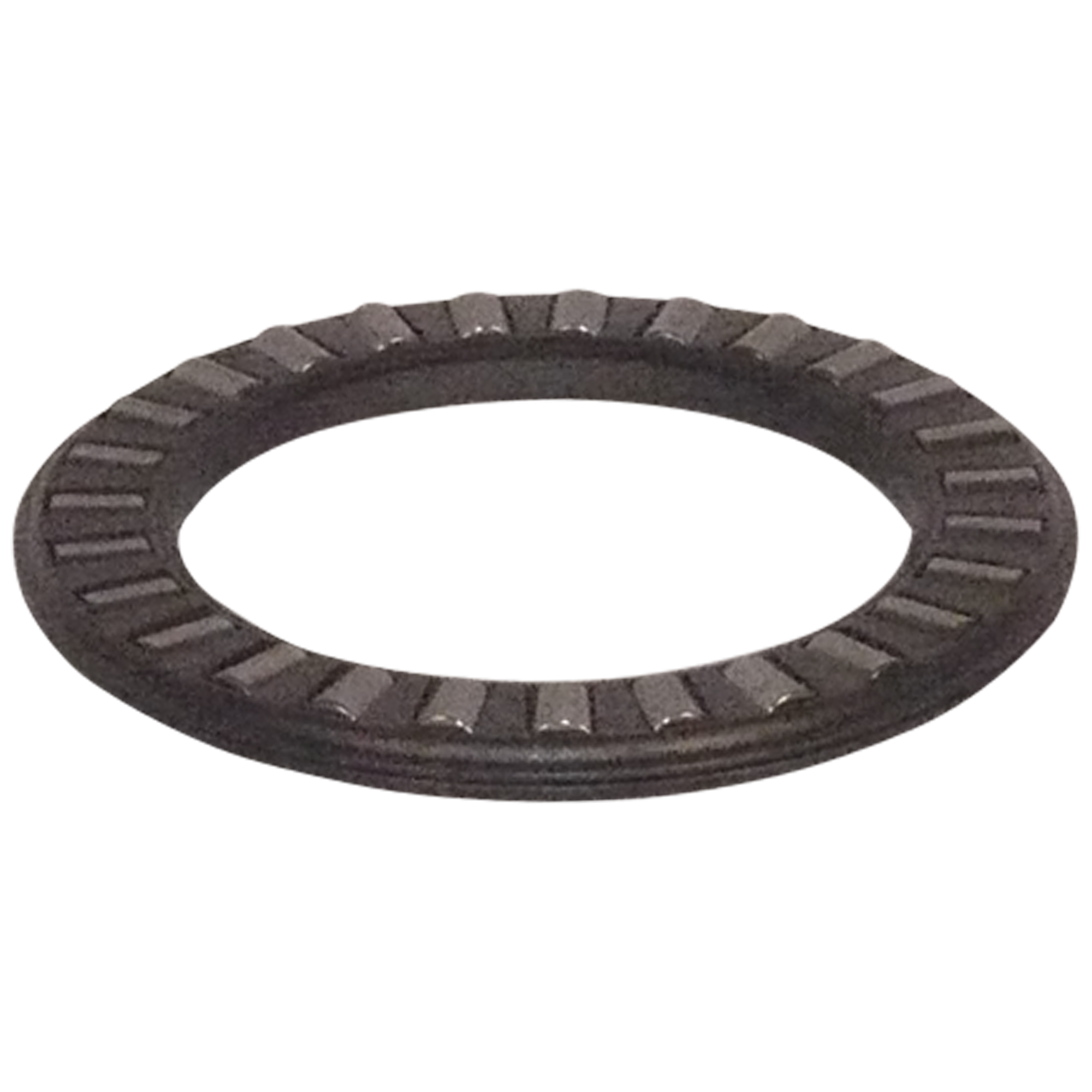

SW-2-1HD 2.175 1.506 0.156 Exposed

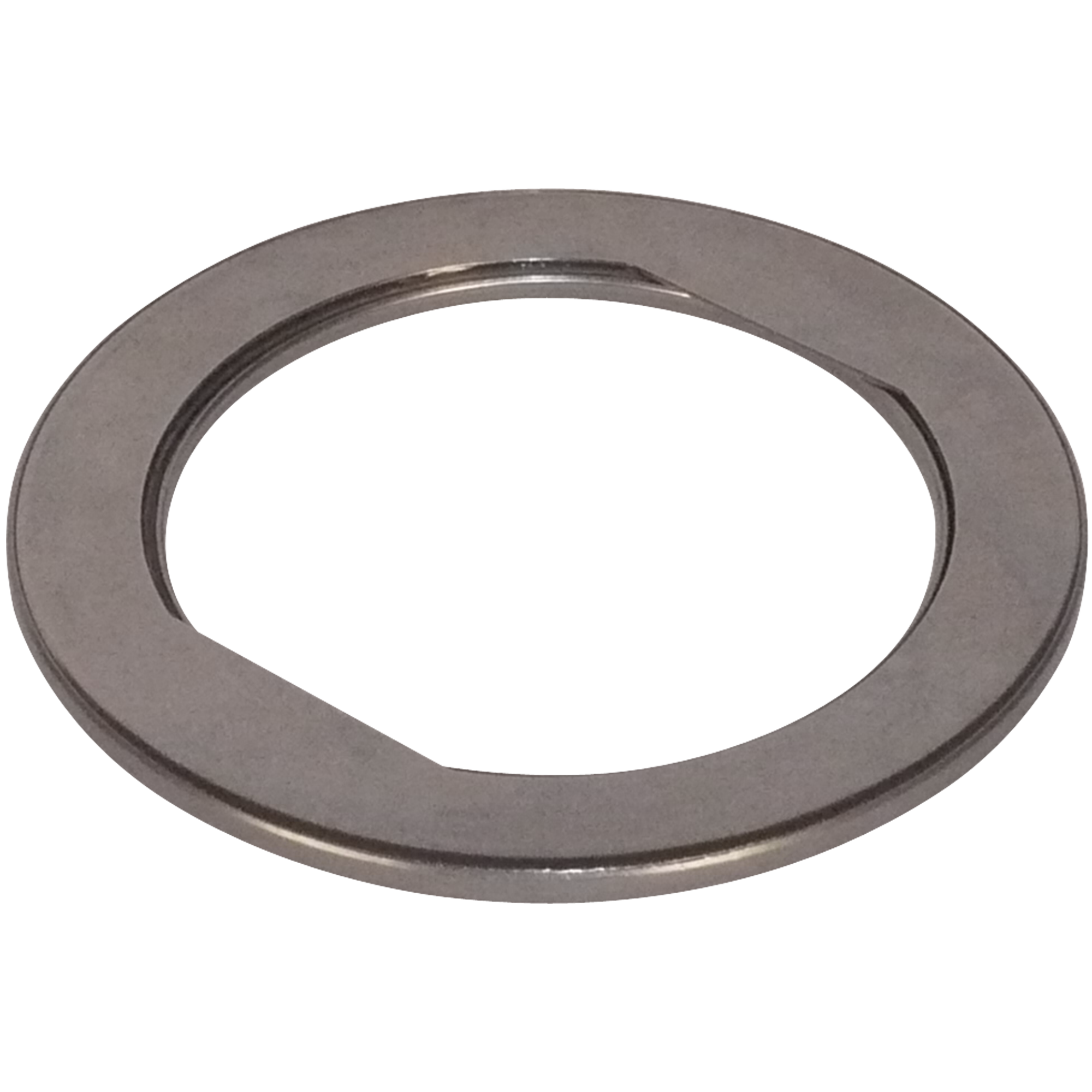

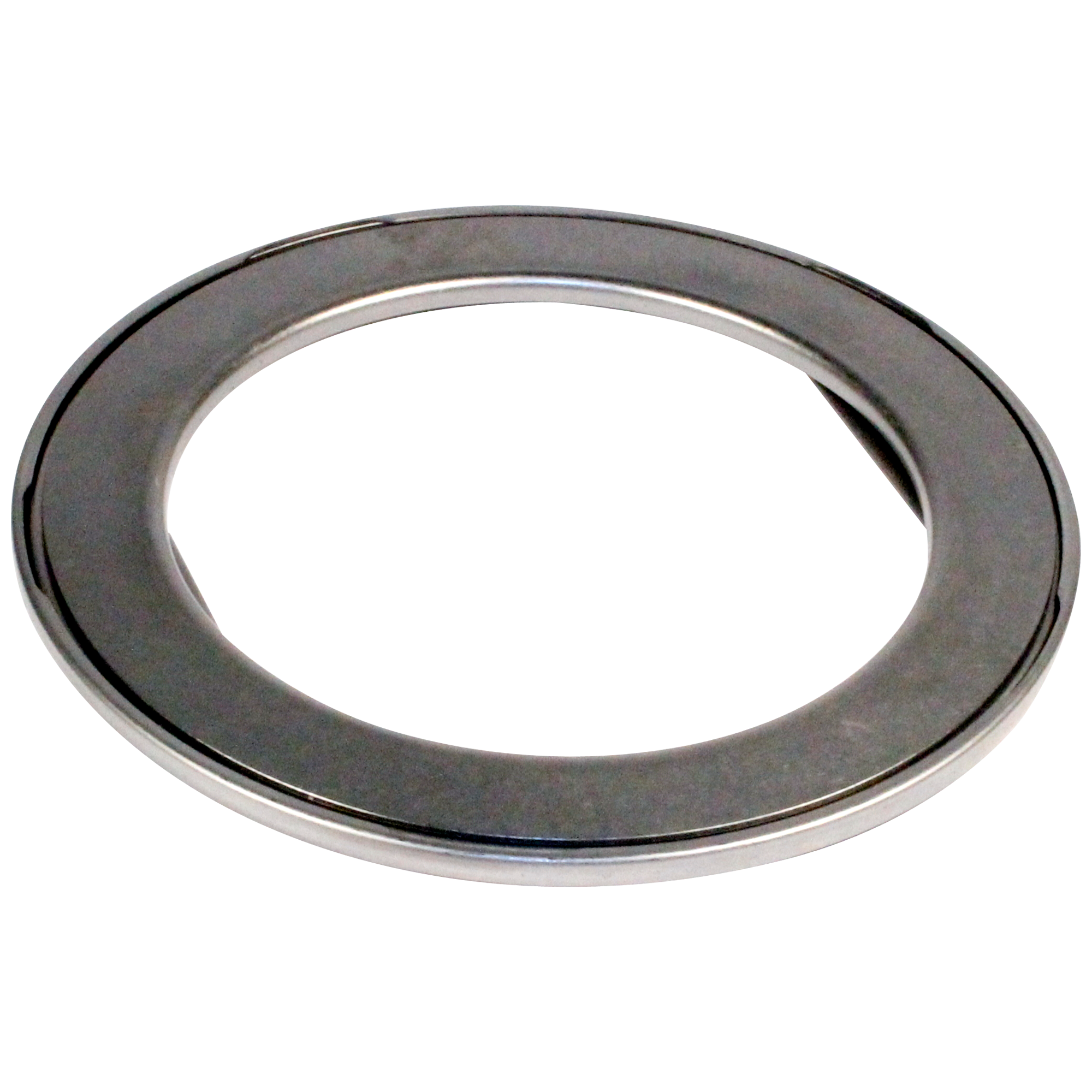

SW-2-24 3.655 2.600 0.155 Enclosed

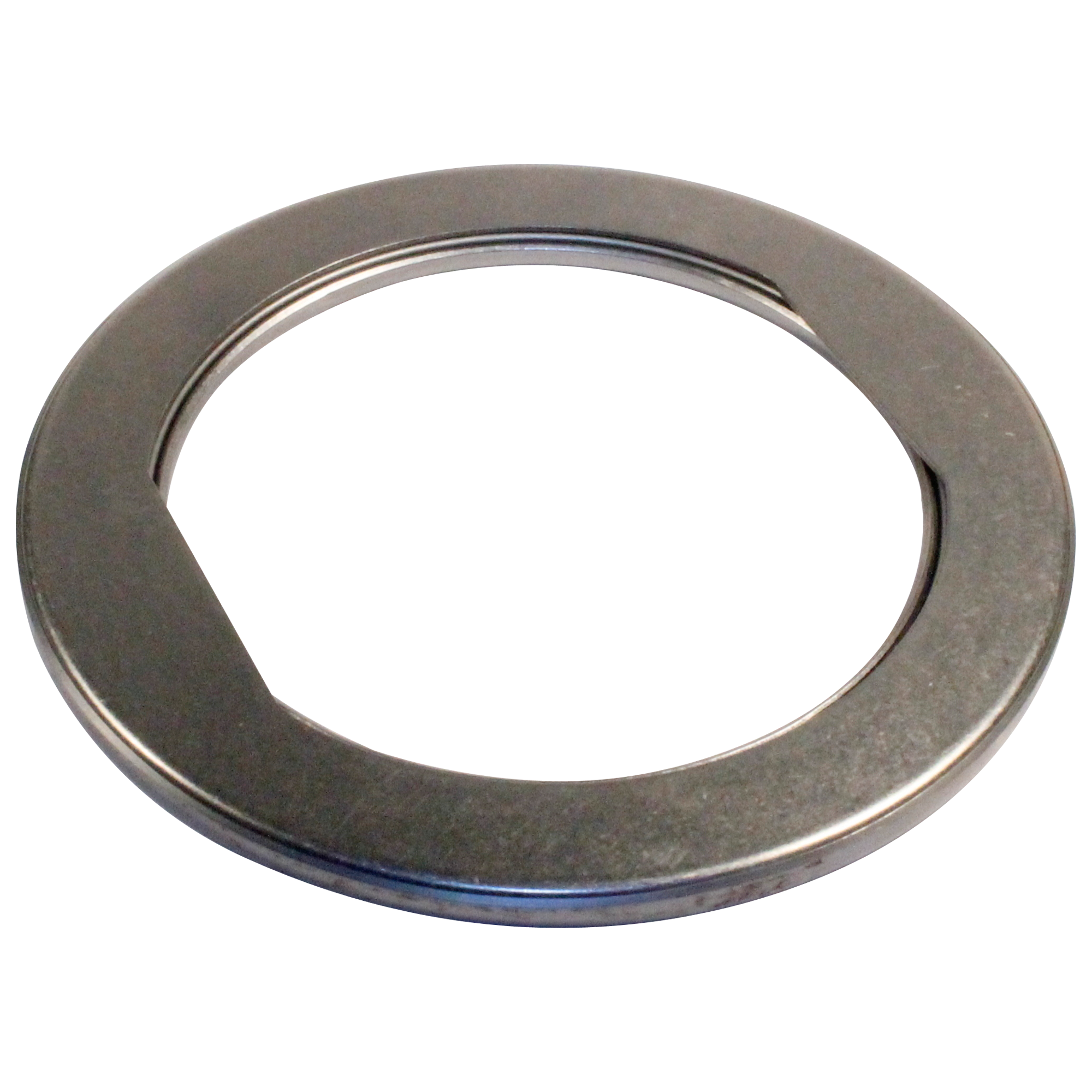

SW-2-24T 3.650 2.600 0.156

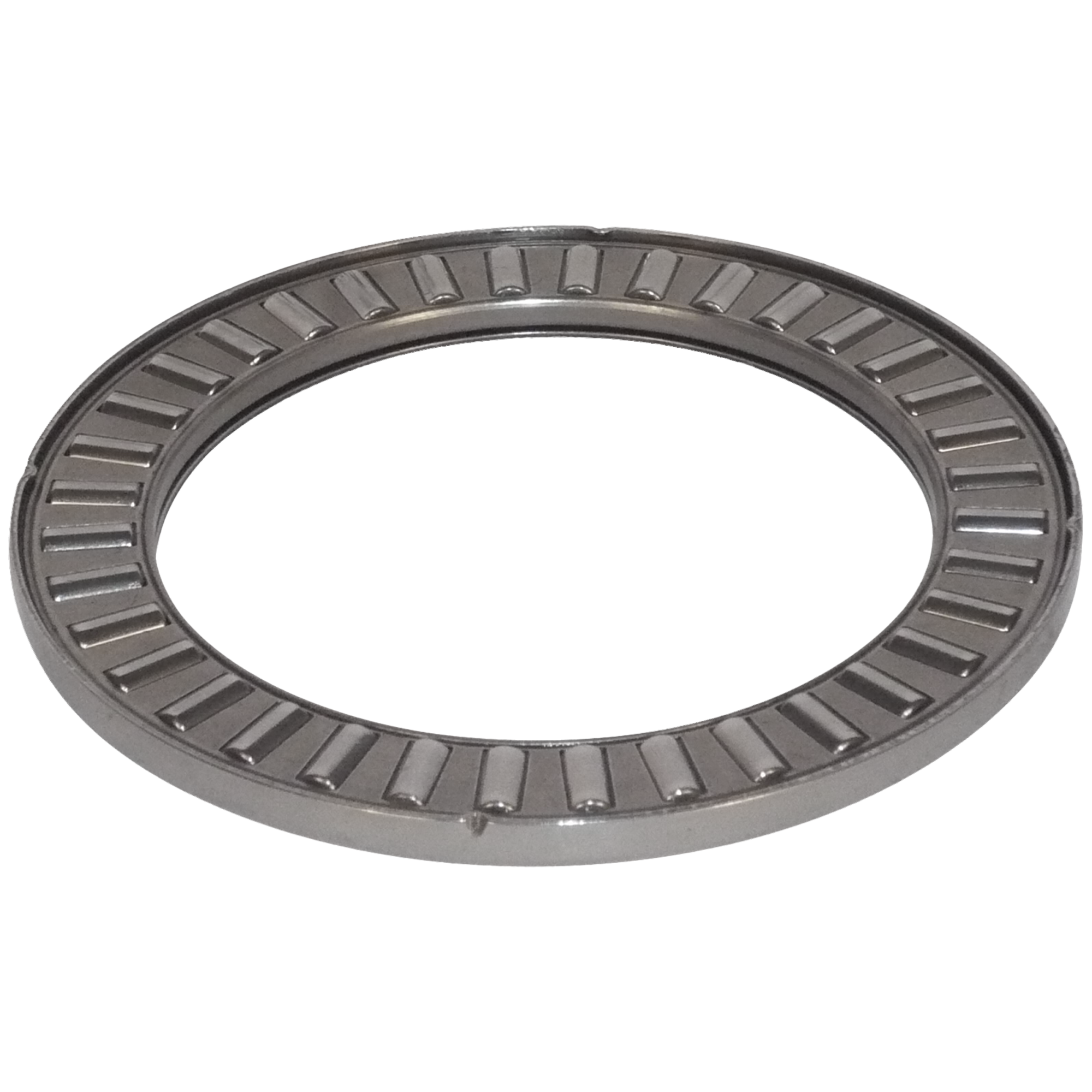

SW-2-25 3.570 2.600 0.208 Semi- Enclosed

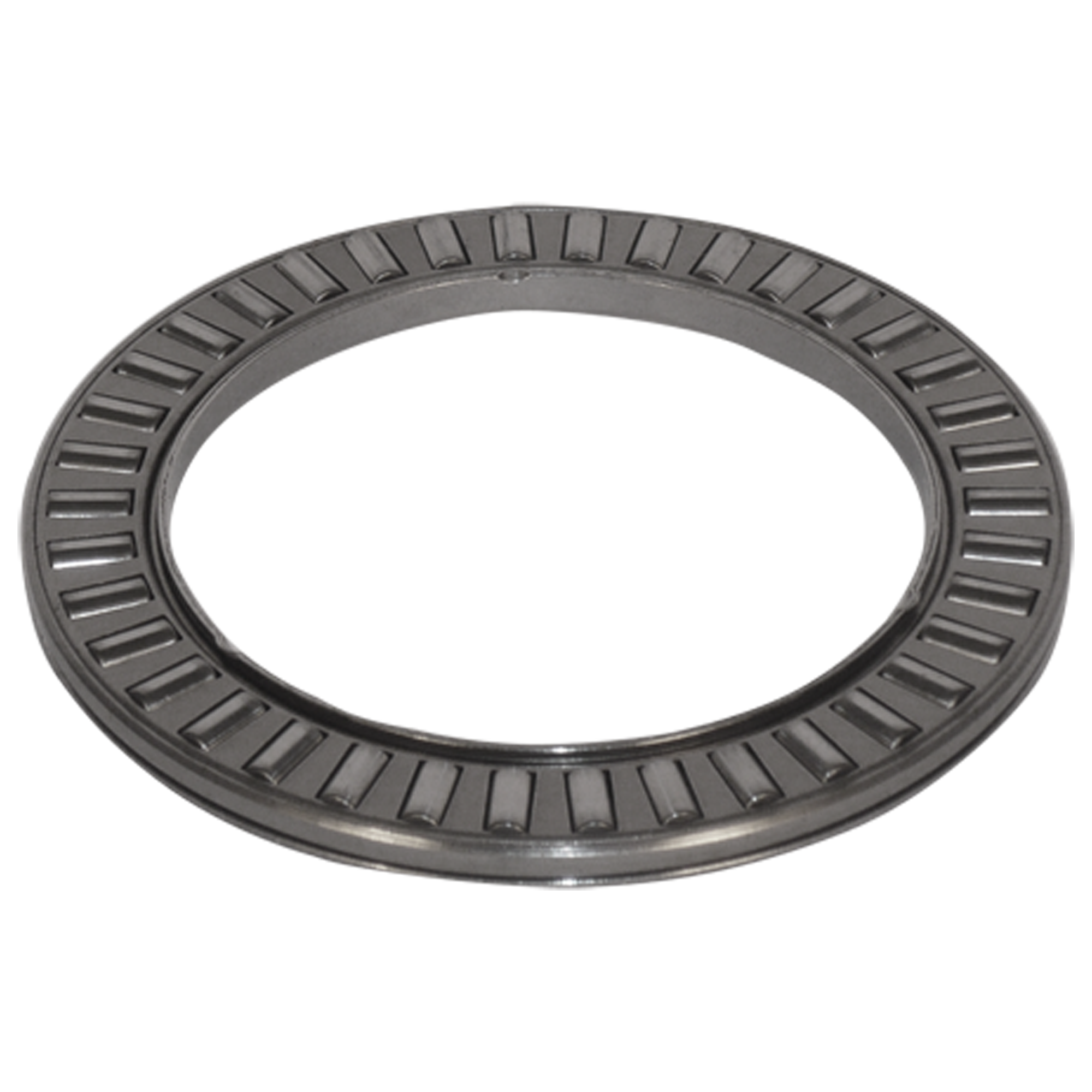

SW-2-26 3.060 2.220 0.170 Semi- Enclosed

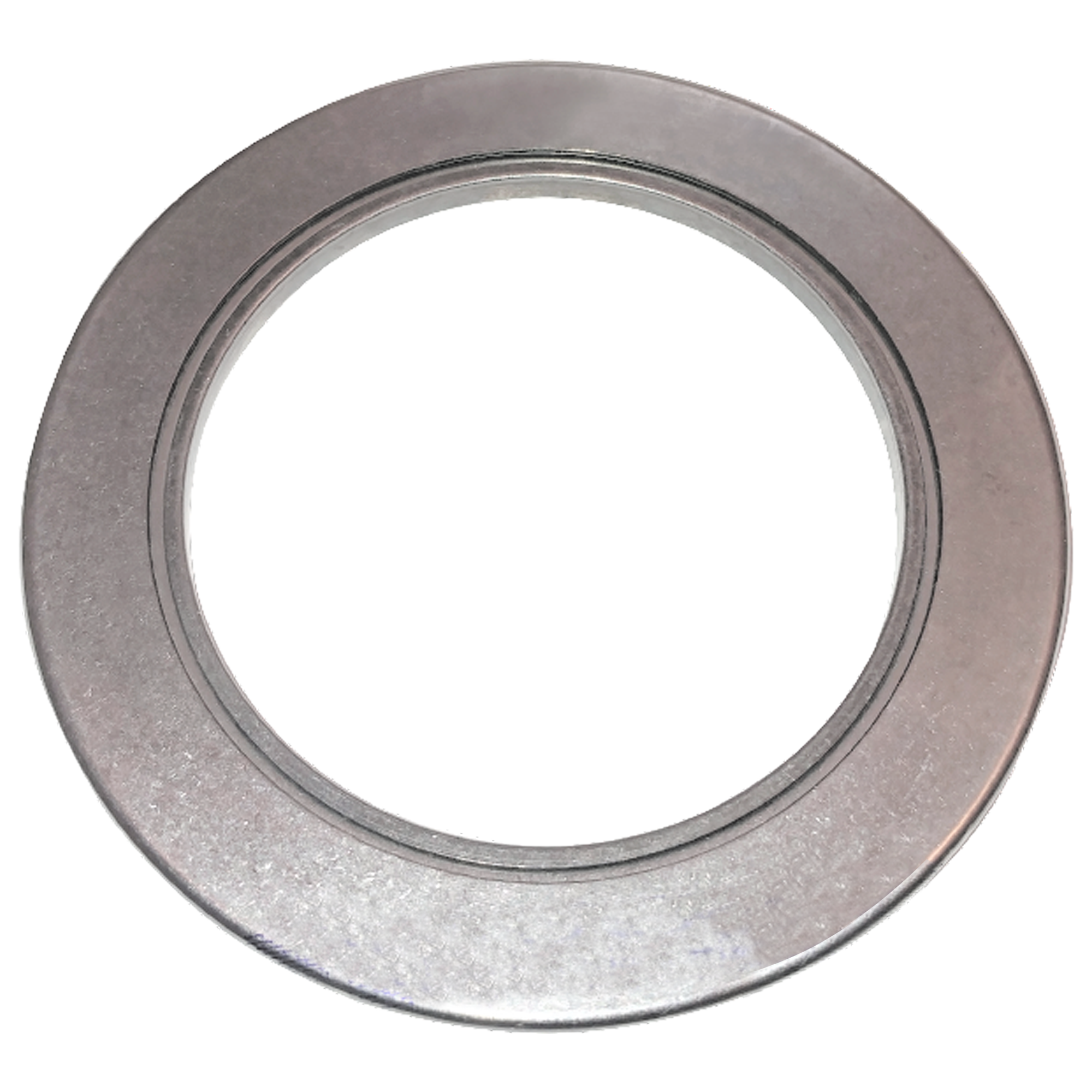

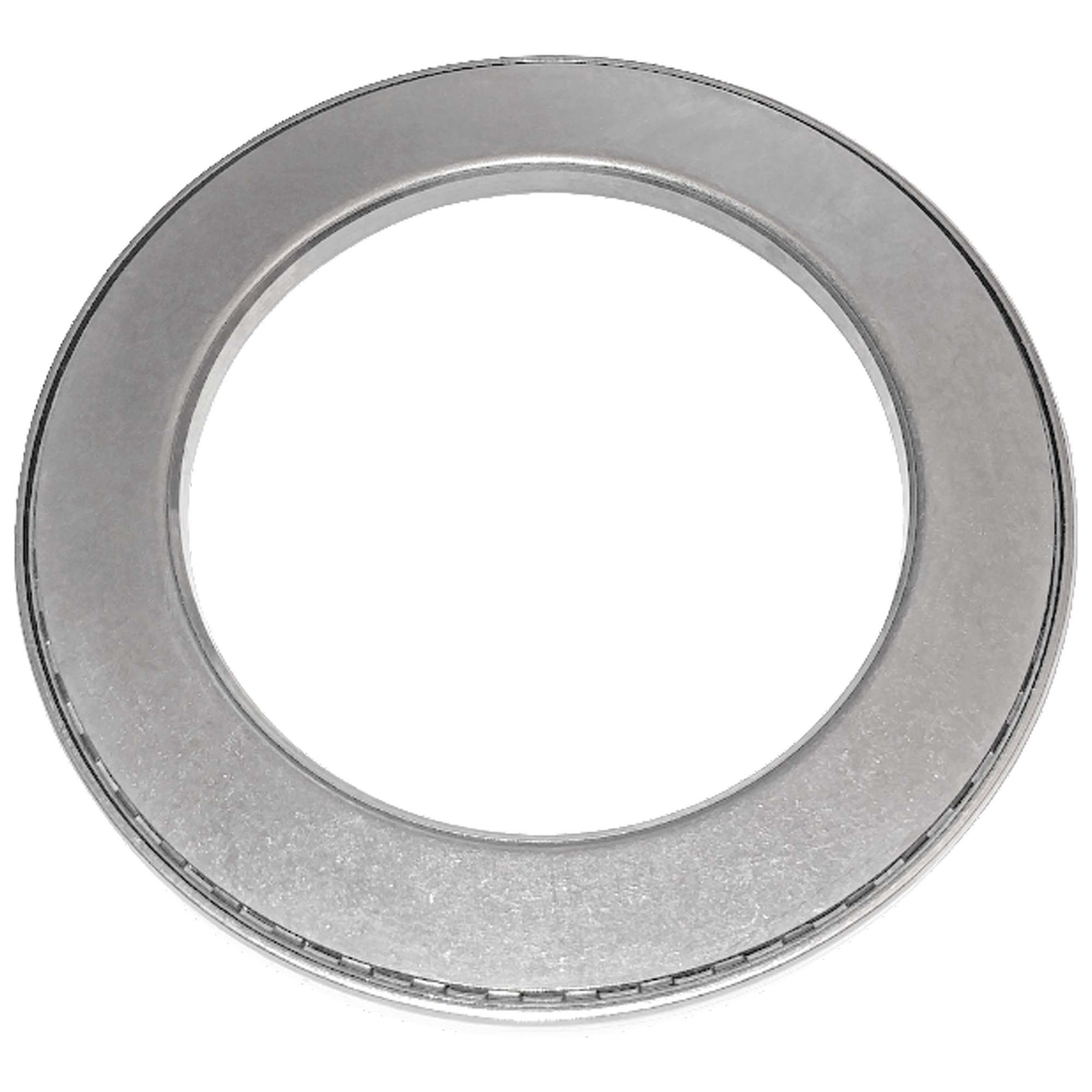

SW-2-31 3.855 2.653 0.220 Enclosed

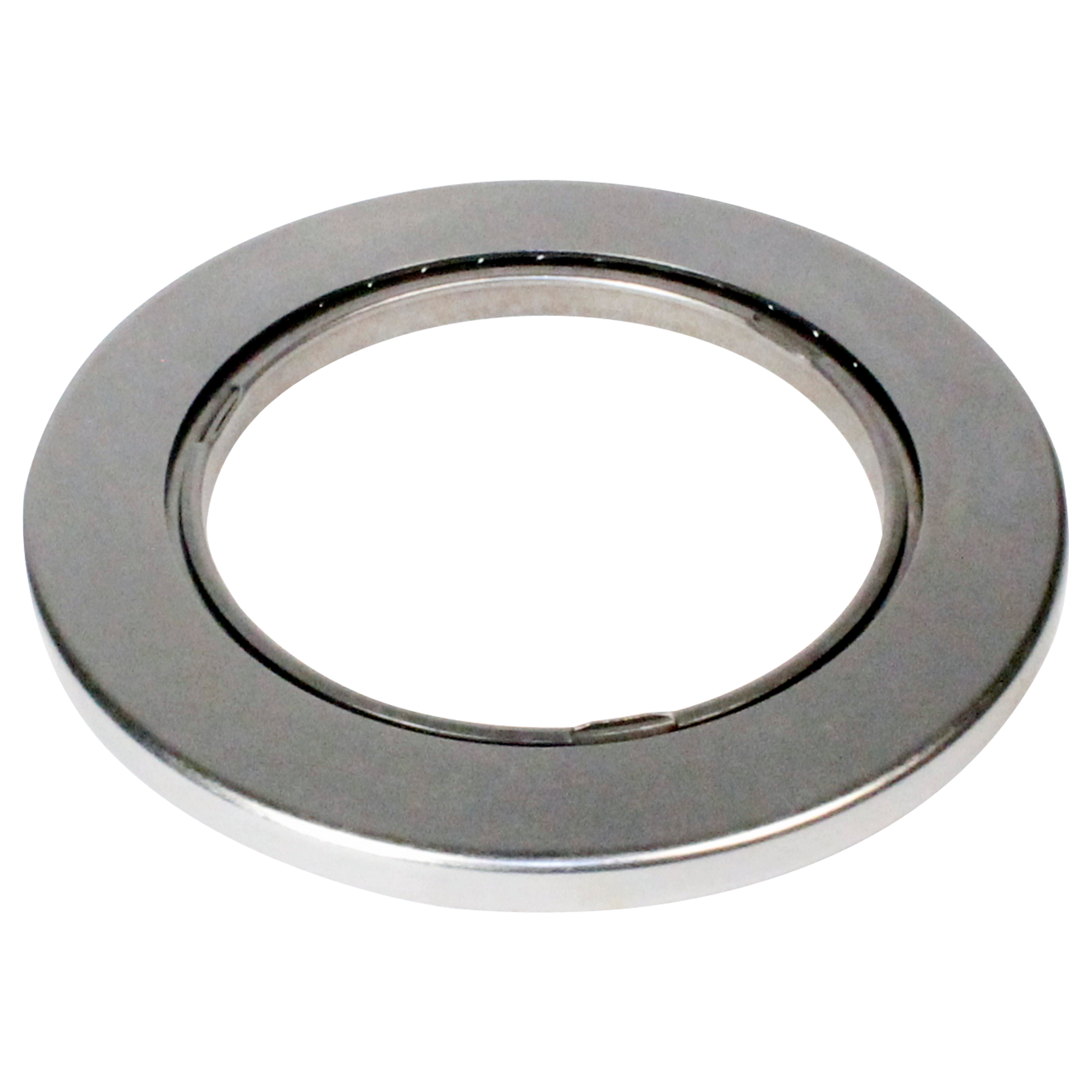

SW-2-32 3.375 2.178 0.220 Enclosed

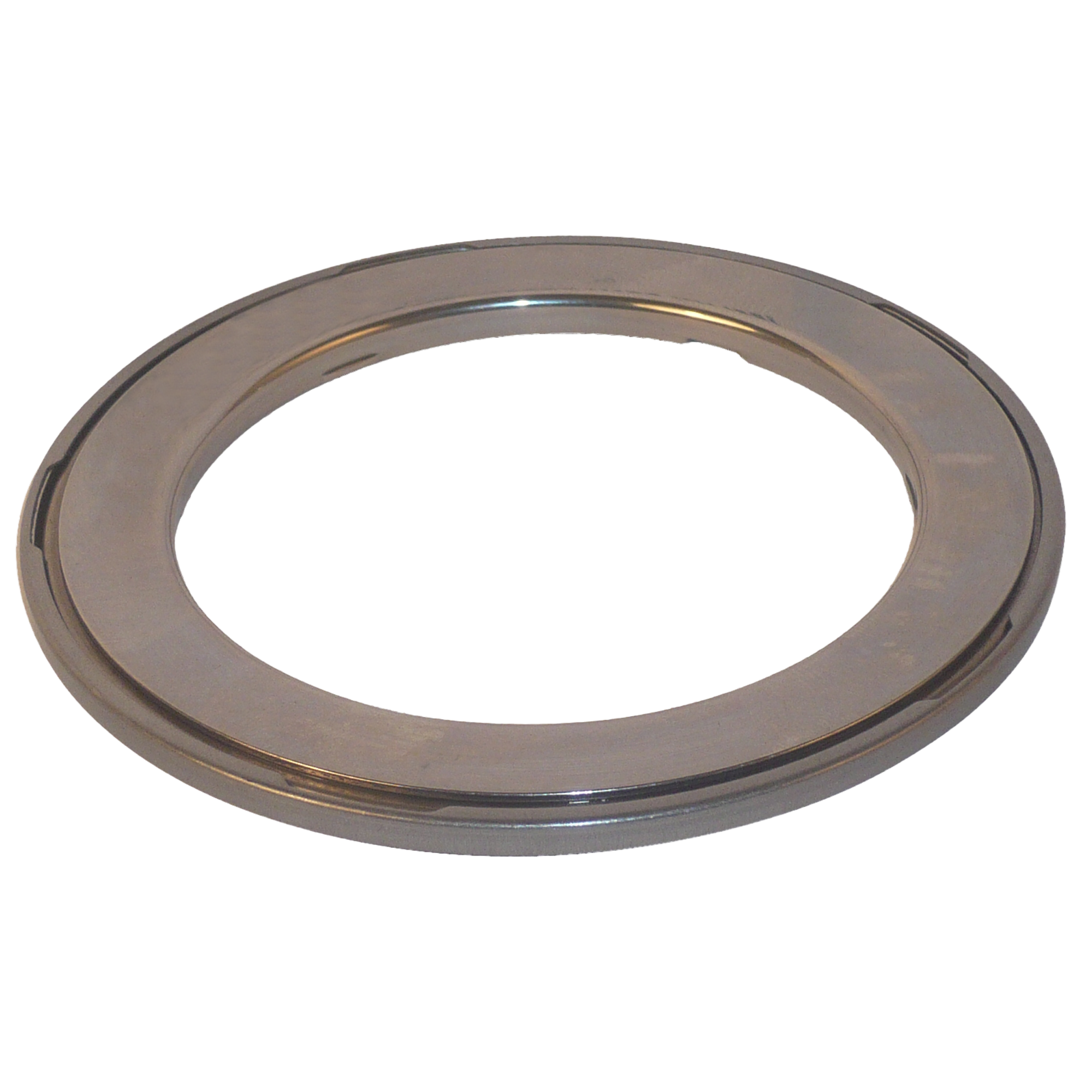

SW-2-33 3.661 2.598 0.179 Enclosed

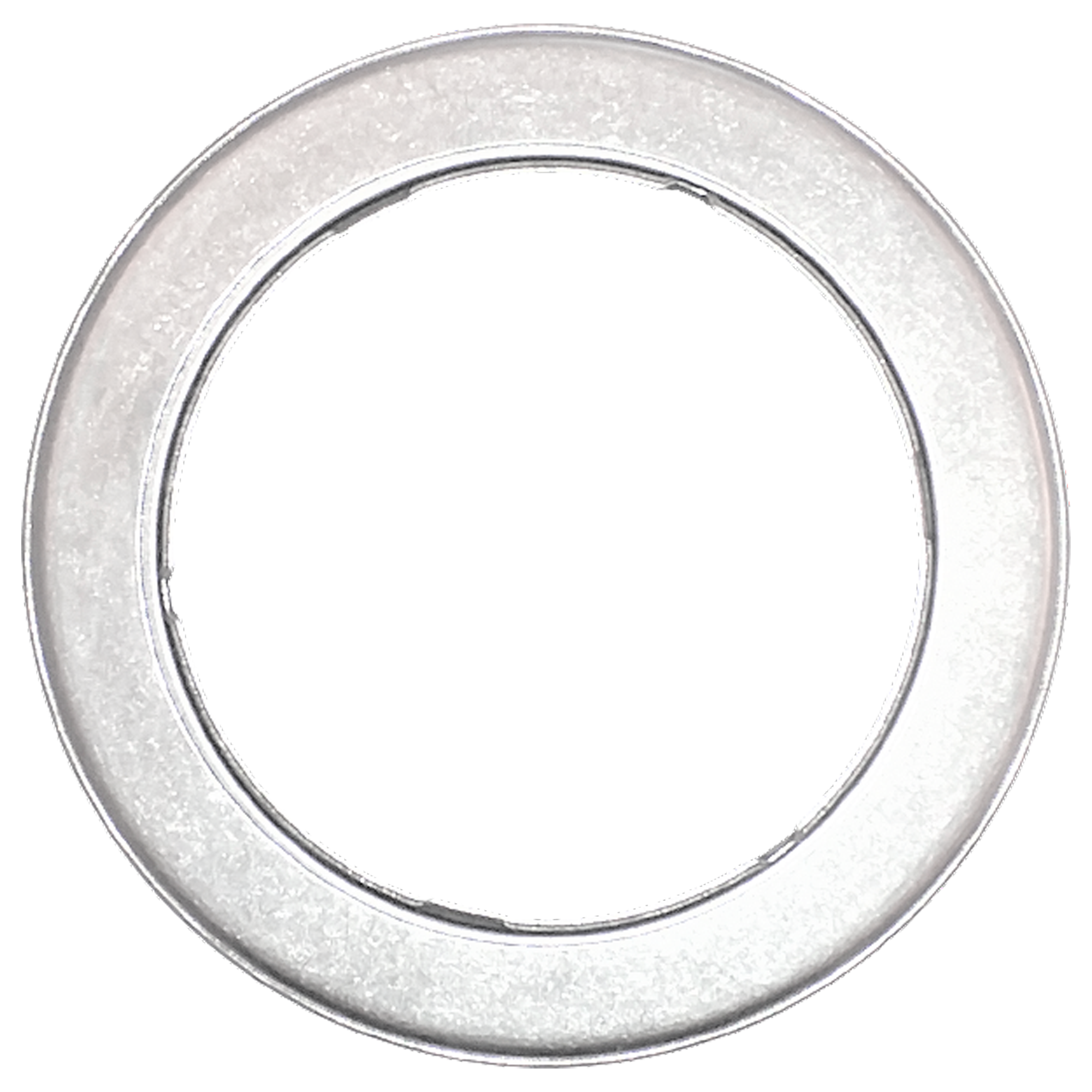

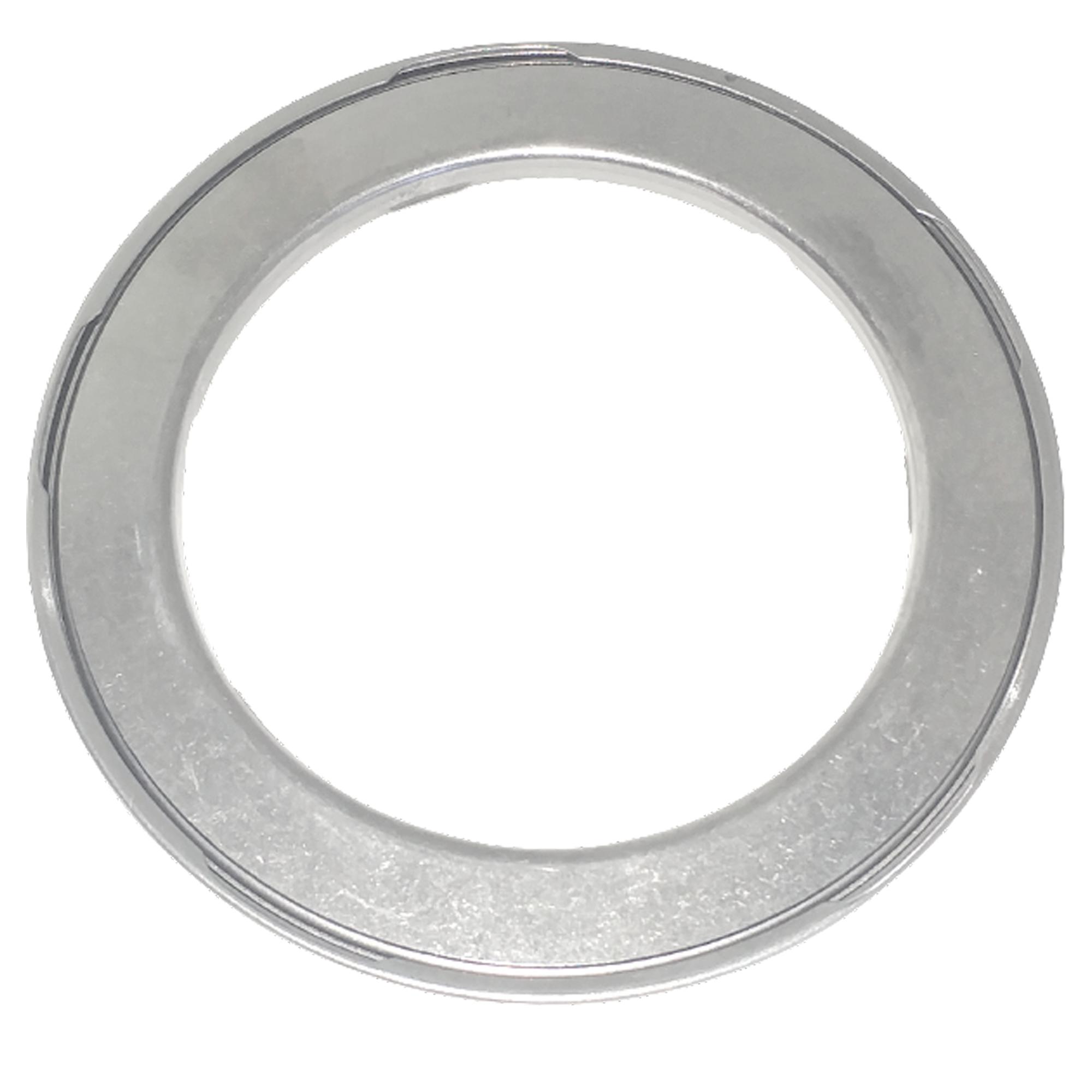

SW-2-33T 3.650 2.600 0.180 Enclosed

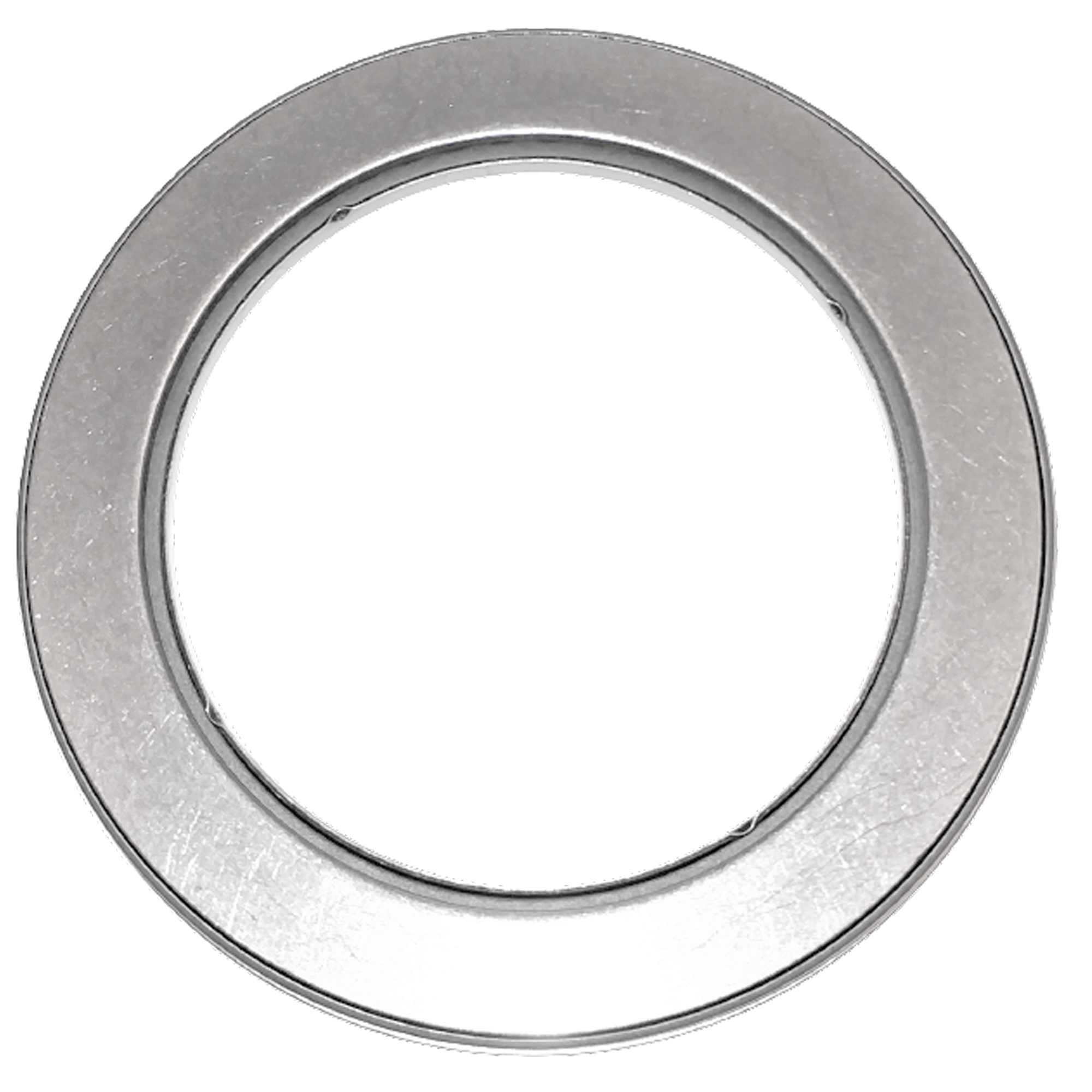

SW-2-34 3.365 2.402 0.213 Enclosed

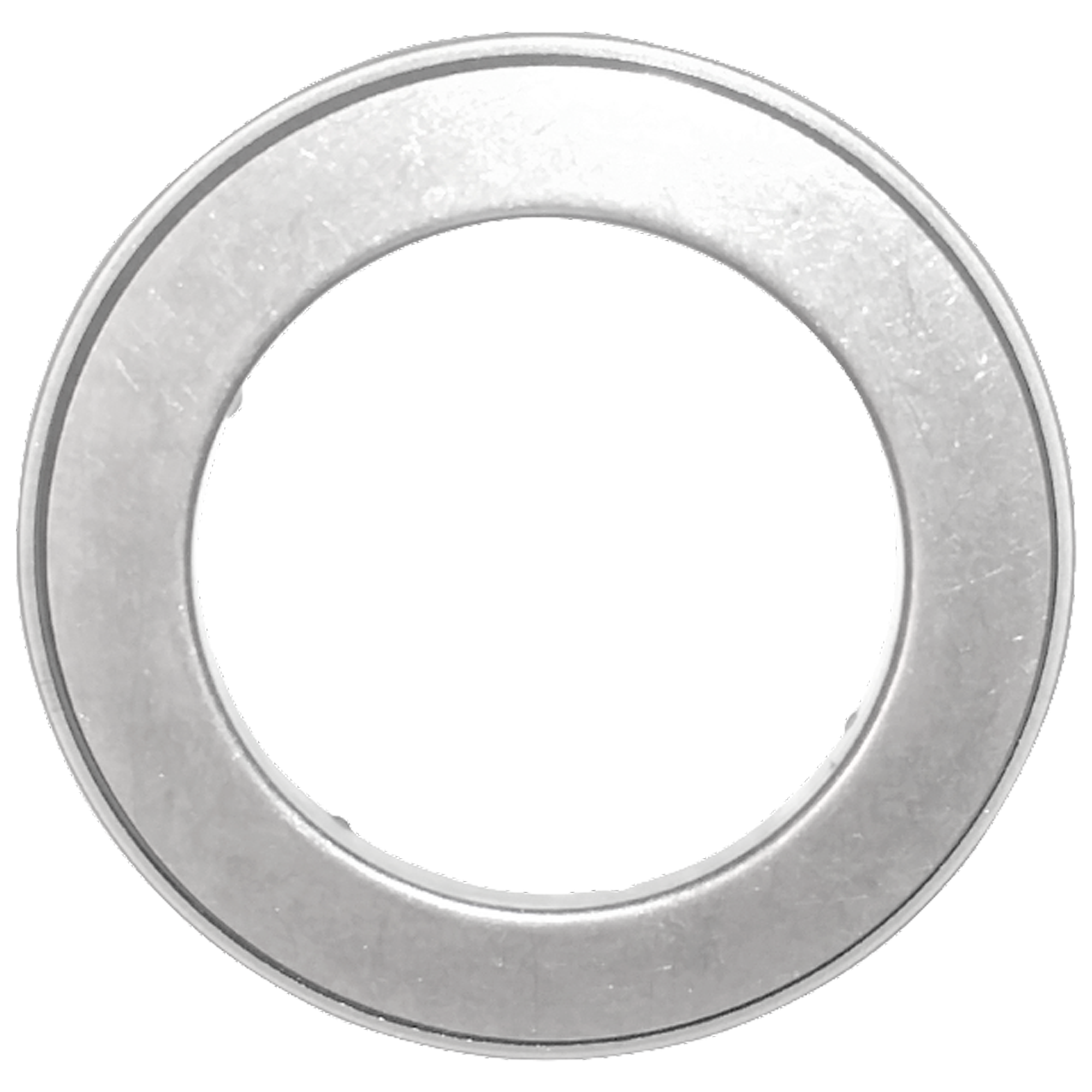

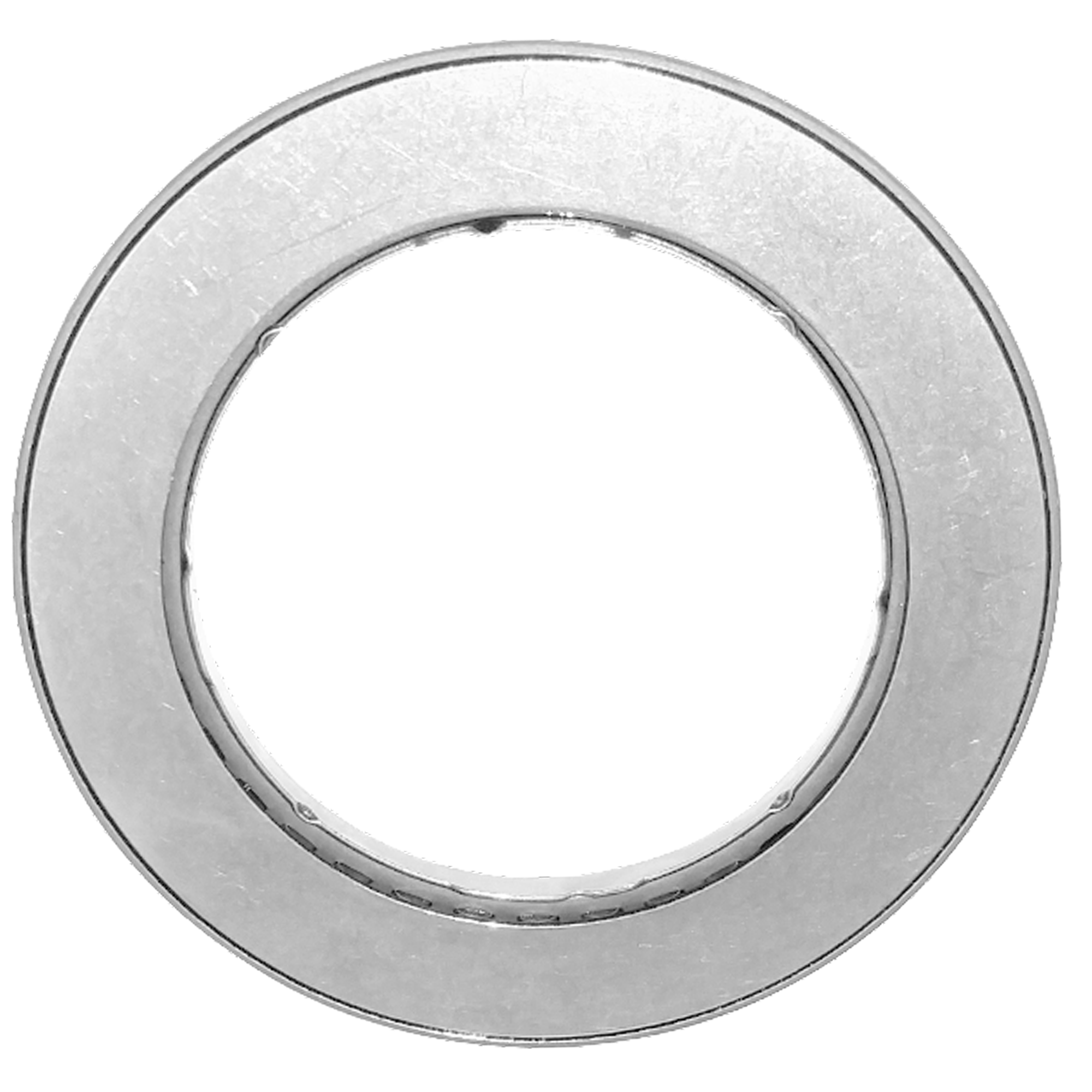

SW-2-35 2.869 1.896 0.179 Enclosed

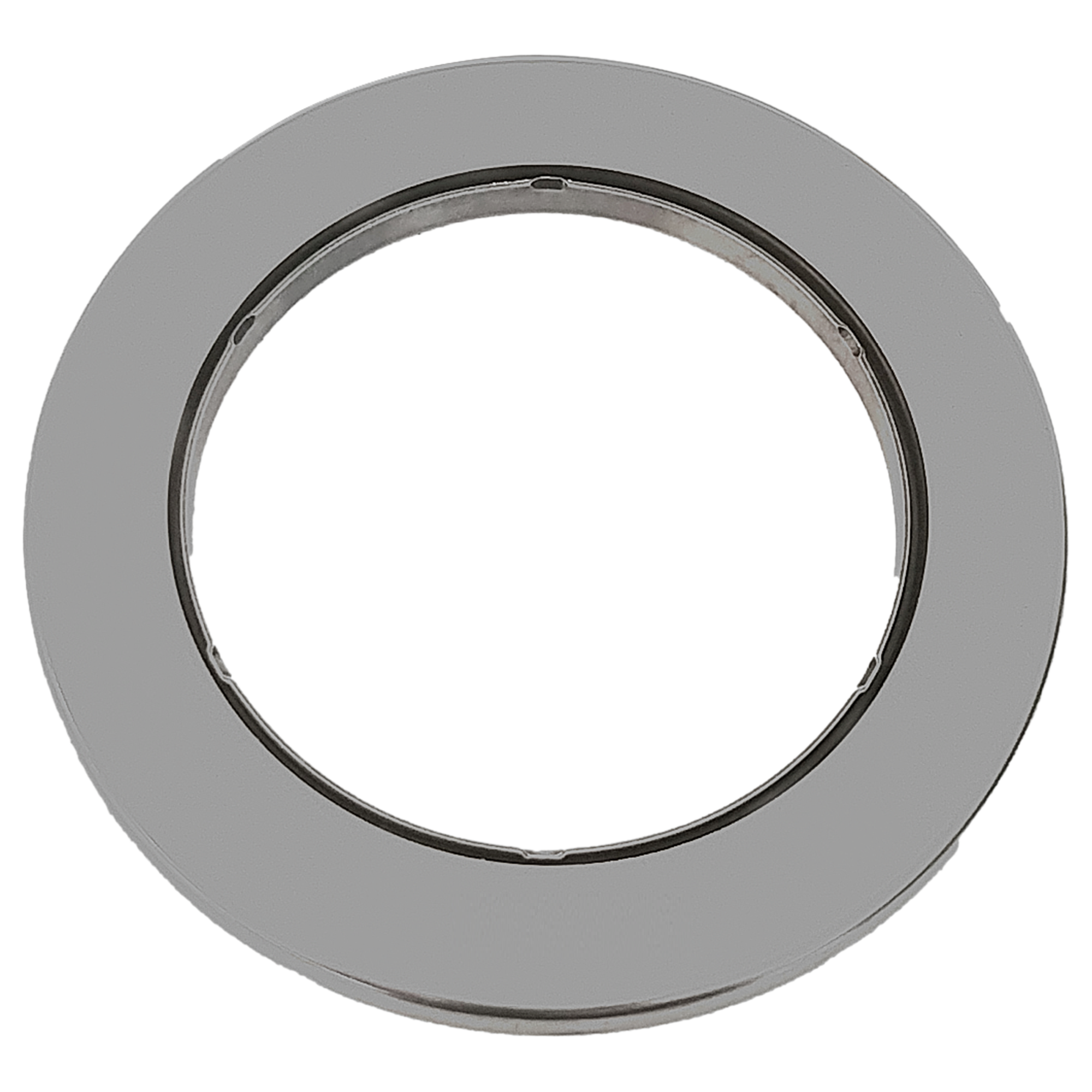

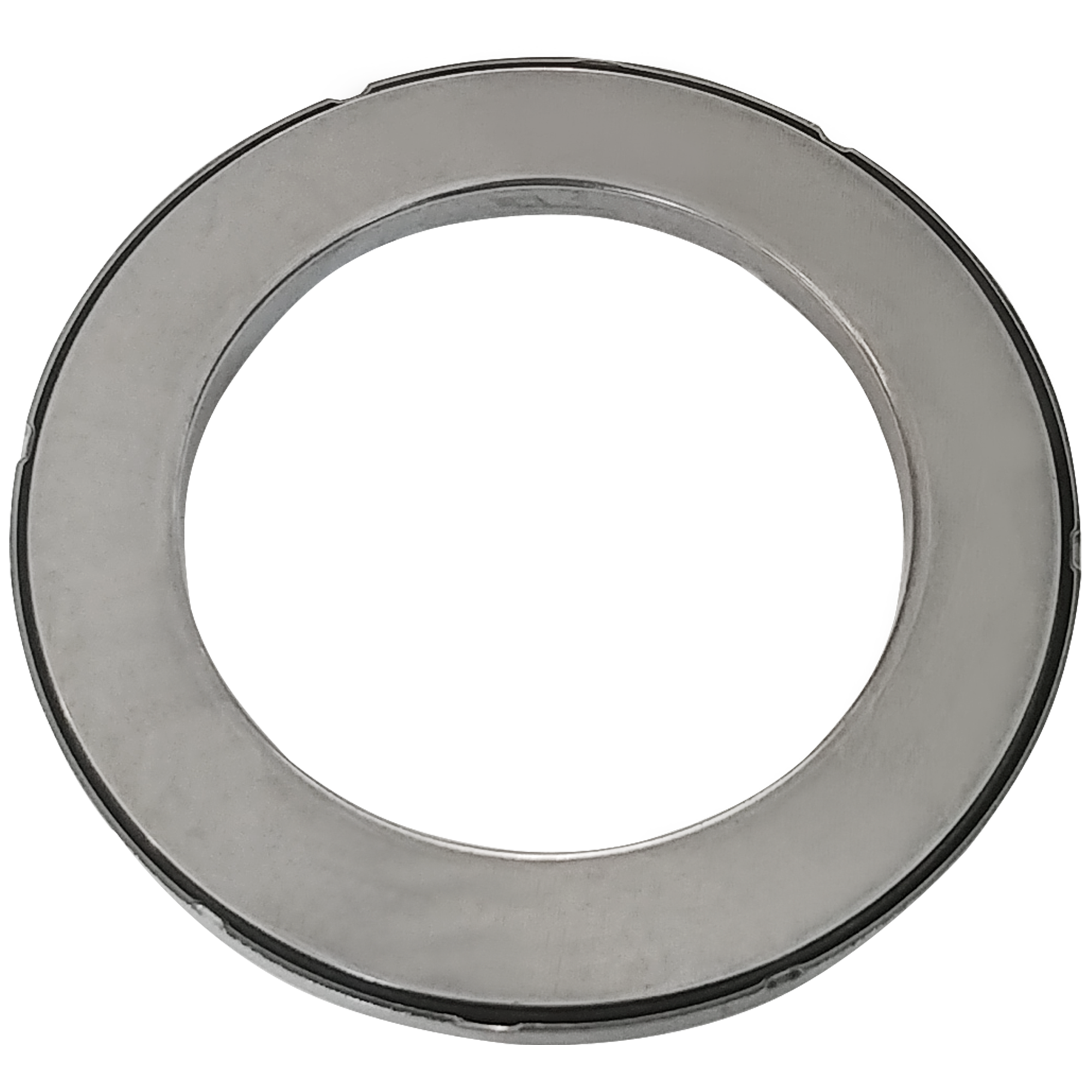

SW-2-36 3.855 2.644 0.251 Enclosed

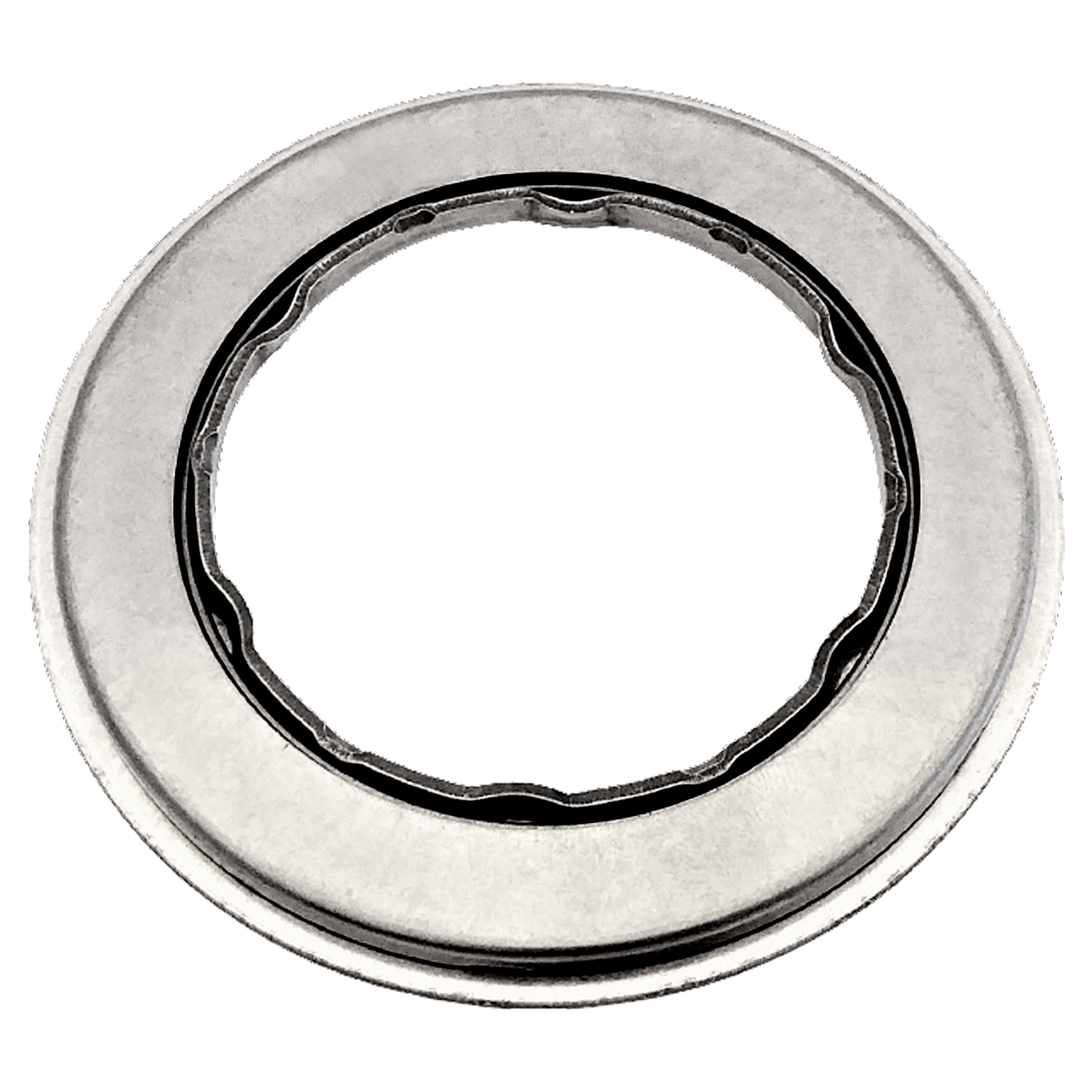

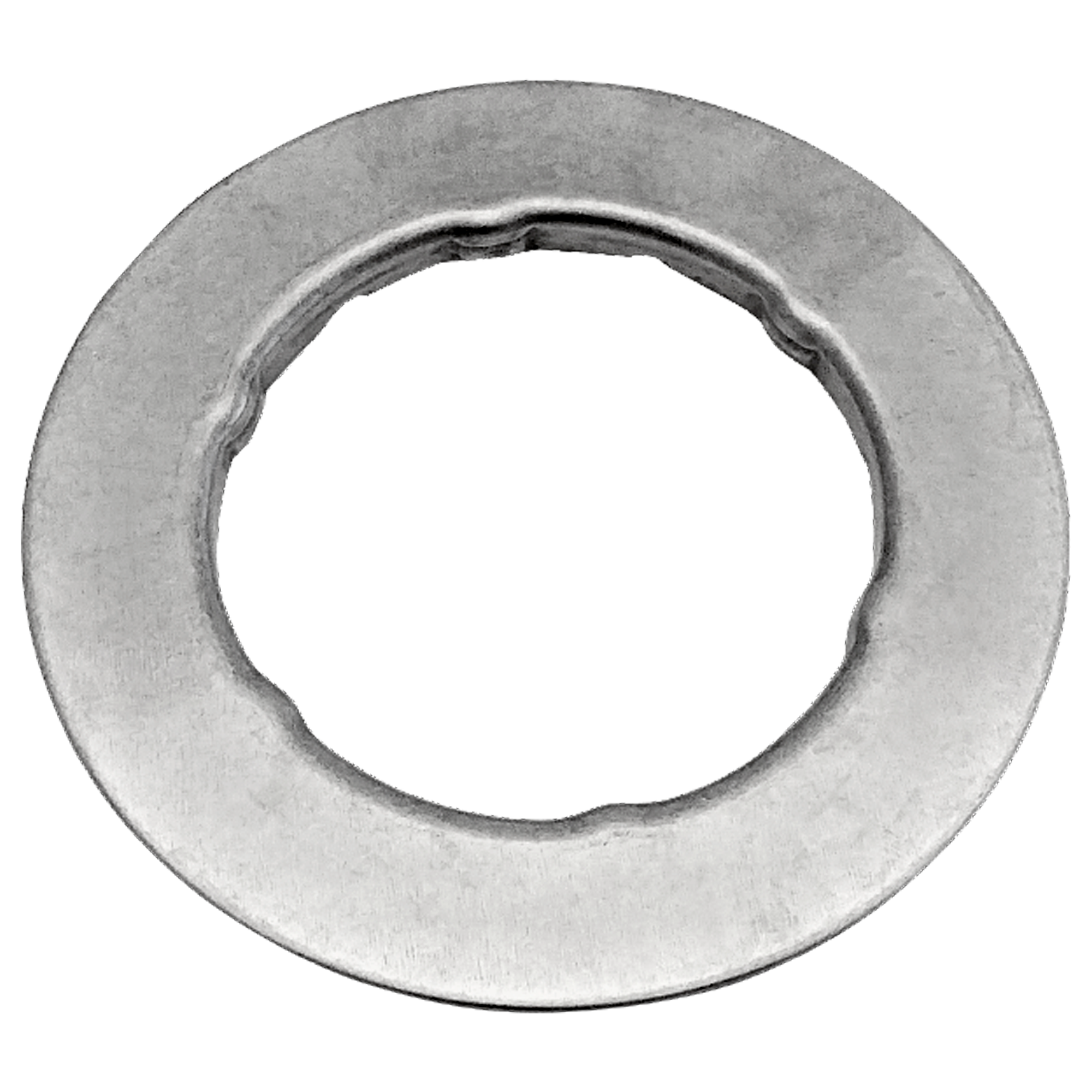

SW-2-37 3.126 2.134 0.213 Enclosed

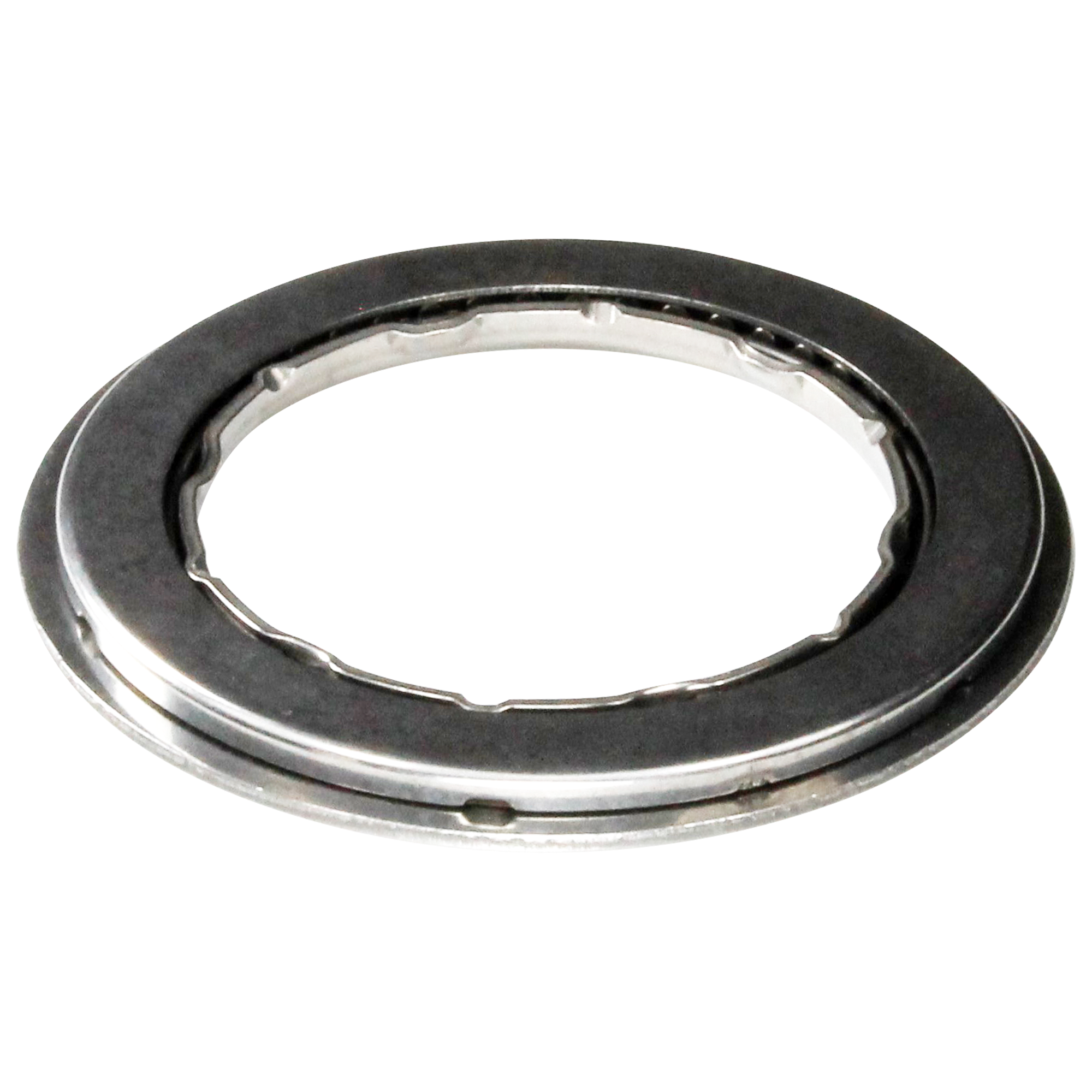

SW-2-38 2.980 2.098 0.196 Enclosed

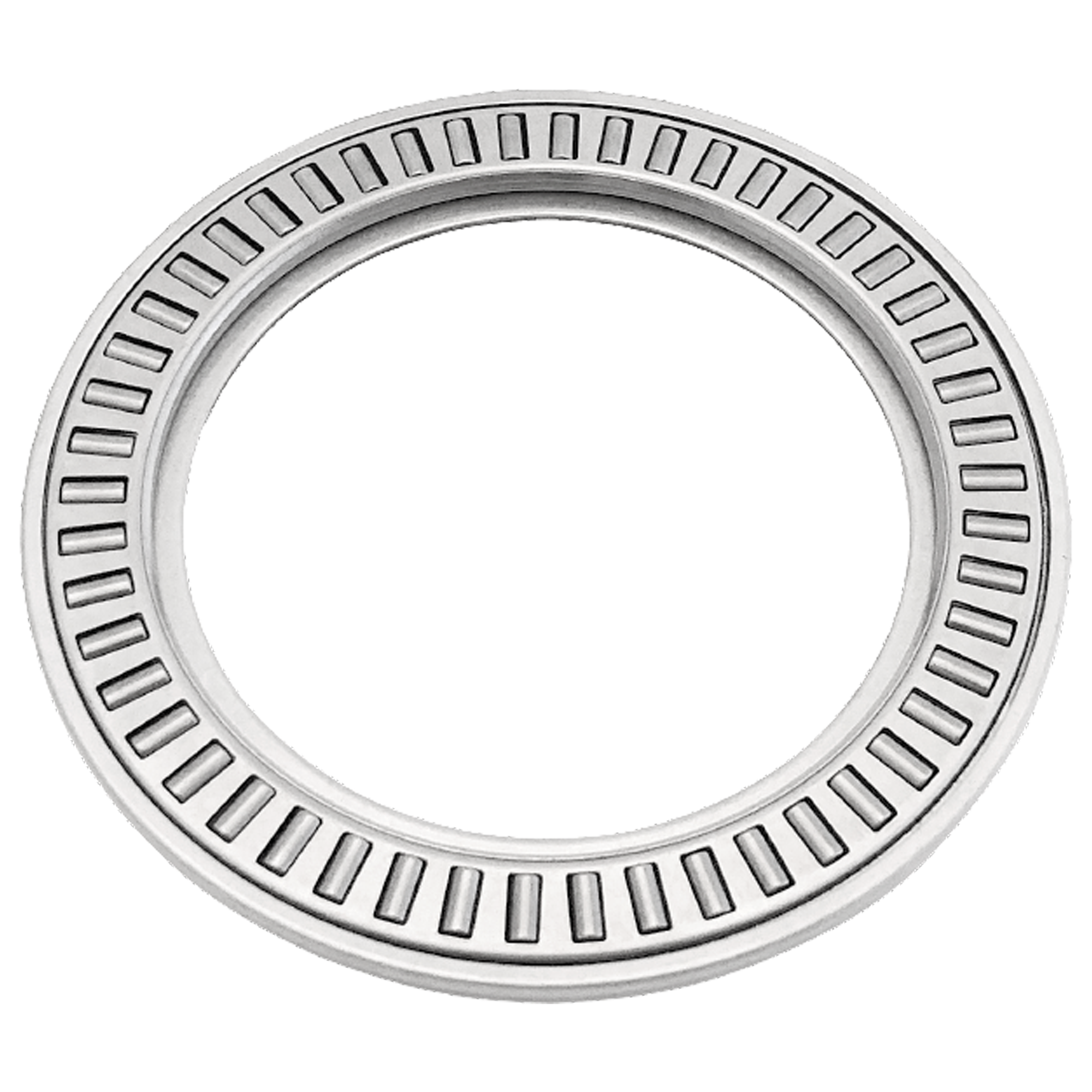

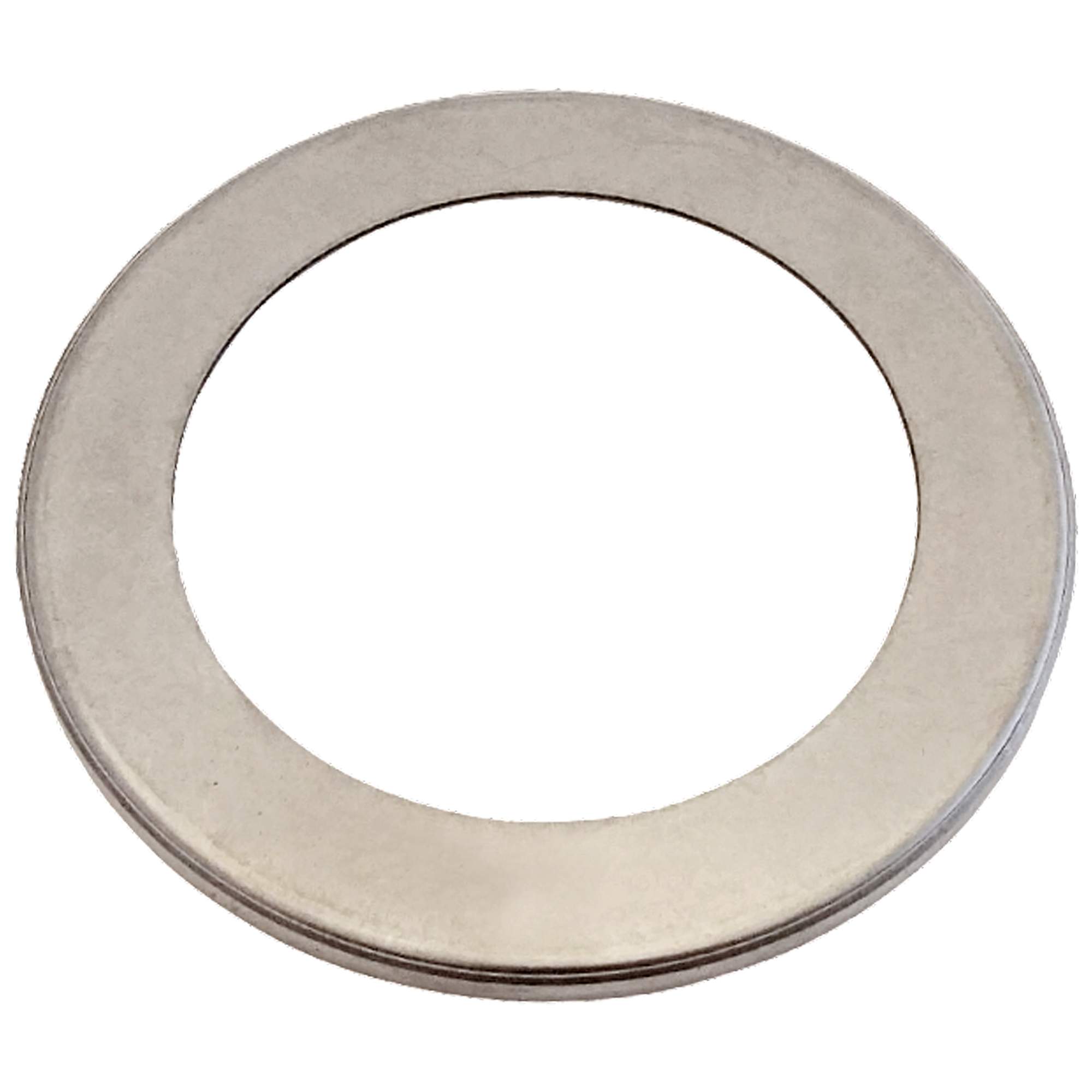

SW-2-39 3.583 2.502 0.159 Semi-Enclosed

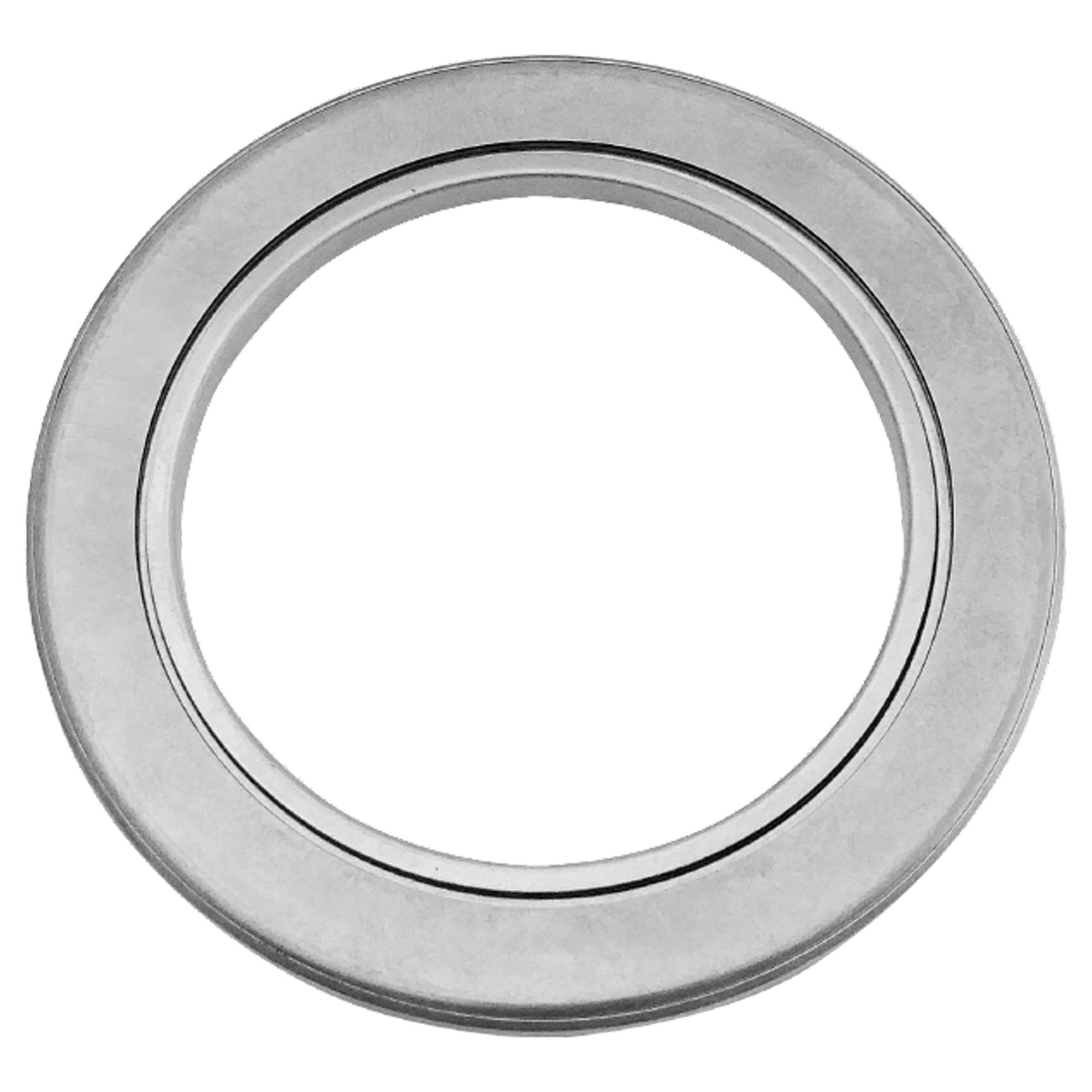

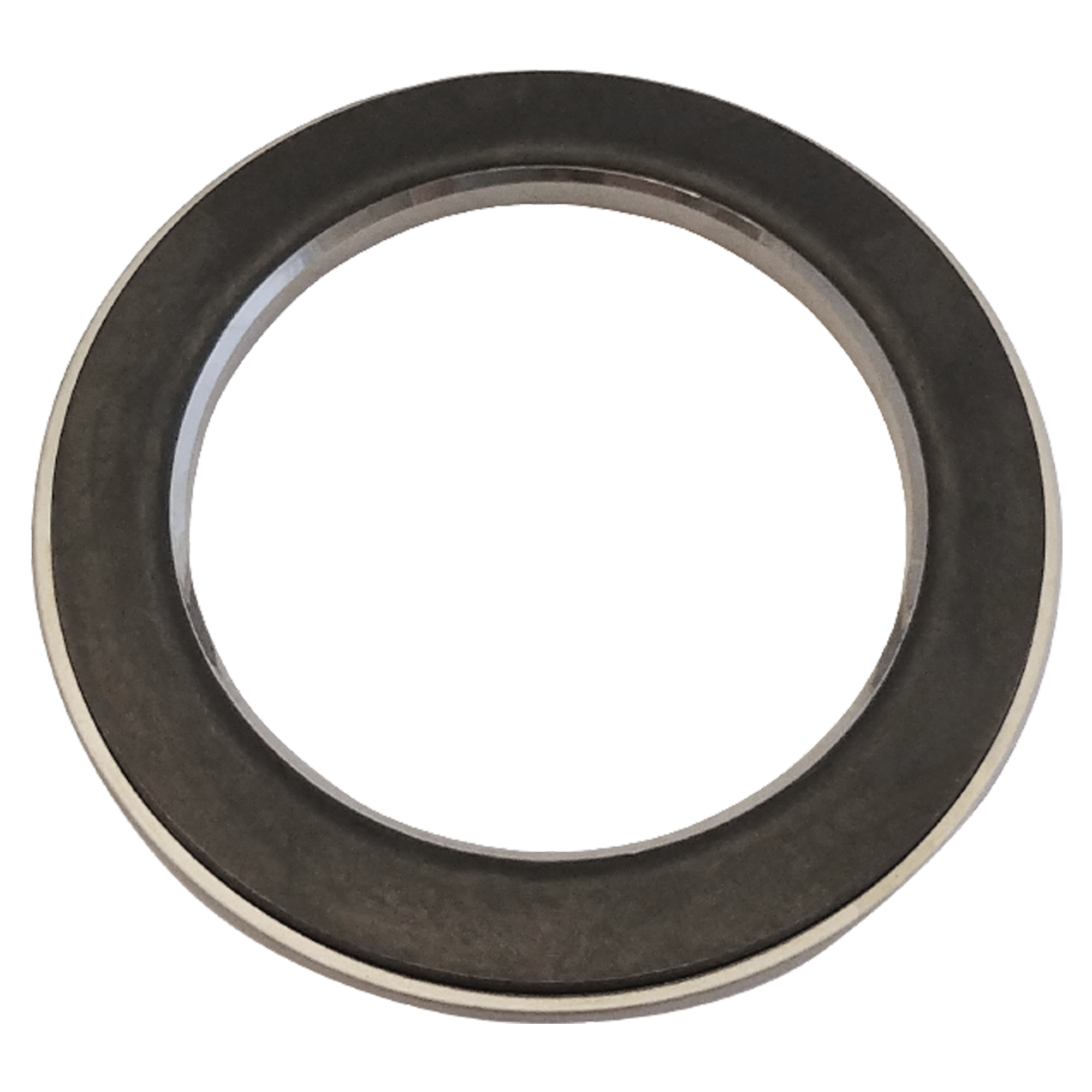

SW-2-40 3.577 2.517 0.239 Enclosed
SW-2-42 4.460 3.170 0.340 Semi-Enclosed

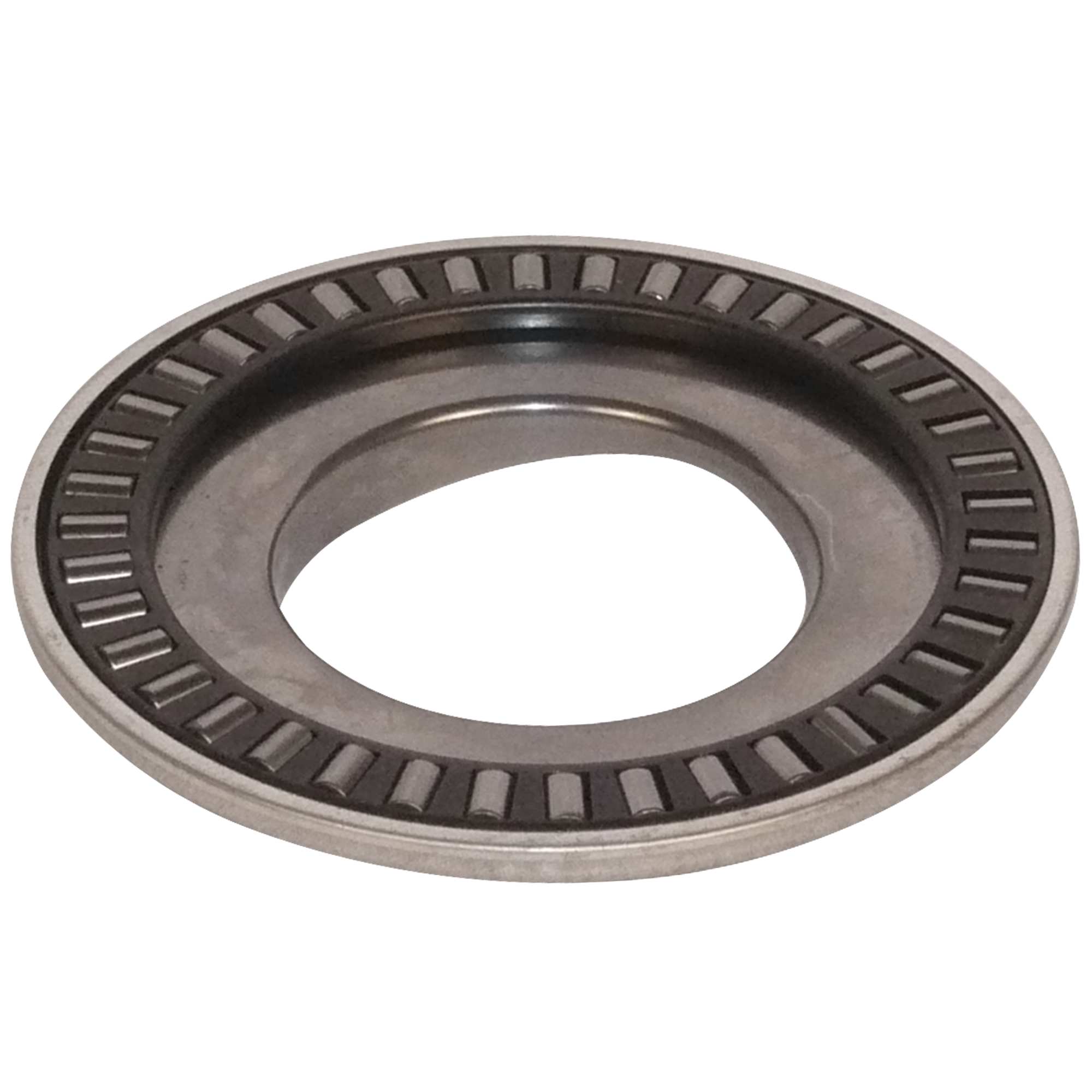

SW-2-8 2.842 1.435 0.155 Semi- Enclosed
SW-2-8T 2.840 1.440 0.156

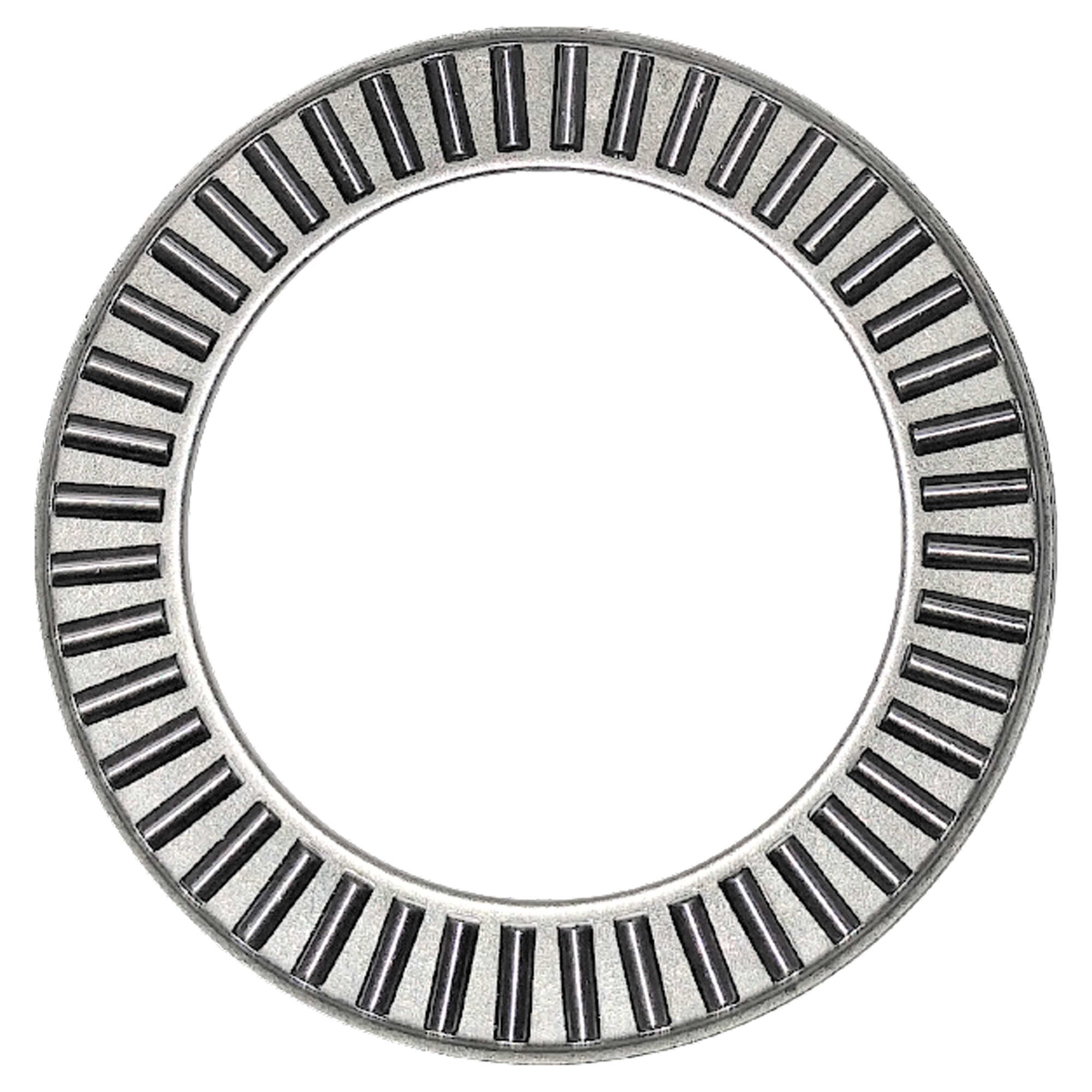

SW-2D 2.170 1.500 0.078 Exposed
TW-2-12 2.550 1.728 0.220 Semi- Enclosed

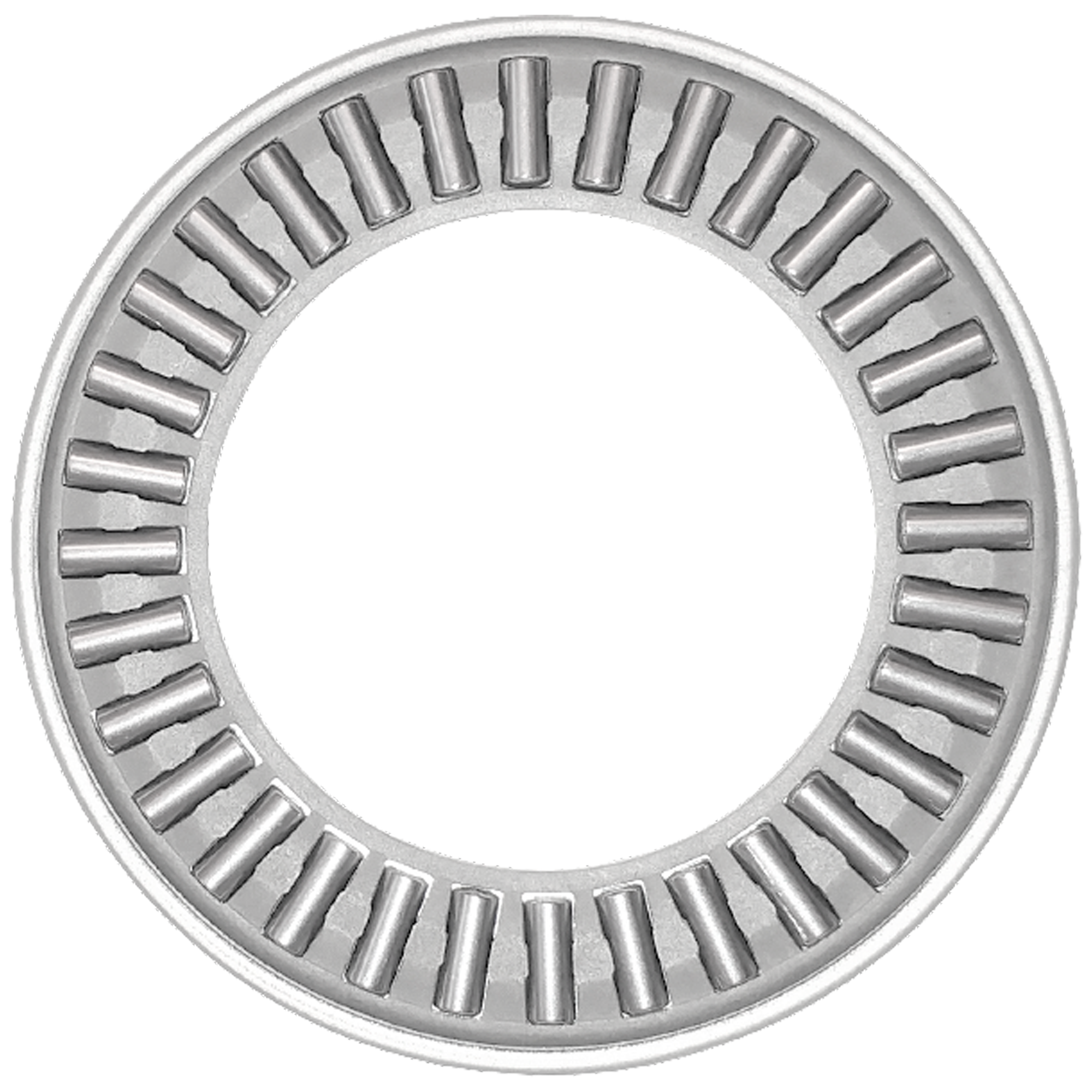

TW-2-14 2.240 1.390 0.134 Semi- Enclosed
TW-2-17 1.928 1.204 0.231 Enclosed

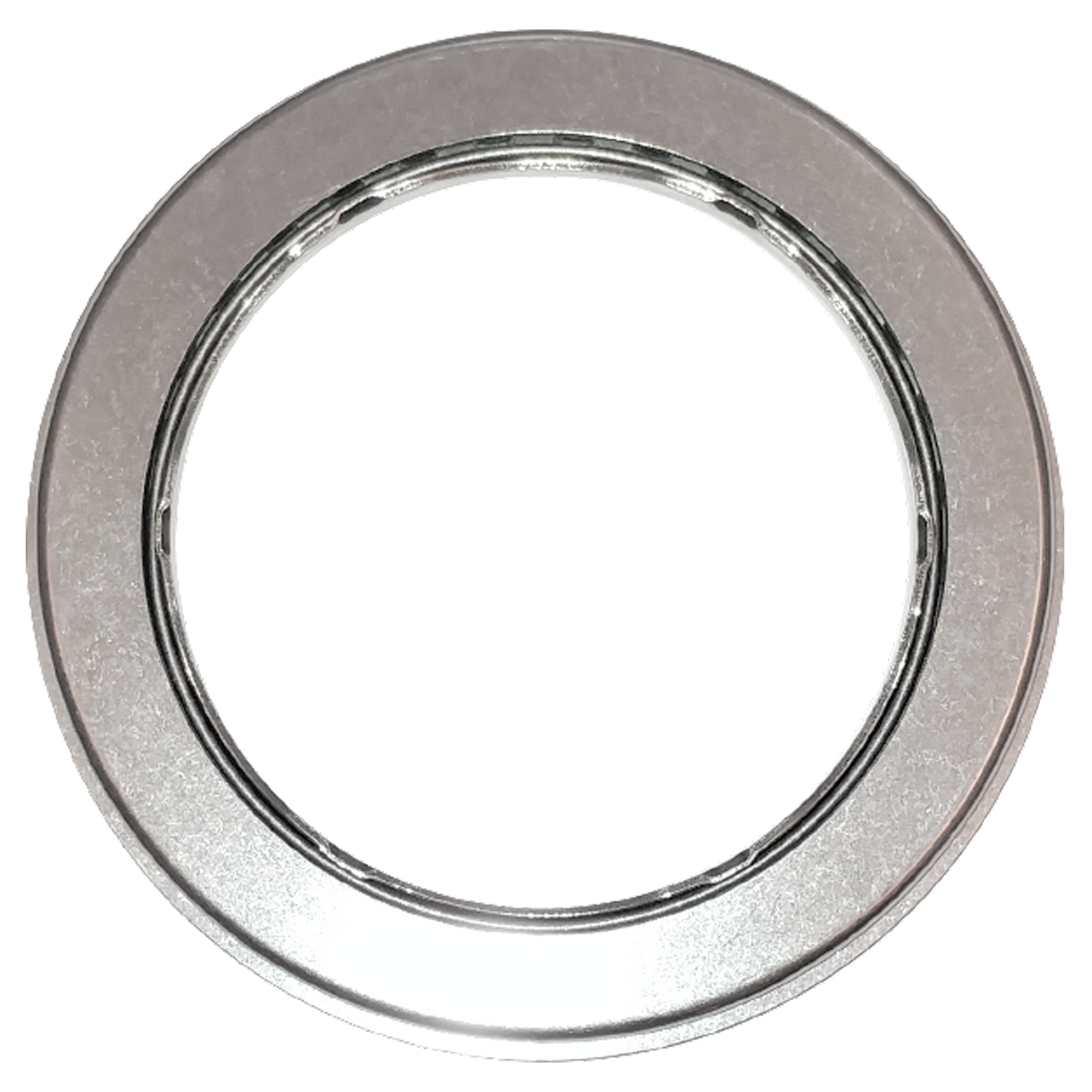

TW-2-18 2.666 1.946 0.180 Enclosed

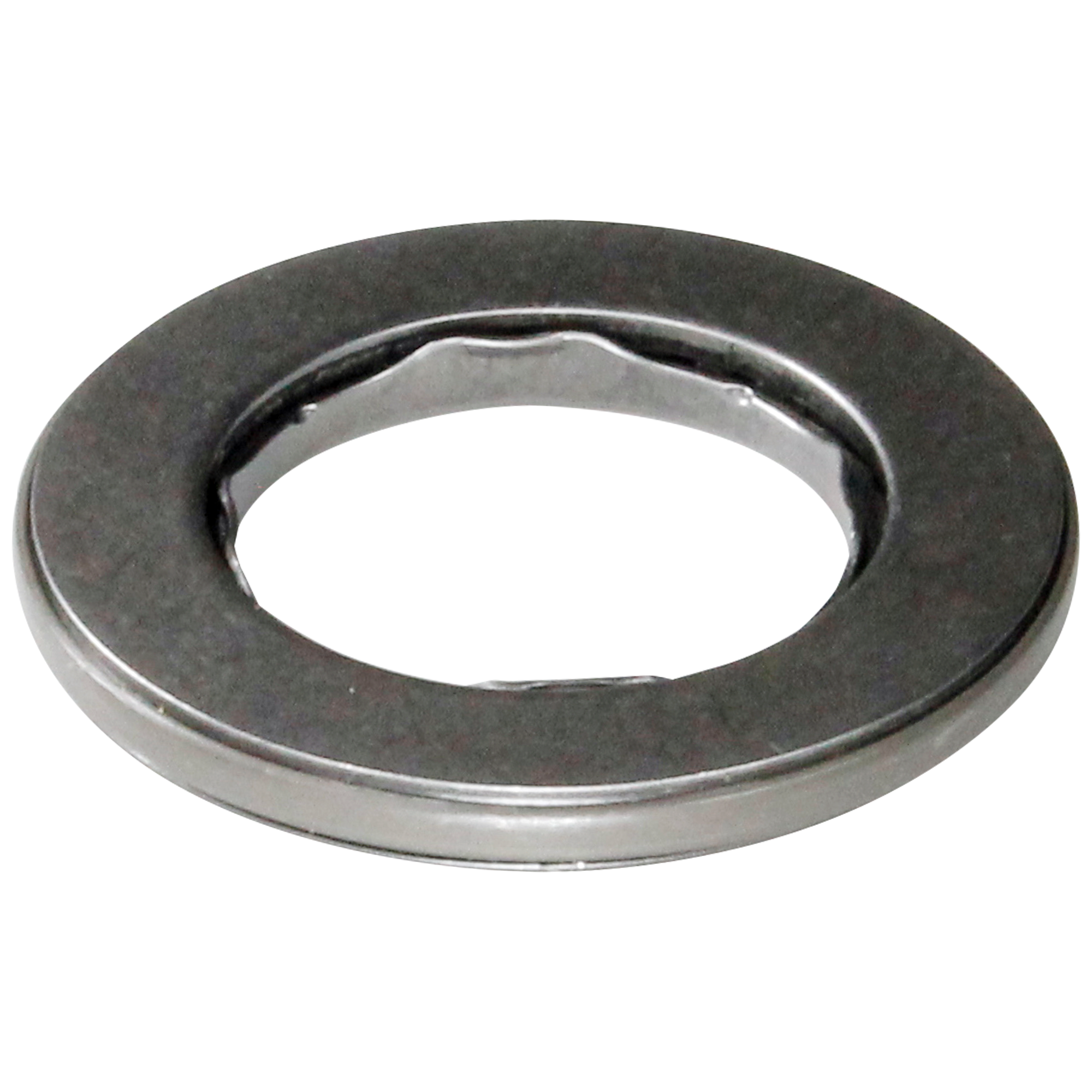

TW-2-21 2.244 1.300 0.228 Enclosed

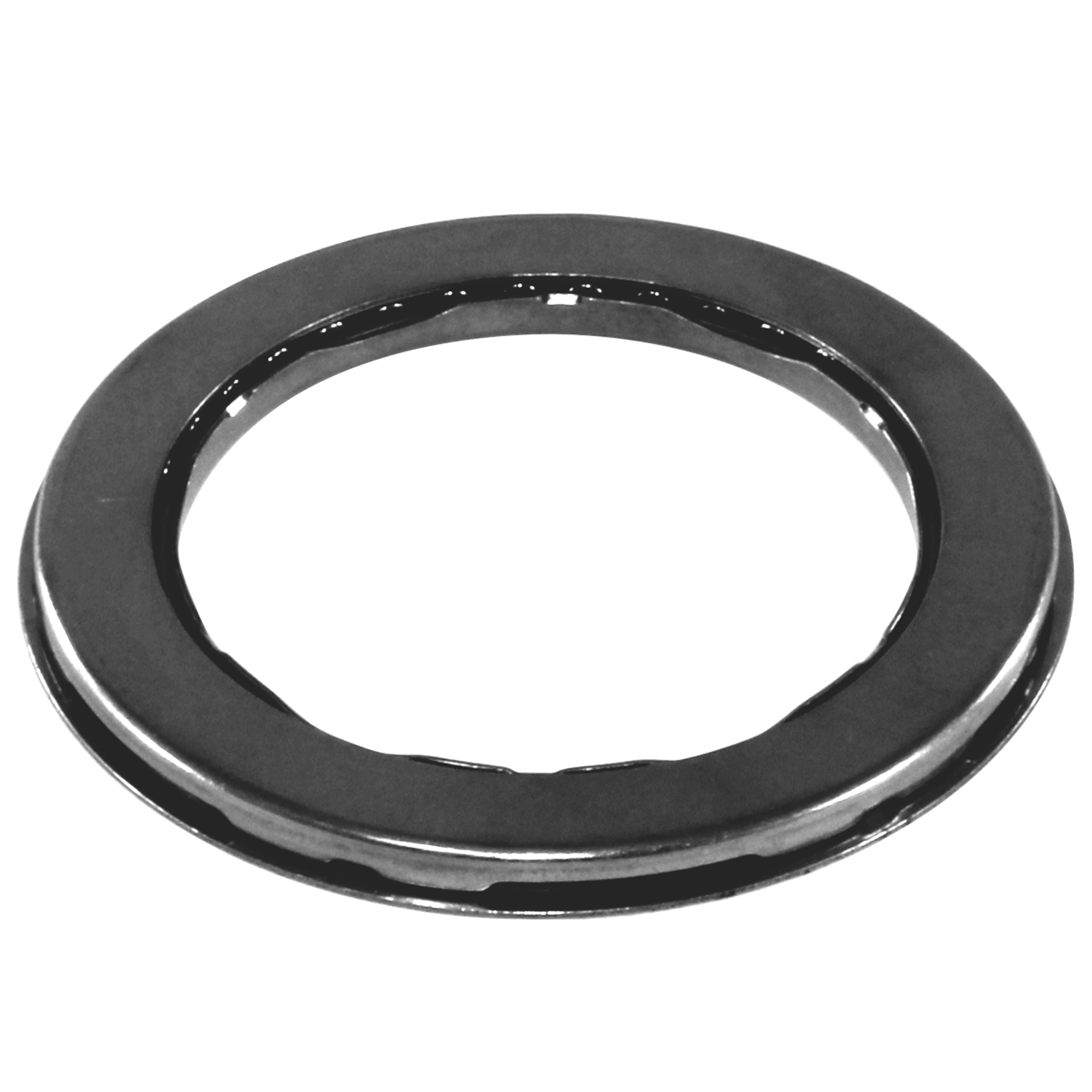

TW-2-22 2.892 2.086 0.181 Enclosed

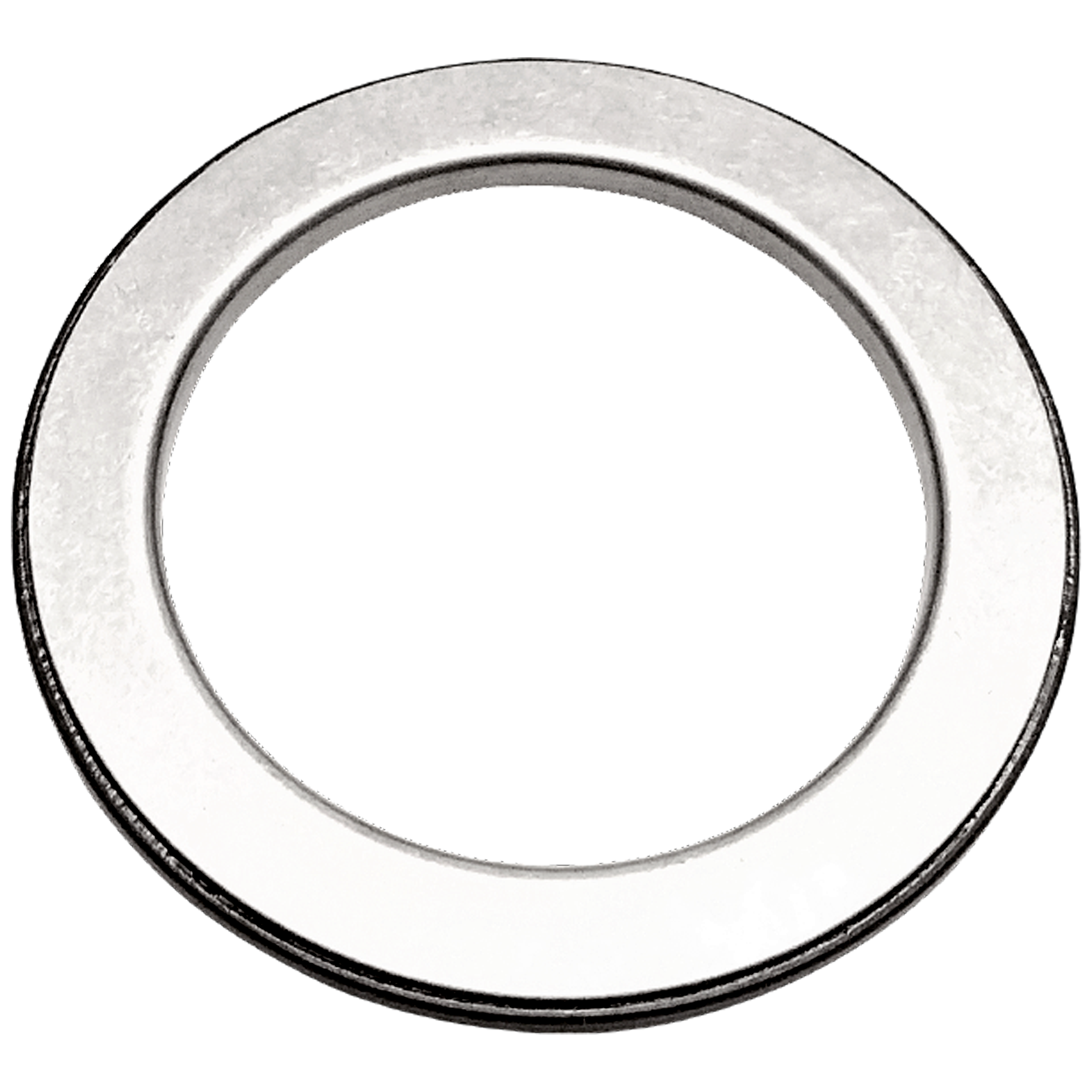

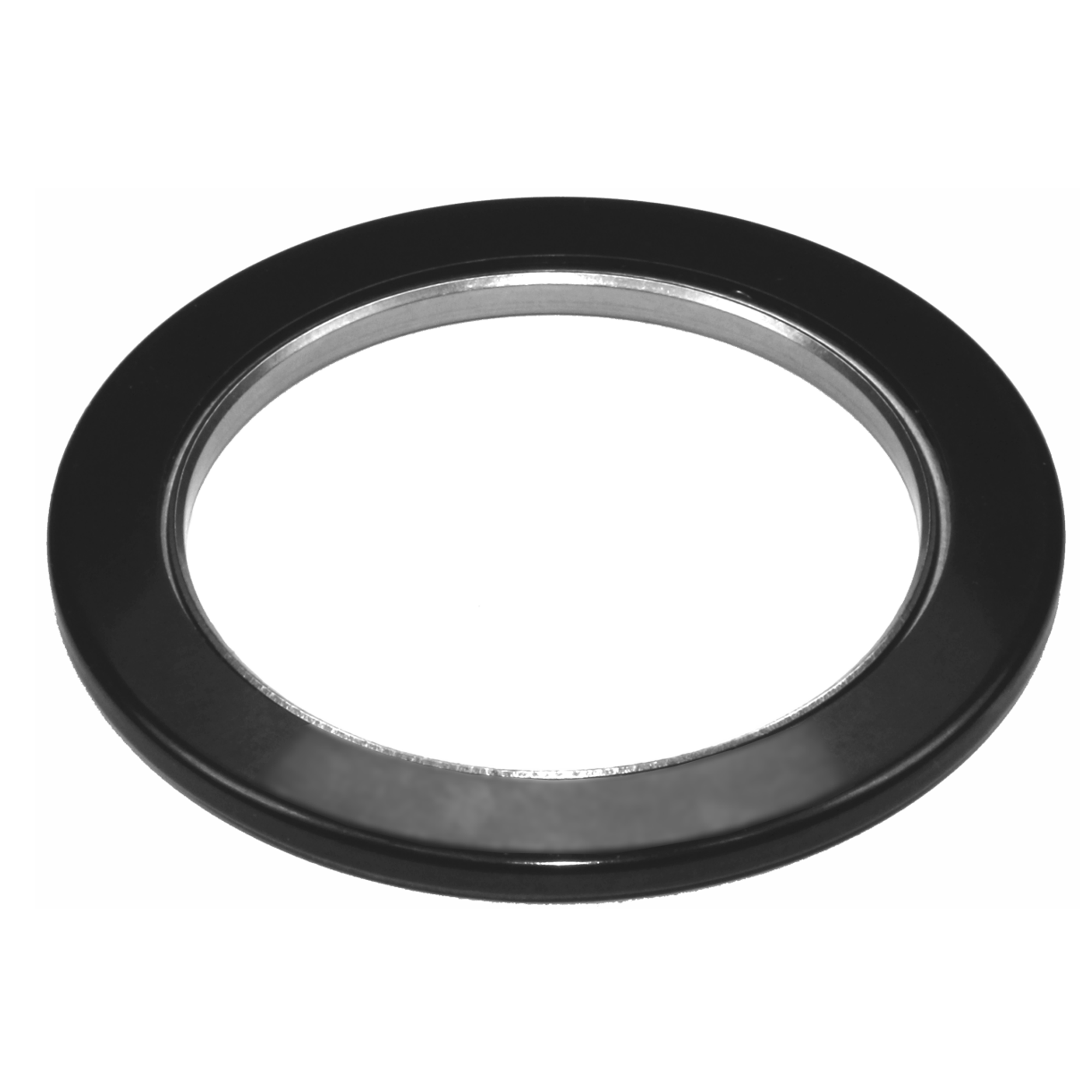

TW-2-22B 2.990 2.086 0.181 Enclosed

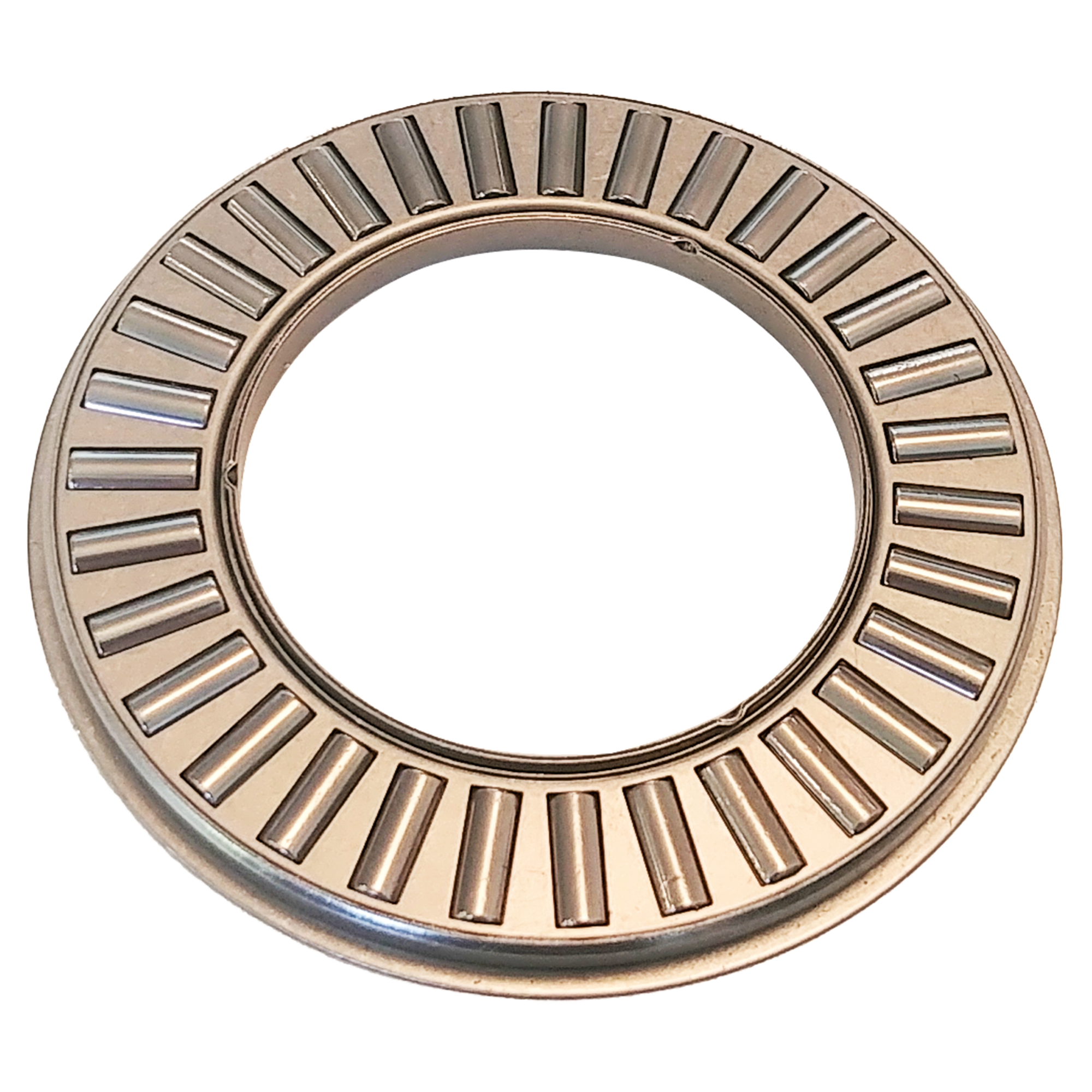

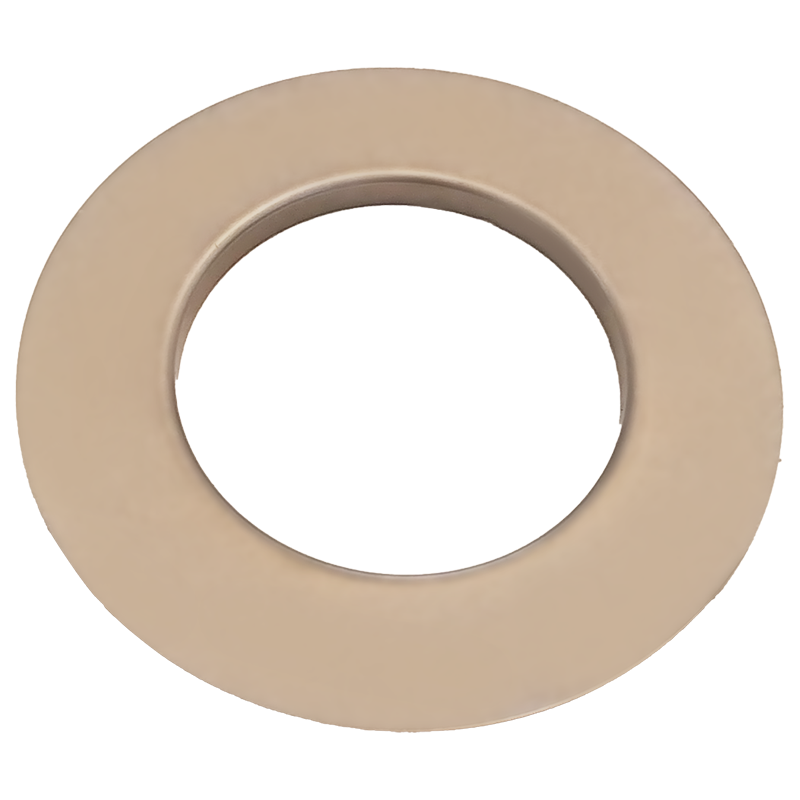

TW-2-23 3.000 1.779 0.188 Semi-Enclosed

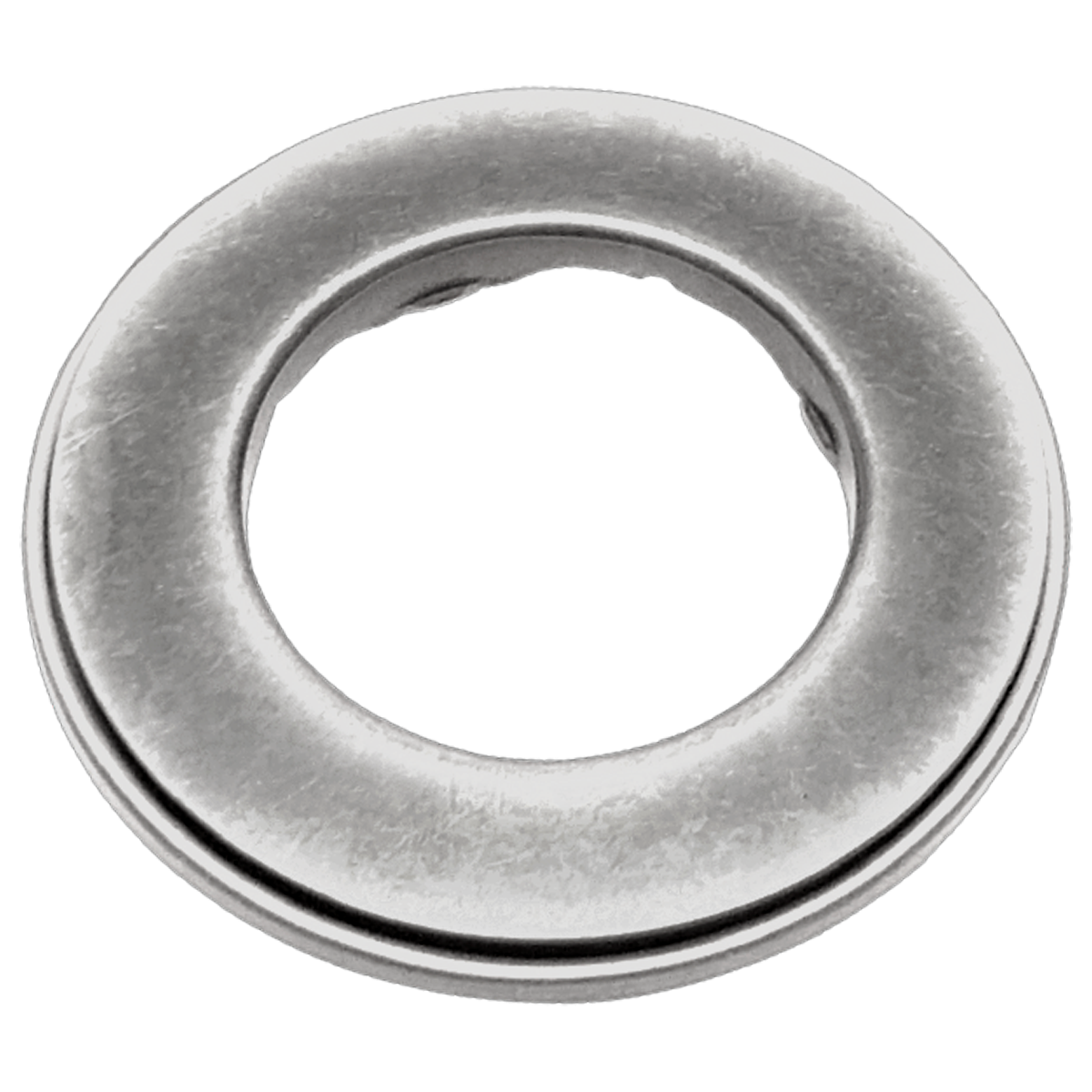

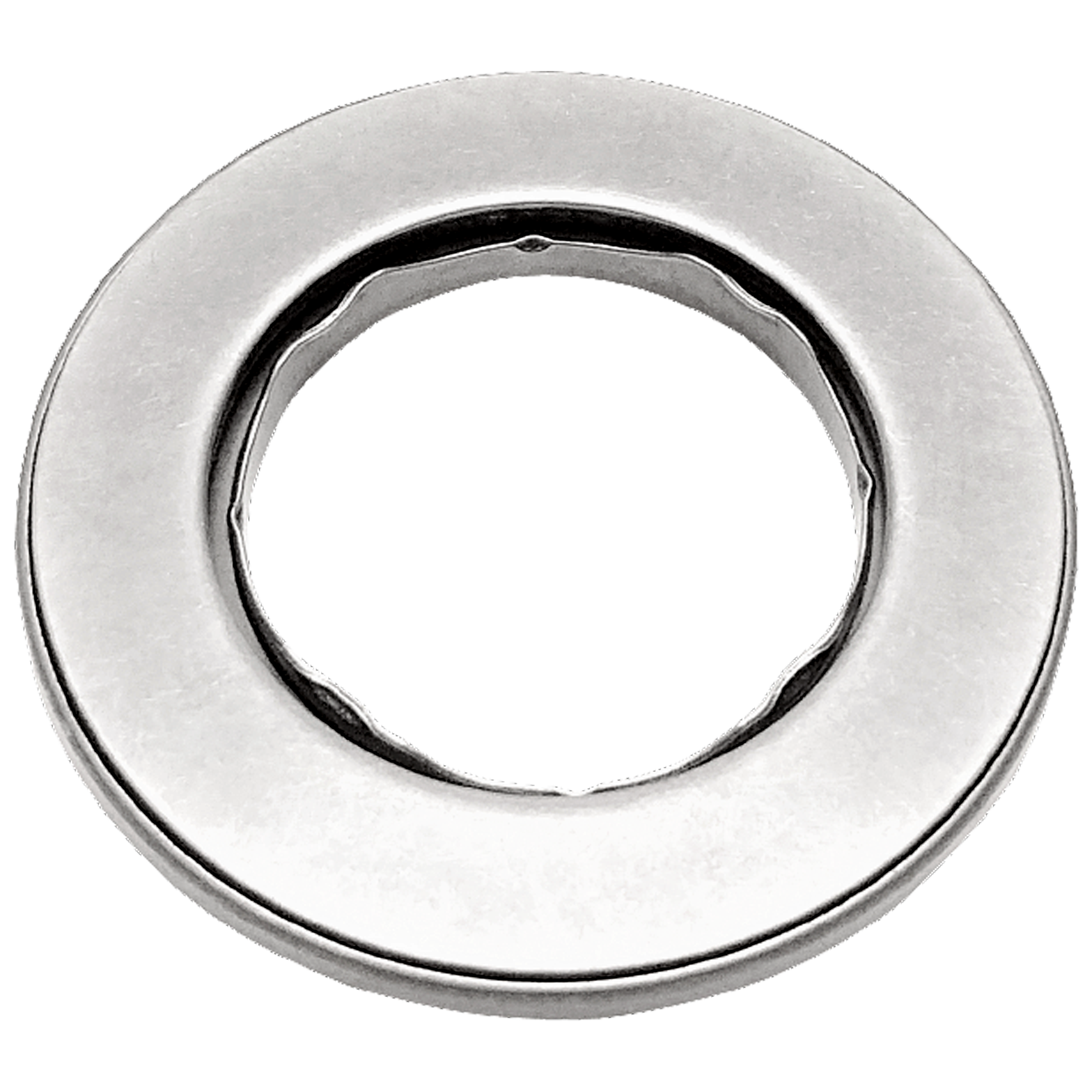

TW-2-25 2.237 1.307 0.226 Enclosed

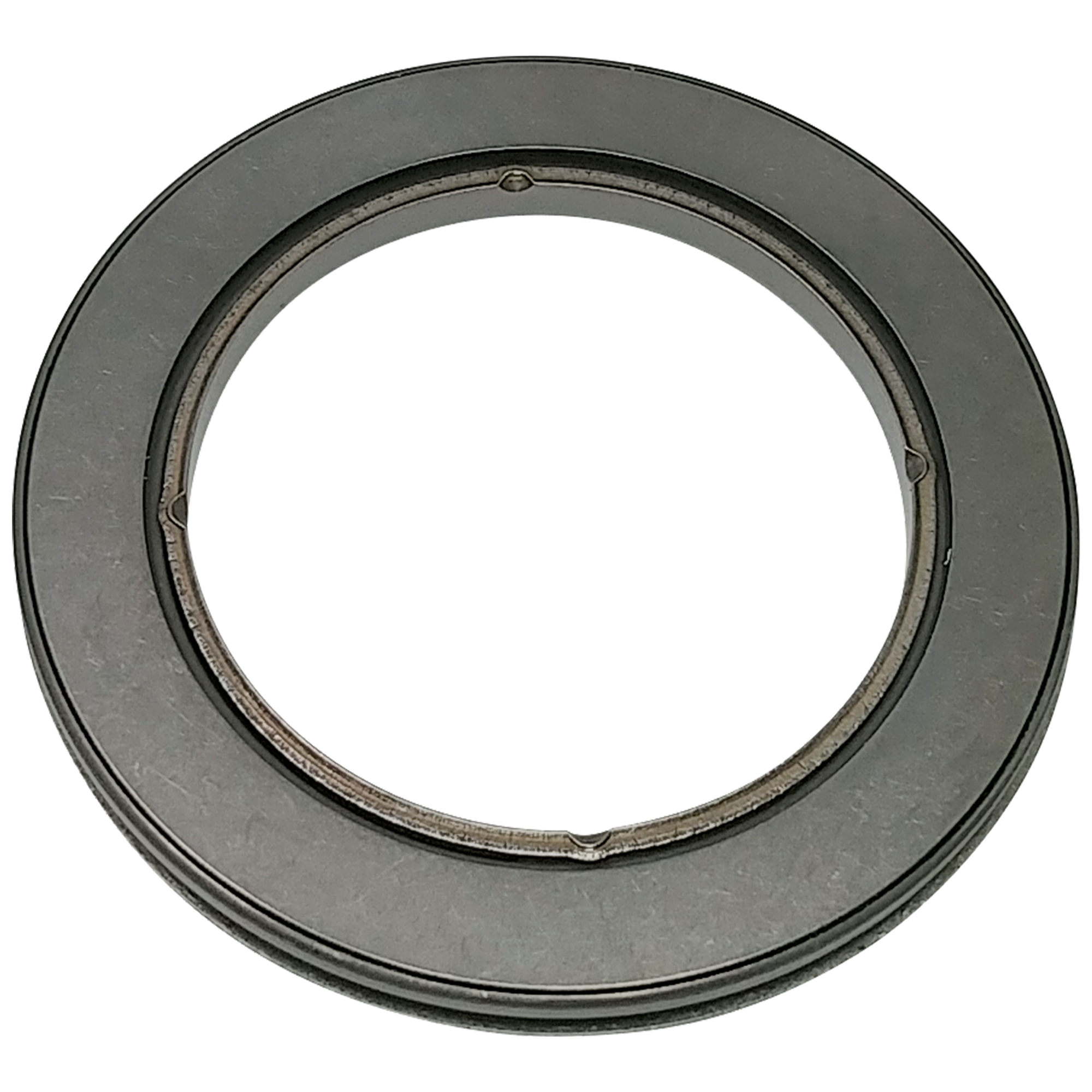

TW-2-26 2.787 1.902 0.234 Enclosed

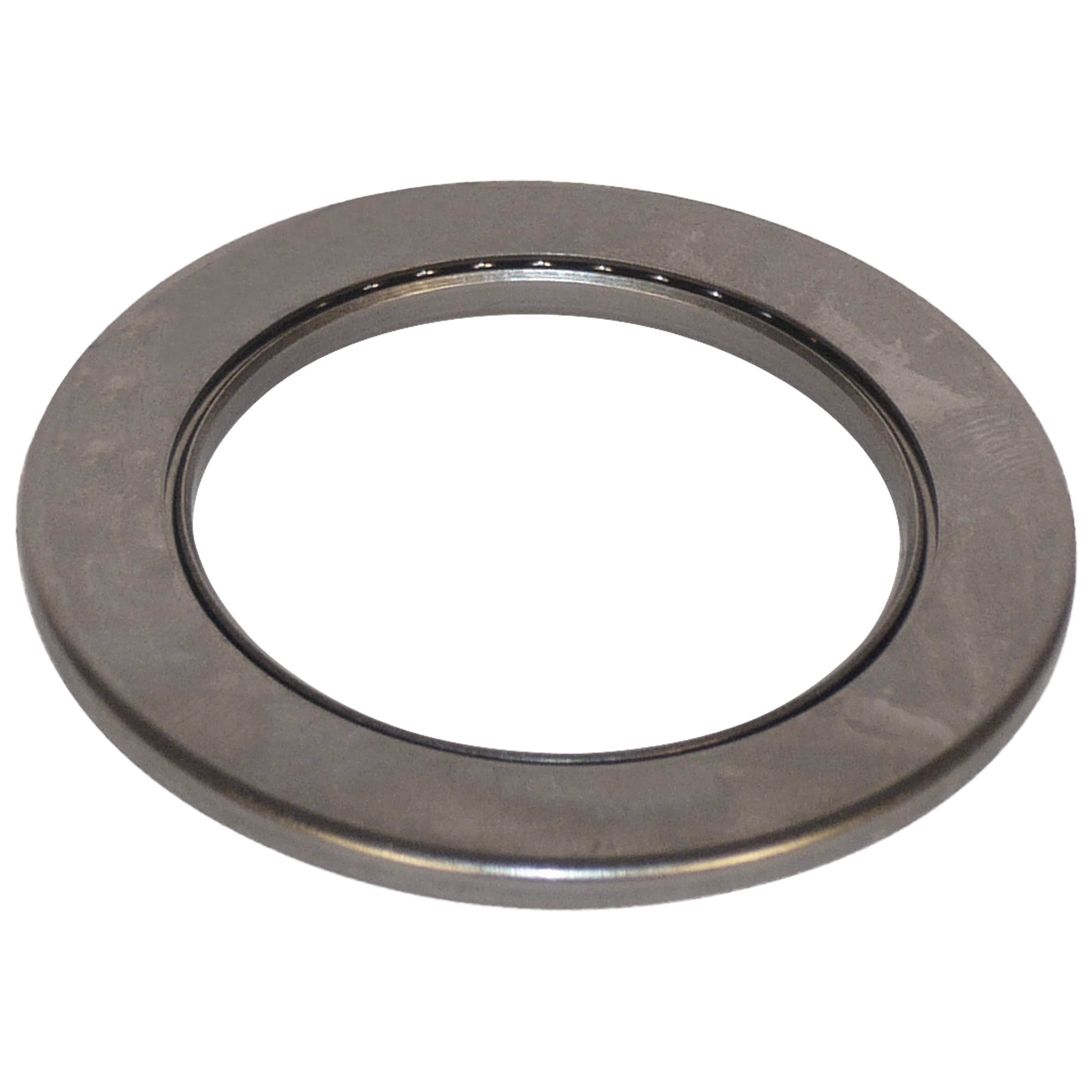

TW-2-4 2.820 1.898 0.181 Enclosed
TW-2-4NA 2.820 1.900 0.181 Enclosed

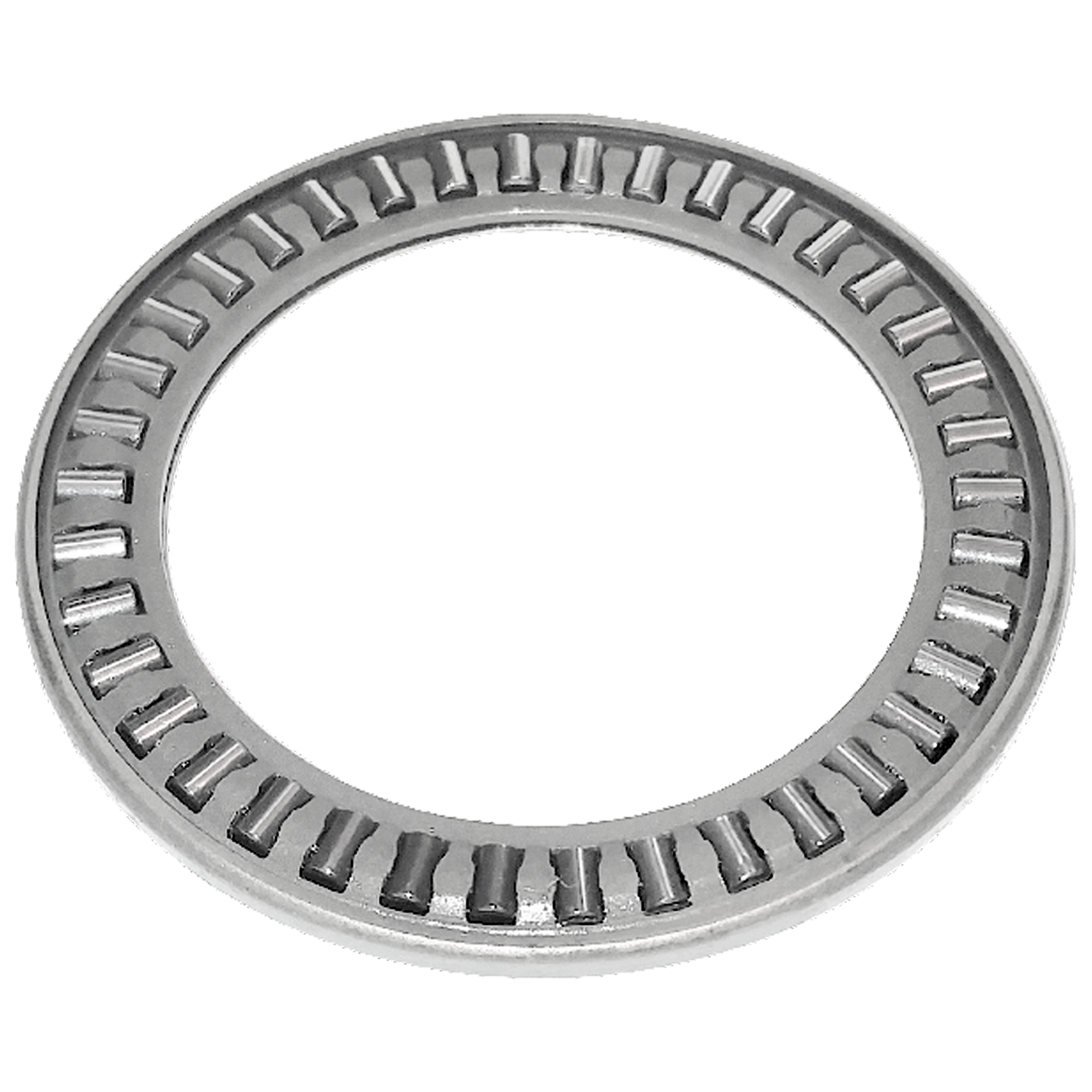

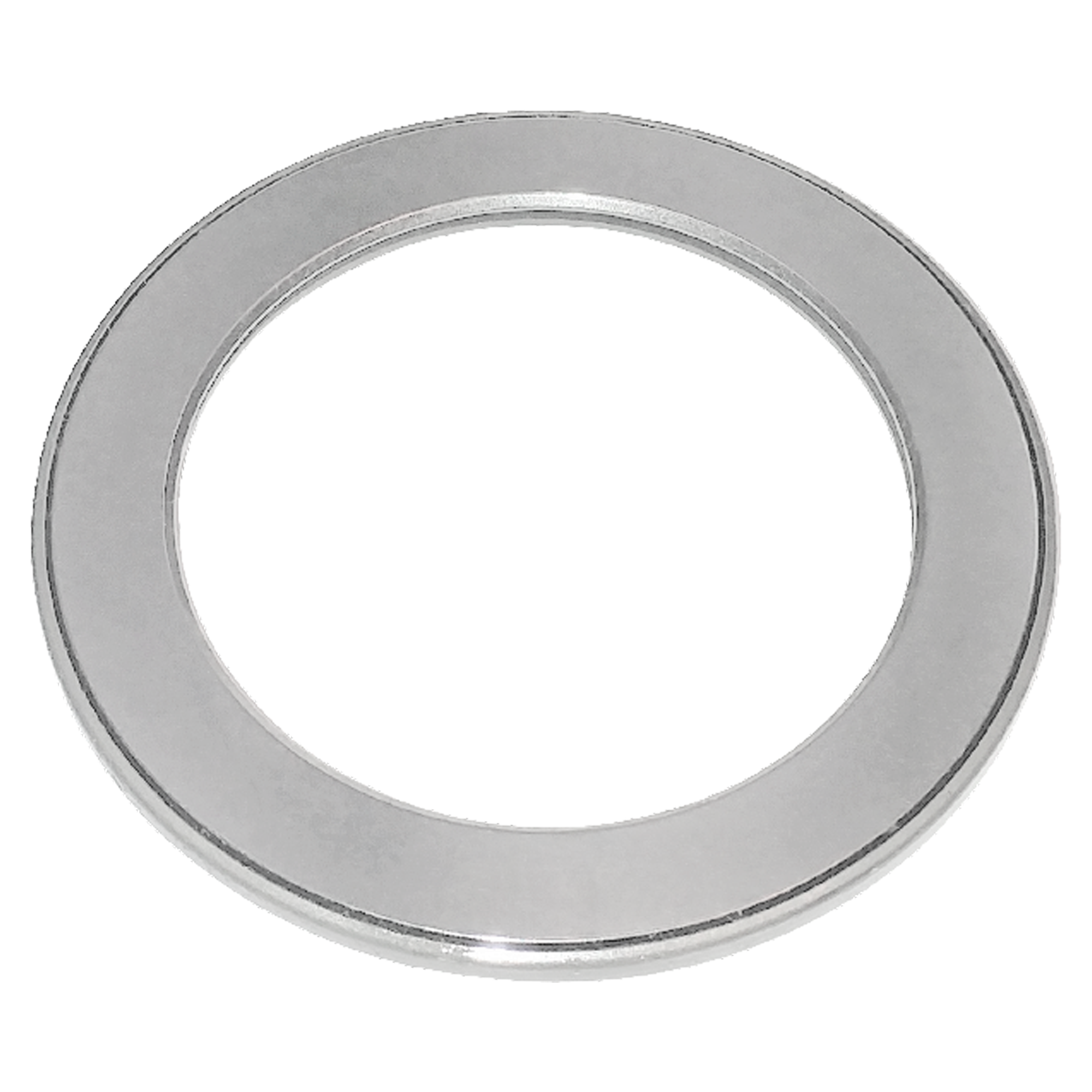

TW-2-5 1.882 1.357 0.109 Semi- Enclosed

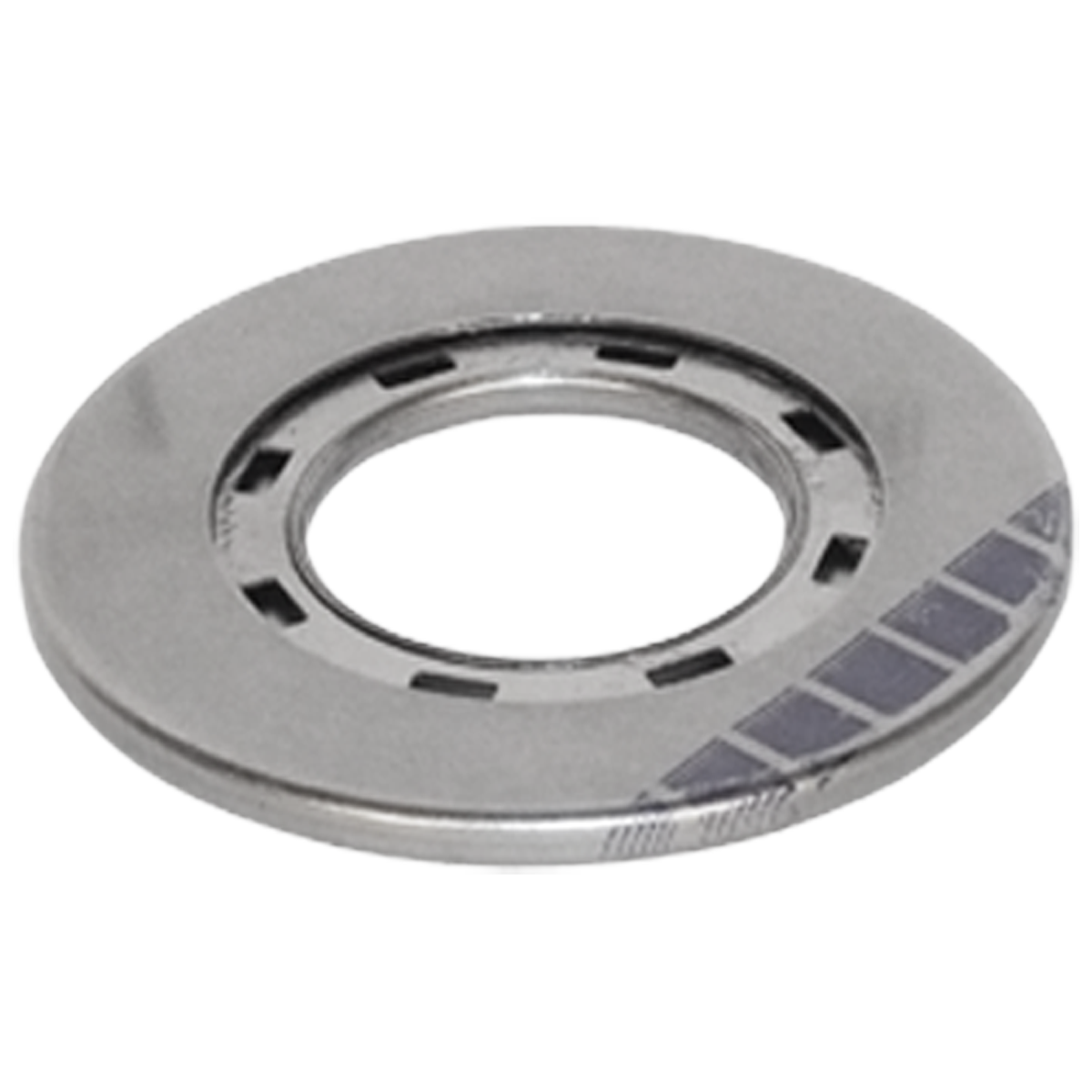

TW-9-13 2.400 1.070 0.134 Enclosed

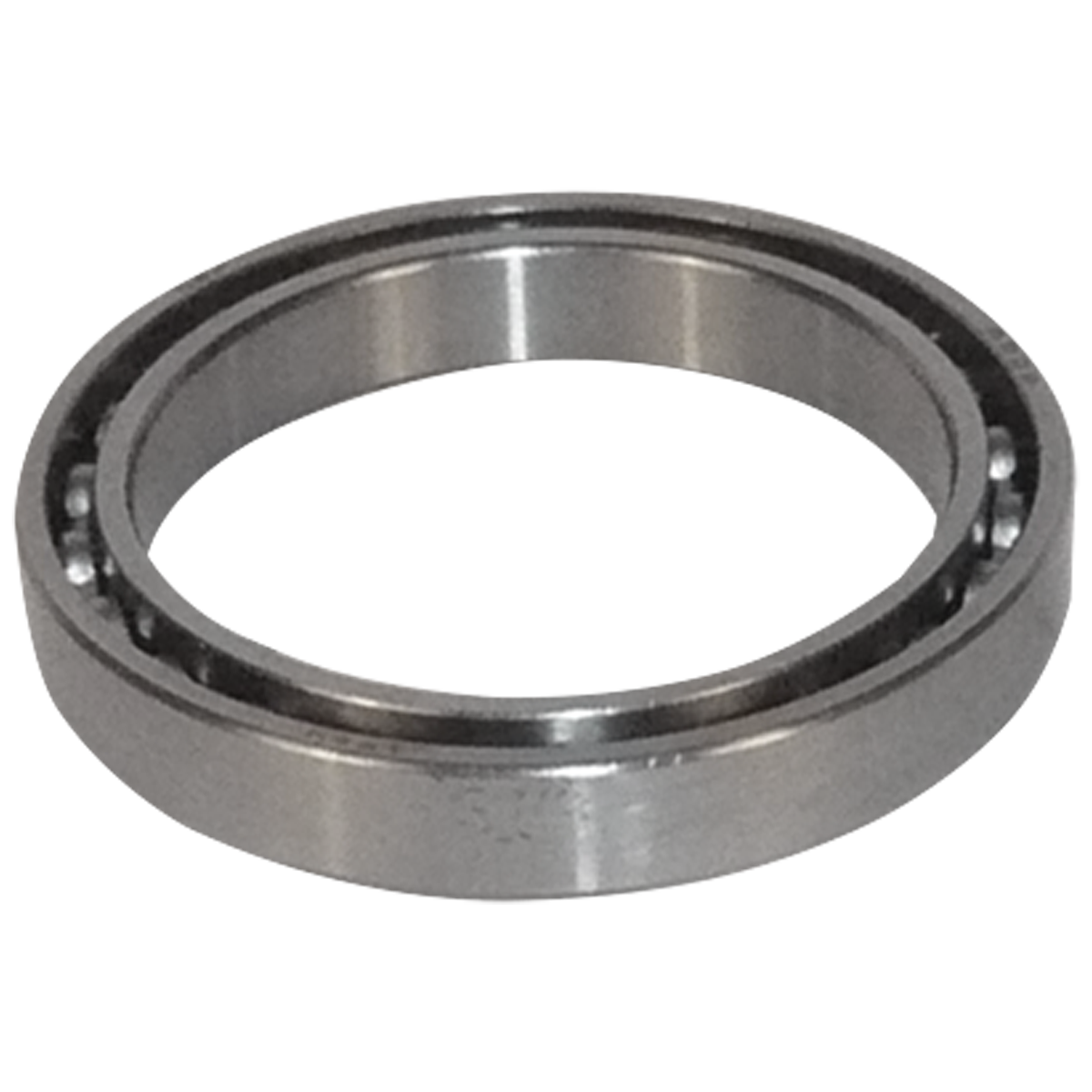

TW-9-24 2.047 1.575 0.276 Ball Bearing

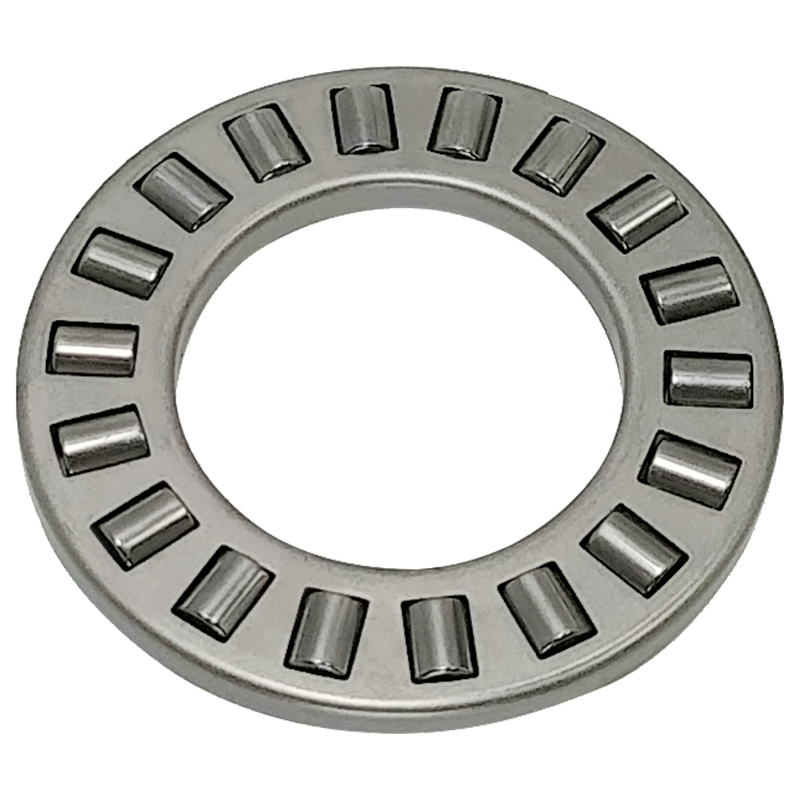

TW-9-27 1.717 0.988 0.157 Exposed

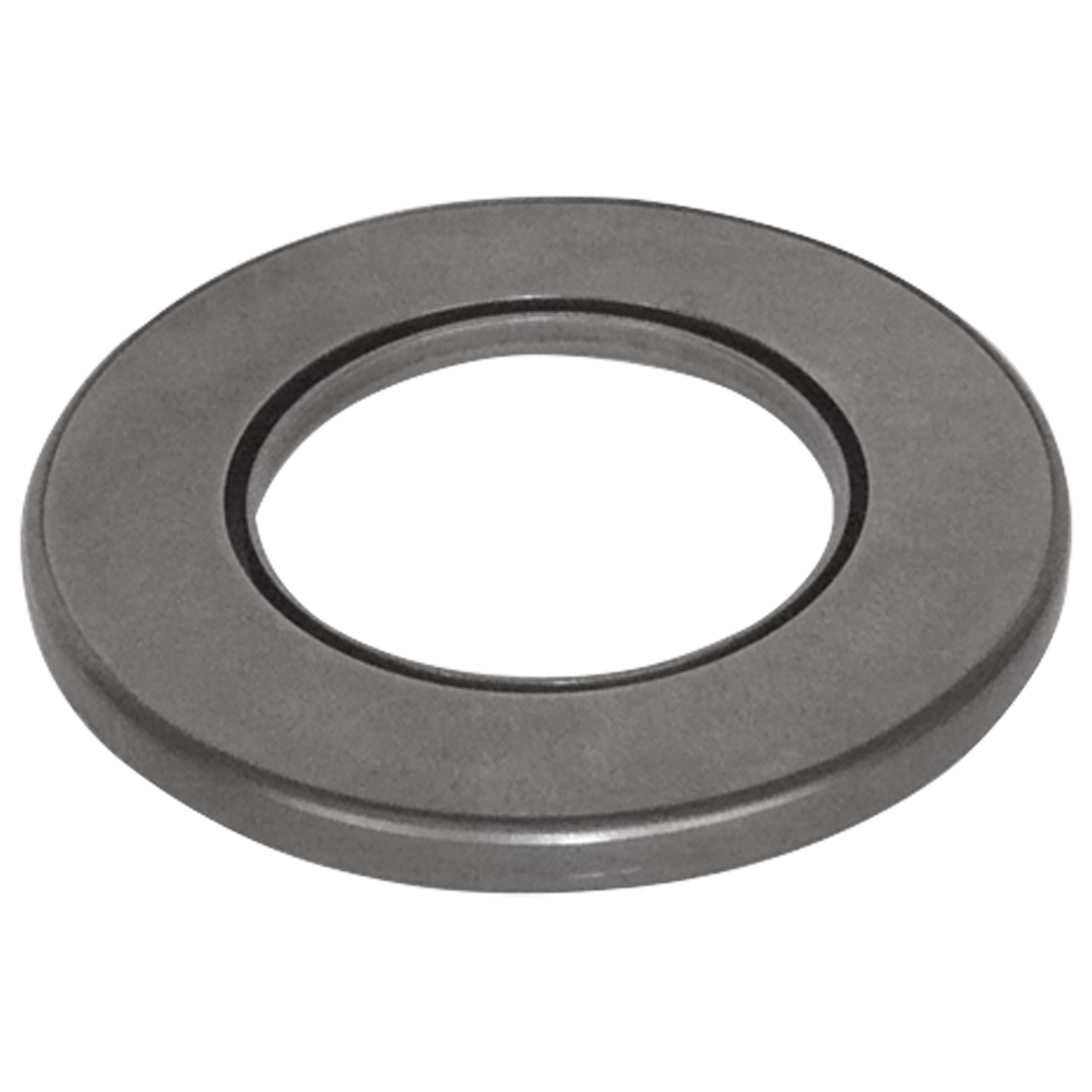

TW-9-6 2.600 1.455 0.170 Enclosed

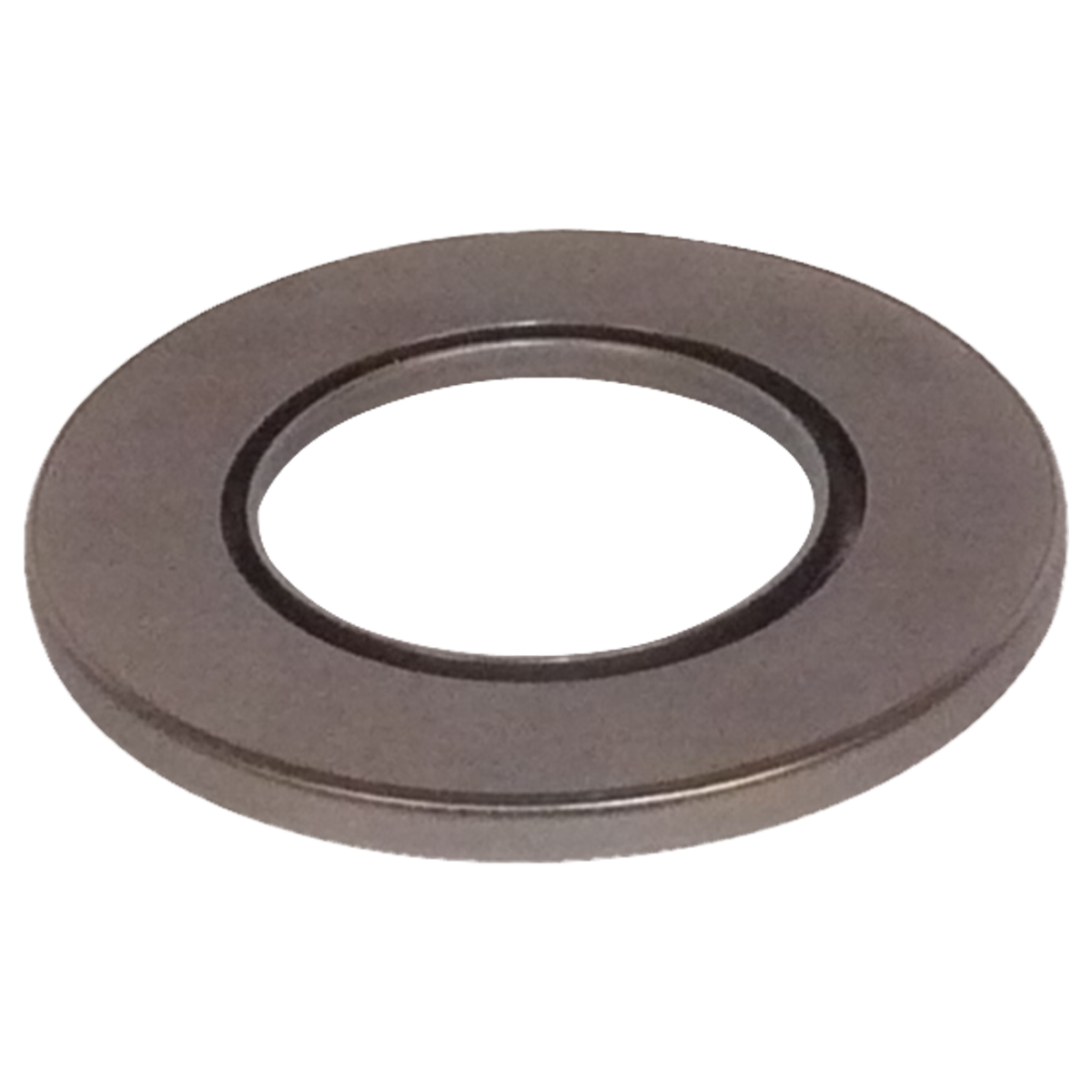

TW-9-8 2.600 1.400 0.170 Enclosed

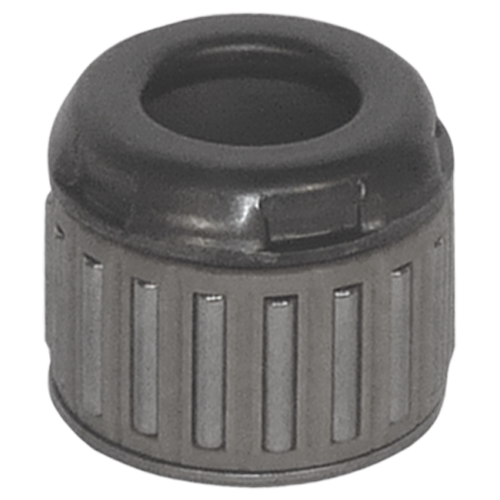

VB-18-2 0.866

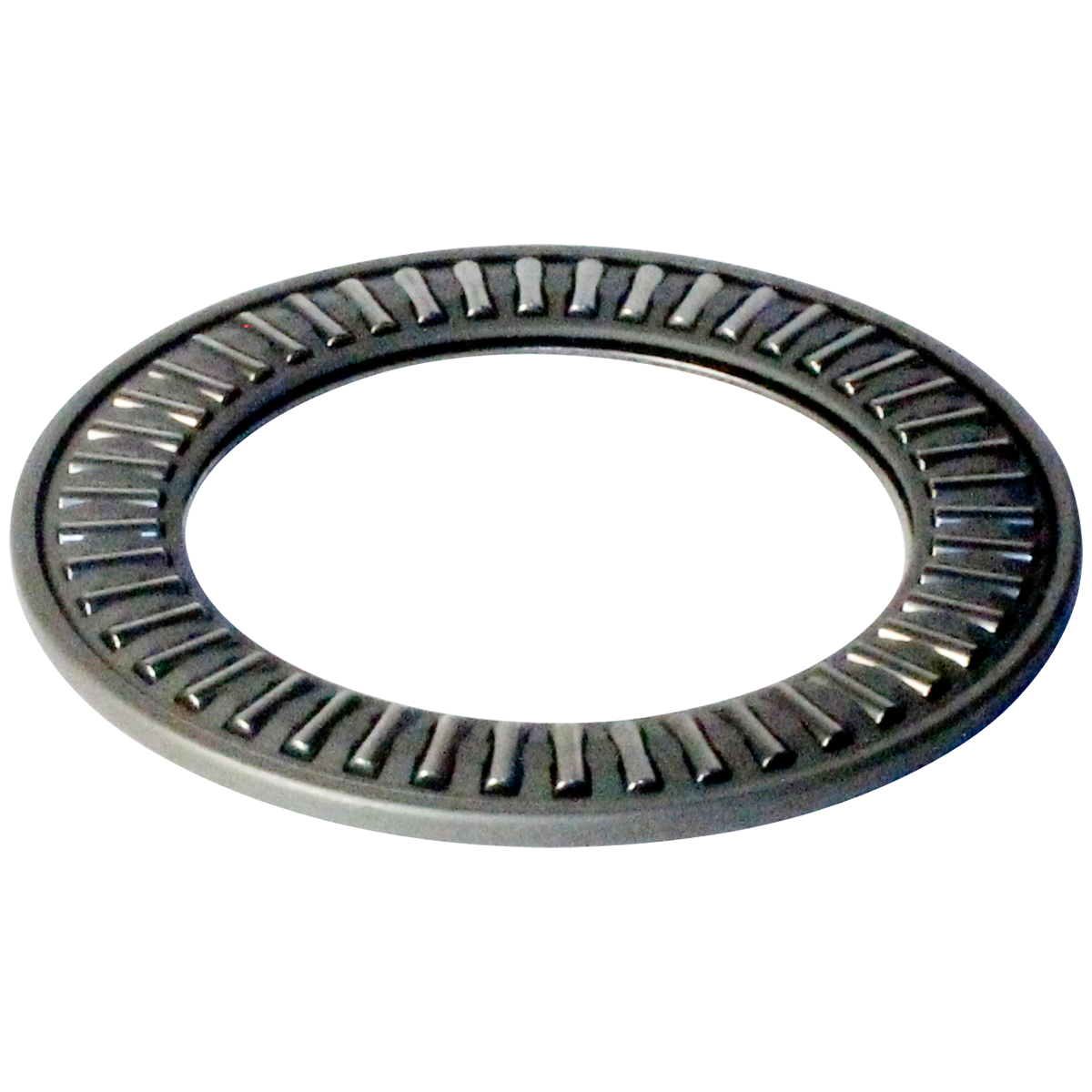

VW-2-3 2.360 1.580 0.110 Enclosed

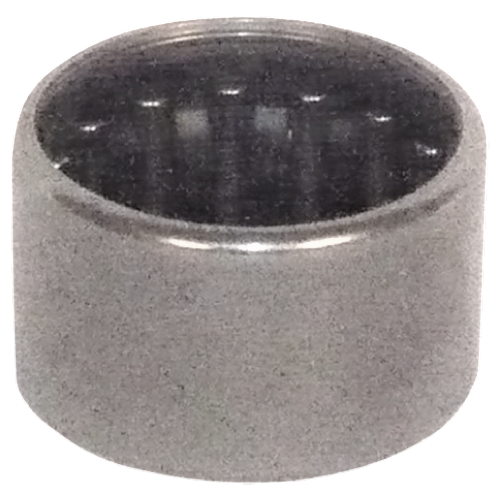

YB-18N

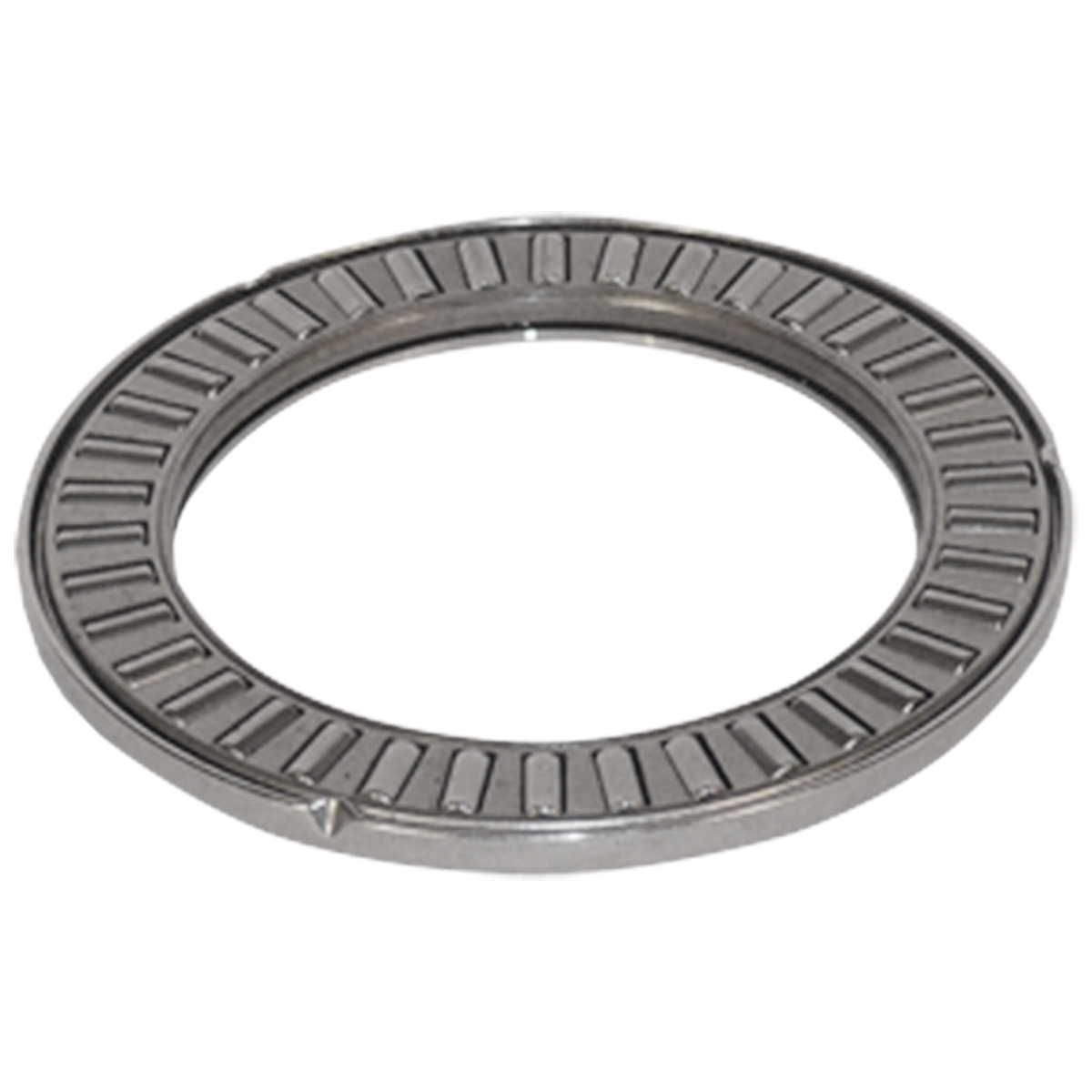

YW-2-10 2.677 1.890 0.148 Semi- Enclosed
YW-2-11 2.664 1.833 0.137 Exposed
YW-2-15 2.609 1.842 0.149 Semi- Enclosed

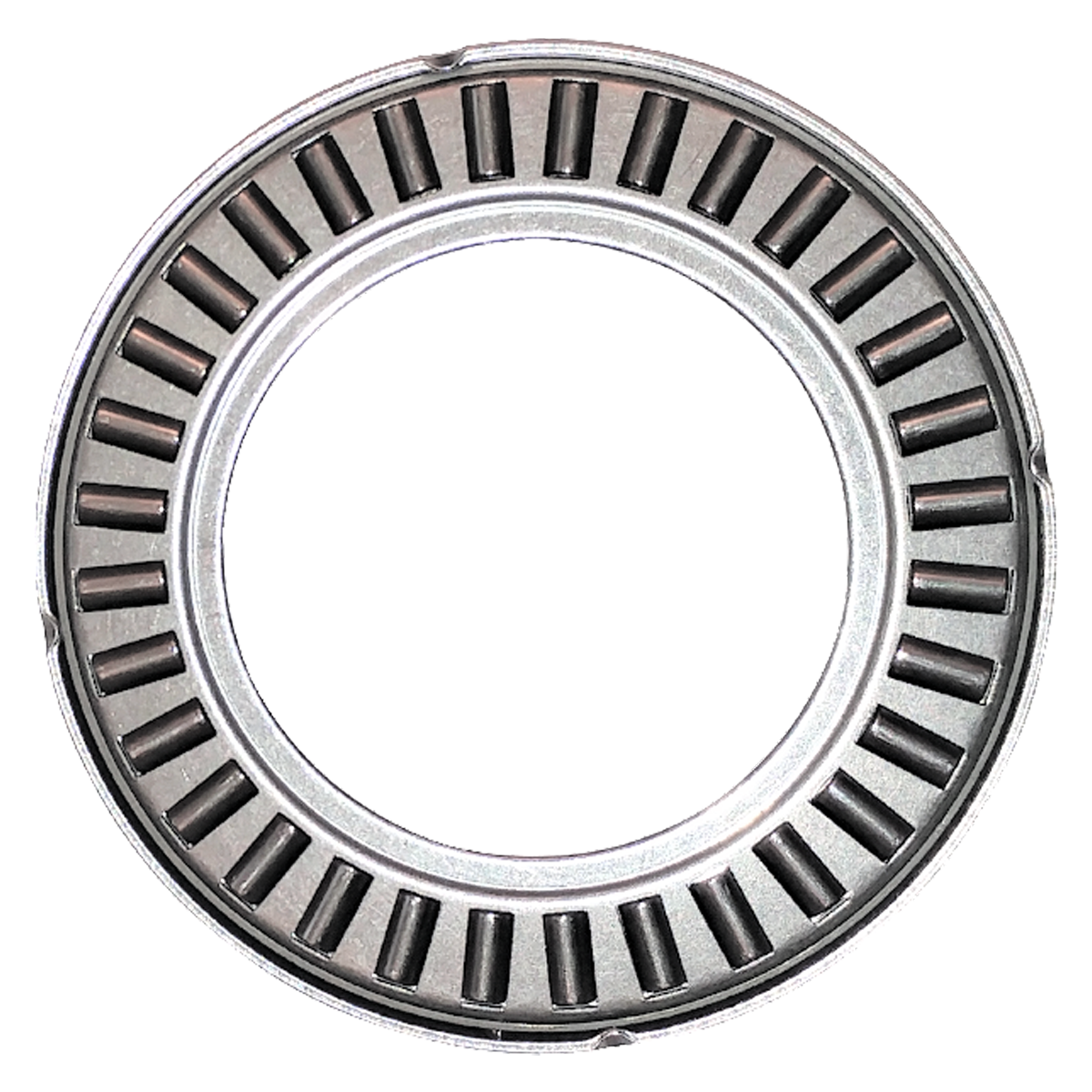

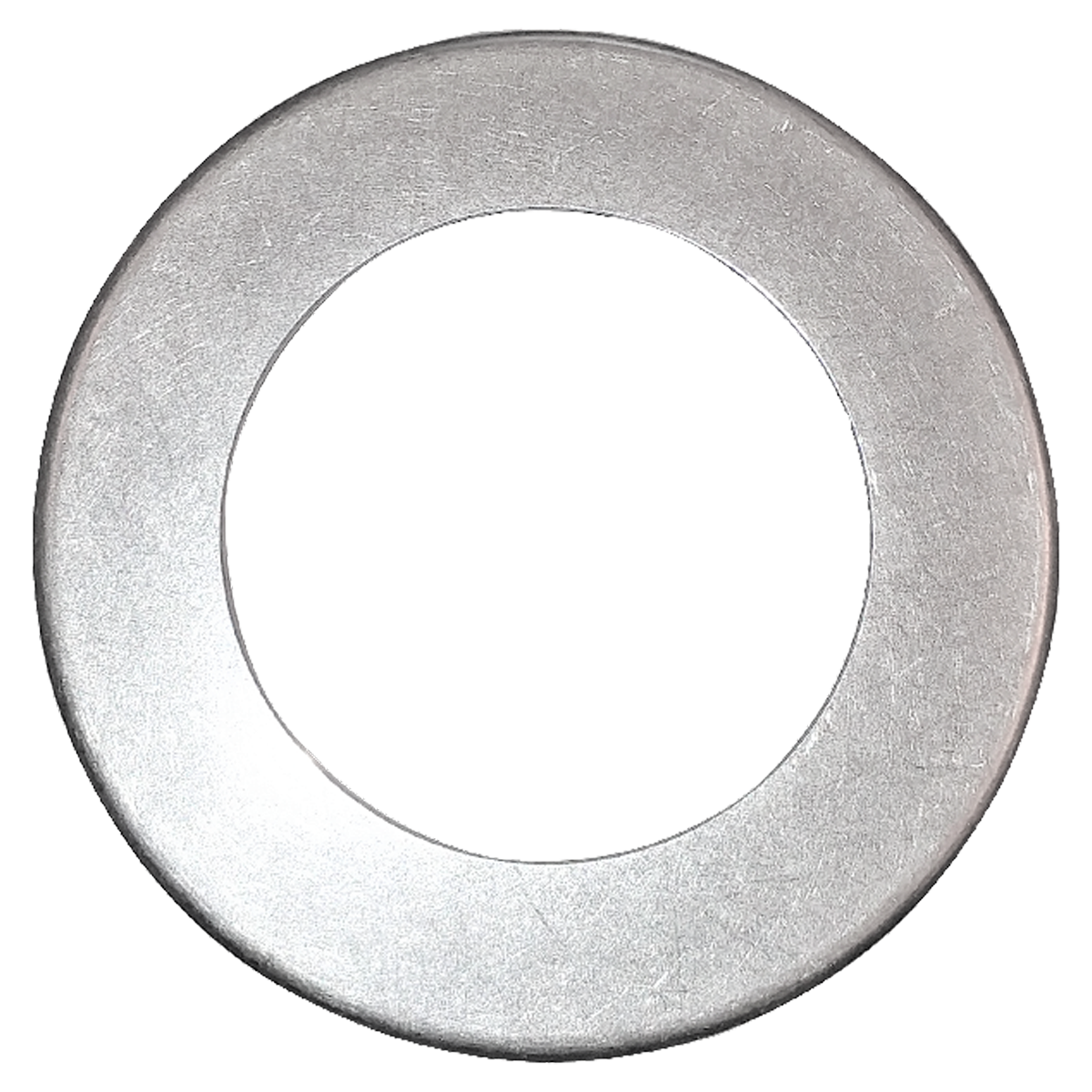

YW-2-16 2.436 1.496 0.150 Semi-Enclosed
YW-2-18 3.440 2.430 0.130 Semi-Enclosed
YW-2-21 2.430 1.500 0.150 Semi-Enclosed

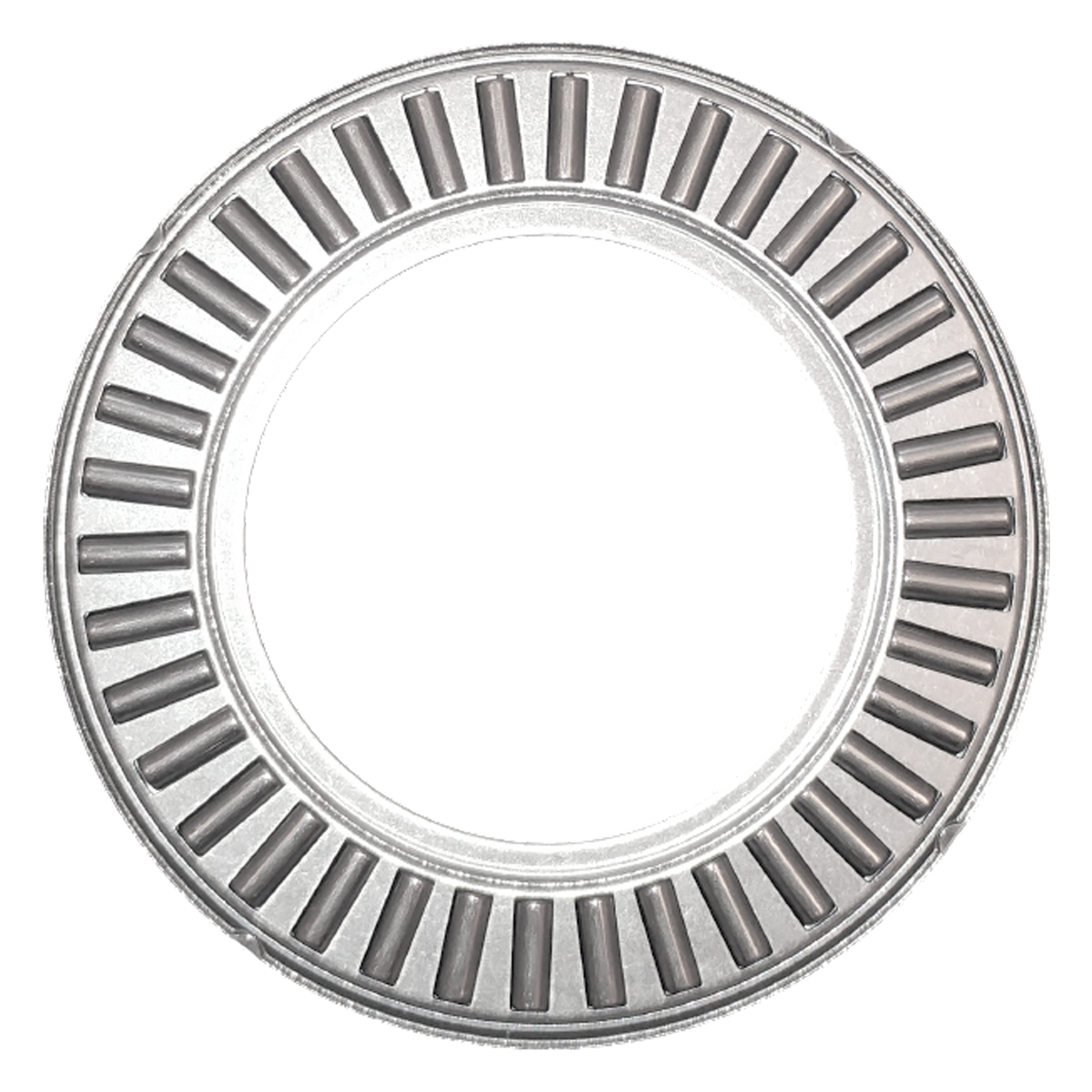

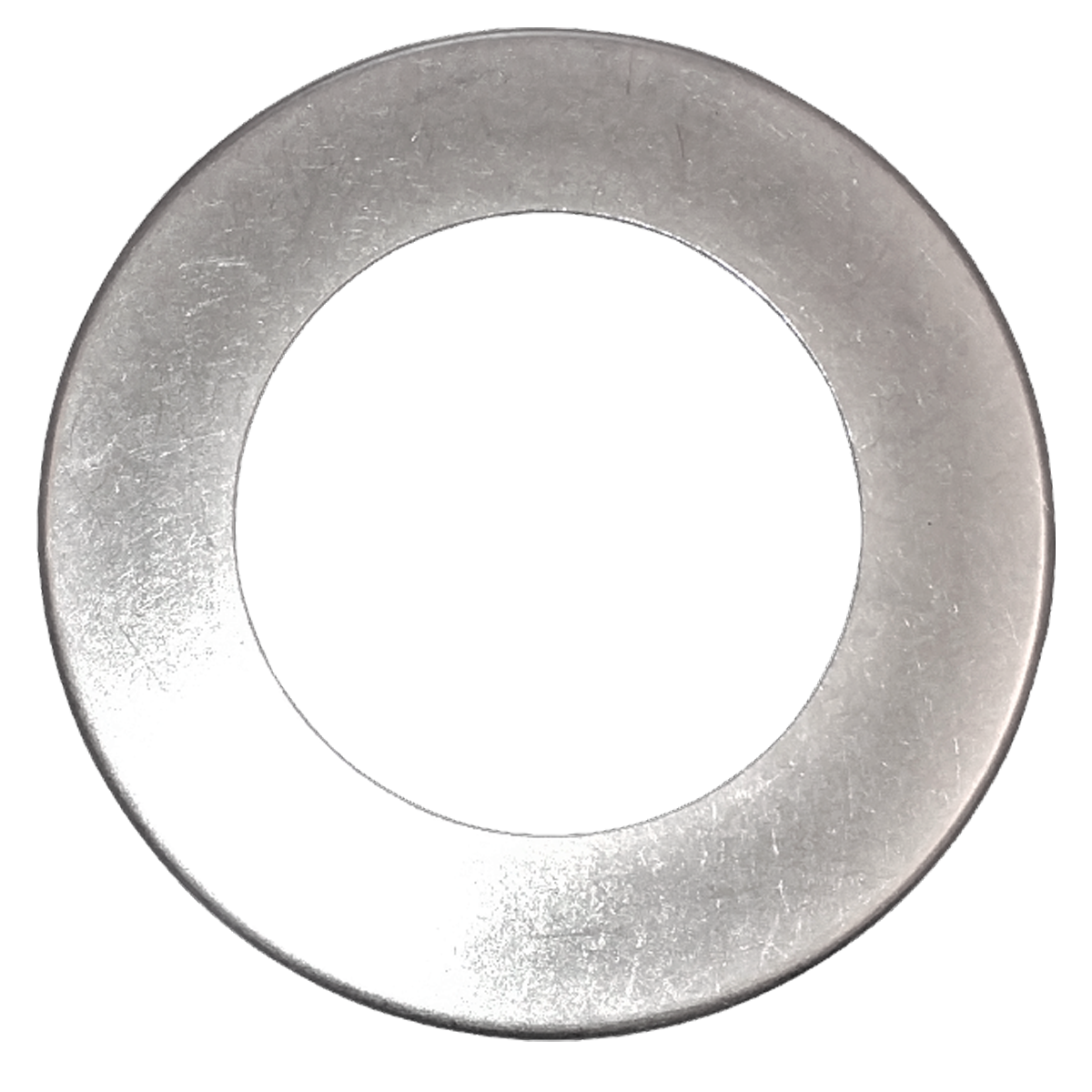

YW-2-22 2.854 1.732 0.150 Semi-Enclosed

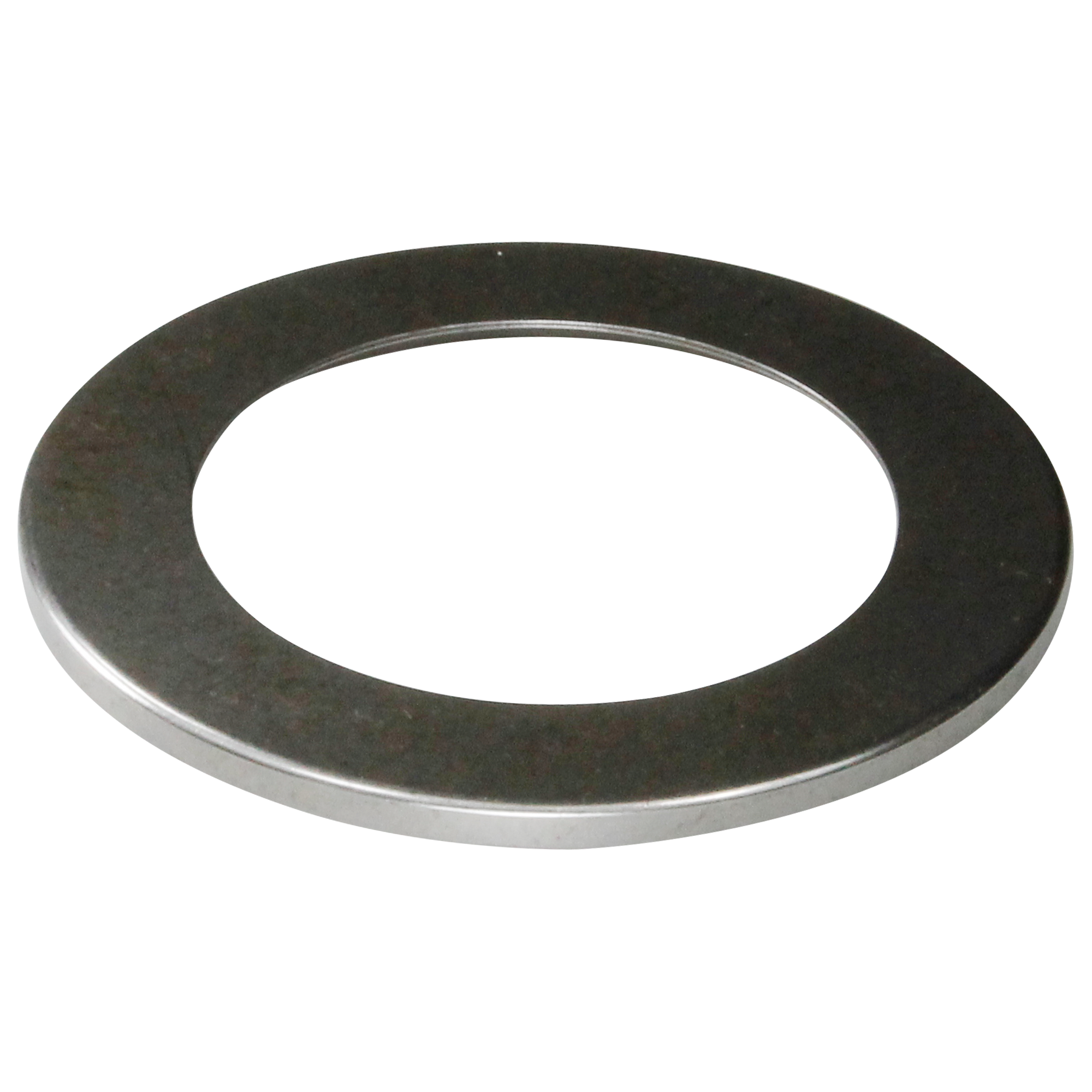

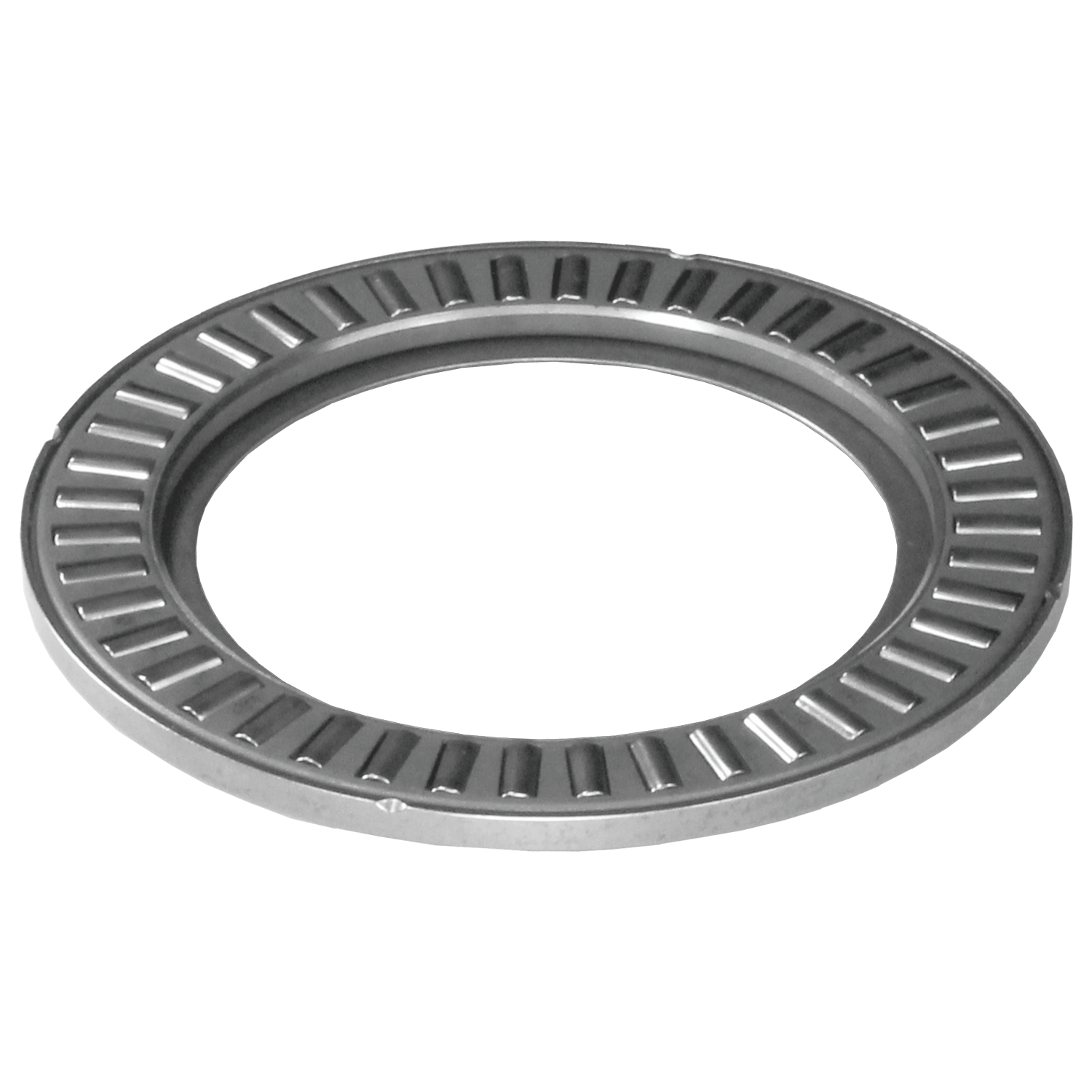

YW-2-23 3.488 2.315 0.170 Semi-Enclosed

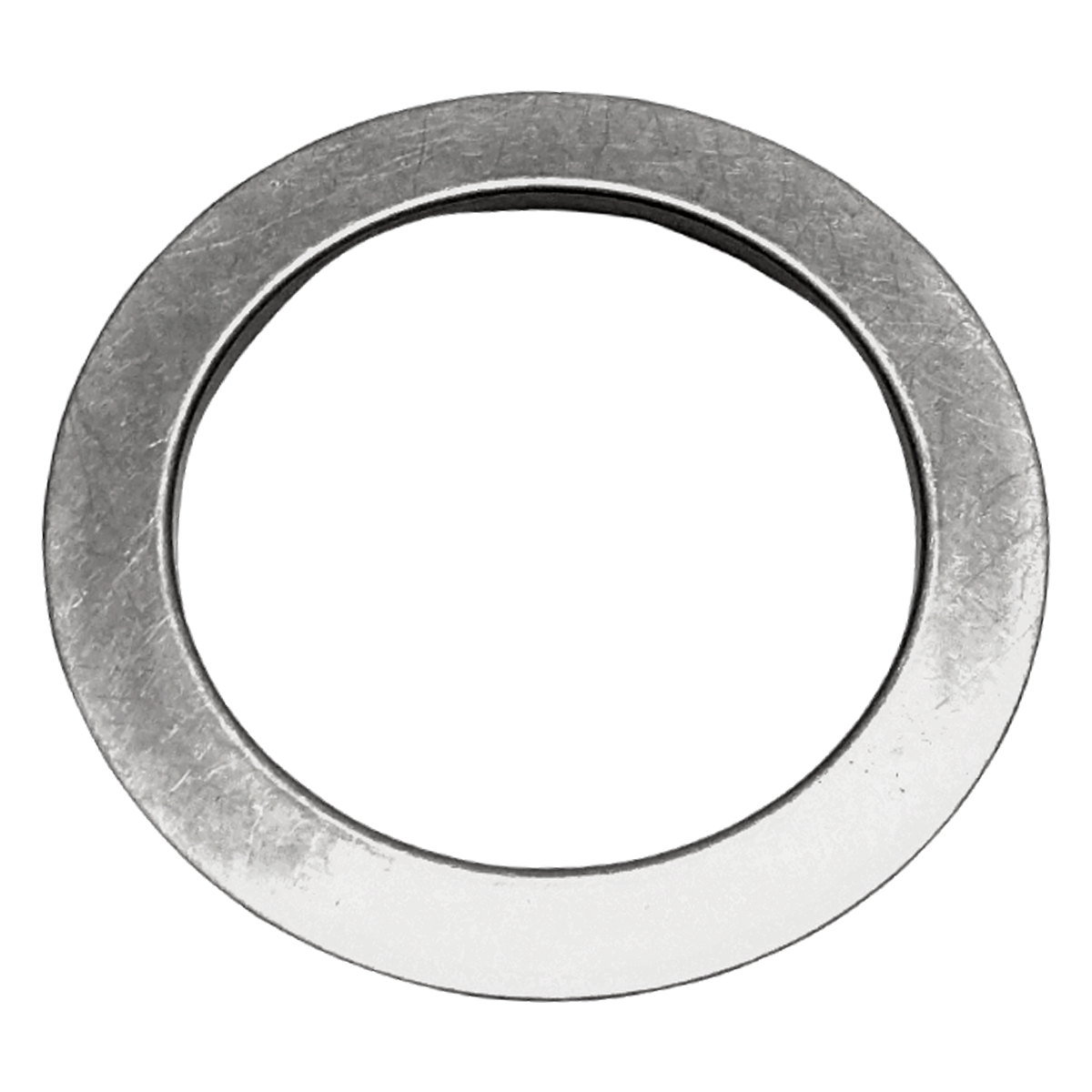

YW-2-26 3.490 2.610 0.150 Semi-Enclosed

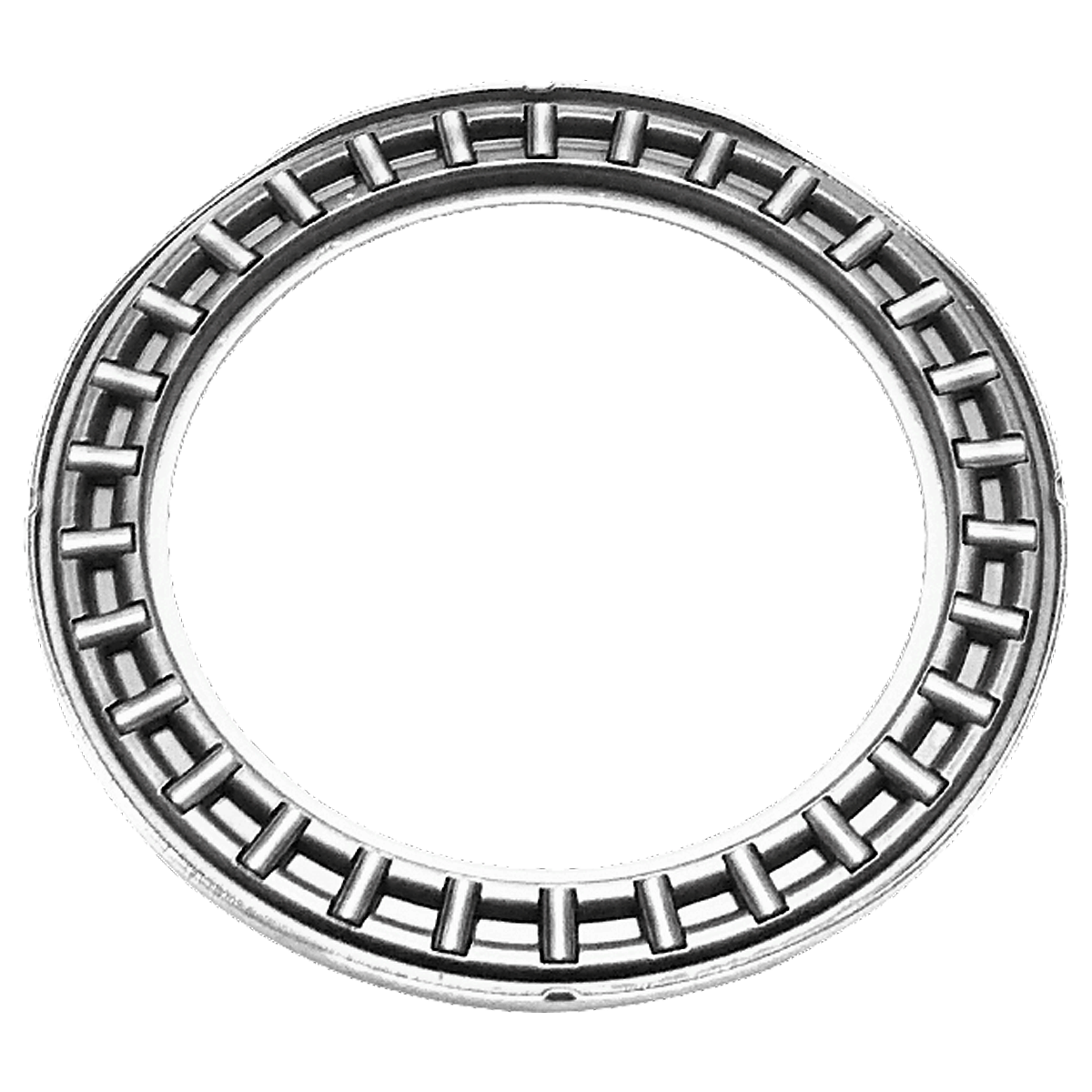

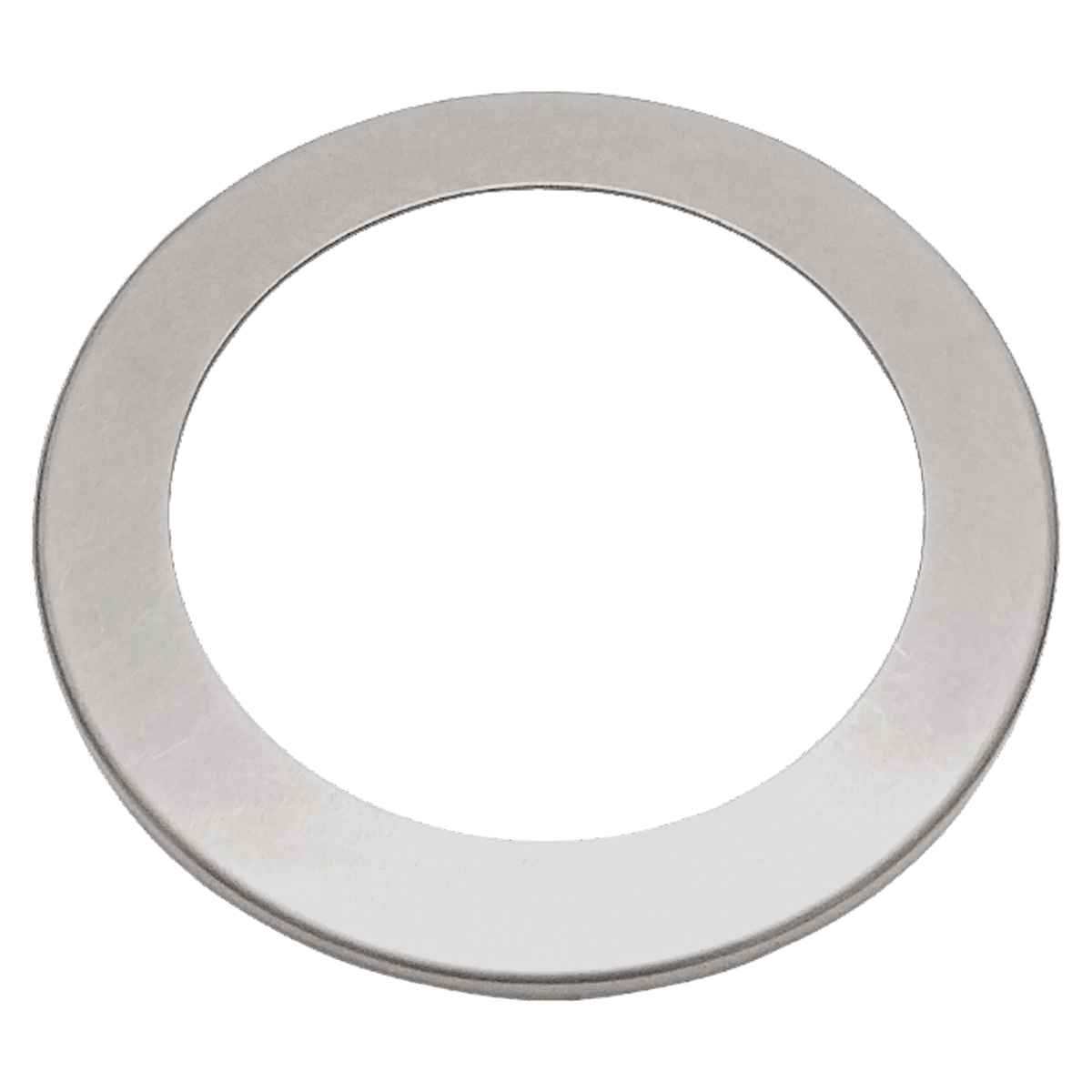

YW-2-27 3.279 2.408 0.150 Semi-Enclosed

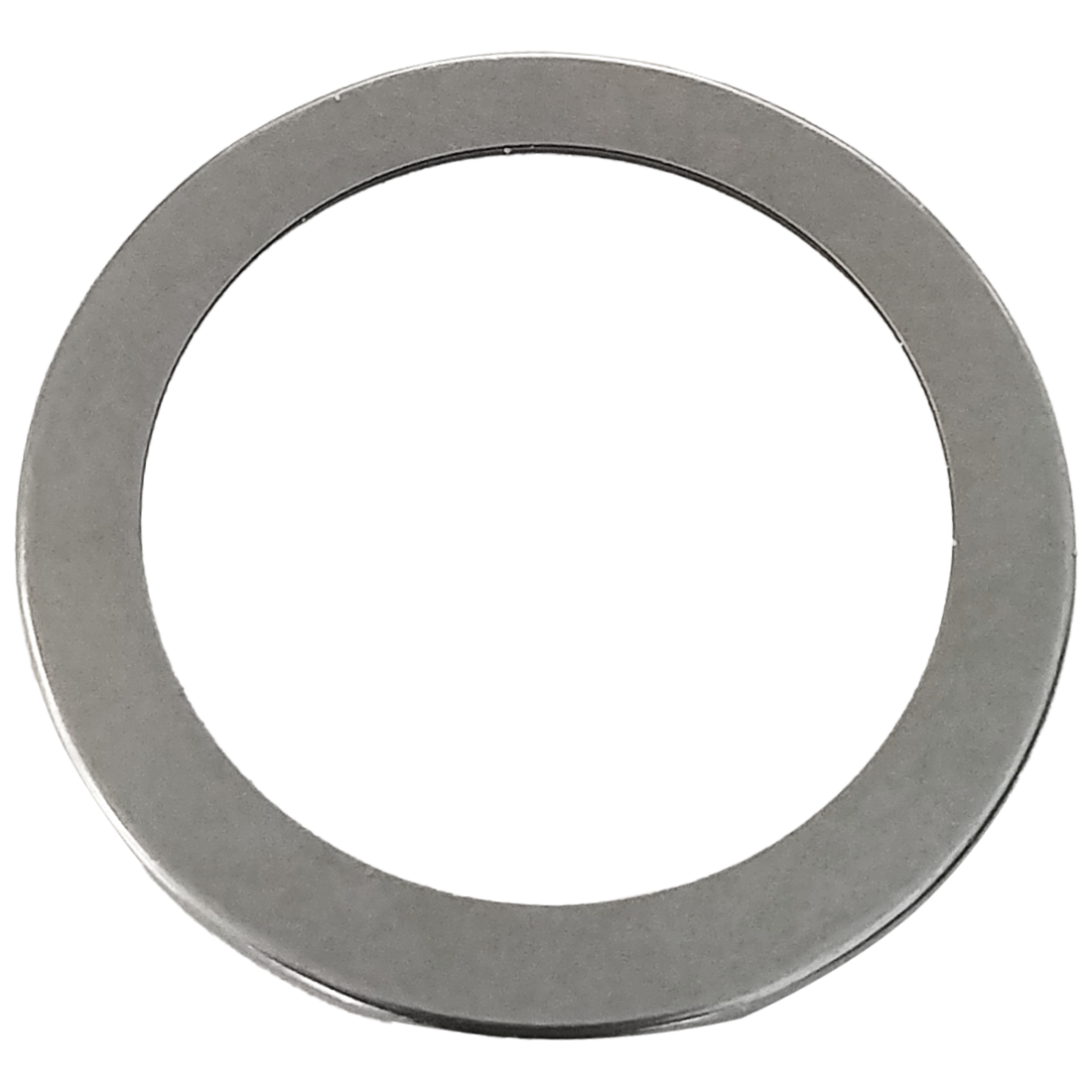

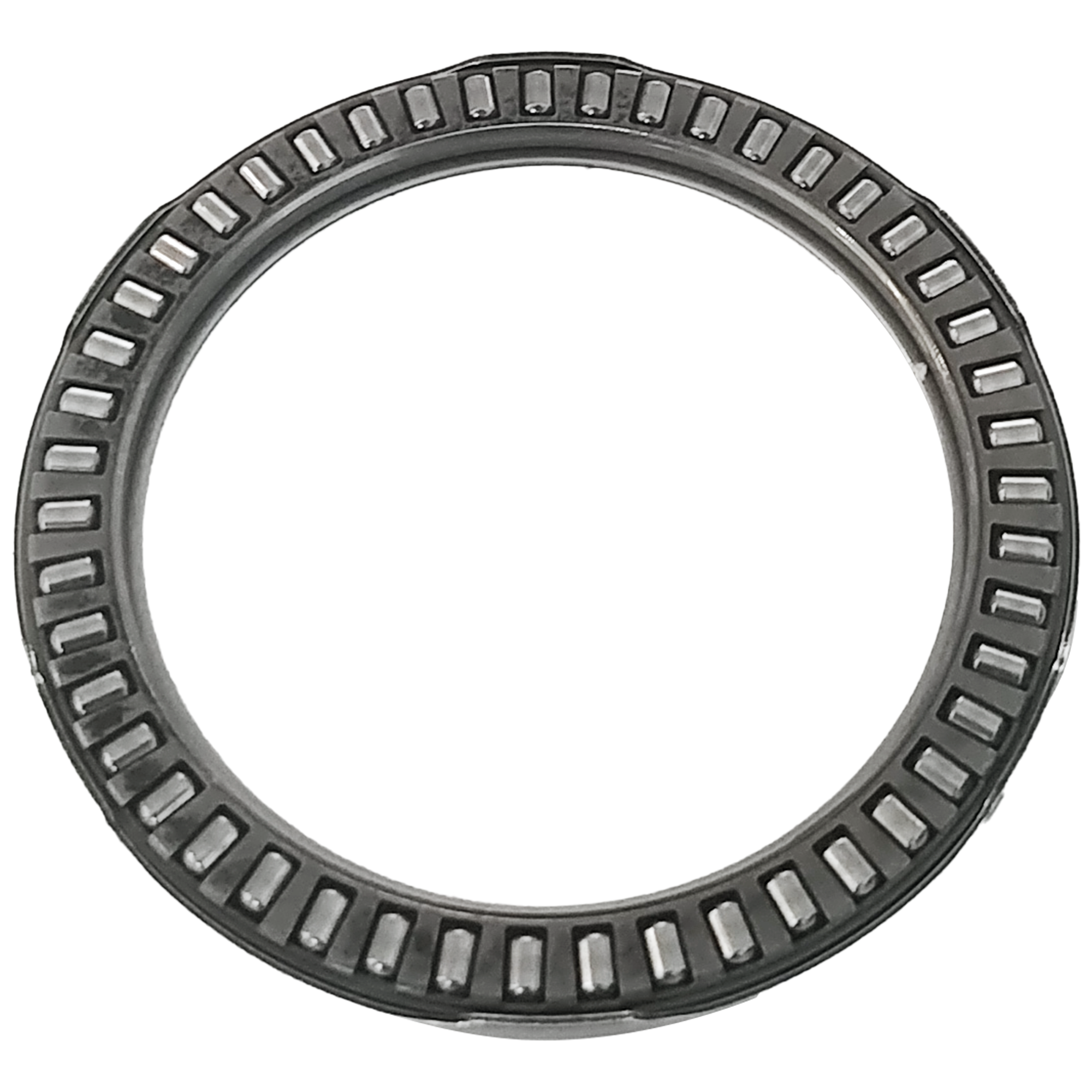

YW-2-30 2.993 2.293 0.149 Semi-Enclosed
YW-2-31 3.474 2.487 0.169 Semi-Enclosed

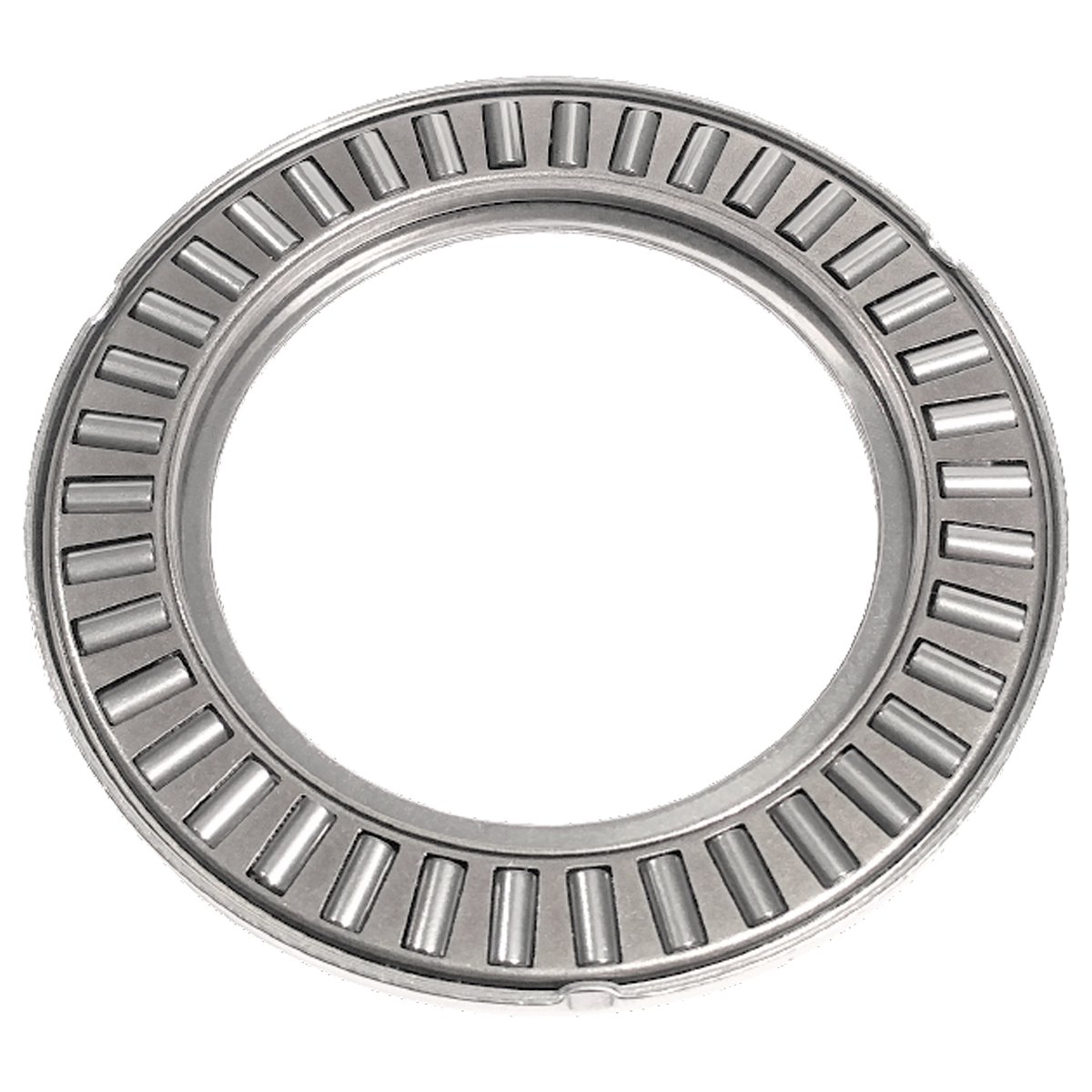

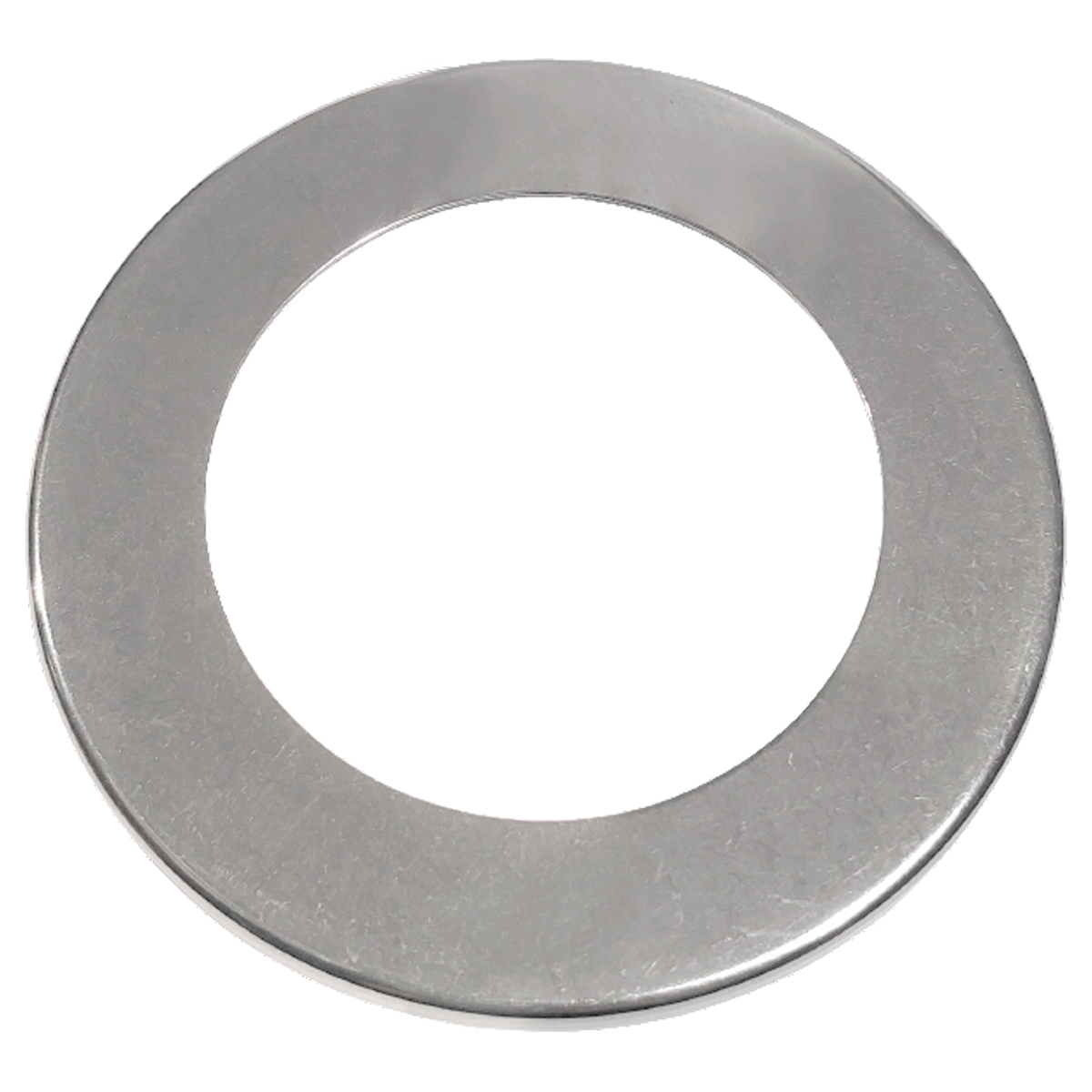

YW-2-7 2.677 1.732 0.148 Semi- Enclosed
YW-2-9 2.441 1.654 0.150 Semi- Enclosed
YW-9-4K 2.190 1.180 0.160 Semi-Enclosed

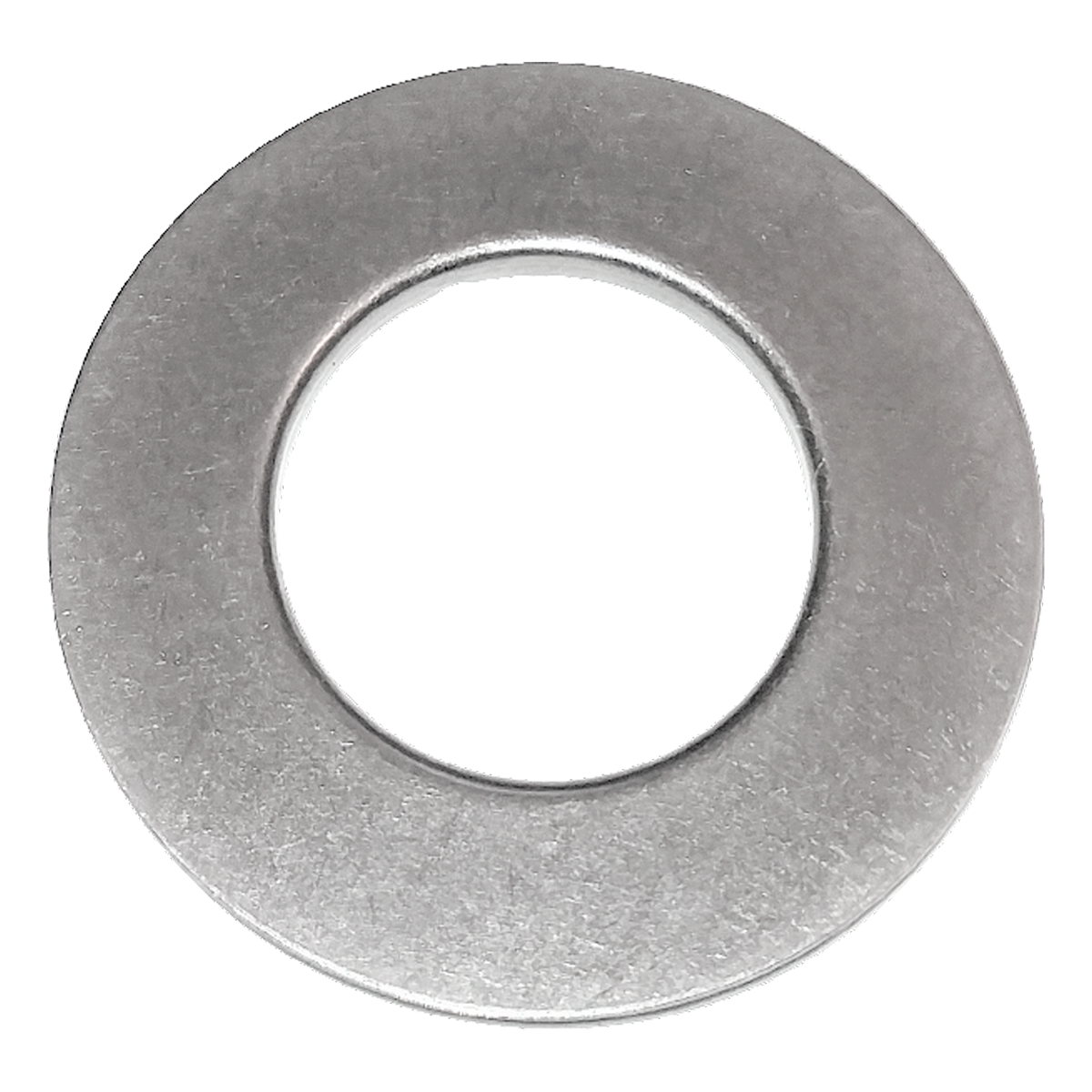

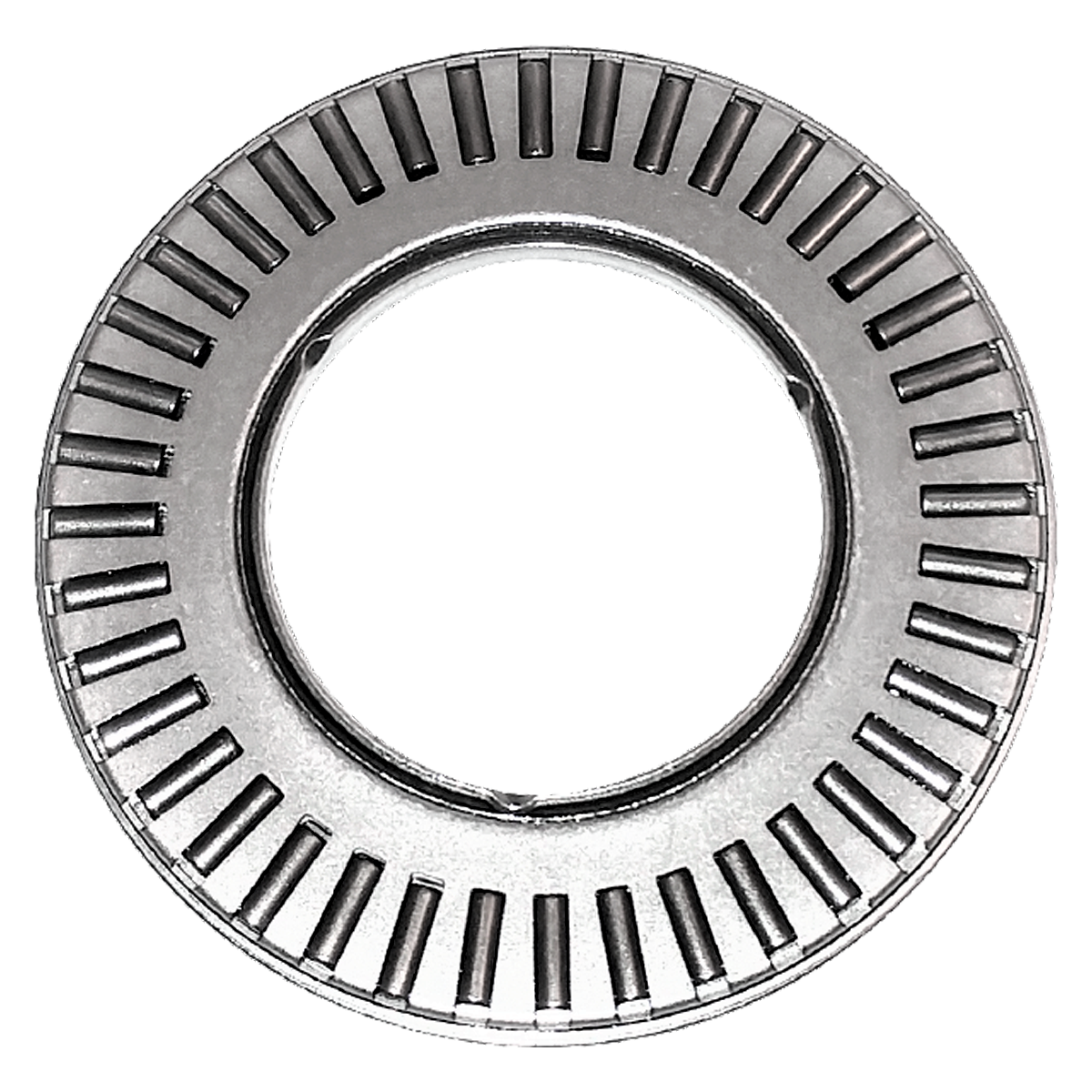

YW-9-6 2.047 1.112 0.110 Semi-Enclosed
