Transmission | ZF | 3HP20

Ill.# Image Description Specification Part #
Bushing Front Pump, Small, ZF|12 & 20
  • Inside Dia: 1.5"
 81001
Bushing 81001
Front Pump, Small, & ZF|12 & 20
  • Inside Dia: 1.5"
Bushing Front Pump, Large ZF|12 & 20
  • Inside Dia: 1.894"
 81002
Bushing 81002
Front Pump, Large & ZF|12 & 20
  • Inside Dia: 1.894"
Bushing Front Pump Drive ZF|12 & 20
  • Inside Dia: 0.186"
  • Type: Precision
 81003
Bushing 81003
Front Pump Drive & ZF|12 & 20
  • Inside Dia: 0.186"
  • Type: Precision
Bushing Front Pump, Drive Gear ZF|12 & 20
  • Inside Dia: 1.170"
  • Type: Undersize
 81004
Bushing 81004
Front Pump, Drive Gear & ZF|12 & 20
  • Inside Dia: 1.170"
  • Type: Undersize

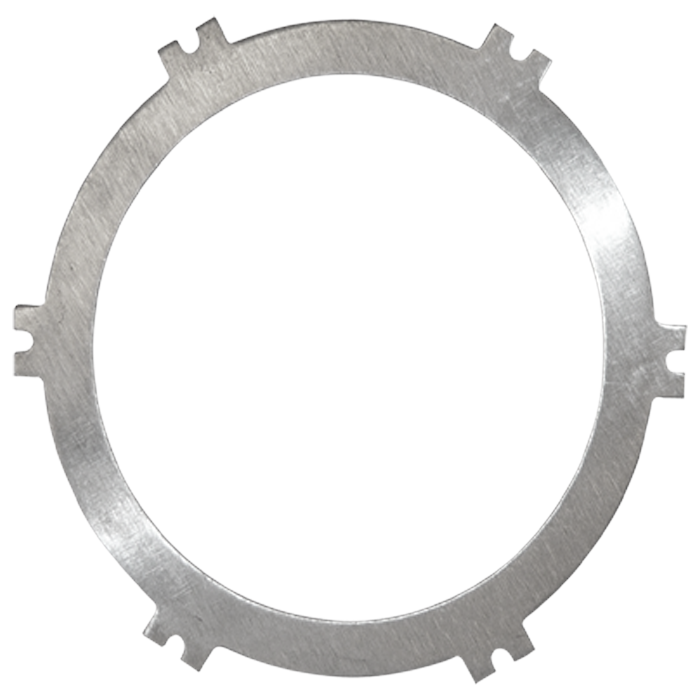

Steel Clutch-Plate 1.5mm Thick, 4Mm Slots ZF|3HP 12/20 60 - 75
  • Thickness: 0.063"
  • External Teeth: 6
  • Outside Dia: 6.024"
  • Inside Dia: 4.547"
 81100
Steel Clutch-Plate 81100
1.5mm Thick, 4Mm Slots & ZF|3HP 12/20 60 - 75
  • Thickness: 0.063"
  • External Teeth: 6
  • Outside Dia: 6.024"
  • Inside Dia: 4.547"

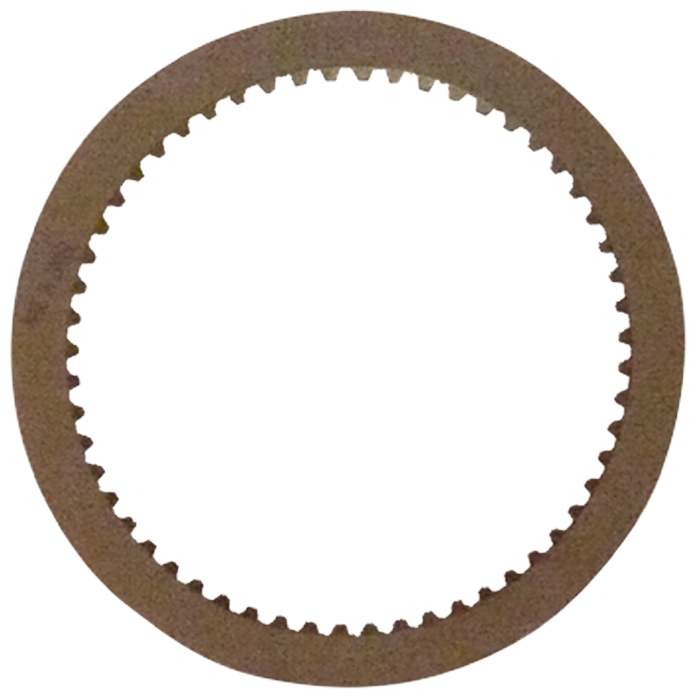

Friction Plate Rear/Smooth ZF|3HP 12/20 60 - 75
  • Thickness: 0.075"
  • Internal Teeth: 56
  • Outside Dia: 5.441"
  • Inside Dia: 4.528"
 81101
Friction Plate 81101
Rear/Smooth & ZF|3HP 12/20 60 - 75
  • Thickness: 0.075"
  • Internal Teeth: 56
  • Outside Dia: 5.441"
  • Inside Dia: 4.528"

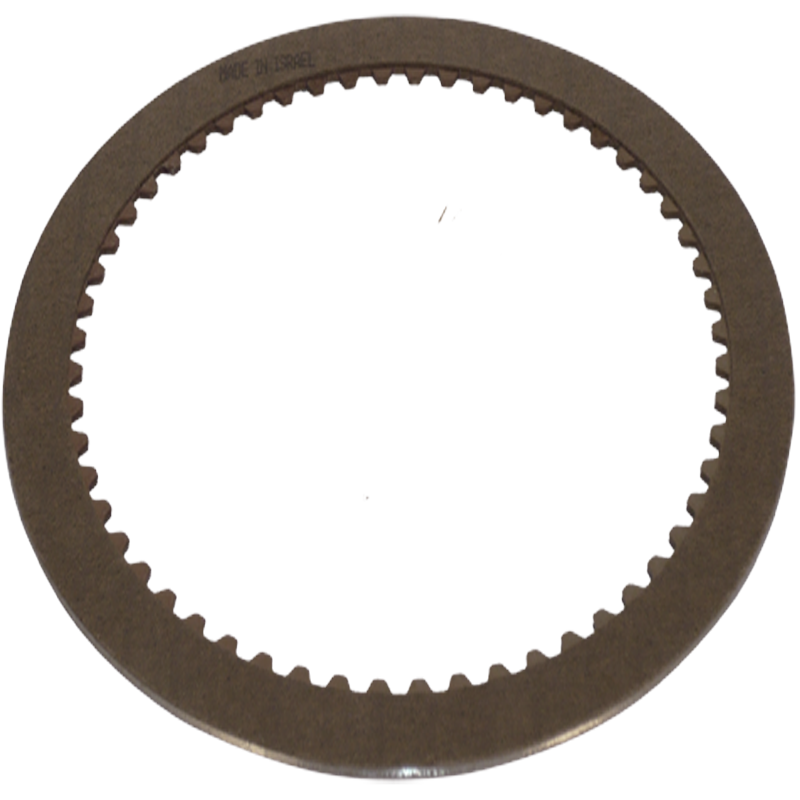

Friction Plate Front/Grooved ZF|3HP 12/20 60 - 75
  • Thickness: 0.075"
  • Internal Teeth: 56
  • Outside Dia: 5.441"
  • Inside Dia: 4.528"
 81103
Friction Plate 81103
Front/Grooved & ZF|3HP 12/20 60 - 75
  • Thickness: 0.075"
  • Internal Teeth: 56
  • Outside Dia: 5.441"
  • Inside Dia: 4.528"
Clutch Plate 1.5mm Thick, 8mm Slots ZF|3HP 12/20 60 - 75 81104
Clutch Plate 81104
1.5mm Thick, 8mm Slots & ZF|3HP 12/20 60 - 75

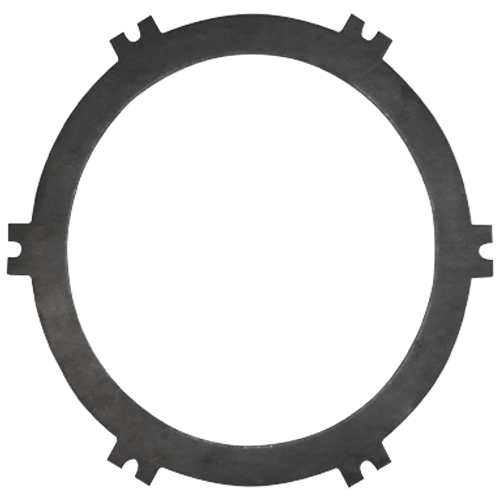

Steel Clutch-Plate Waved Spring, 1.5mm Thick, 4mm Slots ZF|3HP 12/20 60 - 75 81208
Steel Clutch-Plate 81208
Waved Spring, 1.5mm Thick, 4mm Slots & ZF|3HP 12/20 60 - 75
Seal Lathe Cut ZF, Alfa Romeo BMW, Peugot 60 - 75 83006
Seal 83006
Lathe Cut & ZF, Alfa Romeo BMW, Peugot 60 - 75
Washer METAL 85008
Washer 85008
METAL &
Pan Gasket ZF, Alfa Romeo BMW, Peugot 60 - 75 87014
Pan Gasket 87014
& ZF, Alfa Romeo BMW, Peugot 60 - 75
Pan Gasket ZF,12/20, Cut Corner 87015
Pan Gasket 87015
ZF,12/20, Cut Corner &
Seal 1965-Up, 24111-207-426 89017
Seal 89017
& 1965-Up, 24111-207-426

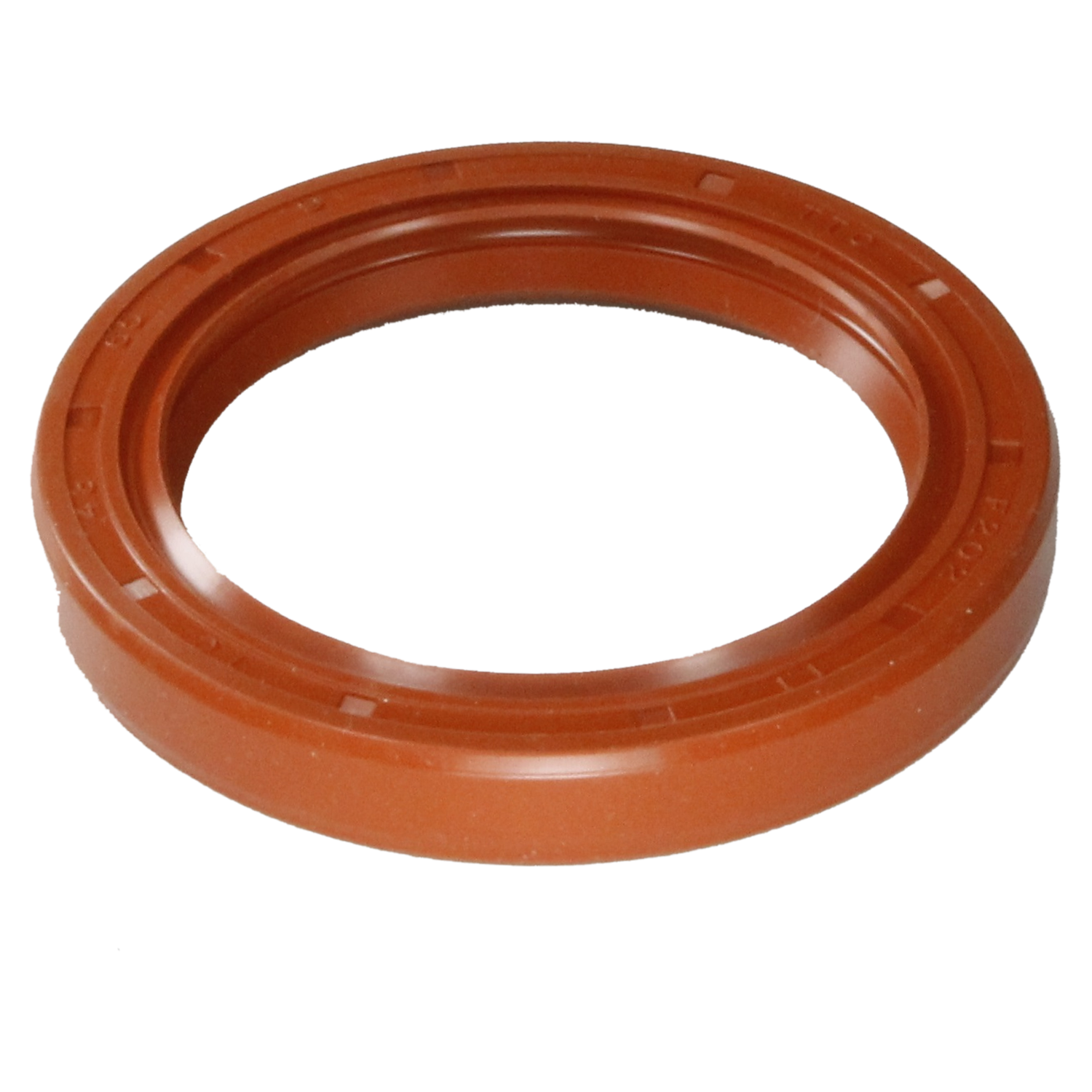

Metal Clad Seal Pump 1960-'78, 1151, 24311201104
  • Dimensions: 48-65-10
  • Material: Red Silicone
 89019
Metal Clad Seal 89019
Pump & 1960-'78, 1151, 24311201104
  • Dimensions: 48-65-10
  • Material: Red Silicone

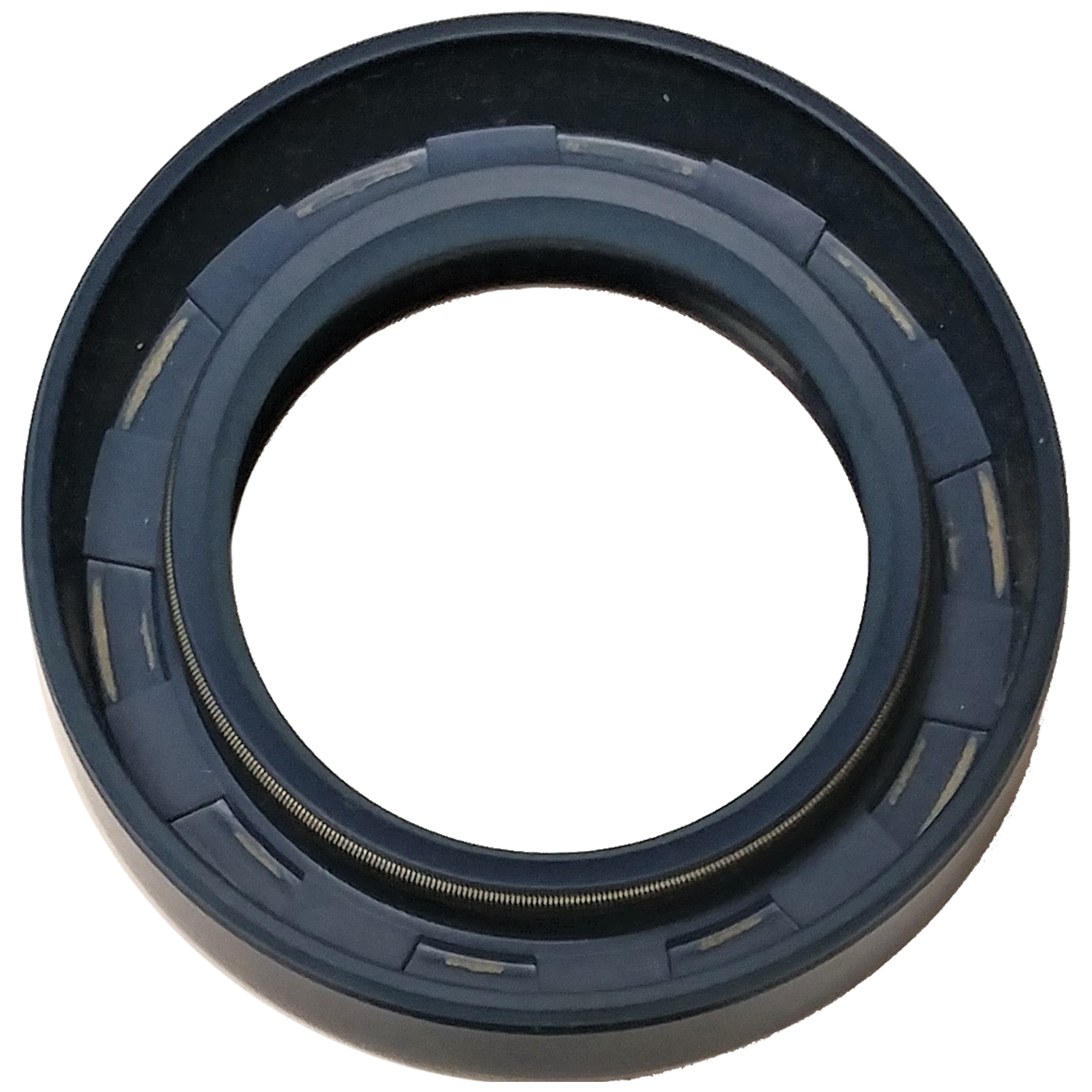

Metal Clad Seal Rear (Ext. Housing) 1965-Up, 24111-207-426
  • Dimensions: 40-62-10
 89021
Metal Clad Seal 89021
Rear (Ext. Housing) & 1965-Up, 24111-207-426
  • Dimensions: 40-62-10
Overhaul Kit Deluxe ZF, Alfa Romeo BMW, Peugot 60 - 75 DK8100
Overhaul Kit DK8100
Deluxe & ZF, Alfa Romeo BMW, Peugot 60 - 75

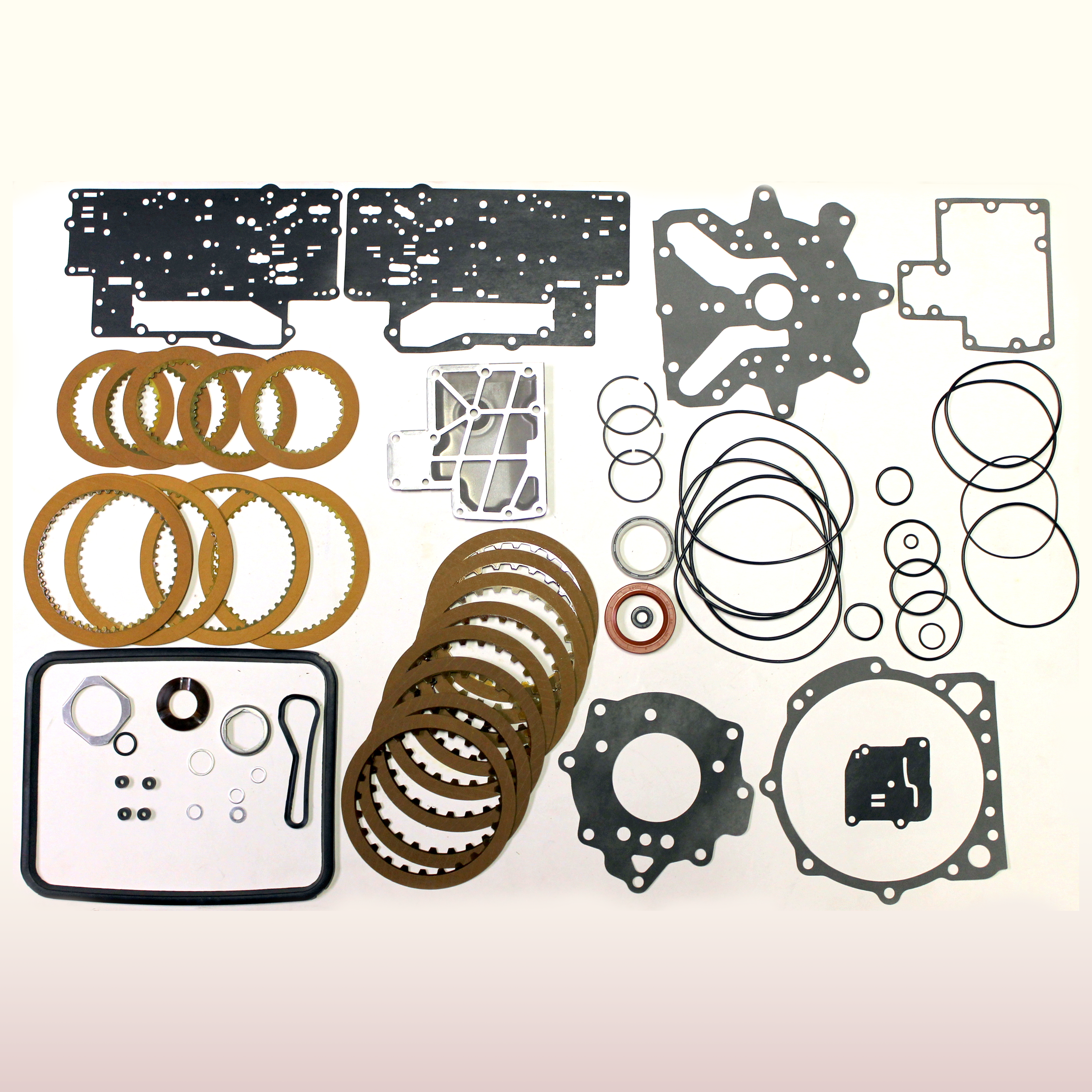

Overhaul Kit Deluxe Banner, Less Steels ZF, Alfa Romeo BMW, Peugot 76 - 86 DK8200
Overhaul Kit DK8200
Deluxe Banner, Less Steels & ZF, Alfa Romeo BMW, Peugot 76 - 86
Gasket Metal ZF, Alfa Romeo BMW, Peugot 60 - 75 HX-11G
Gasket HX-11G
Metal & ZF, Alfa Romeo BMW, Peugot 60 - 75
Overhaul Kit ZF, Alfa Romeo BMW, Peugot 60 - 75 K81900
Overhaul Kit K81900
& ZF, Alfa Romeo BMW, Peugot 60 - 75
Overhaul Kit ZF, Alfa Romeo BMW, Peugot 1976 - 1986 K82900
Overhaul Kit K82900
& ZF, Alfa Romeo BMW, Peugot 1976 - 1986
Seal Kit ZF, Alfa Romeo BMW, Peugot 76 - 86 K82900-2
Seal Kit K82900-2
& ZF, Alfa Romeo BMW, Peugot 76 - 86
