Part Search

Transmission | Volkswagen | VW 003

Ill.# Image Description Specification Part #
Bushing Converter Hub 39002
Bushing 39002
Converter Hub &
Bushing Oil Pump, VW 003, 010 VW 003/010/087/089/090. 39003
Bushing 39003
Oil Pump, VW 003, 010 & VW 003/010/087/089/090.

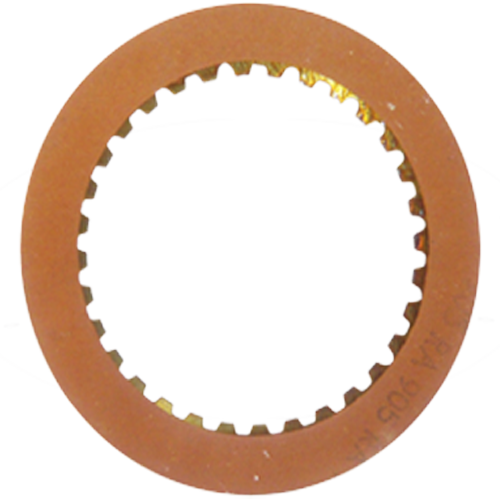

Friction Plate Direct/Reverse 69 - 76
  • Thickness: 0.091"
  • Internal Teeth: 43
  • Outside Dia: 4.134"
  • Inside Dia: 3.488"
 39264
Friction Plate 39264
Direct/Reverse & 69 - 76
  • Thickness: 0.091"
  • Internal Teeth: 43
  • Outside Dia: 4.134"
  • Inside Dia: 3.488"

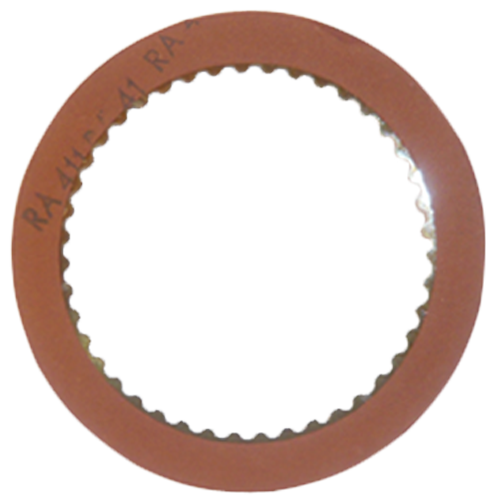

Friction Plate Forward,V.W.003
  • Thickness: 0.059"
  • Internal Teeth: 43
  • Outside Dia: 4.134"
  • Inside Dia: 3.488"
 39266
Friction Plate 39266
Forward,V.W.003 &
  • Thickness: 0.059"
  • Internal Teeth: 43
  • Outside Dia: 4.134"
  • Inside Dia: 3.488"
Band Front 69 - 76 39313
Band 39313
Front & 69 - 76
Driver Inner Pump Gear 010/087/089/090" 1969 - 1976 39915D
Driver 39915D
Inner Pump Gear & 010/087/089/090" 1969 - 1976

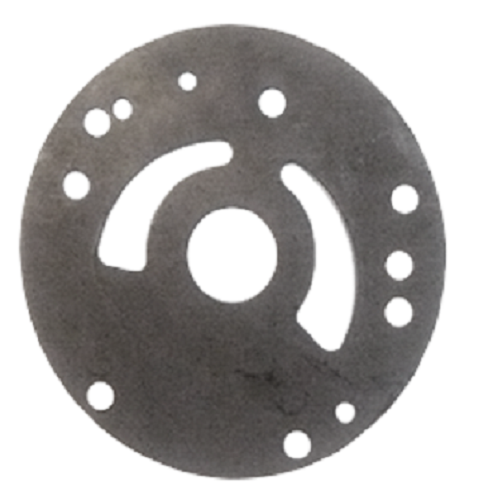

Plate Pump 1969 - 1976 39915P
Plate 39915P
Pump & 1969 - 1976
Bushing Direct/Reverse, Type 010 79005
Bushing 79005
Direct/Reverse, Type 010 &
Bushing Sun Gear
  • Height: 12.5mm
  • Housing Bore Dia Metric: 30mm
  • Shaft Dia metric: 27.4mm
  • Shaft Dia: 1.181"
 79009
Bushing 79009
Sun Gear &
  • Height: 12.5mm
  • Housing Bore Dia Metric: 30mm
  • Shaft Dia metric: 27.4mm
  • Shaft Dia: 1.181"
Accumulator Plastic 79928
Accumulator 79928
Plastic &
Piston Accumulator 79928P
Piston 79928P
Accumulator &

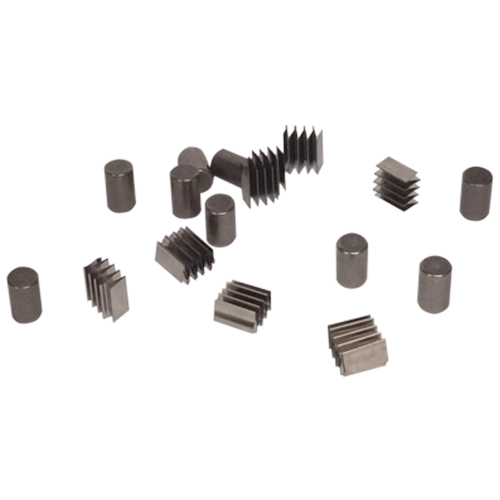

Kit Spring & Roller 69 - 76 K39401
Kit K39401
Spring & Roller & 69 - 76
Kit Piston With Seal, Accumulator K79928P
Kit K79928P
Piston With Seal, Accumulator &
Bushing Hub
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision
 VB-18
Bushing VB-18
Hub &
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision
