Part Search

Transmission | GM | Hydramatic | General Motors

Ill.# Image Description Specification Part #
Filter Assembly Model 05 14522
Filter Assembly 14522
Model 05 &
Friction Plate Front 24250H
Friction Plate 24250H
Front &
Steel Clutch-Plate Front 24251
Steel Clutch-Plate 24251
Front &
Band Overrun 24415
Band 24415
Overrun &
Friction Plate Neutral 24630
Friction Plate 24630
Neutral &
Steel Clutch-Plate Neutral 24631
Steel Clutch-Plate 24631
Neutral &

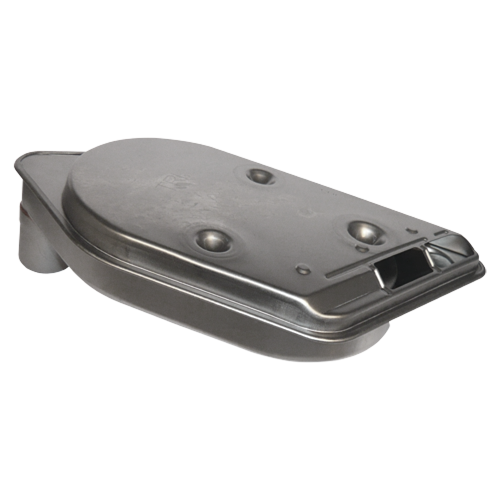

Filter Model 10 24800
Filter 24800
Model 10 &
Metal Clad Seal Rear, 2 Pieces Required 1939 - 1950 38-55-7SC
Metal Clad Seal 38-55-7SC
Rear, 2 Pieces Required & 1939 - 1950

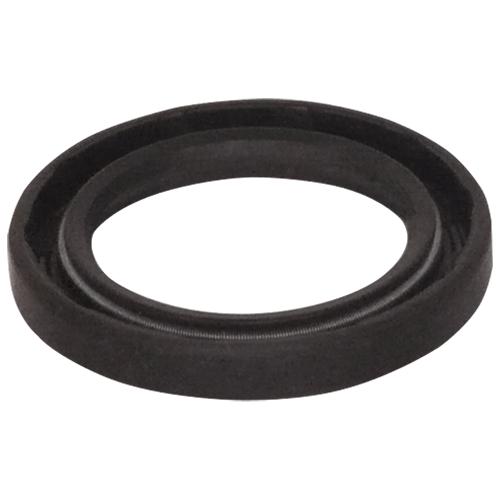

Metal Clad Seal Uses 2, 1939-1946 Hydramtatic 38X55X7SC
Metal Clad Seal 38X55X7SC
Uses 2, 1939-1946 Hydramtatic &

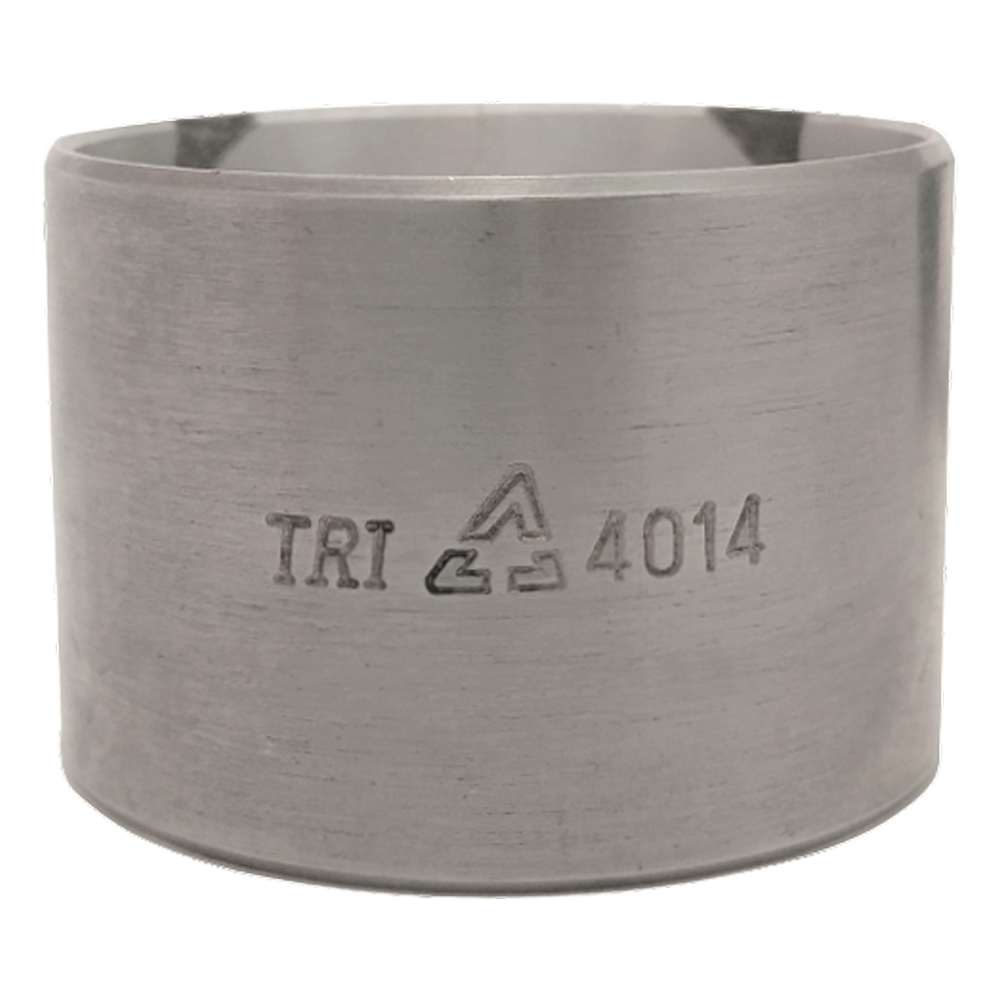

Bushing 1956-1964, 8617449
  • Height: 1.24"
  • Inside Dia: 1.688"
 4014
Bushing 4014
& 1956-1964, 8617449
  • Height: 1.24"
  • Inside Dia: 1.688"

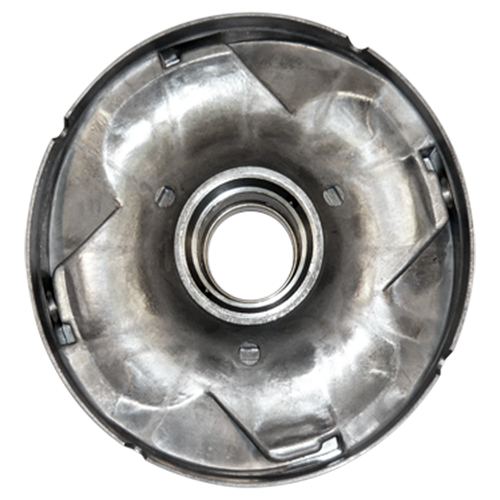

Coupling Cover aluminum 1956 - 1964 4182
Coupling Cover 4182
aluminum & 1956 - 1964

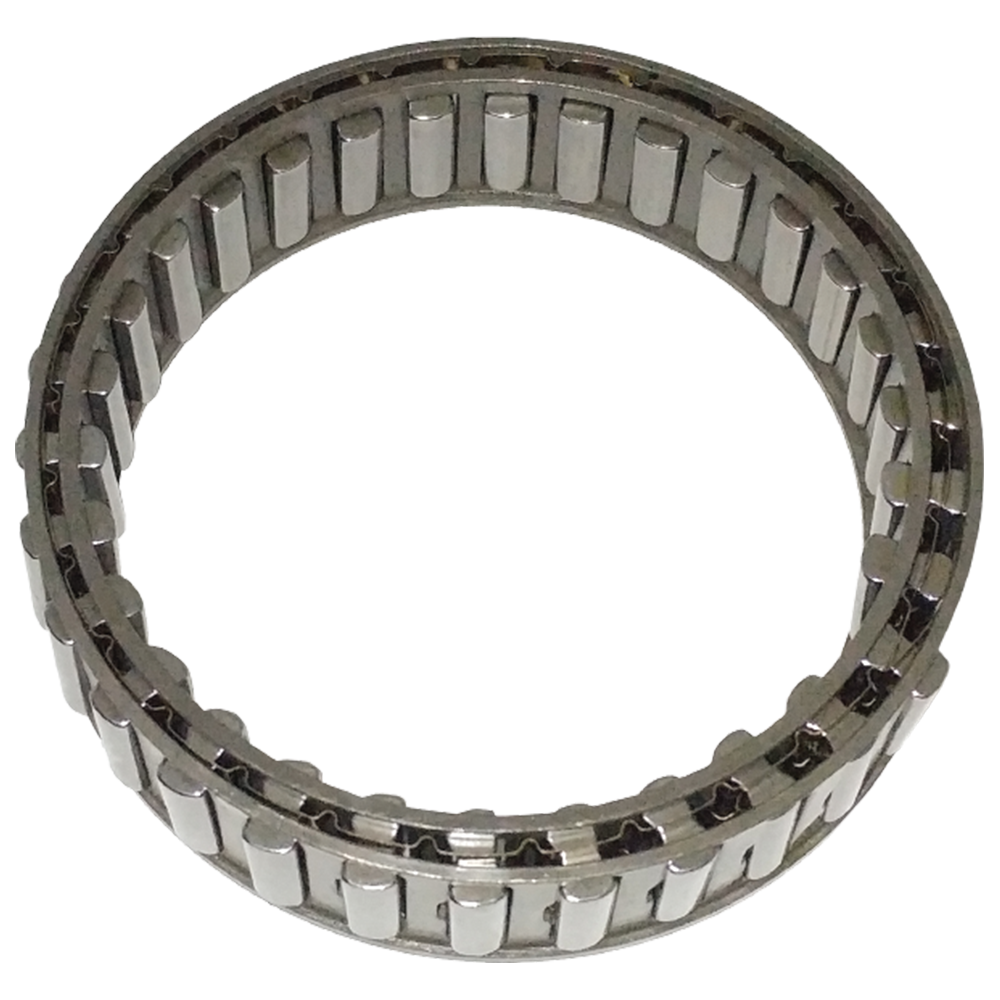

Sprag rear (8616213) 1956 - 1964
  • Thickness: 0.810
  • Outside Dia: 3.5
  • Inside Dia: 2.8
 4212
Sprag 4212
rear (8616213) & 1956 - 1964
  • Thickness: 0.810
  • Outside Dia: 3.5
  • Inside Dia: 2.8

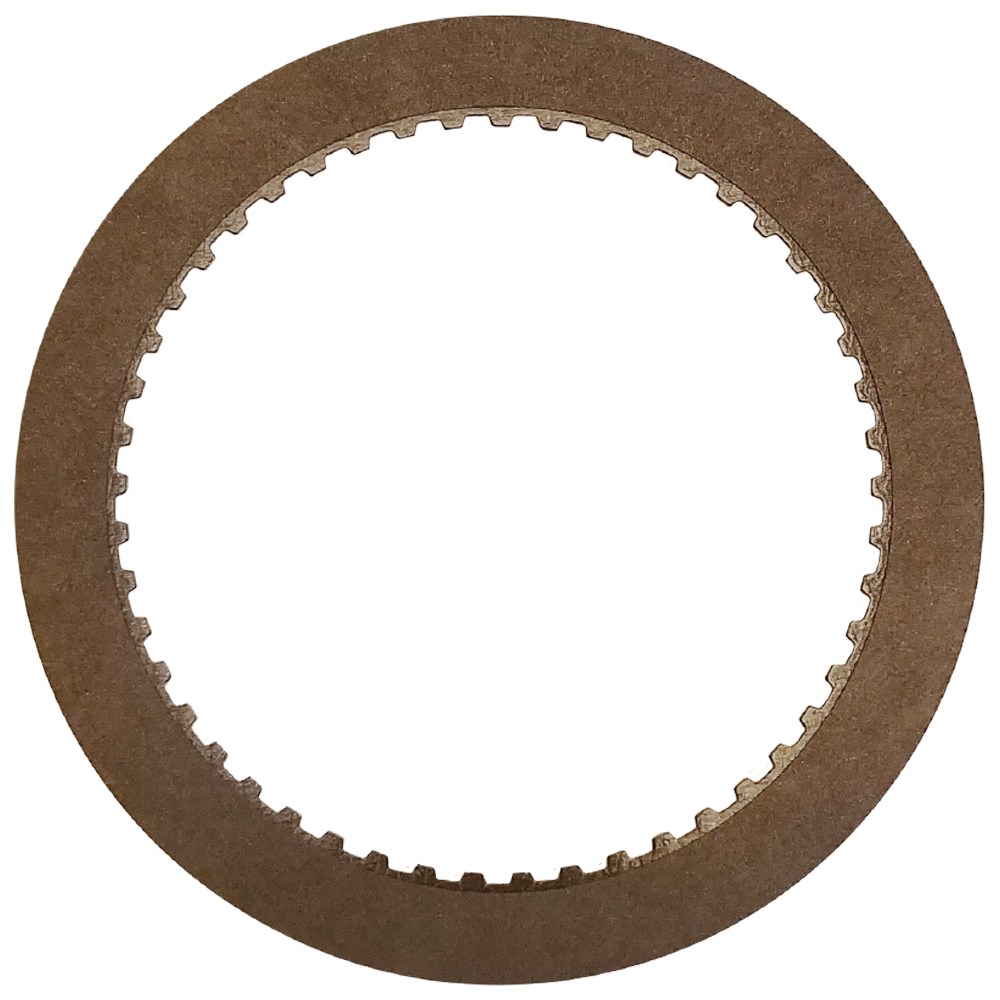

Friction Plate Neutral 1956 - 1964 4217B
Friction Plate 4217B
Neutral & 1956 - 1964

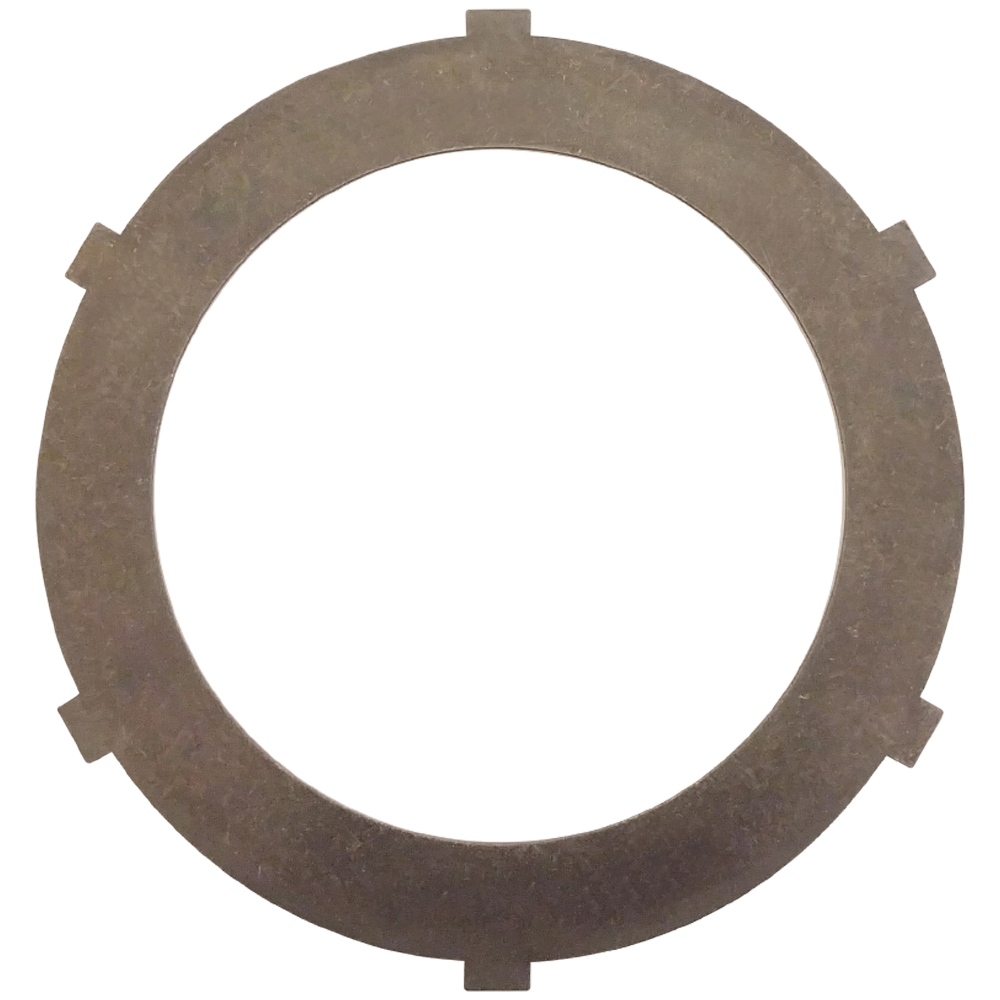

Steel Clutch-Plate Neutral 1956 - 1964 4218
Steel Clutch-Plate 4218
Neutral & 1956 - 1964
Friction Plate Rear 1956 - 1964 4264A
Friction Plate 4264A
Rear & 1956 - 1964

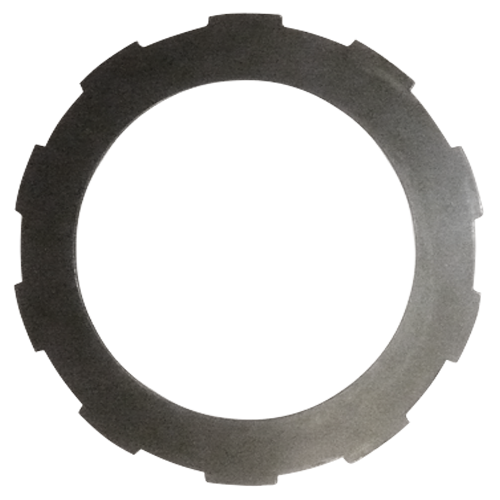

Steel Clutch-Plate Rear 1956 - 1964 4265
Steel Clutch-Plate 4265
Rear & 1956 - 1964

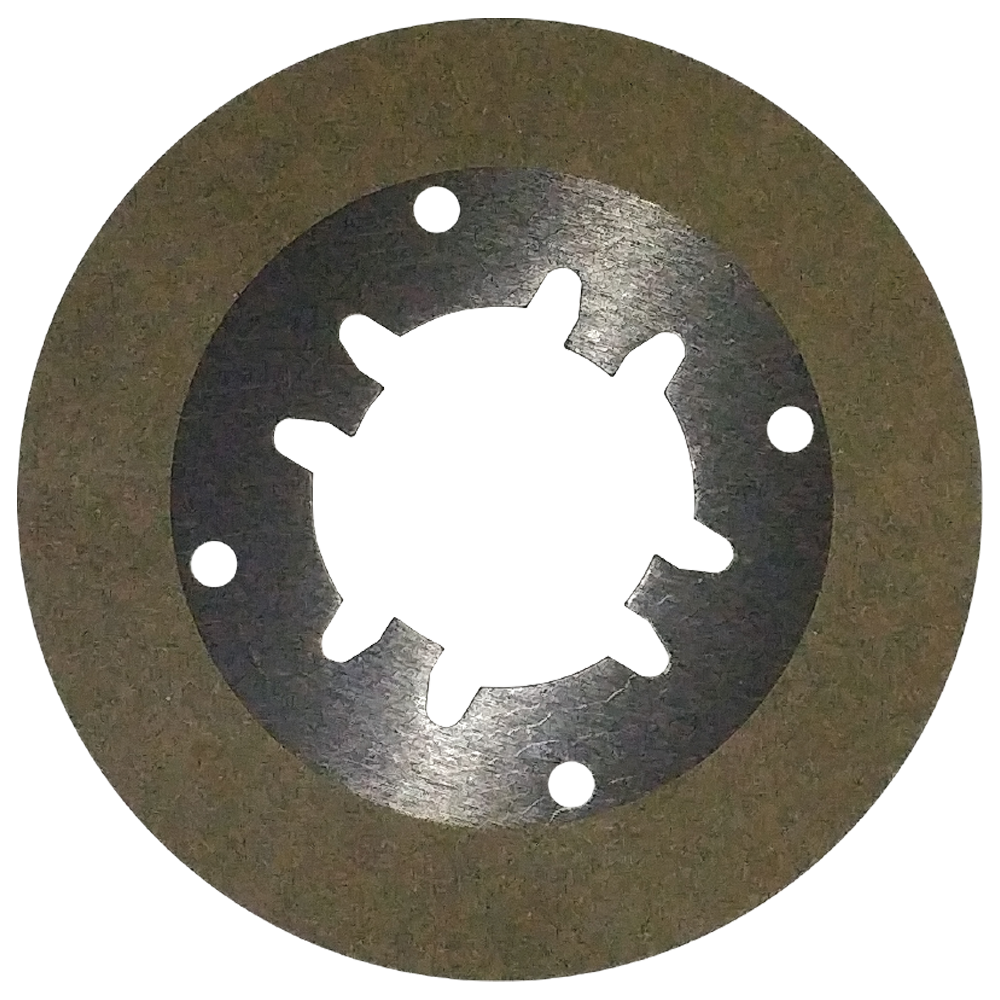

Friction Plate Overrun 1956 - 1964 4302A
Friction Plate 4302A
Overrun & 1956 - 1964

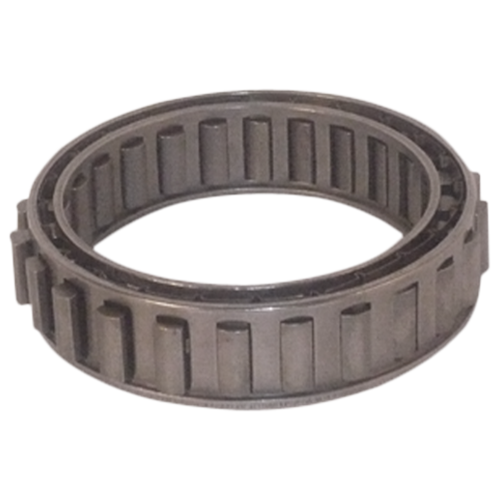

Sprag front 4308
Sprag 4308
front &
Pump Vane Ring 1956 - 1964
  • Oversized
 4321X
Pump Vane Ring 4321X
& 1956 - 1964
  • Oversized
Band 1956 - 1964 4422
Band 4422
& 1956 - 1964

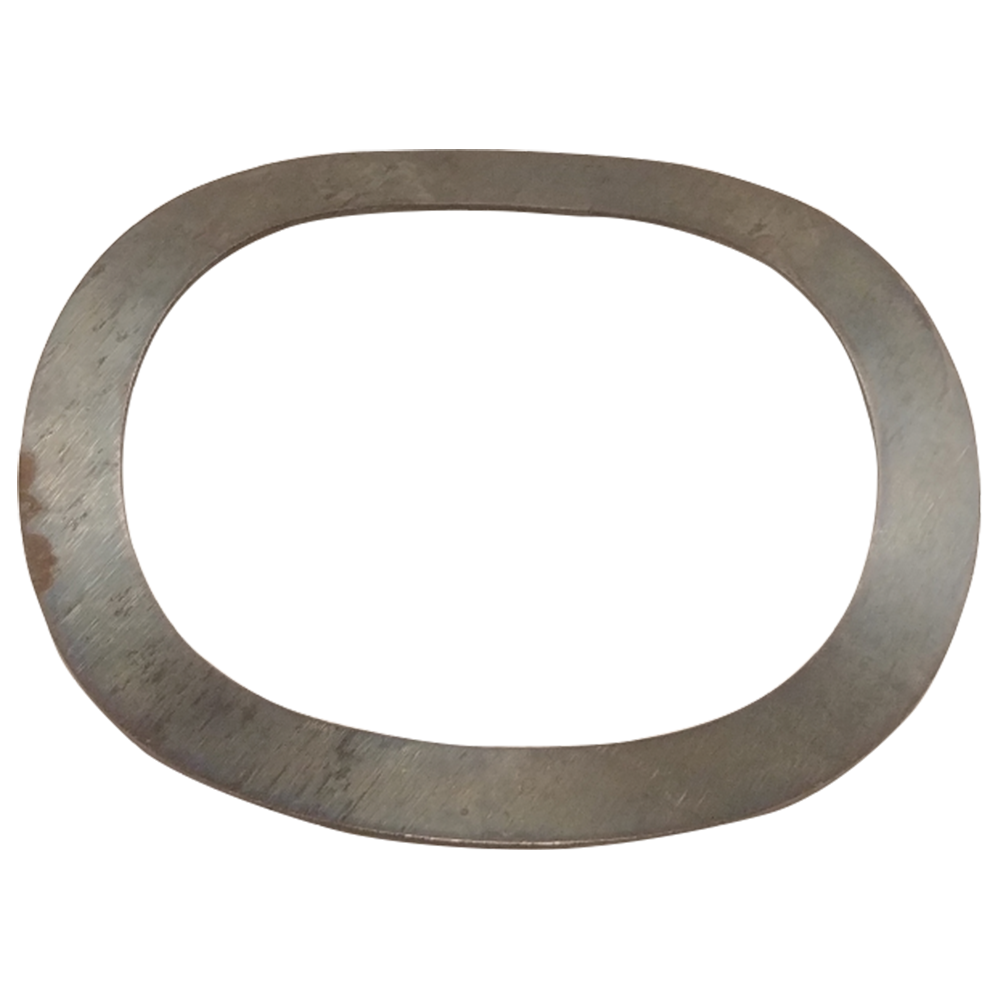

Spring Reverse wave 1956 - 1964 4500B
Spring 4500B
Reverse wave & 1956 - 1964
Reverse Cone Plastic 6.500 O.D. 1956 - 1958 4510A
Reverse Cone 4510A
Plastic 6.500 O.D. & 1956 - 1958

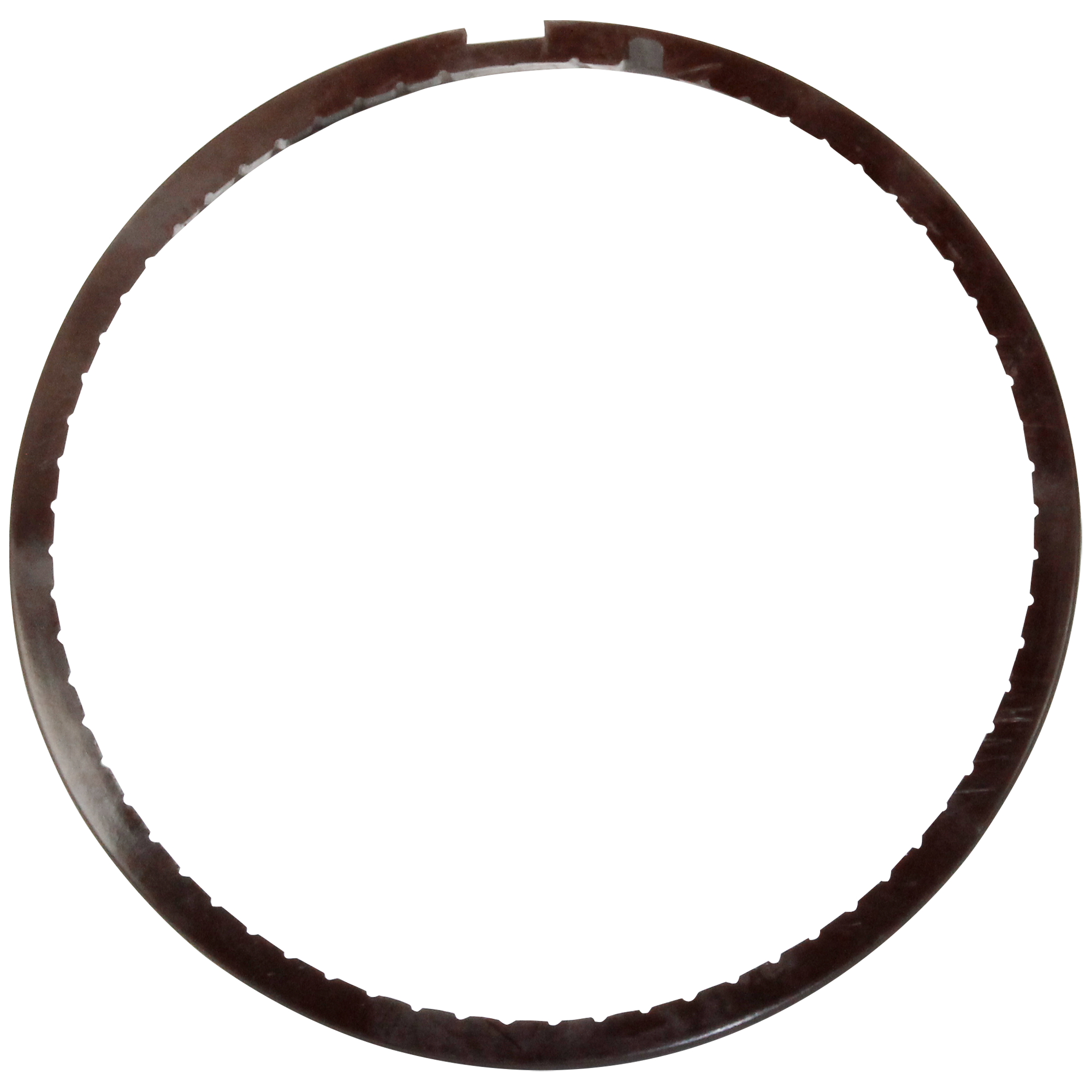

Reverse Cone Plastic, 6.870 O.D. 1956 - 1964 4510B
Reverse Cone 4510B
Plastic, 6.870 O.D. & 1956 - 1964

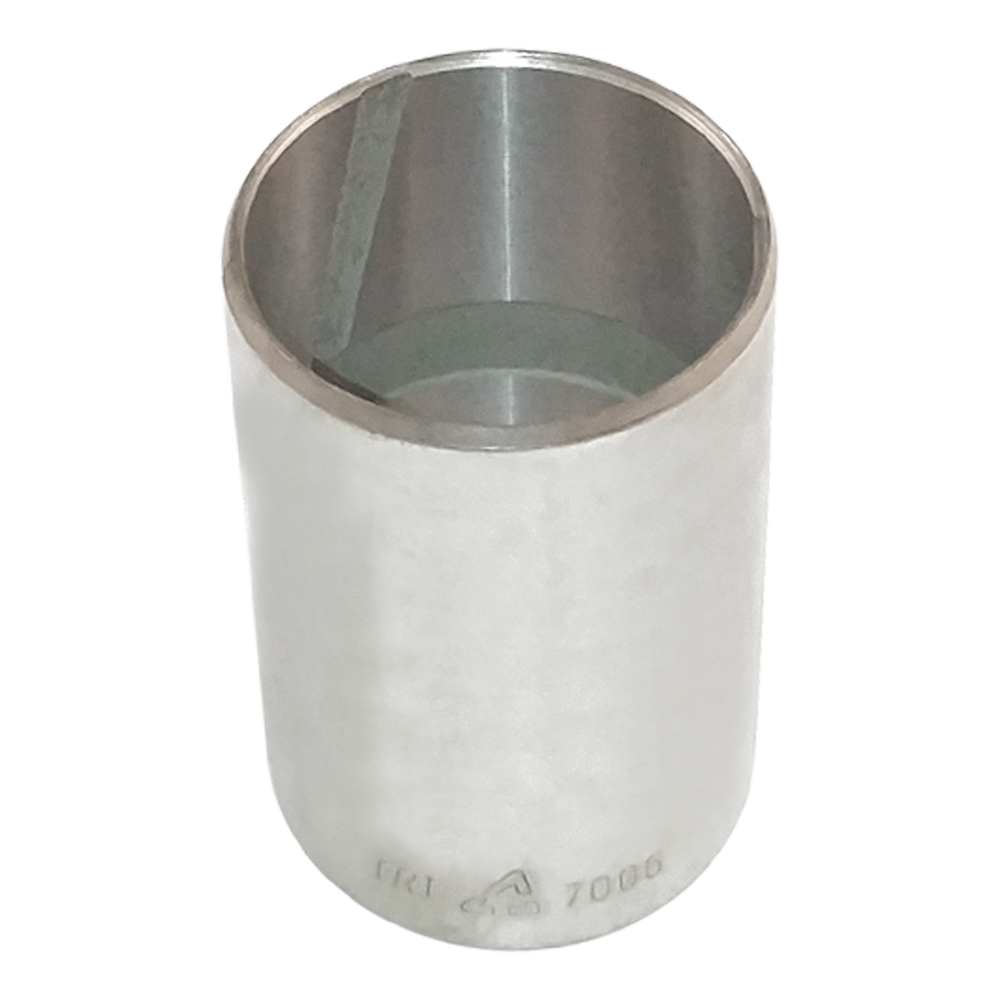

Bushing Bushing, oil delivery sleeve 1948 - 1962 7006
Bushing 7006
Bushing, oil delivery sleeve & 1948 - 1962

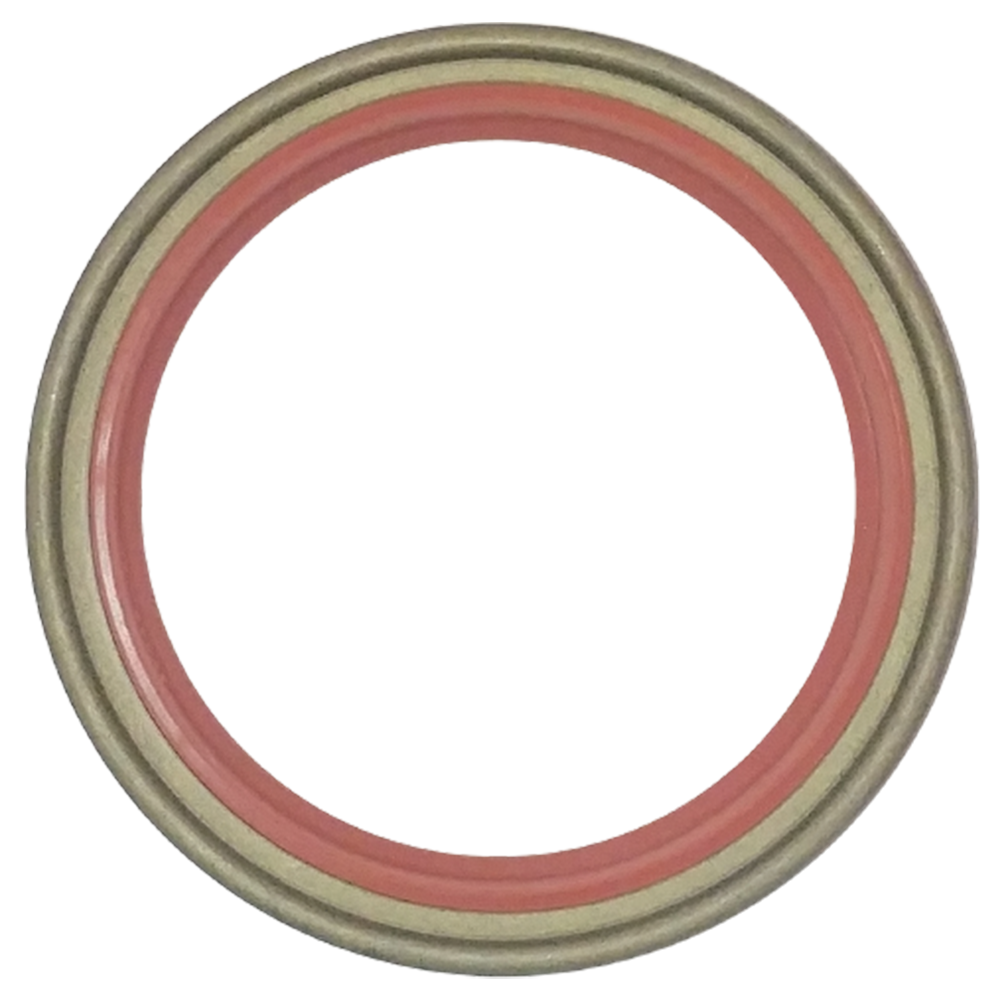

Metal Clad Seal front Pump, Silicone 1948 - 1962
  • Thickness: 0374"
  • Outside Dia: 3.350"
  • Inside Dia: 2.630"
 7103
Metal Clad Seal 7103
front Pump, Silicone & 1948 - 1962
  • Thickness: 0374"
  • Outside Dia: 3.350"
  • Inside Dia: 2.630"

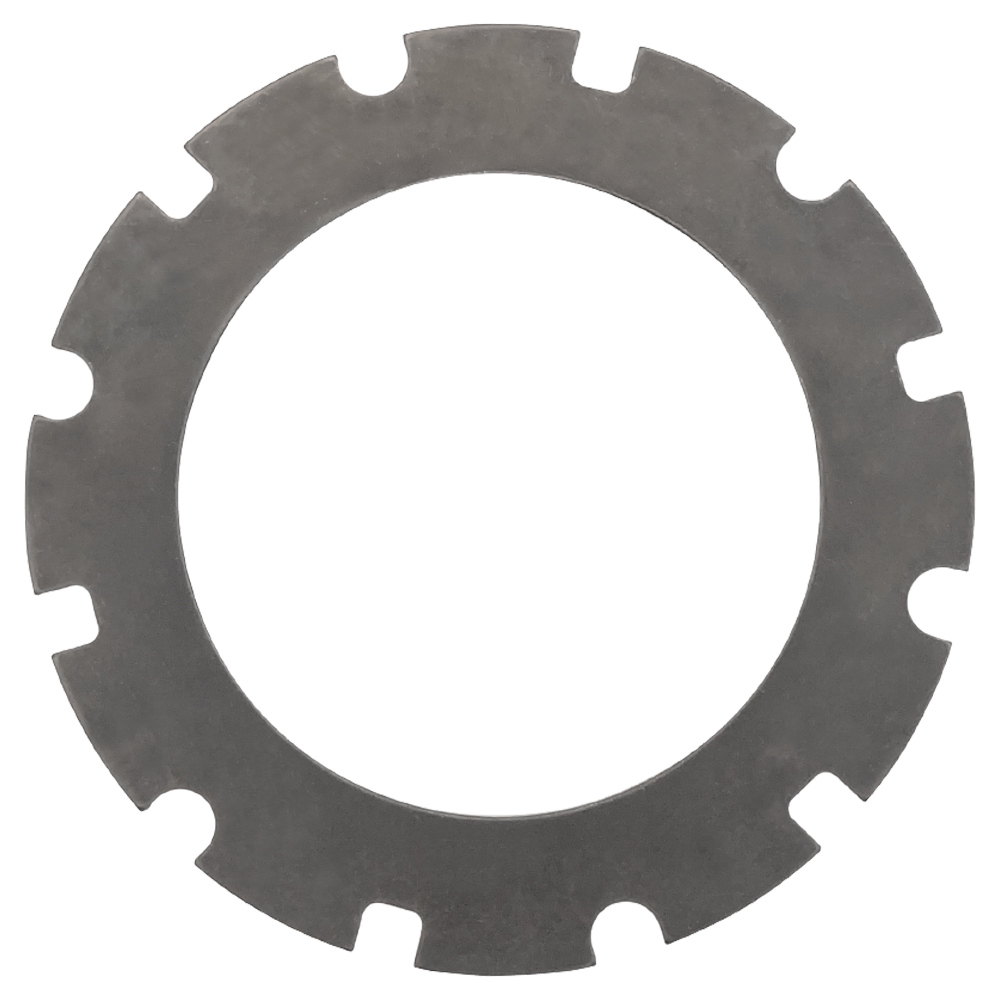

Steel Clutch-Plate front & rear 1948 - 1962 7116
Steel Clutch-Plate 7116
front & rear & 1948 - 1962

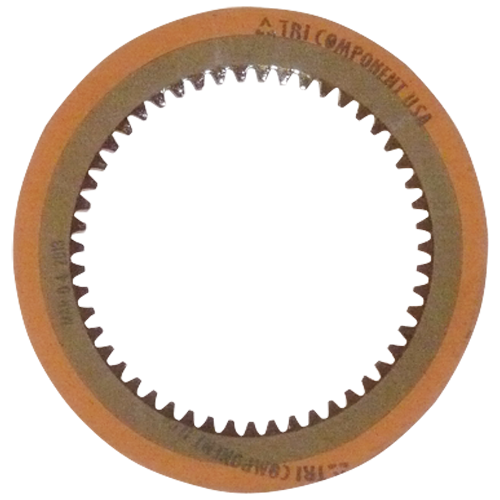

Friction Plate 46 - 56 7117
Friction Plate 7117
& 46 - 56

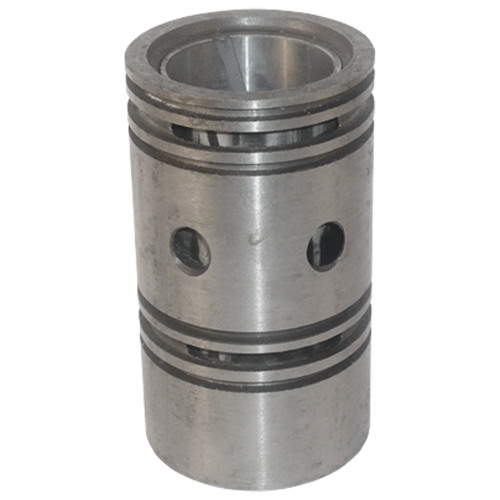

Sleeve Oil Delivery 1948 - 1962 7124
Sleeve 7124
Oil Delivery & 1948 - 1962
Band Front 1954 - 1956 7616A
Band 7616A
Front & 1954 - 1956
Friction Plate Flat, Truck 1948 - 1962 7820
Friction Plate 7820
Flat, Truck & 1948 - 1962
Friction Plate Flat, Truck 1948 - 1962 7820A
Friction Plate 7820A
Flat, Truck & 1948 - 1962

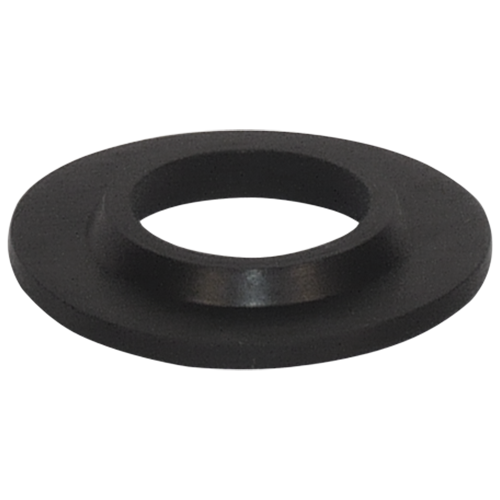

Seal T.V., lever .300 x .093 1948 - 1964 8609597
Seal 8609597
T.V., lever .300 x .093 & 1948 - 1964

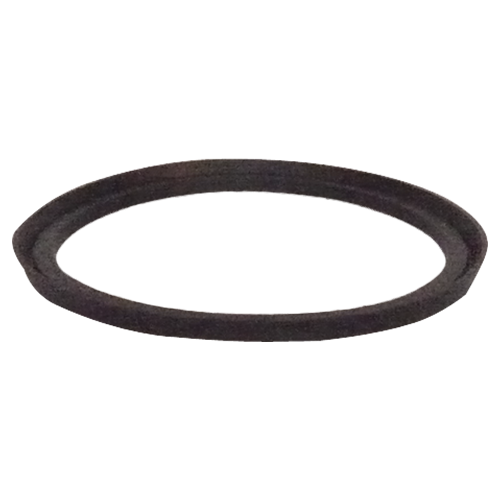

Lip Seal Polyacrylic, inner, rev. 1948 - 1962 8611949
Lip Seal 8611949
Polyacrylic, inner, rev. & 1948 - 1962

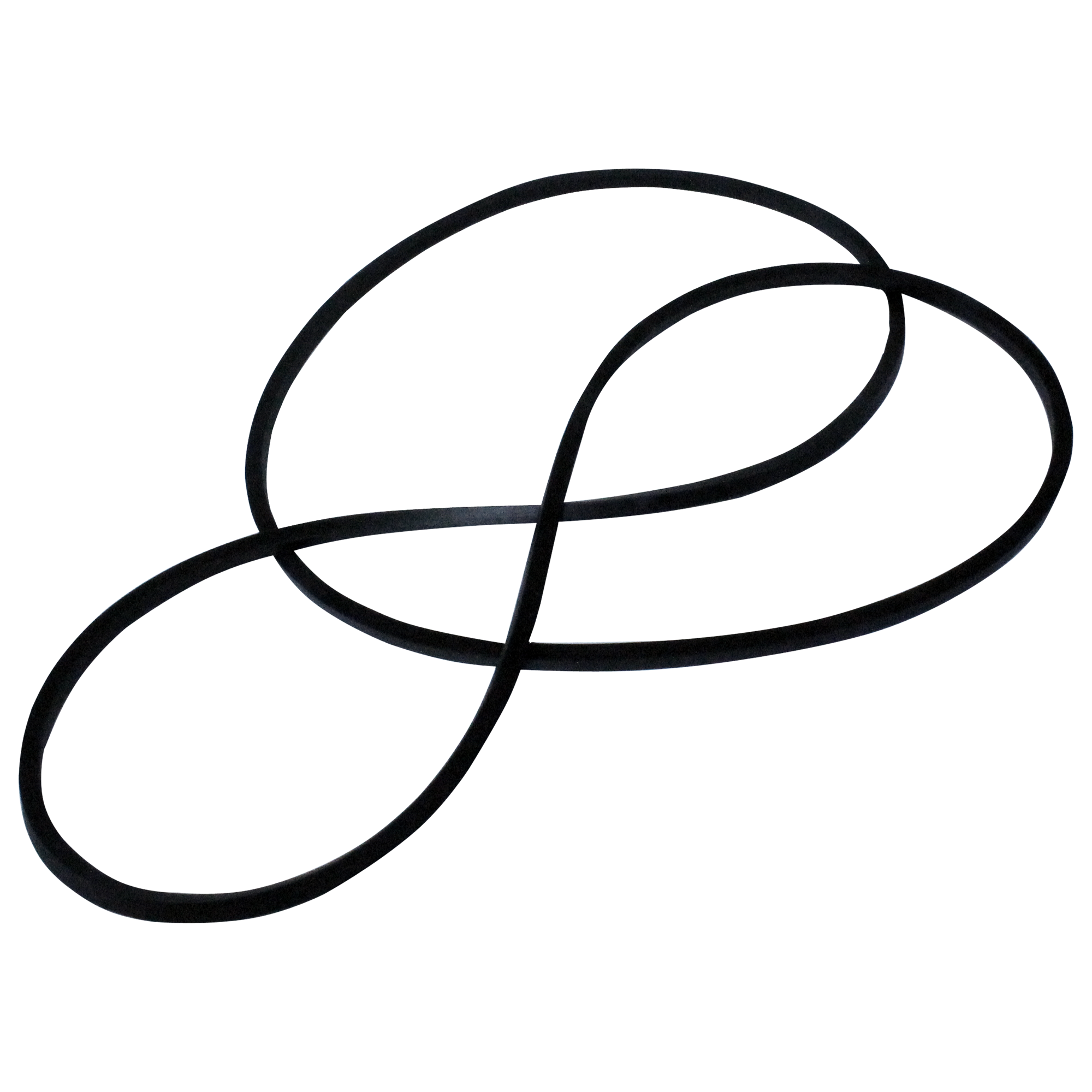

Lip Seal outer, polyacrylic reverse 1948 - 1962 8611992
Lip Seal 8611992
outer, polyacrylic reverse & 1948 - 1962

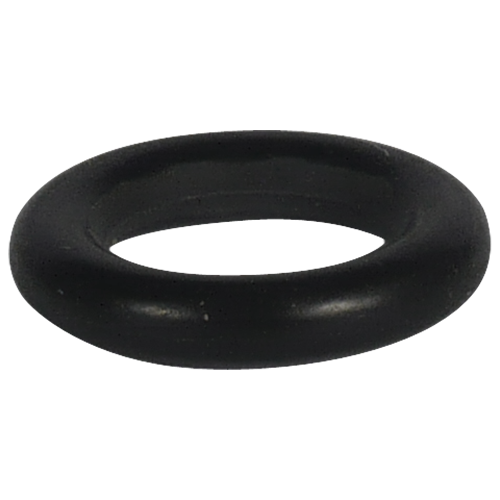

Seal Inside lip, manual lever, (3314L) 1948 - 1965 8615481
Seal 8615481
Inside lip, manual lever, (3314L) & 1948 - 1965
Seal Square Cut, Cooler Fitting 1956 - 1964 8616494
Seal 8616494
Square Cut, Cooler Fitting & 1956 - 1964

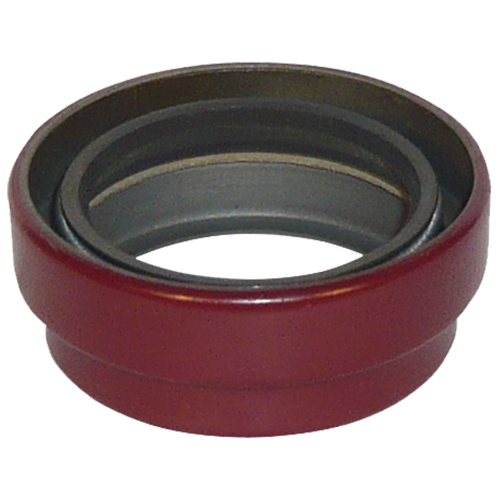

Metal Clad Seal Rear, Oldsmobile 1955 - 1955 8617123
Metal Clad Seal 8617123
Rear, Oldsmobile & 1955 - 1955

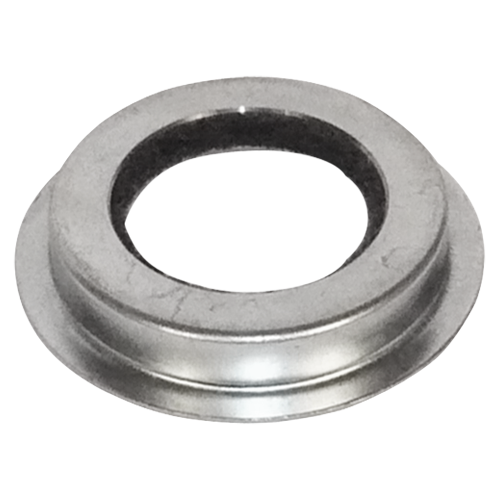

Seal Dust shield, Oldsmobile 1955 - 1955 8617124
Seal 8617124
Dust shield, Oldsmobile & 1955 - 1955
Lip Seal Neutral Outer, Polyacrylic (3281L) 1956 - 1964 8617364
Lip Seal 8617364
Neutral Outer, Polyacrylic (3281L) & 1956 - 1964

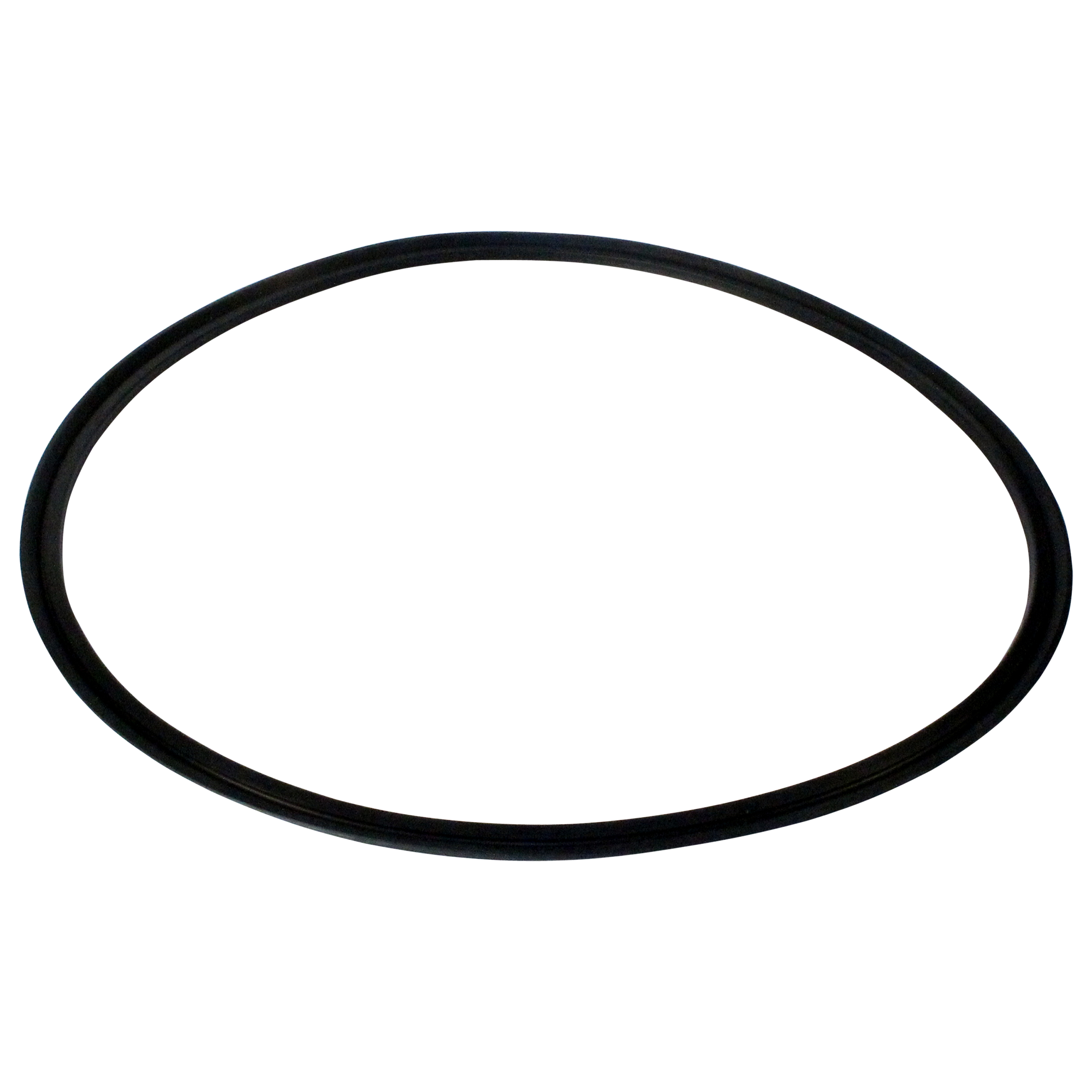

Lip Seal Reverse Outer 1956 - 1964 8617369
Lip Seal 8617369
Reverse Outer & 1956 - 1964

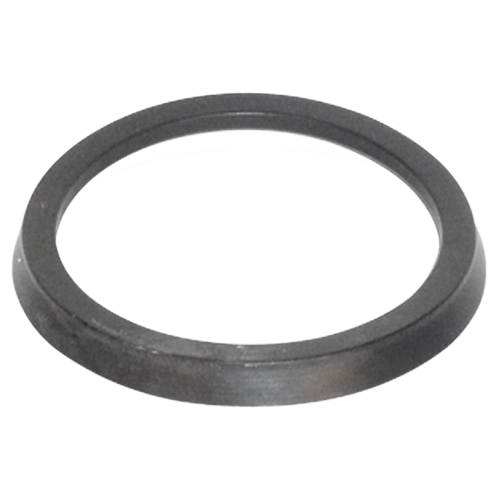

Lip Seal neutral inner, polyacrylic(3282L) 1956 - 1964 8617391
Lip Seal 8617391
neutral inner, polyacrylic(3282L) & 1956 - 1964
Bushing HYDRAMATIC CENTER GEAR
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060
 8618136
Bushing 8618136
HYDRAMATIC CENTER GEAR &
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060

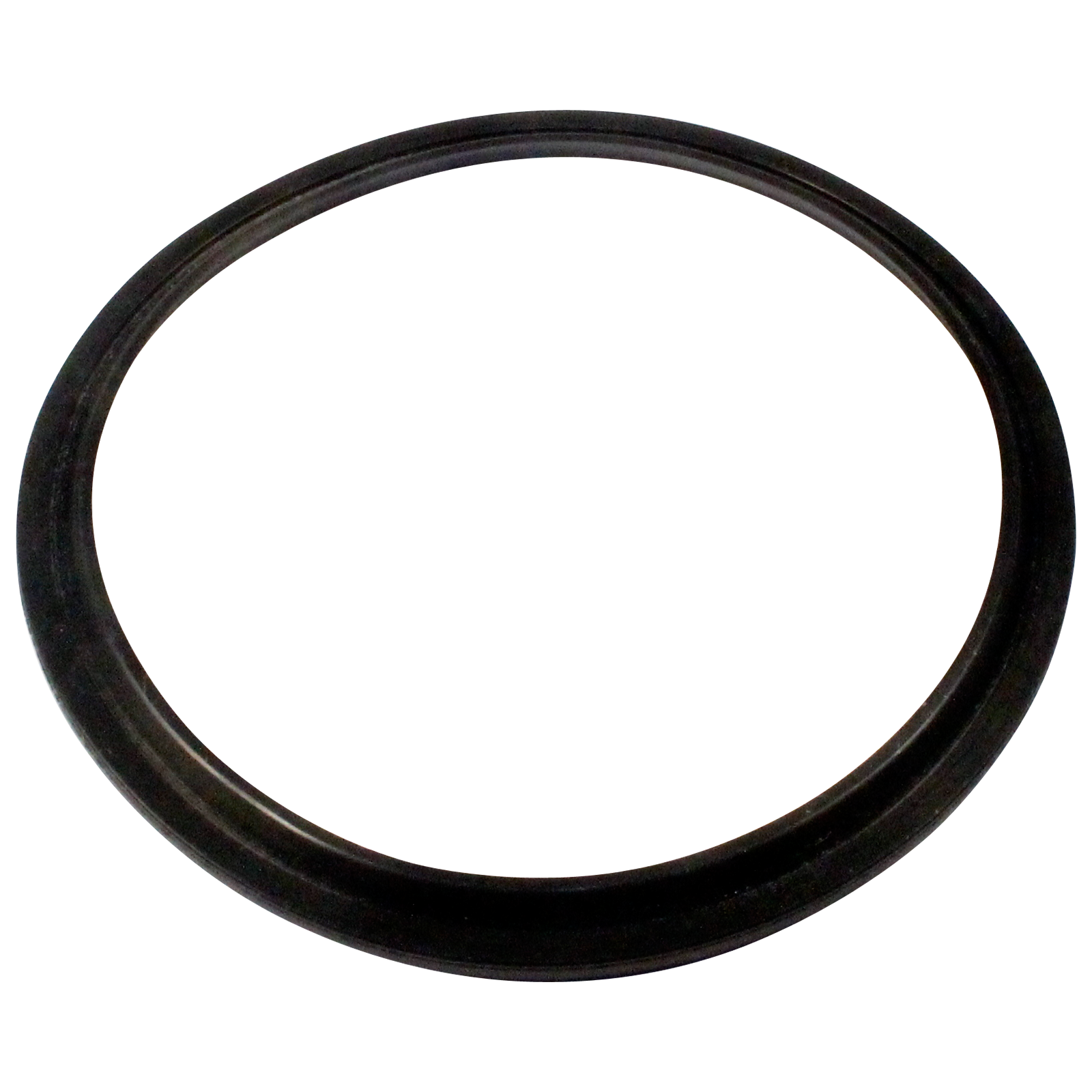

Lip Seal reverse inner, polyacrylic (3531L) 1956 - 1964 8618743
Lip Seal 8618743
reverse inner, polyacrylic (3531L) & 1956 - 1964
Spring Detent 1956 - 1964 8619104
Spring 8619104
Detent & 1956 - 1964

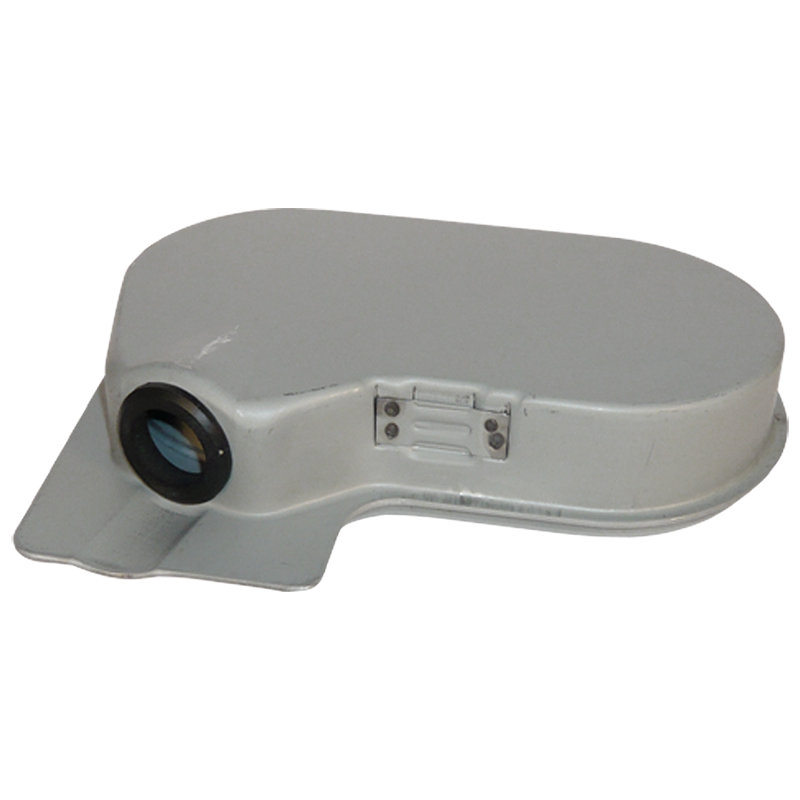

Filter (4740C) Jetaway 1956 - 1964 8619214
Filter 8619214
(4740C) & Jetaway 1956 - 1964

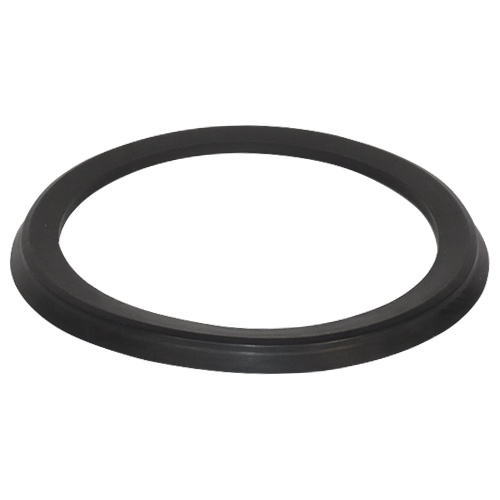

Lip Seal polyacrylic, inner, F&R 1948 - 1962 8619300
Lip Seal 8619300
polyacrylic, inner, F&R & 1948 - 1962

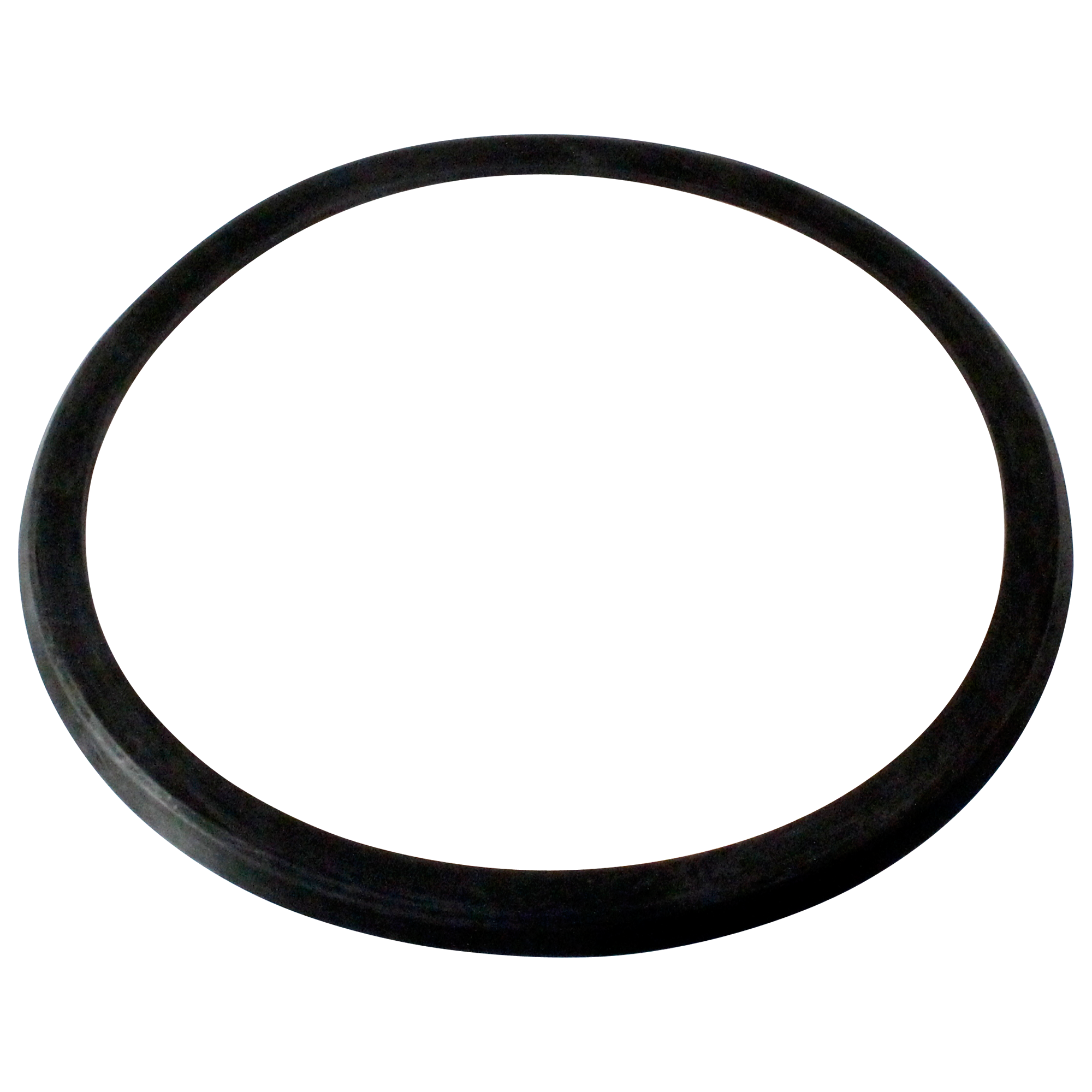

Lip Seal polyacrylic, outer 1948 - 1962 8619301
Lip Seal 8619301
polyacrylic, outer & 1948 - 1962

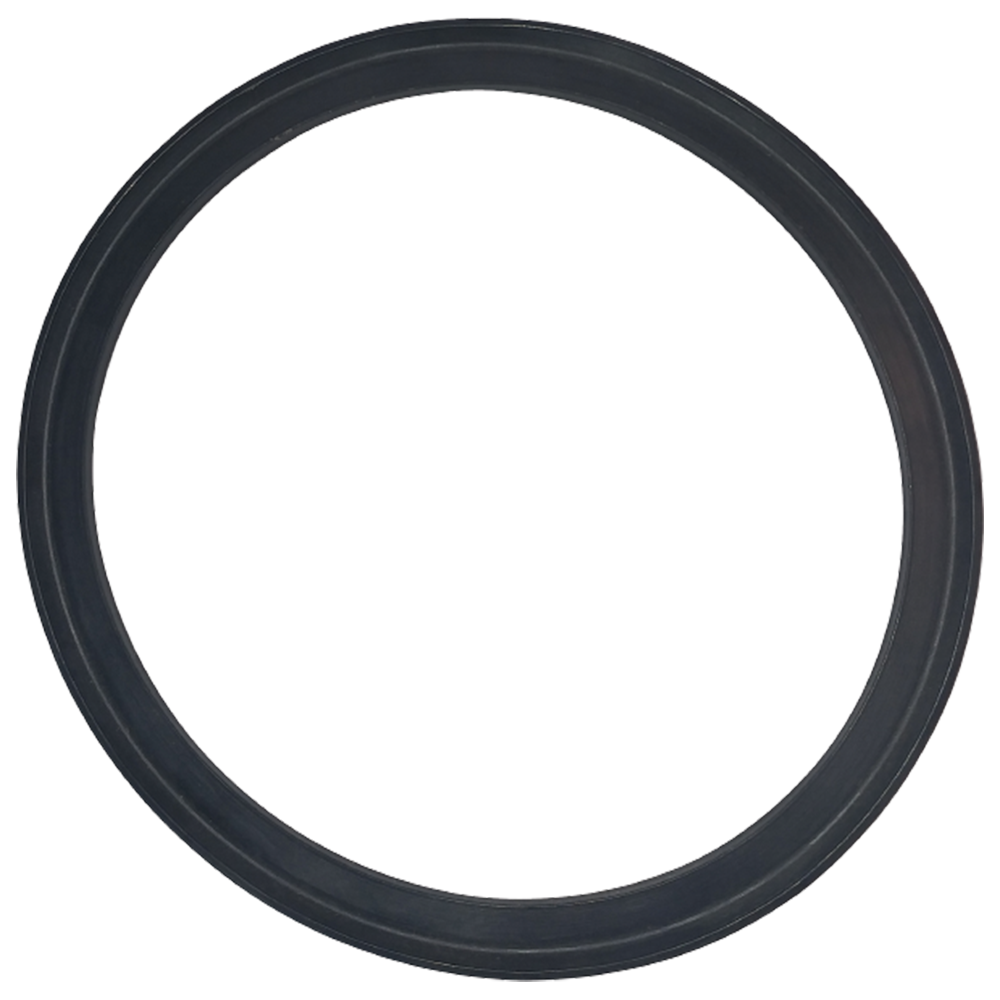

Lip Seal outer (3157L) 1948 - 1962 8619315
Lip Seal 8619315
outer (3157L) & 1948 - 1962

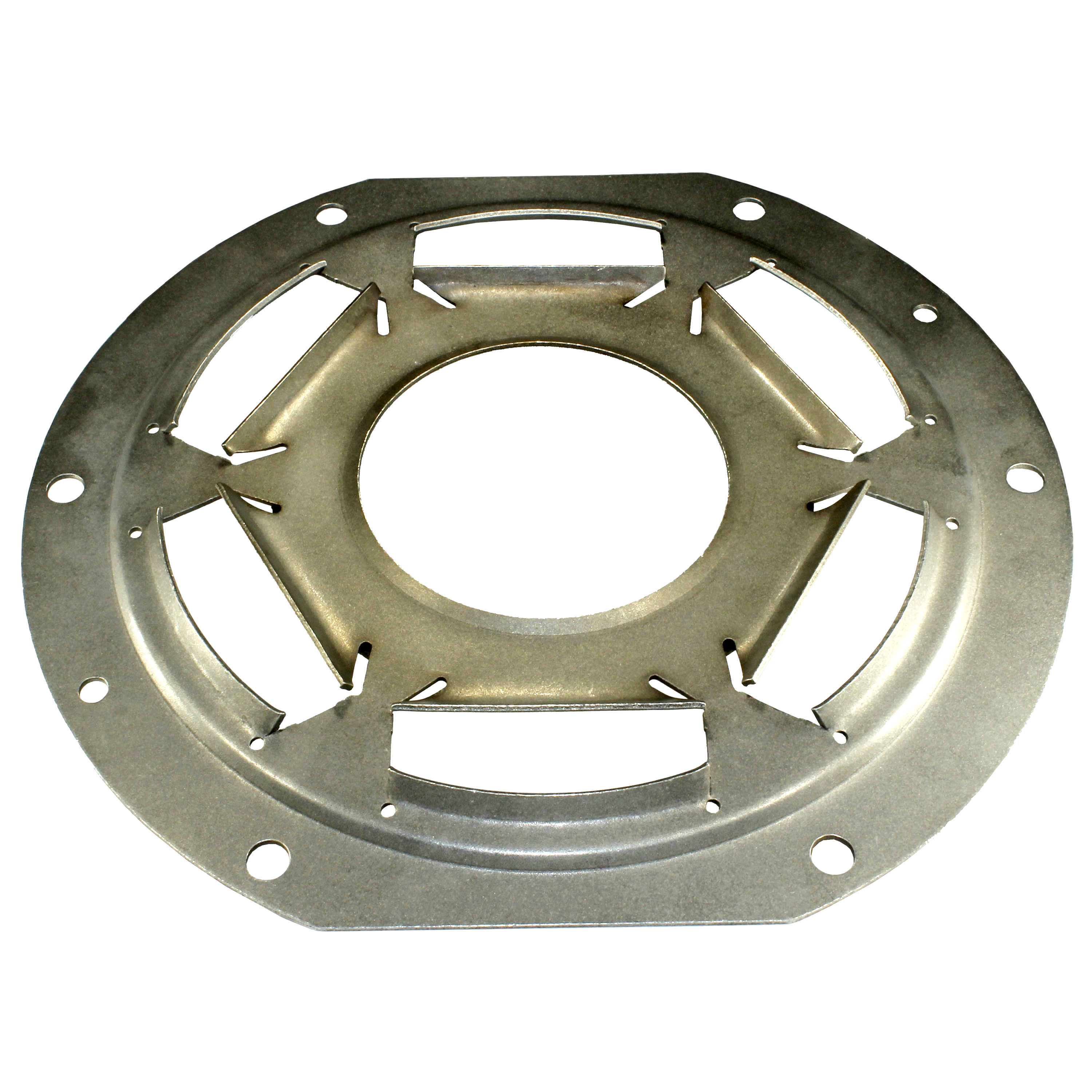

Plate Slim Jim Damper, Bonded Slim Jim 8621681
Plate 8621681
Slim Jim Damper, Bonded & Slim Jim
Plate Slim Jim Damper Rebond Slim Jim 8621681R
Plate 8621681R
Slim Jim Damper Rebond & Slim Jim
Damper Assembly Flywheel, Model 10 SlimJim 8621966
Damper Assembly 8621966
Flywheel, Model 10 & SlimJim
Damper Assembly Flywheel, Model 05 8622206
Damper Assembly 8622206
Flywheel, Model 05 &
Overhaul Kit Model 10, K24900-1
Overhaul Kit K24900-1
Model 10, &
Bushing 1948 - 1964
  • Thickness: 0.624"
  • Housing Bore Dia: 1.623"
  • Shaft Dia: 1.5"
  • Material: Bronze
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060
 RB-18
Bushing RB-18
& 1948 - 1964
  • Thickness: 0.624"
  • Housing Bore Dia: 1.623"
  • Shaft Dia: 1.5"
  • Material: Bronze
  • Outside Dia: 1.6271
  • Inside Dia: 1.5060
