Transmission | Ford | Cruisomatic, Fordomatic,Iron Case & 3-Speed, BW 8 & 12

Ill.# Image Description Specification Part #
Bushing Stator Support .
  • Inside Dia: 0.907"
 6009
Bushing 6009
Stator Support . &
  • Inside Dia: 0.907"

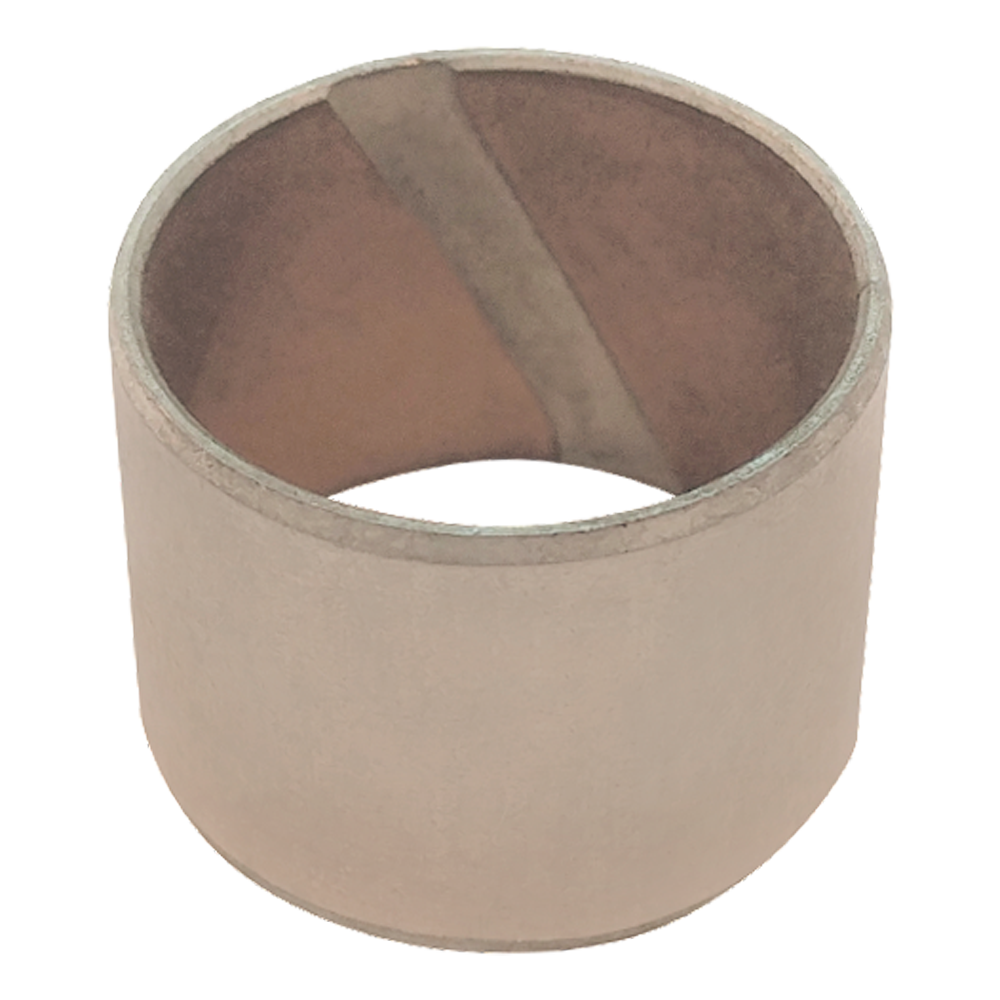

Bushing Stator Support With 17 Spline, Input Shaft, 1.000 X .908 6009X
Bushing 6009X
Stator Support With 17 Spline, Input Shaft, 1.000 X .908 &

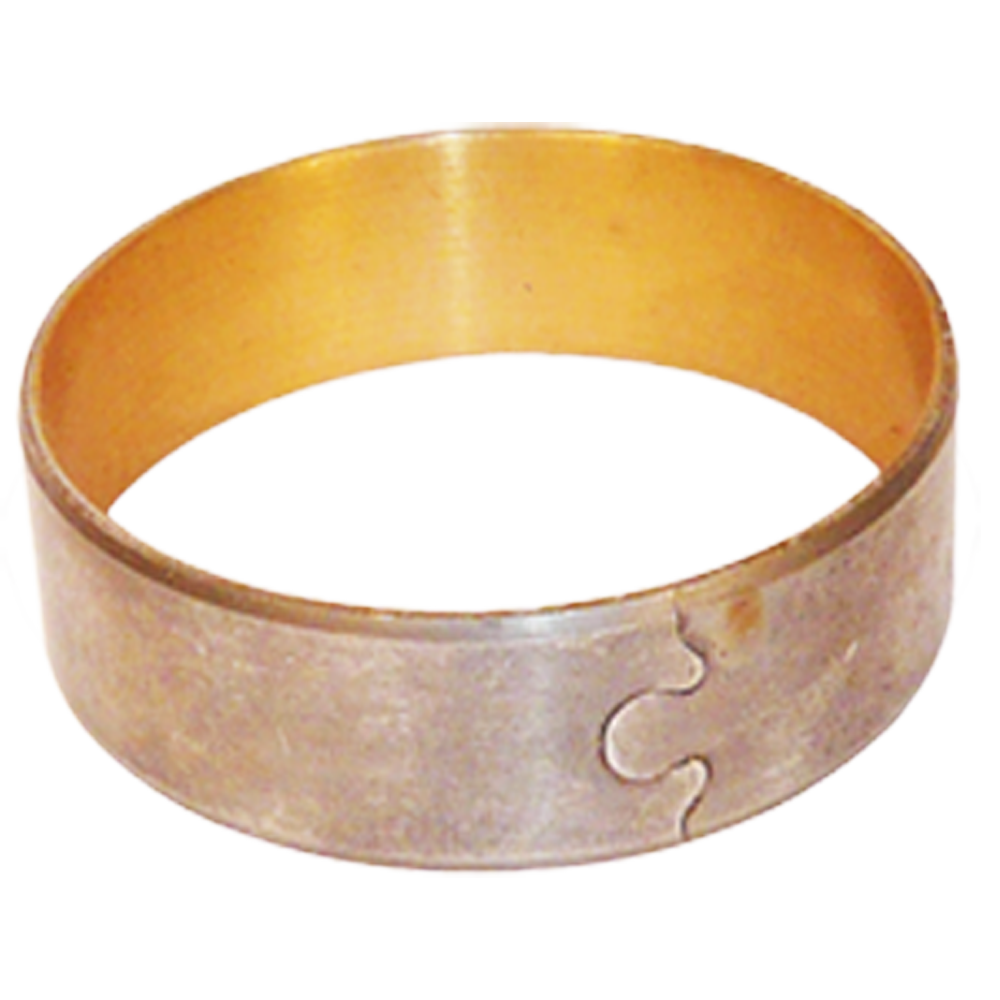

Bushing pump body 6010
Bushing 6010
pump body &
Bushing Front pump 6011
Bushing 6011
Front pump &
Bushing 6017
Bushing 6017
&
Bushing Extension Housing 1959 - 1964 6023
Bushing 6023
Extension Housing & 1959 - 1964
Sprag Lincoln 6107E
Sprag 6107E
Lincoln &
Fiber Washer Front Clutch Hub 6203A
Fiber Washer 6203A
Front Clutch Hub &
Friction Plate Front, Paper (.060")
  • Thickness: 0.059"
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"
 6204G
Friction Plate 6204G
Front, Paper (.060") &
  • Thickness: 0.059"
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"
Steel Clutch-Plate Front & Rear (.068) 6205
Steel Clutch-Plate 6205
Front & Rear (.068) &
Friction Plate Rear (.079)
  • Thickness: 0.079"
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"
 6221G
Friction Plate 6221G
Rear (.079) &
  • Thickness: 0.079"
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"
Sprag Planet 1956 - 1967
  • Cam Count: 24 elements
  • Outside Dia: 4.685"
 6239C
Sprag 6239C
Planet & 1956 - 1967
  • Cam Count: 24 elements
  • Outside Dia: 4.685"
Sprag 30 Cams 1956 - 1967 6239D
Sprag 6239D
30 Cams & 1956 - 1967
Sprag 36 cams 1956 - 1967 6239E
Sprag 6239E
36 cams & 1956 - 1967
Roller Clutch (Sprag) 1963 - 1981 6239G
Roller Clutch (Sprag) 6239G
& 1963 - 1981
Front Pump Assembly For 29 Spline Shaft 1955 - on 6551D
Front Pump Assembly 6551D
For 29 Spline Shaft & 1955 - on

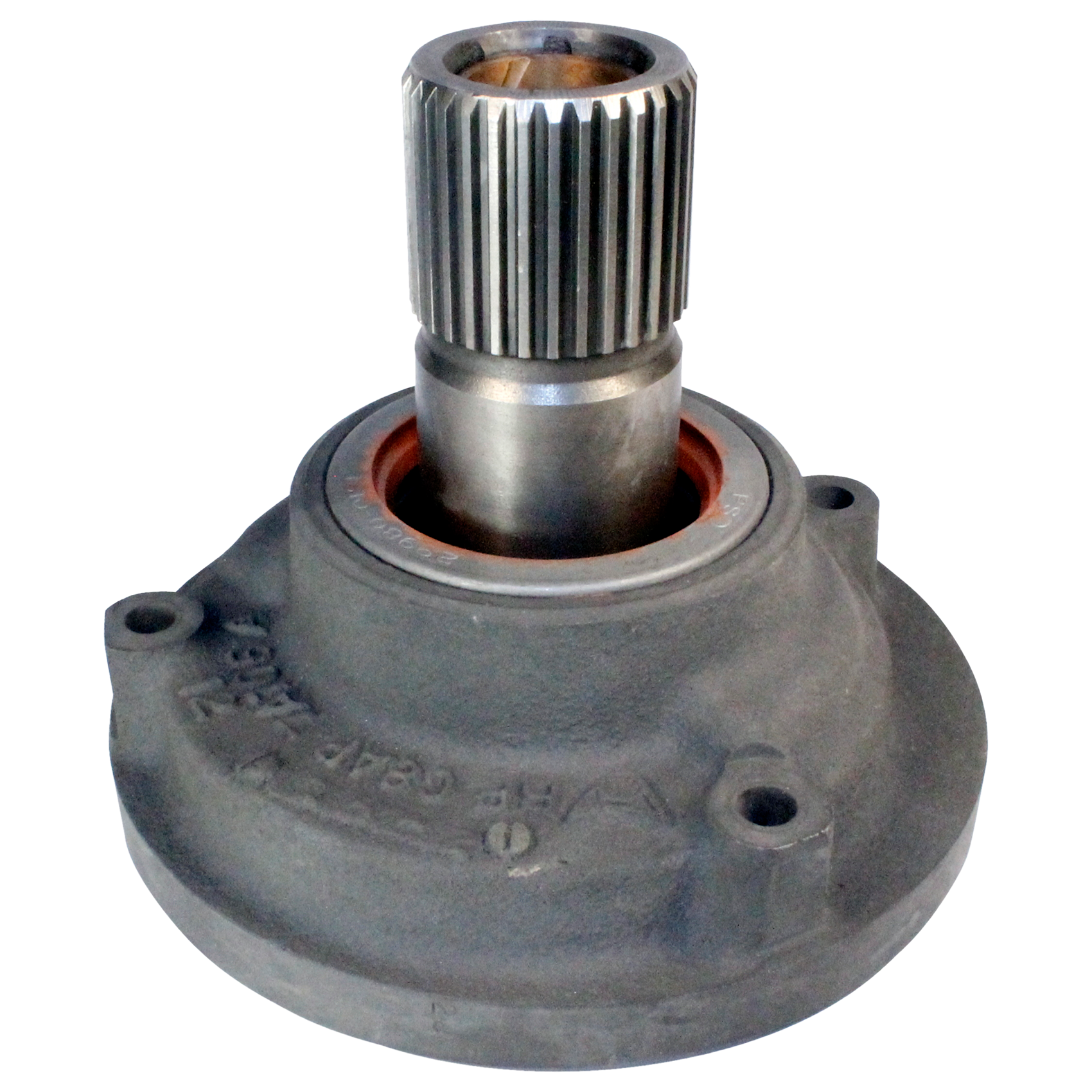

Pump Front 68 - 87 6551L
Pump 6551L
Front & 68 - 87
Pump Rear 1951-1961 6554B
Pump 6554B
Rear & 1951-1961

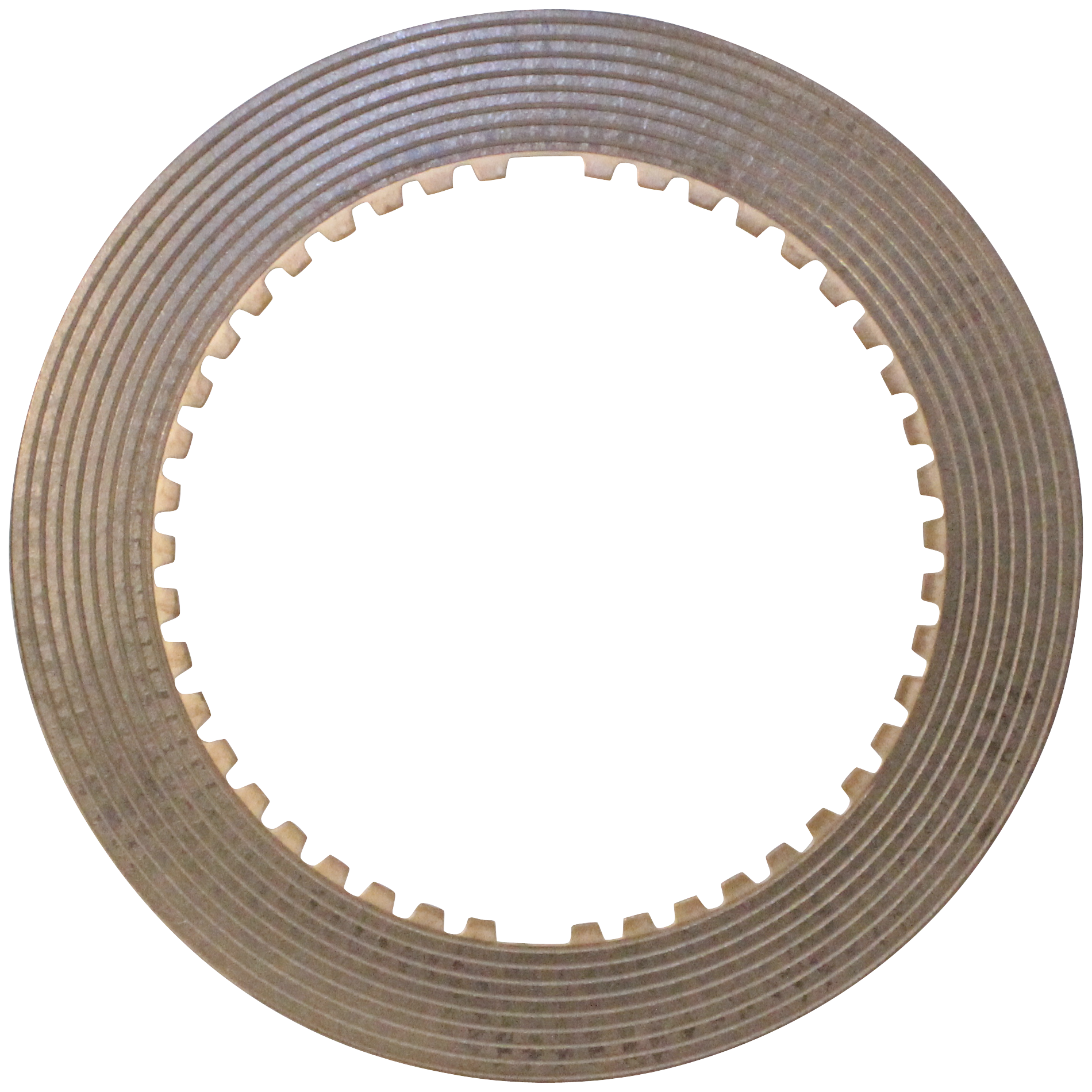

Disc Clutch
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"
 7340150
Disc 7340150
Clutch &
  • Outside Dia: 5.252"
  • Inside Dia: 3.661"

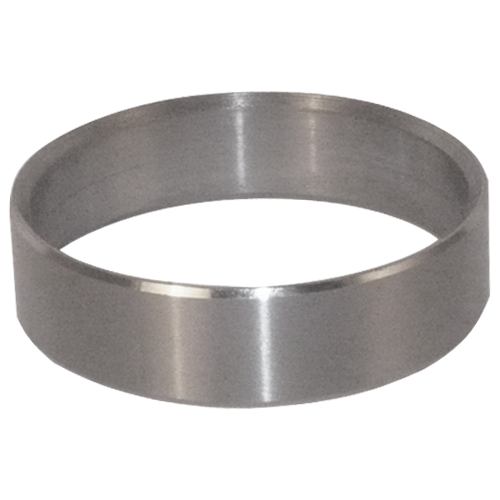

Repair Sleeve Stator Support 50 - on
  • Width: 0.475
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.8085
  • Inside Dia: 1.6500
 MFB-2
Repair Sleeve MFB-2
Stator Support & 50 - on
  • Width: 0.475
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 1.8085
  • Inside Dia: 1.6500

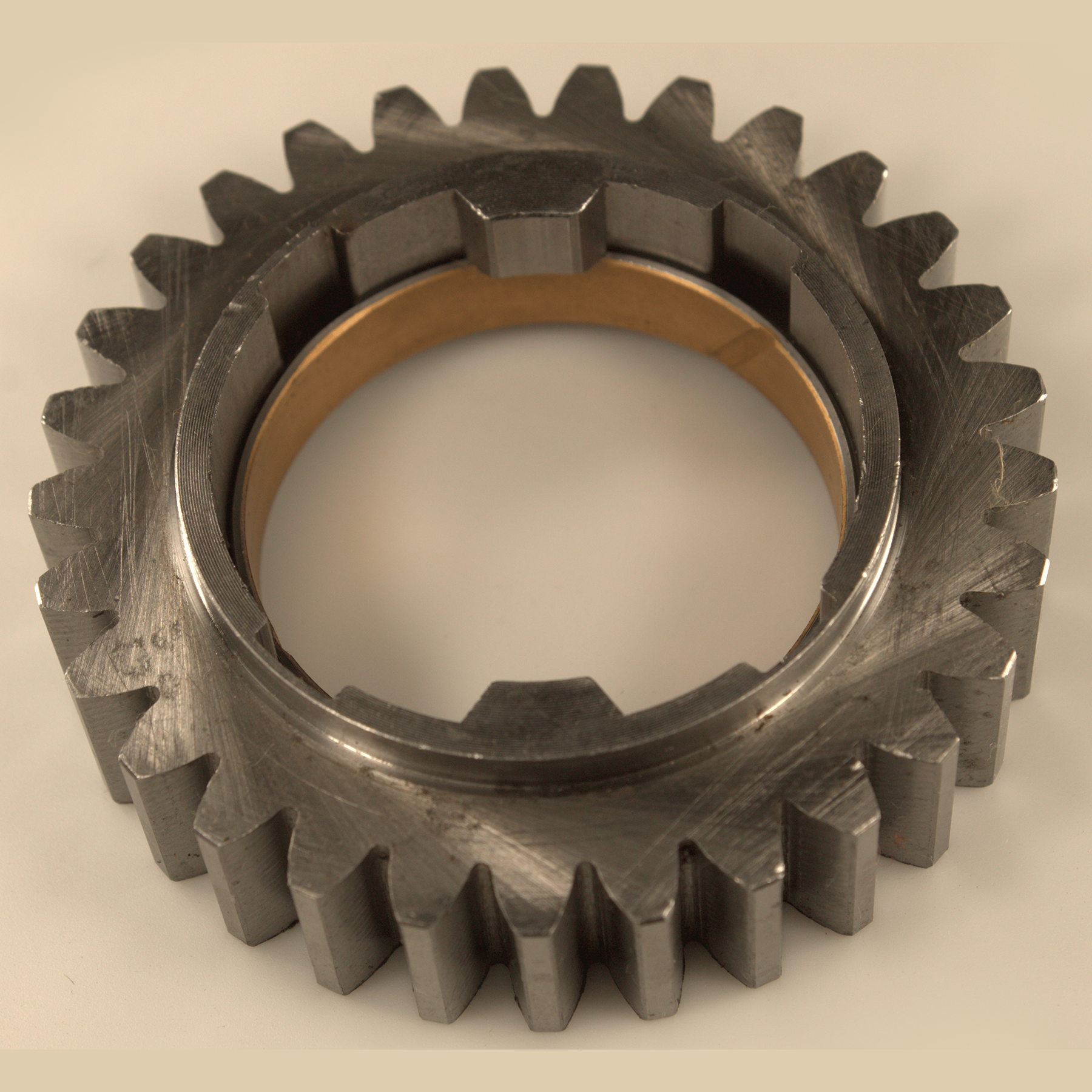

Inner Pump Gear & Bushing Fordomatic 3-Speed Fordomatic 3 Speed MG-3S-6011-I
Inner Pump Gear & Bushing MG-3S-6011-I
Fordomatic 3-Speed & Fordomatic 3 Speed
Pump Gear Kit Front 50 - on MG-3SK
Pump Gear Kit MG-3SK
Front & 50 - on

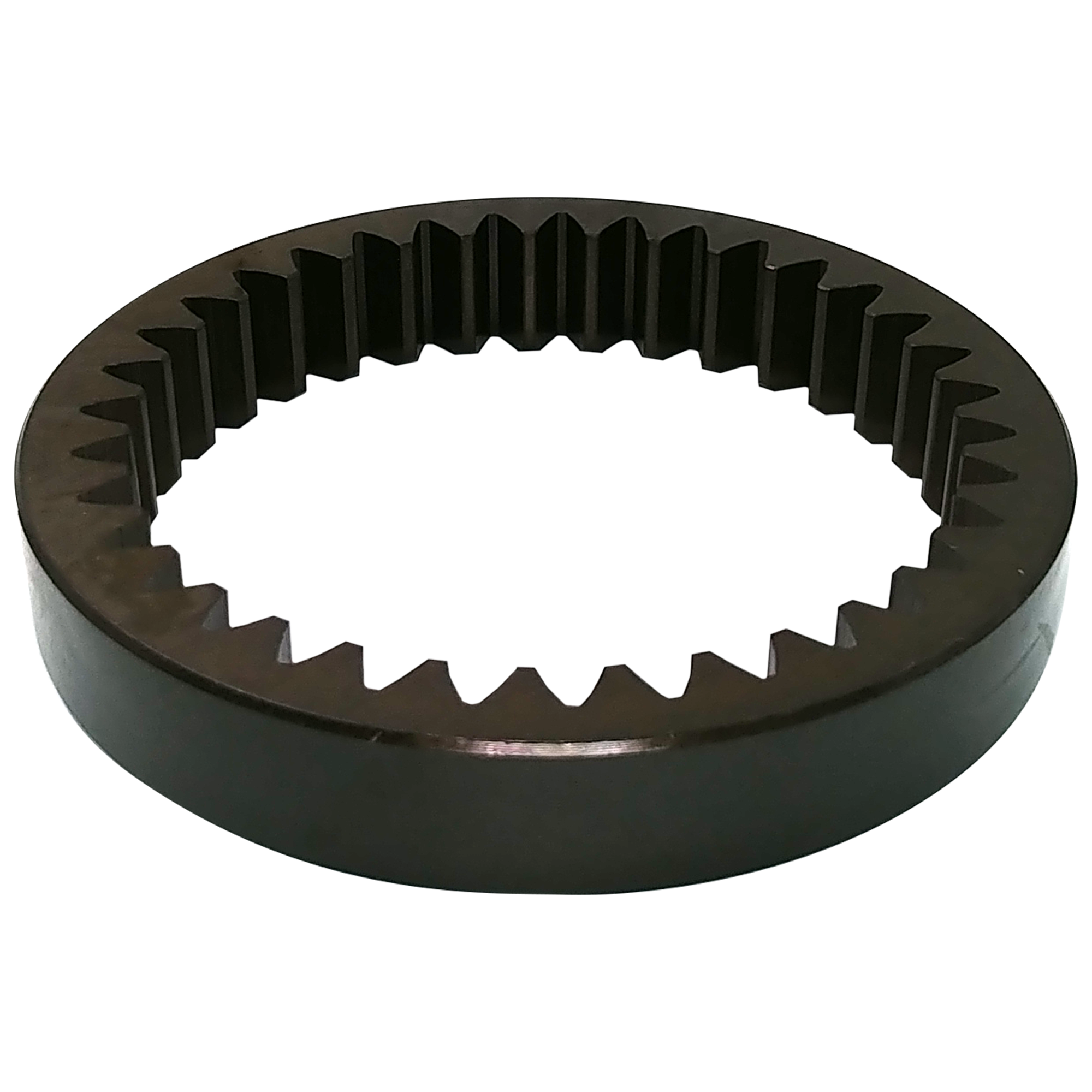

Outer Pump Gear 68 - 87 MGO-BW-030
Outer Pump Gear MGO-BW-030
& 68 - 87
