Transmission | Chrysler (Mopar) | A727

Ill.# Image Description Specification Part #
Accordion Spring 1962 - on 1942187
Accordion Spring 1942187
& 1962 - on
Bushing Pump,Bronze, T/F8
  • Thickness: 0.530"
  • Housing Bore Dia: 2.000"
  • Shaft Dia: 1.875"
 22003A
Bushing 22003A
Pump,Bronze, T/F8 &
  • Thickness: 0.530"
  • Housing Bore Dia: 2.000"
  • Shaft Dia: 1.875"
Bushing Pump,Bronze,Dimpled
  • Thickness: 0.530"
  • Housing Bore Dia: 2.000"
  • Shaft Dia: 1.875"
 22003B
Bushing 22003B
Pump,Bronze,Dimpled &
  • Thickness: 0.530"
  • Housing Bore Dia: 2.000"
  • Shaft Dia: 1.875"

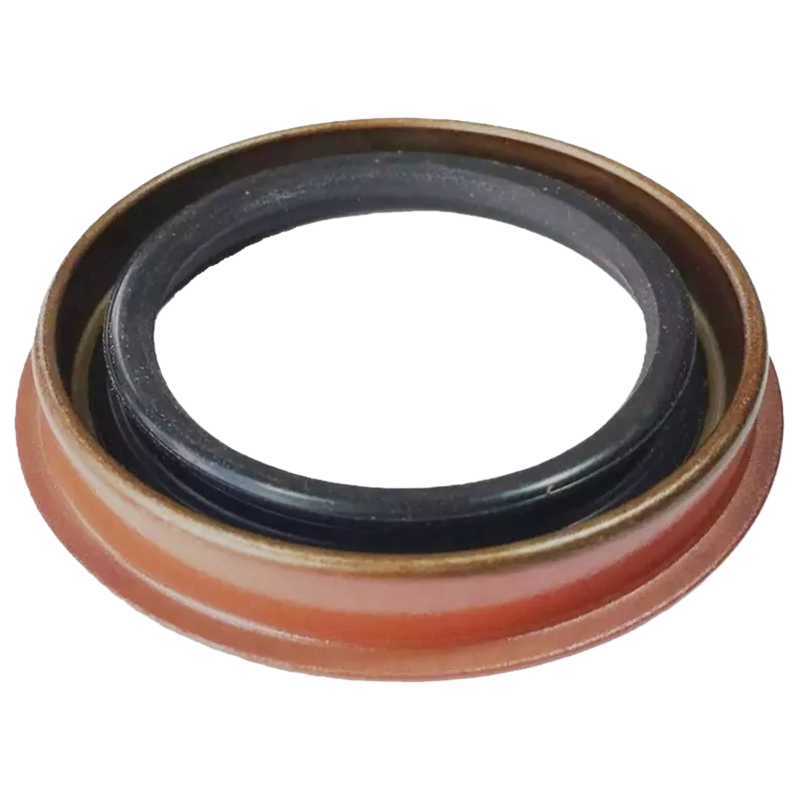

Metal Clad Seal Front Pump / Torque Converter Hub
  • Height: 0.375"
  • Flange Dia: 2.868"
  • Housing Bore Dia: 2.624"
  • Shaft Dia: 1.875"
  • Material: Silicone
 22070
Metal Clad Seal 22070
Front Pump / Torque Converter Hub &
  • Height: 0.375"
  • Flange Dia: 2.868"
  • Housing Bore Dia: 2.624"
  • Shaft Dia: 1.875"
  • Material: Silicone

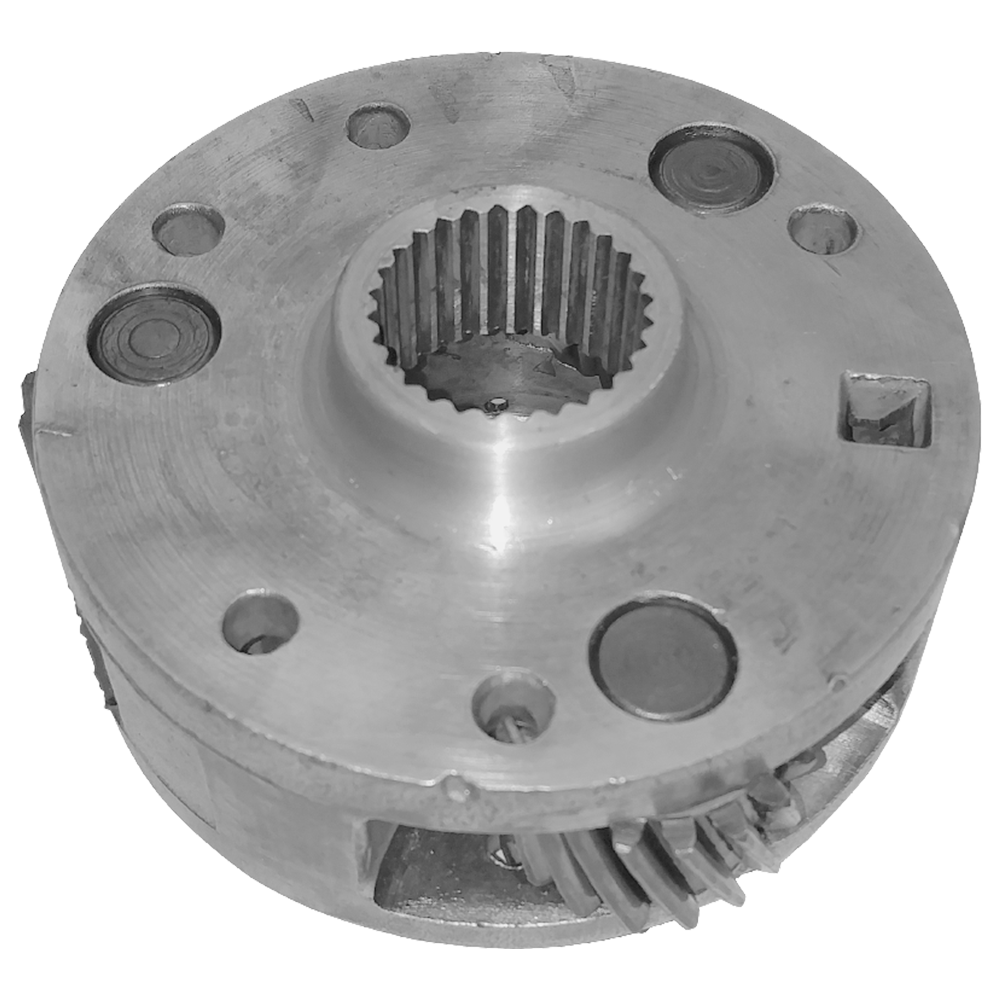

Planetary Carrier 3 Pinion A727, TF8, A518, 48RE 1965-75 22133
Planetary Carrier 22133
3 Pinion & A727, TF8, A518, 48RE 1965-75
Lever 22229B
Lever 22229B
&

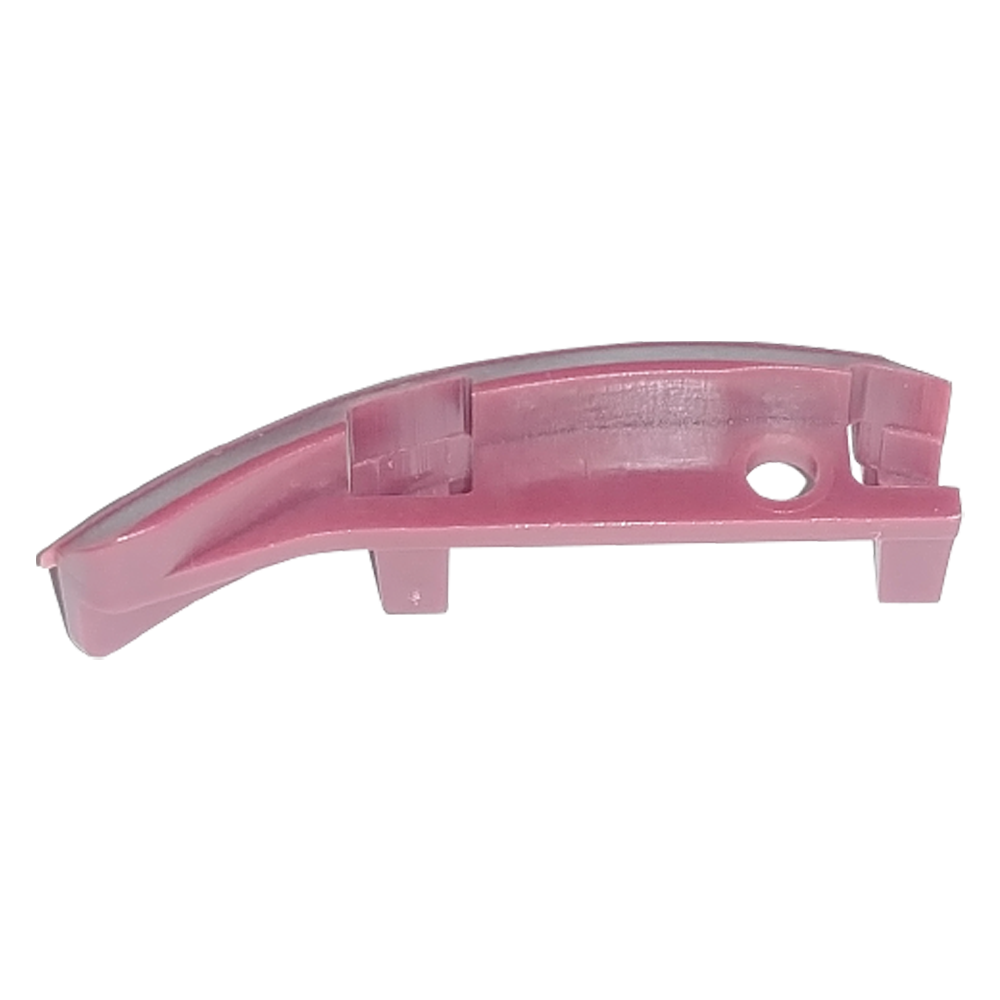

Lever Insulator, Red Derlin 22229R
Lever 22229R
Insulator, Red Derlin &

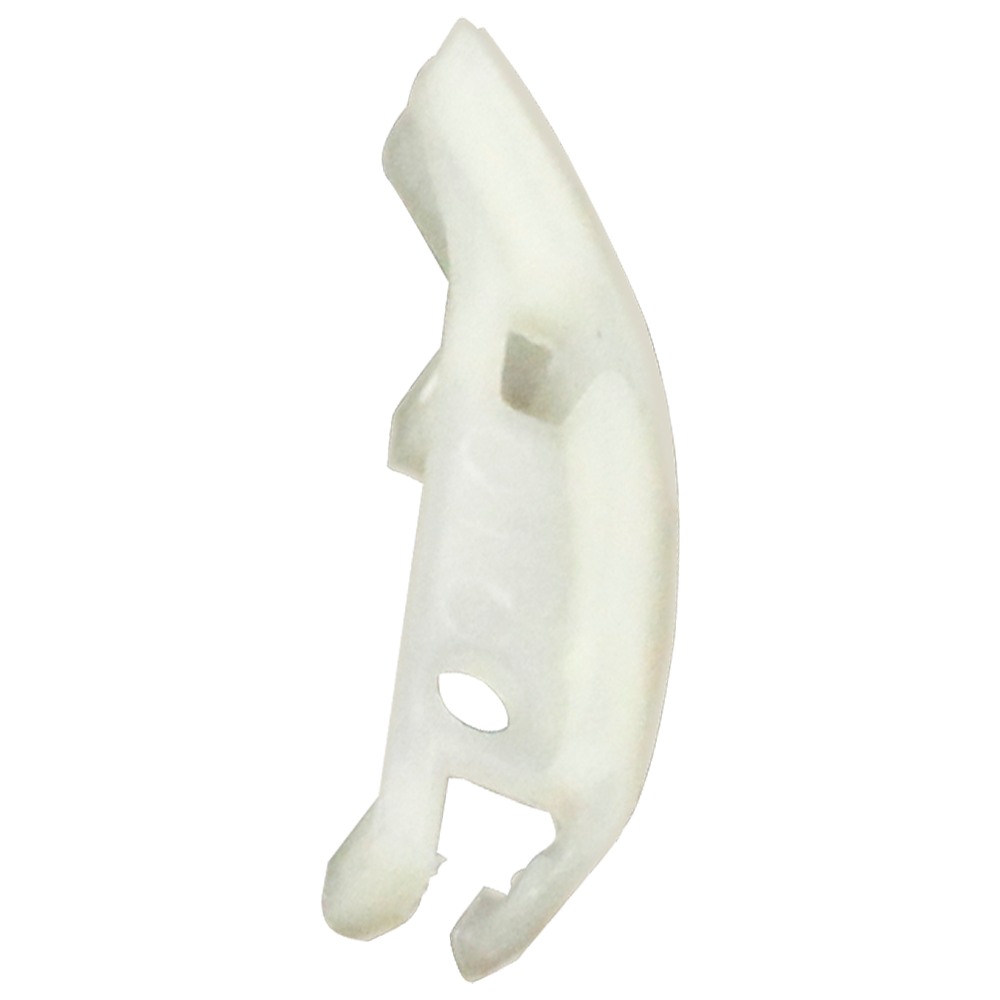

Insulator 22229X
Insulator 22229X
&

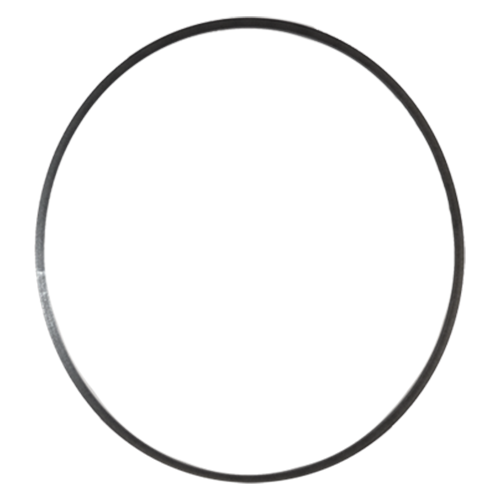

Spacer Nylon, Rear Clutch 1990 - on 22601E
Spacer 22601E
Nylon, Rear Clutch & 1990 - on

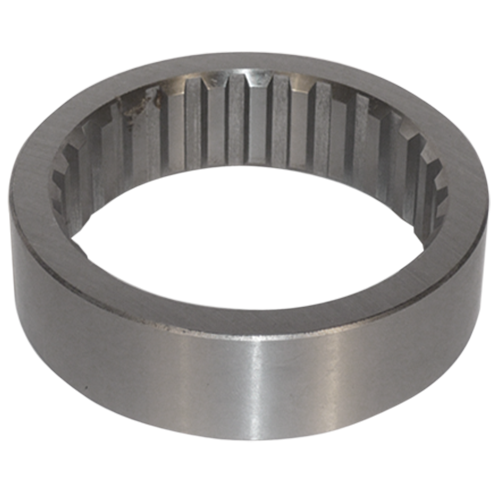

Inner Race 62 - on 22750
Inner Race 22750
& 62 - on

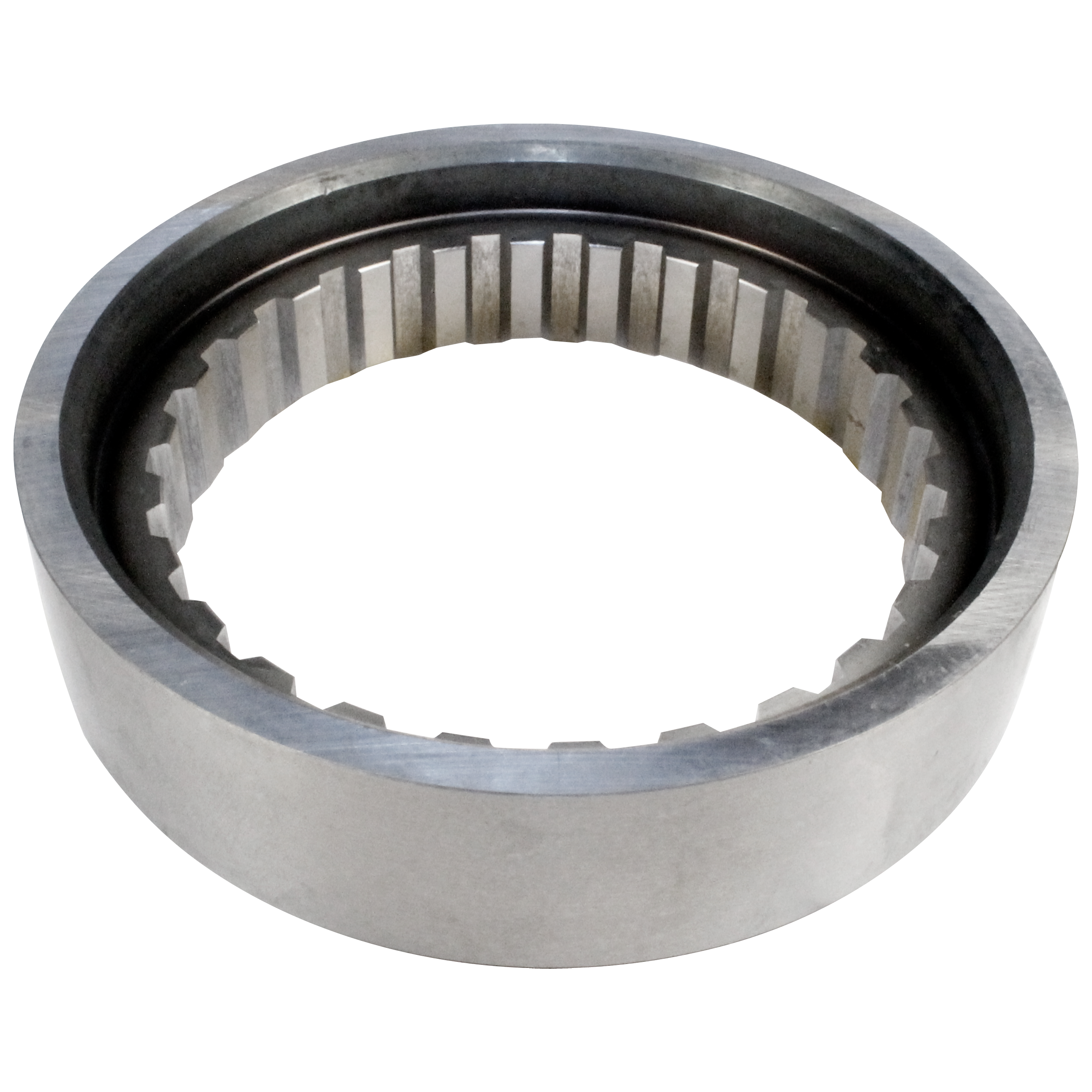

Inner Race TF-8 , Late, Press-On for 14 Roller Sprag, A727/A518/A618, 1991-On 22750L
Inner Race 22750L
TF-8 , Late, Press-On & for 14 Roller Sprag, A727/A518/A618, 1991-On

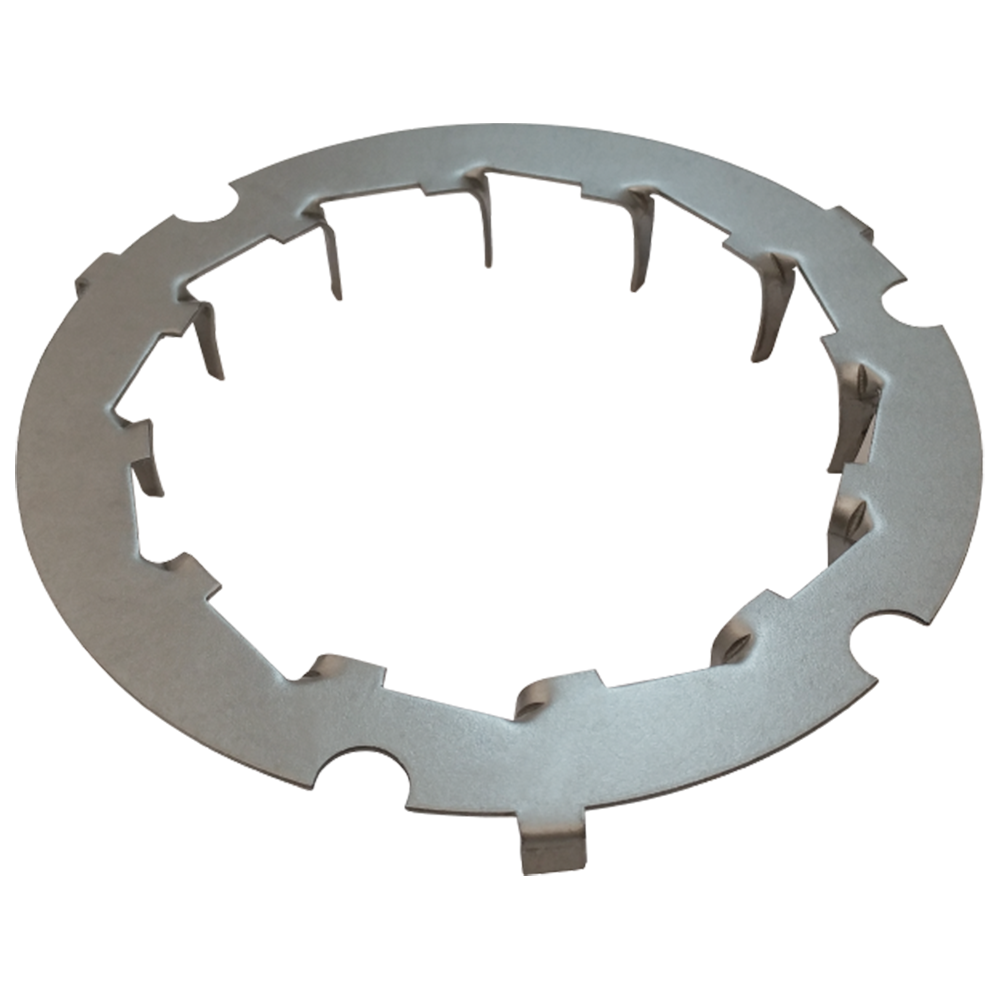

Retainer Modified 22752S
Retainer 22752S
Modified &

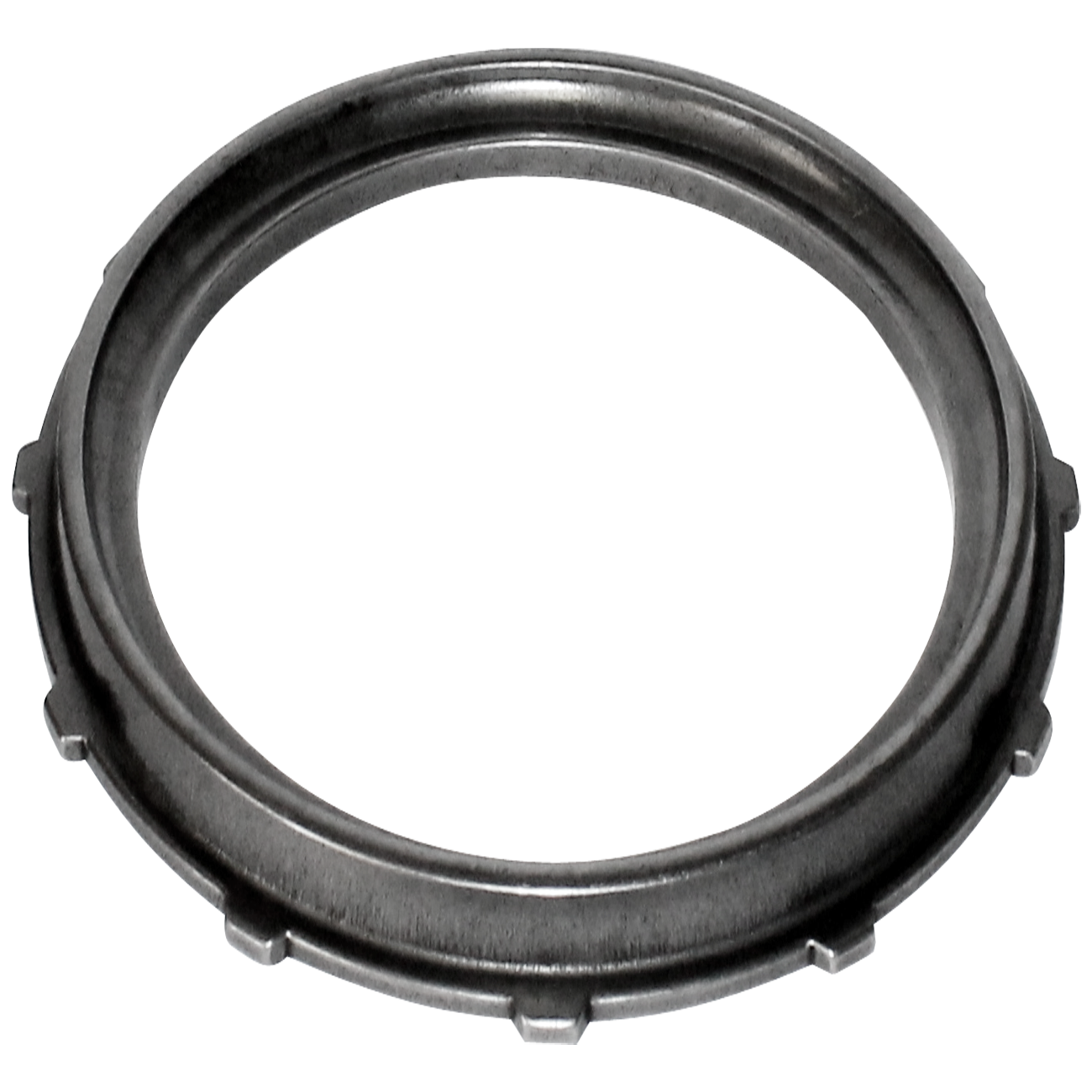

Pressure Plate Rear,Beveled, Forward / Direct Clutch 2466803 A727/A518/A618 22760
Pressure Plate 22760
Rear,Beveled, Forward / Direct Clutch & 2466803 A727/A518/A618
Lever 22770RC48
Lever 22770RC48
&
Grommet Torque Shaft Bushing 22801
Grommet 22801
Torque Shaft Bushing &

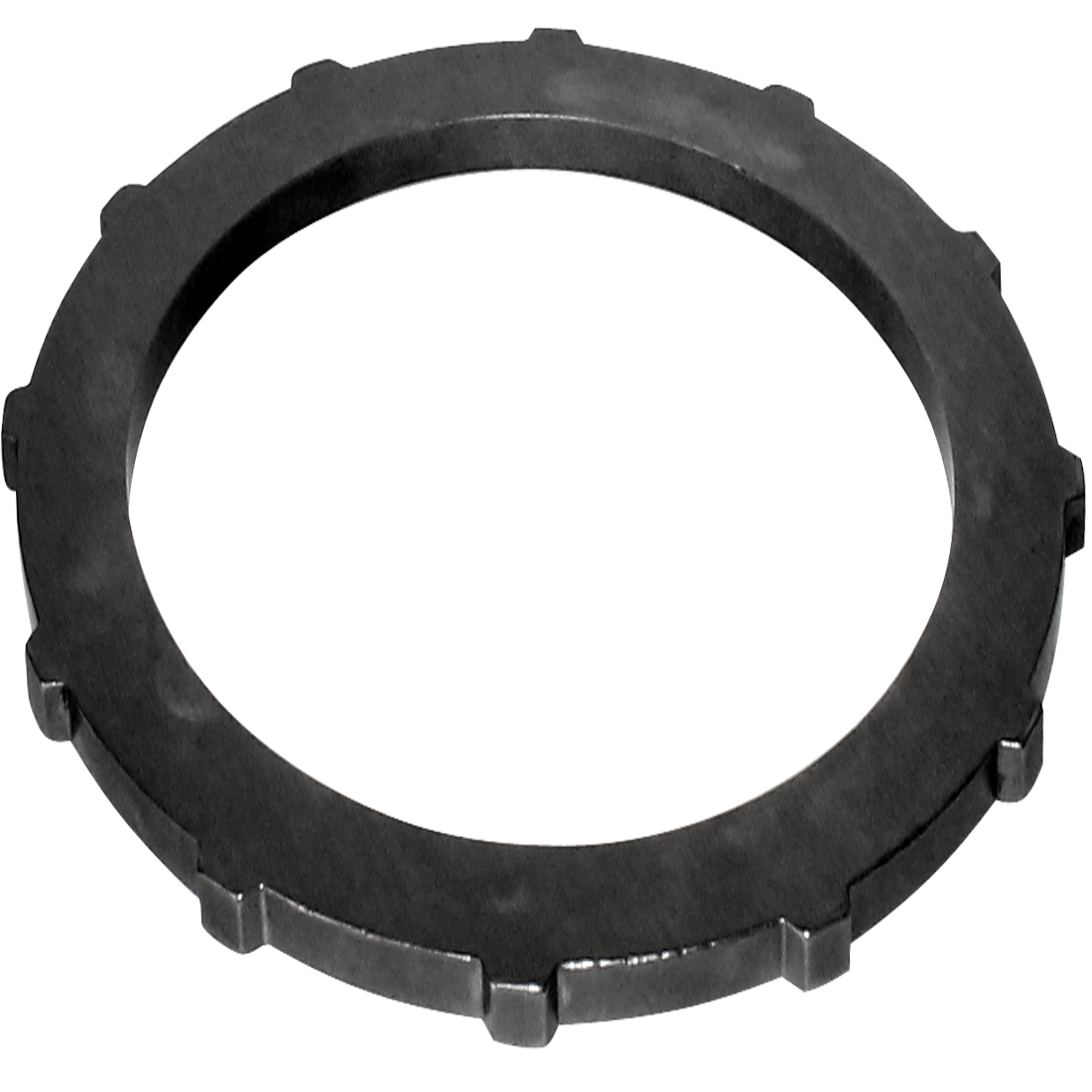

Pressure Plate Direct / Forward 62 - on 22940
Pressure Plate 22940
Direct / Forward & 62 - on

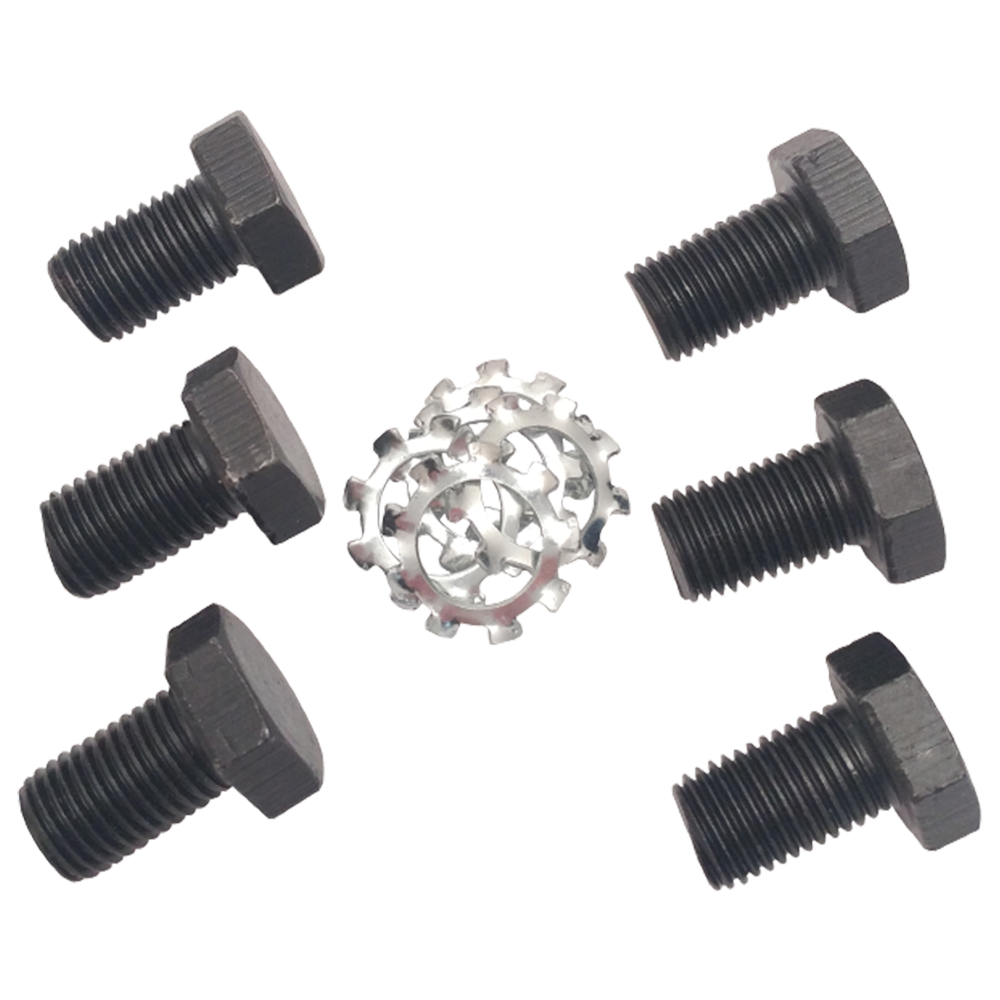

Bolt & Washer Kit 6 Washers & 6 bolts, 7/16"-20 x 11/16" 4696
Bolt & Washer Kit 4696
6 Washers & 6 bolts, 7/16"-20 x 11/16" &
Accordion Spring
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
&
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
Detent Lever Early, Long Stop (Rooster Comb) K22229B
Detent Lever K22229B
Early, Long Stop (Rooster Comb) &

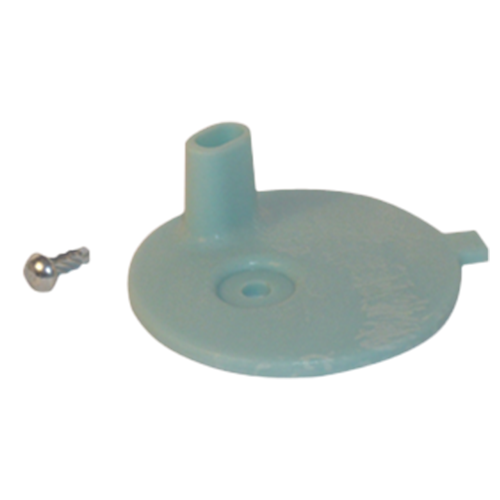

Baffle Kit Front Pump, Plastic 46RH/E, 47RH/E 71 - On K22537X
Baffle Kit K22537X
Front Pump, Plastic & 46RH/E, 47RH/E 71 - On

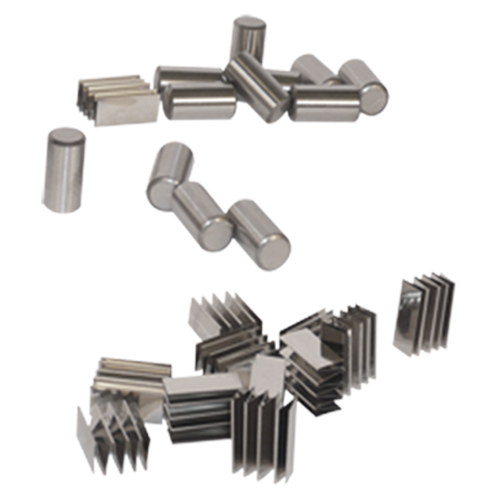

Kit Spring & Roller 1962 - on K22960
Kit K22960
Spring & Roller & 1962 - on

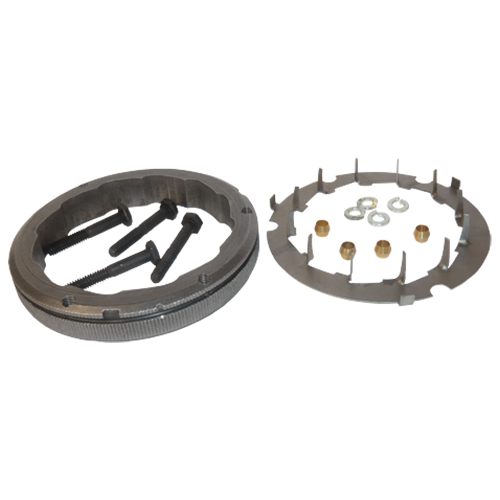

Kit Cam Repair, W/ Retainer & Hardware(To Correct Stripped Cases) 62 - on K22961M
Kit K22961M
Cam Repair, W/ Retainer & Hardware(To Correct Stripped Cases) & 62 - on

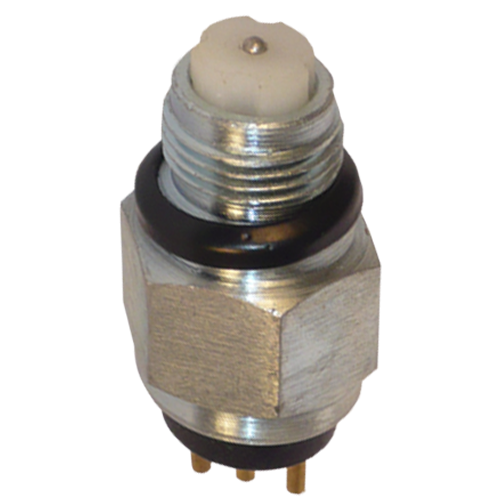

Switch Neutral K2627B
Switch K2627B
Neutral &

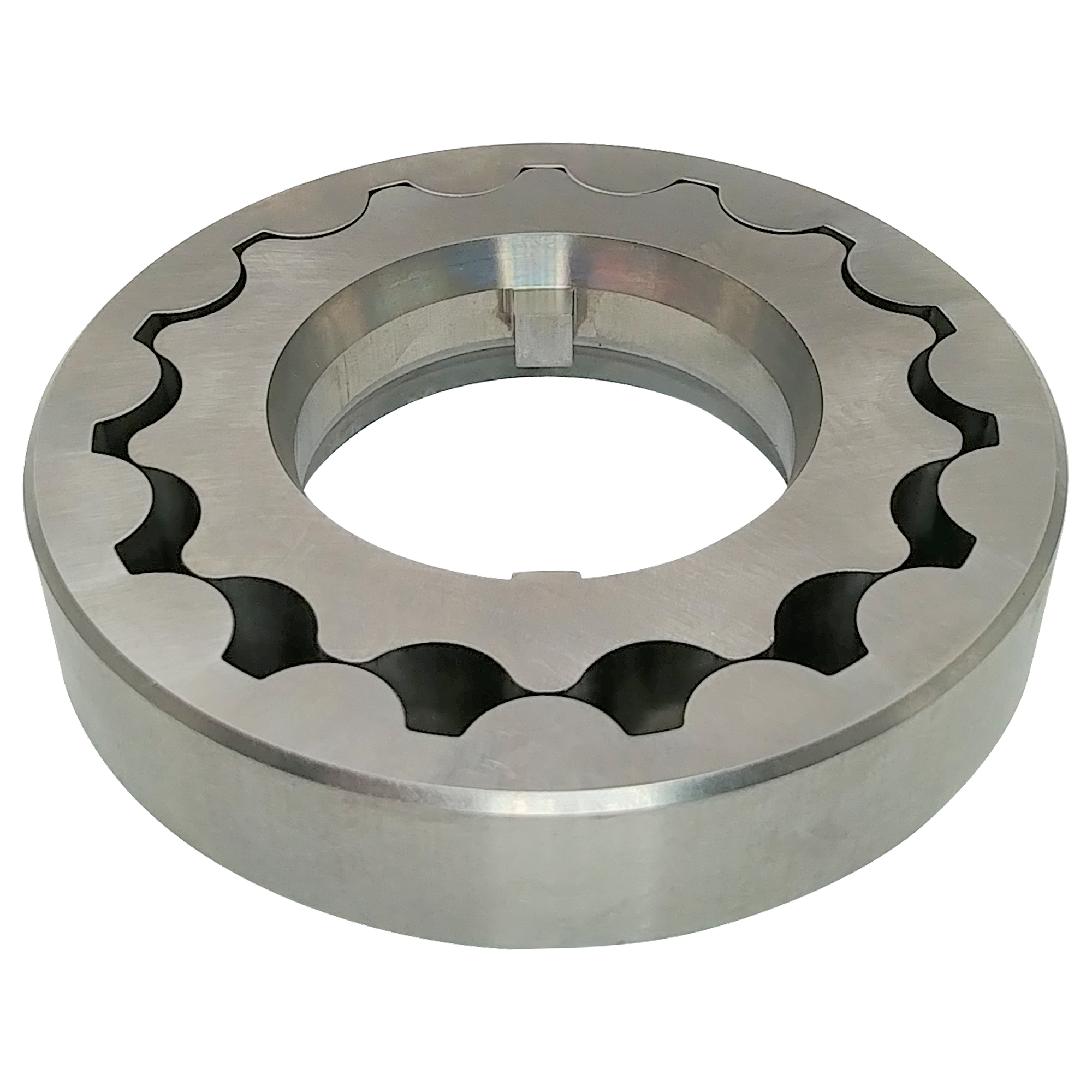

Rotor Kit .7465/.7475, T/F 8 MG-TEKA
Rotor Kit MG-TEKA
.7465/.7475, T/F 8 &
Rotor Kit .7476/.7486, T/F8 MG-TEKB
Rotor Kit MG-TEKB
.7476/.7486, T/F8 &
Rotor Kit .7487/.7497, T/F8 MG-TEKC
Rotor Kit MG-TEKC
.7487/.7497, T/F8 &

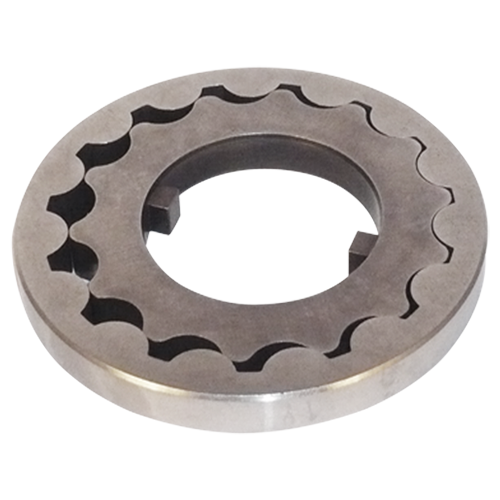

Kit Rotor,.375 Thick MG-TEKD
Kit MG-TEKD
Rotor,.375 Thick &
Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
Roller TR-7
& 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
Roller 1962 - on 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
Roller TR-7-2
& 1962 - on 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
Accordion Spring 1964 - on
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 1964 - on
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
