Part Search

Transmission | Allison | MT-640

Ill.# Image Description Specification Part #
Sleeve Ground, Unfinished 23013905
Sleeve 23013905
Ground, Unfinished &
Sleeve Ground, With Bearing 23014306
Sleeve 23014306
Ground, With Bearing &
Ground Sleeve Finished I.D. With Bearing 1972 - on 23014306A
Ground Sleeve 23014306A
Finished I.D. With Bearing & 1972 - on

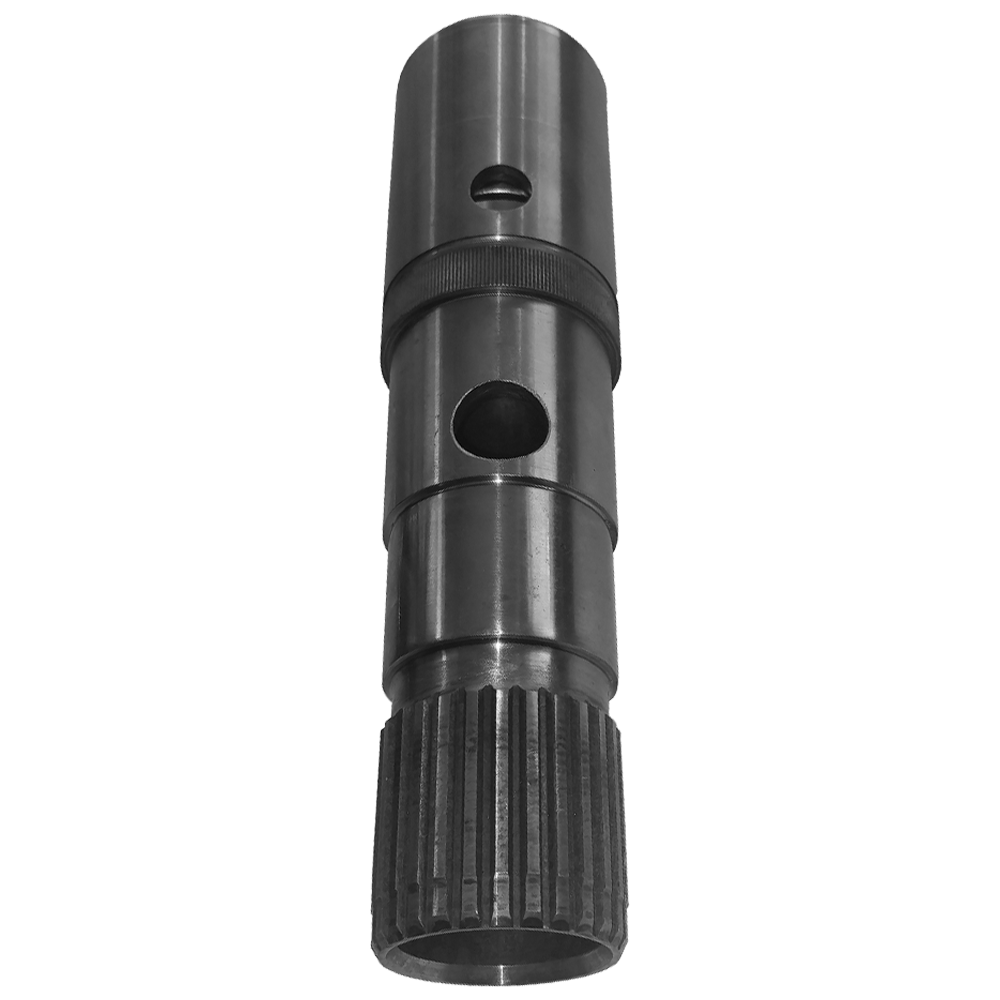

Ground Sleeve Bearing Included
  • New (not used). Includes INA bearing part ID: 9438017
 23014527A
Ground Sleeve 23014527A
Bearing Included &
  • New (not used). Includes INA bearing part ID: 9438017

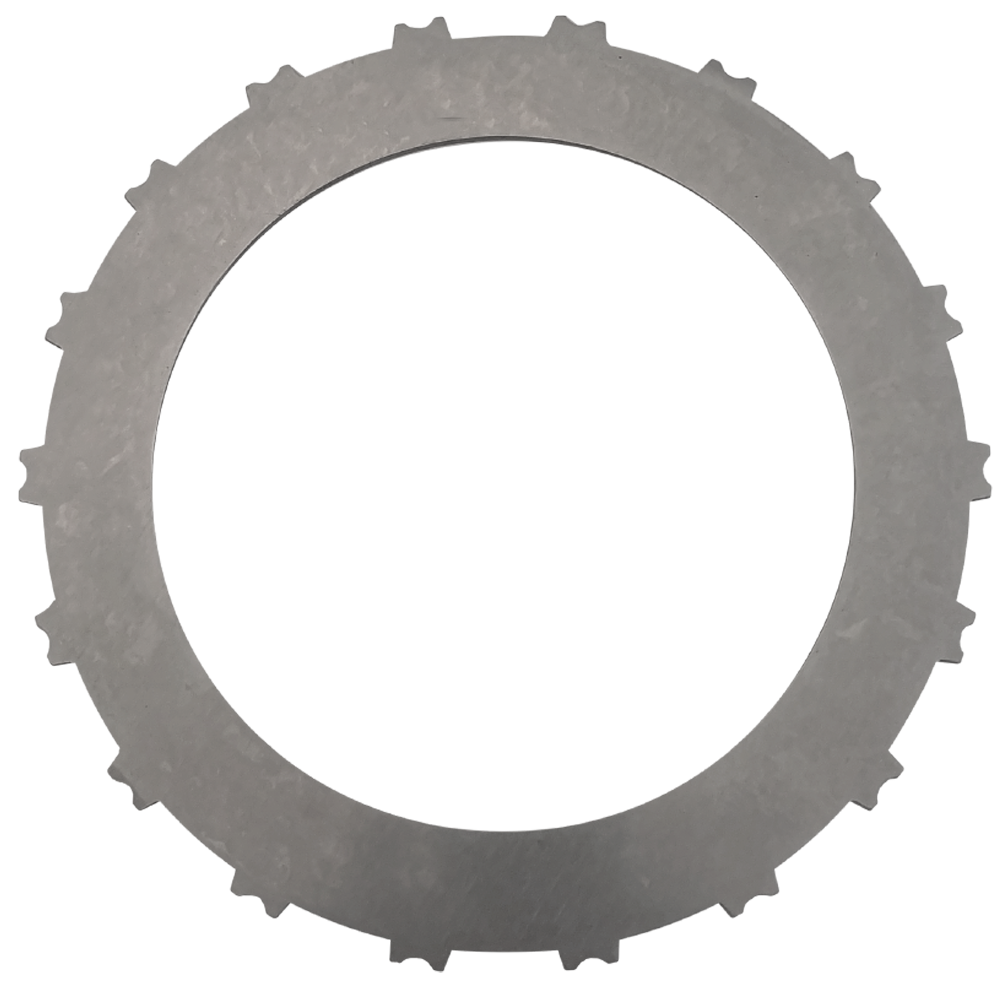

Steel Clutch-Plate
  • Thickness: 0.098"
  • External Teeth: 18
  • Outside Dia: 7.63"
  • Inside Dia: 5.52"
 23016610
Steel Clutch-Plate 23016610
&
  • Thickness: 0.098"
  • External Teeth: 18
  • Outside Dia: 7.63"
  • Inside Dia: 5.52"
Pan Gasket Allison 600 Series 23016682
Pan Gasket 23016682
Allison 600 Series &
Bushing Front Planetary Carrier 23045072P
Bushing 23045072P
Front Planetary Carrier &
Bushing Front Planetary Carrier, Oversized O.D, Unfinished I.D.
  • Type: Oversized O.D and Unfinished I.D
 23045072X
Bushing 23045072X
Front Planetary Carrier, Oversized O.D, Unfinished I.D. &
  • Type: Oversized O.D and Unfinished I.D
Shaft Sun Gear(With Bushings Installed) 23045606
Shaft 23045606
Sun Gear(With Bushings Installed) &
Friction Plate Clutch Half
  • Thickness: 0.185"
  • Internal Teeth: 56
  • Outside Dia: 12.386"
  • Inside Dia: 9.094"
  • POSITIVE, VEHICULAR
 23046108
Friction Plate 23046108
Clutch Half &
  • Thickness: 0.185"
  • Internal Teeth: 56
  • Outside Dia: 12.386"
  • Inside Dia: 9.094"
  • POSITIVE, VEHICULAR
Pan Gasket 29501160
Pan Gasket 29501160
&
Filter Kit MT600 29502302
Filter Kit 29502302
MT600 &

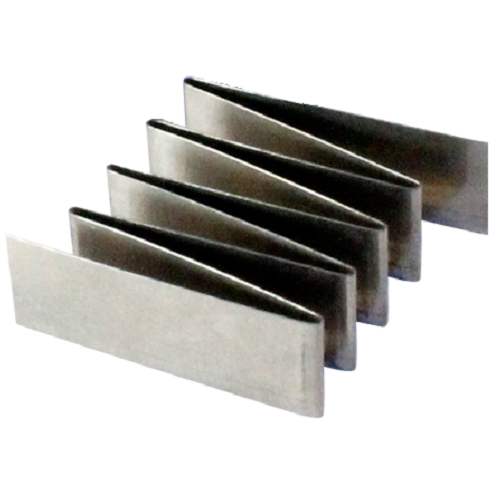

Accordion Spring Torque Converter, 2nd Type 29513517
Accordion Spring 29513517
Torque Converter, 2nd Type &
O-Ring 6762127
O-Ring 6762127
&
Lock Strip (Locking Plate) Converter Hub 6769631
Lock Strip (Locking Plate) 6769631
Converter Hub &
O-Ring 6771005
O-Ring 6771005
&
Accordion Spring
  • Height: 0.31"
  • Width: 0.897"
  • Folds: 6
 6774966
Accordion Spring 6774966
&
  • Height: 0.31"
  • Width: 0.897"
  • Folds: 6
Roller Torque Converter
  • Dia: 0.375"
  • Length: 0.929"
  • Hardness: Heat-Treated (hardened)
 6774968
Roller 6774968
Torque Converter &
  • Dia: 0.375"
  • Length: 0.929"
  • Hardness: Heat-Treated (hardened)
Kit Spring & Roller 6775657
Kit 6775657
Spring & Roller &

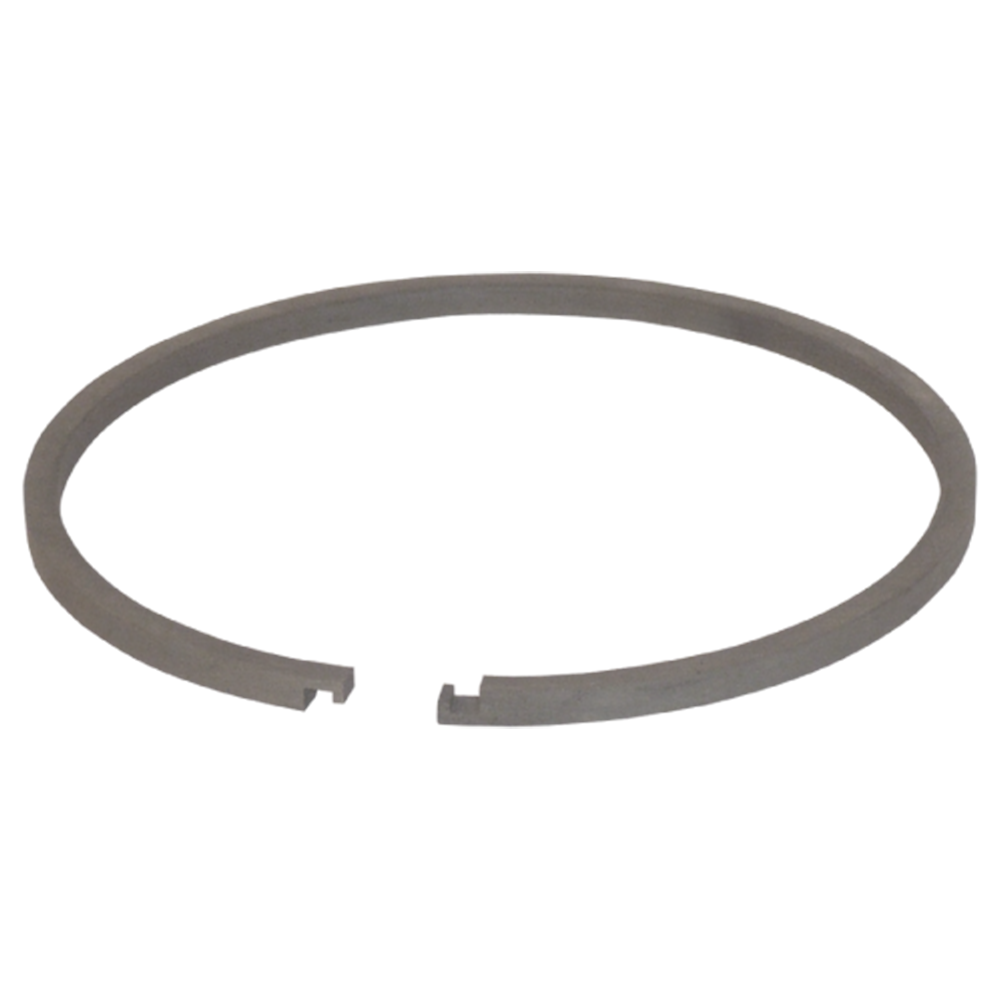

Seal Ring Pump Hub (Hook Type) 6830187
Seal Ring 6830187
Pump Hub (Hook Type) &
Washer Front Planetary, Steel, 0.515"x 1.075" x 0.025" 6833991
Washer 6833991
Front Planetary, Steel, 0.515"x 1.075" x 0.025" &
Pin Center/ Rear Planetary Pinion 6835567
Pin 6835567
Center/ Rear Planetary Pinion &
Shim Turbine .015", Gold 6837429
Shim 6837429
Turbine .015", Gold &
Shim Spacer, Turbine .030", Silver 6837430
Shim 6837430
Spacer, Turbine .030", Silver &
Spacer Turbine .042", Plain 6837431
Spacer 6837431
Turbine .042", Plain &
Spacer Turbine .060", Black 6837432
Spacer 6837432
Turbine .060", Black &
Spacer Turbine .075" Copper 6837433
Spacer 6837433
Turbine .075" Copper &
Ring Sealing, Turbine Shaft (640, 650) 6839163
Ring 6839163
Sealing, Turbine Shaft (640, 650) &
Oil Filter 6883044
Oil Filter 6883044
&
Kit T23019201
Kit T23019201
&

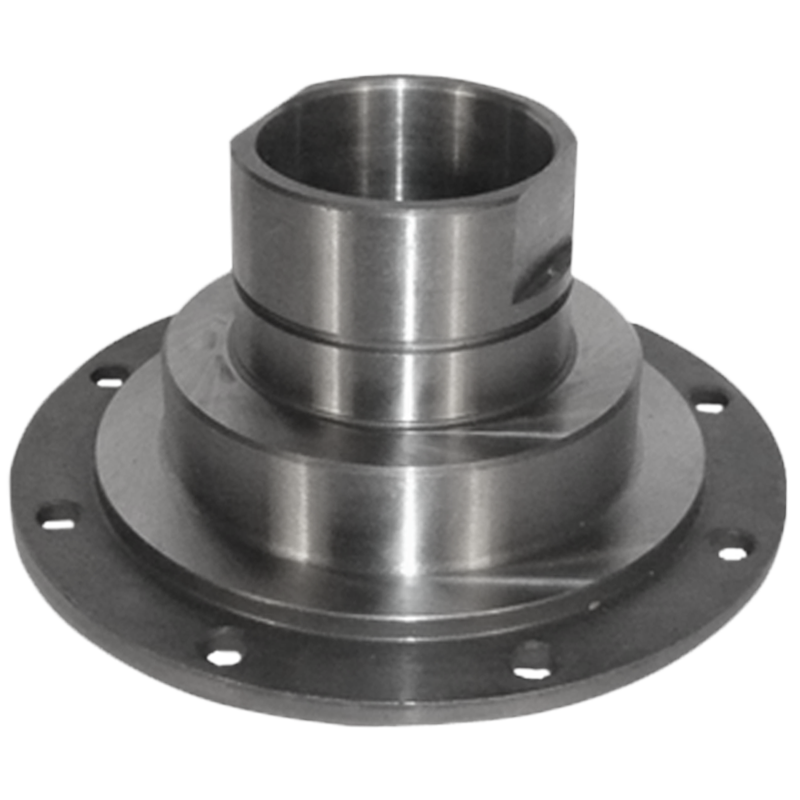

Impeller Hub Flanged, Torque Converter
  • Journal Dia: 1.996"
  • Height: 2.774"
  • Flange Dia: 3.645"
 6881592
Impeller Hub 6881592
Flanged, Torque Converter &
  • Journal Dia: 1.996"
  • Height: 2.774"
  • Flange Dia: 3.645"

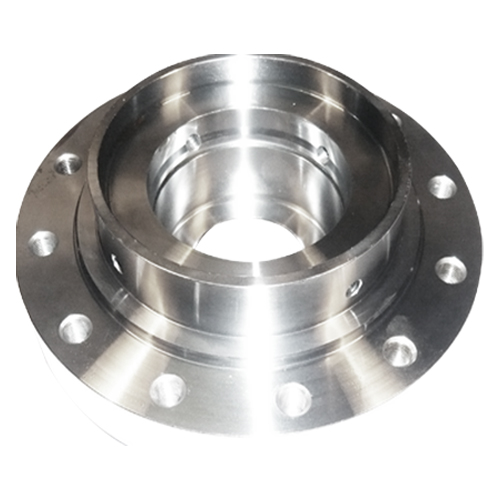

Impeller Hub Flanged, Torque Converter, 2nd Type
  • Journal Dia: 2.247"
  • Height: 3.875"
  • Flange Dia: 7.000"
 23017446
Impeller Hub 23017446
Flanged, Torque Converter, 2nd Type &
  • Journal Dia: 2.247"
  • Height: 3.875"
  • Flange Dia: 7.000"
