Torque Converter | ZF | ZF6HP21, 245mm (LuK)

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
14 Seal Ring With a Large 30° Chamfer on the O.D.
  • Height: 0.081
  • Width: 0.087
  • Color: White
  • Material: PTFE Solid
  • Height Metric: 2.0574
  • Seal Type: Solid
  • Outside Dia: 2.404
  • Outside Dia Metric: 61.0616
 PO-25-10
Seal Ring PO-25-10
With a Large 30° Chamfer on the O.D. &
  • Height: 0.081
  • Width: 0.087
  • Color: White
  • Material: PTFE Solid
  • Height Metric: 2.0574
  • Seal Type: Solid
  • Outside Dia: 2.404
  • Outside Dia Metric: 61.0616
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.645
  • Inside Dia: 7.325
 PX-23-25
Lining (Friction Ring,Wafer) PX-23-25
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.645
  • Inside Dia: 7.325

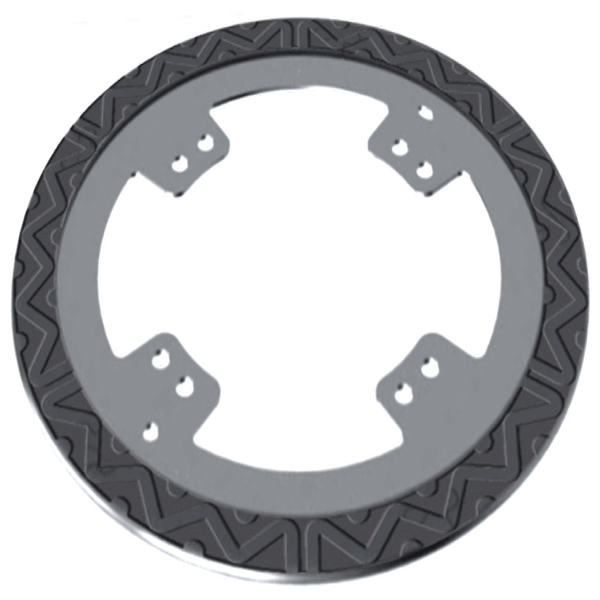

19 Clutch Plate
  • Thickness: 0.138"
  • Lining Count: 1
  • Notch Count: 4 Internal
  • Outside Dia: 8.670"
  • Inside Dia: 4.240"
  • Bolt Circle Dia: 4.975". Lining Part-ID: PX-23-25MK
 PX-26-20
Clutch Plate PX-26-20
&
  • Thickness: 0.138"
  • Lining Count: 1
  • Notch Count: 4 Internal
  • Outside Dia: 8.670"
  • Inside Dia: 4.240"
  • Bolt Circle Dia: 4.975". Lining Part-ID: PX-23-25MK
21 Rivet 8 Pieces Required.
  • Length: 0.278"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.238"
  • Rivet Head Dia: 0.355"
  • Rivet Head: Flat
 PX-12-4
Rivet PX-12-4
& 8 Pieces Required.
  • Length: 0.278"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.238"
  • Rivet Head Dia: 0.355"
  • Rivet Head: Flat
23 Rivet For Pressure Plate 6 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.202"
  • Rivet Head Dia: 0.28"
 PX-12-1
Rivet PX-12-1
For Pressure Plate & 6 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.202"
  • Rivet Head Dia: 0.28"
23 Rivet 6 Pieces Required.
  • Length: 0.272"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.200"
  • Rivet Head Dia: 0.280"
  • Rivet Head: Flat
 PX-12-2
Rivet PX-12-2
& 6 Pieces Required.
  • Length: 0.272"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.200"
  • Rivet Head Dia: 0.280"
  • Rivet Head: Flat
