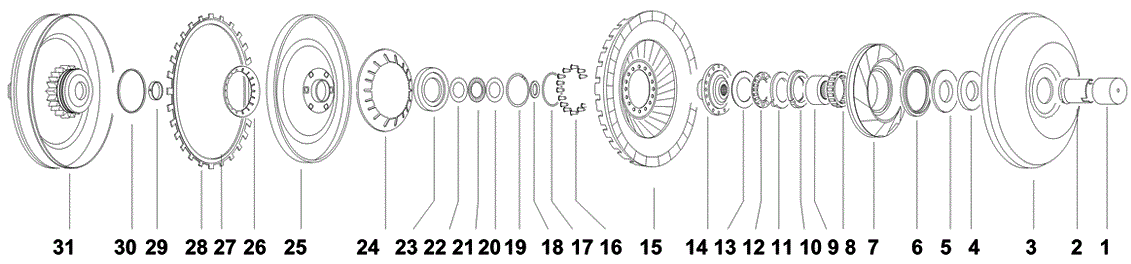

Torque Converter | ZF | ZF5HP30, 5 Speed, BM-29 | BM-29

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Extra hard
  • Journal Dia: 1.574"
  • Installed Height: 2.100"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-18GRC
Impeller Hub PH-1-18GRC
Extra hard &
  • Journal Dia: 1.574"
  • Installed Height: 2.100"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 2.193"
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 60-63
 PH-1-10GRC
Impeller Hub PH-1-10GRC
&
  • Journal Dia: 1.574"
  • Installed Height: 2.193"
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 60-63
3 Impeller NPN-4-18-3
Impeller NPN-4-18-3
&
4 Bearing
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Outside Dia: 2.441
  • Inside Dia: 1.496
  • Outside Dia Metric: 62
  • Inside Dia metric: 38
 JW-2-20
Bearing JW-2-20
&
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Outside Dia: 2.441
  • Inside Dia: 1.496
  • Outside Dia Metric: 62
  • Inside Dia metric: 38
4 Bearing
  • Thickness: 0.18"
  • Bearing type: Enclosed
  • Outside Dia: 2.43"
  • Inside Dia: 1.50"
 NPN-4-18-4
Bearing NPN-4-18-4
&
  • Thickness: 0.18"
  • Bearing type: Enclosed
  • Outside Dia: 2.43"
  • Inside Dia: 1.50"
5 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4
Bearing Race PW-2-4
&
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
5 Bearing Race
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4P
Bearing Race PW-2-4P
&
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
6 Stator Cap
  • Thickness: .31"
  • Outside Dia: 3.23"
  • Inside Dia: 2.29"
 NPN-4-18-6
Stator Cap NPN-4-18-6
&
  • Thickness: .31"
  • Outside Dia: 3.23"
  • Inside Dia: 2.29"
7 Stator NPN-4-18-7
Stator NPN-4-18-7
&
8 Cam (Sprag Element) For FC-6-10 F-395
Cam (Sprag Element) F-395
& For FC-6-10

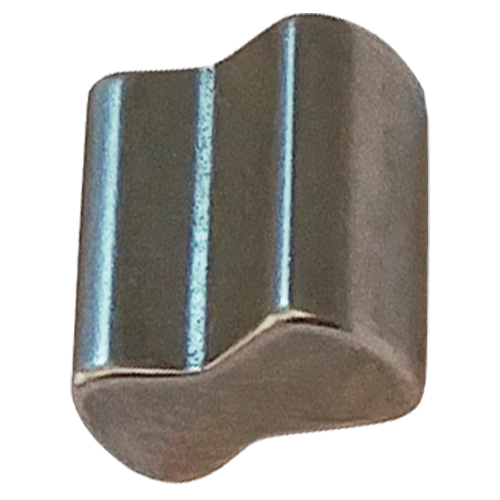

8 Cam (Sprag Element) For FC-6-10 F-407
Cam (Sprag Element) F-407
& For FC-6-10
8 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
 FC-6
Sprag FC-6
&
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
8 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
Sprag FC-6-1
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
8 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips

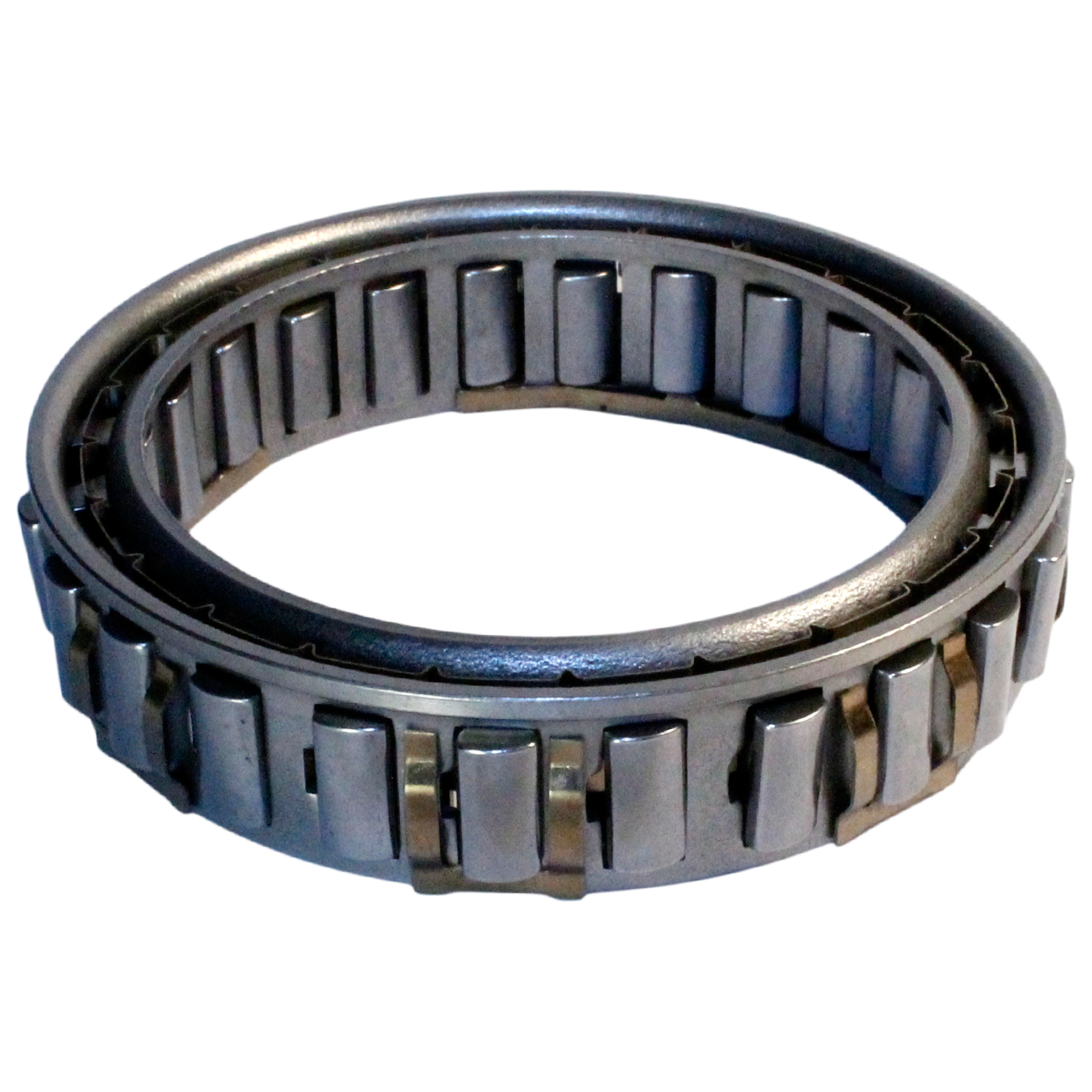

 FC-6-10
Sprag FC-6-10
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
8 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10

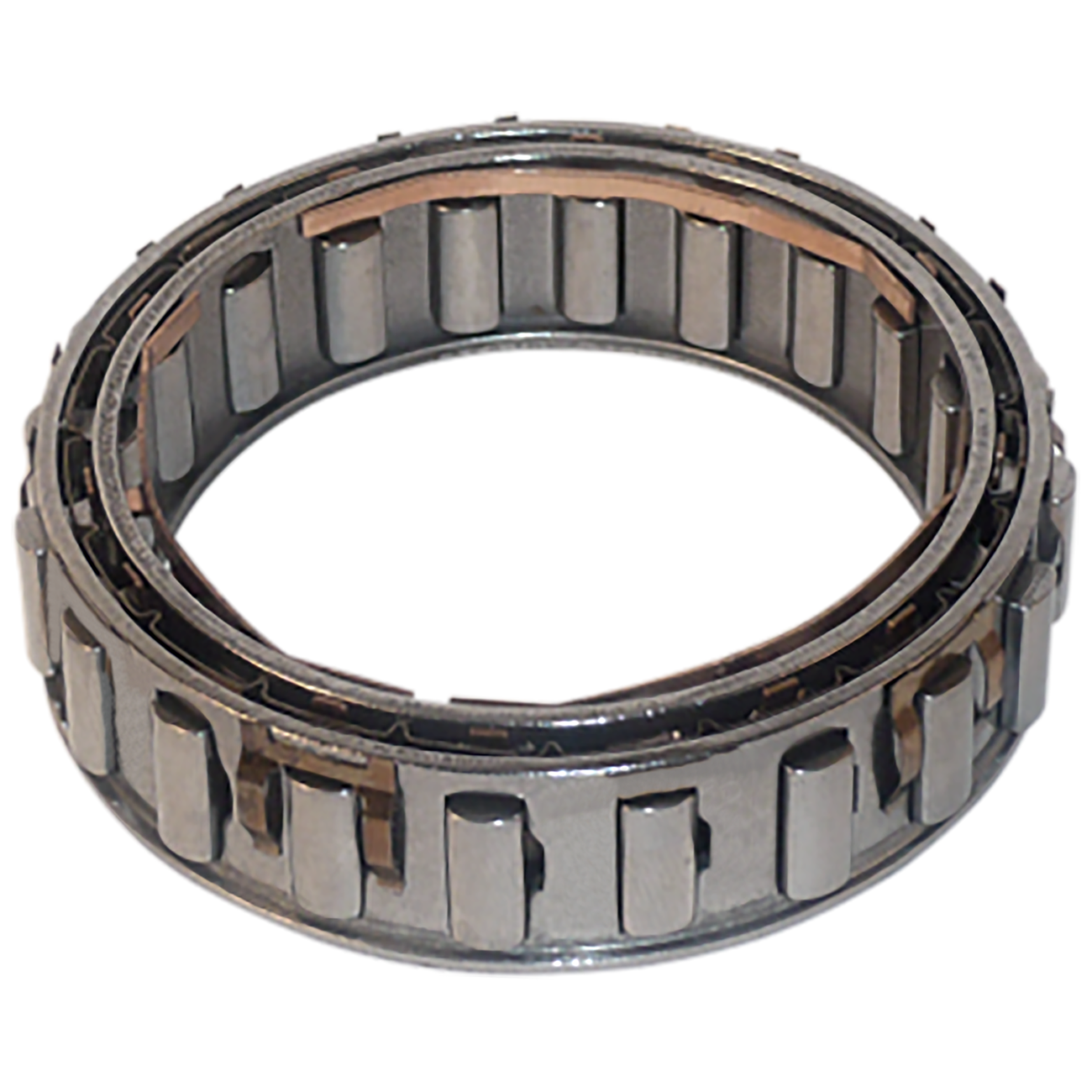

 FC-6-3
Sprag FC-6-3
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
8 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10

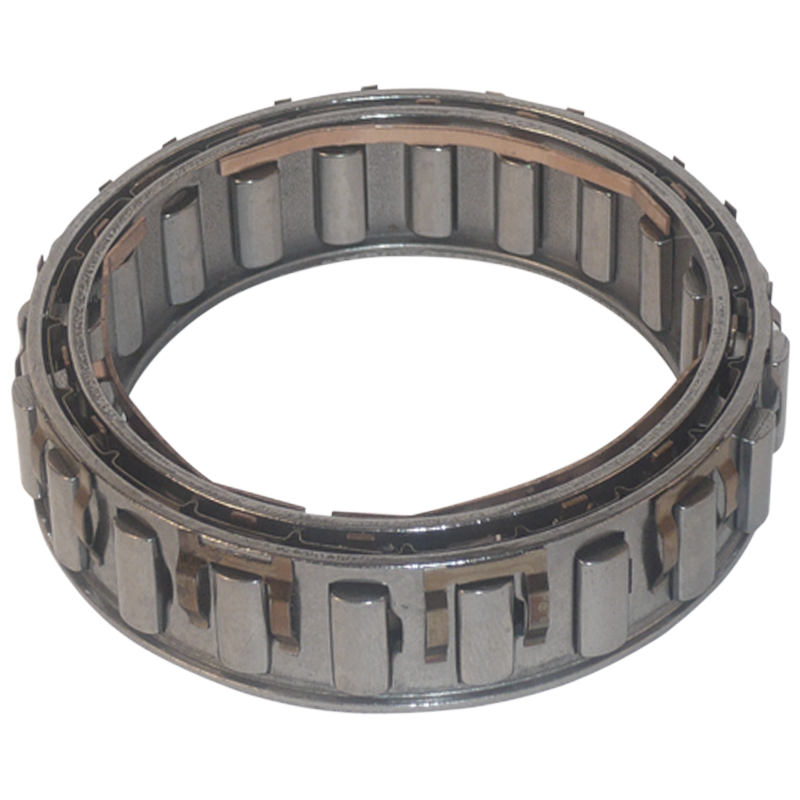

 FC-6-4
Sprag FC-6-4
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
8 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
Sprag FC-6-9
&
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
9 Inner Race Stator
  • Height: 0.860"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.160"
 PX-14-7
Inner Race PX-14-7
Stator &
  • Height: 0.860"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.160"
10 Stator Cap
  • Thickness: .42"
  • Material: Aluminum
  • Outside Dia: 2.97"
  • Inside Dia: 1.67"
  • 4 Slots
 PW-4-11
Stator Cap PW-4-11
&
  • Thickness: .42"
  • Material: Aluminum
  • Outside Dia: 2.97"
  • Inside Dia: 1.67"
  • 4 Slots
11 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"

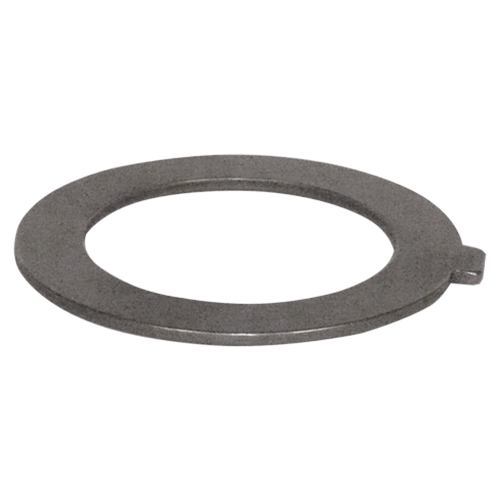

 PW-2-3
Bearing Race PW-2-3
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
12 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
12 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
13 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
13 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
14 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.56"
 PX-13-15HT
Turbine Hub PX-13-15HT
&
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.56"
15 Turbine NPN-4-18-15
Turbine NPN-4-18-15
&
16 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
16 Rivet 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
16 Rivet 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
16 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
16 Rivet 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"

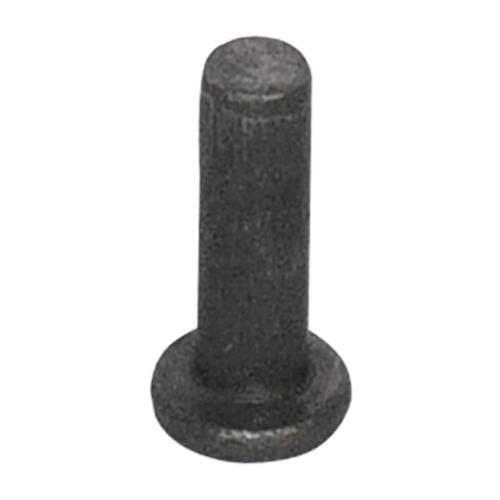

 PX-12L
Rivet PX-12L
& 16 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
17 Seal Ring NPN-4-18-17
Seal Ring NPN-4-18-17
&
18 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
19 Snap Ring NPN-4-18-19
Snap Ring NPN-4-18-19
&
20 Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.12"
  • Inside Dia: 1.38"

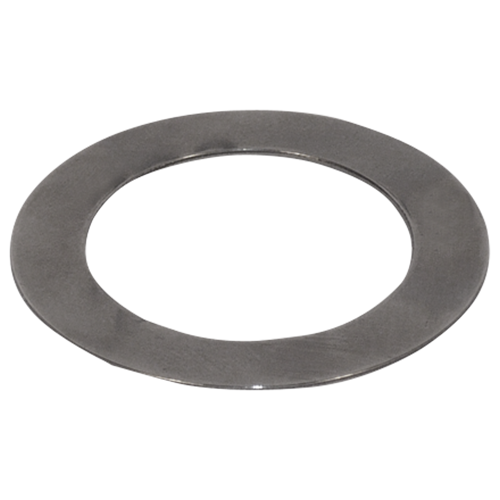

 PW-2-9
Bearing Race PW-2-9
&
  • Thickness: 0.030"
  • Outside Dia: 2.12"
  • Inside Dia: 1.38"
20 Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.06"
  • Inside Dia: 1.380

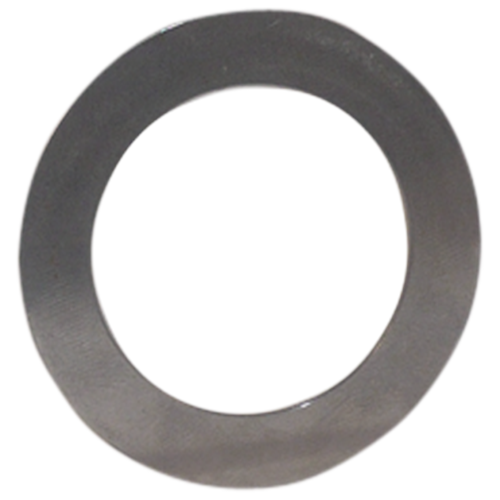

 TRA-2233
Bearing Race TRA-2233
&
  • Thickness: 0.030"
  • Outside Dia: 2.06"
  • Inside Dia: 1.380
21 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.062
  • Inside Dia: 1.375
  • Outside Dia Metric: 52.37
  • Inside Dia metric: 34.93
  • Race: TRA-2233, TRB-2233
 NTA-2233
Bearing NTA-2233
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.062
  • Inside Dia: 1.375
  • Outside Dia Metric: 52.37
  • Inside Dia metric: 34.93
  • Race: TRA-2233, TRB-2233
21 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.037
  • Inside Dia: 1.384
  • Outside Dia Metric: 51.74
  • Inside Dia metric: 35.15
  • Race: PW-2-8, PW-2-9

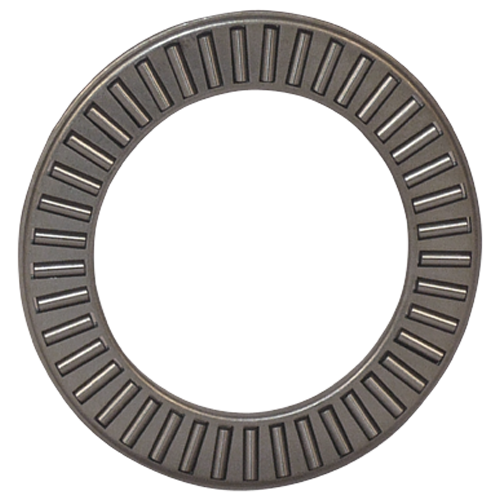

 PW-2-7
Bearing PW-2-7
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.037
  • Inside Dia: 1.384
  • Outside Dia Metric: 51.74
  • Inside Dia metric: 35.15
  • Race: PW-2-8, PW-2-9
22 Bearing Race
  • Thickness: 0.040"
  • Outside Dia: 2.040"
  • Inside Dia: 1.385"
  • Hardened

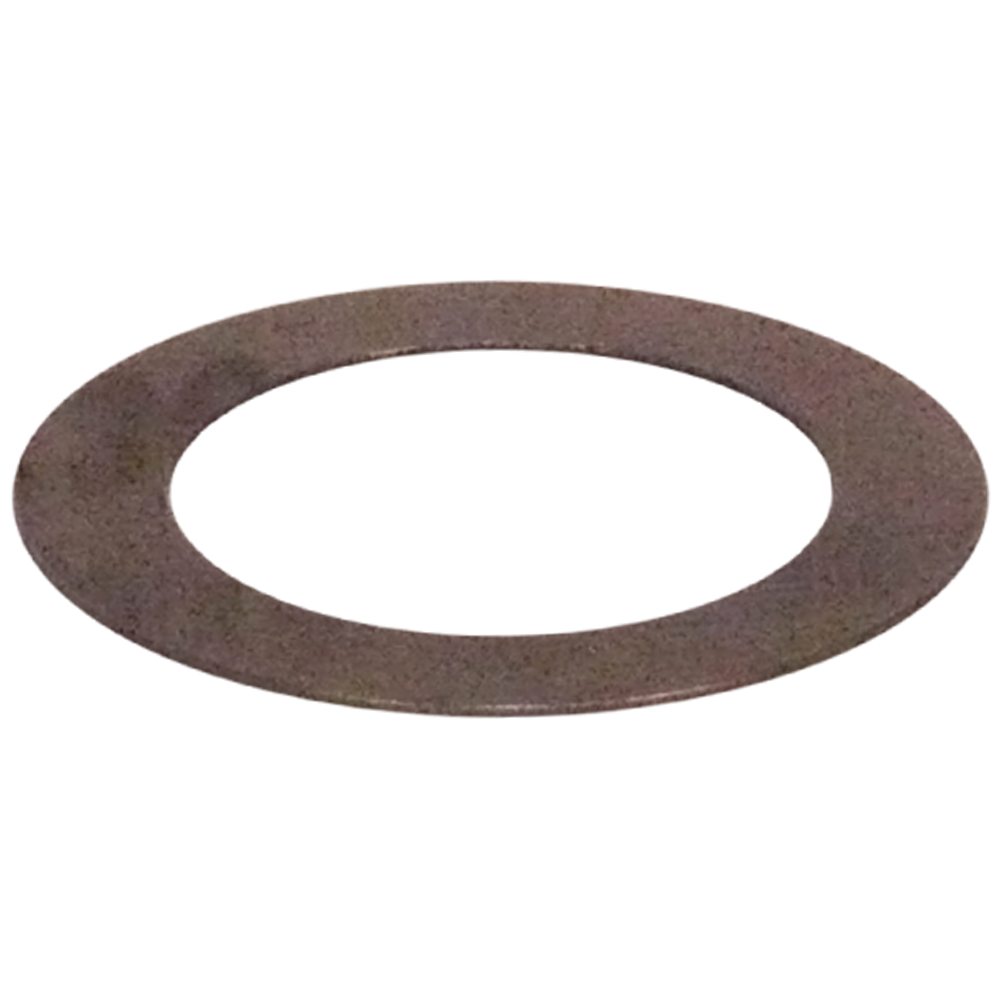

 PW-2-8
Bearing Race PW-2-8
&
  • Thickness: 0.040"
  • Outside Dia: 2.040"
  • Inside Dia: 1.385"
  • Hardened
22 Bearing Race
  • Thickness: 0.062"
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"

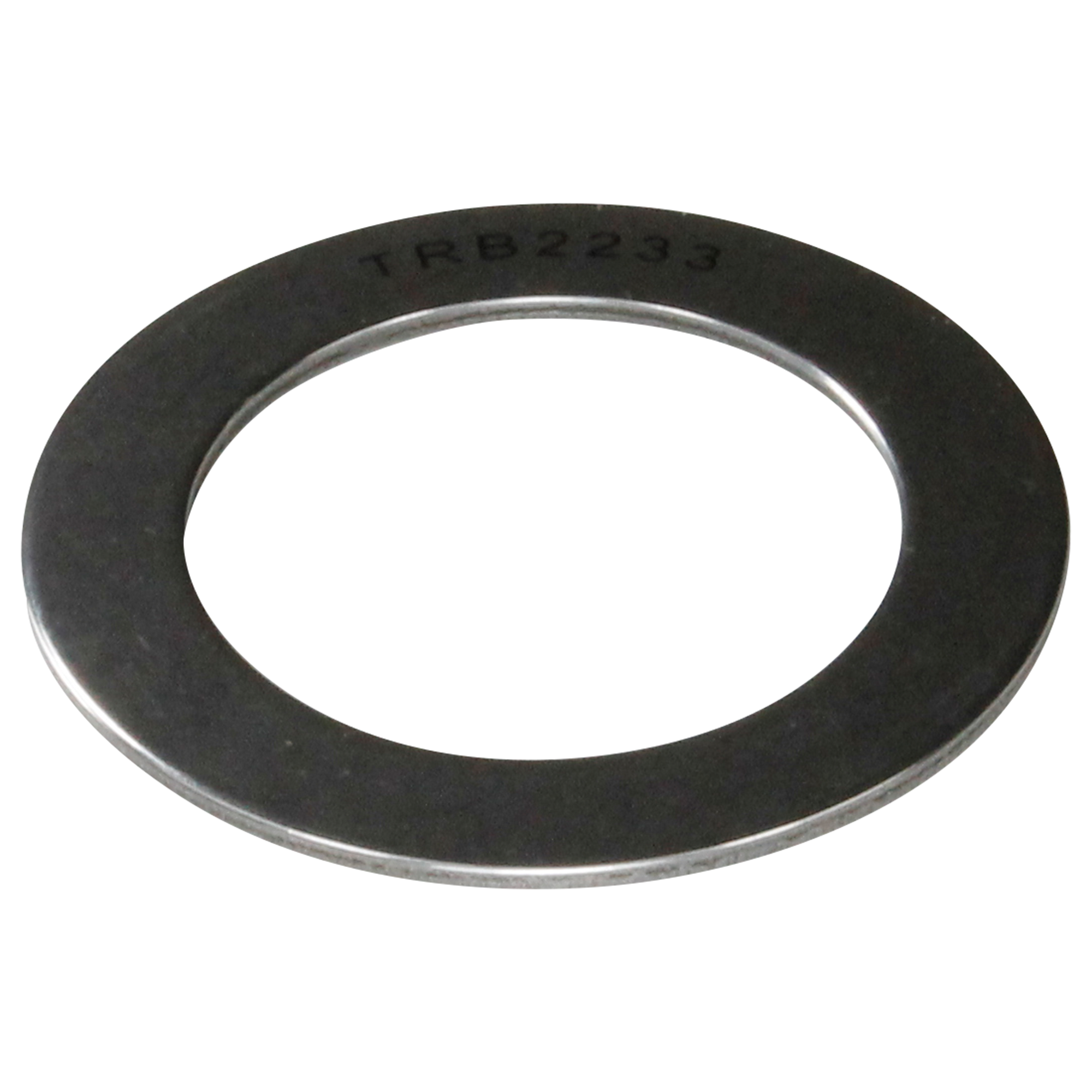

 TRB-2233
Bearing Race TRB-2233
&
  • Thickness: 0.062"
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
22 Bearing Race Kit 0.060" (replaces TRB-2233)
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
 TRB-2233K
Bearing Race Kit TRB-2233K
0.060" (replaces TRB-2233) &
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
23 Retainer
  • Thickness: .32"
  • Outside Dia: 3.23"
  • Inside Dia: 2.30"
 NPN-4-18-23
Retainer NPN-4-18-23
&
  • Thickness: .32"
  • Outside Dia: 3.23"
  • Inside Dia: 2.30"
24 Diaphragm Spring
  • Height: .22"
  • External Teeth: 24
  • Outside Dia: 4.30"
  • Inside Dia: 2.94"
 PX-26-4
Diaphragm Spring PX-26-4
&
  • Height: .22"
  • External Teeth: 24
  • Outside Dia: 4.30"
  • Inside Dia: 2.94"
25 Pressure Plate NPN-4-18-25
Pressure Plate NPN-4-18-25
&
26 Diaphragm Spring 24 Slots
  • Height: .154"
  • Outside Dia: 3.730"
  • Inside Dia: 3.038"
 PX-26-5
Diaphragm Spring PX-26-5
24 Slots &
  • Height: .154"
  • Outside Dia: 3.730"
  • Inside Dia: 3.038"
27 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.15"
  • Inside Dia: 9.36"
  • Both Sides
 PX-23-10
Lining (Friction Ring,Wafer) PX-23-10
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.15"
  • Inside Dia: 9.36"
  • Both Sides
28 Friction Plate
  • Thickness: 0.120"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 11.04"
  • Inside Dia: 9.36"
  • Lining Part-ID: PX-23-10K
 PX-26-3
Friction Plate PX-26-3
&
  • Thickness: 0.120"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 11.04"
  • Inside Dia: 9.36"
  • Lining Part-ID: PX-23-10K
29 Bushing Cover
  • Thickness: 0.59"
  • Housing Bore Dia: 1.536"
  • Shaft Dia: 1.42"
  • Material: Steel/Bronze
 PB-18-1
Bushing PB-18-1
Cover &
  • Thickness: 0.59"
  • Housing Bore Dia: 1.536"
  • Shaft Dia: 1.42"
  • Material: Steel/Bronze
30 Misc NPN-SPL
Misc NPN-SPL
&
30 Seal Ring Square-Cut with Groove O.E. Replacement
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
 PO-25
Seal Ring PO-25
Square-Cut with Groove & O.E. Replacement
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
30 Seal Ring Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
 PO-25T
Seal Ring PO-25T
Replacement, Scarf Cut, Square-Cut, with Groove &
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
30 Seal Ring Square-Cut, Oversized, To Salvage Clutch Plates
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
 PO-25X
Seal Ring PO-25X
Square-Cut, Oversized, To Salvage Clutch Plates &
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
31 Front Cover NPN-4-18-31
Front Cover NPN-4-18-31
&
