Torque Converter | ZF | ZF5HP24 | BM-64

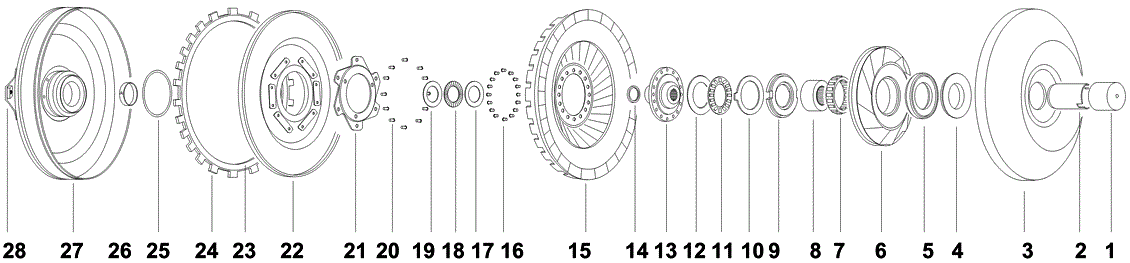

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Extra hard
  • Journal Dia: 1.574"
  • Installed Height: 2.100"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-18GRC
Impeller Hub PH-1-18GRC
Extra hard &
  • Journal Dia: 1.574"
  • Installed Height: 2.100"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

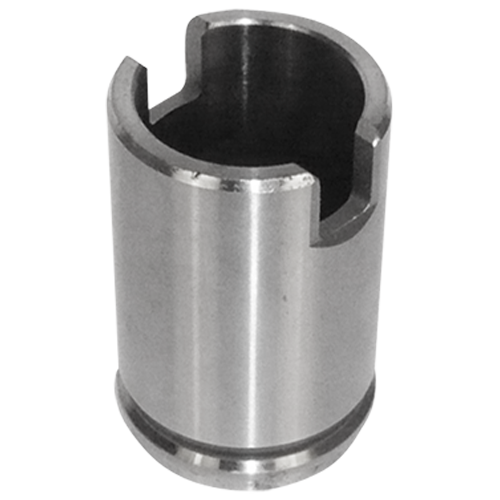

2 Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 2.055"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
 PH-1-11GRC
Impeller Hub PH-1-11GRC
&
  • Journal Dia: 1.574"
  • Installed Height: 2.055"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
3 Impeller NPN-4-20-3
Impeller NPN-4-20-3
&
4 Bearing
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
Bearing PW-2-10
&
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
4 Bearing Bulletproof
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
Bearing PW-2-10HD
Bulletproof &
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35

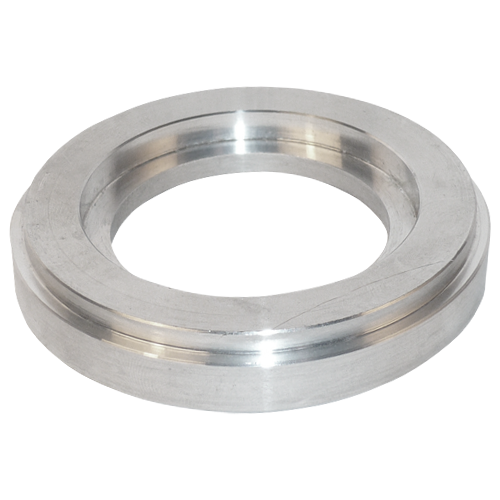

5 Stator Cap
  • Thickness: .467"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.625"
 PW-4-12
Stator Cap PW-4-12
&
  • Thickness: .467"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.625"
6 Stator NPN-4-20-6
Stator NPN-4-20-6
&

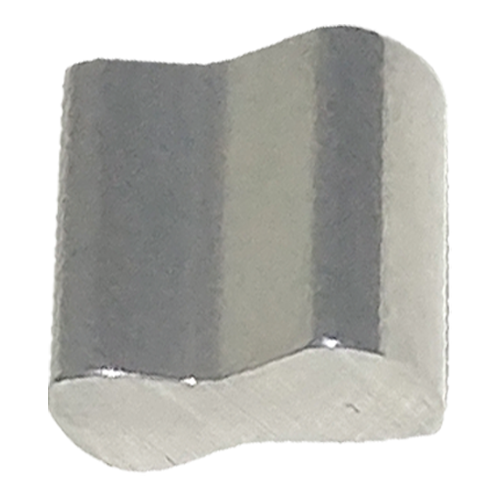

7 Cam (Sprag Element) For VC-6-1 F-315
Cam (Sprag Element) F-315
& For VC-6-1

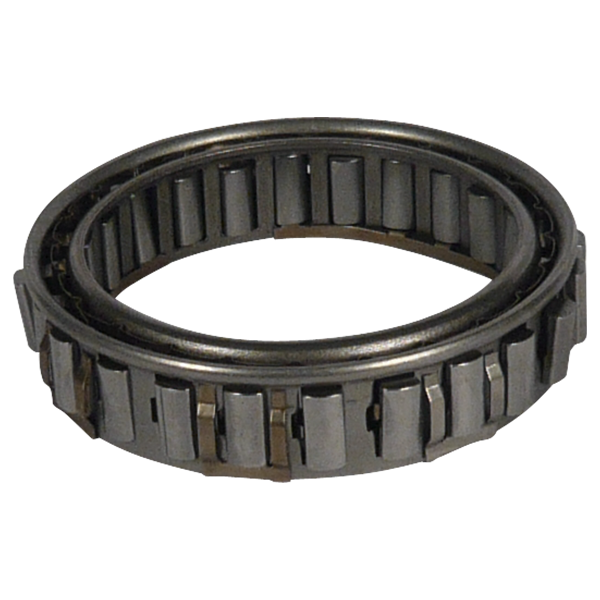

7 Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
Sprag VC-6-1
&
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
7 Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
Sprag VC-6-1P
Plastic Cage &
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
7 Cam Kit (Sprag Element) Sprag, 22 Cams MF-295-22K
Cam Kit (Sprag Element) MF-295-22K
Sprag, 22 Cams &
8 Inner Race Stator
  • Height: 0.845"
  • Internal Teeth: 38
  • Outside Dia: 1.957"
 PX-14-8
Inner Race PX-14-8
Stator &
  • Height: 0.845"
  • Internal Teeth: 38
  • Outside Dia: 1.957"
9 Stator Cap
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
 PW-4-1
Stator Cap PW-4-1
&
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
10 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
11 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
11 Bearing
  • Thickness: 0.125
  • Bearing type: Exposed
  • Outside Dia: 2.360"
  • Inside Dia: 1.575
  • Race: JW-2-5TT (TRA-4060) .030 thick, Race: JW-2-5T (.040 Thick), JW-2-5 (.080 Thick) .060 thick .
 FNT-4060
Bearing FNT-4060
&
  • Thickness: 0.125
  • Bearing type: Exposed
  • Outside Dia: 2.360"
  • Inside Dia: 1.575
  • Race: JW-2-5TT (TRA-4060) .030 thick, Race: JW-2-5T (.040 Thick), JW-2-5 (.080 Thick) .060 thick .
11 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
12 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
12 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
13 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.51"
 PX-13-14HT
Turbine Hub PX-13-14HT
&
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.51"
14 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
15 Turbine Assembly NPN-4-20-15
Turbine NPN-4-20-15
Assembly &
16 Rivet 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 16 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
16 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
16 Rivet 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
16 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
17 Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.12"
  • Inside Dia: 1.38"
 PW-2-9
Bearing Race PW-2-9
&
  • Thickness: 0.030"
  • Outside Dia: 2.12"
  • Inside Dia: 1.38"
17 Bearing Race
  • Thickness: 0.030"
  • Outside Dia: 2.06"
  • Inside Dia: 1.380
 TRA-2233
Bearing Race TRA-2233
&
  • Thickness: 0.030"
  • Outside Dia: 2.06"
  • Inside Dia: 1.380
18 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.062
  • Inside Dia: 1.375
  • Outside Dia Metric: 52.37
  • Inside Dia metric: 34.93
  • Race: TRA-2233, TRB-2233
 NTA-2233
Bearing NTA-2233
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.062
  • Inside Dia: 1.375
  • Outside Dia Metric: 52.37
  • Inside Dia metric: 34.93
  • Race: TRA-2233, TRB-2233
18 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.037
  • Inside Dia: 1.384
  • Outside Dia Metric: 51.74
  • Inside Dia metric: 35.15
  • Race: PW-2-8, PW-2-9
 PW-2-7
Bearing PW-2-7
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.037
  • Inside Dia: 1.384
  • Outside Dia Metric: 51.74
  • Inside Dia metric: 35.15
  • Race: PW-2-8, PW-2-9
19 Bearing Race
  • Thickness: 0.040"
  • Outside Dia: 2.040"
  • Inside Dia: 1.385"
  • Hardened
 PW-2-8
Bearing Race PW-2-8
&
  • Thickness: 0.040"
  • Outside Dia: 2.040"
  • Inside Dia: 1.385"
  • Hardened
19 Bearing Race
  • Thickness: 0.062"
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
 TRB-2233
Bearing Race TRB-2233
&
  • Thickness: 0.062"
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
19 Bearing Race Kit 0.060" (replaces TRB-2233)
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
 TRB-2233K
Bearing Race Kit TRB-2233K
0.060" (replaces TRB-2233) &
  • Outside Dia: 2.062"
  • Inside Dia: 1.375"
20.1 Plate Retainer Repair Weld-in, simplifies rebuilding captive clutch
  • Thickness: .10"
  • Material: Steel
  • Outside Dia: 3.56"
  • Inside Dia: 2.24
 PX-22-5
Plate PX-22-5
Retainer Repair & Weld-in, simplifies rebuilding captive clutch
  • Thickness: .10"
  • Material: Steel
  • Outside Dia: 3.56"
  • Inside Dia: 2.24

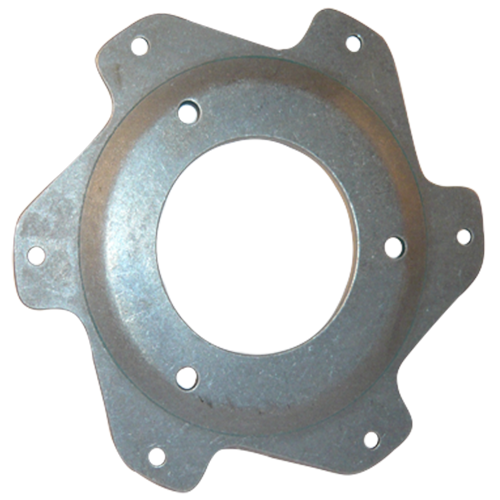

21 Plate Spring Retainer, Without Teeth
  • Inside Dia: 2.30"
 PX-22-1
Plate PX-22-1
Spring Retainer, Without Teeth &
  • Inside Dia: 2.30"

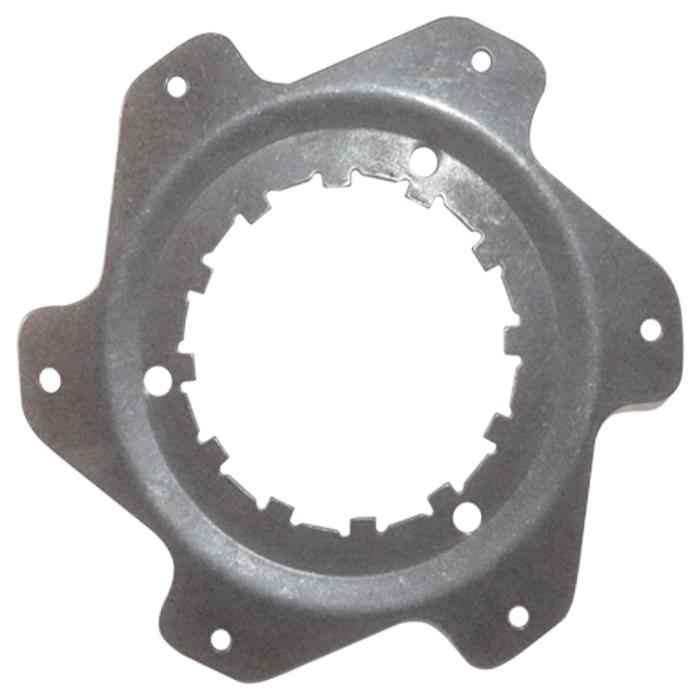

21 Plate Spring Retainer
  • Internal Teeth: 12
  • Outside Dia: 2.56"
 PX-22-3
Plate PX-22-3
Spring Retainer &
  • Internal Teeth: 12
  • Outside Dia: 2.56"
22 Pressure Plate With 6 Springs PX-22-2
Pressure Plate PX-22-2
With 6 Springs &
23 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.36"
  • Inside Dia: 8.38"
 PX-23-11
Lining (Friction Ring,Wafer) PX-23-11
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.36"
  • Inside Dia: 8.38"
23 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.312
  • Inside Dia: 8.8
 PX-23-17
Lining (Friction Ring,Wafer) PX-23-17
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.312
  • Inside Dia: 8.8
23 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.27
  • Inside Dia: 8.772
 PX-23-18
Lining (Friction Ring,Wafer) PX-23-18
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.27
  • Inside Dia: 8.772
24 Friction Plate
  • Thickness: 0.12"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
  • Lining Part-ID: PX-23-11K
 PX-26-6
Friction Plate PX-26-6
&
  • Thickness: 0.12"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
  • Lining Part-ID: PX-23-11K
24 Clutch Plate Core
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
 PX-26-6C
Clutch Plate PX-26-6C
Core &
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
24 Clutch Plate Assembly Friction, High-Carbon
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
 PX-26-6HC
Clutch Plate Assembly PX-26-6HC
Friction, High-Carbon &
  • Outside Dia: 10.21"
  • Inside Dia: 8.38"
25 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.756
  • Inside Dia metric: 70.0024
 PO-25-1
O-Ring PO-25-1
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.756
  • Inside Dia metric: 70.0024
25 Seal Ring Square-Cut, with Groove Use with PX-22-3 Plate
  • Height: 0.205
  • Width: 0.102
  • Material: Fluorocarbon
  • Height Metric: 5.207
  • Outside Dia: 2.947
  • Outside Dia Metric: 74.8538

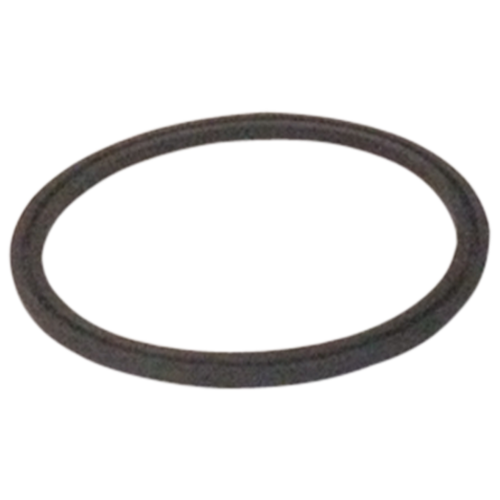

 PO-25-2
Seal Ring PO-25-2
Square-Cut, with Groove & Use with PX-22-3 Plate
  • Height: 0.205
  • Width: 0.102
  • Material: Fluorocarbon
  • Height Metric: 5.207
  • Outside Dia: 2.947
  • Outside Dia Metric: 74.8538
26 Bushing Cover
  • Thickness: 0.47"
  • Housing Bore Dia: 1.536"
  • Shaft Dia: 1.377"
  • Material: Steel/Bronze
 PB-18-2
Bushing PB-18-2
Cover &
  • Thickness: 0.47"
  • Housing Bore Dia: 1.536"
  • Shaft Dia: 1.377"
  • Material: Steel/Bronze
27 Front Cover NPN-4-20-27
Front Cover NPN-4-20-27
&
28 Bracket NPN-4-20-28
Bracket NPN-4-20-28
&
