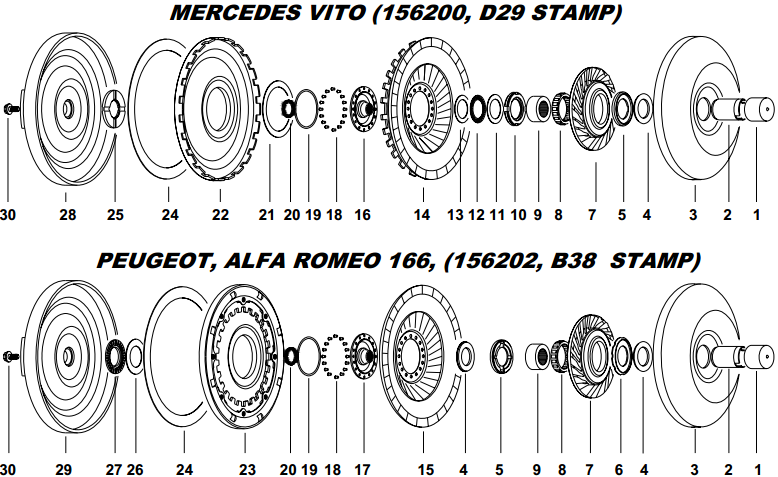

Torque Converter | ZF | ZF4HP20 | (156200, D29 Stamp)

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
 PH-1-12GRC
Impeller Hub PH-1-12GRC
&
  • Journal Dia: 1.771"
  • Installed Height: 1.760"
  • Height: 1.900"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 60-63
3 Impeller
  • OE #156202
 NPN-4-6-3
Impeller NPN-4-6-3
&
  • OE #156202
4 Bearing For D29. 2 Pieces Required.
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
Bearing PW-2-10
& For D29. 2 Pieces Required.
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
4 Bearing Bulletproof For D29 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
Bearing PW-2-10HD
Bulletproof & For D29 2 Pieces Required.
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
5 Stator Cap (For D29 - Impeller Side, for B38 - Turbine side)
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
 PW-4-13
Stator Cap PW-4-13
& (For D29 - Impeller Side, for B38 - Turbine side)
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
7 Stator
  • OE #0711371199
 NPN-4-6-7
Stator NPN-4-6-7
&
  • OE #0711371199
8 Sprag
  • Cam Count: 18 elements
 NPN-4-6-8
Sprag NPN-4-6-8
&
  • Cam Count: 18 elements

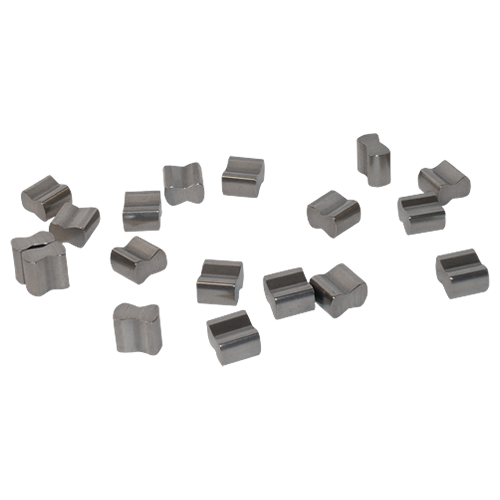

8 Kit Sprag Cam Repair MF-295-18K
Kit MF-295-18K
Sprag Cam Repair &
9 Inner Race
  • Height: 0.725"
  • Internal Teeth: 43 (7 Removed)
  • Outside Dia: 1.957"
 NPN-4-6-9
Inner Race NPN-4-6-9
&
  • Height: 0.725"
  • Internal Teeth: 43 (7 Removed)
  • Outside Dia: 1.957"
10 Stator Cap For D29 Turbine Side
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
 PW-4-1
Stator Cap PW-4-1
& For D29 Turbine Side
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.64"
11 Bearing Race For D29
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
& For D29
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
12 Bearing For D29
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
& For D29
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
12 Bearing For D29
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& For D29
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
13 Bearing Race For D29
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
& For D29
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
13 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
14 Turbine Assembly For D29 NPN-4-6-14
Turbine NPN-4-6-14
Assembly & For D29
15 Turbine Assembly For B38 NPN-4-6-15
Turbine NPN-4-6-15
Assembly & For B38
16 Turbine Hub For D29
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.06"
  • Without Oil Grooves
 PX-13-19HT
Turbine Hub PX-13-19HT
& For D29
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.06"
  • Without Oil Grooves
17 Turbine Hub For B38
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.06"
  • with Oil Grooves
 PX-13-20HT
Turbine Hub PX-13-20HT
& For B38
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.06"
  • with Oil Grooves
18 Rivet 10 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 10 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
18 Rivet 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 16 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
18 Rivet 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 16 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
18 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
19 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
 PO-25-8
O-Ring PO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 74.803
19 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
 TO-25-4
O-Ring TO-25-4
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • High Temp.
19 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
 TO-25-4A
O-Ring TO-25-4A
&
  • Material: Fluorocarbon
  • Inside Dia: 2.913"
19 O-Ring
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
 TO-25-4X
O-Ring TO-25-4X
&
  • Thickness: 0.106
  • Thickness metric: 2.6924
  • Inside Dia: 2.913"
  • Inside Dia metric: 73.9902
  • Oversized
20 Metal Clad Seal Flanged
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
 PO-25-7
Metal Clad Seal PO-25-7
Flanged &
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709

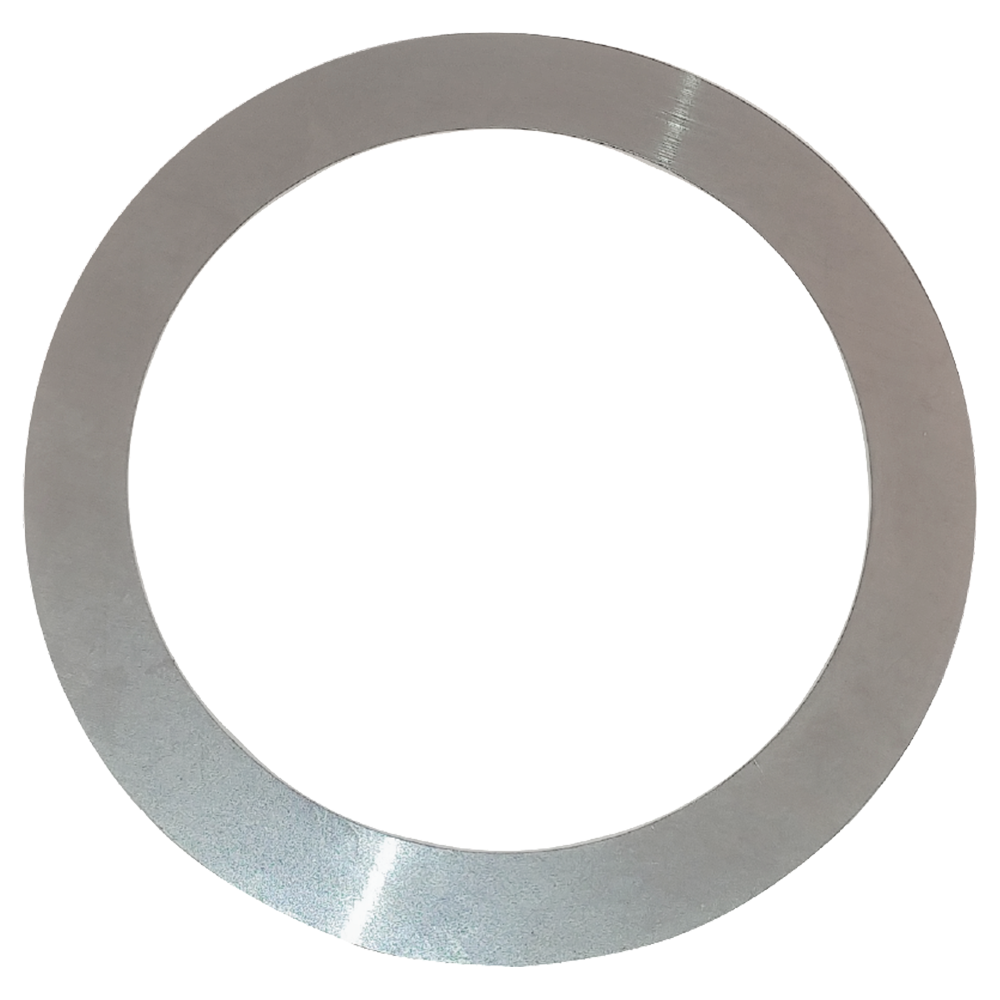

21 Shim For D29
  • Thickness: 0.008"
  • Material: Steel
  • Outside Dia: 4.05"
  • Inside Dia: 3.15"
 PX-8-1
Shim PX-8-1
& For D29
  • Thickness: 0.008"
  • Material: Steel
  • Outside Dia: 4.05"
  • Inside Dia: 3.15"

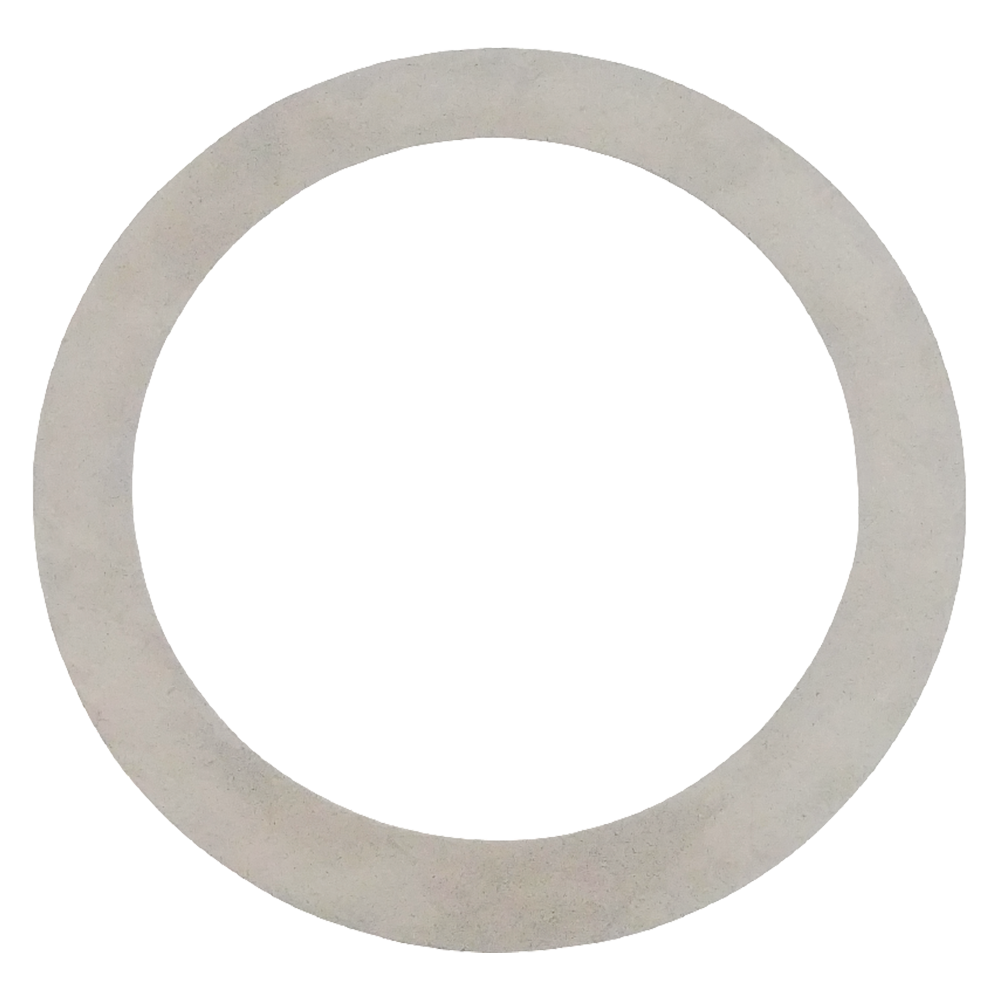

21 Shim For D29
  • Thickness: 0.020"
  • Outside Dia: 4.05"
  • Inside Dia: 3.15"
 PX-8-1A
Shim PX-8-1A
& For D29
  • Thickness: 0.020"
  • Outside Dia: 4.05"
  • Inside Dia: 3.15"
22 Pressure Plate For D29
  • OE #0707029100
 NPN-4-6-22
Pressure Plate NPN-4-6-22
& For D29
  • OE #0707029100
23 Pressure Plate Assembly For B38
  • OE #0713251002, 0707032000
 NPN-4-6-23
Pressure Plate NPN-4-6-23
Assembly & For B38
  • OE #0713251002, 0707032000
24 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.4"
 PX-23-13
Lining (Friction Ring,Wafer) PX-23-13
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.4"
25 Turbine Washer For D29
  • Thickness: .22"
  • Material: Plastic
  • Outside Dia: 2.69"
  • Inside Dia: 1.27"
 PW-9-6
Turbine Washer PW-9-6
& For D29
  • Thickness: .22"
  • Material: Plastic
  • Outside Dia: 2.69"
  • Inside Dia: 1.27"
26 Bearing Race For B38
  • Thickness: .04"
  • Outside Dia: 2.51"
  • Inside Dia: 1.53"
 PW-2-13
Bearing Race PW-2-13
& For B38
  • Thickness: .04"
  • Outside Dia: 2.51"
  • Inside Dia: 1.53"
27 Bearing For B38
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
Bearing PW-2-12
& For B38
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
27 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
Bearing YW-2-16
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
27 Bearing & Race Kit For B38
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K
Bearing & Race Kit YW-2-16K
& For B38
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
28 Front Cover For D29 NPN-4-6-28
Front Cover NPN-4-6-28
& For D29
29 Front Cover For B38 NPN-4-6-29
Front Cover NPN-4-6-29
& For B38
30 Bolt
  • Dimensions: M8 x1.25
 NPN-4-6-30
Bolt NPN-4-6-30
&
  • Dimensions: M8 x1.25
