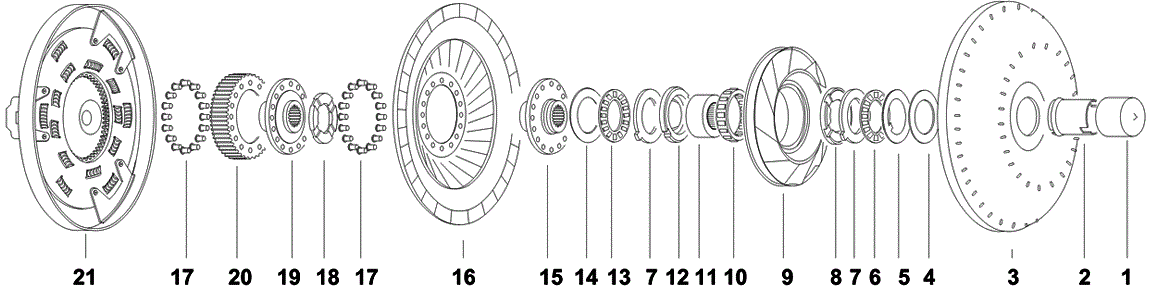

Torque Converter | ZF | ZF4HP16

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.575"
  • Installed Height: 1.801"
  • Height: 2.008"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 2.705"
  • Inside Dia: 2.705"
 PH-1-19FLG
Impeller Hub PH-1-19FLG
Flanged &
  • Journal Dia: 1.575"
  • Installed Height: 1.801"
  • Height: 2.008"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 2.705"
  • Inside Dia: 2.705"
3.1 Bearing
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10
Bearing PW-2-10
&
  • Thickness: 0.18
  • Thickness metric: 4.57
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
3.1 Bearing Bulletproof
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
 PW-2-10HD
Bearing PW-2-10HD
Bulletproof &
  • Thickness: 0.188
  • Thickness metric: 4.78
  • Bearing type: Enclosed
  • Race Outside Dia: 2.512"
  • Outside Dia: 2.43
  • Inside Dia: 1.51
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.35
8 Stator Cap
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
 PW-4-13
Stator Cap PW-4-13
&
  • Thickness: .386"
  • Material: Aluminum
  • Outside Dia: 2.790"
  • Inside Dia: 1.630"
17.1 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.237
  • Inside Dia metric: 82.2198
 TO-25-25
O-Ring TO-25-25
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 3.237
  • Inside Dia metric: 82.2198

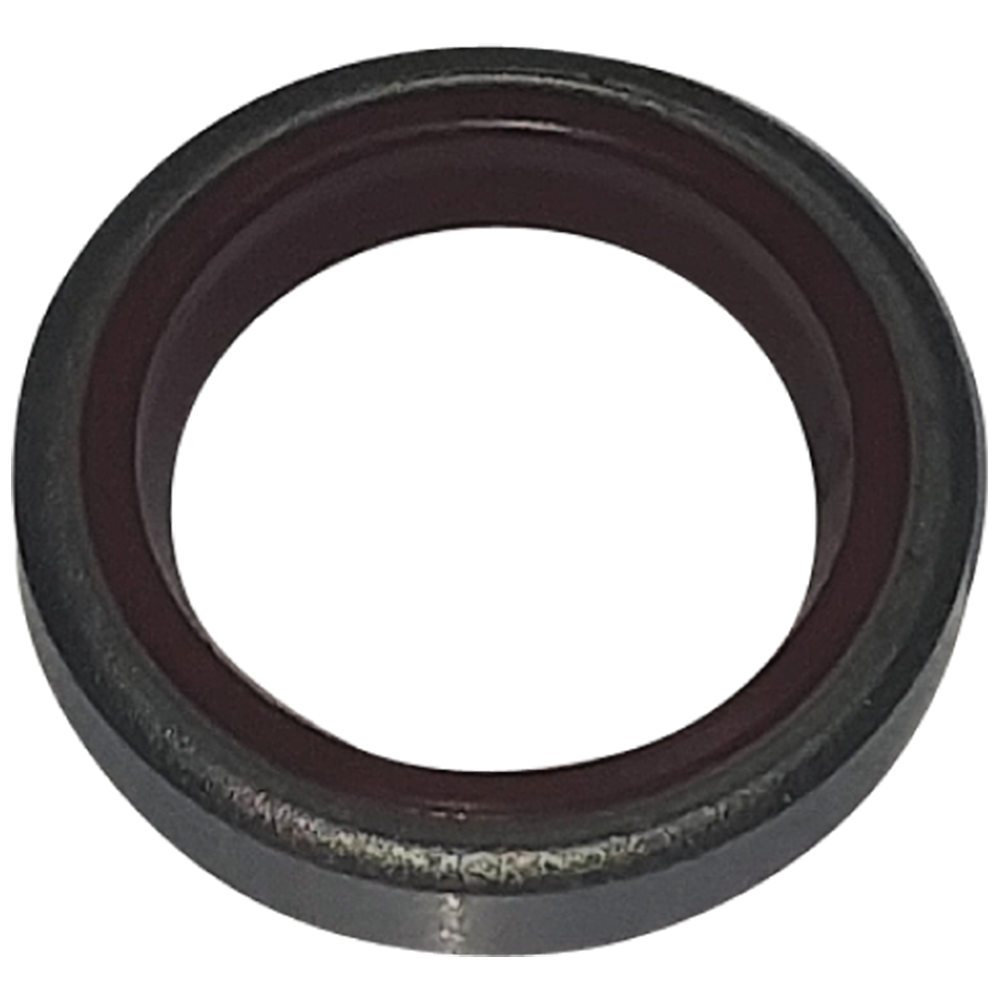

17.2 Metal Clad Seal
  • Housing Bore Dia: 0.826
  • Housing Bore Dia Metric: 20.98
  • Shaft Dia metric: 14.81
  • Shaft Dia: 0.583
  • Material: Fluorocarbon
 PO-25-9
Metal Clad Seal PO-25-9
&
  • Housing Bore Dia: 0.826
  • Housing Bore Dia Metric: 20.98
  • Shaft Dia metric: 14.81
  • Shaft Dia: 0.583
  • Material: Fluorocarbon
17.3 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
 JX-23-22
Lining (Friction Ring,Wafer) JX-23-22
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
