Torque Converter | ZF | ZF3HP22 NON-LOCKUP

Ill.# Image Description Specification Part #
Cam (Sprag Element) For VC-6-1 F-315
Cam (Sprag Element) F-315
& For VC-6-1
Impeller Hub PH-1-4
Impeller Hub PH-1-4
&
Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
Sprag VC-6-1
&
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
Sprag VC-6-1P
Plastic Cage &
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
Washer
  • Material: Steel
  • Squared O.D.
 WW-2-4
Washer WW-2-4
&
  • Material: Steel
  • Squared O.D.
Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 1.760"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

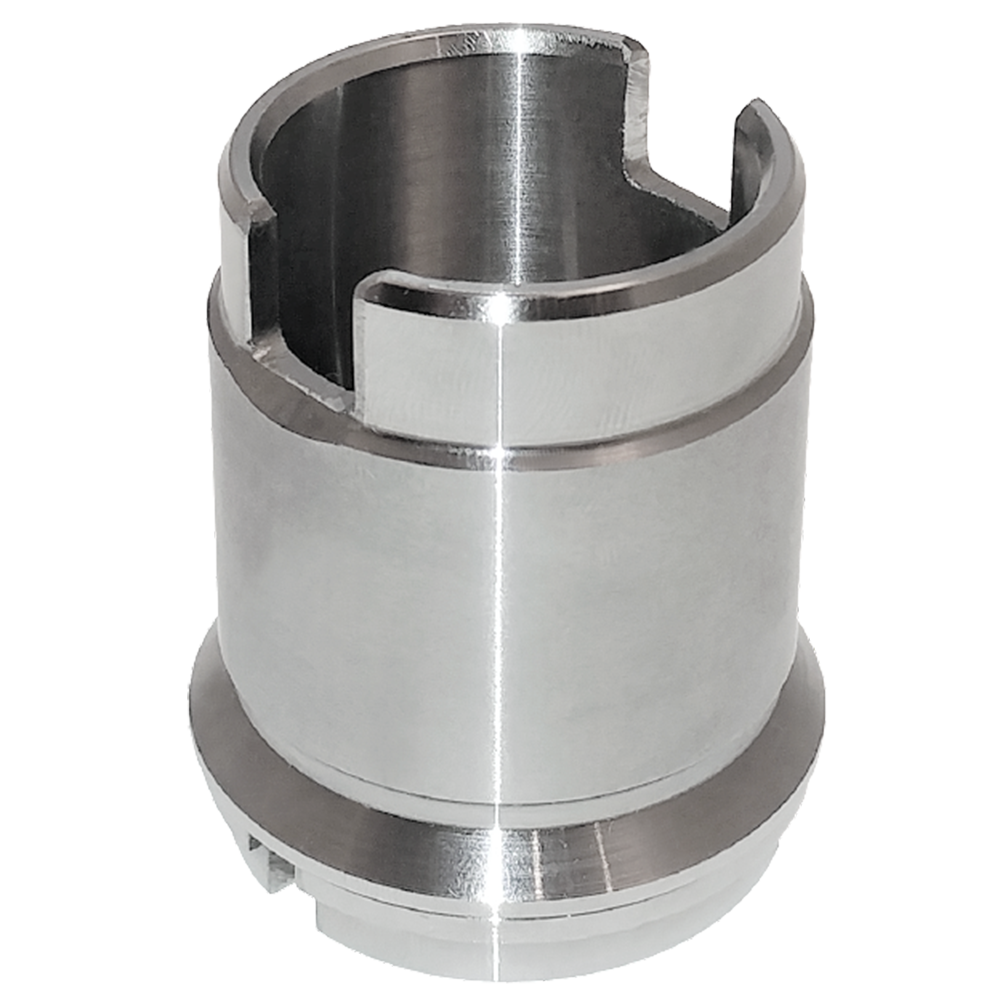

 PH-1-6GRC
Impeller Hub PH-1-6GRC
&
  • Journal Dia: 1.574"
  • Installed Height: 1.760"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 1.600"
  • Pump Drive Type: Slots

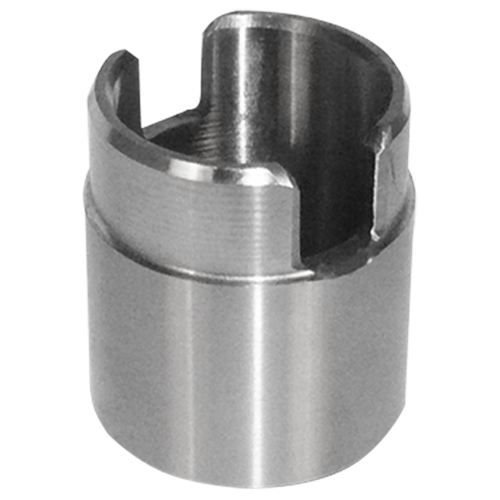

 PH-1-6TG
Impeller Hub PH-1-6TG
&
  • Journal Dia: 1.574"
  • Installed Height: 1.600"
  • Pump Drive Type: Slots
Impeller Hub Heat Treated, Alloy, H.D.
  • Journal Dia: 1.574"
  • Installed Height: 2.120"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

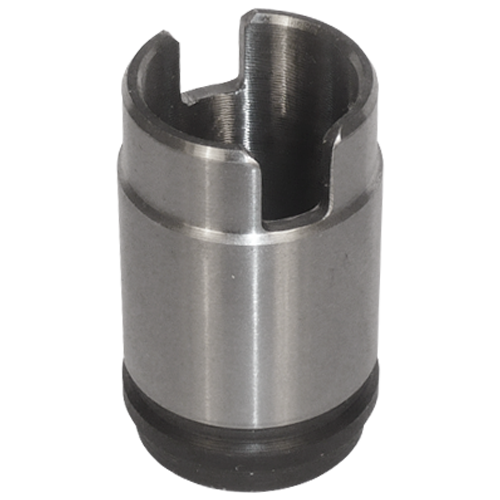

 PH-1-5GRC
Impeller Hub PH-1-5GRC
Heat Treated, Alloy, H.D. &
  • Journal Dia: 1.574"
  • Installed Height: 2.120"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
Impeller Hub
  • Journal Dia: 1.574"
  • Pump Drive Type: Slots

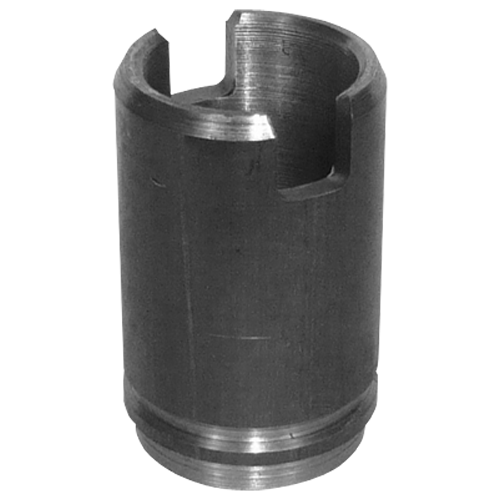

 PH-1-5
Impeller Hub PH-1-5
&
  • Journal Dia: 1.574"
  • Pump Drive Type: Slots
Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 2.120"
  • Pump Drive Type: Slots
 PH-1-5G
Impeller Hub PH-1-5G
&
  • Journal Dia: 1.574"
  • Installed Height: 2.120"
  • Pump Drive Type: Slots
Impeller Hub
  • Journal Dia: 1.574"
  • Installed Height: 1.920"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-4GRC
Impeller Hub PH-1-4GRC
&
  • Journal Dia: 1.574"
  • Installed Height: 1.920"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
