Torque Converter | ZF | NSU with 138 Tooth Ring Gear (Antique)

Ill.# Image Description Specification Part #
Bushing Converter Hub 39002
Bushing 39002
Converter Hub &
Cam (Sprag Element) For VC-6-1 F-315
Cam (Sprag Element) F-315
& For VC-6-1
Shim
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-010
Shim TW-9-010
&
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
Shim
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-020
Shim TW-9-020
&
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
Shim
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-030
Shim TW-9-030
&
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
Shim
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
 TW-9-9
Shim TW-9-9
&
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
Bushing Hub
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision
 VB-18
Bushing VB-18
Hub &
  • Thickness: 0.472"
  • Housing Bore Dia: 1.457"
  • Shaft Dia: 1.337"
  • Material: Bronze
  • Type: Precision
Sprag
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
 VC-6-1
Sprag VC-6-1
&
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: F-295, 4 Outside Clips. The VC-6-1 Sprag compliments Tri's broad and expanding product line of Torque converter, transmission, sprags and roller clutches. The VC-6-1 is for Volkswagen and Fichtel and Sachs applications such as, the ZF 4HP18, 4HP22, 5HP24, and many other critical applications. It contains 22 cams and 4 outside clips. The sprag is available uniquely from Tri Component and was developed with OE manufactures for use in rebuilt units. Contact us to purchase these competitively priced problem solver sprags.
Sprag Plastic Cage
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
 VC-6-1P
Sprag VC-6-1P
Plastic Cage &
  • Thickness: 0.530
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.613"
  • Inner Race Outside Dia: 1.957"
  • Cam part-ID: S-532, 4 Outside Clips.
Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
Shim VW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
Shim VW-2-20
&
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
Bearing NEEDLE BRG.
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Enclosed
  • Outside Dia: 2.36
  • Inside Dia: 1.58
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 40.13
  • Race: TW-2-5TT
 VW-2-3
Bearing VW-2-3
& NEEDLE BRG.
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Enclosed
  • Outside Dia: 2.36
  • Inside Dia: 1.58
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 40.13
  • Race: TW-2-5TT
Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
Shim VW-2-30
&
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
Washer Steel VW-2-4
Washer VW-2-4
Steel &

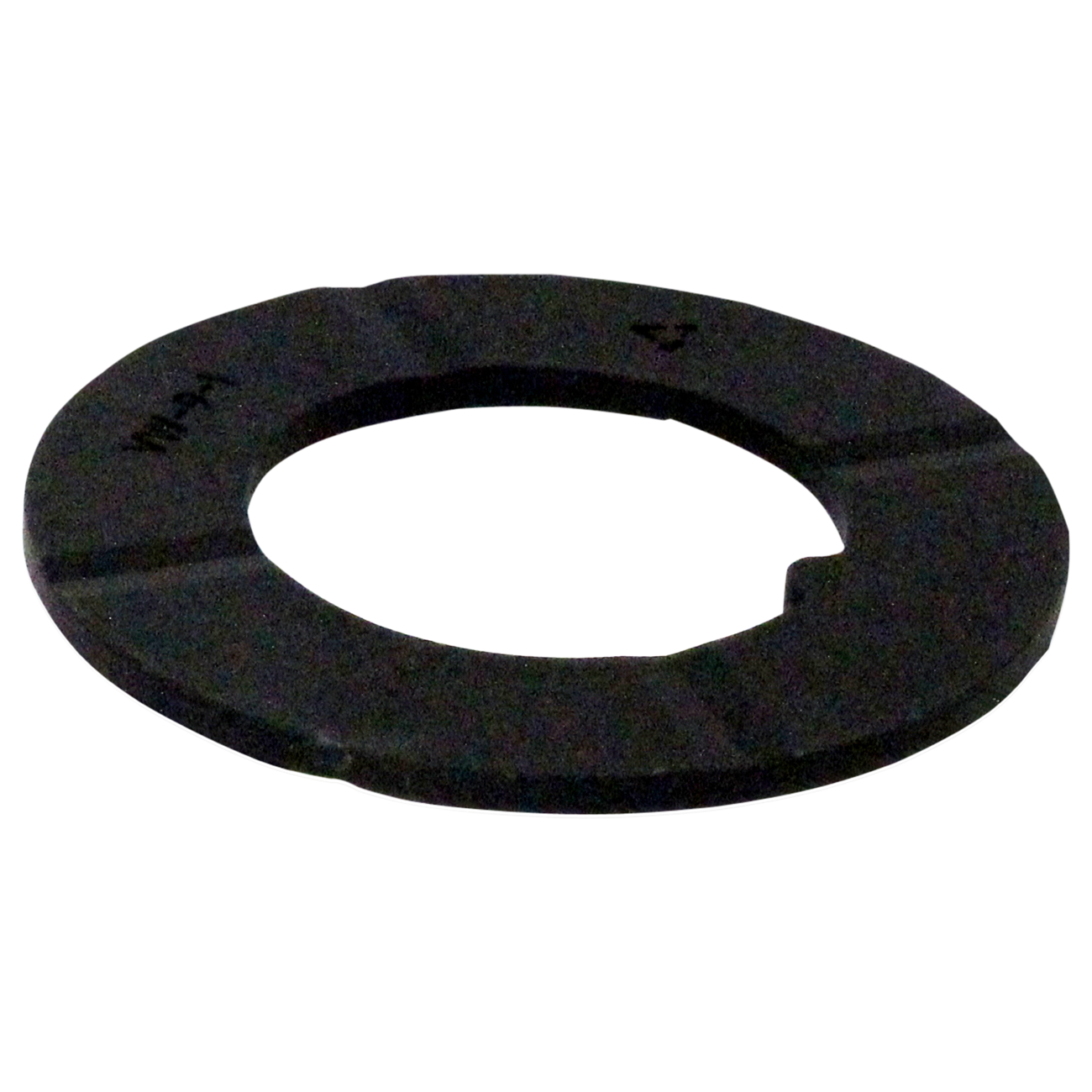

Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.33"
 VW-9-1
Turbine Washer VW-9-1
&
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.33"
Shim
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
 VW-9-2
Shim VW-9-2
&
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"

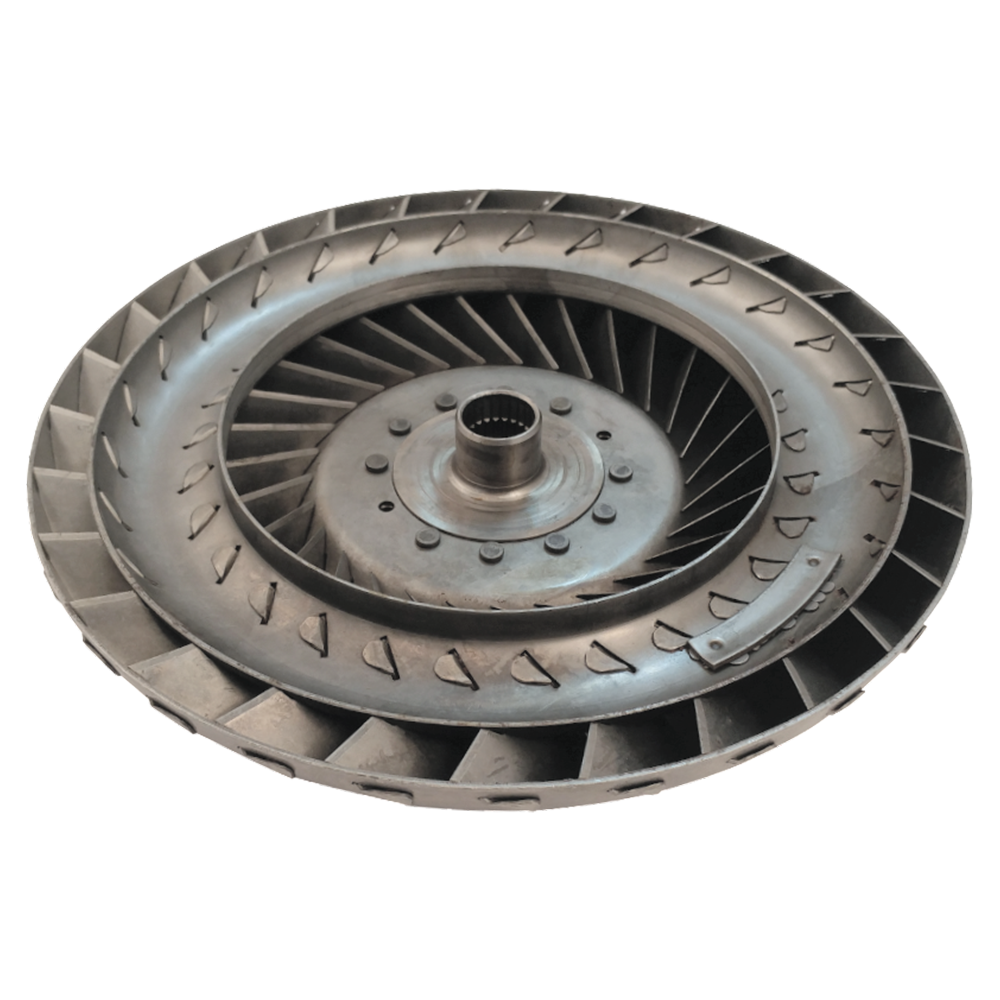

Turbine Hub VX-13-1
Turbine Hub VX-13-1
&

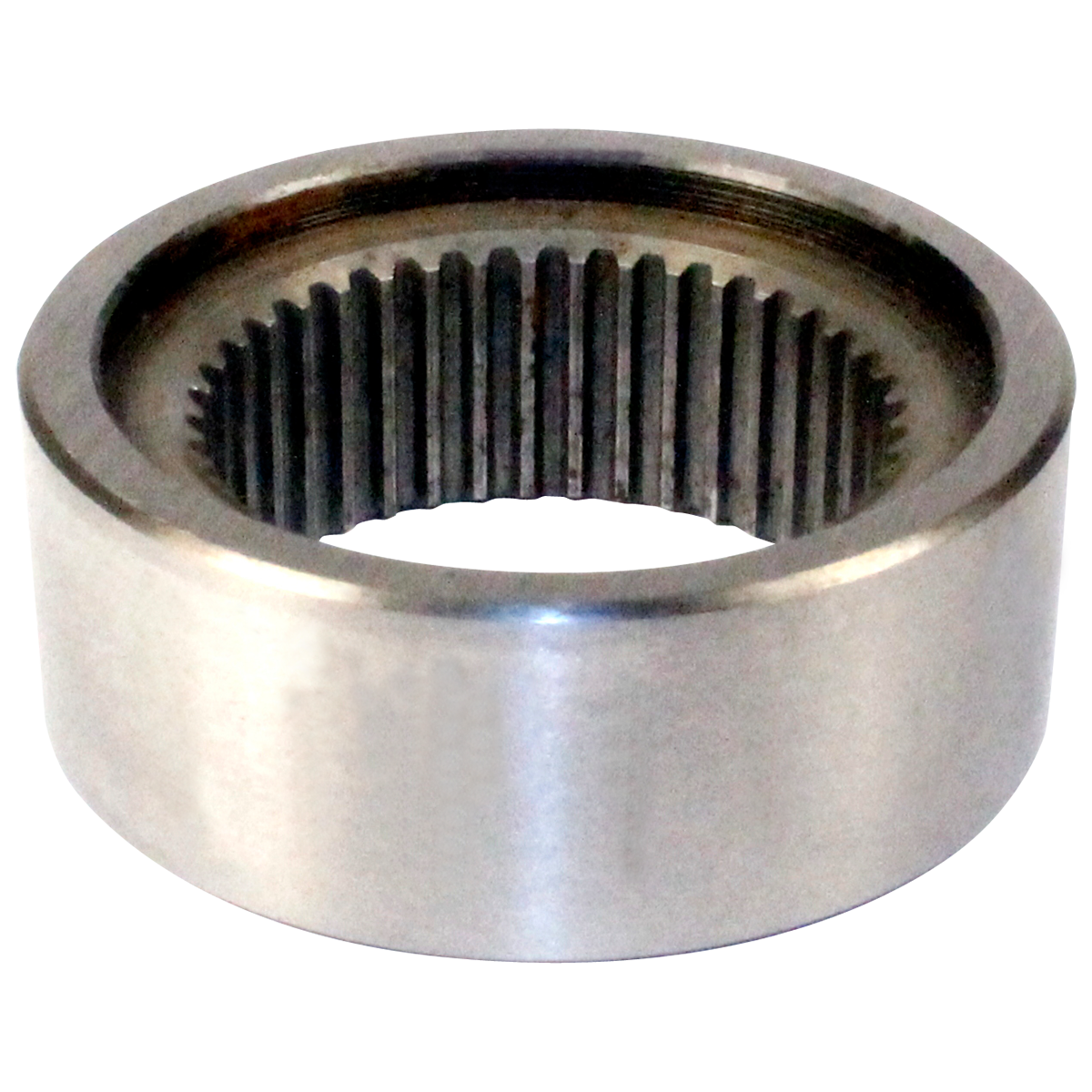

Inner Race Stator, 41 teeth VX-14-1
Inner Race VX-14-1
Stator, 41 teeth &
