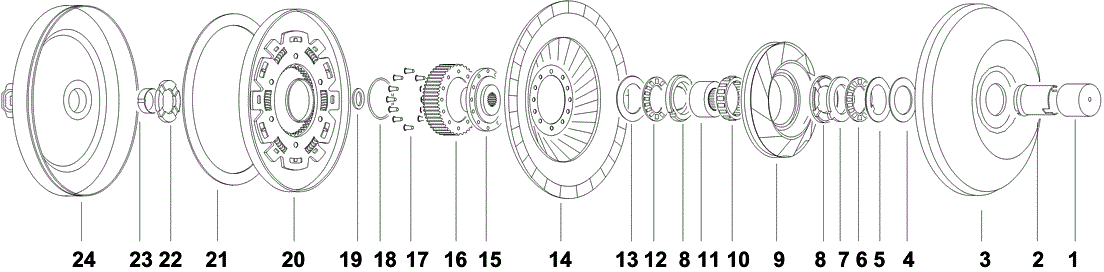

Torque Converter | ZF | BMW (BABY, 318) 254mm, BM-12 | BM-12

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Modified To Fit PW-2-4
  • Journal Dia: 1.574"
  • Installed Height: 1.740"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 PH-1-8GRC
Impeller Hub PH-1-8GRC
Modified To Fit PW-2-4 &
  • Journal Dia: 1.574"
  • Installed Height: 1.740"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
3 Impeller NPN-4-2-3
Impeller NPN-4-2-3
&
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
Shim VW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
4 Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
Shim VW-2-20
&
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
4 Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
Shim VW-2-30
&
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
5 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4
Bearing Race PW-2-4
&
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
5 Bearing Race
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
 PW-2-4P
Bearing Race PW-2-4P
&
  • Outside Dia: 2.35"
  • Inside Dia: 1.59"
6 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
7 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
 PW-2-3
Bearing Race PW-2-3
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.42"
  • Inside Dia: 1.7"
7 Bearing & Race Kit
  • Includes: JW-2N, PW-2-3, PW-2-4
 PW-2BK
Bearing & Race Kit PW-2BK
&
  • Includes: JW-2N, PW-2-3, PW-2-4
8 Stator Cap 2 Pieces Required.
  • Thickness: .33"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.43"
 PW-4-6
Stator Cap PW-4-6
& 2 Pieces Required.
  • Thickness: .33"
  • Material: Aluminum
  • Outside Dia: 2.79"
  • Inside Dia: 1.43"
9 Stator NPN-4-2-9
Stator NPN-4-2-9
&
10 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
10 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
10 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
10 Cam Kit (Sprag Element) Cam Kit
  • Includes: 14 Cams (S-316)
 MS-316-14K
Cam Kit (Sprag Element) MS-316-14K
Cam Kit &
  • Includes: 14 Cams (S-316)
11 Inner Race Stator
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 TX-14-10
Inner Race TX-14-10
Stator &
  • Height: 0.755"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
11 Inner Race Stator
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 YX-14-5
Inner Race YX-14-5
Stator &
  • Height: 0.780"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
12 Bearing
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Enclosed
  • Outside Dia: 2.36
  • Inside Dia: 1.58
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 40.13
  • Race: TW-2-5TT
 VW-2-3
Bearing VW-2-3
&
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Enclosed
  • Outside Dia: 2.36
  • Inside Dia: 1.58
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 40.13
  • Race: TW-2-5TT
13 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
13 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
14 Turbine NPN-4-2-14
Turbine NPN-4-2-14
&
15 Turbine Hub
  • Installed Height: 0.84"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.34"
 PX-13-5HT
Turbine Hub PX-13-5HT
&
  • Installed Height: 0.84"
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.34"
15_N.I. Insert Ez-Weld™
  • Height: 1.380
  • Internal Teeth: 27
  • Outside Dia: 1.258"
  • With Seal Bore
 PX-13-27L
Insert PX-13-27L
Ez-Weld™ &
  • Height: 1.380
  • Internal Teeth: 27
  • Outside Dia: 1.258"
  • With Seal Bore
16 Gear
  • External Teeth: 48
 NPN-4-2-16
Gear NPN-4-2-16
&
  • External Teeth: 48
17 Rivet 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
17 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
17 Rivet 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
17 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
18 Seal Ring Square-Cut with Groove
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
 PO-25
Seal Ring PO-25
Square-Cut with Groove &
  • Height: 0.214"
  • Thickness: 0.213"
  • Width: 0.095"
  • Cross section metric: 2.4mm
  • Thickness metric: 5.4mm
  • Material: Polyacrylic Rubber
  • Height Metric: 5.4356
  • Seal Type: Square-Cut
  • Outside Dia: 2.150"
  • Outside Dia Metric: 54.6mm
18 Seal Ring Square-Cut, Oversized, To Salvage Clutch Plates
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
 PO-25X
Seal Ring PO-25X
Square-Cut, Oversized, To Salvage Clutch Plates &
  • Width: 0.095"
  • Material: Polyacrylic Rubber
  • Outside Dia: 2.362
18 Seal Ring Replacement, Scarf Cut, Square-Cut, with Groove
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
 PO-25T
Seal Ring PO-25T
Replacement, Scarf Cut, Square-Cut, with Groove &
  • Height: 0.196
  • Width: 0.086
  • Material: PTFE
  • Height Metric: 4.9784
  • Seal Type: Scarf Cut
  • Outside Dia: 2.367
  • Outside Dia Metric: 60.1218
19 Metal Clad Seal
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6
Metal Clad Seal PO-25-6
&
  • Housing Bore Dia: 0.945
  • Housing Bore Dia Metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
20 Lockup Clutch Lined
  • Outside Dia: 9.252
  • Outside Dia Metric: 235mm
 PX-26-2
Lockup Clutch PX-26-2
Lined &
  • Outside Dia: 9.252
  • Outside Dia Metric: 235mm
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.75"
  • Inside Dia: 7.75"
 NX-23-1
Lining (Friction Ring,Wafer) NX-23-1
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.75"
  • Inside Dia: 7.75"
22 Turbine Washer
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3D
Turbine Washer PW-9-3D
&
  • Thickness: 0.225"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
22 Turbine Washer
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3E
Turbine Washer PW-9-3E
&
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
22 Turbine Washer
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3F
Turbine Washer PW-9-3F
&
  • Thickness: .248"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
22 Washer Bronze
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
 PW-9-3FB
Washer PW-9-3FB
Bronze &
  • Outside Dia: 2.291"
  • Inside Dia: 1.264"
23 Bushing
  • Thickness: 0.393"
  • Housing Bore Dia: 0.67"
  • Shaft Dia: 0.55"
  • Material: Bronze
 PB-18
Bushing PB-18
&
  • Thickness: 0.393"
  • Housing Bore Dia: 0.67"
  • Shaft Dia: 0.55"
  • Material: Bronze
24 Front Cover NPN-4-2-24
Front Cover NPN-4-2-24
&
