Torque Converter | Toyota | U760E (TM-60LS)

Ill.# Image Description Specification Part #
Turbine Hub TOYOTA U760E
  • Internal Teeth: 22
 YX-13-14HT
Turbine Hub YX-13-14HT
TOYOTA U760E &
  • Internal Teeth: 22
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.695"
  • Installed Height: 1.492"
  • Height: 1.700"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.480"
  • Inside Dia: 3.480"
 YH-1-19FLG
Impeller Hub YH-1-19FLG
Flanged &
  • Journal Dia: 1.695"
  • Installed Height: 1.492"
  • Height: 1.700"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.480"
  • Inside Dia: 3.480"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Impeller-side
  • Thickness: 0.169
  • Thickness metric: 4.29
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.474
  • Inside Dia: 2.487
  • Outside Dia Metric: 88.24
  • Inside Dia metric: 63.17
 YW-2-31
Bearing YW-2-31
& Impeller-side
  • Thickness: 0.169
  • Thickness metric: 4.29
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.474
  • Inside Dia: 2.487
  • Outside Dia Metric: 88.24
  • Inside Dia metric: 63.17
12 Bearing Race Turbine-side
  • Thickness: 0.031"
  • Outside Dia: 3.251"
  • Inside Dia: 1.457"
 YW-2-32
Bearing Race YW-2-32
& Turbine-side
  • Thickness: 0.031"
  • Outside Dia: 3.251"
  • Inside Dia: 1.457"

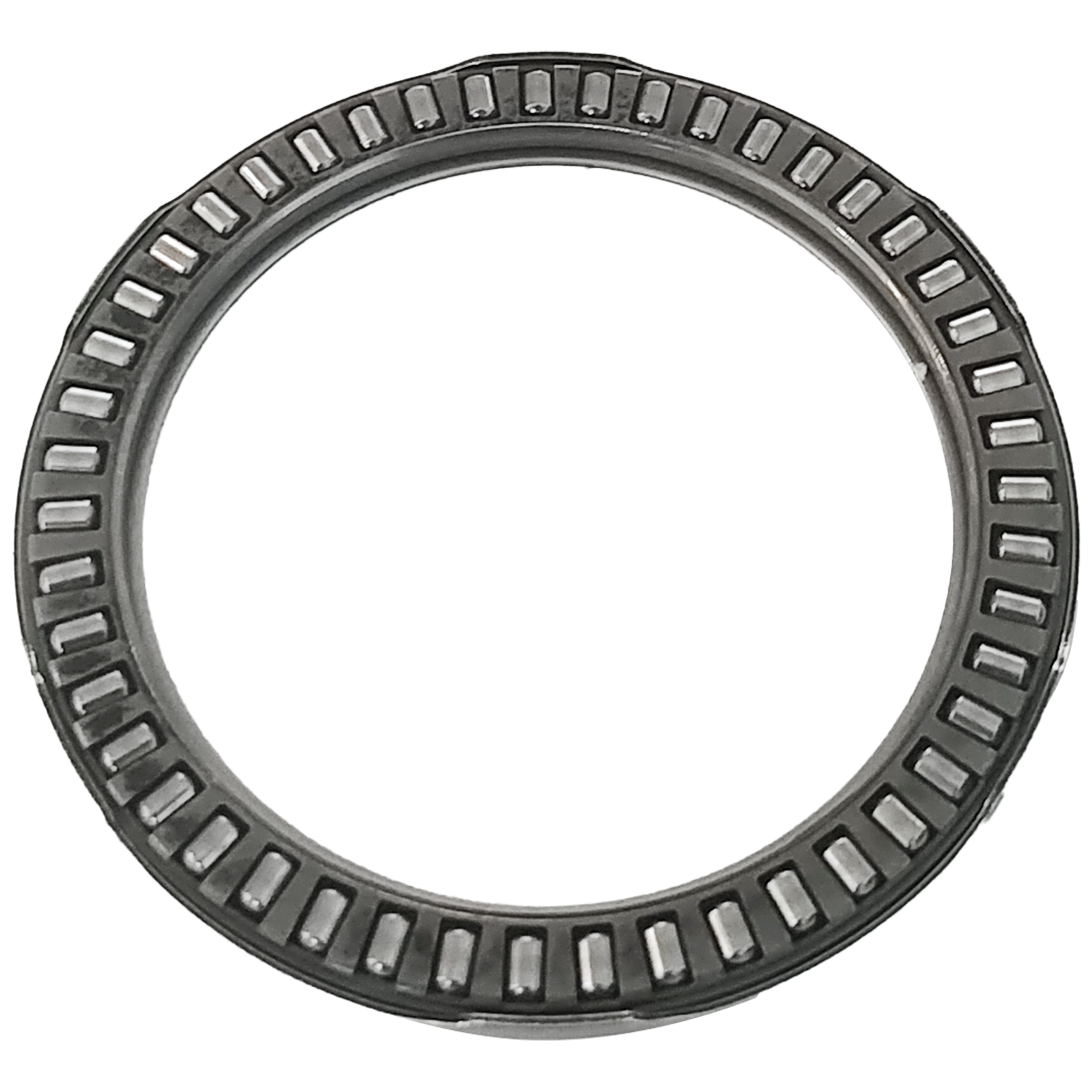

13 Bearing Turbine-side
  • Thickness: 0.149
  • Thickness metric: 3.78
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.993
  • Inside Dia: 2.293
  • Outside Dia Metric: 76.02
  • Inside Dia metric: 58.24
  • Race: YW-2-32
 YW-2-30
Bearing YW-2-30
& Turbine-side
  • Thickness: 0.149
  • Thickness metric: 3.78
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.993
  • Inside Dia: 2.293
  • Outside Dia Metric: 76.02
  • Inside Dia metric: 58.24
  • Race: YW-2-32
14 Rivet U660E, U760E 24 Pieces Required.
  • Length: 0.352
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.203"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
 YX-12-2
Rivet YX-12-2
U660E, U760E & 24 Pieces Required.
  • Length: 0.352
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.203"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
26 Seal Ring
  • Height: 0.064"
  • Width: 0.091"
  • Material: PTFE
  • Height Metric: 1.6256
  • Seal Type: Scarf Cut
  • Outside Dia: 1.261"
  • Outside Dia Metric: 31.877
 YO-25-14
Seal Ring YO-25-14
&
  • Height: 0.064"
  • Width: 0.091"
  • Material: PTFE
  • Height Metric: 1.6256
  • Seal Type: Scarf Cut
  • Outside Dia: 1.261"
  • Outside Dia Metric: 31.877
28 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.900"
  • Inside Dia: 7.635"
 YX-23-25
Lining (Friction Ring,Wafer) YX-23-25
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.900"
  • Inside Dia: 7.635"
