Torque Converter | Toyota | A541E

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)

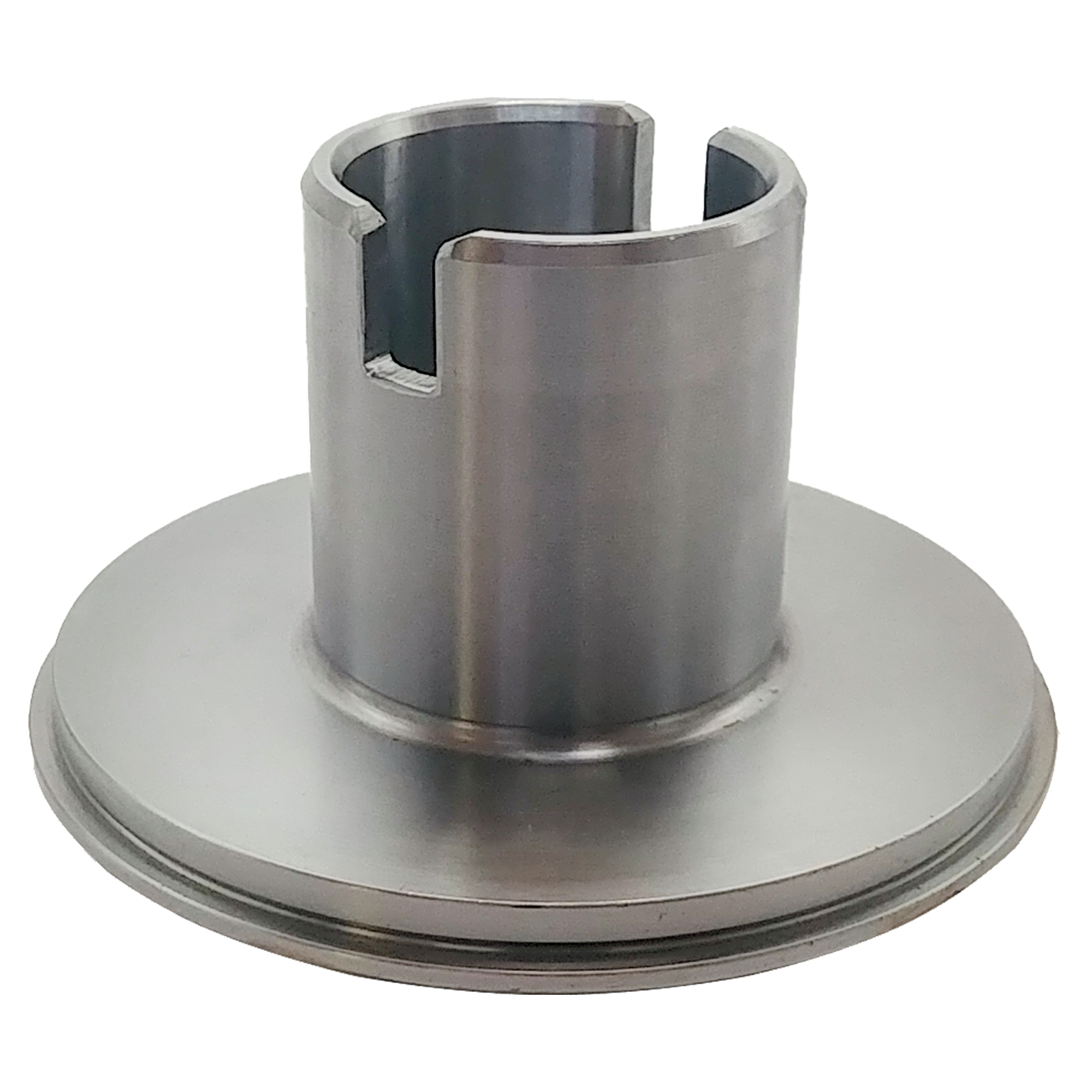

2 Impeller Hub Flanged, A541E/ U151E
  • Journal Dia: 1.499"
  • Installed Height: 1.733"
  • Height: 1.930"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.290"
 YH-1-25FLG
Impeller Hub YH-1-25FLG
Flanged, A541E/ U151E &
  • Journal Dia: 1.499"
  • Installed Height: 1.733"
  • Height: 1.930"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.290"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Impeller-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.854
  • Inside Dia: 1.732
  • Outside Dia Metric: 72.49
  • Inside Dia metric: 43.99
  • Race: YW-2-25
 YW-2-22
Bearing YW-2-22
& Impeller-side
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.854
  • Inside Dia: 1.732
  • Outside Dia Metric: 72.49
  • Inside Dia metric: 43.99
  • Race: YW-2-25
5 Bearing Race 4 ID Tangs, A442F Impeller-side
  • Thickness: 0.096"
  • Outside Dia: 2.726"
  • Inside Dia: 1.841"
 YW-2-33
Bearing Race YW-2-33
4 ID Tangs, A442F & Impeller-side
  • Thickness: 0.096"
  • Outside Dia: 2.726"
  • Inside Dia: 1.841"
14 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
Bearing PW-2-12
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
14 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
Bearing YW-2-16
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
14 Bearing & Race Kit
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K
Bearing & Race Kit YW-2-16K
&
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
26 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.063
  • Inside Dia: 8.5
 YX-23-10
Lining (Friction Ring,Wafer) YX-23-10
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.063
  • Inside Dia: 8.5
28 Bearing
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
 YW-9-6
Bearing YW-9-6
&
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
