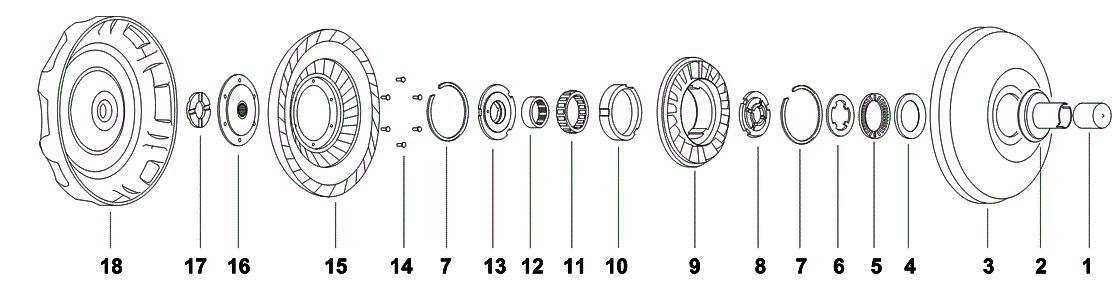

Torque Converter | Toyota | A40D/A43D/A44D Non-Lockup, Overdrive | TO25

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Unfinished 03-72LE
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
 YH-1-6
Impeller Hub YH-1-6
Unfinished & 03-72LE
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
2 Impeller Hub 03-72LE
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Height: 1.96
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-6GRC
Impeller Hub YH-1-6GRC
& 03-72LE
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Height: 1.96
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
 YH-1-6G
Impeller Hub YH-1-6G
&
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 2.000"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.24"
  • Hardness: Rc 32-36
 YH-1-77FLG
Impeller Hub YH-1-77FLG
&
  • Journal Dia: 1.500"
  • Installed Height: 2.000"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.24"
  • Hardness: Rc 32-36
3 Impeller NPN-12-8-3
Impeller NPN-12-8-3
&
4 Bearing Race Cupped 2 Pieces Required.
  • Thickness: 0.030"
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4
Bearing Race YW-2-4
Cupped & 2 Pieces Required.
  • Thickness: 0.030"
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
4 Bearing & Race Kit
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4K
Bearing & Race Kit YW-2-4K
&
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
5 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
Bearing PW-2-12
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
5 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
Bearing YW-2-16
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
5 Bearing & Race Kit
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K
Bearing & Race Kit YW-2-16K
&
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
5 Bearing 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
& 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5 Bearing Alternate 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& Alternate 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5_N.I. Bearing & Race Kit Alt# TB010012 YW-2-4KD
Bearing & Race Kit YW-2-4KD
Alt# TB010012 &
5_N.I. Bearing & Race Kit
  • Includes YW-2-4 , JW-2ND, YW-2
 YW-2BK
Bearing & Race Kit YW-2BK
&
  • Includes YW-2-4 , JW-2ND, YW-2
6 Bearing Race 2 Pieces Required.
  • Thickness: .08"
  • Material: Steel
  • Tang Count: Universal, 1 Tang, Replaces 4 Tangs
  • Outside Dia: 2.3"
  • Inside Dia: 1.58"
 YW-2
Bearing Race YW-2
& 2 Pieces Required.
  • Thickness: .08"
  • Material: Steel
  • Tang Count: Universal, 1 Tang, Replaces 4 Tangs
  • Outside Dia: 2.3"
  • Inside Dia: 1.58"
7 Snap Ring NPN-12-8-7
Snap Ring NPN-12-8-7
&

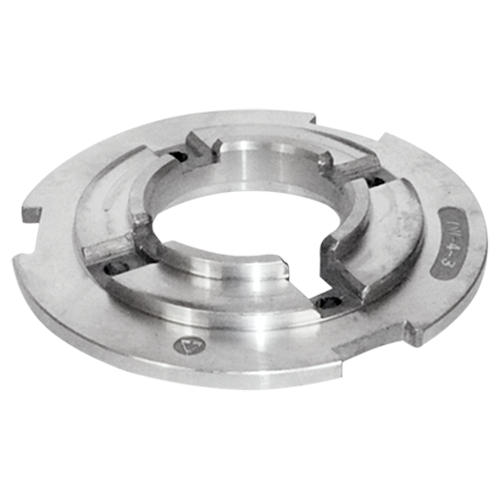

8 Stator Cap
  • Thickness: .50"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.28"
 YW-4-3
Stator Cap YW-4-3
&
  • Thickness: .50"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.28"
9 Stator NPN-12-8-9
Stator NPN-12-8-9
&
10 Cam NPN-12-8-10
Cam NPN-12-8-10
&
11 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
11 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
11 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
12 Inner Race Stator
  • Height: 0.828"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
  • Inside Dia: 1.170"
 YX-14-3
Inner Race YX-14-3
Stator &
  • Height: 0.828"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
  • Inside Dia: 1.170"

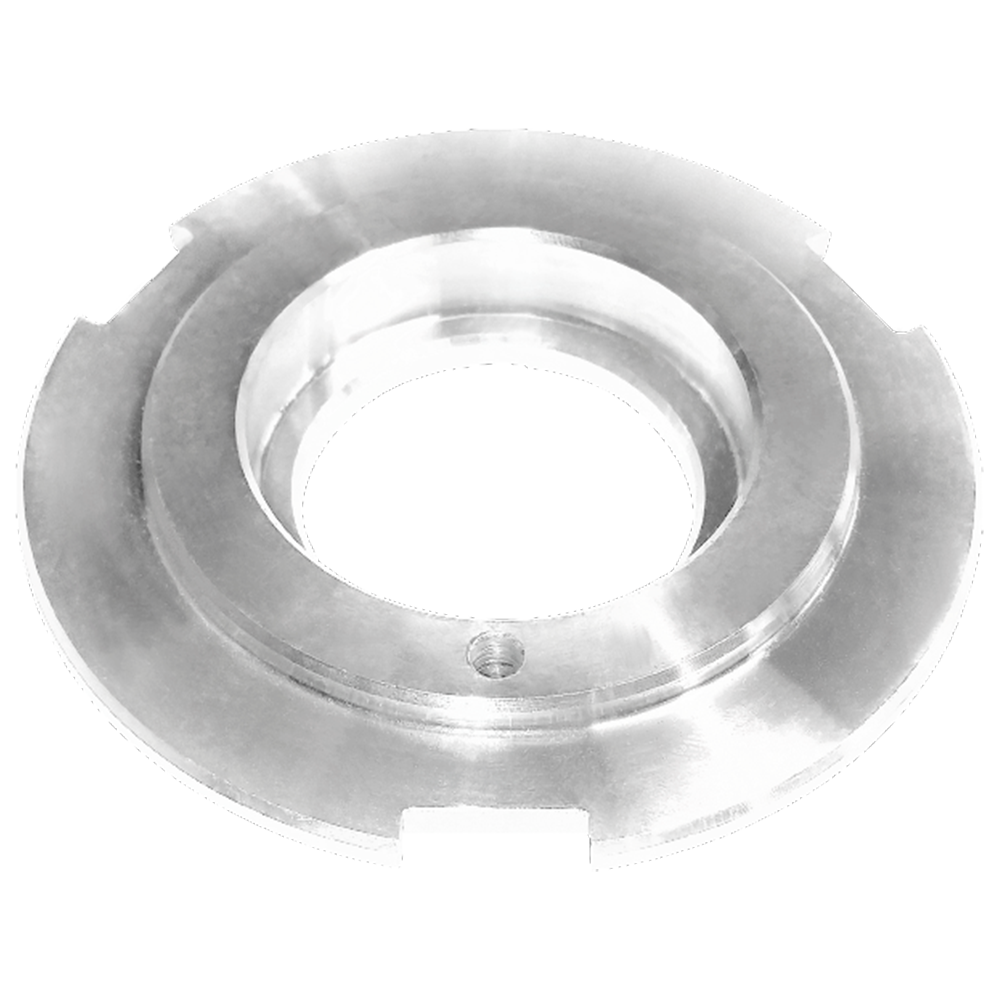

13 Stator Cap Front, Bulletproof™
  • Thickness: .55"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.32"
 YW-4-4
Stator Cap YW-4-4
Front, Bulletproof™ &
  • Thickness: .55"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.32"
14 Rivet 6 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
 YX-12L
Rivet YX-12L
& 6 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
14 Rivet 6 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
 YX-12
Rivet YX-12
& 6 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
15 Turbine 254mm NPN-12-8-15
Turbine NPN-12-8-15
254mm &

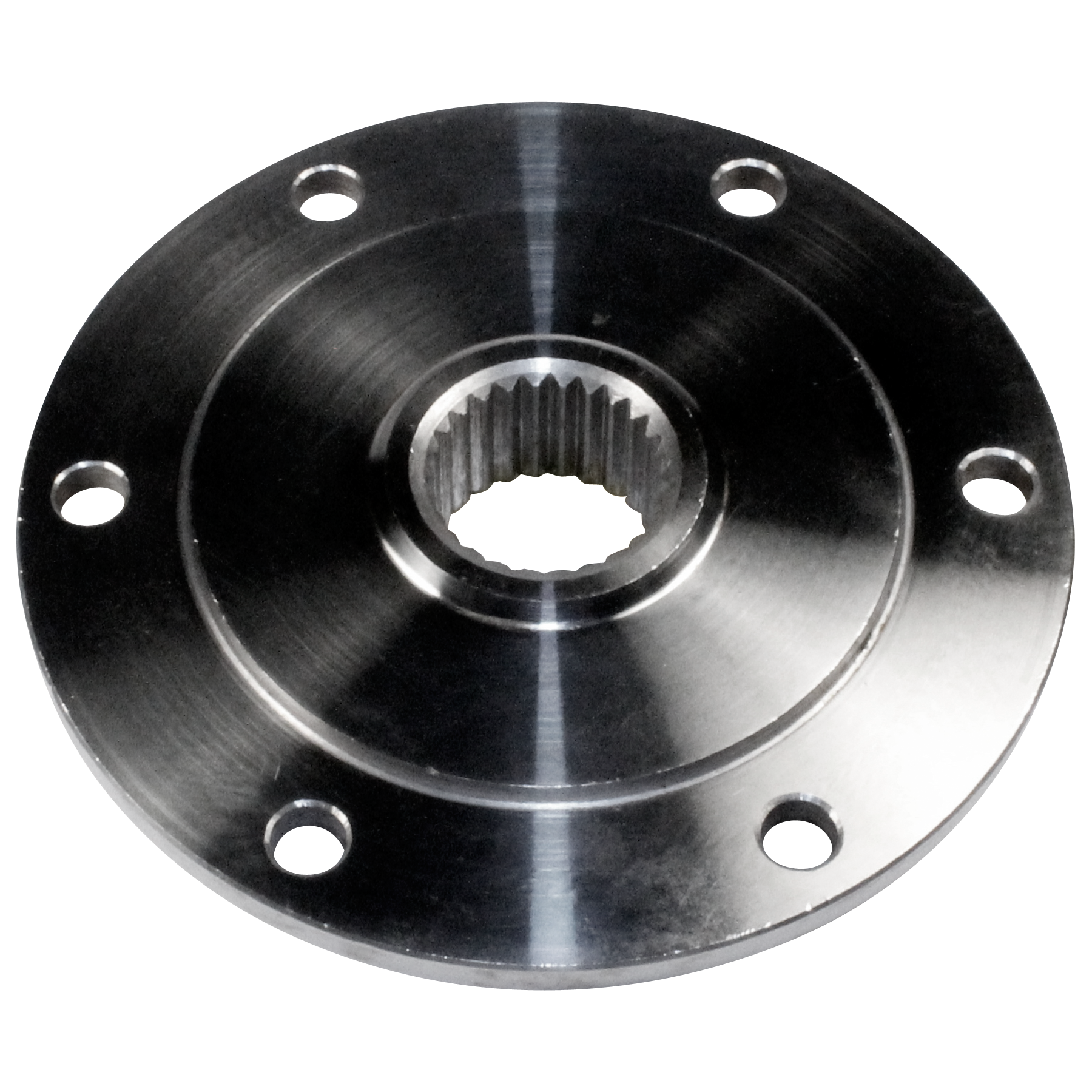

16 Turbine Hub
  • Internal Teeth: 26
  • Outside Dia: 3.77"
 YX-13-4
Turbine Hub YX-13-4
&
  • Internal Teeth: 26
  • Outside Dia: 3.77"
16 Turbine Hub
  • Internal Teeth: 26
  • Outside Dia: 3.89"
 YX-13-5
Turbine Hub YX-13-5
&
  • Internal Teeth: 26
  • Outside Dia: 3.89"
16_N.I. Insert Fixes All Toyota Lockups
  • Height: 1.100
  • Internal Teeth: 26
  • Outside Dia: 1.25"
 YX-13-26
Insert YX-13-26
Fixes All Toyota Lockups &
  • Height: 1.100
  • Internal Teeth: 26
  • Outside Dia: 1.25"
17 Turbine Washer
  • Thickness: .137"
  • Material: Bronze
  • Outside Dia: 2.36"
  • Inside Dia: 1.19"
 YW-9-2
Turbine Washer YW-9-2
&
  • Thickness: .137"
  • Material: Bronze
  • Outside Dia: 2.36"
  • Inside Dia: 1.19"
17 Turbine Washer
  • Thickness: 0.118"
  • Outside Dia: 2.36"
  • Inside Dia: 1.19"
 YW-9-2B
Turbine Washer YW-9-2B
&
  • Thickness: 0.118"
  • Outside Dia: 2.36"
  • Inside Dia: 1.19"
17 Turbine Washer
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.24"
 YW-9-3
Turbine Washer YW-9-3
&
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.24"
18 Front Cover NPN-12-8-18
Front Cover NPN-12-8-18
&
19 Bolt Hex Head
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
 YX-10-1
Bolt YX-10-1
Hex Head &
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
