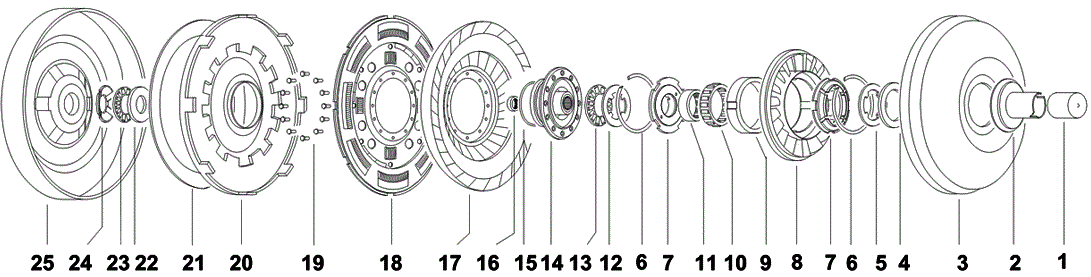

Torque Converter | Toyota | A-440F, TO-34 | TO34

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-3GRC
Impeller Hub YH-1-3GRC
&
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

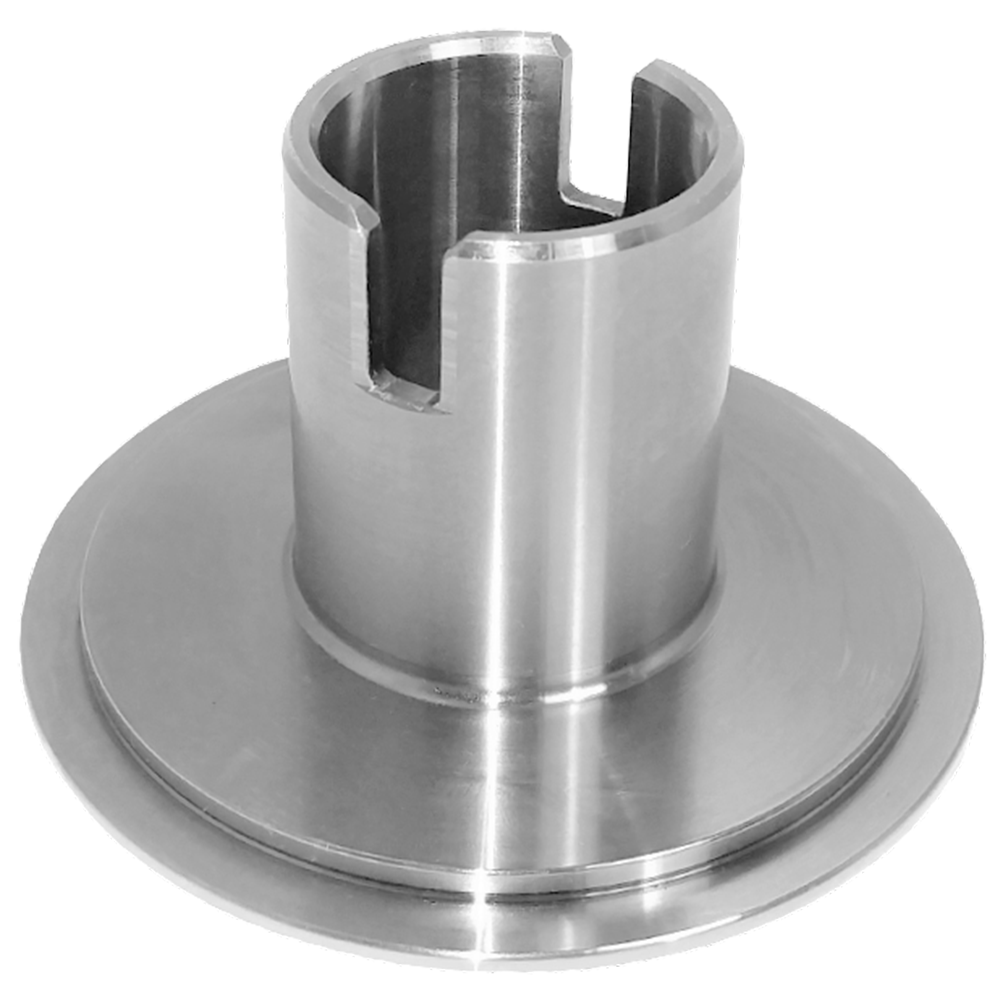

2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.060"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.440"
  • Hardness: Rc 32-36
 YH-1-13FLG
Impeller Hub YH-1-13FLG
Flanged &
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.060"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.440"
  • Hardness: Rc 32-36
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.06
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-55FLG
Impeller Hub YH-1-55FLG
Flanged &
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.06
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
3 Impeller NPN-12-14-3
Impeller NPN-12-14-3
&
4 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
 PW-2-12
Bearing PW-2-12
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.31
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 33.27
  • Race: PW-2-13
4 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
 YW-2-16
Bearing YW-2-16
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.436
  • Inside Dia: 1.496
  • Outside Dia Metric: 61.87
  • Inside Dia metric: 38
  • Race: YW-2
4 Bearing & Race Kit
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
 YW-2-16K
Bearing & Race Kit YW-2-16K
&
  • Outside Dia: 2.43"
  • Inside Dia: 1.31"
4 Bearing
  • Thickness: 0.148
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.677
  • Inside Dia: 1.732
  • Outside Dia Metric: 68
  • Inside Dia metric: 43.99
  • Race: YW-2-8,YW-2-5
 YW-2-7
Bearing YW-2-7
&
  • Thickness: 0.148
  • Thickness metric: 3.76
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.677
  • Inside Dia: 1.732
  • Outside Dia Metric: 68
  • Inside Dia metric: 43.99
  • Race: YW-2-8,YW-2-5
5 Bearing Race 4 Tangs NPN-12-14-5
Bearing Race NPN-12-14-5
4 Tangs &
6 Snap Ring
  • Thickness: .06"
  • Outside Dia: 3.55"
 NPN-12-14-6
Snap Ring NPN-12-14-6
&
  • Thickness: .06"
  • Outside Dia: 3.55"
7 Stator Cap
  • Thickness: .48"
  • Internal Teeth: 1.45"
  • Material: Aluminum
  • Outside Dia: 3.33"
 NPN-12-14-7
Stator Cap NPN-12-14-7
&
  • Thickness: .48"
  • Internal Teeth: 1.45"
  • Material: Aluminum
  • Outside Dia: 3.33"
7 Stator Cap Aluminum 2 Pieces Required.
  • Thickness: 0.531"
  • Functional Thickness: 0.254"
  • Outside Dia: 3.663"
  • Inside Dia: 1.381"
 YW-4-9
Stator Cap YW-4-9
Aluminum & 2 Pieces Required.
  • Thickness: 0.531"
  • Functional Thickness: 0.254"
  • Outside Dia: 3.663"
  • Inside Dia: 1.381"
8 Stator NPN-12-14-8
Stator NPN-12-14-8
&
9 Cam NPN-12-14-9
Cam NPN-12-14-9
&
10 Sprag
  • Cam Count: 22 elements
 NPN-12-14-10
Sprag NPN-12-14-10
&
  • Cam Count: 22 elements
11 Inner Race
  • Height: 0.81"
  • Internal Teeth: 41 (12 Removed)
  • Outside Dia: 1.85"
 NPN-12-14-11
Inner Race NPN-12-14-11
&
  • Height: 0.81"
  • Internal Teeth: 41 (12 Removed)
  • Outside Dia: 1.85"
12 Bearing Race
  • Tang Count: 4
  • Outside Dia: 2.55"
  • Inside Dia: 1.83"
 NPN-12-14-12
Bearing Race NPN-12-14-12
&
  • Tang Count: 4
  • Outside Dia: 2.55"
  • Inside Dia: 1.83"
13 Bearing
  • Thickness: 0.15"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.68"
  • Inside Dia: 1.74"
 NPN-12-14-13
Bearing NPN-12-14-13
&
  • Thickness: 0.15"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.68"
  • Inside Dia: 1.74"
14 Turbine Hub
  • Internal Teeth: 20
 YX-13-6
Turbine Hub YX-13-6
&
  • Internal Teeth: 20
14 Turbine Hub
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
 YX-13-6HT
Turbine Hub YX-13-6HT
&
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
15 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
Seal Ring YO-25-1
Scarf Cut &
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
15 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 39.3446
 FO-25-8
O-Ring FO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 39.3446

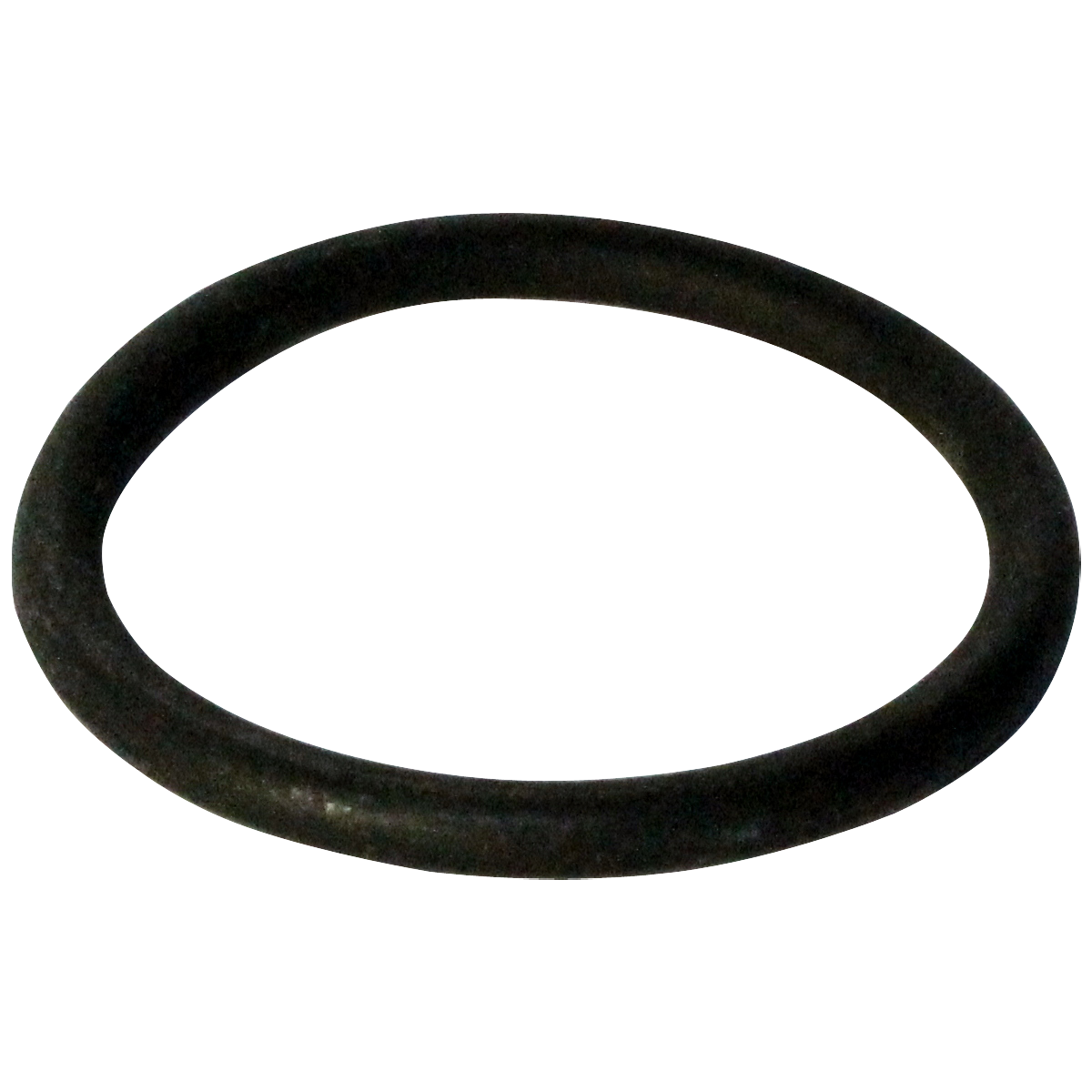

15 O-Ring
  • Thickness: 0.109
  • Thickness metric: 2.7686
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 40.005
  • Machine Clutch Bore To 1.800"/1.802"
 FO-25-8A
O-Ring FO-25-8A
&
  • Thickness: 0.109
  • Thickness metric: 2.7686
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 40.005
  • Machine Clutch Bore To 1.800"/1.802"
15 O-Ring
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 38.5064
 JO-25-12
O-Ring JO-25-12
&
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 38.5064
15 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Oversized
 JO-25-12X
O-Ring JO-25-12X
&
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Oversized
16 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-5
Metal Clad Seal YO-25-5
&
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
17 Turbine NPN-12-14-17
Turbine NPN-12-14-17
&
18 Clutch NPN-12-14-18
Clutch NPN-12-14-18
&
19 Rivet 12 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
 YX-12L
Rivet YX-12L
& 12 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
19 Rivet 6 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
 YX-12
Rivet YX-12
& 6 Pieces Required.
  • Length: 0.295"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.4"
20 Lockup Clutch YX-23-9
Lockup Clutch YX-23-9
&
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 8.625"
 YX-23-11
Lining (Friction Ring,Wafer) YX-23-11
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 8.625"
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.25
  • Inside Dia: 8.625
 YX-23-22
Lining (Friction Ring,Wafer) YX-23-22
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.25
  • Inside Dia: 8.625
22 Bearing Race
  • Thickness: .07"
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 NPN-12-14-22
Bearing Race NPN-12-14-22
&
  • Thickness: .07"
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
23 Bearing
  • Thickness: 0.77"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.05"
  • Inside Dia: 1.16"
 NPN-12-14-23
Bearing NPN-12-14-23
&
  • Thickness: 0.77"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.05"
  • Inside Dia: 1.16"
24 Retainer
  • Thickness: 0.03"
  • Outside Dia: 2.19"
  • Inside Dia: 1.17"
 NPN-12-14-24
Retainer NPN-12-14-24
&
  • Thickness: 0.03"
  • Outside Dia: 2.19"
  • Inside Dia: 1.17"
25 Front Cover NPN-12-14-25
Front Cover NPN-12-14-25
&
25_N.I. Bolt Hex Head
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
 YX-10-1
Bolt YX-10-1
Hex Head &
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm

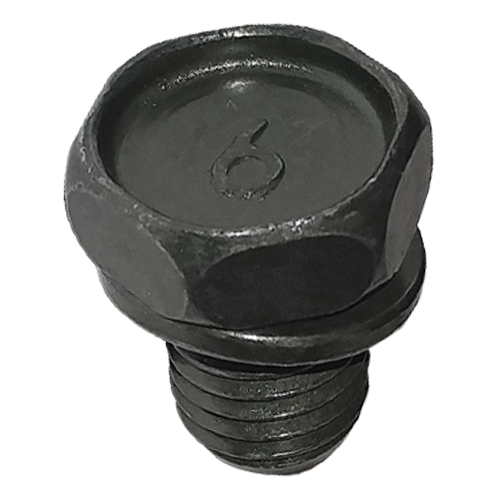

25_N.I. Bolt Hex Head 6 Pieces Required.
  • Dimensions: M9 x 1.25mm
  • Length: 13mm
 YX-10-2
Bolt YX-10-2
Hex Head & 6 Pieces Required.
  • Dimensions: M9 x 1.25mm
  • Length: 13mm
