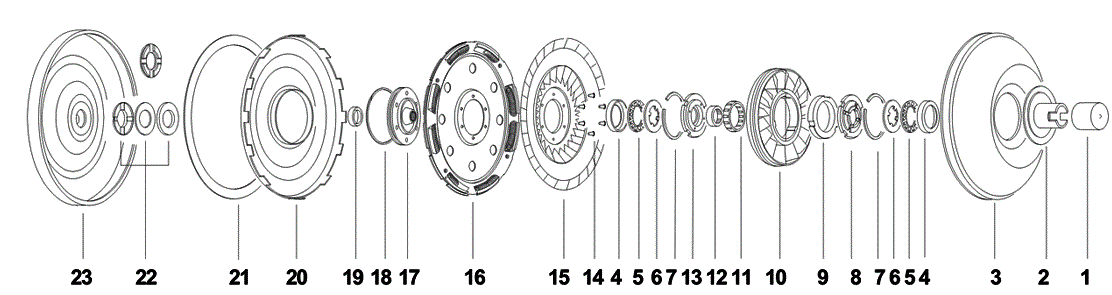

Torque Converter | Toyota | A-131L Lockup | TO19

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.690"
  • Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-44FLG
Impeller Hub YH-1-44FLG
Flanged &
  • Journal Dia: 1.500"
  • Installed Height: 1.690"
  • Height: 1.880"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-5GRC
Impeller Hub YH-1-5GRC
&
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 YH-1-5G
Impeller Hub YH-1-5G
&
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
3 Impeller NPN-12-4-3
Impeller NPN-12-4-3
&
4 Bearing Race Cupped 2 Pieces Required.
  • Thickness: 0.030"
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4
Bearing Race YW-2-4
Cupped & 2 Pieces Required.
  • Thickness: 0.030"
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
4 Bearing & Race Kit
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
 YW-2-4K
Bearing & Race Kit YW-2-4K
&
  • Outside Dia: 2.440"
  • Inside Dia: 1.664"
5 Bearing 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
& 2 Pieces Required.
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5 Bearing 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& 2 Pieces Required.
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
5_N.I. Bearing & Race Kit Alt# TB010012 YW-2-4KD
Bearing & Race Kit YW-2-4KD
Alt# TB010012 &
5_N.I. Bearing & Race Kit
  • Includes YW-2-4 , JW-2ND, YW-2
 YW-2BK
Bearing & Race Kit YW-2BK
&
  • Includes YW-2-4 , JW-2ND, YW-2
6 Bearing Race 2 Pieces Required.
  • Thickness: .08"
  • Material: Steel
  • Tang Count: Universal, 1 Tang, Replaces 4 Tangs
  • Outside Dia: 2.3"
  • Inside Dia: 1.58"
 YW-2
Bearing Race YW-2
& 2 Pieces Required.
  • Thickness: .08"
  • Material: Steel
  • Tang Count: Universal, 1 Tang, Replaces 4 Tangs
  • Outside Dia: 2.3"
  • Inside Dia: 1.58"
7 Snap Ring NPN-12-4-7
Snap Ring NPN-12-4-7
&
8 Stator Cap Bulletproof™ Rear
  • Thickness: .41"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.28"
 YW-4-5
Stator Cap YW-4-5
Bulletproof™ & Rear
  • Thickness: .41"
  • Material: Aluminum
  • Outside Dia: 3.09"
  • Inside Dia: 1.28"
9 Cam NPN-12-4-9
Cam NPN-12-4-9
&
10 Stator NPN-12-4-10
Stator NPN-12-4-10
&
11 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
11 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
11 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
12 Inner Race Stator
  • Height: 0.828"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
  • Inside Dia: 1.170"
 YX-14-3
Inner Race YX-14-3
Stator &
  • Height: 0.828"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
  • Inside Dia: 1.170"
14 Rivet 6 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
 YX-12L
Rivet YX-12L
& 6 Pieces Required.
  • Length: 0.425"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.400"
15 Turbine 254mm NPN-12-4-15
Turbine NPN-12-4-15
254mm &
16 Damper Assembly
  • Outside Dia: 10-5/8"
  • Inside Dia: 4-5/16"
 NPN-12-4-16
Damper Assembly NPN-12-4-16
&
  • Outside Dia: 10-5/8"
  • Inside Dia: 4-5/16"

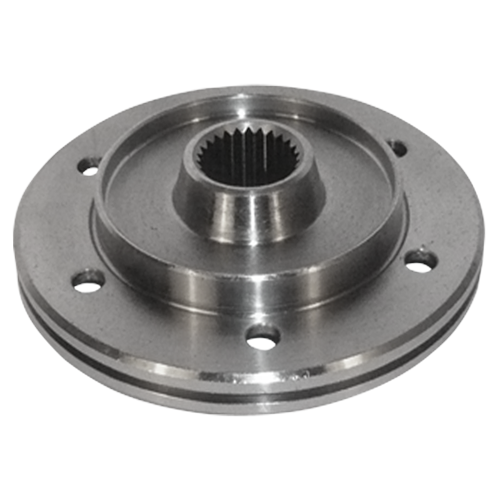

17 Turbine Hub
  • Internal Teeth: 26
 YX-13
Turbine Hub YX-13
&
  • Internal Teeth: 26

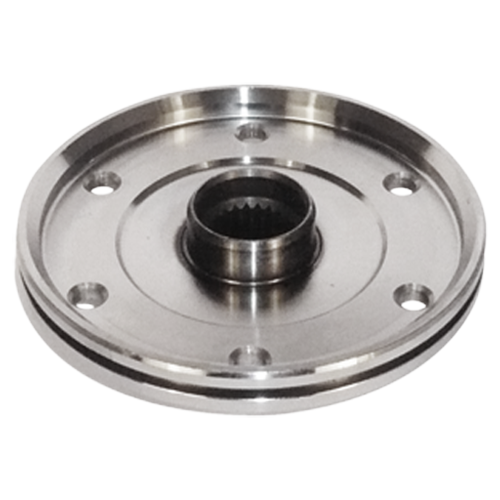

17 Turbine Hub
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.01"
 YX-13HT
Turbine Hub YX-13HT
&
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.01"
17_N.I. Insert Fixes All Toyota Lockups
  • Height: 1.100
  • Internal Teeth: 26
  • Outside Dia: 1.25"
 YX-13-26
Insert YX-13-26
Fixes All Toyota Lockups &
  • Height: 1.100
  • Internal Teeth: 26
  • Outside Dia: 1.25"

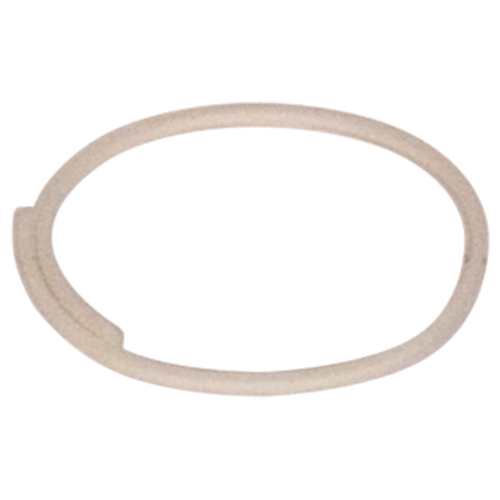

18 Seal Ring Scarf Cut
  • Height: 0.092"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.3114
  • Seal Type: Scarf Cut
  • Outside Dia: 4.033"
  • Outside Dia Metric: 102.108
 YO-25-4
Seal Ring YO-25-4
Scarf Cut &
  • Height: 0.092"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.3114
  • Seal Type: Scarf Cut
  • Outside Dia: 4.033"
  • Outside Dia Metric: 102.108
19 Metal Clad Seal
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-12
Metal Clad Seal YO-25-12
&
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
19 Metal Clad Seal Spring Loaded
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-2
Metal Clad Seal YO-25-2
Spring Loaded &
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
20 Clutch Plate Assembly YX-23-4
Clutch Plate Assembly YX-23-4
&
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.25"
 YX-23-2
Lining (Friction Ring,Wafer) YX-23-2
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.25"
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.5"
  • Inside Dia: 7.25"
 YX-23-19
Lining (Friction Ring,Wafer) YX-23-19
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.5"
  • Inside Dia: 7.25"
22 Bearing & Race Kit
  • Thickness: 0.16"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.19"
  • Inside Dia: 1.18"
  • Replaced by Plastic Washer YW-9-4B
 YW-9-4K
Bearing & Race Kit YW-9-4K
&
  • Thickness: 0.16"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.19"
  • Inside Dia: 1.18"
  • Replaced by Plastic Washer YW-9-4B
22 Turbine Washer
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.110"
  • Replaces Bearing
 YW-9-4B
Turbine Washer YW-9-4B
&
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.110"
  • Replaces Bearing
23 Front Cover NPN-12-4-23
Front Cover NPN-12-4-23
&
23_N.I. Bolt Hex Head 6 Pieces Required.
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
 YX-10-1
Bolt YX-10-1
Hex Head & 6 Pieces Required.
  • Dimensions: M8-1.25 X 12mm
  • Length: 12mm
