Torque Converter | Subaru | R4AX-EL (SU-16)

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.969"
  • Installed Height: 3.154"
  • Height: 3.458"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.600"
  • Inside Dia: 3.600"
 JH-1-44FLG
Impeller Hub JH-1-44FLG
Flanged &
  • Journal Dia: 1.969"
  • Installed Height: 3.154"
  • Height: 3.458"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.600"
  • Inside Dia: 3.600"
3 Misc NPN-SPL
Misc NPN-SPL
&
14 Turbine Hub
  • Internal Teeth: 23
  • External Teeth: 48
 JX-13-52HT
Turbine Hub JX-13-52HT
&
  • Internal Teeth: 23
  • External Teeth: 48

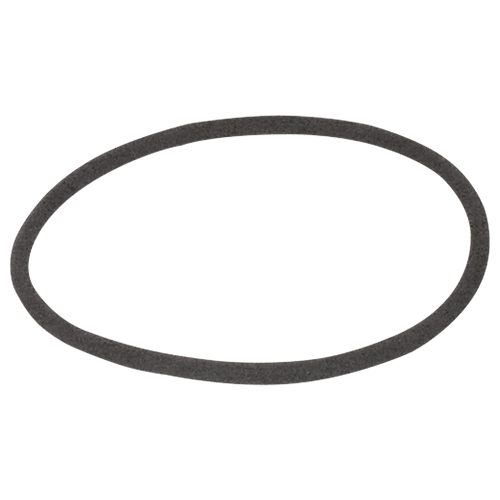

15 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.205
  • Inside Dia metric: 56.007
 JO-25-18
O-Ring JO-25-18
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 2.205
  • Inside Dia metric: 56.007
18 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
18 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
