Torque Converter | Renault, Peugeot | Renault (DPO), Peugeot (AL4), Late

Ill.# Image Description Specification Part #

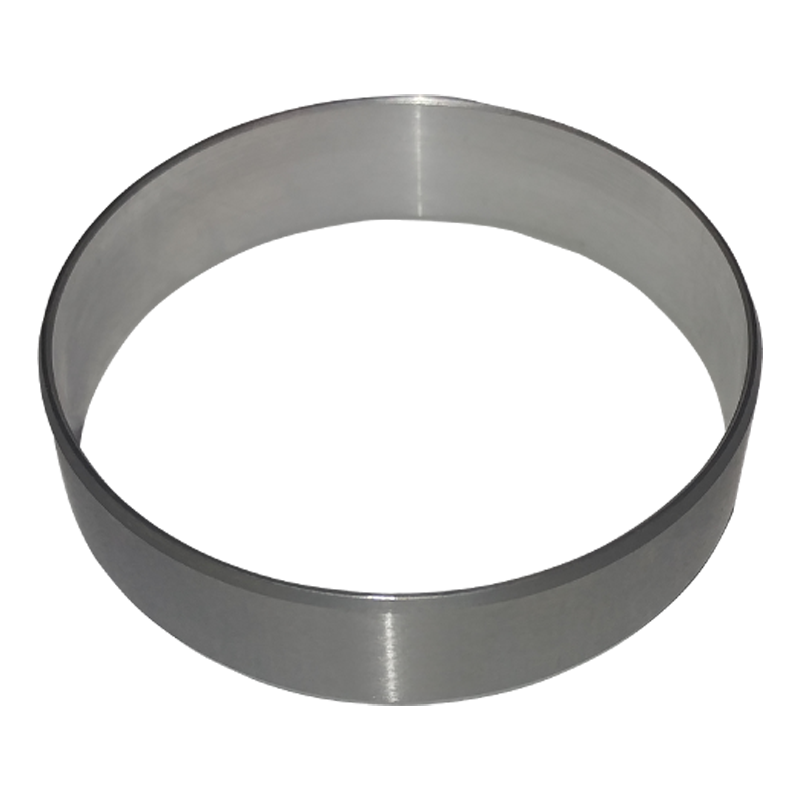

Bushing Pump, DPO AL4 120001
Bushing 120001
Pump, DPO AL4 &
Impeller Hub Flanged
  • Hub Mount: Flanged
 RH-1-2FLG
Impeller Hub RH-1-2FLG
Flanged &
  • Hub Mount: Flanged
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
1 Hubcap Fits 2-1/8" (54.0mm). Length: 1/2"
  • Color: Brown
  • Fits 2-1/8" (54.0mm)
 MHC-BR
Hubcap MHC-BR
Fits 2-1/8" (54.0mm). Length: 1/2" &
  • Color: Brown
  • Fits 2-1/8" (54.0mm)

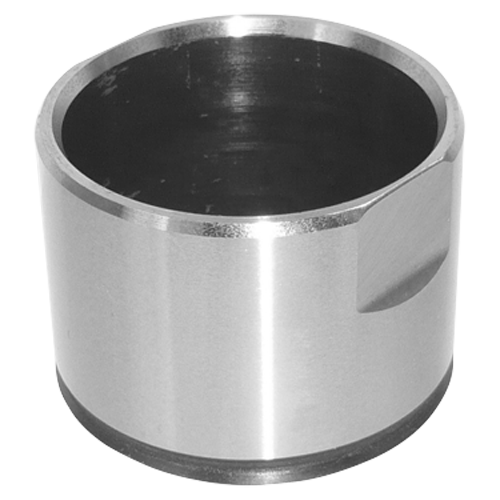

2 Impeller Hub
  • Journal Dia: 2.141"
  • Height: 1.435"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 RH-1-1GRC
Impeller Hub RH-1-1GRC
&
  • Journal Dia: 2.141"
  • Height: 1.435"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-10-2-3
Impeller NPN-10-2-3
&
4 Bearing
  • Thickness: 0.143
  • Thickness metric: 3.63
  • Bearing type: Enclosed
  • Tang Count: 3 Internal
  • Outside Dia: 2.968
  • Inside Dia: 2.062
  • Outside Dia Metric: 75.39
  • Inside Dia metric: 52.37
 RW-2-1
Bearing RW-2-1
&
  • Thickness: 0.143
  • Thickness metric: 3.63
  • Bearing type: Enclosed
  • Tang Count: 3 Internal
  • Outside Dia: 2.968
  • Inside Dia: 2.062
  • Outside Dia Metric: 75.39
  • Inside Dia metric: 52.37
4 Bearing & Race Kit
  • Thickness: 0.151"
  • Outside Dia: 2.97"
  • Inside Dia: 2.05"
 RW-2-1K
Bearing & Race Kit RW-2-1K
&
  • Thickness: 0.151"
  • Outside Dia: 2.97"
  • Inside Dia: 2.05"
5 Stator NPN-10-2-5
Stator NPN-10-2-5
&
6 Cam NPN-10-2-6
Cam NPN-10-2-6
&

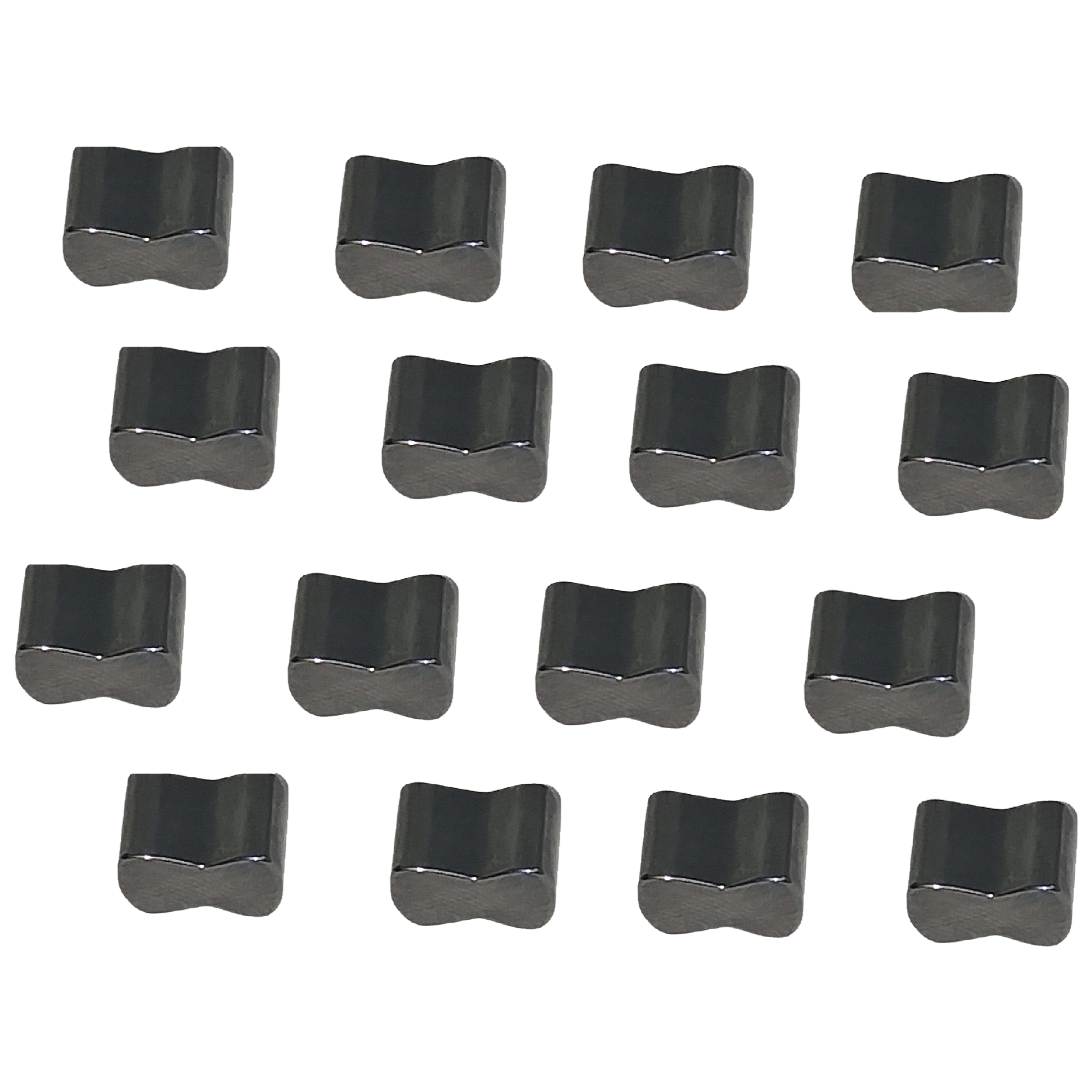

7 Cam Kit (Sprag Element) Sprag, 16 Cams MF-240-16K
Cam Kit (Sprag Element) MF-240-16K
Sprag, 16 Cams &

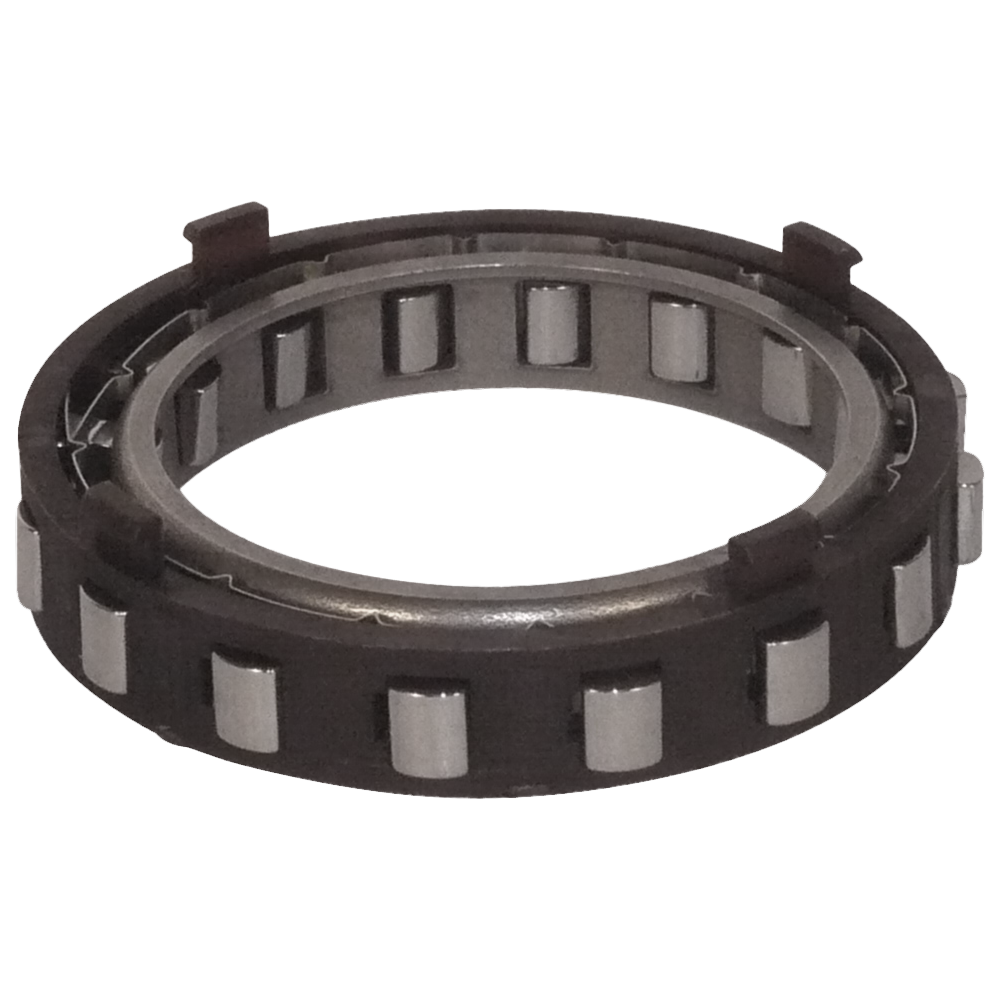

7 Sprag
  • Thickness: 0.420"
  • Material: Outer cage made of glass reinforced nylon
  • Cam Count: 16 elements
  • Outer Race Inside Dia: 2.400"
  • Inner Race Outside Dia: 1.750"
  • Cam part-ID: F-240
 RC-6-1
Sprag RC-6-1
&
  • Thickness: 0.420"
  • Material: Outer cage made of glass reinforced nylon
  • Cam Count: 16 elements
  • Outer Race Inside Dia: 2.400"
  • Inner Race Outside Dia: 1.750"
  • Cam part-ID: F-240

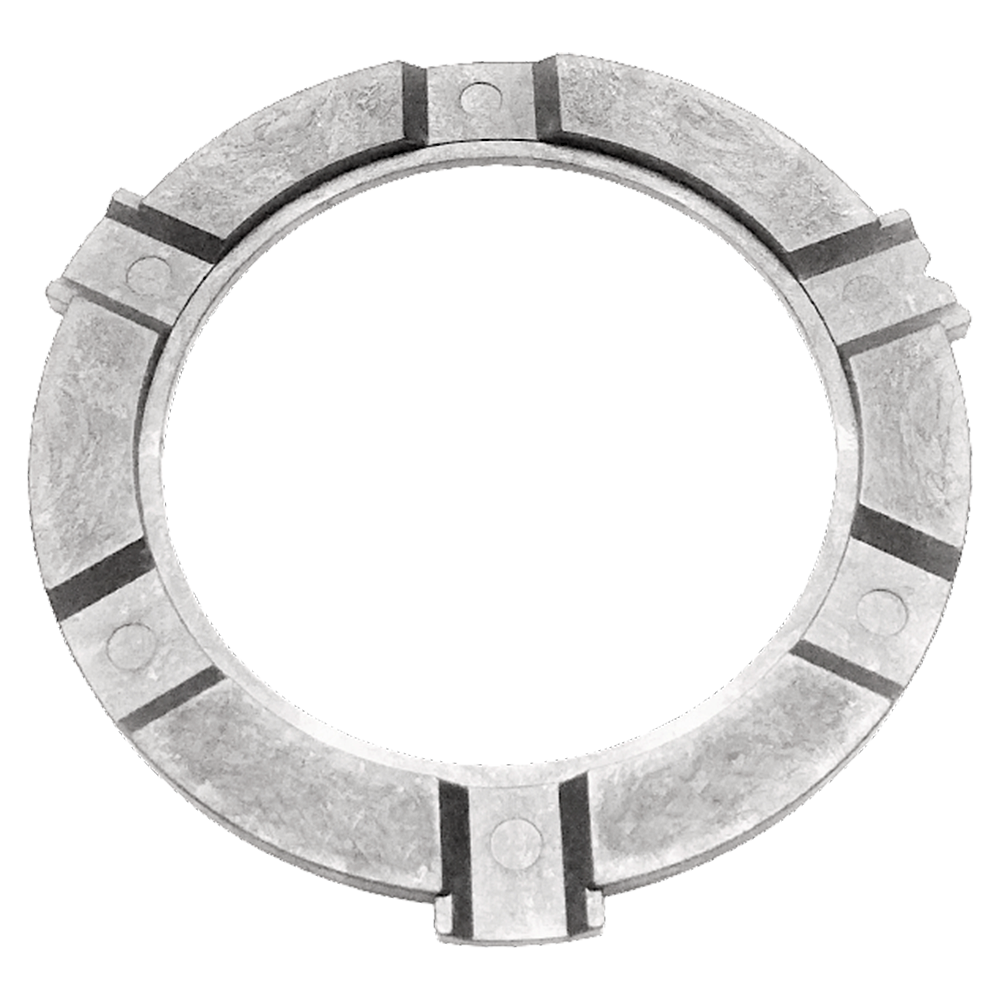

8 Stator Cap
  • Thickness: 0.145"
  • Material: Phenolic
  • Functional Thickness: 0.145"
  • Lug Count: 3
  • Outside Dia: 3.190"
  • Inside Dia: 2.308"
 RW-4-1
Stator Cap RW-4-1
&
  • Thickness: 0.145"
  • Material: Phenolic
  • Functional Thickness: 0.145"
  • Lug Count: 3
  • Outside Dia: 3.190"
  • Inside Dia: 2.308"
9 Rivet 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
9 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
9 Rivet 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
9 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
10 Turbine & Plate Assembly NPN-10-2-10
Turbine & Plate NPN-10-2-10
Assembly &

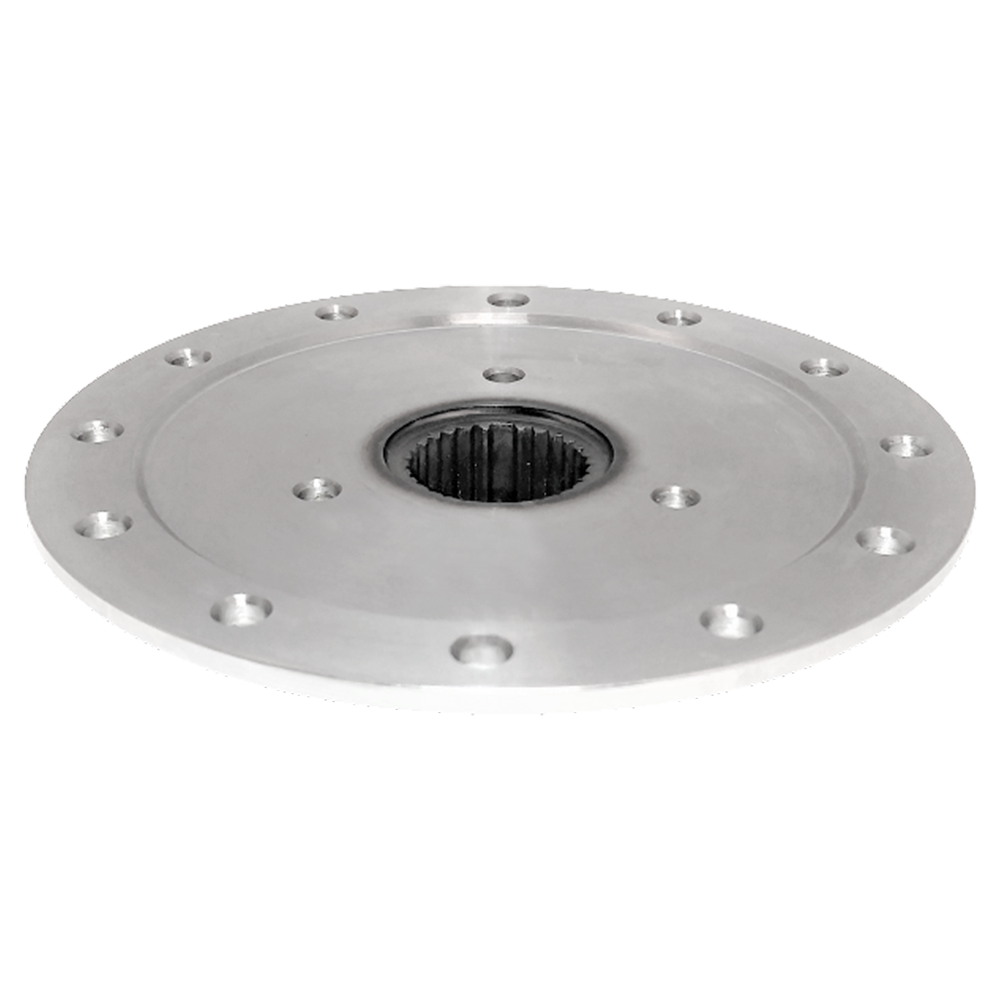

11 Turbine Hub
  • Internal Teeth: 30 (2 Removed)
  • Hardness: Heat-Treated (hardened)
 RX-13-1HT
Turbine Hub RX-13-1HT
&
  • Internal Teeth: 30 (2 Removed)
  • Hardness: Heat-Treated (hardened)

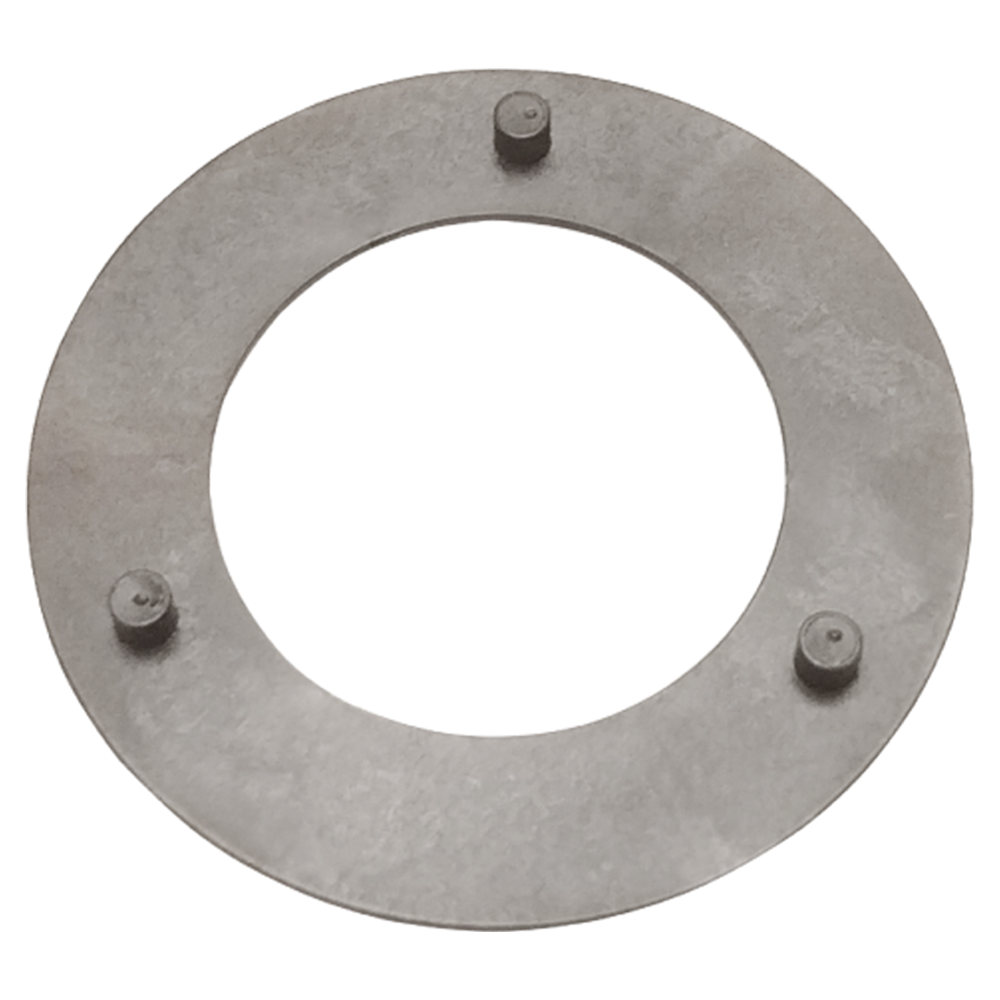

12 Washer
  • Thickness: .038"
  • Material: Plastic
  • Outside Dia: 2.40"
  • Inside Dia: 1.45"
 RW-9-1
Washer RW-9-1
&
  • Thickness: .038"
  • Material: Plastic
  • Outside Dia: 2.40"
  • Inside Dia: 1.45"

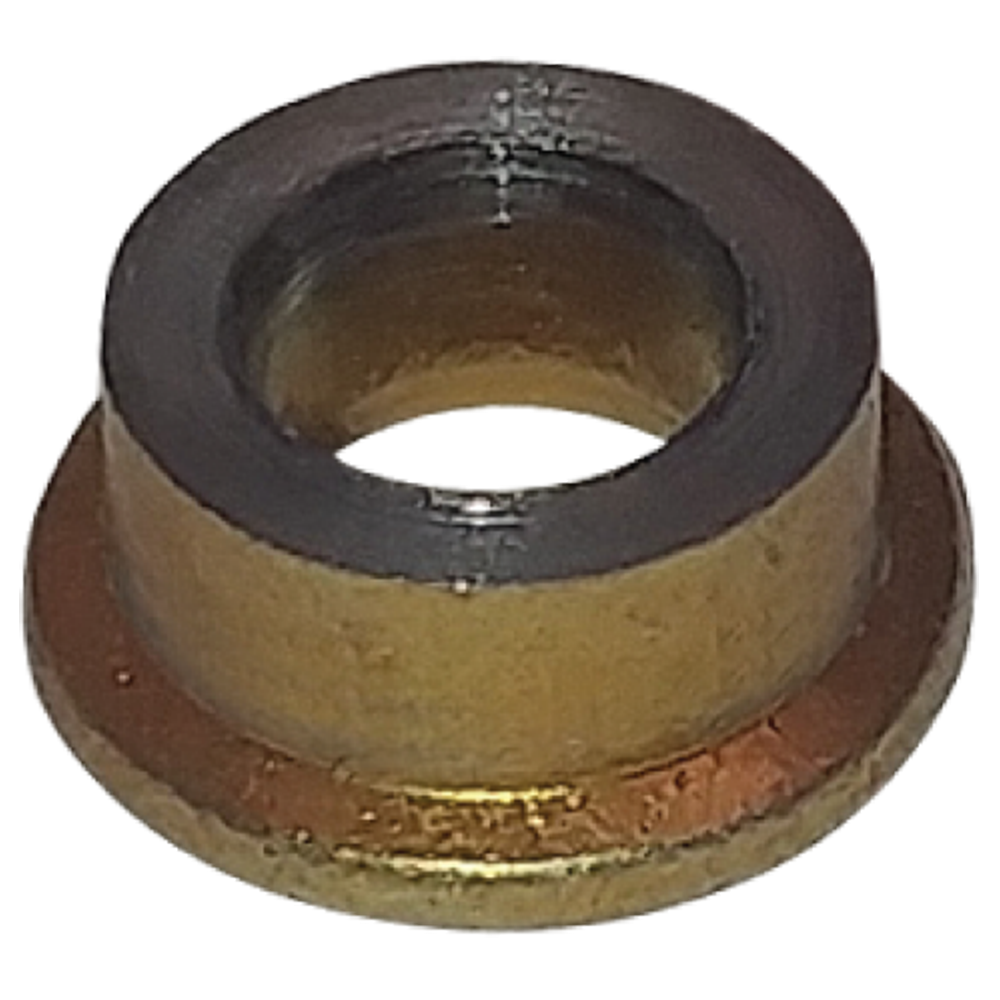

13 Fastener
  • Dia: 0.310"
 RX-22-5
Fastener RX-22-5
&
  • Dia: 0.310"
14 Plate NPN-10-2-14
Plate NPN-10-2-14
&
15 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
 RX-23-2
Lining (Friction Ring,Wafer) RX-23-2
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
15 Lining Kit 2 Pieces (Contains: RX-23-2AMHC and RX-23-2BMHC) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: High Carbon
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMHC and RX-23-2BMHC) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
 RX-23-2KHC
Lining Kit RX-23-2KHC
2 Pieces (Contains: RX-23-2AMHC and RX-23-2BMHC) & AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: High Carbon
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMHC and RX-23-2BMHC) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
15 Lining Kit 2 Pieces (Contains: RX-23-2AMK and RX-23-2BMK)
  • Thickness: 0.045"
  • Material: Kevlar®™
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
 RX-23-2KK
Lining Kit RX-23-2KK
2 Pieces (Contains: RX-23-2AMK and RX-23-2BMK) &
  • Thickness: 0.045"
  • Material: Kevlar®™
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMK and RX-23-2BMK) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
15 Lining Kit 2 Pieces (Contains: RX-23-2AMT and RX-23-2BMT)
  • Thickness: 0.045"
  • Material: Tan
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMT and RX-23-2BMT) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
 RX-23-2KT
Lining Kit RX-23-2KT
2 Pieces (Contains: RX-23-2AMT and RX-23-2BMT) &
  • Thickness: 0.045"
  • Material: Tan
  • Outside Dia: 7.93"
  • Inside Dia: 7.1"
  • Grooved lockup linings for late Renault DPO & AL4 (RX-23-2AMT and RX-23-2BMT) are bonded to both sides of the clutch plate RX-26-2. Both linings have grooves. The groove design is the same, but the direction of the grooves is different (mirrored), as in OE design.
16 Friction Plate With Linings
  • Thickness: .73"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 8.54"
  • Inside Dia: 7.10"
  • Lining Part-ID: RX-23-2KK (Kit, Includes 2 Linings)
 RX-26-2
Friction Plate RX-26-2
With Linings &
  • Thickness: .73"
  • External Teeth: 24
  • Lining Count: 2
  • Outside Dia: 8.54"
  • Inside Dia: 7.10"
  • Lining Part-ID: RX-23-2KK (Kit, Includes 2 Linings)

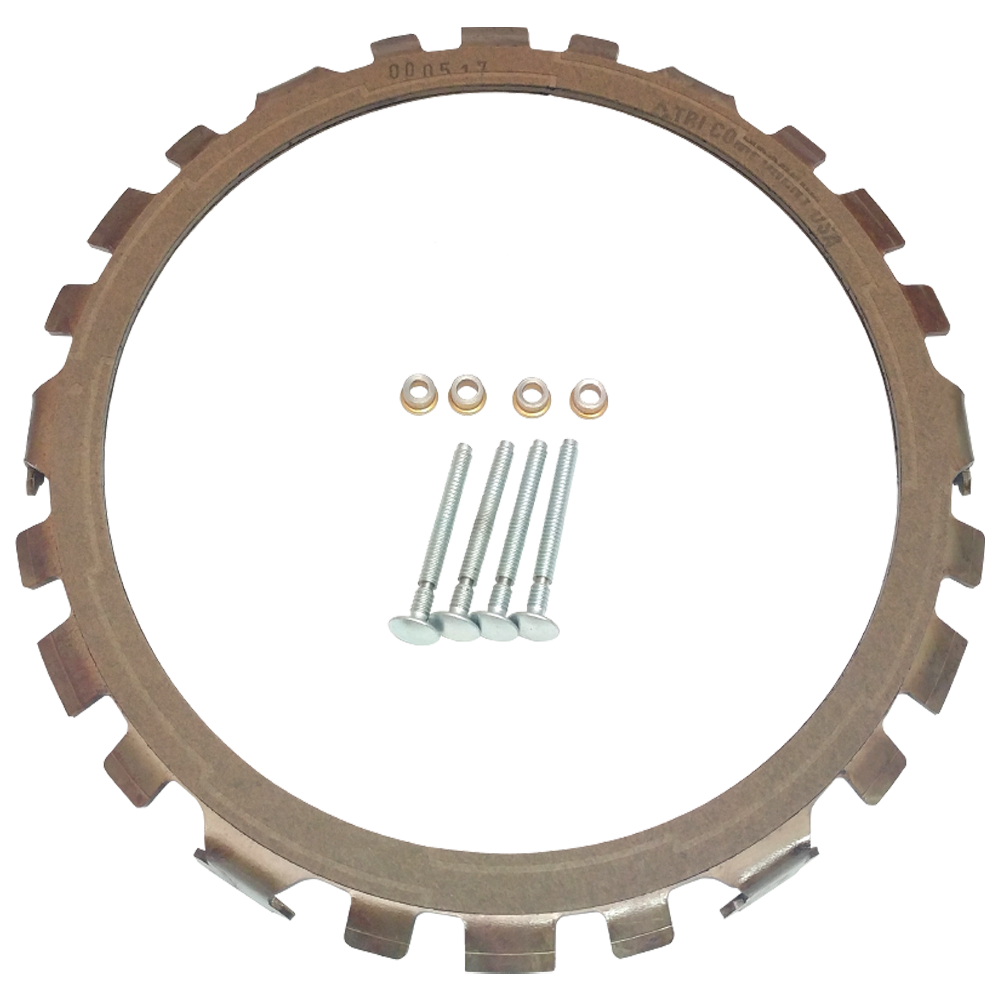

16 Clutch Plate Kit Includes rivets
  • Outside Dia: 8.54"
  • Inside Dia: 7.10"
 RX-26-2K
Clutch Plate Kit RX-26-2K
Includes rivets &
  • Outside Dia: 8.54"
  • Inside Dia: 7.10"
16.1 Rivet 4 Pieces Required.
  • Length: 1.814"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.185"
  • Rivet Head Dia: 0.47"
  • Rivet Head: Round
 RX-22-4
Rivet RX-22-4
& 4 Pieces Required.
  • Length: 1.814"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.185"
  • Rivet Head Dia: 0.47"
  • Rivet Head: Round
17 Seal Ring Scarf Cut
  • Height: 0.094
  • Width: 0.092"
  • Material: PTFE
  • Height Metric: 2.3876
  • Seal Type: Scarf Cut
  • Outside Dia: 2.153
  • Outside Dia Metric: 54.6862
 RO-25-2
Seal Ring RO-25-2
Scarf Cut &
  • Height: 0.094
  • Width: 0.092"
  • Material: PTFE
  • Height Metric: 2.3876
  • Seal Type: Scarf Cut
  • Outside Dia: 2.153
  • Outside Dia Metric: 54.6862

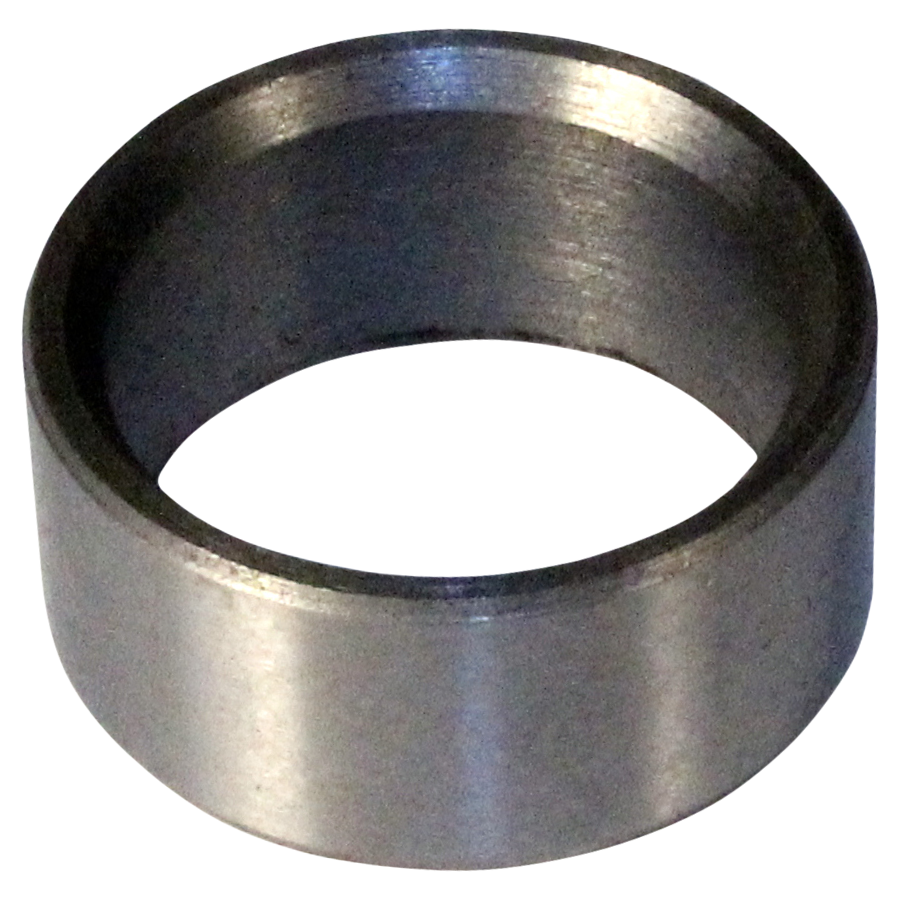

17_N.I. Repair Sleeve For Cover RX-22-2
Repair Sleeve RX-22-2
For Cover &
19 Cover Assembly NPN-10-2-19
Cover NPN-10-2-19
Assembly &
20 Stud NPN-10-2-20
Stud NPN-10-2-20
&
20_N.I. Studcap Plastic Stud Protector 3 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 3 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)

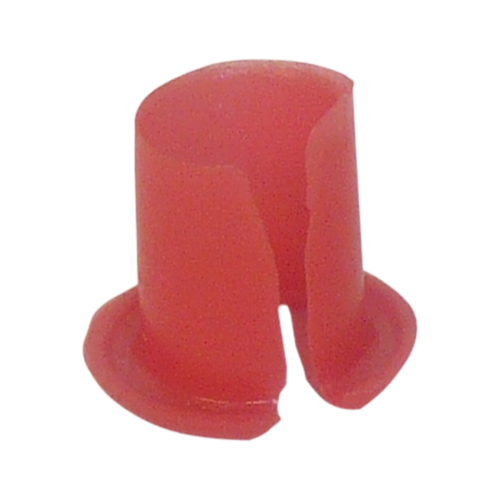

20_N.I. Studcap 3 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 3 Pieces Required.
  • Inside Dia: 0.375
