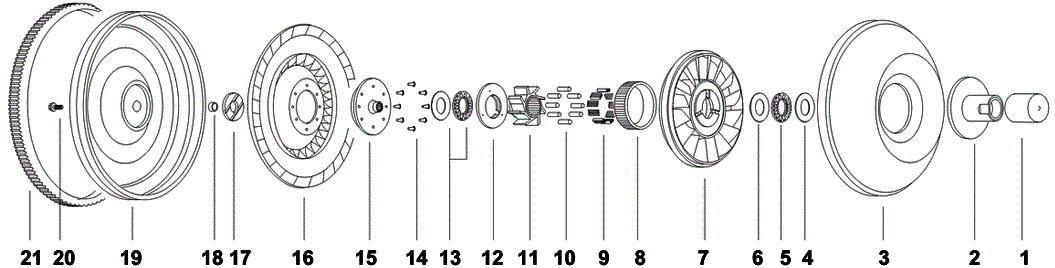

Torque Converter | Mitsubishi | KM-170 Non-Lockup, CT-5 | CT-5

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.820"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-21GRC
Impeller Hub TH-1-21GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.820"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-13GRC
Impeller Hub TH-1-13GRC
&
  • Journal Dia: 1.690"
  • Installed Height: 1.750"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-9-2-3
Impeller NPN-9-2-3
&
4 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
 TRA-3244
Bearing Race TRA-3244
&
  • Thickness: .03"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
5 Bearing
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.75
  • Inside Dia: 2
  • Outside Dia Metric: 69.85
  • Inside Dia metric: 50.8
  • Race: TRA-3244, TRB-3244
 NTA-3244
Bearing NTA-3244
&
  • Thickness: 0.078
  • Thickness metric: 1.98
  • Bearing type: Exposed
  • Outside Dia: 2.75
  • Inside Dia: 2
  • Outside Dia Metric: 69.85
  • Inside Dia metric: 50.8
  • Race: TRA-3244, TRB-3244

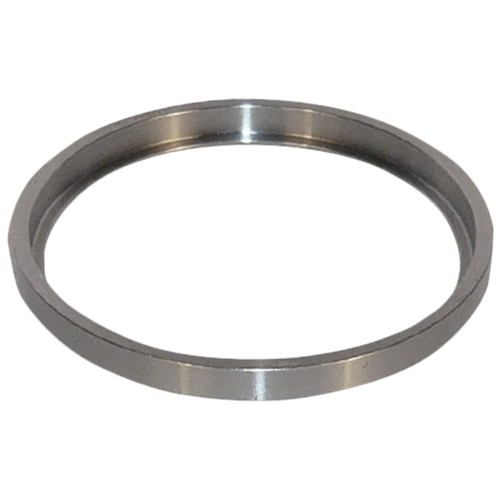

5 Bearing Adapter Washer HP, Use With Bearing NTA-3244 (.078" thick)
  • Thickness: 0.26"
  • Outside Dia: 3"
  • Inside Dia: 2.78"
 R-3244
Bearing Adapter Washer R-3244
HP, Use With Bearing NTA-3244 (.078" thick) &
  • Thickness: 0.26"
  • Outside Dia: 3"
  • Inside Dia: 2.78"
6 Bearing Race
  • Thickness: .06"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
 TRB-3244
Bearing Race TRB-3244
&
  • Thickness: .06"
  • Outside Dia: 2.75"
  • Inside Dia: 2.00"
7 Stator NPN-9-2-7
Stator NPN-9-2-7
&
8 Cam NPN-9-2-8
Cam NPN-9-2-8
&
9 Accordion Spring 8 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 8 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
9 Accordion Spring 8 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
& 8 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
10 Roller 8 Pieces Required.
  • Length: 0.625"
  • Outside Dia: 0.31"
 36960R
Roller 36960R
& 8 Pieces Required.
  • Length: 0.625"
  • Outside Dia: 0.31"
10 Roller 8 Pieces Required.
  • Dia: 0.309"
  • Length: .660"
 TR-7-3
Roller TR-7-3
& 8 Pieces Required.
  • Dia: 0.309"
  • Length: .660"

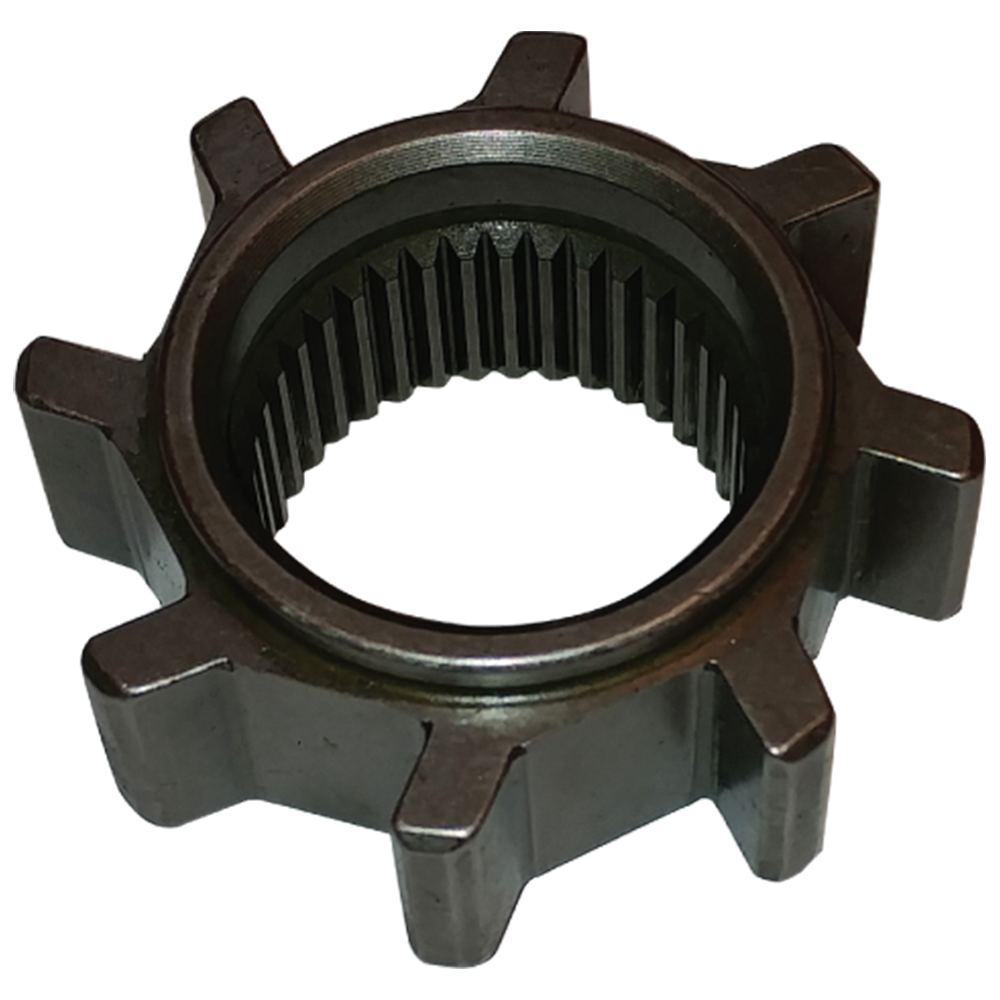

11 Inner Race Stator
  • Height: 0.940"
  • Internal Teeth: 38
  • Outside Dia: 0.259"
 TX-14-8
Inner Race TX-14-8
Stator &
  • Height: 0.940"
  • Internal Teeth: 38
  • Outside Dia: 0.259"
12 Stator Cap
  • Thickness: .260"
  • Material: Aluminum
  • Outside Dia: 2.595"
  • Inside Dia: 1.300"
 TW-4-5
Stator Cap TW-4-5
&
  • Thickness: .260"
  • Material: Aluminum
  • Outside Dia: 2.595"
  • Inside Dia: 1.300"
13 Bearing
  • Thickness: 0.109
  • Thickness metric: 2.77
  • Bearing type: Semi- Enclosed
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Outside Dia Metric: 47.8
  • Inside Dia metric: 34.47
  • Race: TW-2-6
 TW-2-5
Bearing TW-2-5
&
  • Thickness: 0.109
  • Thickness metric: 2.77
  • Bearing type: Semi- Enclosed
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Outside Dia Metric: 47.8
  • Inside Dia metric: 34.47
  • Race: TW-2-6
13 Bearing & Race Kit
  • Thickness: 0.19"
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Includes TW-2-5, TW-2-6
 TW-2-5K
Bearing & Race Kit TW-2-5K
&
  • Thickness: 0.19"
  • Outside Dia: 1.882
  • Inside Dia: 1.357
  • Includes TW-2-5, TW-2-6
14 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
15 Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.47"
 TX-13-12
Turbine Hub TX-13-12
&
  • Internal Teeth: 22
  • Outside Dia: 3.47"
15 Turbine Hub
  • Outside Dia: 3.47"
 TX-13-12HT
Turbine Hub TX-13-12HT
&
  • Outside Dia: 3.47"
15_N.I. Insert Easy- Weld, Non-Lockup
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
 WX-13-22
Insert WX-13-22
Easy- Weld, Non-Lockup &
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
16 Turbine NPN-9-2-16
Turbine NPN-9-2-16
&
17 Turbine Washer
  • Material: Fiber
  • Outside Dia: 1.93"
  • Inside Dia: 0.094"
 TW-9-10
Turbine Washer TW-9-10
&
  • Material: Fiber
  • Outside Dia: 1.93"
  • Inside Dia: 0.094"
18 Bushing Cover
  • Thickness: 0.437"
  • Housing Bore Dia: 0.589"
  • Shaft Dia: 0.471"
  • Material: Babbit
 TB-18-11
Bushing TB-18-11
Cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 0.589"
  • Shaft Dia: 0.471"
  • Material: Babbit
19 Front Cover NPN-9-2-19
Front Cover NPN-9-2-19
&
20 Bolt 3 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
 B-41
Bolt B-41
& 3 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 11mm
21 Ring Gear Can Be Mounted On Non-Lockup Units By Machining Off The Gear Portion. Tip: Cut With Plasma Torch.
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
 RG-106KM
Ring Gear RG-106KM
& Can Be Mounted On Non-Lockup Units By Machining Off The Gear Portion. Tip: Cut With Plasma Torch.
  • Thickness: 0.325"
  • External Teeth: 106
  • Outside Dia: 10.67"
  • Inside Dia: 9.66"
