Part Search

Torque Converter | Mitsubishi | F4/R4A51, F5/R5A51

Ill.# Image Description Specification Part #
Bearing Adapter Kit ,F4/R4A51, F5/R5A51 Impeller side TW-2-27K
Bearing Adapter Kit TW-2-27K
,F4/R4A51, F5/R5A51 & Impeller side
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.692"
  • Installed Height: 1.629"
  • Height: 1.800"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.42"
  • Hardness: Rc 32-36
  • Bearing Pocket I.D.: 3.024"
 TH-1-38GRC
Impeller Hub TH-1-38GRC
&
  • Journal Dia: 1.692"
  • Installed Height: 1.629"
  • Height: 1.800"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.42"
  • Hardness: Rc 32-36
  • Bearing Pocket I.D.: 3.024"

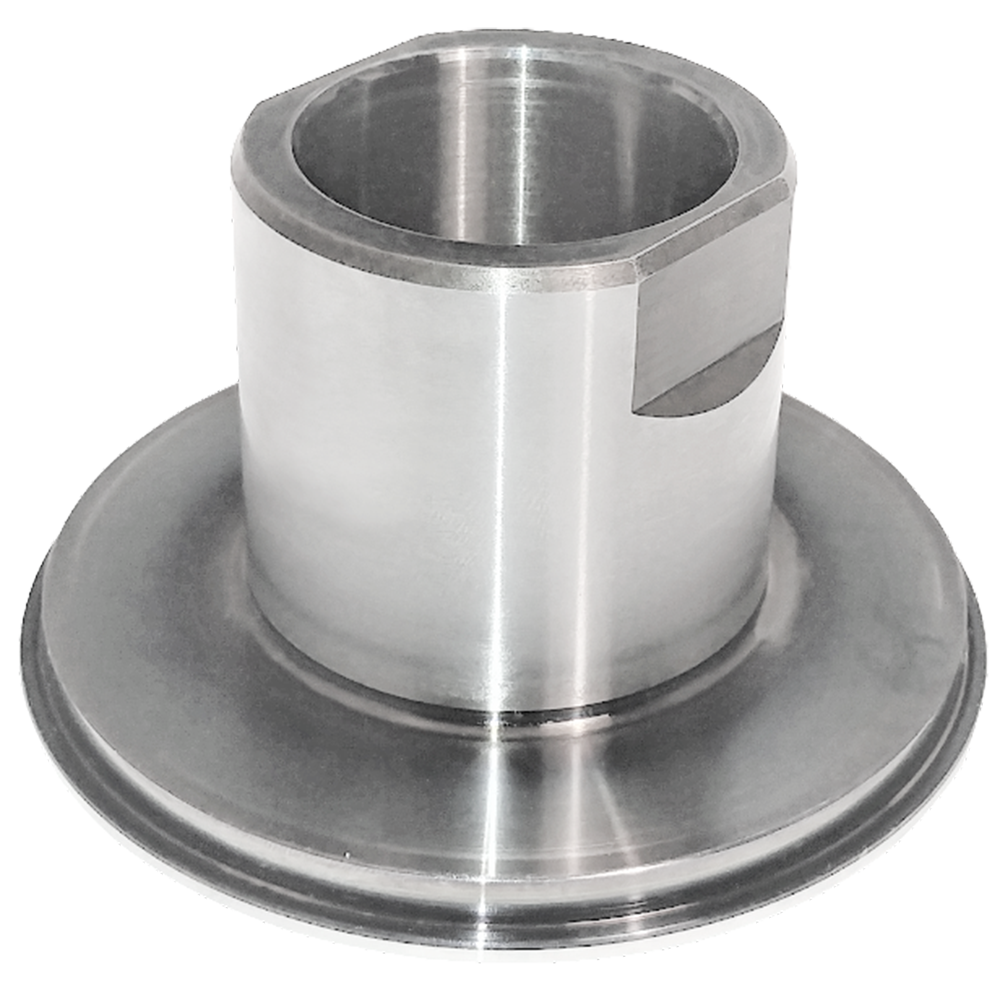

2 Impeller Hub Flanged
  • Journal Dia: 1.692"
  • Installed Height: 1.681"
  • Height: 1.860"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.140"
 TH-1-45FLG
Impeller Hub TH-1-45FLG
Flanged &
  • Journal Dia: 1.692"
  • Installed Height: 1.681"
  • Height: 1.860"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.140"
3 Misc NPN-SPL
Misc NPN-SPL
&

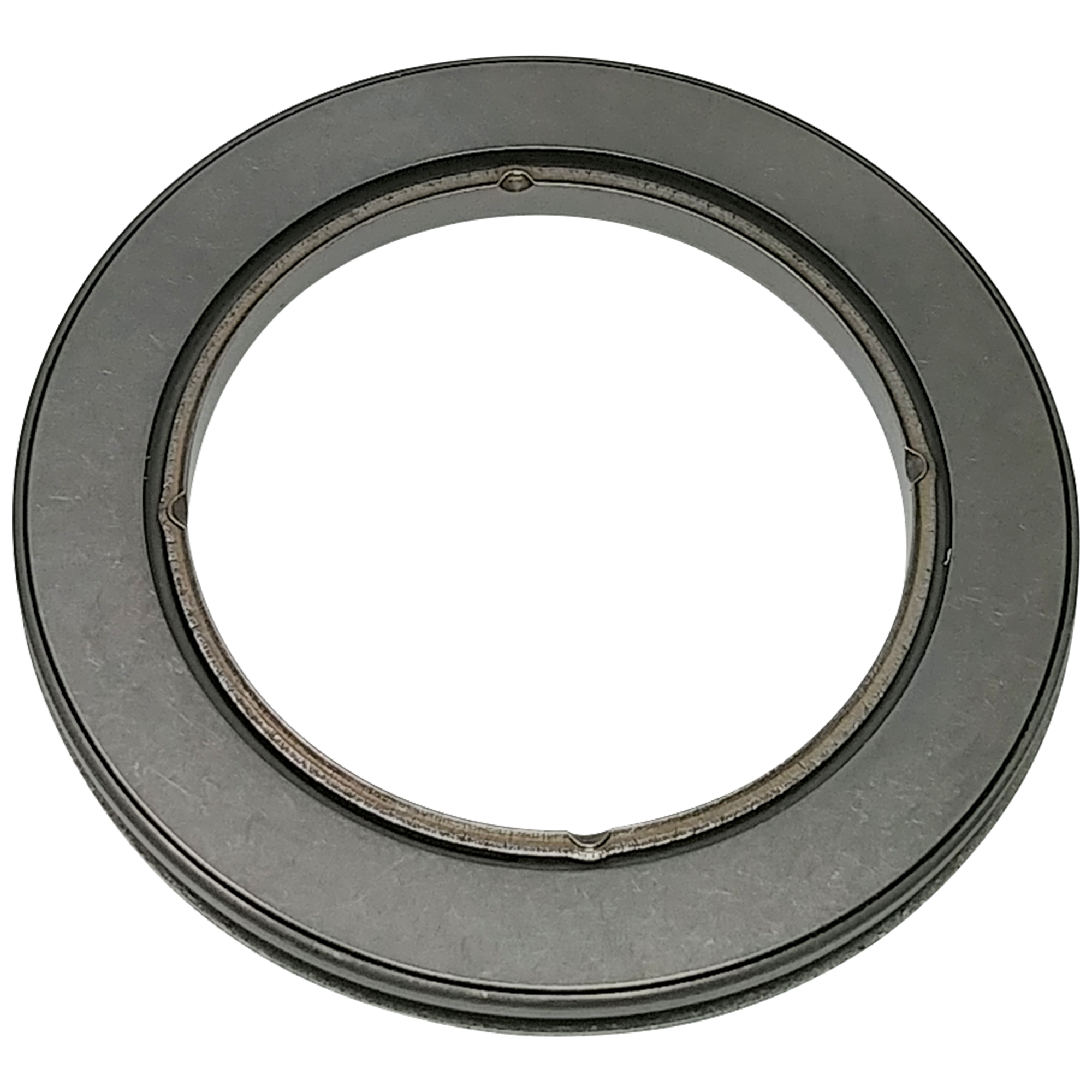

4 Bearing Fits impeller hub with 2.795" I.D.
  • Thickness: 0.234
  • Thickness metric: 5.94
  • Bearing type: Enclosed
  • Outside Dia: 2.787
  • Inside Dia: 1.902
  • Outside Dia Metric: 70.79
  • Inside Dia metric: 48.31
 TW-2-26
Bearing TW-2-26
& Fits impeller hub with 2.795" I.D.
  • Thickness: 0.234
  • Thickness metric: 5.94
  • Bearing type: Enclosed
  • Outside Dia: 2.787
  • Inside Dia: 1.902
  • Outside Dia Metric: 70.79
  • Inside Dia metric: 48.31
13 O-Ring
  • Thickness: 0.097
  • Thickness metric: 2.4638
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 53.0098
 TO-25-20
O-Ring TO-25-20
&
  • Thickness: 0.097
  • Thickness metric: 2.4638
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 53.0098
13 O-Ring Oversized
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 53.0098
 TO-25-21
O-Ring TO-25-21
& Oversized
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 53.0098
14 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
 TO-25-5
Metal Clad Seal TO-25-5
&
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.81
  • Shaft Dia: 0.669
  • Material: Fluorocarbon
15 Bearing
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02
 TW-2-21
Bearing TW-2-21
&
  • Thickness: 0.228
  • Thickness metric: 5.79
  • Bearing type: Enclosed
  • Outside Dia: 2.244
  • Inside Dia: 1.3
  • Outside Dia Metric: 57
  • Inside Dia metric: 33.02
15 Bearing I.D. pilots on turbine hub
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
 TW-2-25
Bearing TW-2-25
& I.D. pilots on turbine hub
  • Thickness: 0.226
  • Thickness metric: 5.74
  • Bearing type: Enclosed
  • Outside Dia: 2.237
  • Inside Dia: 1.307
  • Outside Dia Metric: 56.82
  • Inside Dia metric: 33.2
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625
  • Inside Dia: 8.375
 FX-23-63
Lining (Friction Ring,Wafer) FX-23-63
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625
  • Inside Dia: 8.375
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.626
  • Inside Dia: 8.438
 NX-23-10
Lining (Friction Ring,Wafer) NX-23-10
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.626
  • Inside Dia: 8.438
22 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
22 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"

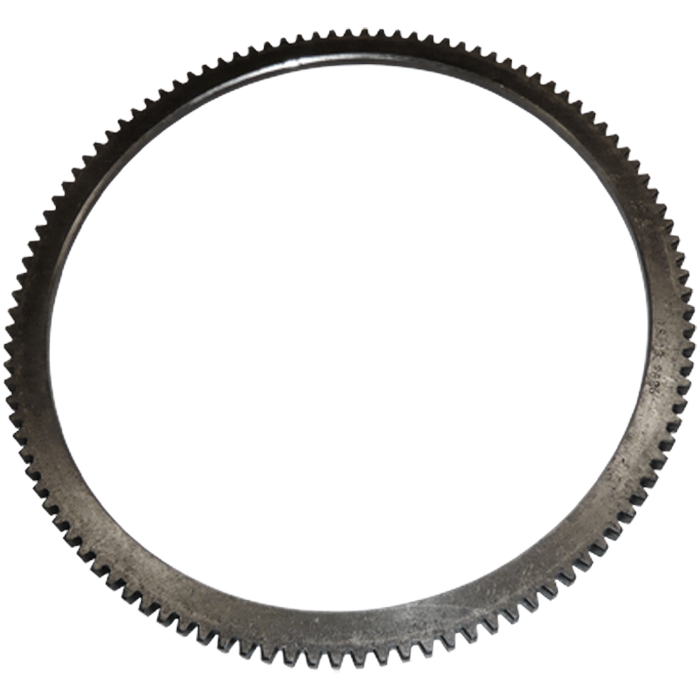

24 Ring Gear "Late"F4A33
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
 RG-110KM
Ring Gear RG-110KM
& "Late"F4A33
  • Thickness: 0.300"
  • External Teeth: 110
  • Outside Dia: 11.06"
  • Inside Dia: 9.62"
