Torque Converter | Mercedes | 722.9 Late, 7G -Tronic

Ill.# Image Description Specification Part #
Friction Plate & Seal Kit 722.9 Late
  • Includes: HX-23-16 (3), HO-25-8 (1), HO-25-9 (1), HO-25-3 (1) and HO-25-14 (1)
 HX-23-20K
Friction Plate & Seal Kit HX-23-20K
722.9 Late &
  • Includes: HX-23-16 (3), HO-25-8 (1), HO-25-9 (1), HO-25-3 (1) and HO-25-14 (1)
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.695"
  • Installed Height: 2.008"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 HH-1-9GRC
Impeller Hub HH-1-9GRC
&
  • Journal Dia: 1.695"
  • Installed Height: 2.008"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
4 Bearing Impeller side
  • Thickness: 0.2
  • Thickness metric: 5.08
  • Bearing type: Enclosed
  • Lug Count: 3
  • Outside Dia: 2.587
  • Inside Dia: 1.728
  • Outside Dia Metric: 65.71
  • Inside Dia metric: 43.89
 HW-2-3
Bearing HW-2-3
& Impeller side
  • Thickness: 0.2
  • Thickness metric: 5.08
  • Bearing type: Enclosed
  • Lug Count: 3
  • Outside Dia: 2.587
  • Inside Dia: 1.728
  • Outside Dia Metric: 65.71
  • Inside Dia metric: 43.89
6 Roller Clutch (Sprag)
  • Thickness: 0.531"
  • Inside Dia: 2.362"
  • 14 Rollers (0.314"/ 8mm Dia.). OE# A140 250 0031
 HC-6-1
Roller Clutch (Sprag) HC-6-1
&
  • Thickness: 0.531"
  • Inside Dia: 2.362"
  • 14 Rollers (0.314"/ 8mm Dia.). OE# A140 250 0031
9 Bearing with inside lip Turbine side
  • Thickness: 0.195
  • Thickness metric: 4.95
  • Bearing type: Enclosed
  • Outside Dia: 2.825
  • Inside Dia: 1.897
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.26
 HW-2-7
Bearing HW-2-7
with inside lip & Turbine side
  • Thickness: 0.195
  • Thickness metric: 4.95
  • Bearing type: Enclosed
  • Outside Dia: 2.825
  • Inside Dia: 1.897
  • Outside Dia Metric: 71.63
  • Inside Dia metric: 48.26
19 Bearing Front Cover
  • Thickness: 0.184
  • Thickness metric: 4.67
  • Bearing type: Enclosed
  • Outside Dia: 2.2730
  • Inside Dia: 1.5
  • Outside Dia Metric: 57.73
  • Inside Dia metric: 38.1
 HW-2-6
Bearing HW-2-6
& Front Cover
  • Thickness: 0.184
  • Thickness metric: 4.67
  • Bearing type: Enclosed
  • Outside Dia: 2.2730
  • Inside Dia: 1.5
  • Outside Dia Metric: 57.73
  • Inside Dia metric: 38.1
20 Seal Ring With a Slip Joint, Thermoset material
  • Height: 0.087"
  • Width: 0.084"
  • Material: Polyimide
  • Height Metric: 2.5908
  • Seal Type: Slip-Joint
  • Outside Dia: 1.489
  • Outside Dia Metric: 37.8206
 HO-25-11
Seal Ring HO-25-11
With a Slip Joint, Thermoset material &
  • Height: 0.087"
  • Width: 0.084"
  • Material: Polyimide
  • Height Metric: 2.5908
  • Seal Type: Slip-Joint
  • Outside Dia: 1.489
  • Outside Dia Metric: 37.8206

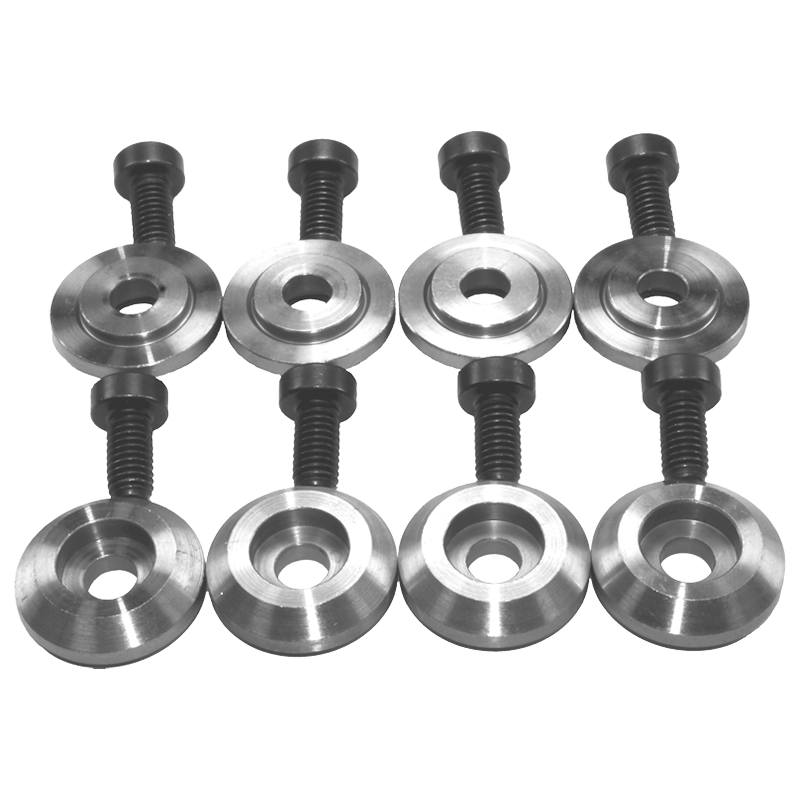

21 Bolt & Washer Kit 722.9 Late HX-10K
Bolt & Washer Kit HX-10K
722.9 Late &
24 D-Ring Seal
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 3.795
  • Inside Dia metric: 96.393
 HO-25-9
D-Ring Seal HO-25-9
&
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 3.795
  • Inside Dia metric: 96.393
25 D-Ring Seal
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 6.785
  • Inside Dia metric: 172.339
 HO-25-8
D-Ring Seal HO-25-8
&
  • Height: 0.112
  • Width: 0.078
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: D-Ring
  • Inside Dia: 6.785
  • Inside Dia metric: 172.339
26 Seal Ring Turbine Shaft, Square-Cut
  • Height: 0.093
  • Width: 0.095
  • Material: Fluorocarbon
  • Outside Dia: 0.815
  • Outside Dia Metric: 20.701
  • Height Metric: 2.4mm This seal is designed for models: A222 250 02 02 and A222 250 05 02, which have a wider groove and require 2.5mm wide seal, unlike a similar seal HO-25-3, which is 2mm wide, and is used in other models of 722.9 Late torque converters.
 HO-25-14
Seal Ring HO-25-14
Turbine Shaft, Square-Cut &
  • Height: 0.093
  • Width: 0.095
  • Material: Fluorocarbon
  • Outside Dia: 0.815
  • Outside Dia Metric: 20.701
  • Height Metric: 2.4mm This seal is designed for models: A222 250 02 02 and A222 250 05 02, which have a wider groove and require 2.5mm wide seal, unlike a similar seal HO-25-3, which is 2mm wide, and is used in other models of 722.9 Late torque converters.
26 Seal Ring Turbine Shaft, Square-Cut
  • Height: 0.112
  • Width: 0.082
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: Square-Cut
  • Outside Dia: 0.834
  • Outside Dia Metric: 21.1836
 HO-25-3
Seal Ring HO-25-3
Turbine Shaft, Square-Cut &
  • Height: 0.112
  • Width: 0.082
  • Material: Fluorocarbon
  • Height Metric: 2.8448
  • Seal Type: Square-Cut
  • Outside Dia: 0.834
  • Outside Dia Metric: 21.1836
27 Metal Clad Seal
  • Housing Bore Dia: 1.516
  • Housing Bore Dia Metric: 38.5
  • Shaft Dia metric: 30
  • Shaft Dia: 1.181
  • Optimum elastomeric rubber designed to overcome brittleness in OE design.
 HO-25-13
Metal Clad Seal HO-25-13
&
  • Housing Bore Dia: 1.516
  • Housing Bore Dia Metric: 38.5
  • Shaft Dia metric: 30
  • Shaft Dia: 1.181
  • Optimum elastomeric rubber designed to overcome brittleness in OE design.

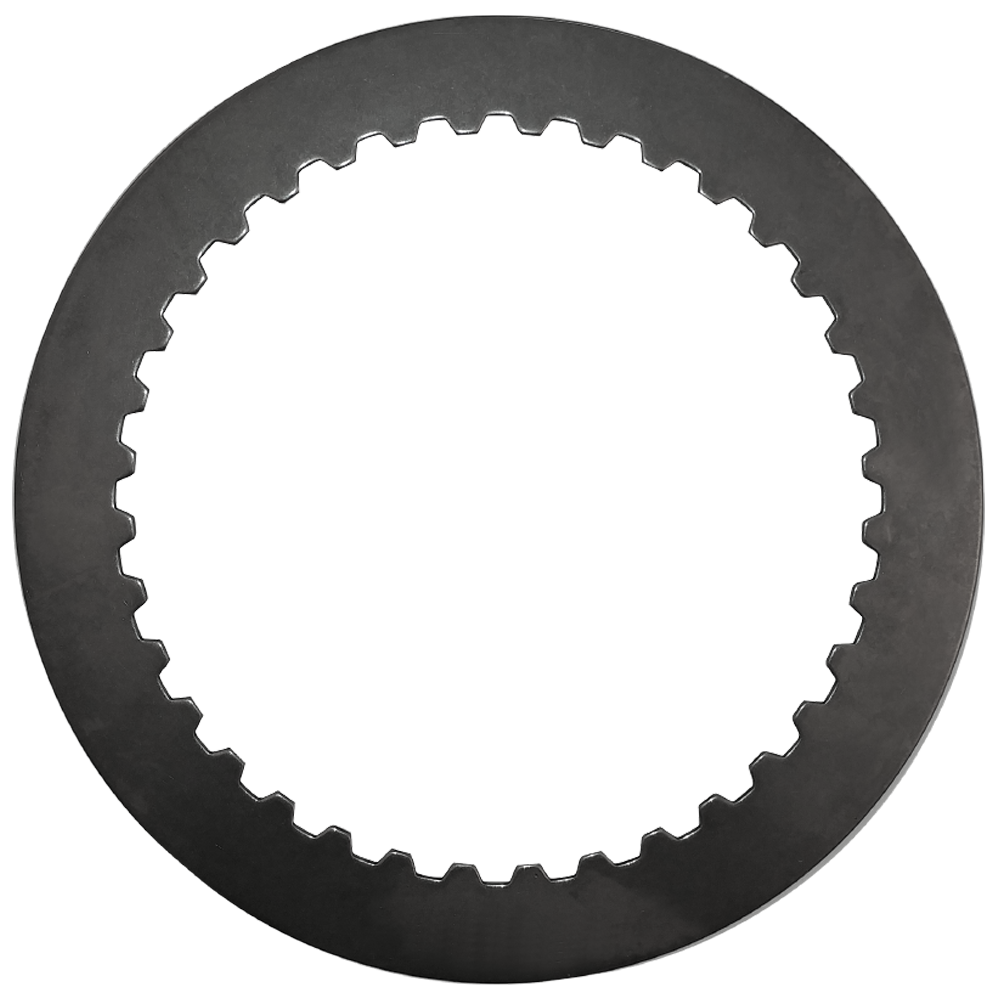

28 Steel Clutch-Plate 4 Pieces Required.
  • Thickness: 0.071"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18
 HX-23-17
Steel Clutch-Plate HX-23-17
& 4 Pieces Required.
  • Thickness: 0.071"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18

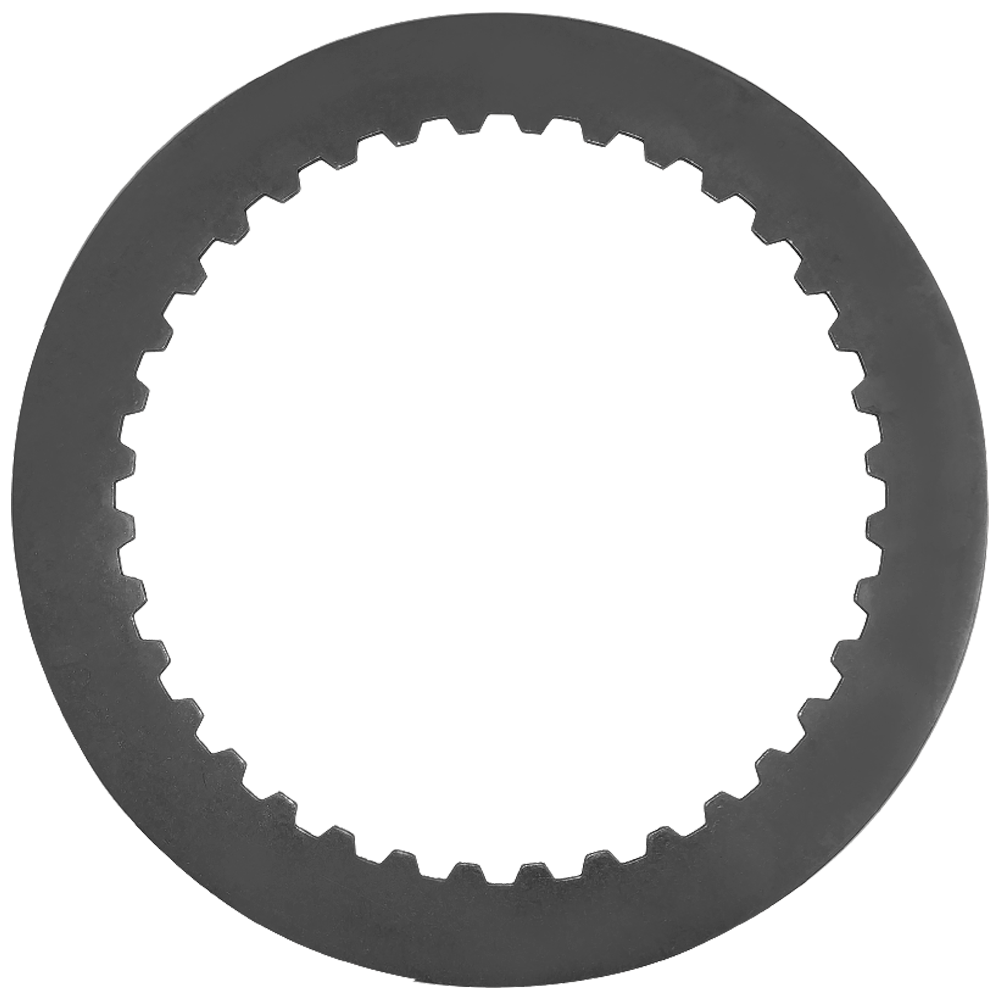

28 Steel Clutch-Plate Selective 4 Pieces Required.
  • Thickness: 0.078"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18
 HX-23-18
Steel Clutch-Plate HX-23-18
& Selective 4 Pieces Required.
  • Thickness: 0.078"
  • Internal Teeth: 36
  • Outside Dia: 7.400"
  • Inside Dia: 5.585"
  • A total of four steel plates are required per converter. Please measure and select accordingly between HX-23-17 and HX-23-18

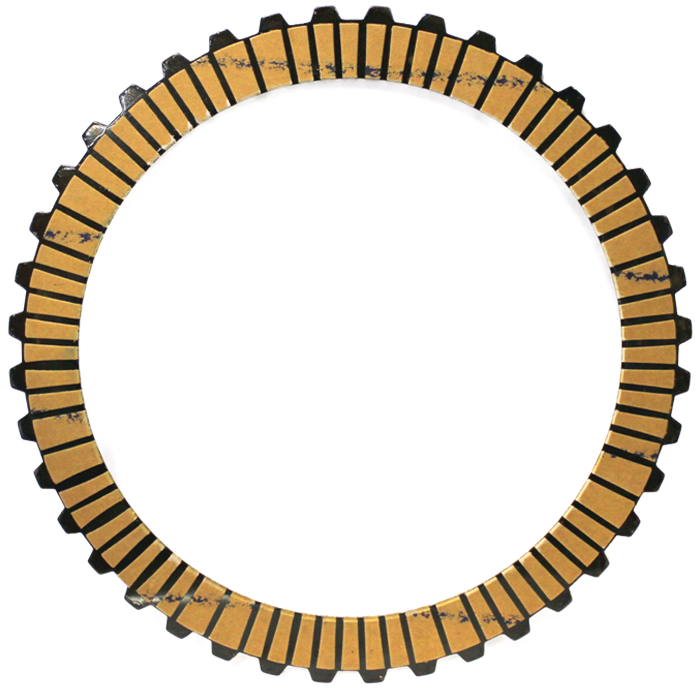

29 Friction Plate 3 Pieces Required.
  • Thickness: .109"
  • External Teeth: 40
  • Segment Count: 72
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16
Friction Plate HX-23-16
& 3 Pieces Required.
  • Thickness: .109"
  • External Teeth: 40
  • Segment Count: 72
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"

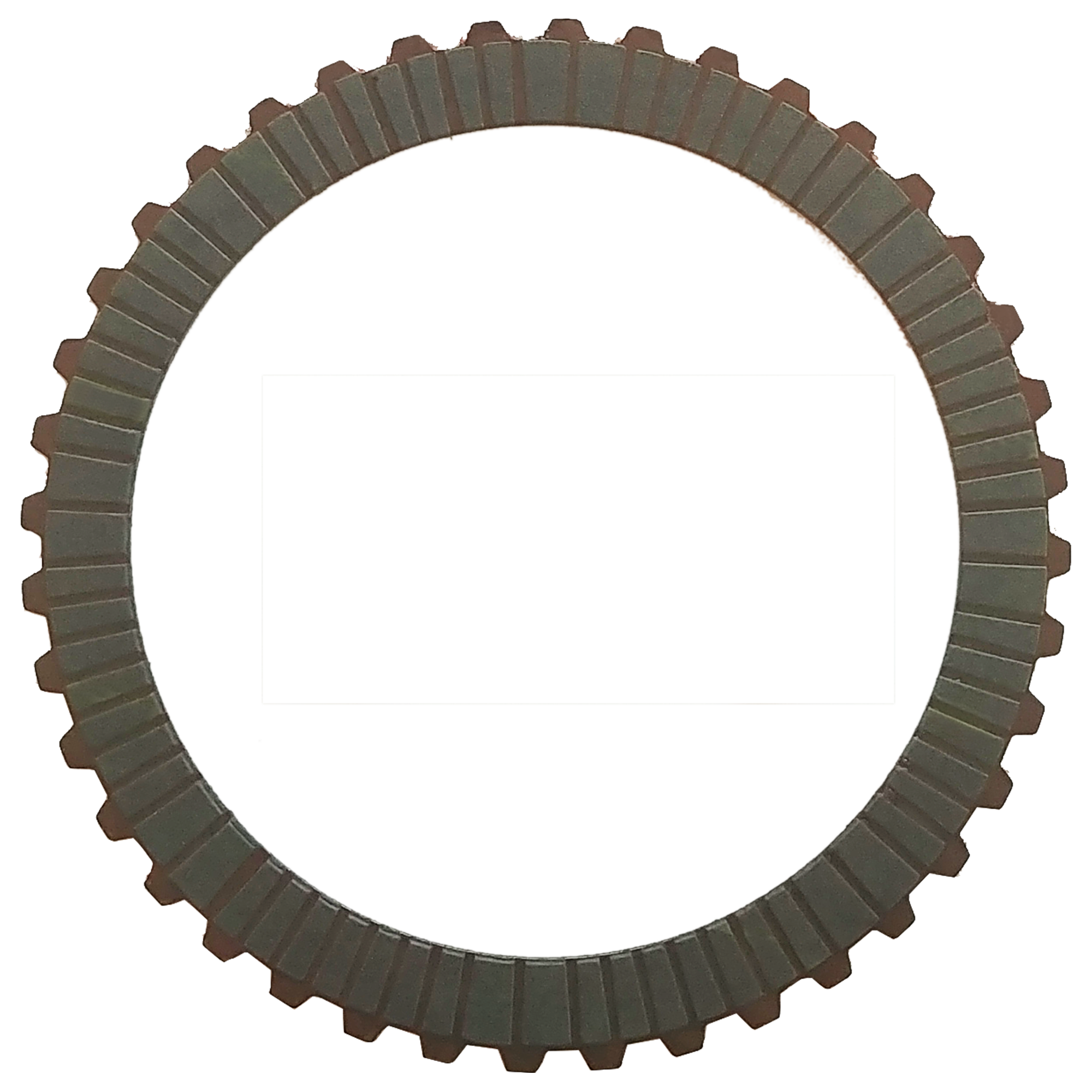

29 Friction Plate Carbon 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16CBN
Friction Plate HX-23-16CBN
Carbon & 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"

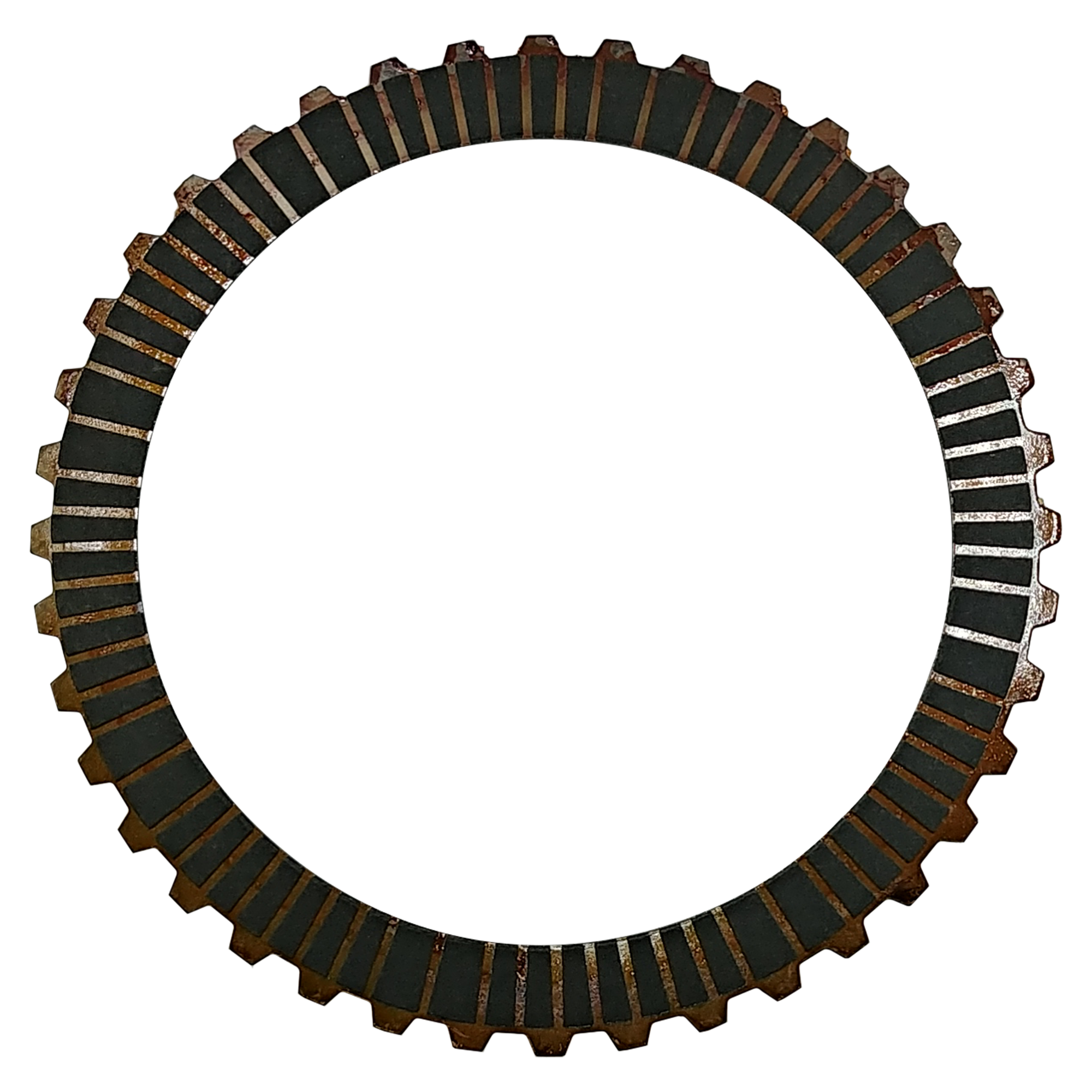

29 Friction Plate High-Carbon, 40 Outside Teeth 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16HC
Friction Plate HX-23-16HC
High-Carbon, 40 Outside Teeth & 3 Pieces Required.
  • Thickness: .109"
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
29 Friction Plate With Kevlar
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
 HX-23-16KV
Friction Plate HX-23-16KV
With Kevlar &
  • Outside Dia: 7.716"
  • Inside Dia: 6.102"
