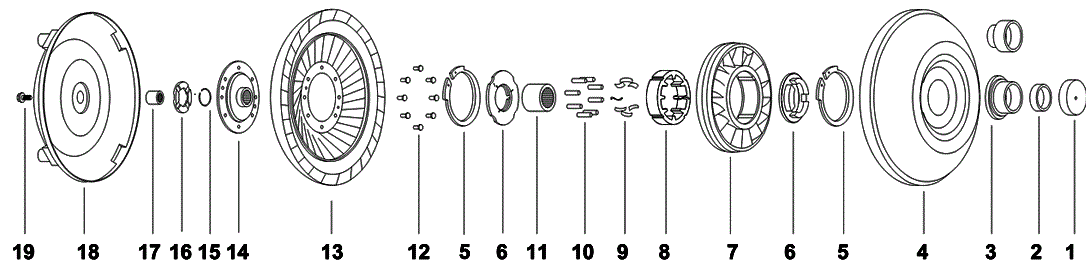

Torque Converter | Jatco, Nissan & Other Japanese | RN3F01A, DA-10 | 91-2

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
Hubcap MHC-P
Fits 1-3/4" (44.4mm) &
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
2 Bushing
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit
 JB-18-6
Bushing JB-18-6
&
  • Thickness: 0.475"
  • Housing Bore Dia: 1.456"
  • Shaft Dia: 1.298"
  • Material: Babbit
3 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: .61"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 JH-1-8GRC
Impeller Hub JH-1-8GRC
&
  • Journal Dia: 1.770"
  • Installed Height: .61"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
4 Impeller NPN-6-10-4
Impeller NPN-6-10-4
&
6 Stator Cap 2 Pieces Required.
  • Thickness: .31"
  • Material: Aluminum
  • Outside Dia: 3.07"
  • Inside Dia: 1.39"
 JW-4-16
Stator Cap JW-4-16
& 2 Pieces Required.
  • Thickness: .31"
  • Material: Aluminum
  • Outside Dia: 3.07"
  • Inside Dia: 1.39"
7 Stator NPN-6-10-7
Stator NPN-6-10-7
&
8 Cam NPN-6-10-8
Cam NPN-6-10-8
&
9 Accordion Spring 8 Pieces Required.
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 5
  • Relaxed Height: 0.19"
 YS-6-1
Accordion Spring YS-6-1
& 8 Pieces Required.
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 5
  • Relaxed Height: 0.19"
10 Roller 8 Pieces Required.
  • Dia: 0.235"
  • Length: 0.785"
 YR-7-1
Roller YR-7-1
& 8 Pieces Required.
  • Dia: 0.235"
  • Length: 0.785"
11 Inner Race Stator
  • Height: 1.080"
  • Internal Teeth: 30
  • Outside Dia: 1.650"
 JX-14-9
Inner Race JX-14-9
Stator &
  • Height: 1.080"
  • Internal Teeth: 30
  • Outside Dia: 1.650"
12 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
12 Rivet 8 Pieces Required.
  • Length: 0.625"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.4"

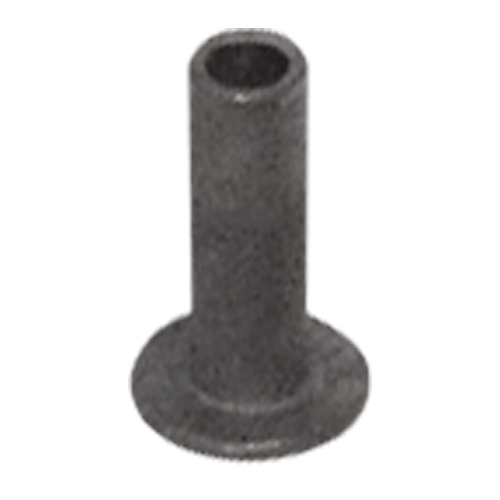

 JX-12L
Rivet JX-12L
& 8 Pieces Required.
  • Length: 0.625"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.4"
13 Turbine
  • Outside Dia Metric: 236mm
 NPN-6-10-13
Turbine NPN-6-10-13
&
  • Outside Dia Metric: 236mm
14 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
14 Turbine Hub
  • Internal Teeth: 18
  • Outside Dia: 3.94"
 JX-13-34
Turbine Hub JX-13-34
&
  • Internal Teeth: 18
  • Outside Dia: 3.94"
14 Turbine Hub
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.94"
 JX-13-34HT
Turbine Hub JX-13-34HT
&
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.94"
15 Snap Ring For Turbine Hub NPN-6-10-15
Snap Ring NPN-6-10-15
For Turbine Hub &
16 Turbine Washer
  • Thickness: .16"
  • Material: Bronze
  • Outside Dia: 2.52"
  • Inside Dia: 1.10"
 JW-9-7
Turbine Washer JW-9-7
&
  • Thickness: .16"
  • Material: Bronze
  • Outside Dia: 2.52"
  • Inside Dia: 1.10"
17 Spline Insert Pump Drive
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
 JX-22-100
Spline Insert JX-22-100
Pump Drive &
  • Height: 0.625"
  • External Teeth: 12
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 0.64"
18 Front Cover NPN-6-10-18
Front Cover NPN-6-10-18
&
19 Bolt NPN-6-10-19
Bolt NPN-6-10-19
&
