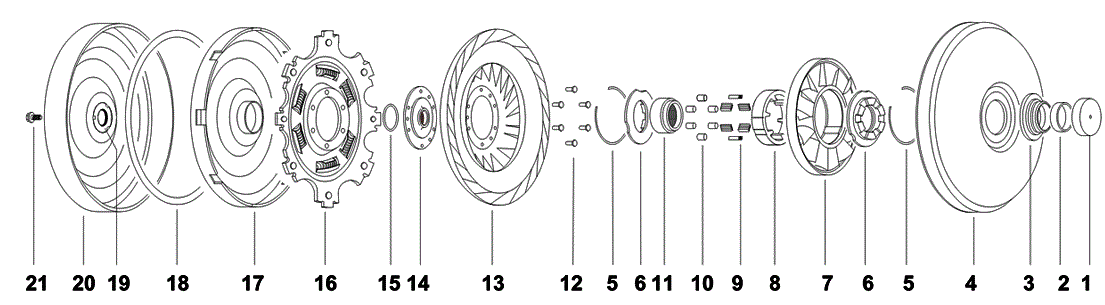

Torque Converter | Jatco, Nissan & Other Japanese | RL3F01A, DA-6; RL4F02A, DA-13 | 83-2, 93-2

Ill.# Image Description Specification Part #
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.812"
  • Inside Dia: 9.063"
 FX-23-88
Lining (Friction Ring,Wafer) FX-23-88
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.812"
  • Inside Dia: 9.063"
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2" RL4F02A (DA-13)
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" & RL4F02A (DA-13)
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
1 Hubcap Fits 1-3/4" (44.4mm) RL4F02A (DA-13)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
Hubcap MHC-P
Fits 1-3/4" (44.4mm) & RL4F02A (DA-13)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1" For DA-6
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" & For DA-6
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4" For DA-6
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" & For DA-6
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Bushing Converter Hub Nissan Sentra Lockup 83005
Bushing 83005
Converter Hub Nissan Sentra Lockup &

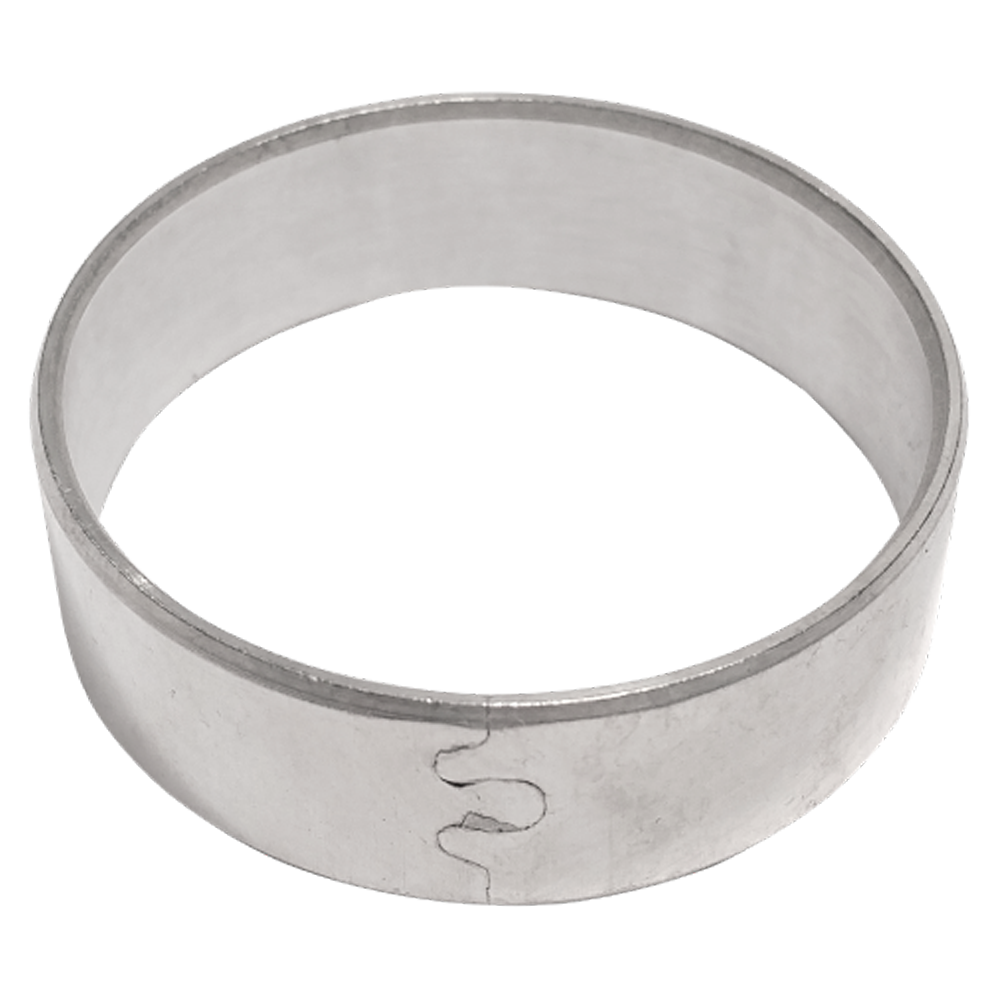

2 Bushing DA-6
  • Thickness: 0.504"
  • Housing Bore Dia: 1.654"
  • Shaft Dia: 1.534"
  • Material: Babbit
 JB-18-2
Bushing JB-18-2
& DA-6
  • Thickness: 0.504"
  • Housing Bore Dia: 1.654"
  • Shaft Dia: 1.534"
  • Material: Babbit
3 Impeller Hub DA-13
  • Journal Dia: 1.810"
  • Installed Height: 1.693"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
 JH-1-22GRC
Impeller Hub JH-1-22GRC
& DA-13
  • Journal Dia: 1.810"
  • Installed Height: 1.693"
  • Hub Mount: Flanged
  • Hardness: Rc 32-36
3 Impeller Hub DA-13
  • Journal Dia: 1.810"
  • Height: 1.37
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
 JH-1-9GRC
Impeller Hub JH-1-9GRC
& DA-13
  • Journal Dia: 1.810"
  • Height: 1.37
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
3 Impeller Hub Flanged DA-13
  • Journal Dia: 1.810"
  • Height: 1.545"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.340"
  • Hardness: Rc 32-36
 JH-1-36GRC
Impeller Hub JH-1-36GRC
Flanged & DA-13
  • Journal Dia: 1.810"
  • Height: 1.545"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 2.340"
  • Hardness: Rc 32-36
3 Impeller Hub DA-6
  • Journal Dia: 1.886"
  • Height: .700"
  • Hub Mount: Butt
 JH-1-7G
Impeller Hub JH-1-7G
& DA-6
  • Journal Dia: 1.886"
  • Height: .700"
  • Hub Mount: Butt
4 Impeller NPN-6-16-4
Impeller NPN-6-16-4
&
5 Snap Ring NPN-6-16-5
Snap Ring NPN-6-16-5
&
5_N.I. Bearing DA-13 2 Pieces Required.
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 12 Tangs
  • Outside Dia: 2.643
  • Inside Dia: 1.657
  • Outside Dia Metric: 67.13
  • Inside Dia metric: 42.09
 JW-2-15
Bearing JW-2-15
& DA-13 2 Pieces Required.
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 12 Tangs
  • Outside Dia: 2.643
  • Inside Dia: 1.657
  • Outside Dia Metric: 67.13
  • Inside Dia metric: 42.09

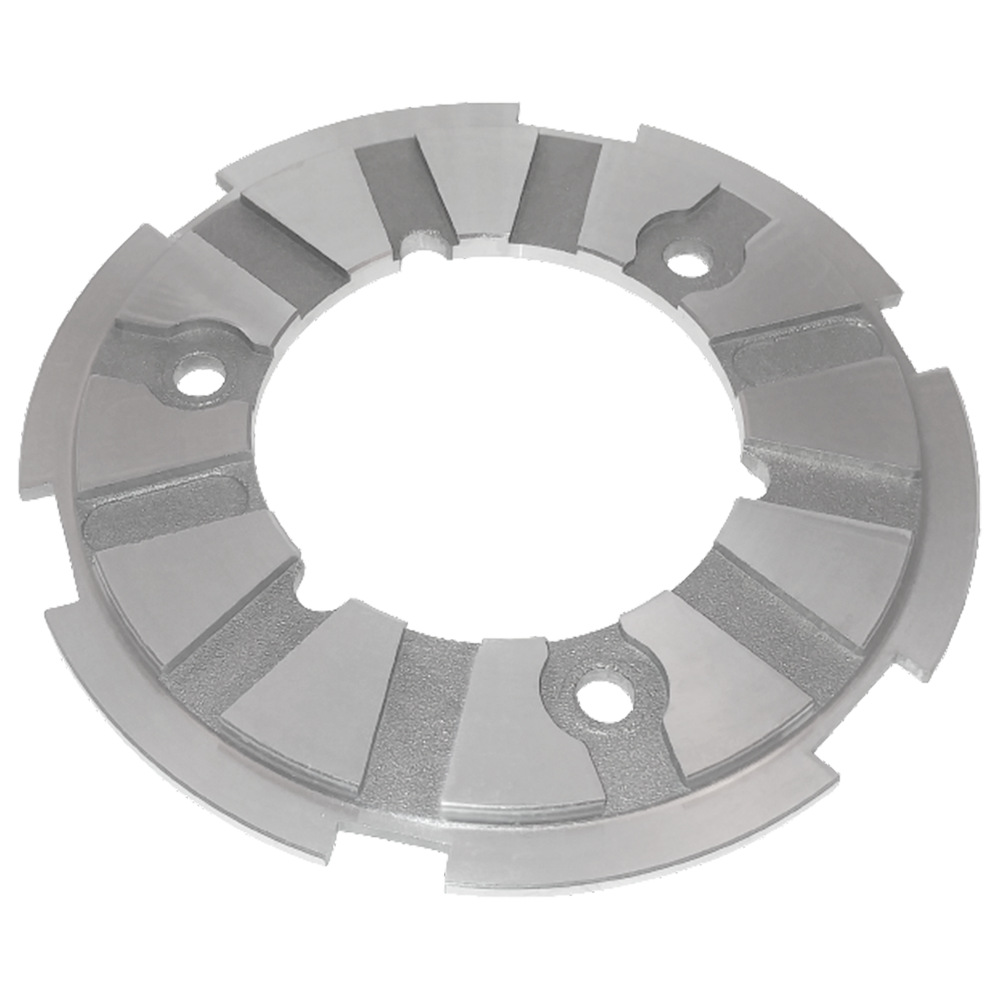

6 Stator Cap RL4F02A (DA-13)
  • Material: Aluminum
  • Functional Thickness: 0.140"
  • Outside Dia: 2.913"
  • Inside Dia: 1.500"
  • Used with bearing: JW-2-15
 JW-4-37
Stator Cap JW-4-37
& RL4F02A (DA-13)
  • Material: Aluminum
  • Functional Thickness: 0.140"
  • Outside Dia: 2.913"
  • Inside Dia: 1.500"
  • Used with bearing: JW-2-15
6 Stator Cap DA-6. 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 2.92"
  • Inside Dia: 1.56"
  • Replaces Plastic
 JW-4-4
Stator Cap JW-4-4
& DA-6. 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 2.92"
  • Inside Dia: 1.56"
  • Replaces Plastic
6 Stator Cap DA-13. 2 Pieces Required.
  • Use With Bearing JW-2-15
 JW-4-36
Stator Cap JW-4-36
& DA-13. 2 Pieces Required.
  • Use With Bearing JW-2-15
6 Stator Cap DA-13. 2 Pieces Required.
  • Thickness: 0.32"
  • Outside Dia: 2.91"
  • Inside Dia: 1.57"
  • 3 notches. Used with bearing: TW-2-4
 JW-4-18
Stator Cap JW-4-18
& DA-13. 2 Pieces Required.
  • Thickness: 0.32"
  • Outside Dia: 2.91"
  • Inside Dia: 1.57"
  • 3 notches. Used with bearing: TW-2-4
7 Stator NPN-6-16-7
Stator NPN-6-16-7
&
8 Cam NPN-6-16-8
Cam NPN-6-16-8
&
9 Accordion Spring 6 Pieces Required. 1942187
Accordion Spring 1942187
& 6 Pieces Required.
9 Accordion Spring 6 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
& 6 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
9 Accordion Spring 6 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 6 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"

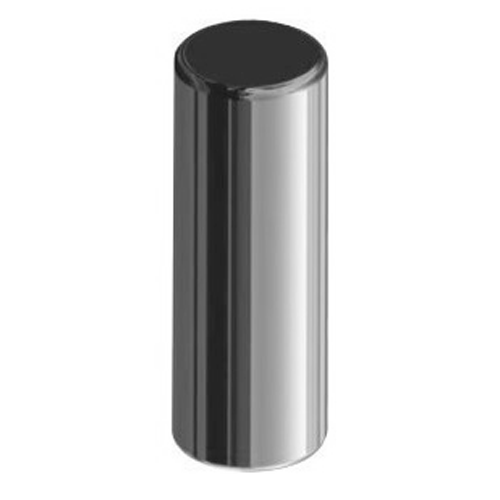

10 Roller 6 Pieces Required.
  • Dia: 0.275"
  • Length: 0.675"
 JR-7-2
Roller JR-7-2
& 6 Pieces Required.
  • Dia: 0.275"
  • Length: 0.675"
11 Inner Race Stator
  • Height: 1.040"
  • Internal Teeth: 30
  • Outside Dia: 1.770"
 JX-14-5
Inner Race JX-14-5
Stator &
  • Height: 1.040"
  • Internal Teeth: 30
  • Outside Dia: 1.770"
12 Rivet 6 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 6 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
13 Turbine
  • Outside Dia Metric: 236mm
 NPN-6-16-13
Turbine NPN-6-16-13
&
  • Outside Dia Metric: 236mm
14 Turbine Hub
  • Internal Teeth: 18
  • Outside Dia: 3.55"
 JX-13-7
Turbine Hub JX-13-7
&
  • Internal Teeth: 18
  • Outside Dia: 3.55"

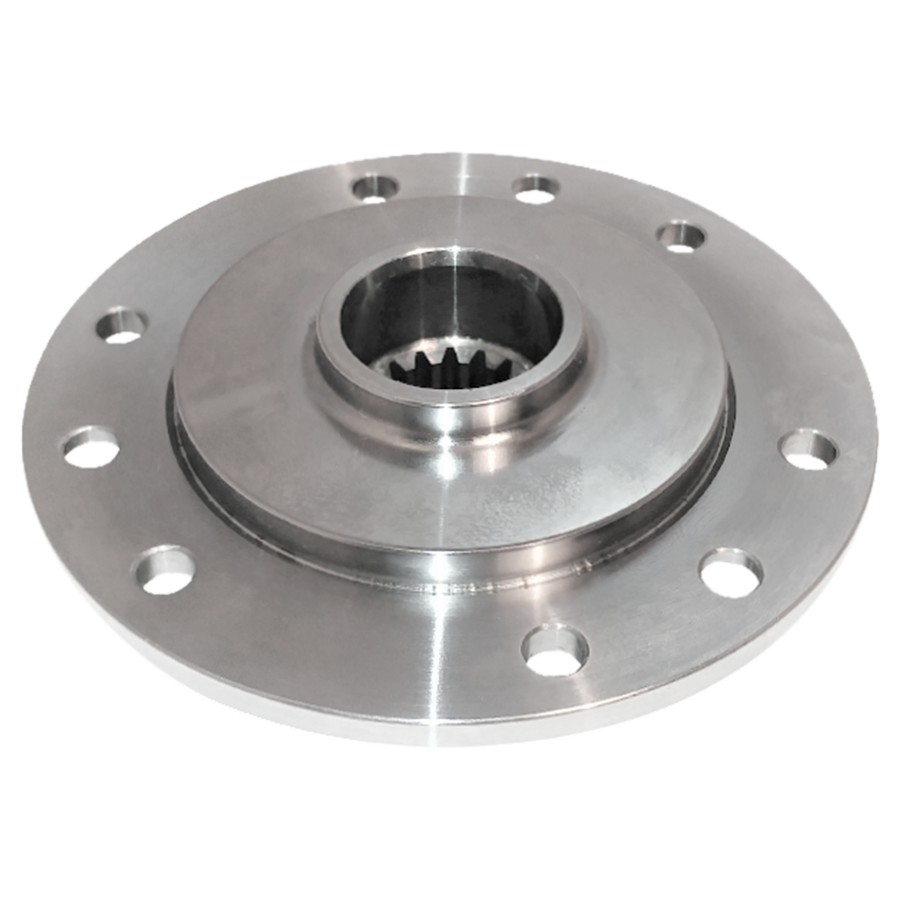

14 Turbine Hub
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.55"
 JX-13-7HT
Turbine Hub JX-13-7HT
&
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.55"
14 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
15 O-Ring
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.327
  • Inside Dia metric: 32.004
 JO-25-1
O-Ring JO-25-1
&
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.327
  • Inside Dia metric: 32.004
15 O-Ring
  • Thickness: 0.088
  • Thickness metric: 2.2352
  • Material: Fluorocarbon
  • Inside Dia: 1.327
  • Inside Dia metric: 33.7058
  • Oversized
 JO-25-1X
O-Ring JO-25-1X
&
  • Thickness: 0.088
  • Thickness metric: 2.2352
  • Material: Fluorocarbon
  • Inside Dia: 1.327
  • Inside Dia metric: 33.7058
  • Oversized
16 Damper Assembly NPN-6-16-16
Damper Assembly NPN-6-16-16
&
17 Clutch Plate Assembly JX-23-7
Clutch Plate Assembly JX-23-7
&
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.24"
  • Inside Dia: 8.313"
 JX-23-20
Lining (Friction Ring,Wafer) JX-23-20
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.24"
  • Inside Dia: 8.313"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 9"
 JX-23-33
Lining (Friction Ring,Wafer) JX-23-33
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 9"
18 Floating Ring
  • Thickness: .070"
  • Outside Dia: 9.75
  • Inside Dia: 7.531
 JX-23-9
Floating Ring JX-23-9
&
  • Thickness: .070"
  • Outside Dia: 9.75
  • Inside Dia: 7.531
18 Floating Ring Kevlar®, NISSAN
  • Outside Dia: 9.75
  • Inside Dia: 7.531
 JX-23-9K
Floating Ring JX-23-9K
Kevlar®, NISSAN &
  • Outside Dia: 9.75
  • Inside Dia: 7.531
19 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
 JX-22-2
Retainer JX-22-2
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
19 Turbine Washer
  • Thickness: .15"
  • Material: Metal (Replaces Plastic
  • Outside Dia: 1.60"
  • Inside Dia: .87"
 JW-9-6
Turbine Washer JW-9-6
&
  • Thickness: .15"
  • Material: Metal (Replaces Plastic
  • Outside Dia: 1.60"
  • Inside Dia: .87"

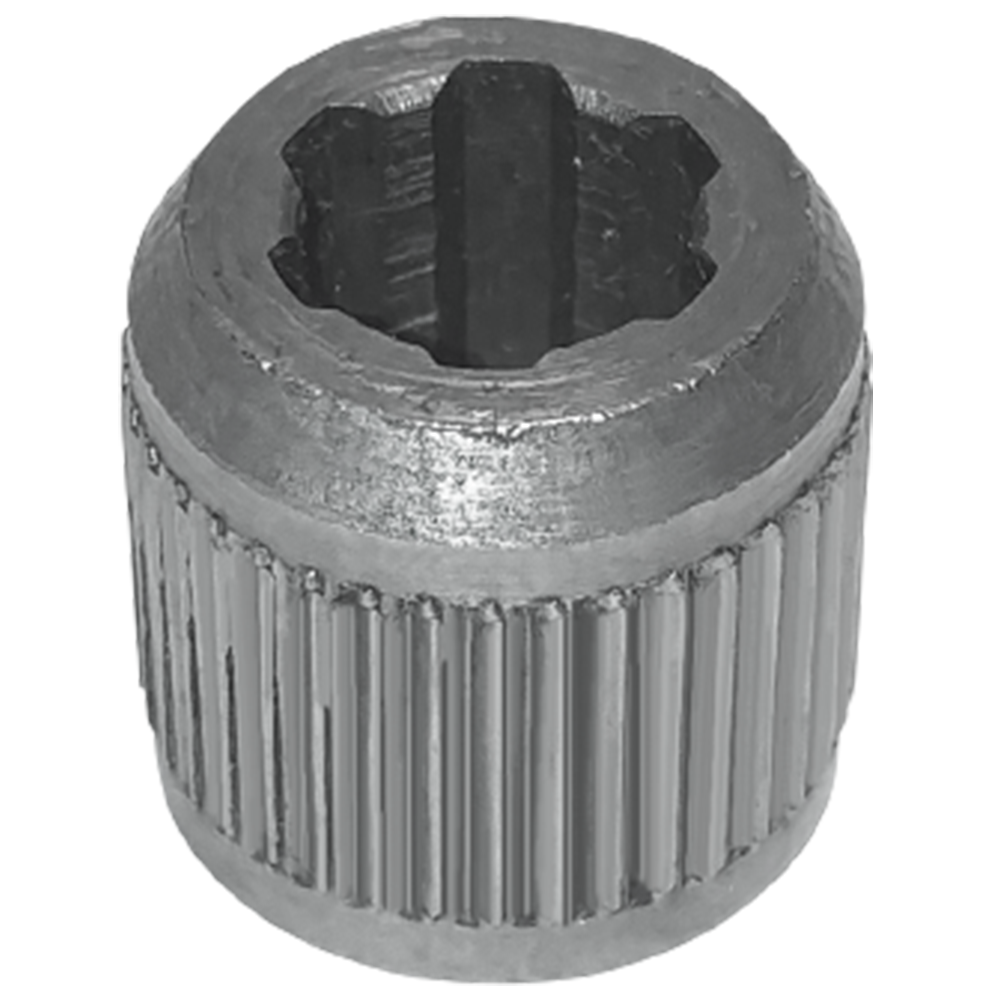

19_N.I. Spline Insert Pump Drive
  • Height: 0.625"
  • External Teeth: 6
  • Outside Dia: 0.63"
 JX-22-101
Spline Insert JX-22-101
Pump Drive &
  • Height: 0.625"
  • External Teeth: 6
  • Outside Dia: 0.63"
20 Front Cover NPN-6-16-20
Front Cover NPN-6-16-20
&
21 Bolt NPN-6-16-21
Bolt NPN-6-16-21
&
