Torque Converter | Jatco, Nissan & Other Japanese | RG4R01A / JR403E, DA-25 | 62-25

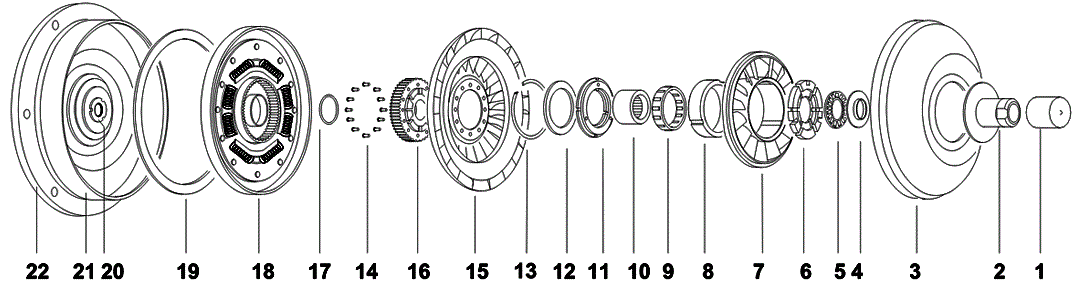

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.810"
  • Installed Height: 1.912"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 JH-1-37GRC
Impeller Hub JH-1-37GRC
&
  • Journal Dia: 1.810"
  • Installed Height: 1.912"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.810"
  • Installed Height: 2.193"
  • Height: 2.264
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.937"
  • Hardness: Rc 32-36
 JH-1-27GRC
Impeller Hub JH-1-27GRC
&
  • Journal Dia: 1.810"
  • Installed Height: 2.193"
  • Height: 2.264
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.937"
  • Hardness: Rc 32-36
3 Impeller NPN-6-22-3
Impeller NPN-6-22-3
&
4 Bearing Race NPN-6-22-4
Bearing Race NPN-6-22-4
&
5 Bearing
  • Bearing type: Partially Enclosed
  • can be replaced with JW-4-21 & TW-2-4
 NPN-6-22-5
Bearing NPN-6-22-5
&
  • Bearing type: Partially Enclosed
  • can be replaced with JW-4-21 & TW-2-4
6 Stator Cap
  • Material: Aluminum
 NPN-6-22-6
Stator Cap NPN-6-22-6
&
  • Material: Aluminum
6 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.61"
  • Outside Dia: 3.52"
  • Inside Dia: 1.7"
  • Used with bearing: TW2-4
 JW-4-21
Stator Cap JW-4-21
& Use with bearing TW-2-4
  • Thickness: 0.61"
  • Outside Dia: 3.52"
  • Inside Dia: 1.7"
  • Used with bearing: TW2-4
7 Stator NPN-6-22-7
Stator NPN-6-22-7
&
8 Cam NPN-6-22-8
Cam NPN-6-22-8
&
9 Sprag
  • Thickness: 0.810"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.804"
  • Inner Race Outside Dia: 2.148"
  • Cam part-ID: S-532, 12 Outside Clips
 MC-1
Sprag MC-1
&
  • Thickness: 0.810"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.804"
  • Inner Race Outside Dia: 2.148"
  • Cam part-ID: S-532, 12 Outside Clips

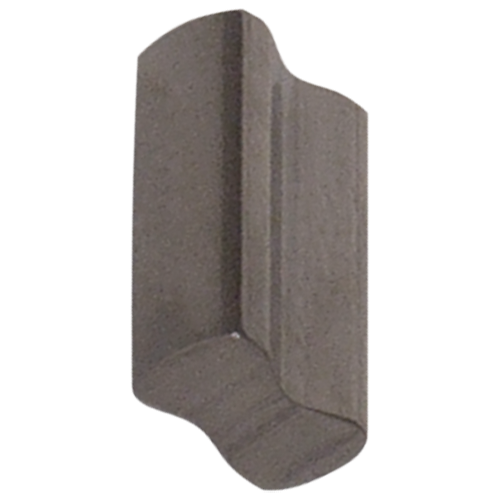

9 Cam (Sprag Element) 0.532" Skinny S-532
Cam (Sprag Element) S-532
0.532" Skinny &
9 Sprag
  • Thickness: 0.638"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.717"
  • Inner Race Outside Dia: 2.074"
 YC-6-2
Sprag YC-6-2
&
  • Thickness: 0.638"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.717"
  • Inner Race Outside Dia: 2.074"
10 Inner Race Stator 36 Spline, 2.156" O.D., 1.37" I.D., 1.25" High
  • Dimensions: 36 Spline, 2.156" O.D., 1.37" I.D., 1.25" High
 JX-14-10
Inner Race JX-14-10
Stator & 36 Spline, 2.156" O.D., 1.37" I.D., 1.25" High
  • Dimensions: 36 Spline, 2.156" O.D., 1.37" I.D., 1.25" High
11 Stator Cap NPN-6-22-11
Stator Cap NPN-6-22-11
&

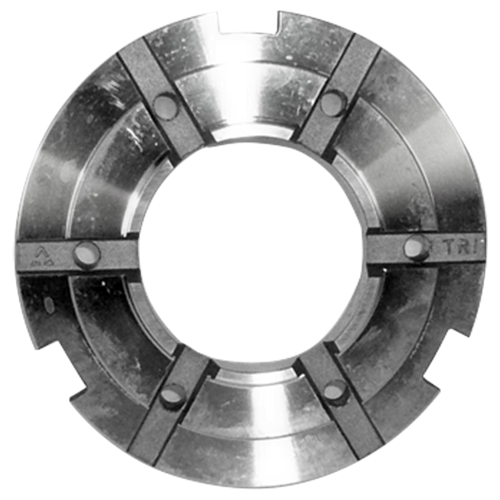

11 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.58"
  • Outside Dia: 3.52"
  • Inside Dia: 1.7"
  • Used with bearing: TW-2-4
 JW-4-22
Stator Cap JW-4-22
& Use with bearing TW-2-4
  • Thickness: 0.58"
  • Outside Dia: 3.52"
  • Inside Dia: 1.7"
  • Used with bearing: TW-2-4
12 Bearing
  • Bearing type: Enclosed
  • can be replaced with JW-4-22& TW-2-4
 NPN-6-22-12
Bearing NPN-6-22-12
&
  • Bearing type: Enclosed
  • can be replaced with JW-4-22& TW-2-4
13 Snap Ring NPN-6-22-13
Snap Ring NPN-6-22-13
&
14 Rivet 12 Pieces Required.
  • Length: .475"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: .233"
  • Rivet Head Dia: 0.4"
  • Material: Aluminum
 HX-12A
Rivet HX-12A
& 12 Pieces Required.
  • Length: .475"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: .233"
  • Rivet Head Dia: 0.4"
  • Material: Aluminum
14 Rivet For JX-13-35. 12 Pieces Required.
  • Length: .475"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: .233"
  • Rivet Head Dia: 0.4"
  • Material: Steel
 HX-12S
Rivet HX-12S
& For JX-13-35. 12 Pieces Required.
  • Length: .475"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: .233"
  • Rivet Head Dia: 0.4"
  • Material: Steel
14 Rivet For JX-13-26. 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& For JX-13-26. 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
14 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
14 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
15 Turbine
  • Outside Dia Metric: 292mm
 NPN-6-22-15
Turbine NPN-6-22-15
&
  • Outside Dia Metric: 292mm
16 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
 JX-13-26
Turbine Hub JX-13-26
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
16 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
 JX-13-26HT
Turbine Hub JX-13-26HT
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
16 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
 JX-13-35
Turbine Hub JX-13-35
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Outside Dia: 3.72"
16 Turbine Hub
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
 JX-13-35HT
Turbine Hub JX-13-35HT
&
  • Internal Teeth: 24
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
17 O-Ring Standard
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
 JO-25-2
O-Ring JO-25-2
Standard &
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
17 O-Ring Oversized
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
 JO-25-4
O-Ring JO-25-4
Oversized &
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized

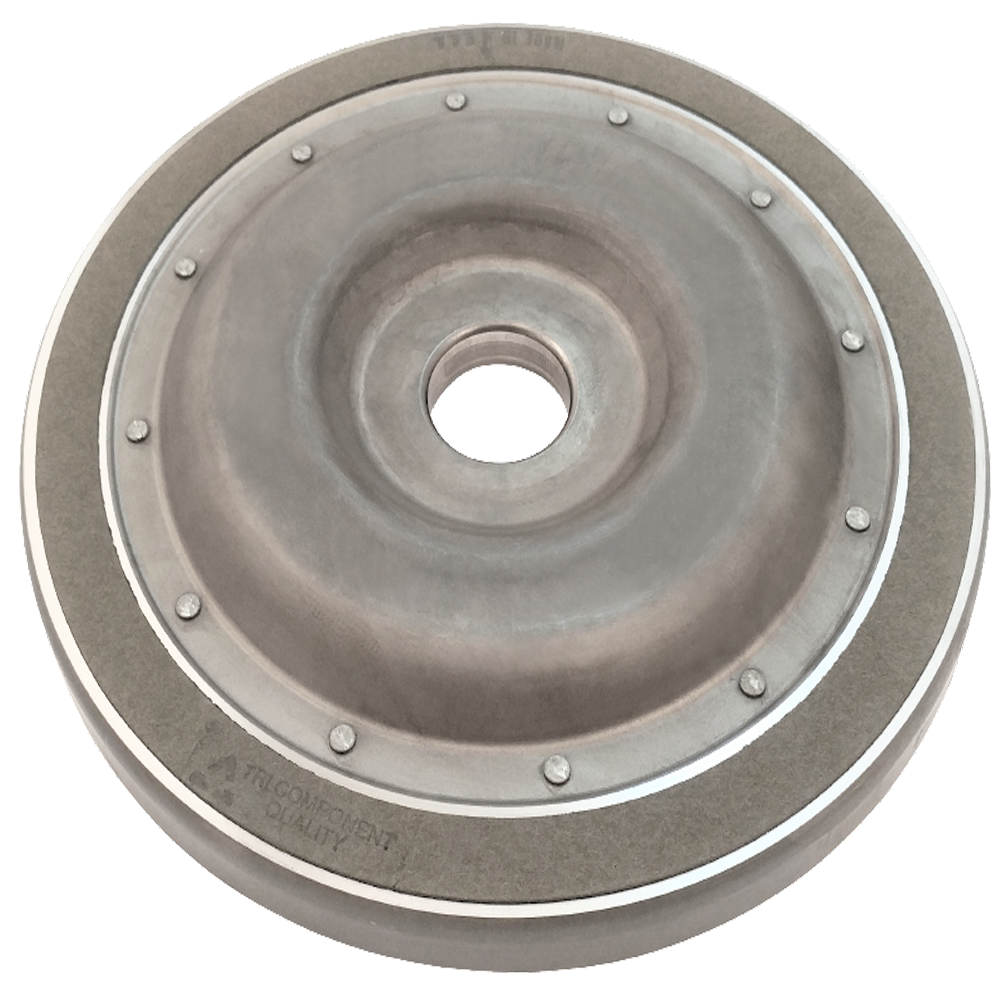

18 Clutch Plate Assembly JX-23-28
Clutch Plate Assembly JX-23-28
&
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75"
  • Inside Dia: 9.5"
 JX-23-23
Lining (Friction Ring,Wafer) JX-23-23
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.75"
  • Inside Dia: 9.5"
20 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-5
Turbine Washer JW-9-5
&
  • Material: Metal (Replaces Plastic)
20 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
 JX-22-3
Retainer JX-22-3
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
21 Front Cover NPN-6-22-21
Front Cover NPN-6-22-21
&
22 Mounting Plate Allows Conversion From Other Models NPN-6-22-22
Mounting Plate NPN-6-22-22
Allows Conversion From Other Models &
