Torque Converter | Jatco, Nissan & Other Japanese | RE7R01A (JR710E) 7 speed, Infinity, Nissan ’09 & Up

Ill.# Image Description Specification Part #
Bearing Impeller Side, 41TE
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.99
  • Inside Dia: 2.086"
 TW-2-22B
Bearing TW-2-22B
Impeller Side, 41TE &
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.99
  • Inside Dia: 2.086"
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Bushing
  • Thickness: 0.4"
  • Housing Bore Dia: 1.678"
  • Shaft Dia: 1.537"
  • Material: Bi-metal
  • Type: Precision
 JB-18-11
Bushing JB-18-11
&
  • Thickness: 0.4"
  • Housing Bore Dia: 1.678"
  • Shaft Dia: 1.537"
  • Material: Bi-metal
  • Type: Precision
3 Impeller Hub Flanged, with flats
  • Journal Dia: 1.811"
  • Installed Height: 1.702"
  • Height: 1.904"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.660"
  • Material: Hardened Steel
  • Inside Dia: 3.660"
 JH-1-43FLG
Impeller Hub JH-1-43FLG
Flanged, with flats &
  • Journal Dia: 1.811"
  • Installed Height: 1.702"
  • Height: 1.904"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.660"
  • Material: Hardened Steel
  • Inside Dia: 3.660"
5 Bearing
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
 JW-2-28
Bearing JW-2-28
&
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21

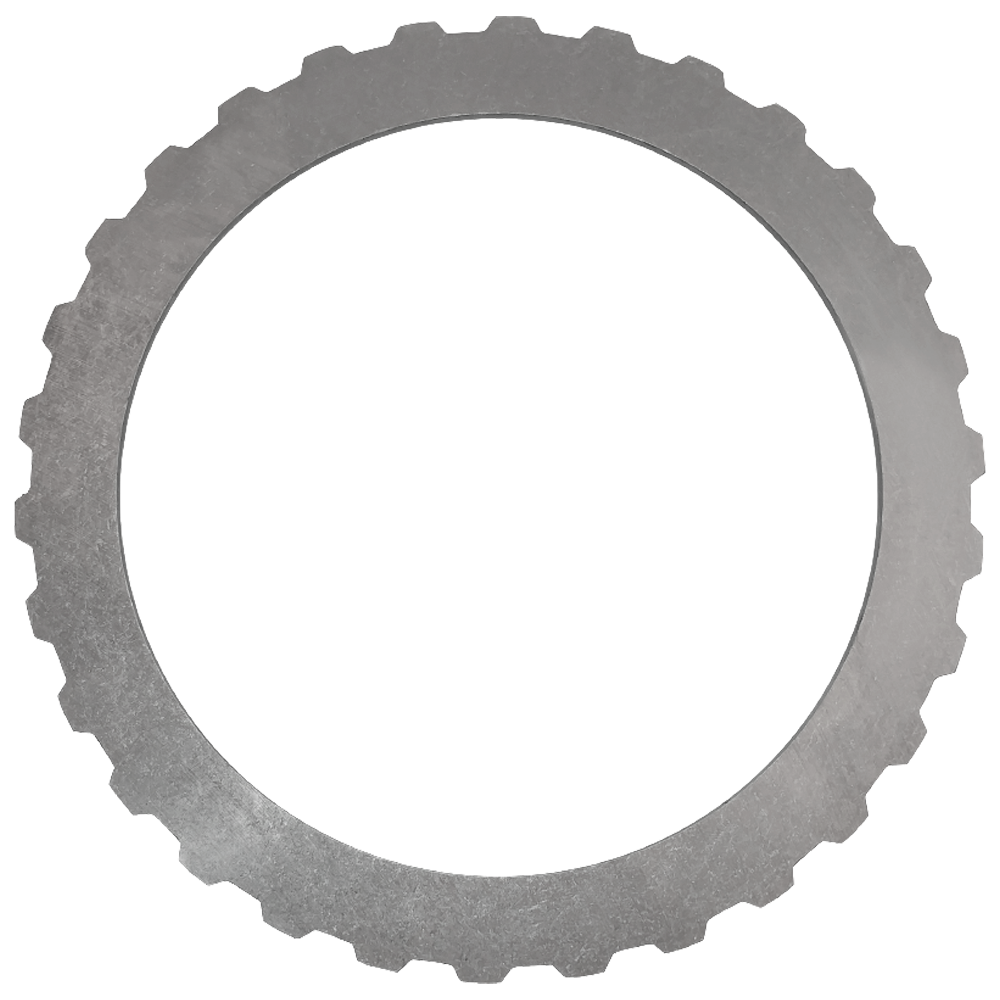

25 Pressure Plate
  • Thickness: 0.168"
  • External Teeth: 30
  • Material: Steel
  • Outside Dia: 7.110"
  • Inside Dia: 5.607"
 JX-23-39
Pressure Plate JX-23-39
&
  • Thickness: 0.168"
  • External Teeth: 30
  • Material: Steel
  • Outside Dia: 7.110"
  • Inside Dia: 5.607"
26 Friction Plate
  • Thickness: 0.071"
  • Internal Teeth: 24
  • Material: Hardened Steel
  • Segment Count: 40
  • Outside Dia: 6.827"
  • Inside Dia: 5.147"
 JX-23-38
Friction Plate JX-23-38
&
  • Thickness: 0.071"
  • Internal Teeth: 24
  • Material: Hardened Steel
  • Segment Count: 40
  • Outside Dia: 6.827"
  • Inside Dia: 5.147"
27 Steel Clutch-Plate
  • Thickness: 0.071"
  • External Teeth: 30
  • Material: Steel
  • Outside Dia: 7.110"
  • Inside Dia: 5.607"
 JX-23-40
Steel Clutch-Plate JX-23-40
&
  • Thickness: 0.071"
  • External Teeth: 30
  • Material: Steel
  • Outside Dia: 7.110"
  • Inside Dia: 5.607"
28 D-Ring Seal
  • Height: 0.152
  • Width: 0.081
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 6.2
  • Inside Dia metric: 157.48
 JO-25-23
D-Ring Seal JO-25-23
&
  • Height: 0.152
  • Width: 0.081
  • Material: Fluorocarbon
  • Height Metric: 3.8608
  • Seal Type: D-Ring
  • Inside Dia: 6.2
  • Inside Dia metric: 157.48
30 D-Ring Seal
  • Height: 0.133
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.3782
  • Seal Type: D-Ring
  • Inside Dia: 1.809
  • Inside Dia metric: 45.9486
 JO-25-22
D-Ring Seal JO-25-22
&
  • Height: 0.133
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 3.3782
  • Seal Type: D-Ring
  • Inside Dia: 1.809
  • Inside Dia metric: 45.9486

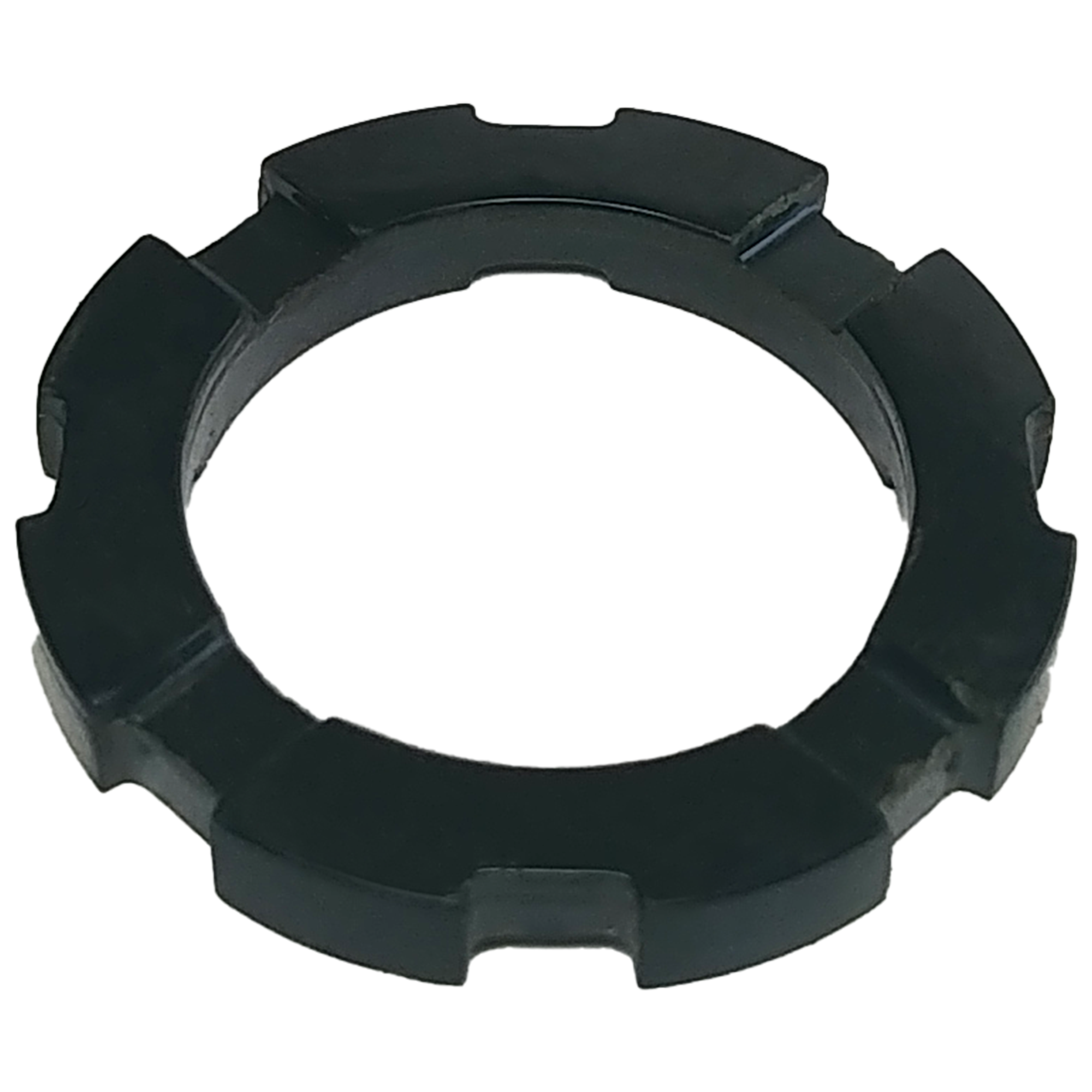

31 Turbine Washer 8 Outer Notch
  • Thickness: 0.189"
  • Material: Plastic
  • Outside Dia: 1.487"
  • Inside Dia: 1.020"
 JW-9-16
Turbine Washer JW-9-16
8 Outer Notch &
  • Thickness: 0.189"
  • Material: Plastic
  • Outside Dia: 1.487"
  • Inside Dia: 1.020"
