Torque Converter | Jatco, Nissan & Other Japanese | RE5R05A DA-65 Nissan Titan 5.6L 2004-07

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub Flanged, with flats
  • Journal Dia: 1.811"
  • Installed Height: 1.702"
  • Height: 1.904"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.660"
  • Material: Hardened Steel
  • Inside Dia: 3.660"
 JH-1-43FLG
Impeller Hub JH-1-43FLG
Flanged, with flats &
  • Journal Dia: 1.811"
  • Installed Height: 1.702"
  • Height: 1.904"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.660"
  • Material: Hardened Steel
  • Inside Dia: 3.660"
2 Impeller Hub
  • Journal Dia: 1.811"
  • Height: 1.740"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
 JH-1-42GRC
Impeller Hub JH-1-42GRC
&
  • Journal Dia: 1.811"
  • Height: 1.740"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
3 Bearing Impeller Side
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
 JW-2-28
Bearing JW-2-28
& Impeller Side
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
3 Bearing 12 Enclosed Tangs Turbine Side
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Steel
  • Tab Count: Tangs Dia: 3.500"
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
  • Tangs Dia: 3.500"
JW-2-29
Bearing JW-2-29
12 Enclosed Tangs & Turbine Side
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Steel
  • Tab Count: Tangs Dia: 3.500"
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
  • Tangs Dia: 3.500"
4 Rivet 10 Pieces Required.
  • Length: 0.631"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.290"
  • Rivet head Type: Flat Head thickness: 0.059"
 JX-12-8
Rivet JX-12-8
& 10 Pieces Required.
  • Length: 0.631"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.290"
  • Rivet head Type: Flat Head thickness: 0.059"
5 Turbine Hub
  • Internal Teeth: 24
  • Material: SAE 1045 Steel Forging
 JX-13-53HT
Turbine Hub JX-13-53HT
&
  • Internal Teeth: 24
  • Material: SAE 1045 Steel Forging
6 Seal Ring Square Cut
  • Height: 0.089
  • Width: 0.09
  • Material: PTFE
  • Height Metric: 2.2606
  • Seal Type: Square Cut
  • Outside Dia: 1.699
  • Outside Dia Metric: 43.1546
 JO-25-16
Seal Ring JO-25-16
Square Cut &
  • Height: 0.089
  • Width: 0.09
  • Material: PTFE
  • Height Metric: 2.2606
  • Seal Type: Square Cut
  • Outside Dia: 1.699
  • Outside Dia Metric: 43.1546
7 Rivet For Damper
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.158"
  • Rivet Head Dia: 0.220"
  • Rivet Head: Flat
 JX-12-7
Rivet JX-12-7
& For Damper
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.158"
  • Rivet Head Dia: 0.220"
  • Rivet Head: Flat
8 Friction Plate
  • Thickness: 0.071"
  • Internal Teeth: 40
  • Segment Count: 32
  • Outside Dia: 6.465"
  • Inside Dia: 5.15"
 JX-23-34
Friction Plate JX-23-34
&
  • Thickness: 0.071"
  • Internal Teeth: 40
  • Segment Count: 32
  • Outside Dia: 6.465"
  • Inside Dia: 5.15"
8 Friction Plate Core
  • Outside Dia: 6.46"
  • Inside Dia: 5.15"
 JX-23-34C
Friction Plate JX-23-34C
Core &
  • Outside Dia: 6.46"
  • Inside Dia: 5.15"
8 Steel Clutch-Plate
  • Thickness: 0.071"
  • External Teeth: 36
  • Material: Steel
  • Outside Dia: 6.76"
  • Inside Dia: 5.61"
 JX-23-35
Steel Clutch-Plate JX-23-35
&
  • Thickness: 0.071"
  • External Teeth: 36
  • Material: Steel
  • Outside Dia: 6.76"
  • Inside Dia: 5.61"

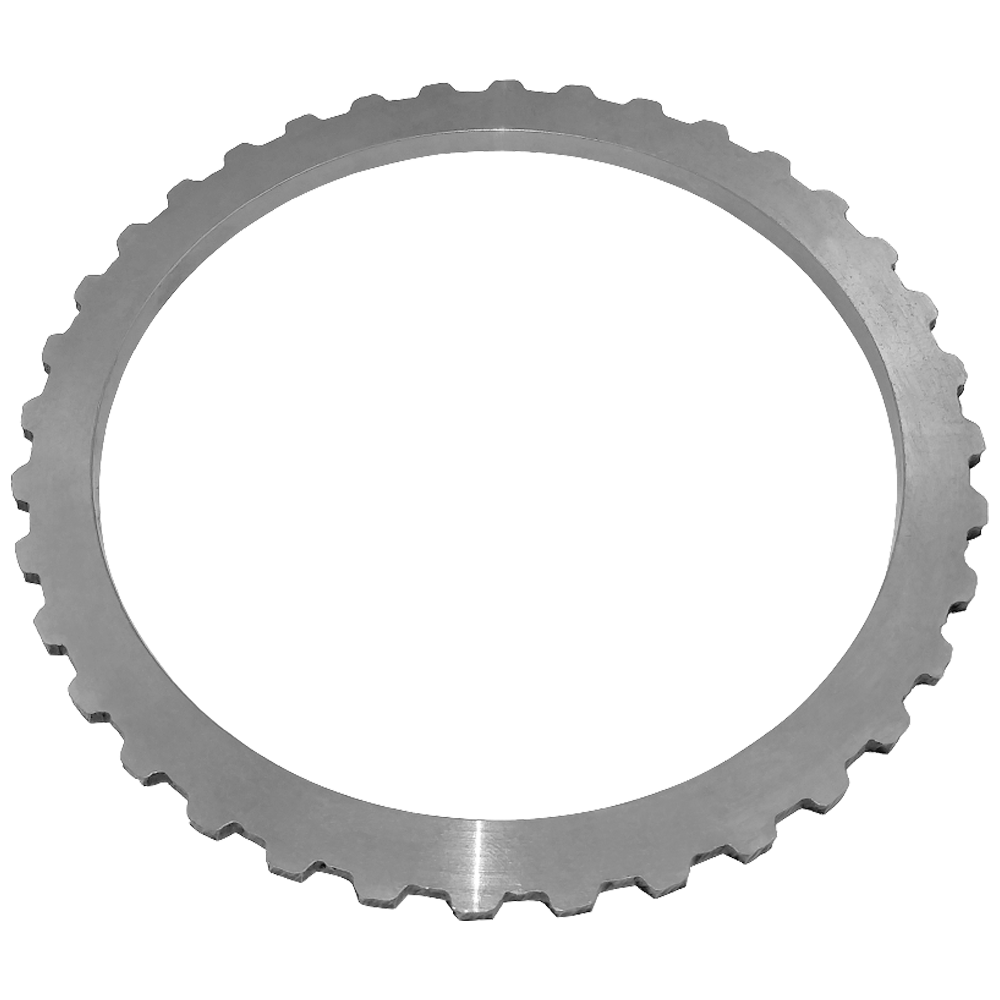

9 Pressure Plate
  • Thickness: 0.260"
  • External Teeth: 36
  • Material: Steel
  • Outside Dia: 6.76"
  • Inside Dia: 5.61"
 JX-23-36
Pressure Plate JX-23-36
&
  • Thickness: 0.260"
  • External Teeth: 36
  • Material: Steel
  • Outside Dia: 6.76"
  • Inside Dia: 5.61"
10 D-Ring Seal
  • Height: 0.158
  • Width: 0.089
  • Material: Fluorocarbon
  • Height Metric: 4.0132
  • Seal Type: D-Ring
  • Inside Dia: 5.906
  • Inside Dia metric: 150.0124
 JO-25-14
D-Ring Seal JO-25-14
&
  • Height: 0.158
  • Width: 0.089
  • Material: Fluorocarbon
  • Height Metric: 4.0132
  • Seal Type: D-Ring
  • Inside Dia: 5.906
  • Inside Dia metric: 150.0124
10 D-Ring Seal
  • Height: 0.158
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 4.0132
  • Seal Type: D-Ring
  • Inside Dia: 2.224
  • Inside Dia metric: 56.4896
 JO-25-13
D-Ring Seal JO-25-13
&
  • Height: 0.158
  • Width: 0.083
  • Material: Fluorocarbon
  • Height Metric: 4.0132
  • Seal Type: D-Ring
  • Inside Dia: 2.224
  • Inside Dia metric: 56.4896

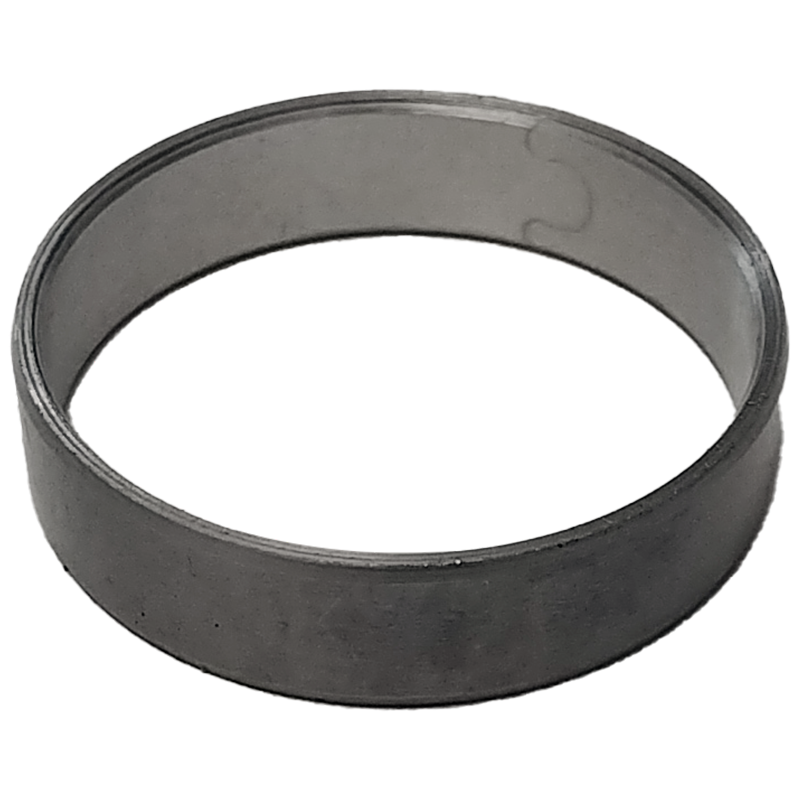

11 Bushing
  • Thickness: 0.4"
  • Housing Bore Dia: 1.678"
  • Shaft Dia: 1.537"
  • Material: Bi-metal
  • Type: Precision
 JB-18-11
Bushing JB-18-11
&
  • Thickness: 0.4"
  • Housing Bore Dia: 1.678"
  • Shaft Dia: 1.537"
  • Material: Bi-metal
  • Type: Precision
