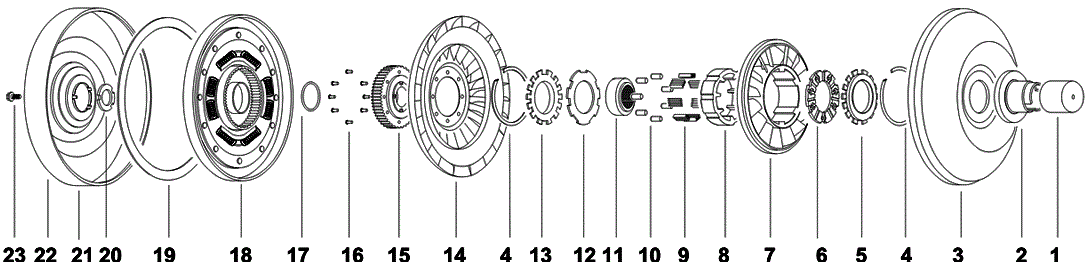

Torque Converter | Jatco, Nissan & Other Japanese | RE4R01A, DA-18, DA-48 | 69-1

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.810"
  • Installed Height: 2.025"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-24GRC
Impeller Hub JH-1-24GRC
&
  • Journal Dia: 1.810"
  • Installed Height: 2.025"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.810"
  • Installed Height: 2.230"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-23GRC
Impeller Hub JH-1-23GRC
&
  • Journal Dia: 1.810"
  • Installed Height: 2.230"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub DA-18 & DA-48
  • Journal Dia: 1.810"
  • Installed Height: 1.909"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 JH-1-16GRC
Impeller Hub JH-1-16GRC
& DA-18 & DA-48
  • Journal Dia: 1.810"
  • Installed Height: 1.909"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.810"
  • Installed Height: 2.03"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 JH-1-16G
Impeller Hub JH-1-16G
&
  • Journal Dia: 1.810"
  • Installed Height: 2.03"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
3 Impeller NPN-6-18-3
Impeller NPN-6-18-3
&
4 Snap Ring NPN-6-18-4
Snap Ring NPN-6-18-4
&
5 Bearing DA-18 & DA-48
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
  • Outside Dia: 3.027
  • Inside Dia: 2.047
  • Outside Dia Metric: 76.89
  • Inside Dia metric: 51.99
 JW-2-2
Bearing JW-2-2
& DA-18 & DA-48
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 14 Tangs
  • Outside Dia: 3.027
  • Inside Dia: 2.047
  • Outside Dia Metric: 76.89
  • Inside Dia metric: 51.99
5 Bearing DA-48
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 12 Tangs
  • Outside Dia: 2.643
  • Inside Dia: 1.657
  • Outside Dia Metric: 67.13
  • Inside Dia metric: 42.09
 JW-2-15
Bearing JW-2-15
& DA-48
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed, 12 Tangs
  • Outside Dia: 2.643
  • Inside Dia: 1.657
  • Outside Dia Metric: 67.13
  • Inside Dia metric: 42.09
6 Bearing DA-59
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
 JW-2-28
Bearing JW-2-28
& DA-59
  • Thickness: 0.236
  • Thickness metric: 6
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.228
  • Inside Dia: 2.213
  • Outside Dia Metric: 82
  • Inside Dia metric: 56.21
6 Stator Cap Aluminum, Use with Bearing JW-2-2 DA-18 NPN-6-18-6
Stator Cap NPN-6-18-6
Aluminum, Use with Bearing JW-2-2 & DA-18
6 Stator Cap DA-18, DA-48, Use with bearing TW-2-4
  • Thickness: 0.08"
  • Outside Dia: 3.38"
  • Inside Dia: 1.7"
  • 14 tangs. Use With Stator Cap & Bearing TW-2-4
 JW-4-11
Stator Cap JW-4-11
& DA-18, DA-48, Use with bearing TW-2-4
  • Thickness: 0.08"
  • Outside Dia: 3.38"
  • Inside Dia: 1.7"
  • 14 tangs. Use With Stator Cap & Bearing TW-2-4
6 Stator Cap DA-18, Use With TW-2-4 Bearing
  • Thickness: 0.357"
  • Outside Dia: 3.38"
  • Inside Dia: 1.690"
 JW-4-24
Stator Cap JW-4-24
& DA-18, Use With TW-2-4 Bearing
  • Thickness: 0.357"
  • Outside Dia: 3.38"
  • Inside Dia: 1.690"
6 Stator Cap DA-48 Front
  • Material: Aluminum
  • Functional Thickness: 0.140"
  • Outside Dia: 2.913"
  • Inside Dia: 1.500"
  • Used with bearing: JW-2-15
 JW-4-37
Stator Cap JW-4-37
& DA-48 Front
  • Material: Aluminum
  • Functional Thickness: 0.140"
  • Outside Dia: 2.913"
  • Inside Dia: 1.500"
  • Used with bearing: JW-2-15
7 Stator NPN-6-18-7
Stator NPN-6-18-7
&
8 Cam NPN-6-18-8
Cam NPN-6-18-8
&
9 Accordion Spring 7 Pieces Required.
  • Width: 0.765"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.22"
 JS-6-4
Accordion Spring JS-6-4
& 7 Pieces Required.
  • Width: 0.765"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.22"
10 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.75"
 TR-7-1
Roller TR-7-1
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.75"
11 Inner Race
  • Internal Teeth: 34
 NPN-6-18-11
Inner Race NPN-6-18-11
&
  • Internal Teeth: 34
12 Wear Plate DA-18
  • Material: Bimetal
 NPN-6-18-12
Wear Plate NPN-6-18-12
& DA-18
  • Material: Bimetal
12 Stator Cap DA-48 Rear
  • Thickness: 0.218"
  • Material: Aluminum
  • Functional Thickness: 0.133"
  • Outside Dia: 2.908"
  • Inside Dia: 1.480"
  • Outer Notch Count: 6. Used with bearing: JW-2-15
 JW-4-38
Stator Cap JW-4-38
& DA-48 Rear
  • Thickness: 0.218"
  • Material: Aluminum
  • Functional Thickness: 0.133"
  • Outside Dia: 2.908"
  • Inside Dia: 1.480"
  • Outer Notch Count: 6. Used with bearing: JW-2-15
12 Stator Cap Front DA-48
  • Thickness: 0.257"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.61"

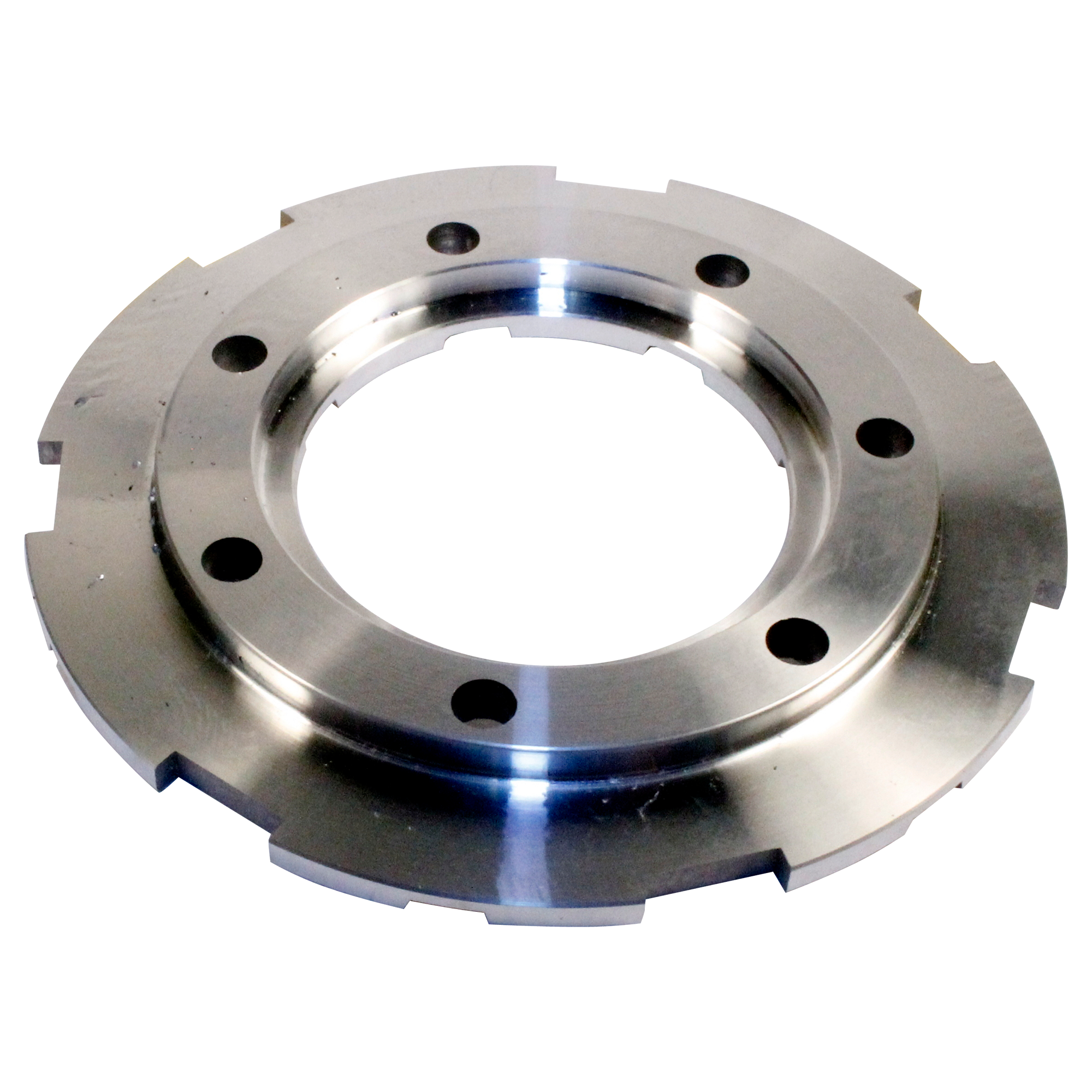

 JW-4-26
Stator Cap JW-4-26
Front & DA-48
  • Thickness: 0.257"
  • Material: Aluminum
  • Outside Dia: 3.38"
  • Inside Dia: 1.61"
13 Bearing DA-18
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 7 Tangs
  • Outside Dia: 2.713
  • Inside Dia: 1.654
  • Outside Dia Metric: 68.91
  • Inside Dia metric: 42.01

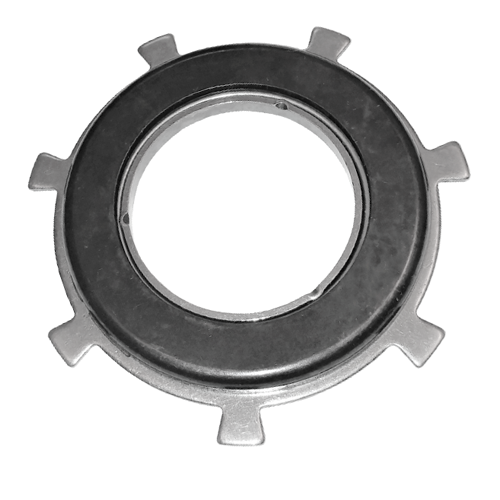

 JW-2-16
Bearing JW-2-16
& DA-18
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 7 Tangs
  • Outside Dia: 2.713
  • Inside Dia: 1.654
  • Outside Dia Metric: 68.91
  • Inside Dia metric: 42.01
13 Bearing DA-18
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 14 Tangs
  • Tab Count: Tang O.D.: 3.37"
  • Outside Dia: 2.713
  • Inside Dia: 1.654
  • Outside Dia Metric: 68.91
  • Inside Dia metric: 42.01
  • Tang O.D.: 3.37"

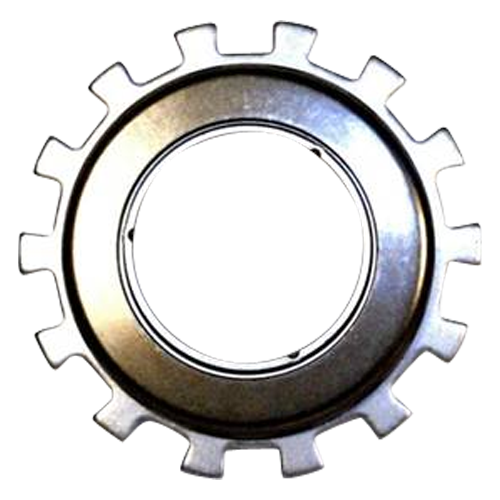

 JW-2-14
Bearing JW-2-14
& DA-18
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Enclosed, 14 Tangs
  • Tab Count: Tang O.D.: 3.37"
  • Outside Dia: 2.713
  • Inside Dia: 1.654
  • Outside Dia Metric: 68.91
  • Inside Dia metric: 42.01
  • Tang O.D.: 3.37"
14 Turbine
  • Outside Dia Metric: 250mm
 NPN-6-18-14
Turbine NPN-6-18-14
&
  • Outside Dia Metric: 250mm
15 Turbine Hub
  • Internal Teeth: 20
  • External Teeth: 46
  • Outside Dia: 3.72"
  • Inside Dia: 1.94"
 JX-13-10
Turbine Hub JX-13-10
&
  • Internal Teeth: 20
  • External Teeth: 46
  • Outside Dia: 3.72"
  • Inside Dia: 1.94"
15 Turbine Hub Converts Jatco RE4R01A to GM lockup
  • Internal Teeth: 20
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
  • Inside Dia: 1.94"
 JX-13-10HT
Turbine Hub JX-13-10HT
& Converts Jatco RE4R01A to GM lockup
  • Internal Teeth: 20
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
  • Inside Dia: 1.94"
16 Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
Rivet WX-12B
& 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16 Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
Rivet WX-12BS
& 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
17 O-Ring Standard
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
 JO-25-2
O-Ring JO-25-2
Standard &
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.417
  • Inside Dia metric: 35.9918
17 O-Ring Oversized
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
 JO-25-4
O-Ring JO-25-4
Oversized &
  • Thickness: 0.102
  • Thickness metric: 2.5908
  • Material: Fluorocarbon
  • Inside Dia: 1.475
  • Inside Dia metric: 37.465
  • Oversized
18 Clutch Plate Assembly JX-23-14
Clutch Plate Assembly JX-23-14
&
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
 JX-23-22
Lining (Friction Ring,Wafer) JX-23-22
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.875
  • Inside Dia: 8.75
20 Turbine Washer
  • Material: Metal (Replaces Plastic)
 JW-9-5
Turbine Washer JW-9-5
&
  • Material: Metal (Replaces Plastic)
21 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
 JX-22-3
Retainer JX-22-3
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.47"
22 Front Cover NPN-6-18-22
Front Cover NPN-6-18-22
&
23 Bolt NPN-6-18-23
Bolt NPN-6-18-23
&
