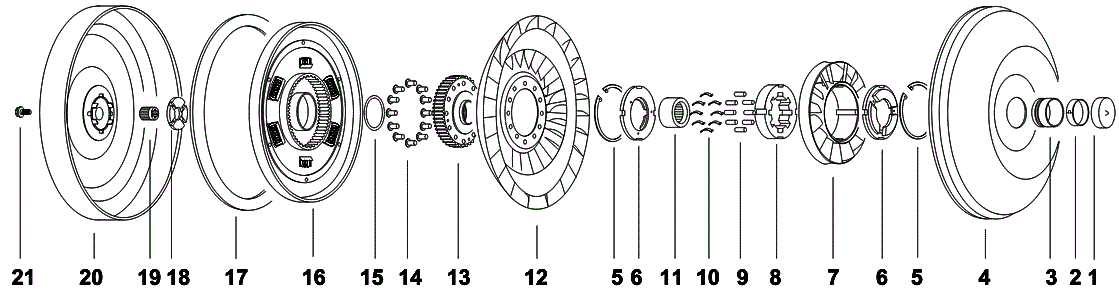

Torque Converter | Jatco, Nissan & Other Japanese | Nissan Micra, DA-35 | 83-5

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 Bushing Converter Hub Nissan Sentra Lockup 83005
Bushing 83005
Converter Hub Nissan Sentra Lockup &
2 Bushing
  • Thickness: 0.504"
  • Housing Bore Dia: 1.654"
  • Shaft Dia: 1.534"
  • Material: Babbit
 JB-18-2
Bushing JB-18-2
&
  • Thickness: 0.504"
  • Housing Bore Dia: 1.654"
  • Shaft Dia: 1.534"
  • Material: Babbit
3 Impeller Hub
  • Journal Dia: 1.886"
  • Height: .700"
  • Hub Mount: Butt
 JH-1-7G
Impeller Hub JH-1-7G
&
  • Journal Dia: 1.886"
  • Height: .700"
  • Hub Mount: Butt
4 Impeller NPN-6-30-4
Impeller NPN-6-30-4
&
5 Snap Ring NPN-6-30-5
Snap Ring NPN-6-30-5
&
6 Stator Cap 2 Pieces Required.
  • Thickness: .25"
  • Outside Dia: 2.84"
  • Inside Dia: 1.34"
 JW-4-39
Stator Cap JW-4-39
& 2 Pieces Required.
  • Thickness: .25"
  • Outside Dia: 2.84"
  • Inside Dia: 1.34"
7 Stator NPN-6-30-7
Stator NPN-6-30-7
&
8 Cam NPN-6-30-8
Cam NPN-6-30-8
&
9 Roller NPN-6-30-9
Roller NPN-6-30-9
&
10 Accordion Spring NPN-6-30-10
Accordion Spring NPN-6-30-10
&
11 Inner Race
  • Internal Teeth: 30
 NPN-6-30-11
Inner Race NPN-6-30-11
&
  • Internal Teeth: 30
12 Turbine
  • Outside Dia Metric: 222mm
 NPN-6-30-12
Turbine NPN-6-30-12
&
  • Outside Dia Metric: 222mm

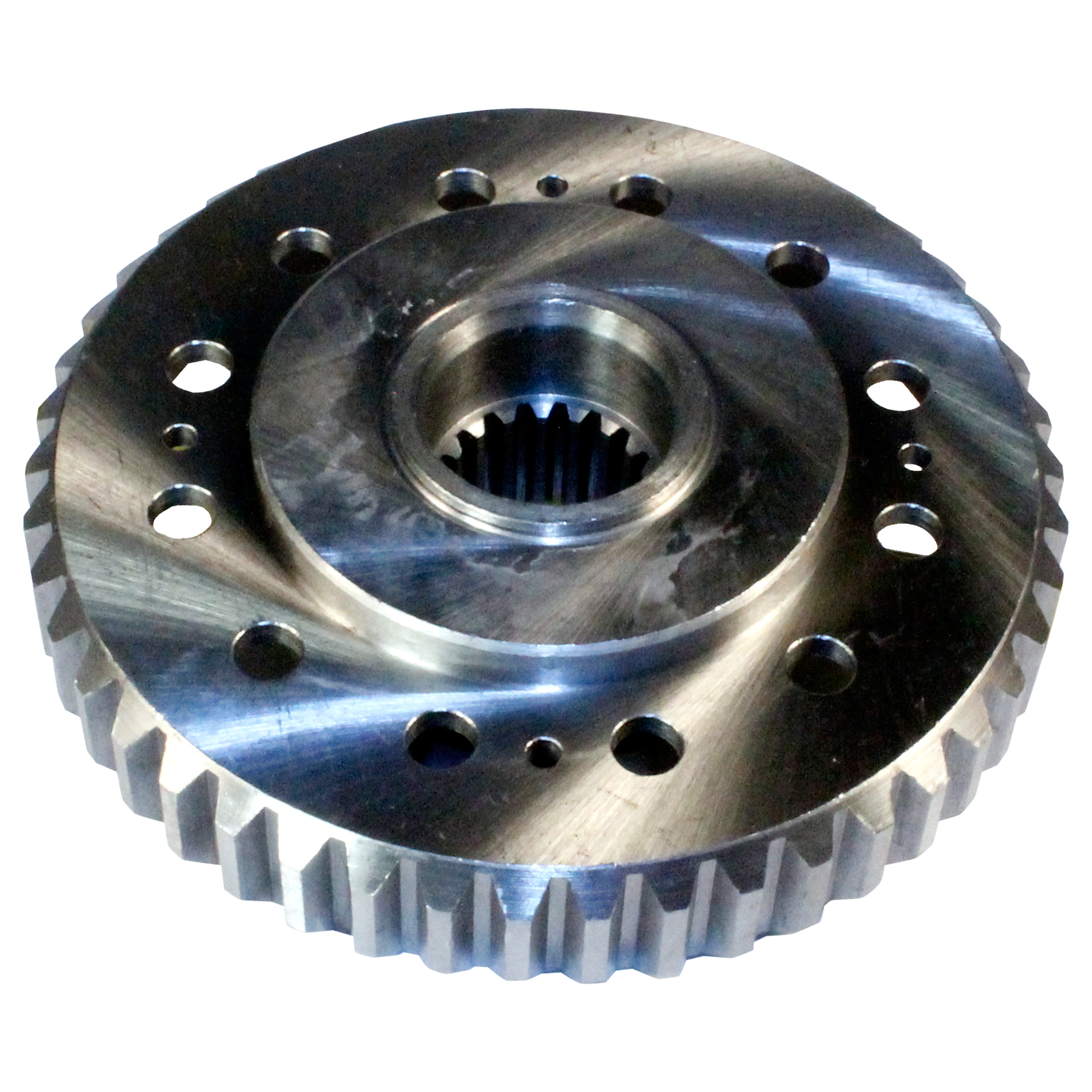

13 Turbine Hub
  • Internal Teeth: 18
  • External Teeth: 46
  • Outside Dia: 3.72"
 JX-13-15
Turbine Hub JX-13-15
&
  • Internal Teeth: 18
  • External Teeth: 46
  • Outside Dia: 3.72"
13 Turbine Hub
  • Internal Teeth: 18
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
 JX-13-15HT
Turbine Hub JX-13-15HT
&
  • Internal Teeth: 18
  • External Teeth: 46
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.72"
13_N.I. Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
14 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
14 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
14 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
15 Seal Ring Scarf Cut
  • Height: 0.101"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.2
  • Seal Type: Scarf Cut
  • Outside Dia: 2.050"
  • Outside Dia Metric: 52.1mm
 FO-25-1
Seal Ring FO-25-1
Scarf Cut &
  • Height: 0.101"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.2
  • Seal Type: Scarf Cut
  • Outside Dia: 2.050"
  • Outside Dia Metric: 52.1mm
15 Seal Ring Scarf Cut, Oversized
  • Height: 0.098
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.4892
  • Seal Type: Scarf Cut
  • Outside Dia: 2.049
  • Outside Dia Metric: 52.0446
 FO-25-1A
Seal Ring FO-25-1A
Scarf Cut, Oversized &
  • Height: 0.098
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.4892
  • Seal Type: Scarf Cut
  • Outside Dia: 2.049
  • Outside Dia Metric: 52.0446
15 Seal Ring PTFE FO-25-1D
Seal Ring FO-25-1D
PTFE &
16 Lockup Clutch JX-23-30
Lockup Clutch JX-23-30
&
17 Floating Ring
  • Outside Dia: 9.125
  • Inside Dia: 7.219
 JX-23-2
Floating Ring JX-23-2
&
  • Outside Dia: 9.125
  • Inside Dia: 7.219
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.625"
 JX-23-24
Lining (Friction Ring,Wafer) JX-23-24
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.625"
18 Turbine Washer JW-9-13
Turbine Washer JW-9-13
&
19 Spline Insert Pump Drive
  • Height: 0.625"
  • External Teeth: 6
  • Outside Dia: 0.63"
 JX-22-101
Spline Insert JX-22-101
Pump Drive &
  • Height: 0.625"
  • External Teeth: 6
  • Outside Dia: 0.63"
20 Front Cover NPN-6-30-20
Front Cover NPN-6-30-20
&
21 Bolt NPN-6-30-21
Bolt NPN-6-30-21
&
