Torque Converter | Jatco, Nissan & Other Japanese | Datsun/Mazda 8-7/8" (225mm) Dia., 9-3/8 (238mm Hollow/Solid Pilot)

Ill.# Image Description Specification Part #
Accordion Spring 1942187
Accordion Spring 1942187
&
Roller 9-3/8" (238)Dia Hollow/Solid Pilot
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& 9-3/8" (238)Dia Hollow/Solid Pilot
  • Dia: 0.313"
  • Length: .90"
Accordion Spring
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
&
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
Accordion Spring 9-3/8" (238)Dia Solid Pilot
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& 9-3/8" (238)Dia Solid Pilot
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"

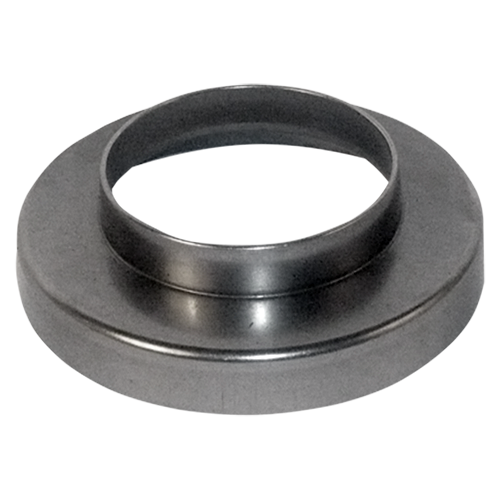

Bearing Race Outer 9-3/8" (238)Dia Hollow/Solid Pilot JW-2-4
Bearing Race JW-2-4
Outer & 9-3/8" (238)Dia Hollow/Solid Pilot

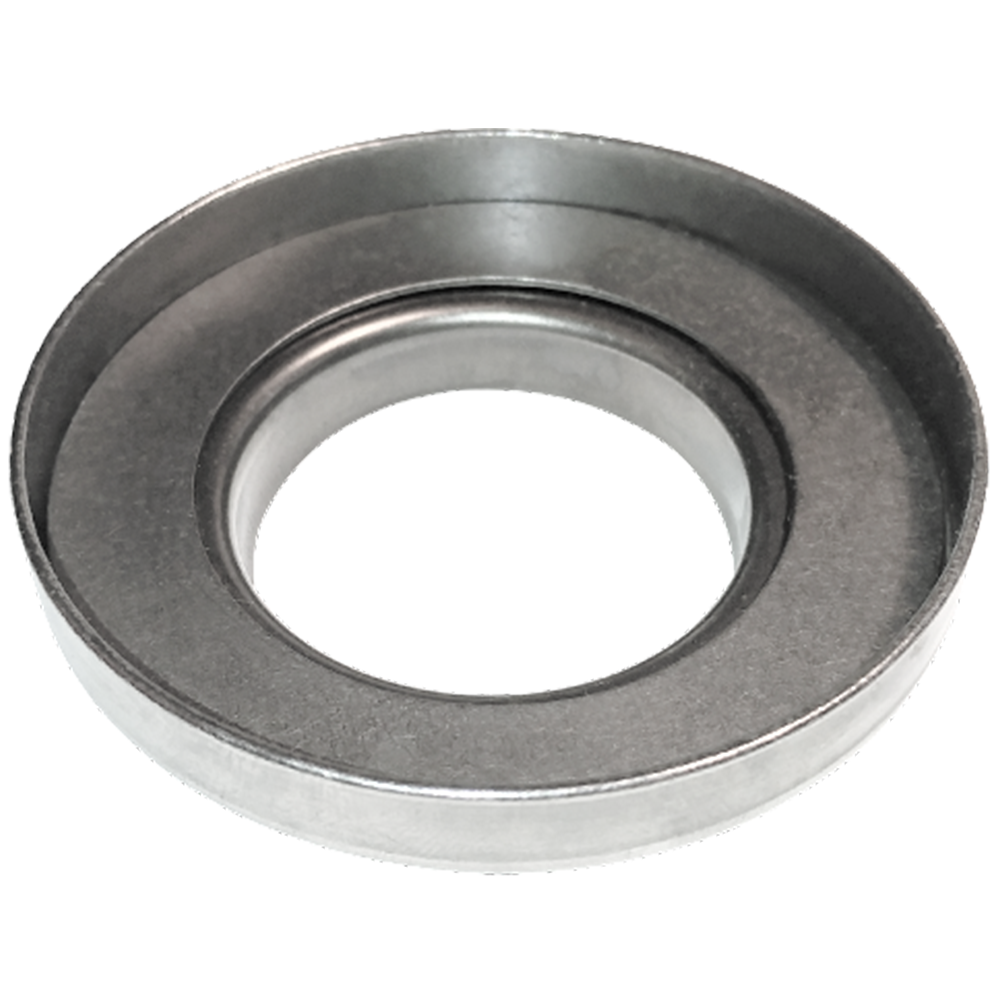

Bearing & Race Kit 9-3/8" (238)Dia Hollow/Solid Pilot JW-2-4K
Bearing & Race Kit JW-2-4K
& 9-3/8" (238)Dia Hollow/Solid Pilot
Bearing Race 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5
Bearing Race JW-2-5
& 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race 9-3/8" (238)Dia Solid/Hollow Pilot 2 Pieces Required.
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
& 9-3/8" (238)Dia Solid/Hollow Pilot 2 Pieces Required.
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race 2 Pieces Required.
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
& 2 Pieces Required.
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
Bearing Race 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"

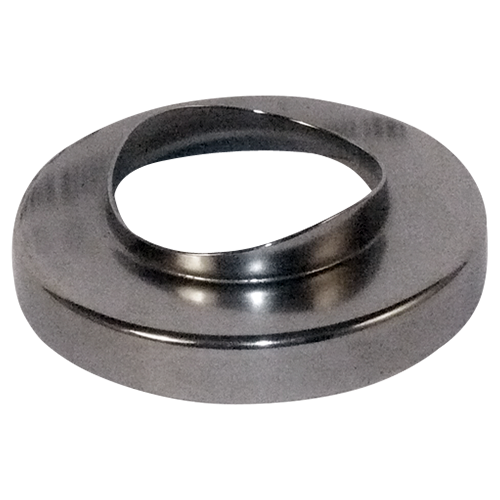

 JW-2-6
Bearing Race JW-2-6
& 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
Bearing 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
& 9-3/8" (238)Dia Hollow/Solid Pilot
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
Stator Cap 8-7/8" (255mm)Dia
  • Thickness: .340"
  • Material: Phenolic
  • Outside Dia: 2.825"
  • Inside Dia: 1.410"
 JW-4-1
Stator Cap JW-4-1
& 8-7/8" (255mm)Dia
  • Thickness: .340"
  • Material: Phenolic
  • Outside Dia: 2.825"
  • Inside Dia: 1.410"
Stator Cap
  • Thickness: .35"
  • Material: Phenolic or Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.42"
 JW-4-3
Stator Cap JW-4-3
&
  • Thickness: .35"
  • Material: Phenolic or Aluminum
  • Outside Dia: 2.83"
  • Inside Dia: 1.42"
Turbine Washer 8-7/8" (255mm)Dia
  • Thickness: .10"
  • Material: Plastic
  • Outside Dia: 1.46"
  • Inside Dia: .87"

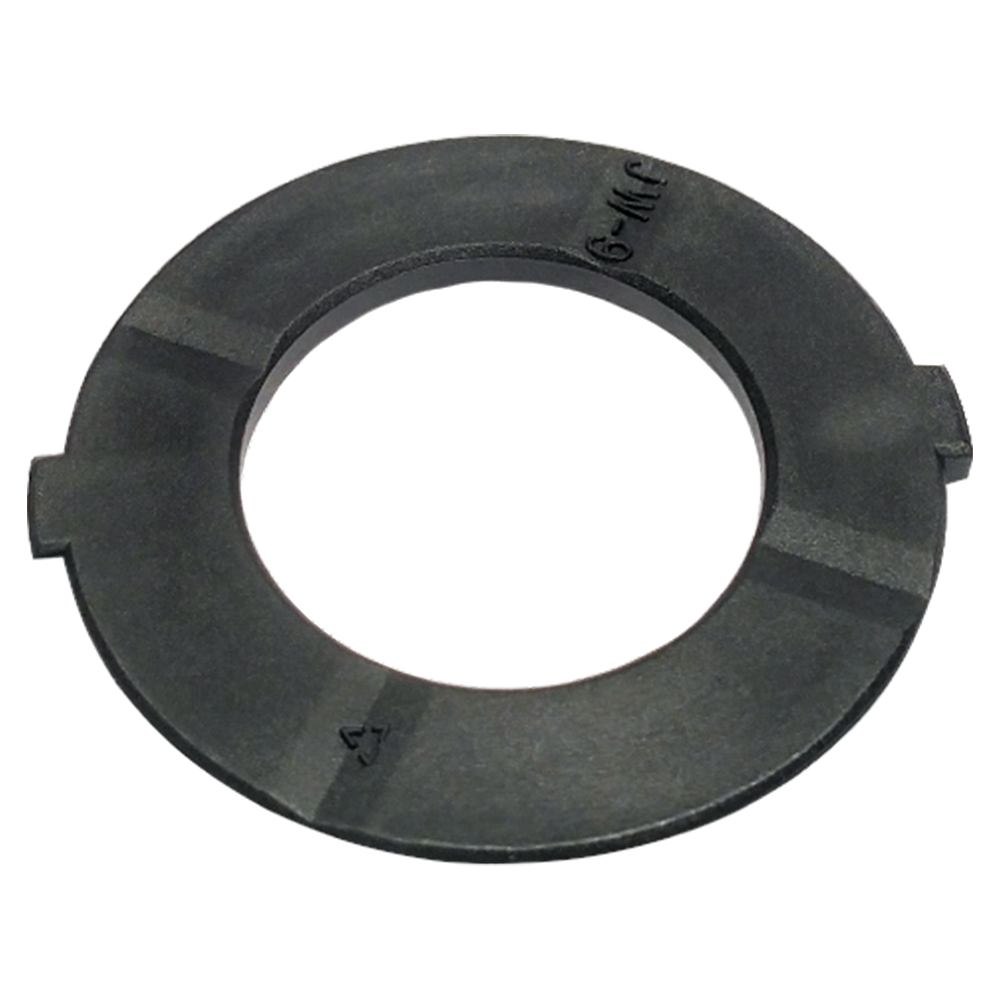

 JW-9
Turbine Washer JW-9
& 8-7/8" (255mm)Dia
  • Thickness: .10"
  • Material: Plastic
  • Outside Dia: 1.46"
  • Inside Dia: .87"
Turbine Hub 9-3/8" (238)Dia Hollow Pilot JX-13
Turbine Hub JX-13
& 9-3/8" (238)Dia Hollow Pilot
Turbine Hub 8-7/8" (255mm)Dia
  • Outside Dia: 3.31"
 JX-13-1
Turbine Hub JX-13-1
& 8-7/8" (255mm)Dia
  • Outside Dia: 3.31"

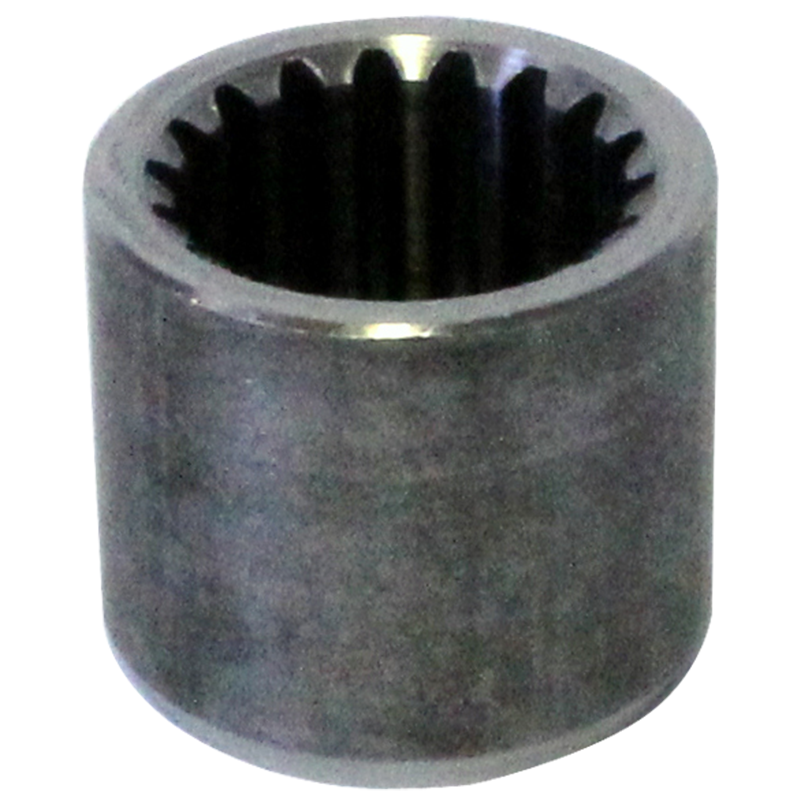

Spline Insert Pump Drive 9-3/8" (238)Dia Hollow Pilot
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive & 9-3/8" (238)Dia Hollow Pilot
  • Height: 0.880
  • External Teeth: 18
Turbine Hub
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.31"
 JX-13-1HT
Turbine Hub JX-13-1HT
&
  • Internal Teeth: 18
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.31"
Turbine Hub 9-3/8" (238)Dia Solid Pilot JX-13-2
Turbine Hub JX-13-2
& 9-3/8" (238)Dia Solid Pilot
Inner Race Stator 8-7/8" (255mm)Dia
  • Height: 0.710"
  • Internal Teeth: 30
  • Outside Dia: 1.610"
 JX-14-1
Inner Race JX-14-1
Stator & 8-7/8" (255mm)Dia
  • Height: 0.710"
  • Internal Teeth: 30
  • Outside Dia: 1.610"
Outer Race (Cam) Stator 8-7/8" (255mm)Dia, 9-3/8" (238)Dia Hollow Pilot JX-15-1
Outer Race (Cam) JX-15-1
Stator & 8-7/8" (255mm)Dia, 9-3/8" (238)Dia Hollow Pilot
Bushing Cover 9-3/8" (238)Dia Solid Pilot
  • Thickness: 0.367"
  • Housing Bore Dia: 1.291"
  • Shaft Dia: 1.169"
  • Material: Bronze
 TB-18-7
Bushing TB-18-7
Cover & 9-3/8" (238)Dia Solid Pilot
  • Thickness: 0.367"
  • Housing Bore Dia: 1.291"
  • Shaft Dia: 1.169"
  • Material: Bronze
Roller 8-7/8" (255mm)Dia 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
Roller TR-7
& 8-7/8" (255mm)Dia 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
Roller TR-7-2
& 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
Accordion Spring 8-7/8" (255mm)Dia
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 8-7/8" (255mm)Dia
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
Rivet 9-3/8" (238)Dia Hollow Pilot
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
& 9-3/8" (238)Dia Hollow Pilot
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
1 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 JH-1-2G
Impeller Hub JH-1-2G
&
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
1 Impeller Hub 9-3/8" (238)Dia Hollow/Solid Pilot
  • Journal Dia: 1.651"
  • Installed Height: 1.560"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

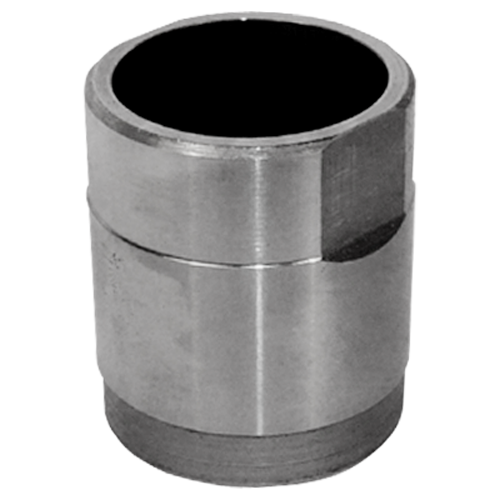

 JH-1G
Impeller Hub JH-1G
& 9-3/8" (238)Dia Hollow/Solid Pilot
  • Journal Dia: 1.651"
  • Installed Height: 1.560"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
1 Impeller Hub Unfinished 9-3/8" (238)Dia Hollow/Solid Pilot
  • Journal Dia: 1.651"
  • Installed Height: 1.560"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

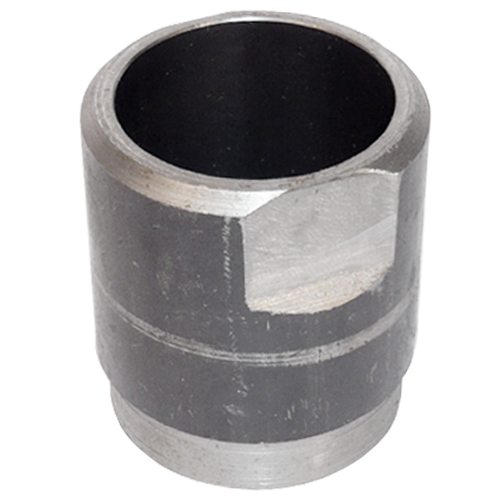

 JH-1
Impeller Hub JH-1
Unfinished & 9-3/8" (238)Dia Hollow/Solid Pilot
  • Journal Dia: 1.651"
  • Installed Height: 1.560"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
1 Impeller Hub Unfinished 8-7/8" (255mm)Dia
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

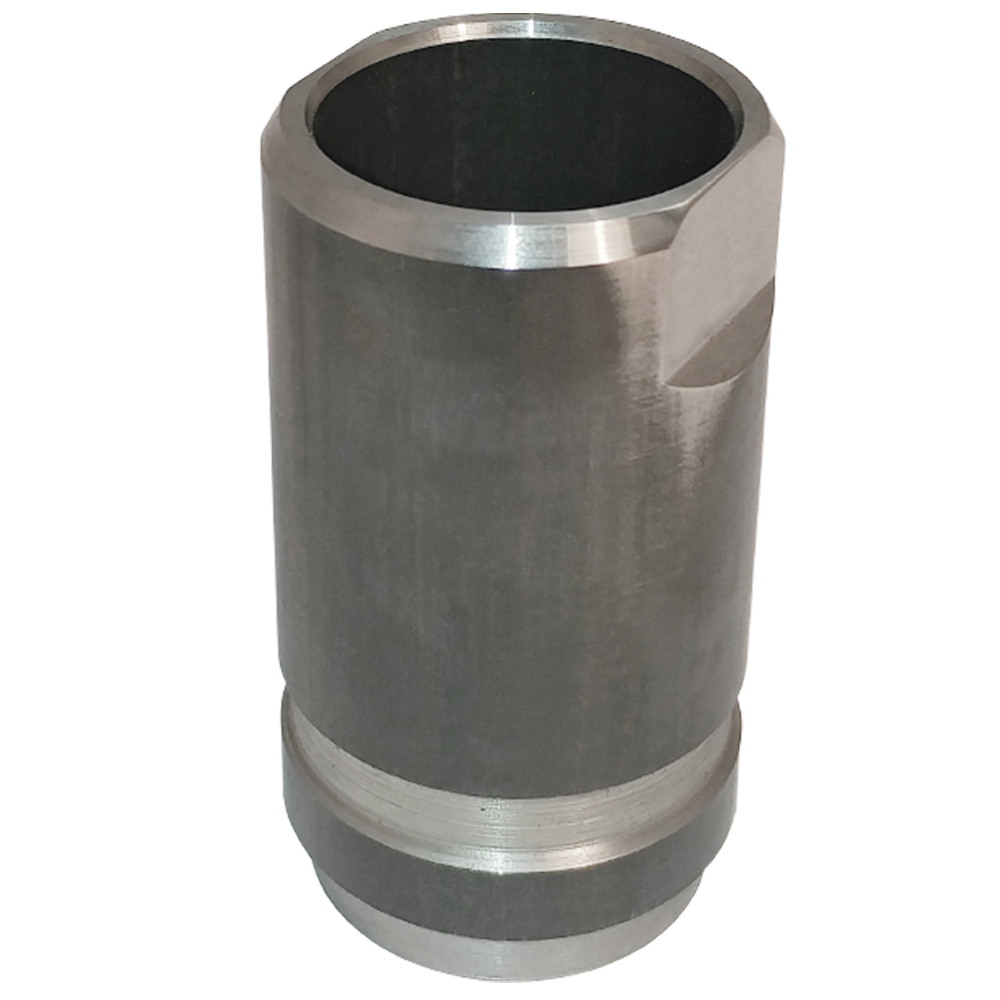

 JH-1-1
Impeller Hub JH-1-1
Unfinished & 8-7/8" (255mm)Dia
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
1 Impeller Hub 8-7/8" (255mm)Dia
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

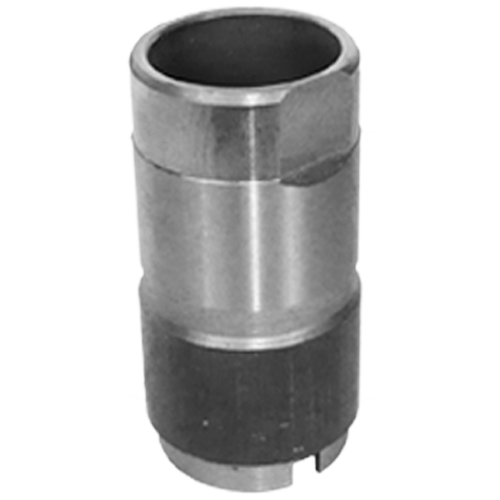

 JH-1-1G
Impeller Hub JH-1-1G
& 8-7/8" (255mm)Dia
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
1 Impeller Hub
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 JH-1-1GHT
Impeller Hub JH-1-1GHT
&
  • Journal Dia: 1.651"
  • Installed Height: 2.790"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
2 Washer 8-7/8" (255mm)Dia
  • Thickness: .09"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.46"
  • Inside Dia: 1.54"
 JW-2-1
Washer JW-2-1
& 8-7/8" (255mm)Dia
  • Thickness: .09"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 2.46"
  • Inside Dia: 1.54"
18 Bushing 9-3/8" (238)Dia Hollow Pilot
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
  • Material: Babbit
 JB-18
Bushing JB-18
& 9-3/8" (238)Dia Hollow Pilot
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
  • Material: Babbit
18 Bushing Flanged,O.S. 9-3/8" (238)Dia Hollow Pilot
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
 JB-18X
Bushing JB-18X
Flanged,O.S. & 9-3/8" (238)Dia Hollow Pilot
  • Thickness: 0.39"
  • Housing Bore Dia: 1.302"
  • Shaft Dia: 1.18"
