Torque Converter | Hyundai / Kia | Hyundai / Kia A4CF1, A4CF2

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)

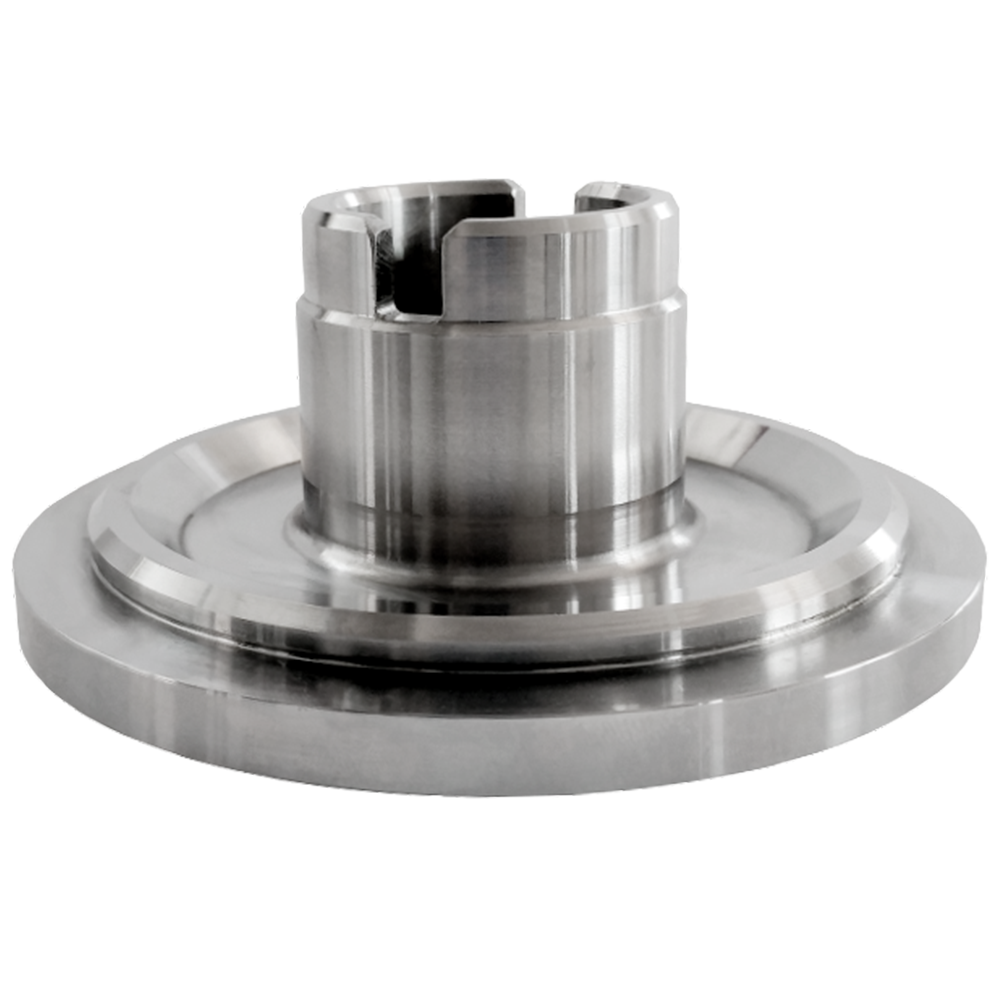

2 Impeller Hub Flanged
  • Journal Dia: 1.692"
  • Installed Height: 1.429"
  • Height: 1.720"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.169"
  • Material: Hardened Steel
  • Inside Dia: 4.169"
 KH-1-4FLG
Impeller Hub KH-1-4FLG
Flanged &
  • Journal Dia: 1.692"
  • Installed Height: 1.429"
  • Height: 1.720"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 4.169"
  • Material: Hardened Steel
  • Inside Dia: 4.169"
3 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.3
  • Inside Dia metric: 58.42
 SO-23-36
O-Ring SO-23-36
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 2.3
  • Inside Dia metric: 58.42
3 O-Ring Oversized
  • Thickness: 0.111
  • Thickness metric: 2.8194
  • Material: Fluorocarbon
  • Inside Dia: 2.3
  • Inside Dia metric: 58.42
 SO-23-46
O-Ring SO-23-46
& Oversized
  • Thickness: 0.111
  • Thickness metric: 2.8194
  • Material: Fluorocarbon
  • Inside Dia: 2.3
  • Inside Dia metric: 58.42
4 Metal Clad Seal
  • Housing Bore Dia: 0.985
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.8
  • Shaft Dia: 0.663
  • Material: Fluorocarbon
 KO-25-1
Metal Clad Seal KO-25-1
&
  • Housing Bore Dia: 0.985
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.8
  • Shaft Dia: 0.663
  • Material: Fluorocarbon
5 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
 YX-23-12
Lining (Friction Ring,Wafer) YX-23-12
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
