Torque Converter | Hyundai / Kia | A5HF1

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub Flanged 2007 - 2009
  • Journal Dia: 1.693"
  • Installed Height: 2.182"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.319"

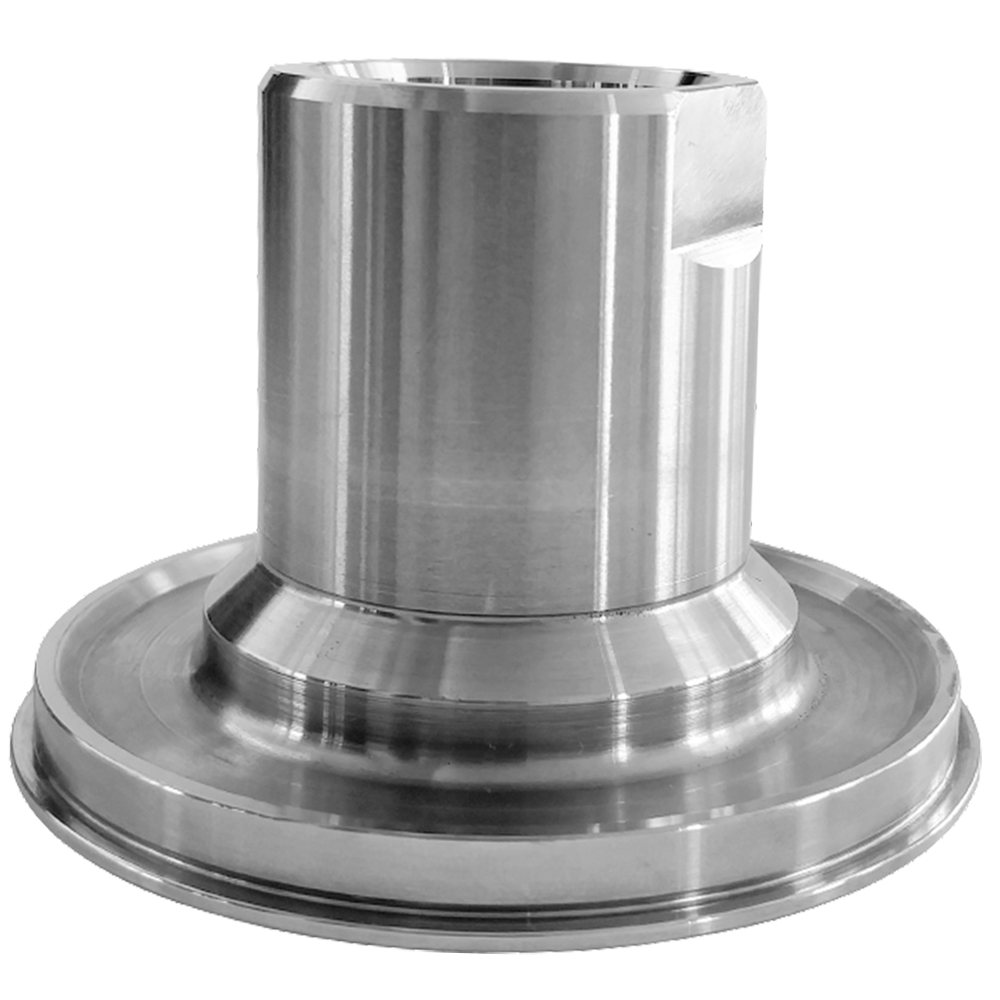

 KH-1-3FLG
Impeller Hub KH-1-3FLG
Flanged & 2007 - 2009
  • Journal Dia: 1.693"
  • Installed Height: 2.182"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.319"
2 Impeller Hub Flanged 2007-'09
  • Journal Dia: 1.693"
  • Installed Height: 2.040"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.310"
  • Inside Dia: 3.310"
 KH-1-1FLG
Impeller Hub KH-1-1FLG
Flanged & 2007-'09
  • Journal Dia: 1.693"
  • Installed Height: 2.040"
  • Height: 2.260"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.310"
  • Inside Dia: 3.310"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Impeller-side
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.449
  • Inside Dia: 3.543
  • Outside Dia Metric: 113
  • Inside Dia metric: 89.99
 AW-2-1
Bearing AW-2-1
& Impeller-side
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.449
  • Inside Dia: 3.543
  • Outside Dia Metric: 113
  • Inside Dia metric: 89.99
6 Sprag TF80SC, AF40-6
  • Thickness: 0.336"
  • Material: Steel
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.747
  • Inner Race Outside Dia: 2.087
 YC-6-3
Sprag YC-6-3
& TF80SC, AF40-6
  • Thickness: 0.336"
  • Material: Steel
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.747
  • Inner Race Outside Dia: 2.087
9 Bearing Turbine-side
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.213
  • Inside Dia: 3.347
  • Outside Dia Metric: 107.01
  • Inside Dia metric: 85.01
 AW-2-2
Bearing AW-2-2
& Turbine-side
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 4.213
  • Inside Dia: 3.347
  • Outside Dia Metric: 107.01
  • Inside Dia metric: 85.01
13 Metal Clad Seal
  • Housing Bore Dia: 0.985
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.8
  • Shaft Dia: 0.663
  • Material: Fluorocarbon

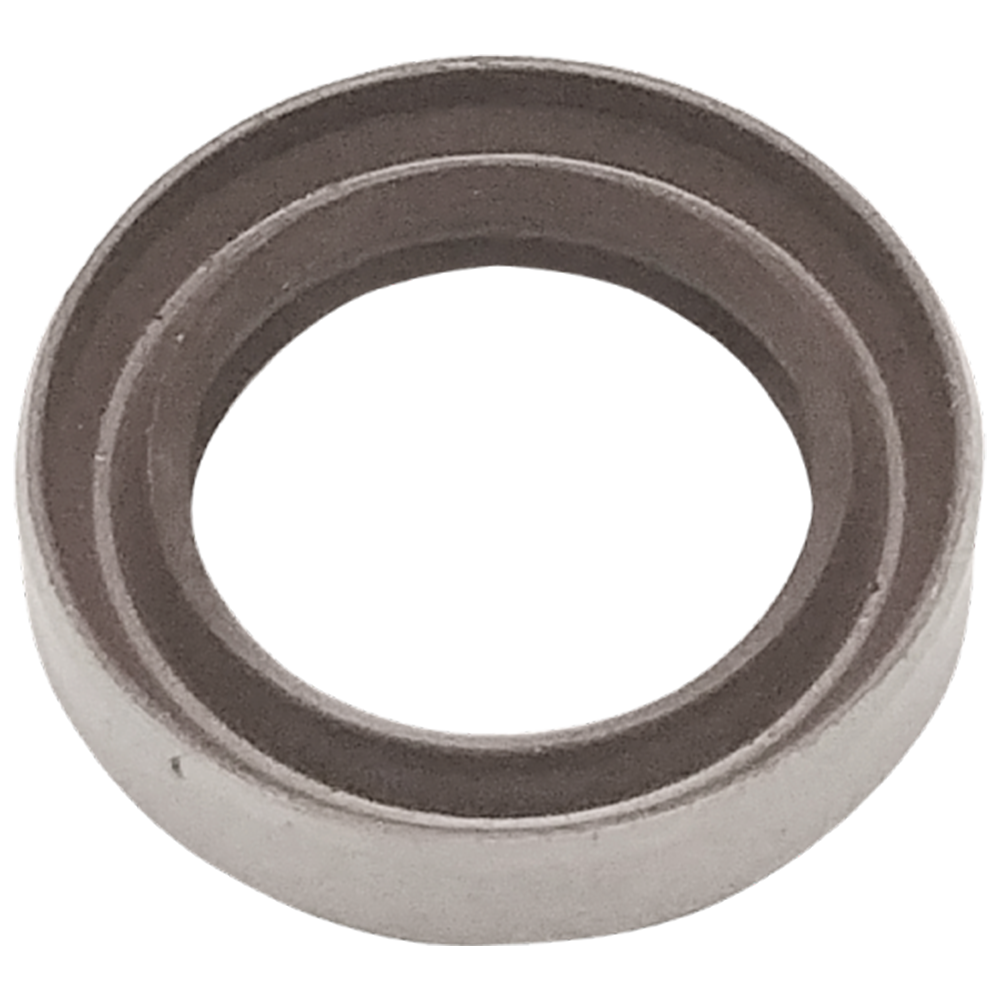

 KO-25-1
Metal Clad Seal KO-25-1
&
  • Housing Bore Dia: 0.985
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 16.8
  • Shaft Dia: 0.663
  • Material: Fluorocarbon
22 Turbine Washer 8 Outer Notches Fits OE units, with plastic washer.
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-19
Turbine Washer SW-9-19
8 Outer Notches & Fits OE units, with plastic washer.
  • Thickness: 0.136"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
22 Turbine Washer 8 Outer Notches Fits OE units, with plastic washer.
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-20
Turbine Washer SW-9-20
8 Outer Notches & Fits OE units, with plastic washer.
  • Thickness: 0.136"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
22 Turbine Washer 8 Outer Notches Only used with OE units with plastic washer
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-21
Turbine Washer SW-9-21
8 Outer Notches & Only used with OE units with plastic washer
  • Thickness: 0.154"
  • Material: Plastic
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
22 Turbine Washer 8 Outer Notches
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
 SW-9-22
Turbine Washer SW-9-22
8 Outer Notches &
  • Thickness: 0.154"
  • Material: Vespel®
  • Outside Dia: 1.484"
  • Inside Dia: 1.010"
