Ill.# Image Description Specification Part #
Washer
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"
 5266
Washer 5266
&
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"
Driver FX-22-6
Driver FX-22-6
&

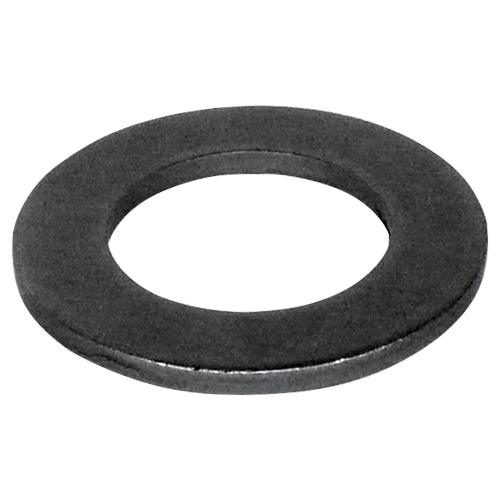

Shim
  • Thickness: 0.175"
  • Outside Dia: 2.855"
  • Inside Dia: 1.7"
 MW-2-135
Shim MW-2-135
&
  • Thickness: 0.175"
  • Outside Dia: 2.855"
  • Inside Dia: 1.7"
Washer Steel
  • Thickness: 0.50"
  • Material: Steel
  • Outside Dia: 2.50"
  • Inside Dia: 1.50"
  • OD Chamfer: 1/32" x 45

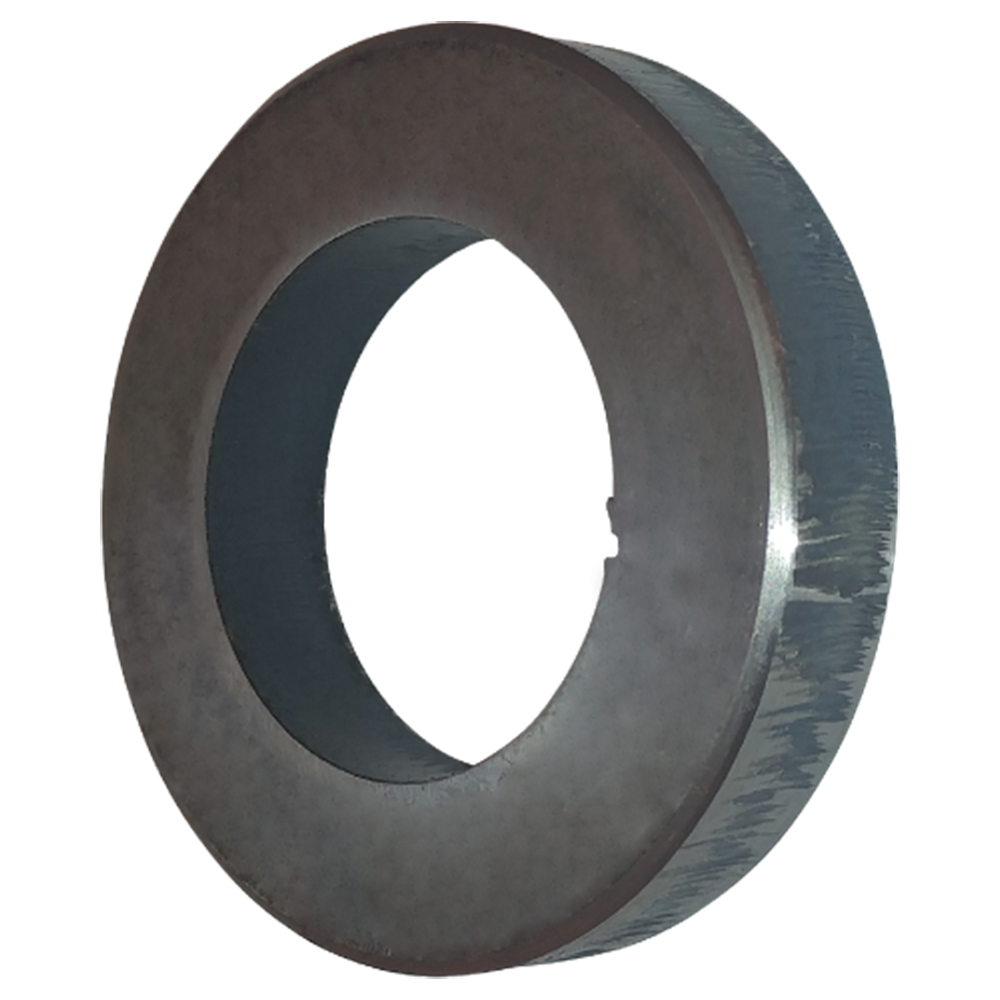

 MW-25155
Washer MW-25155
Steel &
  • Thickness: 0.50"
  • Material: Steel
  • Outside Dia: 2.50"
  • Inside Dia: 1.50"
  • OD Chamfer: 1/32" x 45
Shim
  • Thickness: 0.034"
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"

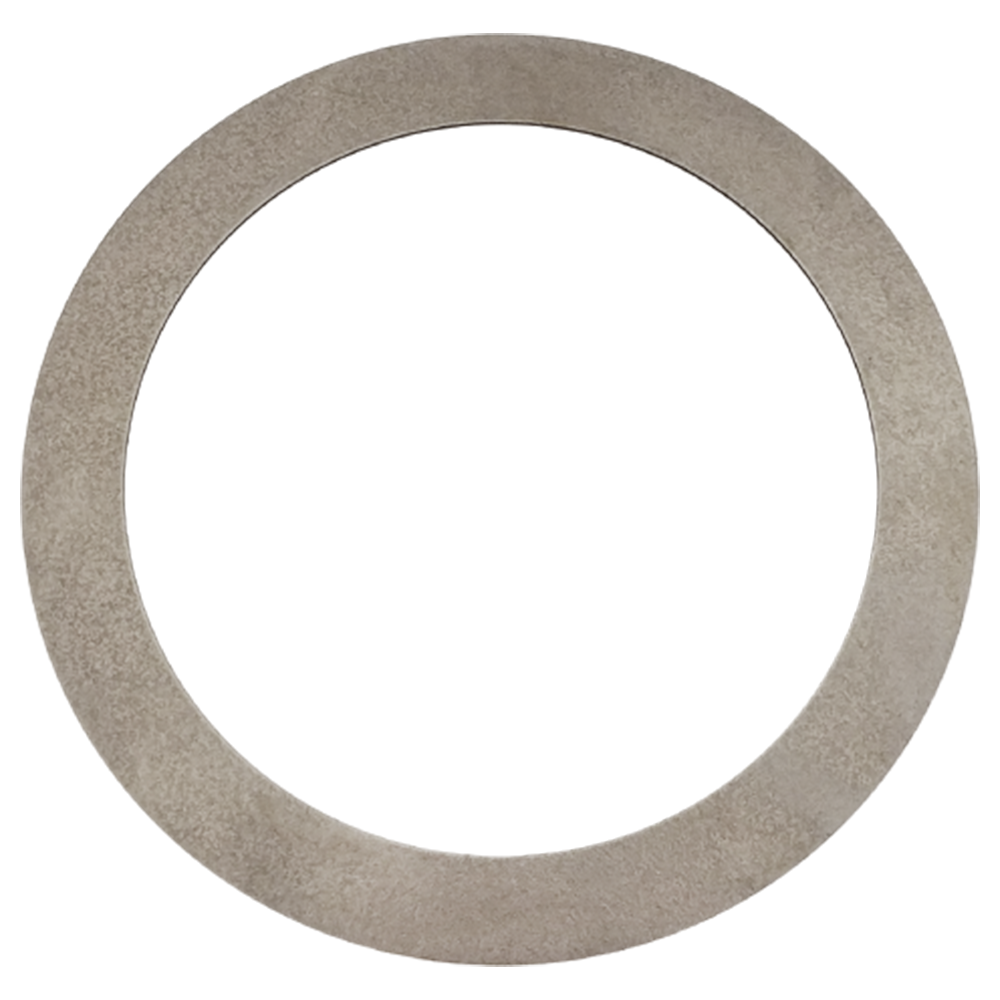

 MW-2-5266
Shim MW-2-5266
&
  • Thickness: 0.034"
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"

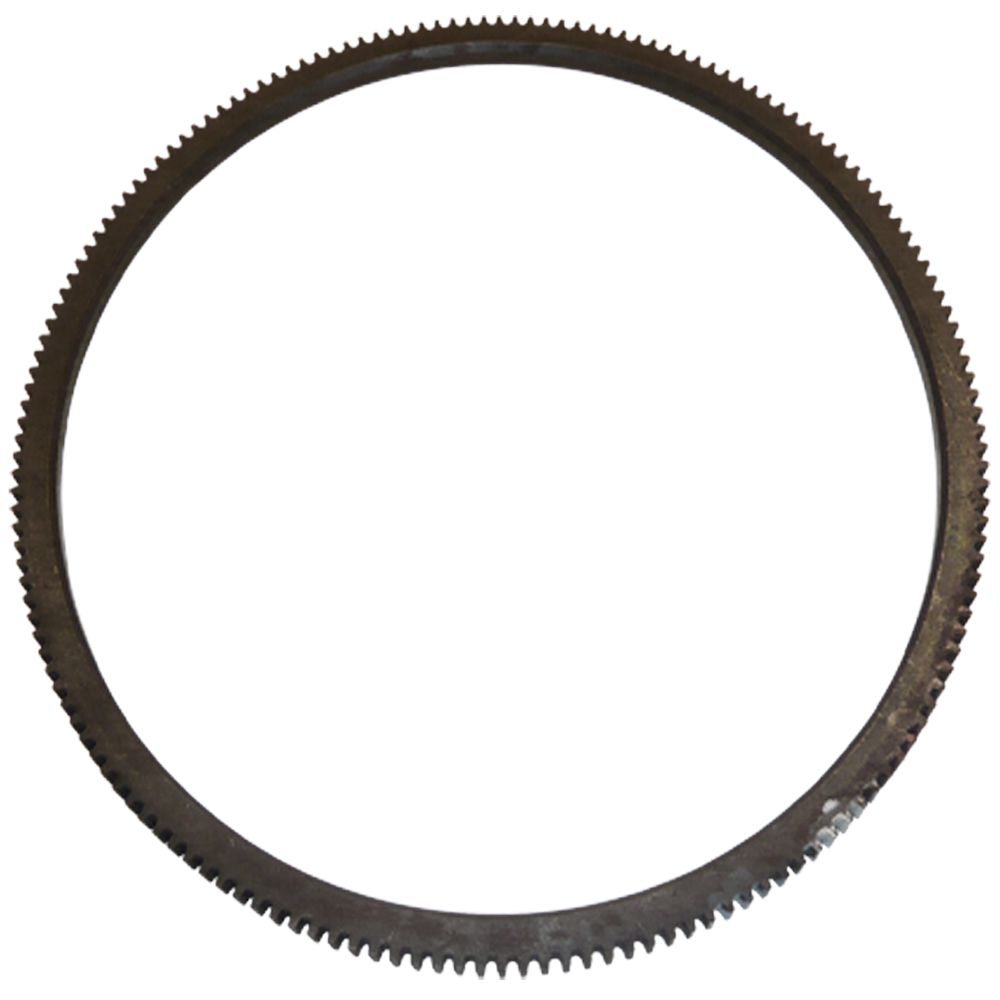

Ring Gear Cadillac
  • Thickness: 0.375"
  • External Teeth: 166
  • Outside Dia: 13.92"
  • Inside Dia: 12.62"
 RG-166D
Ring Gear RG-166D
& Cadillac
  • Thickness: 0.375"
  • External Teeth: 166
  • Outside Dia: 13.92"
  • Inside Dia: 12.62"
Ring Gear Chevrolet
  • Thickness: 0.445"
  • External Teeth: 168
  • Outside Dia: 14.11"
  • Inside Dia: 13.25"

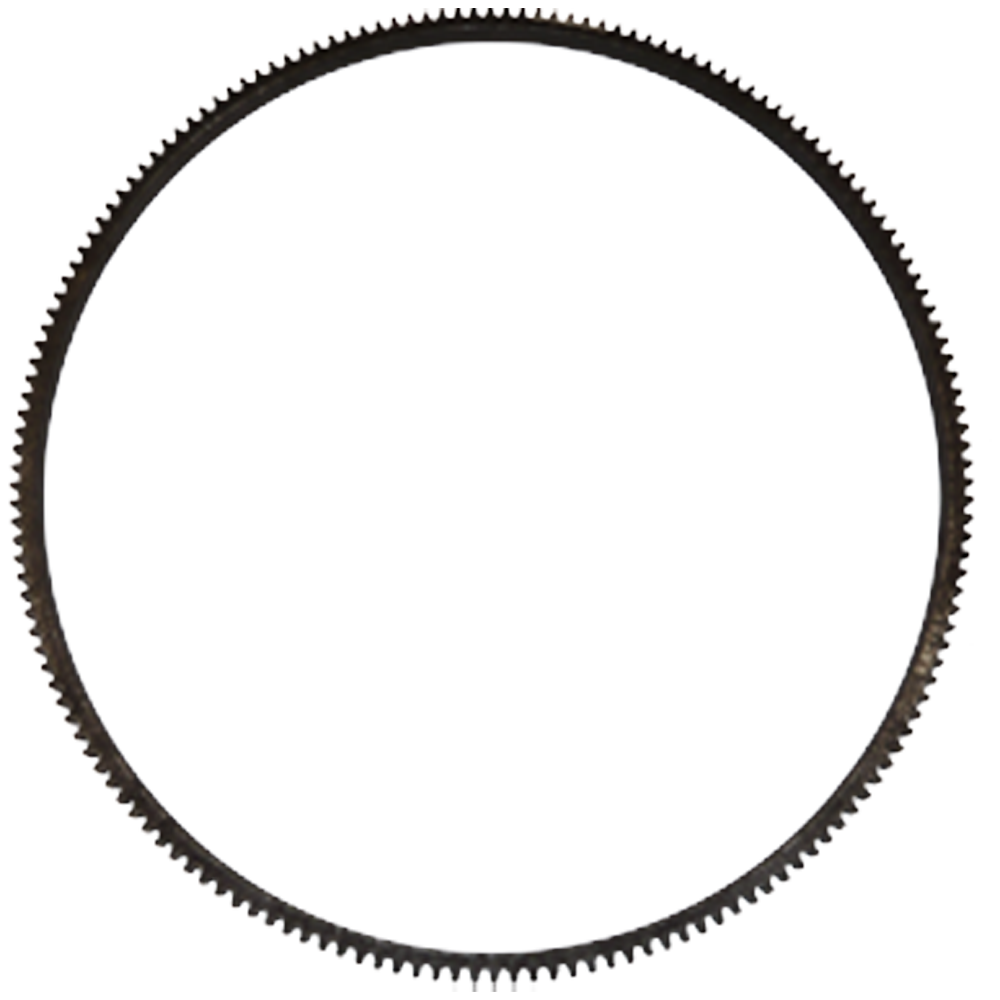

 RG-168
Ring Gear RG-168
& Chevrolet
  • Thickness: 0.445"
  • External Teeth: 168
  • Outside Dia: 14.11"
  • Inside Dia: 13.25"
Ring Gear
  • Thickness: 0.495"
  • External Teeth: 176
  • Outside Dia: 14.652"
  • Inside Dia: 13.703

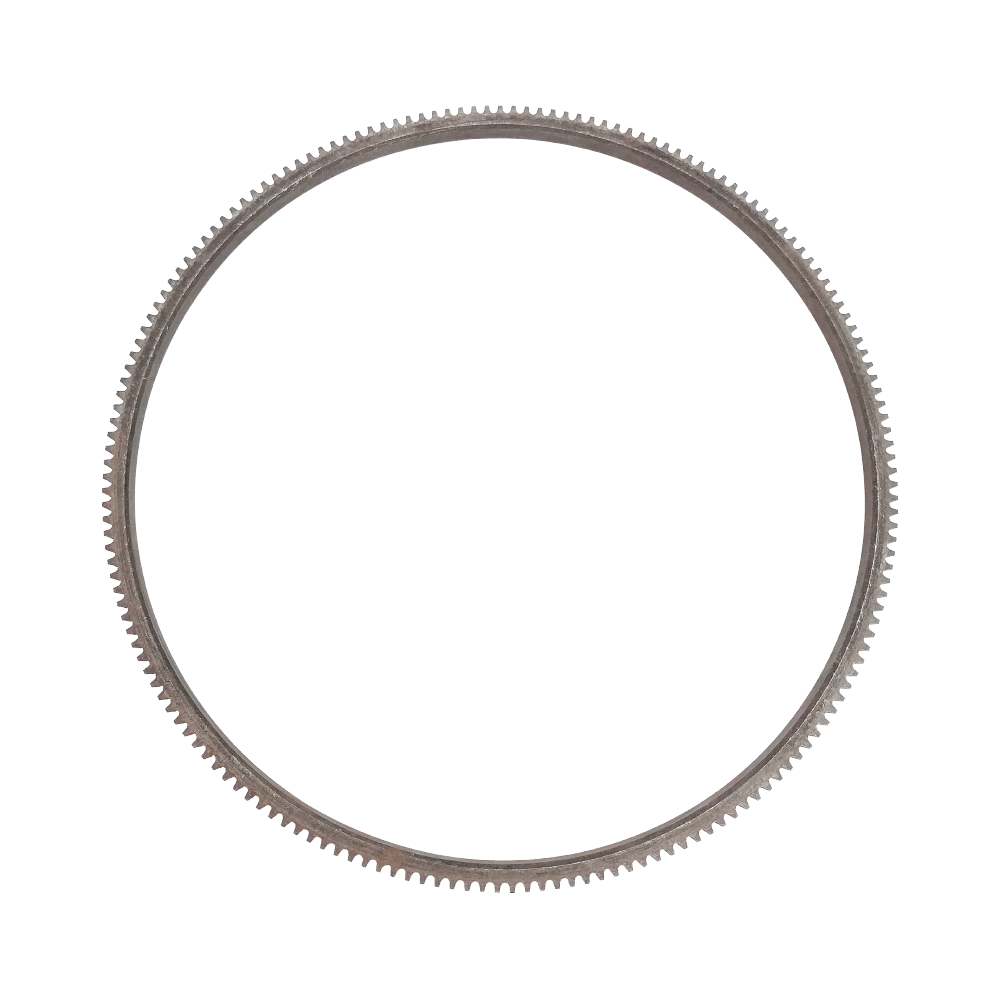

 RG-176F
Ring Gear RG-176F
&
  • Thickness: 0.495"
  • External Teeth: 176
  • Outside Dia: 14.652"
  • Inside Dia: 13.703

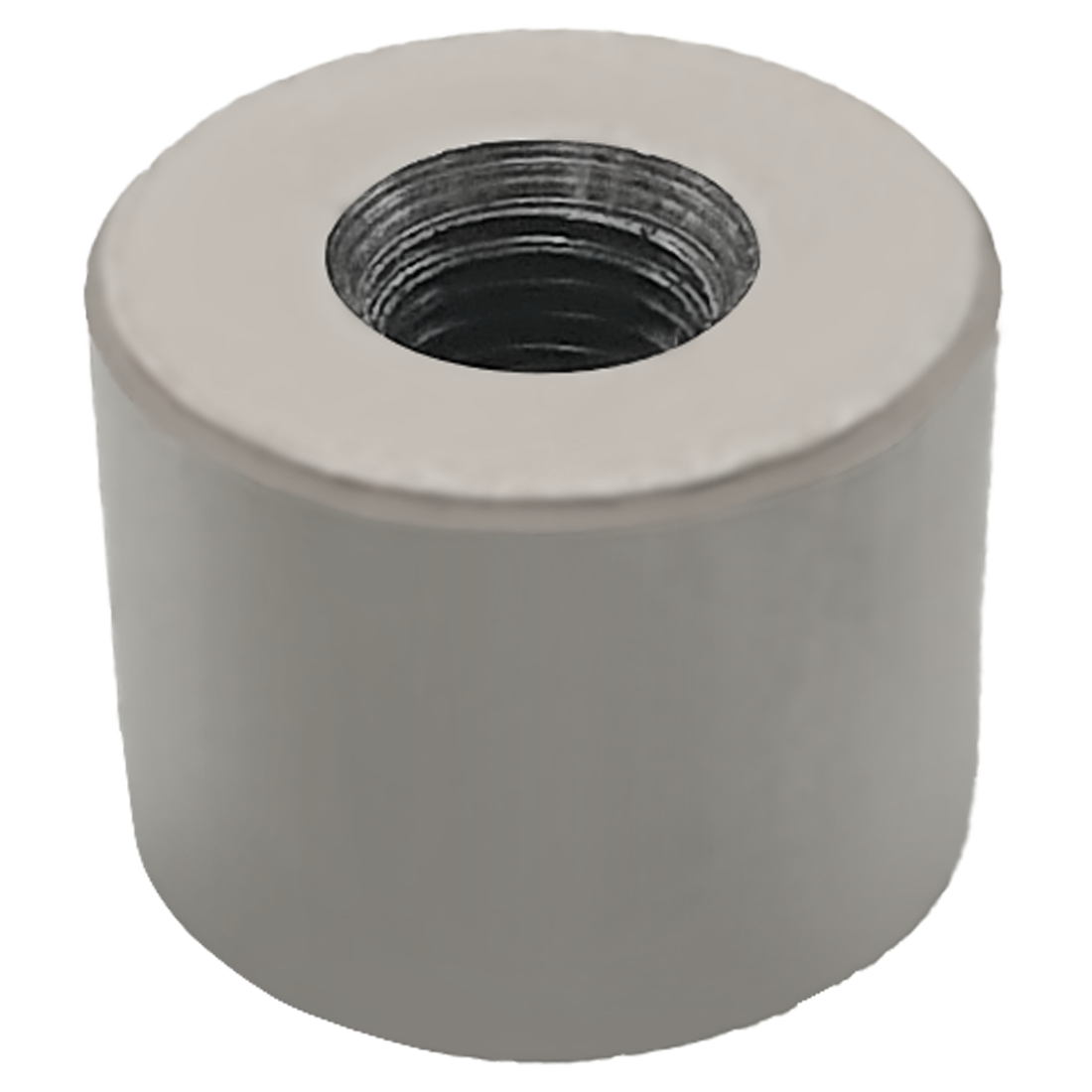

Mounting Pad 3/8"-24 SX-10-13
Mounting Pad SX-10-13
3/8"-24 &
Nut Mounting, M10 x 1.5mm, GM S10
  • Dimensions: M10 x 1.5mm
  • Length: 25.4mm
 SX-10-2
Nut SX-10-2
Mounting, M10 x 1.5mm, GM S10 &
  • Dimensions: M10 x 1.5mm
  • Length: 25.4mm
Turbine Hub
  • Flange Dia: 1.75"
  • Internal Teeth: 30
  • Outside Dia: 1.38"
  • For O.E.Turbines, Weld-In, .20" Thick Flange
 SX-13-30P
Turbine Hub SX-13-30P
&
  • Flange Dia: 1.75"
  • Internal Teeth: 30
  • Outside Dia: 1.38"
  • For O.E.Turbines, Weld-In, .20" Thick Flange
Insert
  • Height: 1.190
  • Internal Teeth: 30
  • Outside Dia: 1.19"

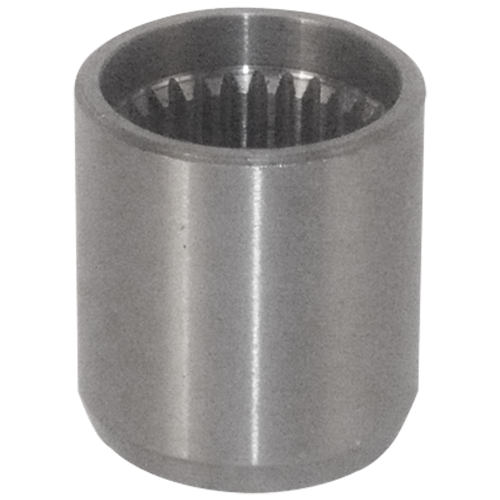

 SX-13-30X
Insert SX-13-30X
&
  • Height: 1.190
  • Internal Teeth: 30
  • Outside Dia: 1.19"
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8
  • Inside Dia: 6.375
 SX-23-42
Lining (Friction Ring,Wafer) SX-23-42
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8
  • Inside Dia: 6.375
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.313
  • Inside Dia: 9.25
 SX-23-52
Lining (Friction Ring,Wafer) SX-23-52
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.313
  • Inside Dia: 9.25
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.6"
  • Inside Dia: 7.6"
 SX-23-77
Lining (Friction Ring,Wafer) SX-23-77
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.6"
  • Inside Dia: 7.6"

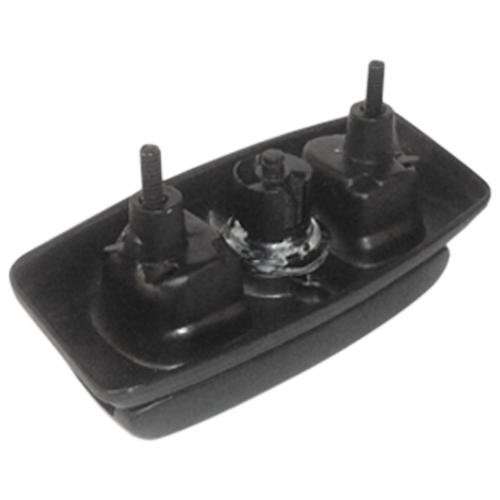

Handle 14072497 T14072497
Handle T14072497
14072497 &
Impeller Hub Long
  • Journal Dia: 1.748"
  • Height: 2.400"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

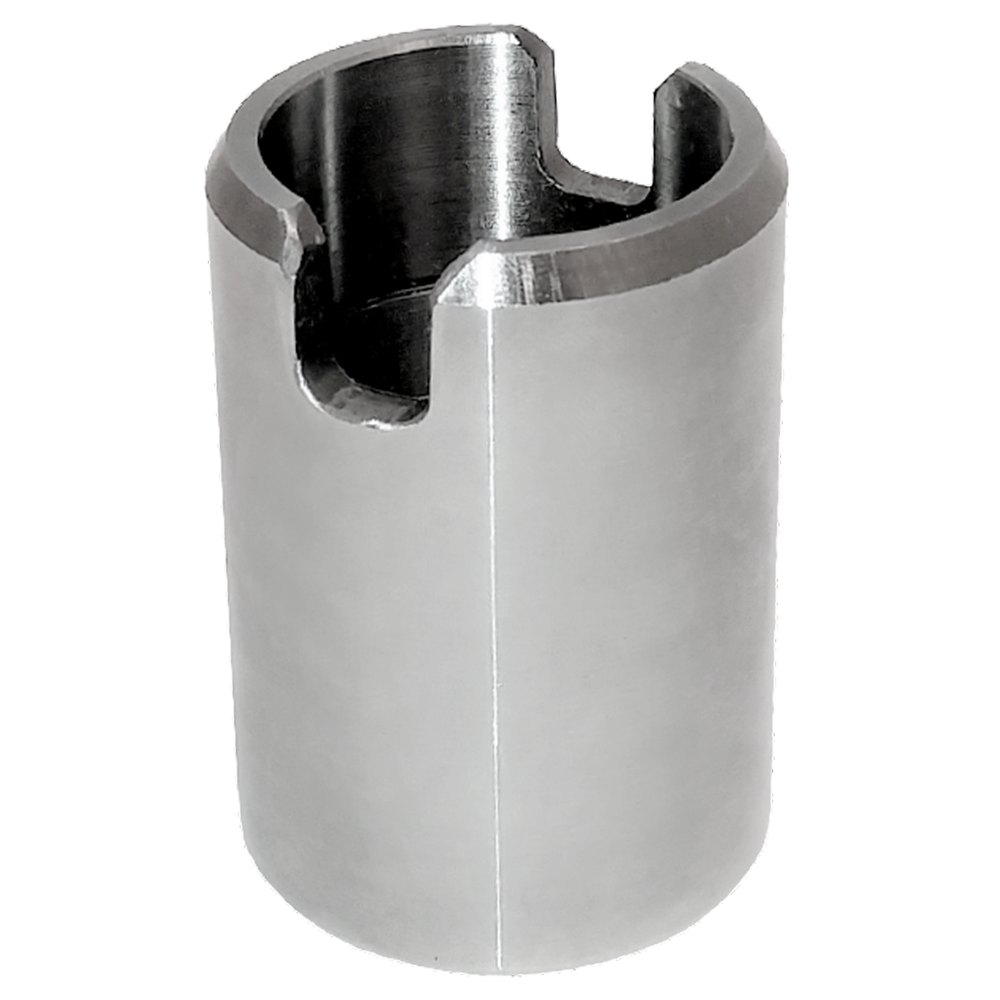

 SH-1-50GRC
Impeller Hub SH-1-50GRC
Long &
  • Journal Dia: 1.748"
  • Height: 2.400"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

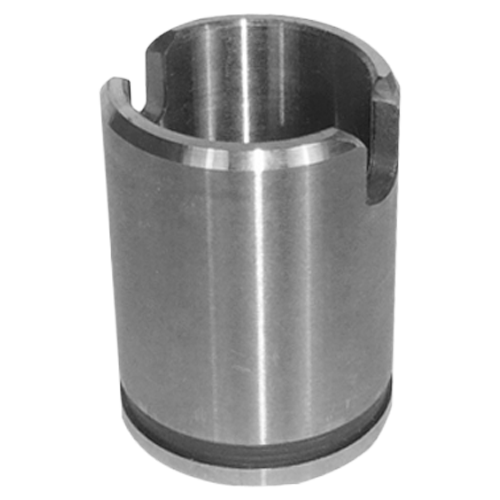

Impeller Hub
  • Journal Dia: 1.748"
  • Installed Height: 2.370"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.409"
 24213843
Impeller Hub 24213843
&
  • Journal Dia: 1.748"
  • Installed Height: 2.370"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.409"
Impeller Hub
  • Journal Dia: 1.758"
  • Installed Height: 2.480"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.396"

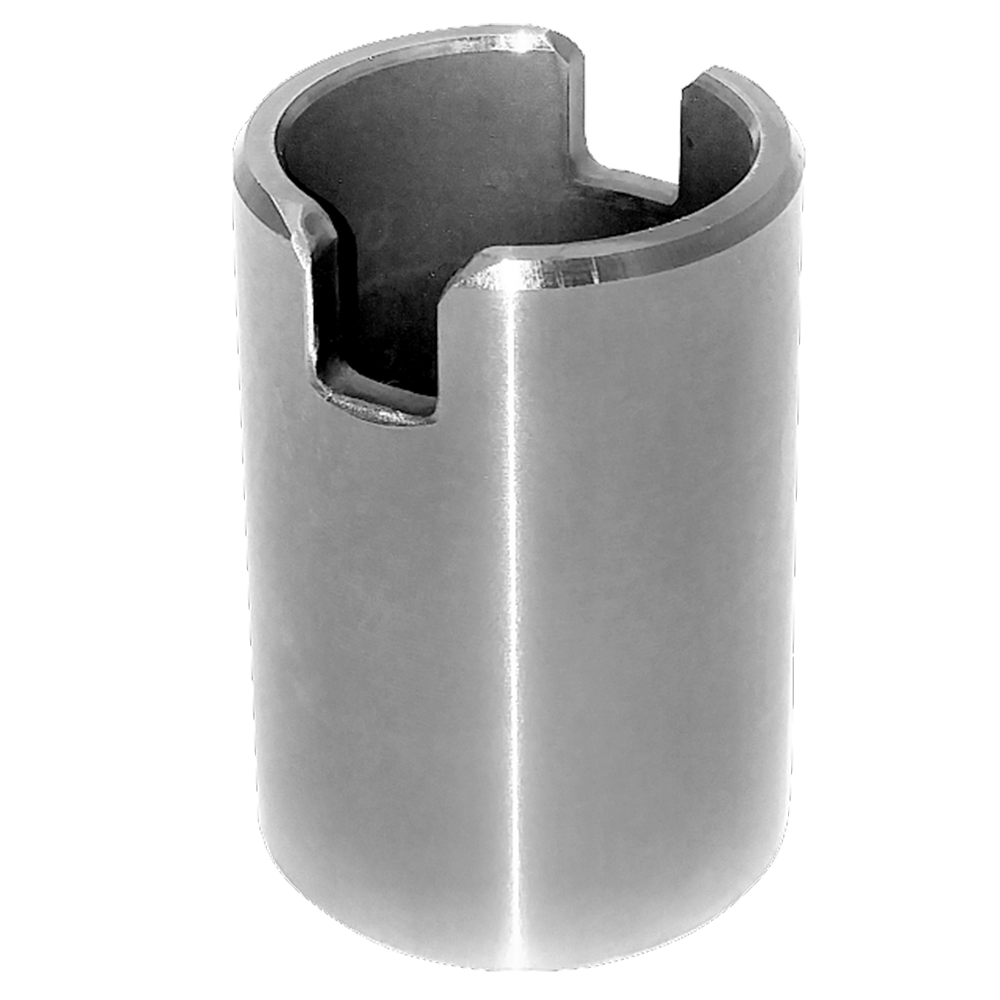

 24214258AA
Impeller Hub 24214258AA
&
  • Journal Dia: 1.758"
  • Installed Height: 2.480"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.396"
Impeller Hub Unfinished
  • Journal Dia: 1.874"
  • Height: 2.160"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.55"

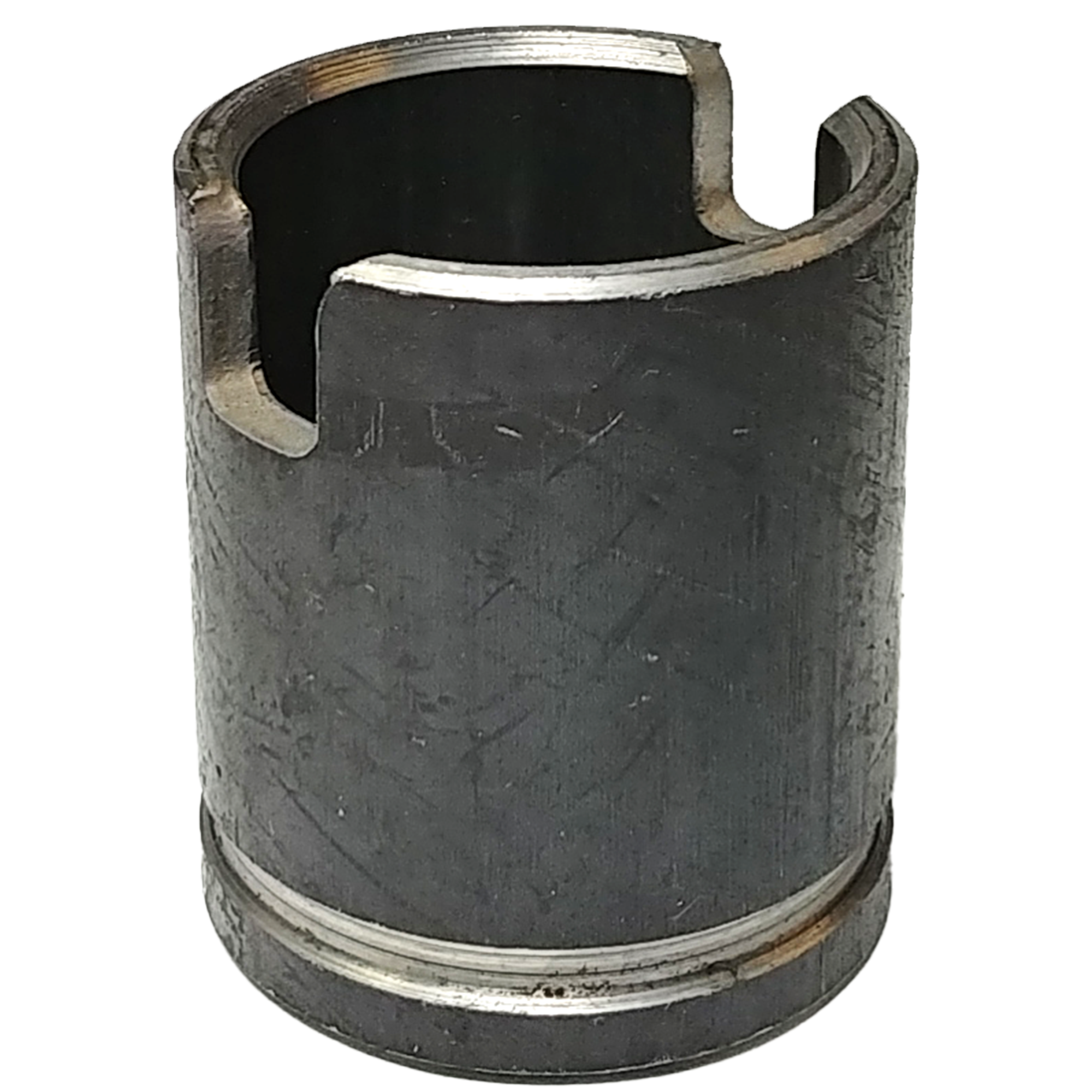

 SH-1-13
Impeller Hub SH-1-13
Unfinished &
  • Journal Dia: 1.874"
  • Height: 2.160"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.55"

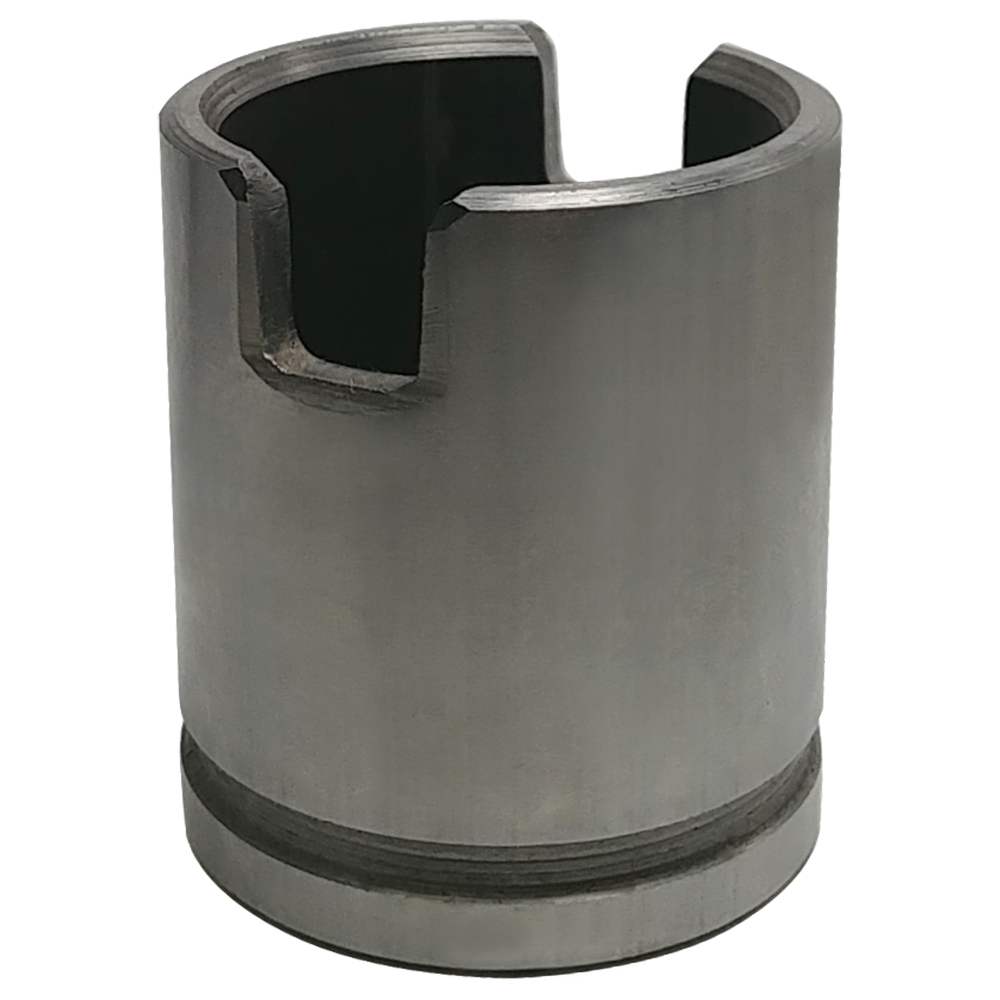

Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.160"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.55"
 SH-1-13G
Impeller Hub SH-1-13G
&
  • Journal Dia: 1.874"
  • Height: 2.160"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Inside Dia: 1.55"

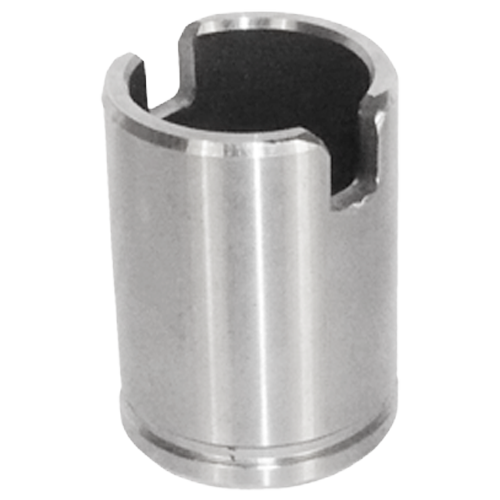

Impeller Hub
  • Journal Dia: 1.874"
  • Height: 2.35"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-42GRC
Impeller Hub SH-1-42GRC
&
  • Journal Dia: 1.874"
  • Height: 2.35"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
Impeller Hub Unfinished
  • Journal Dia: 1.874"
  • Height: 2.35"
  • Hub Mount: Butt
  • Pump Drive Type: Slots

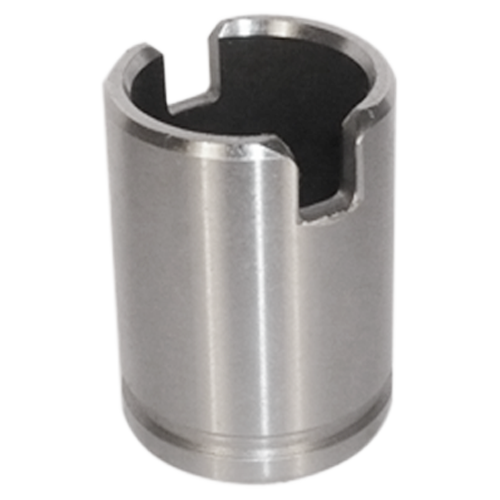

 SH-1-42G
Impeller Hub SH-1-42G
Unfinished &
  • Journal Dia: 1.874"
  • Height: 2.35"
  • Hub Mount: Butt
  • Pump Drive Type: Slots

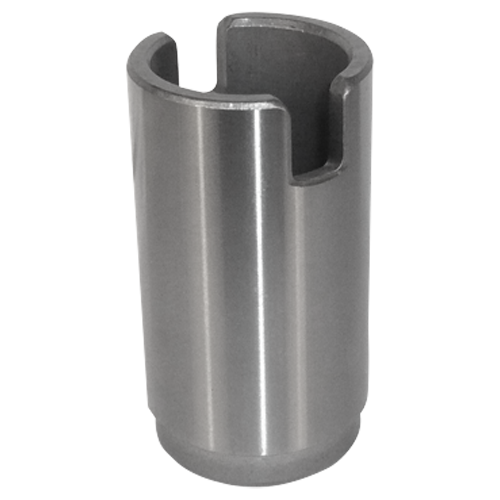

Impeller Hub Heat Treated, GM
  • Journal Dia: 1.874"
  • Installed Height: 2.800"
  • Hardness: Rc 32-36
 SH-1-30GRC
Impeller Hub SH-1-30GRC
Heat Treated, GM &
  • Journal Dia: 1.874"
  • Installed Height: 2.800"
  • Hardness: Rc 32-36
Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.575"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

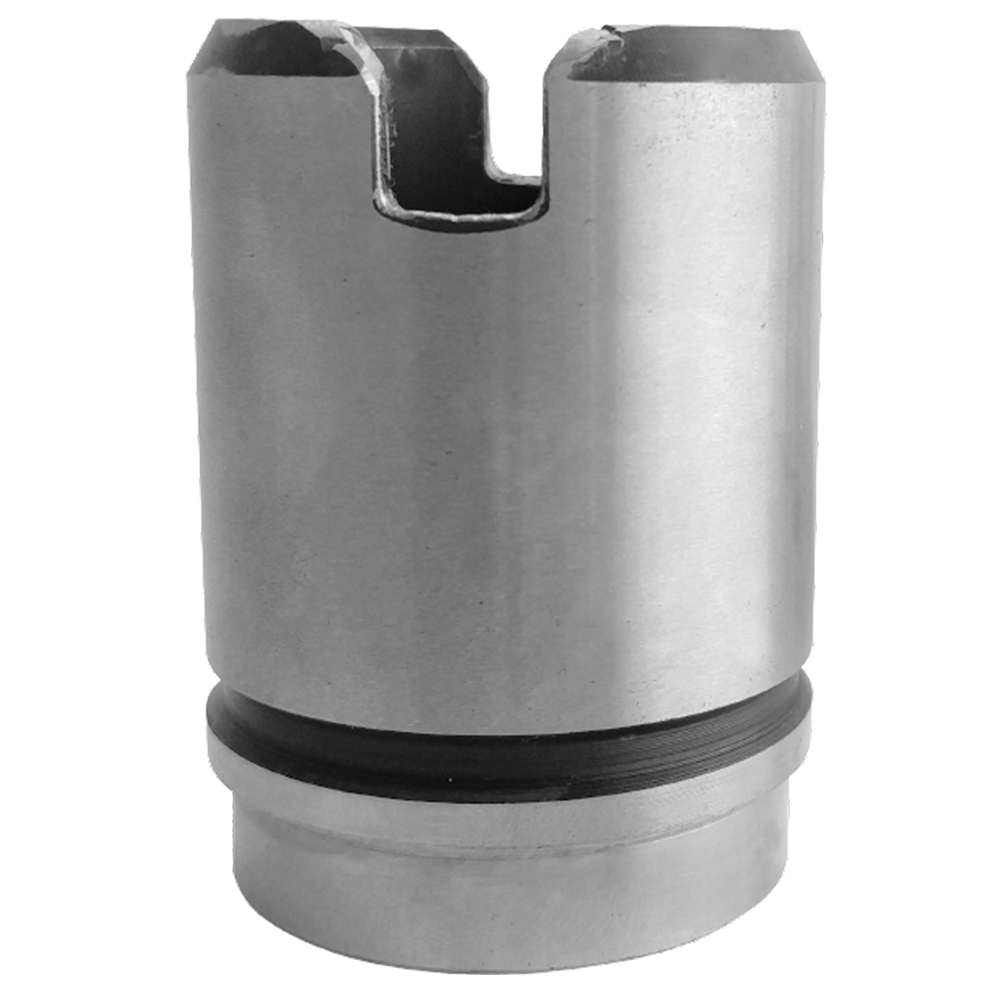

 SH-1-33GRC
Impeller Hub SH-1-33GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.575"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
