Torque Converter | GM | Miscellaneous GM HP (High Performance) | General Motors

Ill.# Image Description Specification Part #
Sprag GM Spline Diode Style, 8" TC 8GMMD-HP
Sprag 8GMMD-HP
GM Spline Diode Style, 8" TC &
Kit 8" GM Conv CK-2HP
Kit CK-2HP
8" GM Conv &
Race Kit 8" CK-3HP
Race Kit CK-3HP
8" &
Kit CK-5HP
Kit CK-5HP
&
Kit 10"245mm Componentkit CK-6HP
Kit CK-6HP
10"245mm Componentkit &
Kit CK-6HP17
Kit CK-6HP17
&
Racing Kit CK-6HP30
Racing Kit CK-6HP30
&
Spragless Insert 8", For 073 (GM Spline) CS-5-29HP
Spragless Insert CS-5-29HP
8", For 073 (GM Spline) &
Pilot Kit
  • Outside Dia: 1.703"
 CSK-1HP
Pilot Kit CSK-1HP
&
  • Outside Dia: 1.703"
Pilot Kit
  • Outside Dia: 1.703"
 CSK-3HP
Pilot Kit CSK-3HP
&
  • Outside Dia: 1.703"
Pilot Kit
  • Outside Dia: 1.703"
 CSK-4HP
Pilot Kit CSK-4HP
&
  • Outside Dia: 1.703"
Pilot Kit
  • Outside Dia: 1.703
 CSK-5HP
Pilot Kit CSK-5HP
&
  • Outside Dia: 1.703
Turbine Hub 10" 245mm Powerglide Spline
  • Internal Teeth: 17
 CW-13-7HP
Turbine Hub CW-13-7HP
10" 245mm Powerglide Spline &
  • Internal Teeth: 17
Sprag Eliminator
  • Length: 1.010"
  • Internal Teeth: 27
  • Outside Dia: 3.250"
 CX-5-29HP
Sprag Eliminator CX-5-29HP
&
  • Length: 1.010"
  • Internal Teeth: 27
  • Outside Dia: 3.250"
Turbine Washer Plastic, High Perfromance
  • Thickness: 0.173"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.380"
 FW-9-30
Turbine Washer FW-9-30
Plastic, High Perfromance &
  • Thickness: 0.173"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.380"
Impeller Hub Flanged
  • Hub Mount: Flanged
 SH-1-52HP
Impeller Hub SH-1-52HP
Flanged &
  • Hub Mount: Flanged
Turbine Hub 10" 245mm T-350/400 Spline SX-13-39HP
Turbine Hub SX-13-39HP
10" 245mm T-350/400 Spline &
Turbine Hub GM HP 280MM
  • Internal Teeth: 30

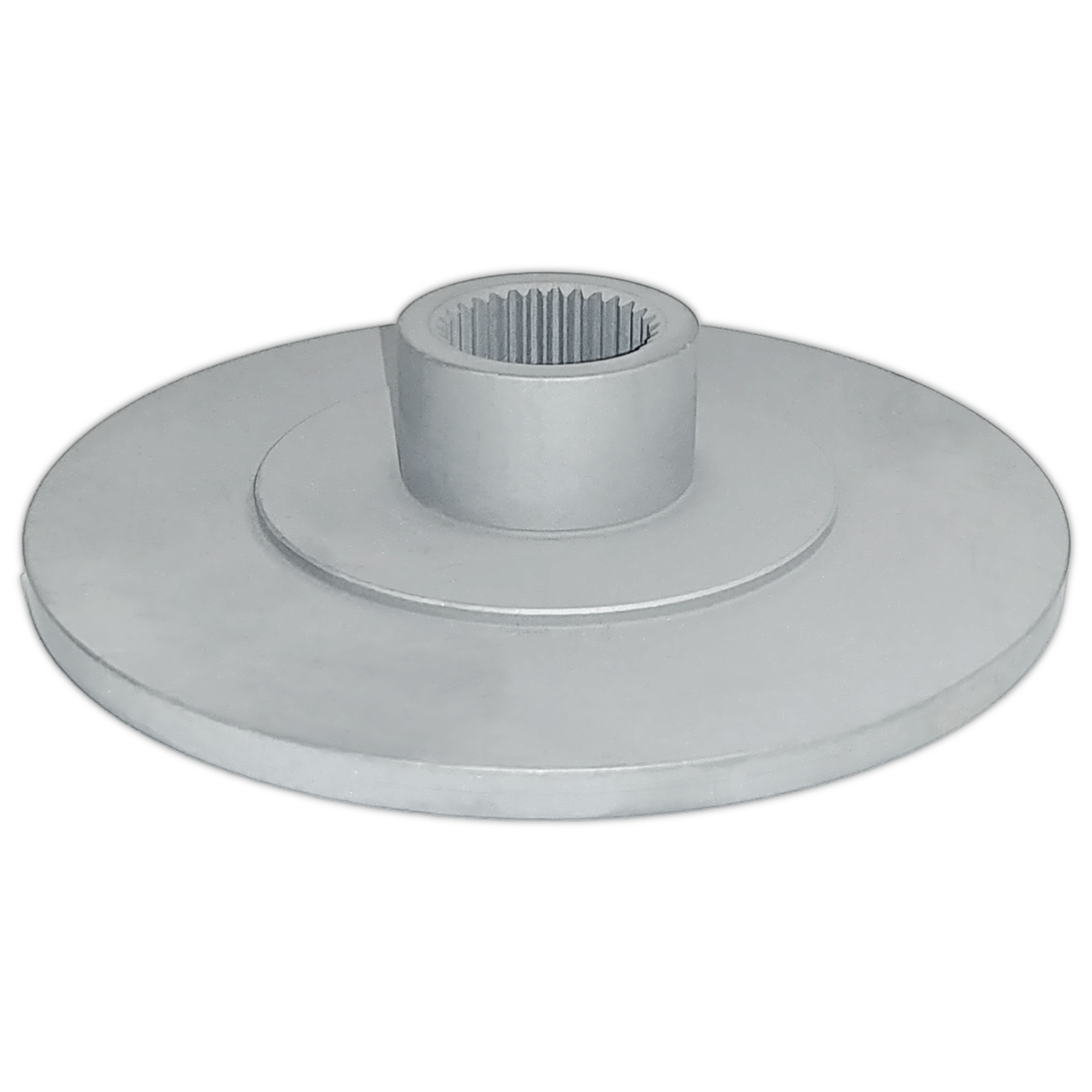

 SX-13-42HP
Turbine Hub SX-13-42HP
GM HP 280MM &
  • Internal Teeth: 30
Turbine Hub 4L60E 300mm,HP SINGLE PLATE
  • External Teeth: 30

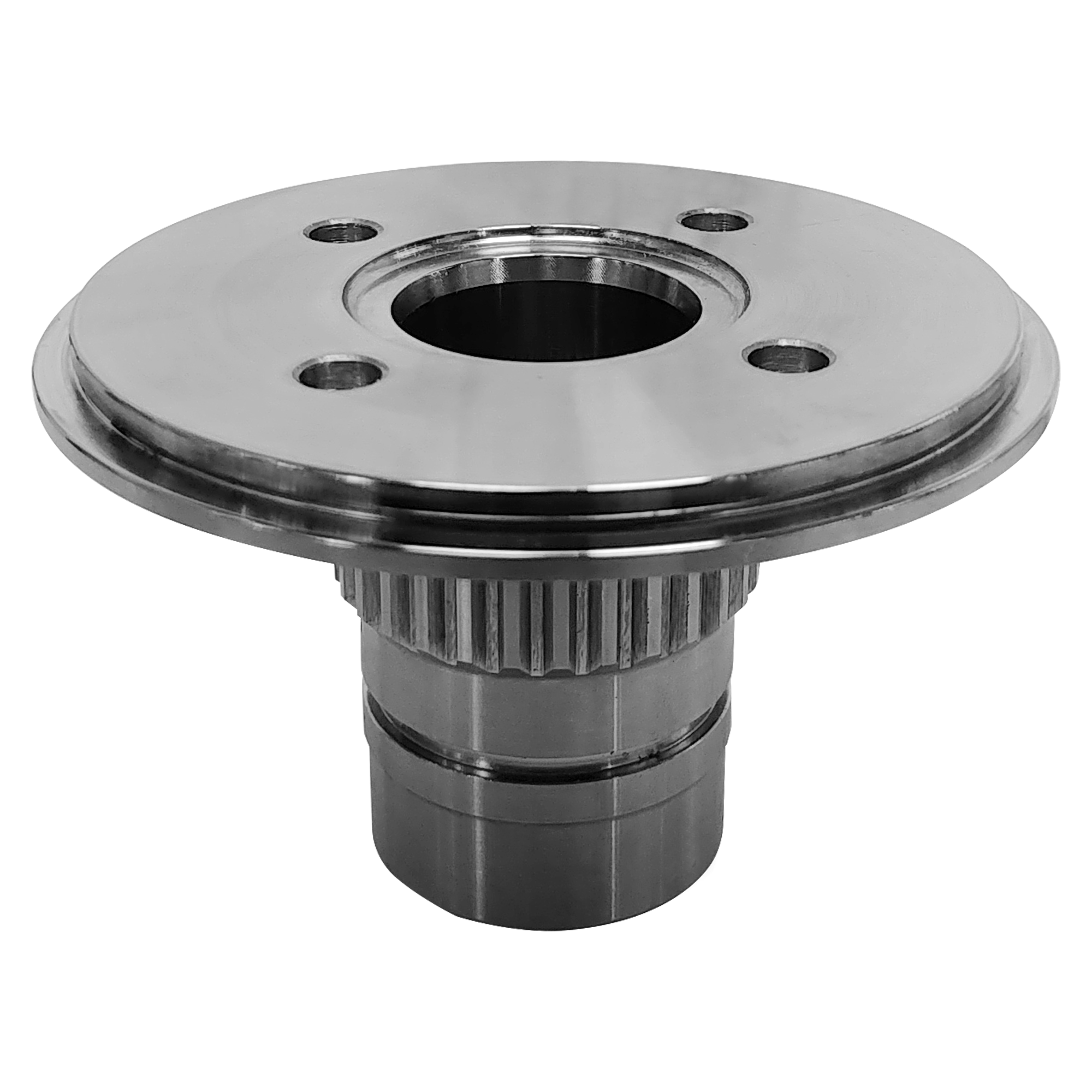

 SX-13-46HP
Turbine Hub SX-13-46HP
4L60E 300mm,HP SINGLE PLATE &
  • External Teeth: 30

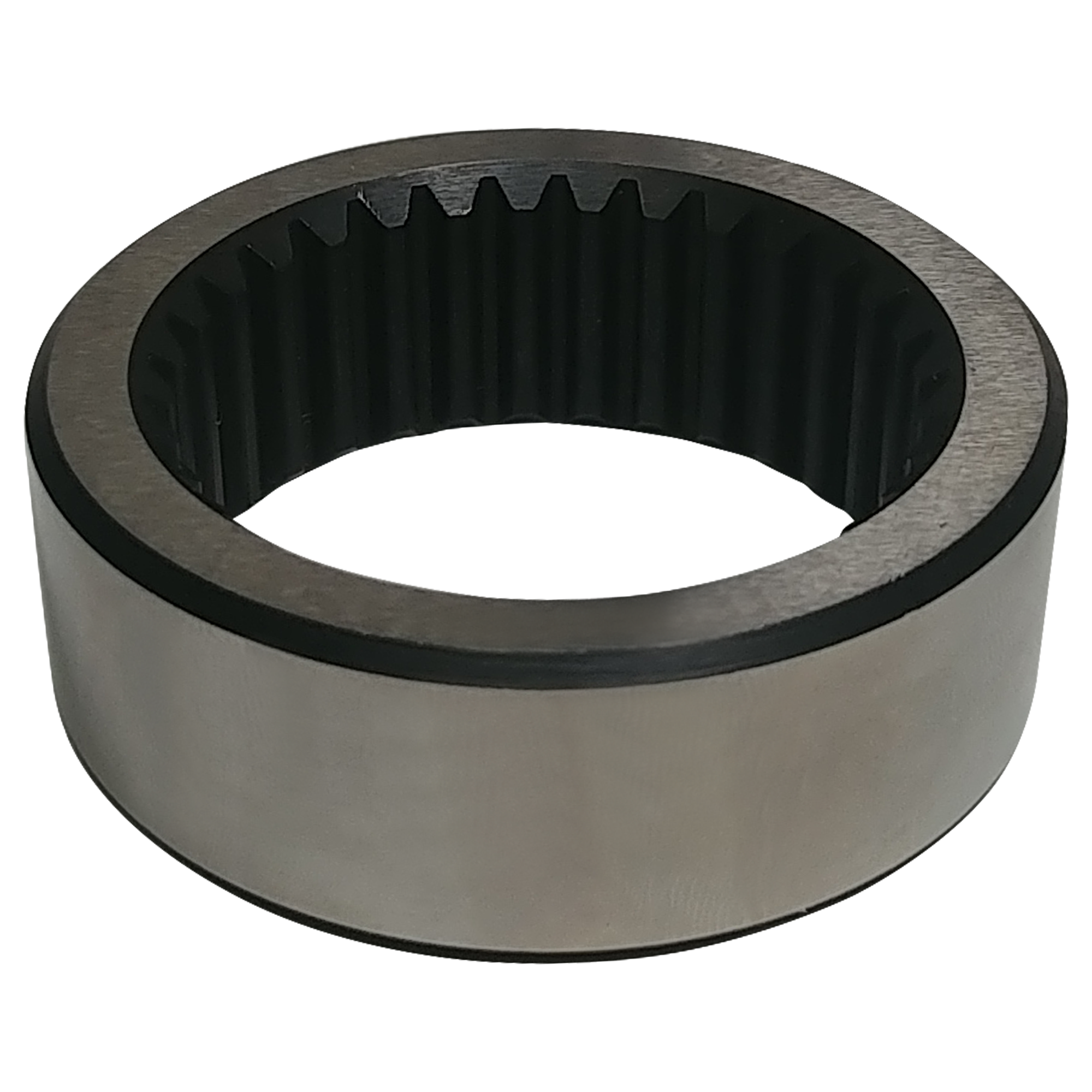

Inner Race StatorHigh Performance SX-14-8HP
Inner Race SX-14-8HP
StatorHigh Performance &
Outer Race (Cam)
  • Thickness: 0.591"
  • Length: 0.591"
  • Internal Teeth: 10
  • Outside Dia: 3.602"
 SX-15HP
Outer Race (Cam) SX-15HP
&
  • Thickness: 0.591"
  • Length: 0.591"
  • Internal Teeth: 10
  • Outside Dia: 3.602"
Front Cover 10" 245mm Steel (GM Dual Bolt) SX-22-2HP
Front Cover SX-22-2HP
10" 245mm Steel (GM Dual Bolt) &
Ring Core-Saver, For 8" Converter SX-22-3HP
Ring SX-22-3HP
Core-Saver, For 8" Converter &
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.10"
  • Inside Dia: 7.50"
 SX-23-55
Lining (Friction Ring,Wafer) SX-23-55
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.10"
  • Inside Dia: 7.50"
Lining (Friction Ring,Wafer) With 9 holes 258mm
  • Thickness: 0.045"
  • Material: Red, With 9 holes
  • Outside Dia: 11.00"
  • Inside Dia: 7.50"
 SX-23-85
Lining (Friction Ring,Wafer) SX-23-85
With 9 holes & 258mm
  • Thickness: 0.045"
  • Material: Red, With 9 holes
  • Outside Dia: 11.00"
  • Inside Dia: 7.50"
Ring 6 Lug, Laser Cut
  • Thickness: 0.3125"
 SX-24-3HP
Ring SX-24-3HP
6 Lug, Laser Cut &
  • Thickness: 0.3125"
Ring 245mm GM Dual Bolt Ring
  • Thickness: 0.422"
  • Inside Dia: 8.380"
  • Fits Bolt Circle Dia.: 10.75" and 11.50"
 SX-24-4HP
Ring SX-24-4HP
245mm GM Dual Bolt Ring &
  • Thickness: 0.422"
  • Inside Dia: 8.380"
  • Fits Bolt Circle Dia.: 10.75" and 11.50"
Stator "086" For Diode SX-5-10
Stator SX-5-10
"086" For Diode &
Impeller Hub H.P. Camaro Camaro H.P.
  • Journal Dia: 1.747"
  • Height: 2.607
  • Slots = 0.405"

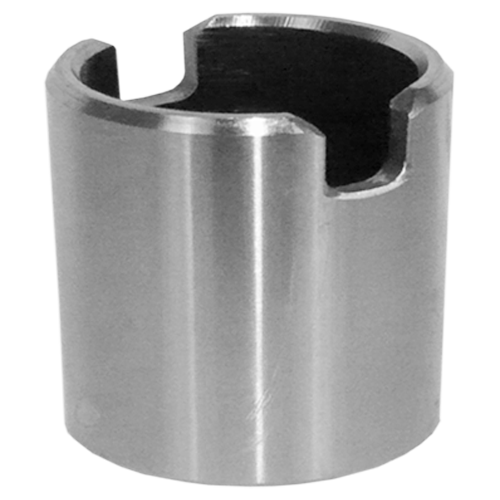

 GM-98G
Impeller Hub GM-98G
H.P. Camaro & Camaro H.P.
  • Journal Dia: 1.747"
  • Height: 2.607
  • Slots = 0.405"
Impeller Hub Flanged, 6L80 300mm single HP HD
  • Journal Dia: 1.834"
  • Installed Height: 2.375"
  • Height: 2.500"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.620"
 SH-1-67HP
Impeller Hub SH-1-67HP
Flanged, 6L80 300mm single HP HD &
  • Journal Dia: 1.834"
  • Installed Height: 2.375"
  • Height: 2.500"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.620"
Impeller Hub Flanged
  • Journal Dia: 1.874"
  • Installed Height: 2.670"
  • Height: 2.936"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.620"
  • Inside Dia: 3.620"
 SH-1-50HP
Impeller Hub SH-1-50HP
Flanged &
  • Journal Dia: 1.874"
  • Installed Height: 2.670"
  • Height: 2.936"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.620"
  • Inside Dia: 3.620"
