Torque Converter | GM | 6T40 / 6T45, 236mm | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub Flanged
  • Journal Dia: 1.562"
  • Installed Height: 2.030"
  • Height: 2.250"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.720"
  • Hardness: Rc 32-36
 SH-1-59GRC
Impeller Hub SH-1-59GRC
Flanged &
  • Journal Dia: 1.562"
  • Installed Height: 2.030"
  • Height: 2.250"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.720"
  • Hardness: Rc 32-36

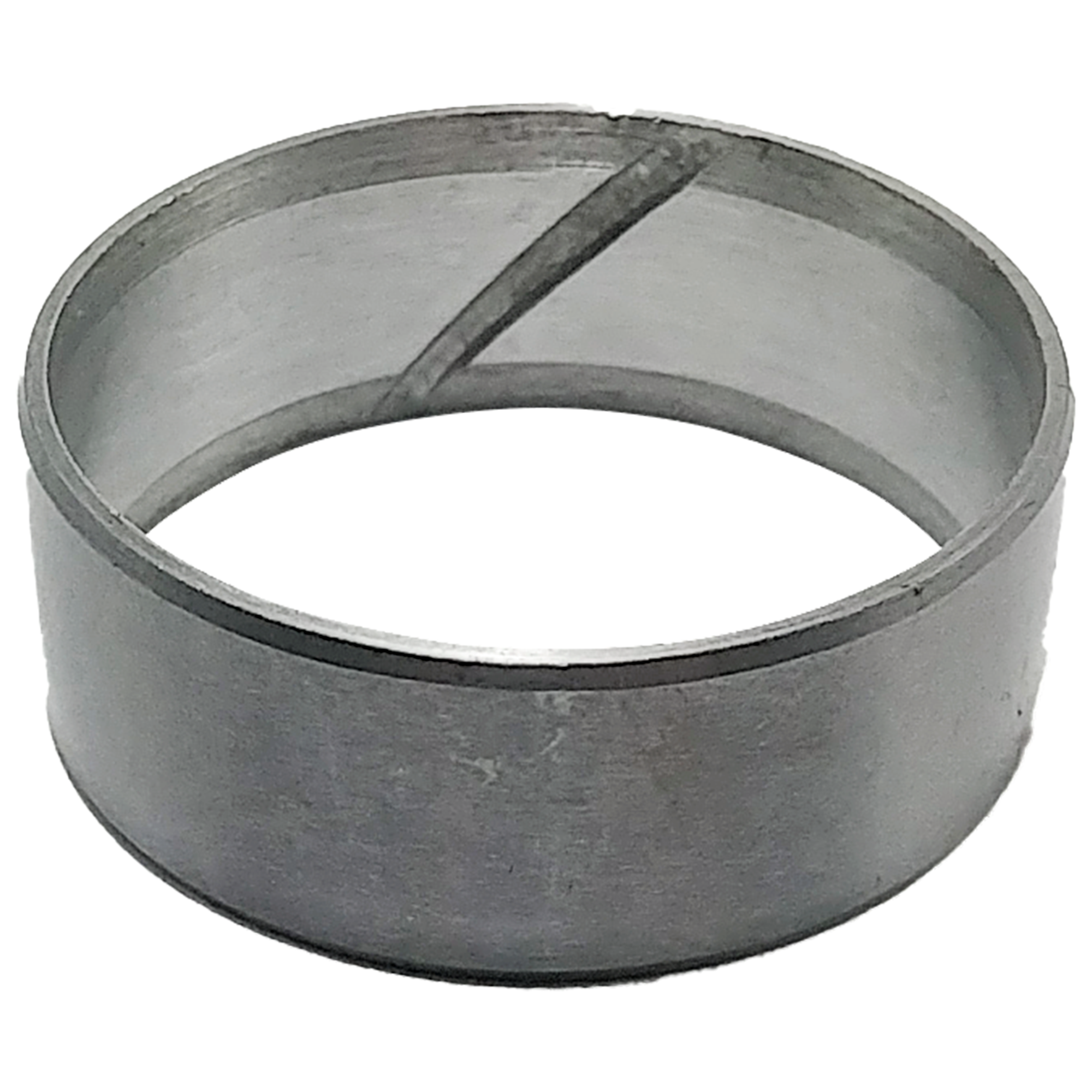

2.1 Bushing Hub only used with bushing-type impeller hubs
  • Thickness: 0.585"
  • Housing Bore Dia: 1.603"
  • Shaft Dia: 1.476"
  • Material: Bi-metal
  • Type: Precision
 SB-18-8
Bushing SB-18-8
Hub & only used with bushing-type impeller hubs
  • Thickness: 0.585"
  • Housing Bore Dia: 1.603"
  • Shaft Dia: 1.476"
  • Material: Bi-metal
  • Type: Precision
4 Bearing Impeller-side
  • Thickness: 0.213"
  • Flange Dia: 3.333"
  • Thickness metric: 5.41
  • Bearing type: Enclosed
  • Outside Dia: 3.126"
  • Inside Dia: 2.134"
  • Outside Dia Metric: 79.4
  • Inside Dia metric: 54.2
 SW-2-37
Bearing SW-2-37
& Impeller-side
  • Thickness: 0.213"
  • Flange Dia: 3.333"
  • Thickness metric: 5.41
  • Bearing type: Enclosed
  • Outside Dia: 3.126"
  • Inside Dia: 2.134"
  • Outside Dia Metric: 79.4
  • Inside Dia metric: 54.2

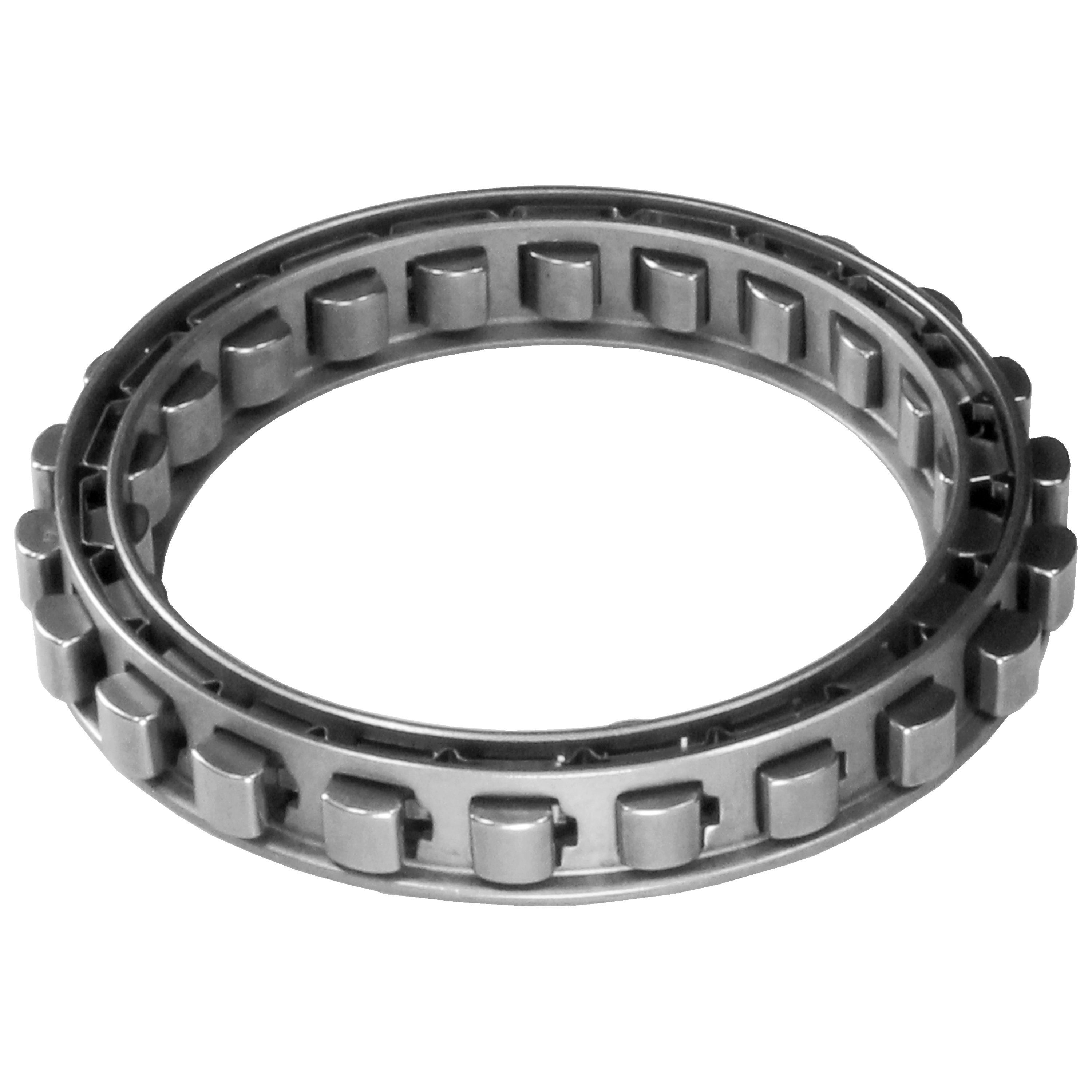

7 Sprag
  • Thickness: 0.347"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.522"
  • Inner Race Outside Dia: 1.862"
 MC-8
Sprag MC-8
&
  • Thickness: 0.347"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.522"
  • Inner Race Outside Dia: 1.862"
9 Stator Cap Bearing Adapter Turbine-side
  • Thickness: 0.348"
  • Material: Aluminum
  • Outside Dia: 3.424"
  • Inside Dia: 1.460"
 SW-4-41
Stator Cap SW-4-41
Bearing Adapter & Turbine-side
  • Thickness: 0.348"
  • Material: Aluminum
  • Outside Dia: 3.424"
  • Inside Dia: 1.460"

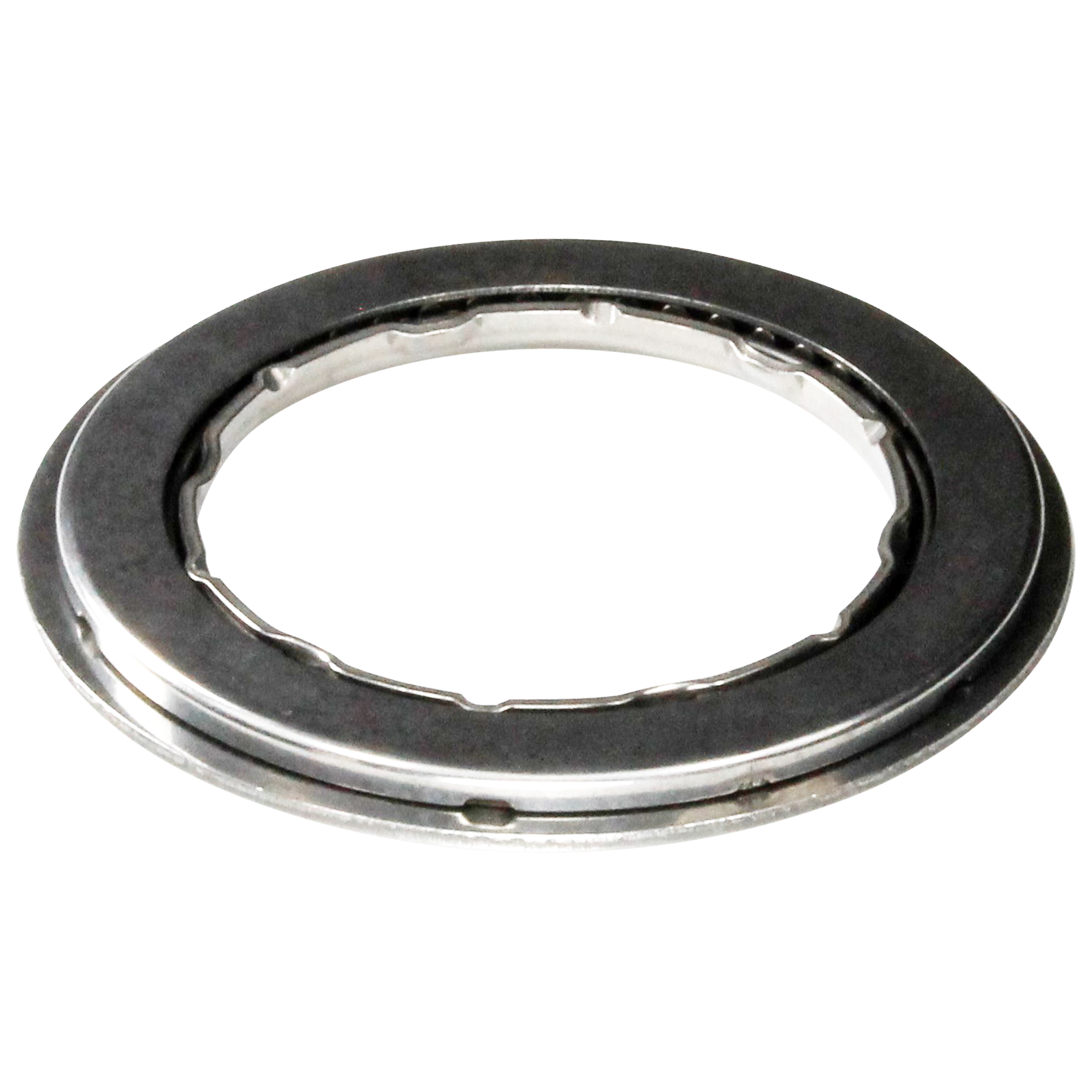

10 Bearing Turbine-Side
  • Thickness: 0.196"
  • Flange Dia: 3.181"
  • Thickness metric: 4.98
  • Bearing type: Enclosed
  • Outside Dia: 2.98
  • Inside Dia: 2.098"
  • Outside Dia Metric: 80.8
  • Inside Dia metric: 53.29
 SW-2-38
Bearing SW-2-38
& Turbine-Side
  • Thickness: 0.196"
  • Flange Dia: 3.181"
  • Thickness metric: 4.98
  • Bearing type: Enclosed
  • Outside Dia: 2.98
  • Inside Dia: 2.098"
  • Outside Dia Metric: 80.8
  • Inside Dia metric: 53.29
12 Seal Ring Scarf Cut
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006
 JO-25-9
Seal Ring JO-25-9
Scarf Cut &
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006

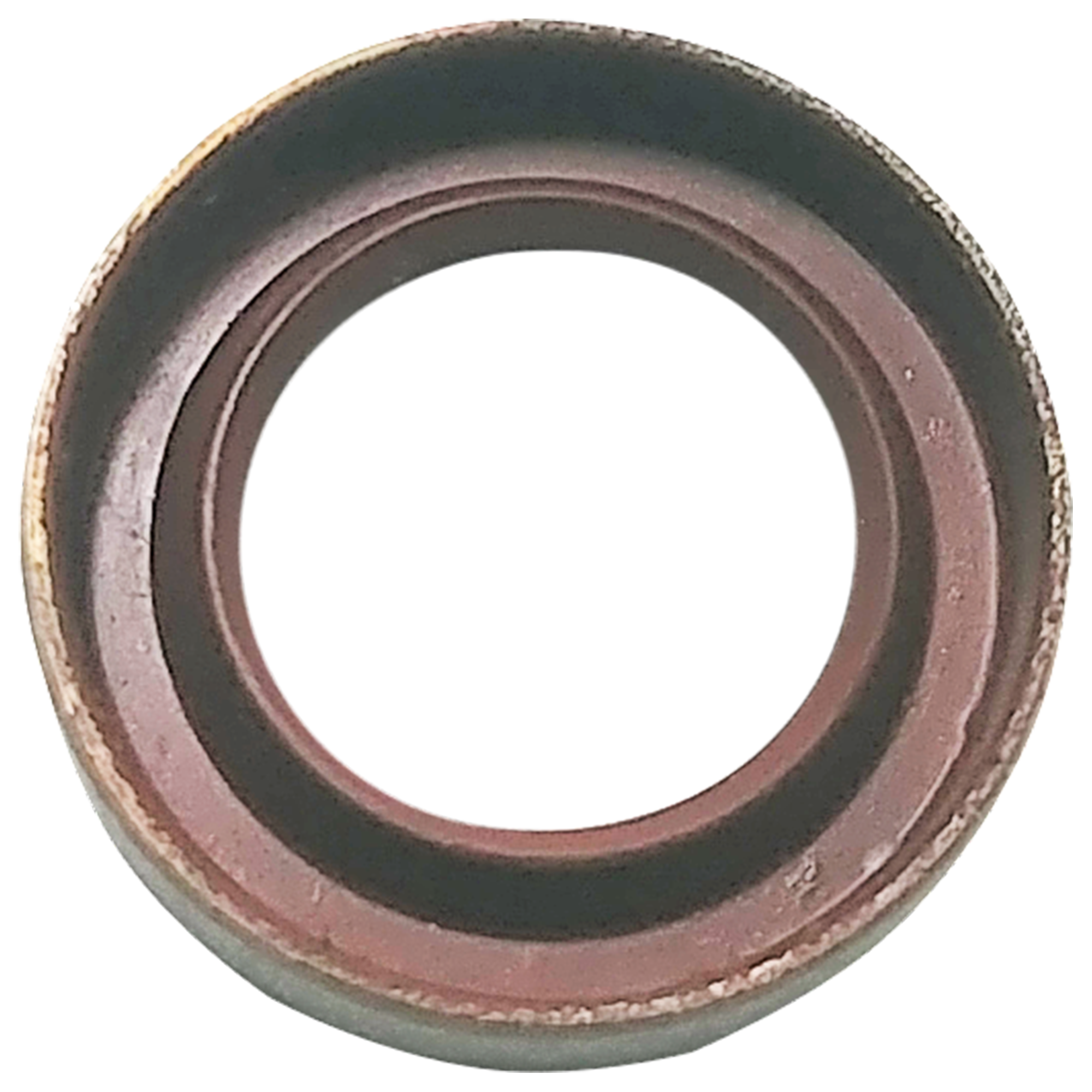

13 Metal Clad Seal
  • Housing Bore Dia: 0.858"
  • Shaft Dia: 0.531"
  • Material: Steel, Fluorocarbon
 FO-25-26
Metal Clad Seal FO-25-26
&
  • Housing Bore Dia: 0.858"
  • Shaft Dia: 0.531"
  • Material: Steel, Fluorocarbon
13 Metal Clad Seal
  • Housing Bore Dia: 0.852
  • Housing Bore Dia Metric: 21.6
  • Shaft Dia metric: 13.5
  • Shaft Dia: 0.531
 SO-23-38
Metal Clad Seal SO-23-38
&
  • Housing Bore Dia: 0.852
  • Housing Bore Dia Metric: 21.6
  • Shaft Dia metric: 13.5
  • Shaft Dia: 0.531
23 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813
  • Inside Dia: 8.562
 SX-23-61
Lining (Friction Ring,Wafer) SX-23-61
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.813
  • Inside Dia: 8.562
