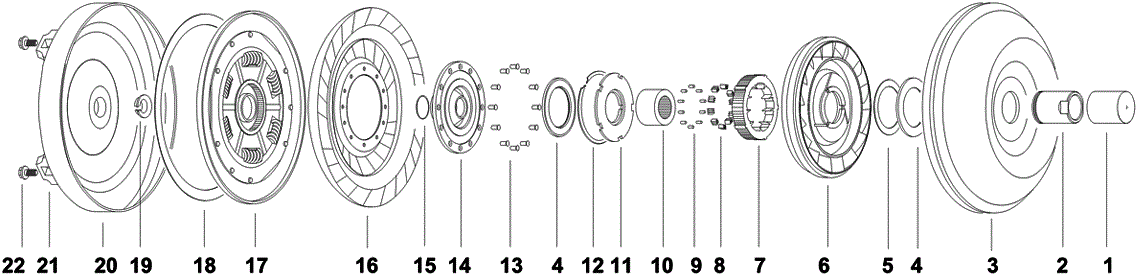

Torque Converter | GM | 310mm Lockup, 4L80E Late (Single Stator) | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.5"
  • Inside Dia: 10.25"
 SX-23-69
Lining (Friction Ring,Wafer) SX-23-69
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.5"
  • Inside Dia: 10.25"
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Impeller Hub
  • Journal Dia: 2.000"
  • Height: 2.695"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 SH-1-46GRC
Impeller Hub SH-1-46GRC
&
  • Journal Dia: 2.000"
  • Height: 2.695"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-1-24-3
Impeller NPN-1-24-3
&
4 Bearing 2 Pieces Required.
  • Thickness: 0.155
  • Thickness metric: 3.94
  • Bearing type: Enclosed
  • Outside Dia: 3.655
  • Inside Dia: 2.6
  • Outside Dia Metric: 92.84
  • Inside Dia metric: 66.04
 SW-2-24
Bearing SW-2-24
& 2 Pieces Required.
  • Thickness: 0.155
  • Thickness metric: 3.94
  • Bearing type: Enclosed
  • Outside Dia: 3.655
  • Inside Dia: 2.6
  • Outside Dia Metric: 92.84
  • Inside Dia metric: 66.04
4 Bearing 2 Pieces Required.
  • Thickness: 0.156
  • Outside Dia: 3.65"
  • Inside Dia: 2.6"
 SW-2-24T
Bearing SW-2-24T
& 2 Pieces Required.
  • Thickness: 0.156
  • Outside Dia: 3.65"
  • Inside Dia: 2.6"
4 Bearing Impeller-side. Used with SW-4-32
  • Thickness: 0.179
  • Thickness metric: 4.55
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.661
  • Inside Dia: 2.598
  • Outside Dia Metric: 93
  • Inside Dia metric: 65.99
 SW-2-33
Bearing SW-2-33
& Impeller-side. Used with SW-4-32
  • Thickness: 0.179
  • Thickness metric: 4.55
  • Bearing type: Enclosed
  • Material: Hardened Steel
  • Outside Dia: 3.661
  • Inside Dia: 2.598
  • Outside Dia Metric: 93
  • Inside Dia metric: 65.99
4 Bearing Used with SW-4-32
  • Thickness: .18"
  • Bearing type: Enclosed
  • Outside Dia: 3.65"
  • Inside Dia: 2.60"
  • Impeller Side
 SW-2-33T
Bearing SW-2-33T
& Used with SW-4-32
  • Thickness: .18"
  • Bearing type: Enclosed
  • Outside Dia: 3.65"
  • Inside Dia: 2.60"
  • Impeller Side
5 Stator Cap Weld-in. Requires machining. Used with SW-2-33 bearing,
  • Thickness: 0.417"
  • Material: Aluminum
  • Outside Dia: 3.977"
 SW-4-32
Stator Cap SW-4-32
& Weld-in. Requires machining. Used with SW-2-33 bearing,
  • Thickness: 0.417"
  • Material: Aluminum
  • Outside Dia: 3.977"

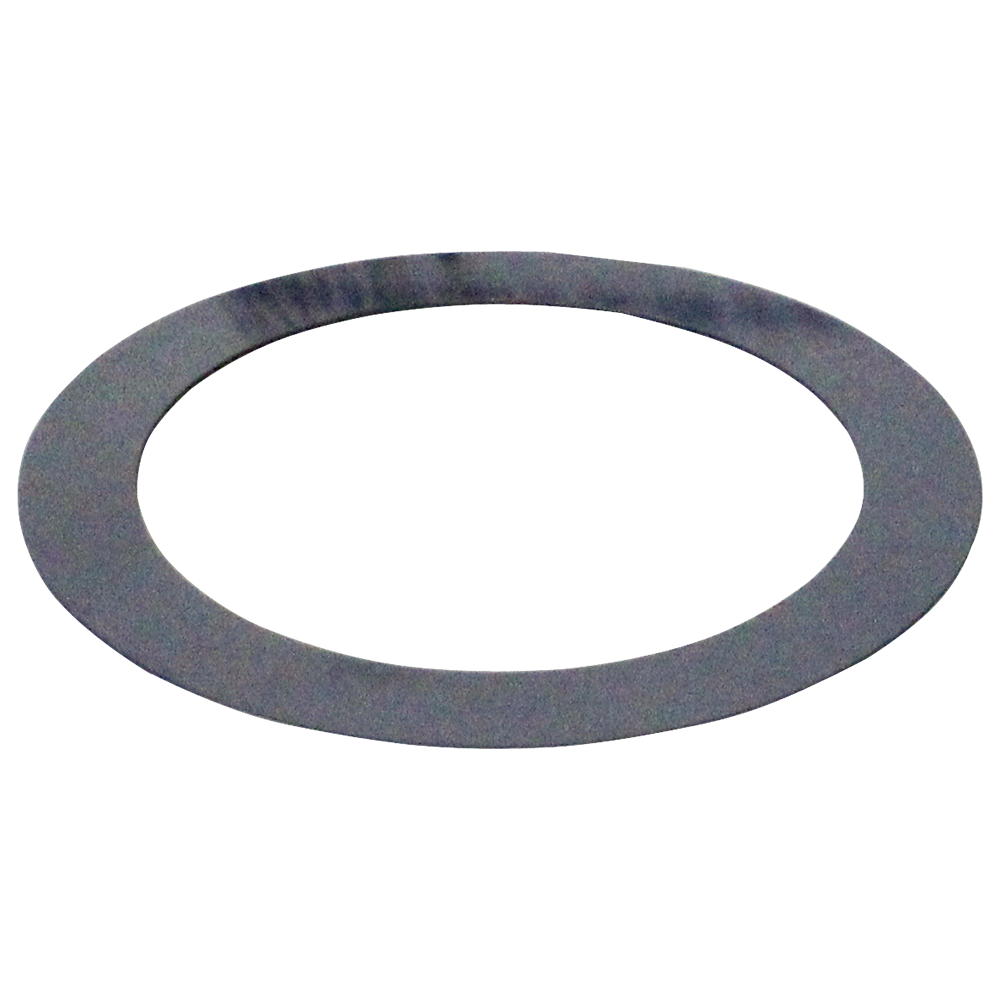

5 Shim
  • Thickness: .010"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-410
Shim SW-2-410
&
  • Thickness: .010"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"

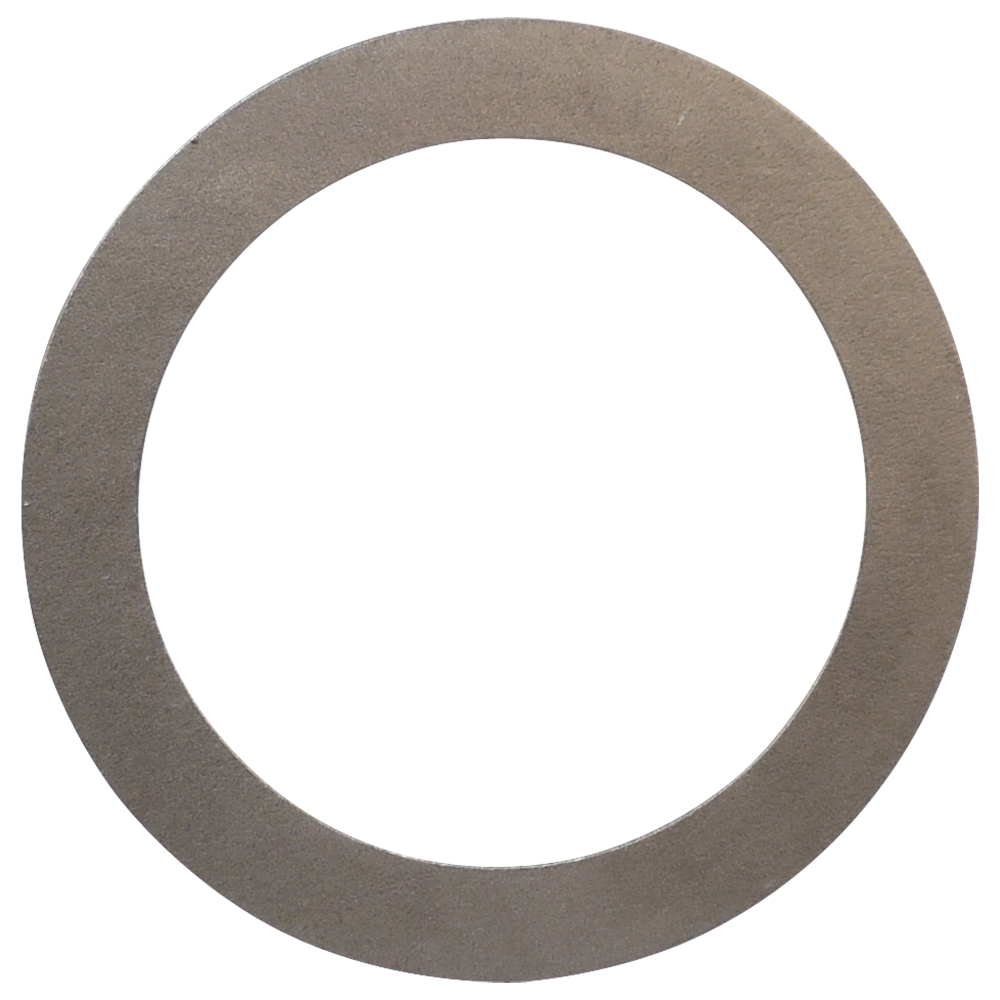

5 Shim
  • Thickness: .020"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-420
Shim SW-2-420
&
  • Thickness: .020"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"

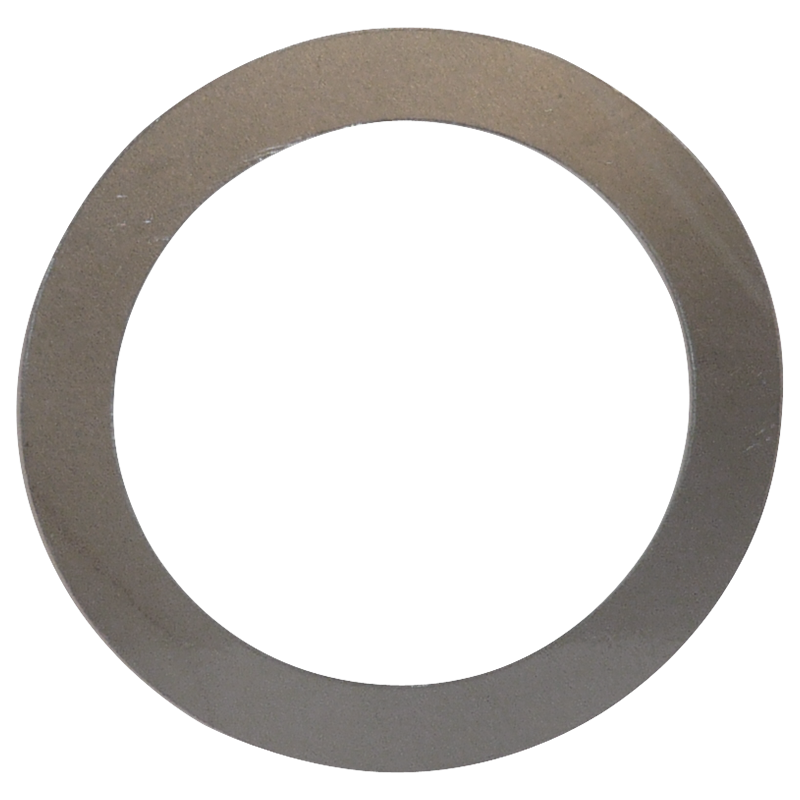

5 Shim
  • Thickness: .030"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
 SW-2-430
Shim SW-2-430
&
  • Thickness: .030"
  • Outside Dia: 3.44"
  • Inside Dia: 2.59"
6 Stator
  • OE # 24205897
 NPN-1-24-6
Stator NPN-1-24-6
&
  • OE # 24205897
7 Cam Outer NPN-1-24-7
Cam NPN-1-24-7
Outer &

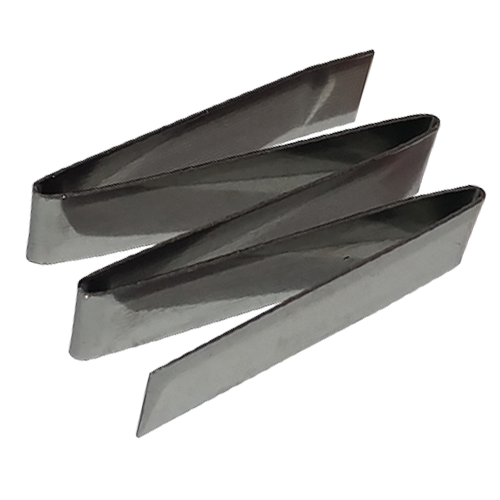

8 Accordion Spring 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.485"
  • Folds: 2
  • Relaxed Height: 0.815"
 SS-6-3
Accordion Spring SS-6-3
& 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.485"
  • Folds: 2
  • Relaxed Height: 0.815"

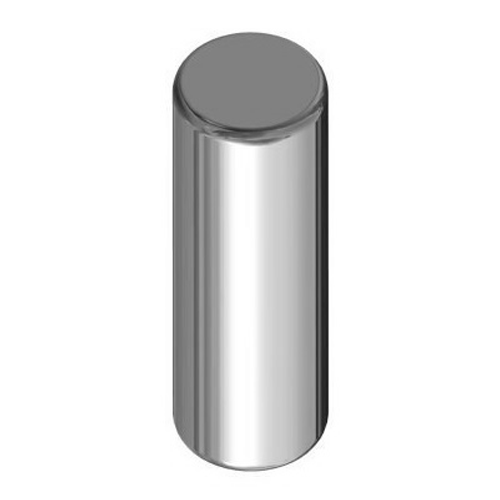

9 Roller 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.835"
 SR-7-3
Roller SR-7-3
& 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.835"
10 Inner Race Stator
  • Height: 1.240"
  • Internal Teeth: 37
  • Outside Dia: 2.236"
 SX-14-5
Inner Race SX-14-5
Stator &
  • Height: 1.240"
  • Internal Teeth: 37
  • Outside Dia: 2.236"
10 Inner Race Stator Converts GM 6L80, 6L90 (300mm), GM 258mm LU (4L60-E, 5L40-E) or GM 265mm LU (4T60-E, 4T80-E) converter to a 37- inner tooth, for use in GM 4L80-E single stator applications.
  • Length: 0.875"
  • Internal Teeth: 37
  • Outside Dia: 2.156"
 SX-14-9
Inner Race SX-14-9
Stator & Converts GM 6L80, 6L90 (300mm), GM 258mm LU (4L60-E, 5L40-E) or GM 265mm LU (4T60-E, 4T80-E) converter to a 37- inner tooth, for use in GM 4L80-E single stator applications.
  • Length: 0.875"
  • Internal Teeth: 37
  • Outside Dia: 2.156"

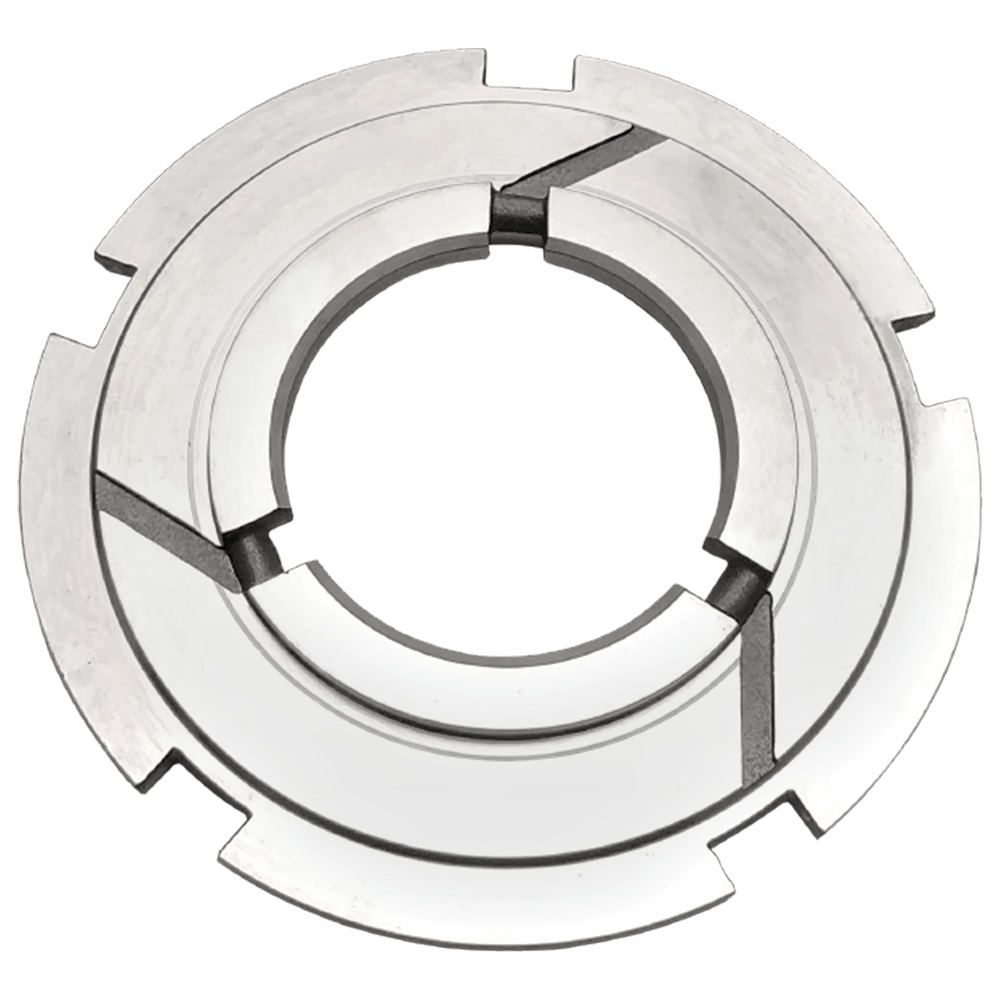

11 Stator Cap
  • Thickness: 0.32"
  • Material: Aluminum
  • Outside Dia: 4.26"
  • Inside Dia: 1.93"
 SW-4-26
Stator Cap SW-4-26
&
  • Thickness: 0.32"
  • Material: Aluminum
  • Outside Dia: 4.26"
  • Inside Dia: 1.93"
12 Snap Ring NPN-1-24-12
Snap Ring NPN-1-24-12
&

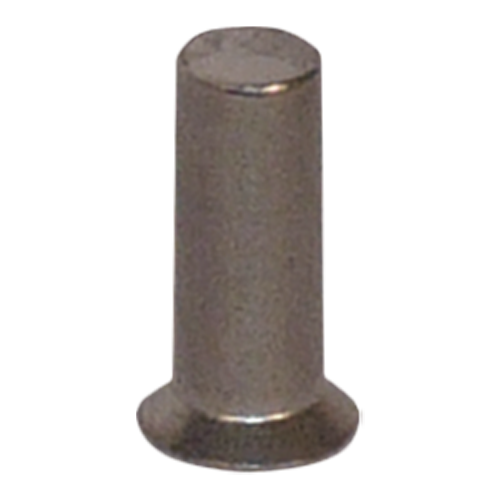

13 Rivet 12 Pieces Required.
  • Length: 0.445"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.328"
 SX-12-10
Rivet SX-12-10
& 12 Pieces Required.
  • Length: 0.445"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.328"

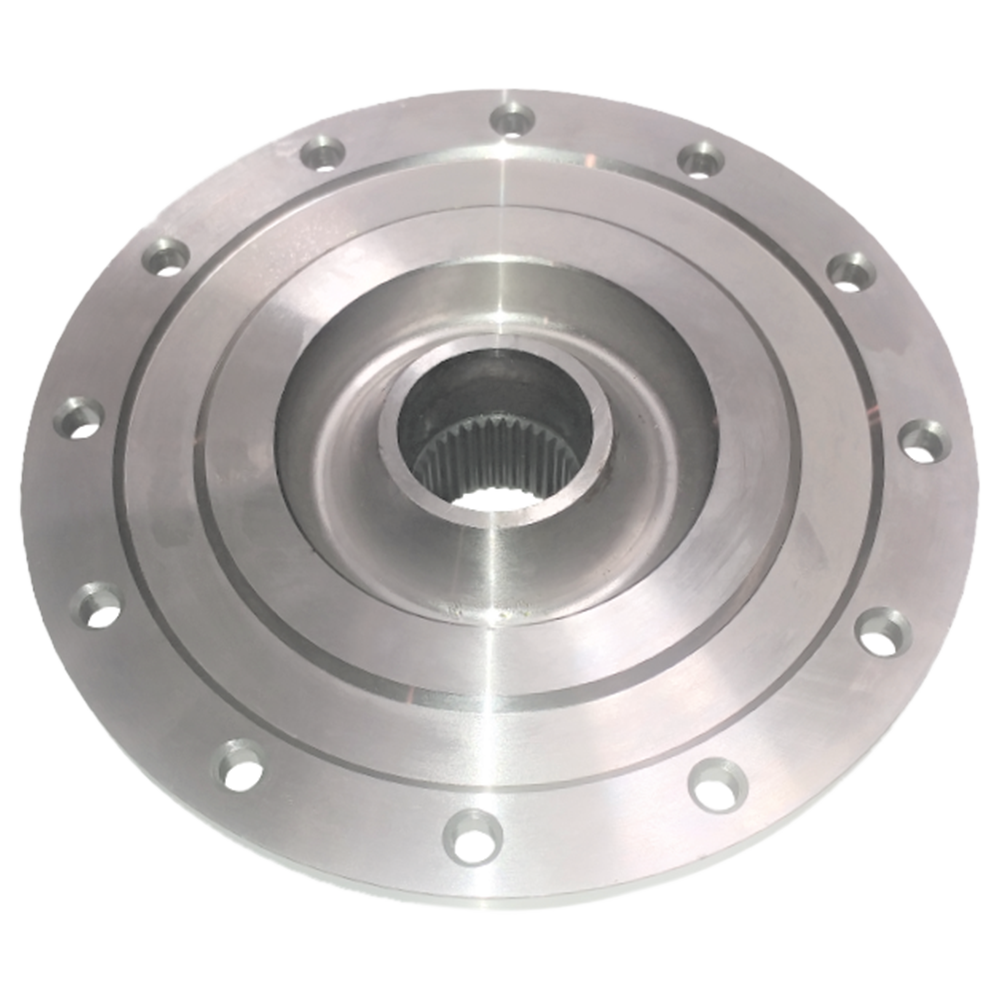

14 Turbine Hub
  • Internal Teeth: 35
  • External Teeth: 102
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 5.71"
 SX-13-34HT
Turbine Hub SX-13-34HT
&
  • Internal Teeth: 35
  • External Teeth: 102
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 5.71"
15 O-Ring
  • Thickness: 0.072
  • Thickness metric: 1.8288
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.864
  • Inside Dia metric: 46.9392
 SO-23-24
O-Ring SO-23-24
&
  • Thickness: 0.072
  • Thickness metric: 1.8288
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.864
  • Inside Dia metric: 46.9392
15 O-Ring
  • Thickness: 0.077
  • Thickness metric: 1.9558
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.864
  • Inside Dia metric: 47.3456
  • Oversized
 SO-23-24A
O-Ring SO-23-24A
&
  • Thickness: 0.077
  • Thickness metric: 1.9558
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.864
  • Inside Dia metric: 47.3456
  • Oversized
16 Turbine NPN-1-24-16
Turbine NPN-1-24-16
&
16 Piston Plate SX-23-64
Piston Plate SX-23-64
&
17 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
17 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
17 Damper Assembly NPN-1-24-17
Damper Assembly NPN-1-24-17
&
17 Rivet 9 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 9 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.58"
  • Inside Dia: 10.313"
 SX-23-25
Lining (Friction Ring,Wafer) SX-23-25
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.58"
  • Inside Dia: 10.313"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 10.375"
 SX-23-47
Lining (Friction Ring,Wafer) SX-23-47
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 10.375"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.5"
  • Inside Dia: 10.750"
 SX-23-49
Lining (Friction Ring,Wafer) SX-23-49
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 12.5"
  • Inside Dia: 10.750"

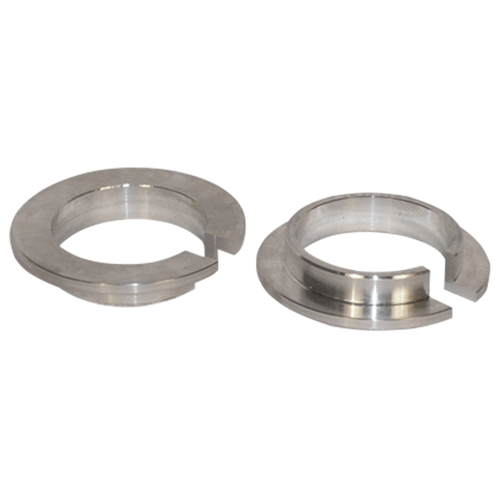

19 Turbine Washer "C" Type
  • Thickness: 0.085"
  • Material: Aluminum
  • Outside Dia: 1.875"
  • Inside Dia: 1.250"
 SW-9-14
Turbine Washer SW-9-14
"C" Type &
  • Thickness: 0.085"
  • Material: Aluminum
  • Outside Dia: 1.875"
  • Inside Dia: 1.250"
20 Front Cover NPN-1-24-20
Front Cover NPN-1-24-20
&
21 Mounting Pad Threaded, M10 X 1.5 NPN-1-24-21
Mounting Pad NPN-1-24-21
Threaded, M10 X 1.5 &
22 Bolt Hex Head, Flanged
  • Dimensions: M10-1.50mm
  • Length: 15mm
 B-78
Bolt B-78
Hex Head, Flanged &
  • Dimensions: M10-1.50mm
  • Length: 15mm
23 Front Cover SX-22-26
Front Cover SX-22-26
&
