Torque Converter | GM | 258mm Lockup, 4T65E | General Motors

Ill.# Image Description Specification Part #
Piston Plate 4L60E,4T65E,6L80 300mm SX-23-73
Piston Plate SX-23-73
4L60E,4T65E,6L80 300mm &
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
Hubcap MHC-P
Fits 1-3/4" (44.4mm) &
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
2 Bushing Hub
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Precision
 SB-18-2
Bushing SB-18-2
Hub &
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Precision
2 Bushing Hub, Oversized O.D. by .010"
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.01")
 SB-18-2-10
Bushing SB-18-2-10
Hub, Oversized O.D. by .010" &
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.01")
2 Bushing Hub, Oversized O.D. by .002"
  • Thickness: 0.615"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.002"
 SB-18-2-2
Bushing SB-18-2-2
Hub, Oversized O.D. by .002" &
  • Thickness: 0.615"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.002"
2 Bushing Hub
  • Thickness: 0.600"
  • Housing Bore Dia: 1.563
  • Shaft Dia: 1.436
  • Material: Bi-metal
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Undersized (Semi-Finished I.D.)
 SB-18-2X

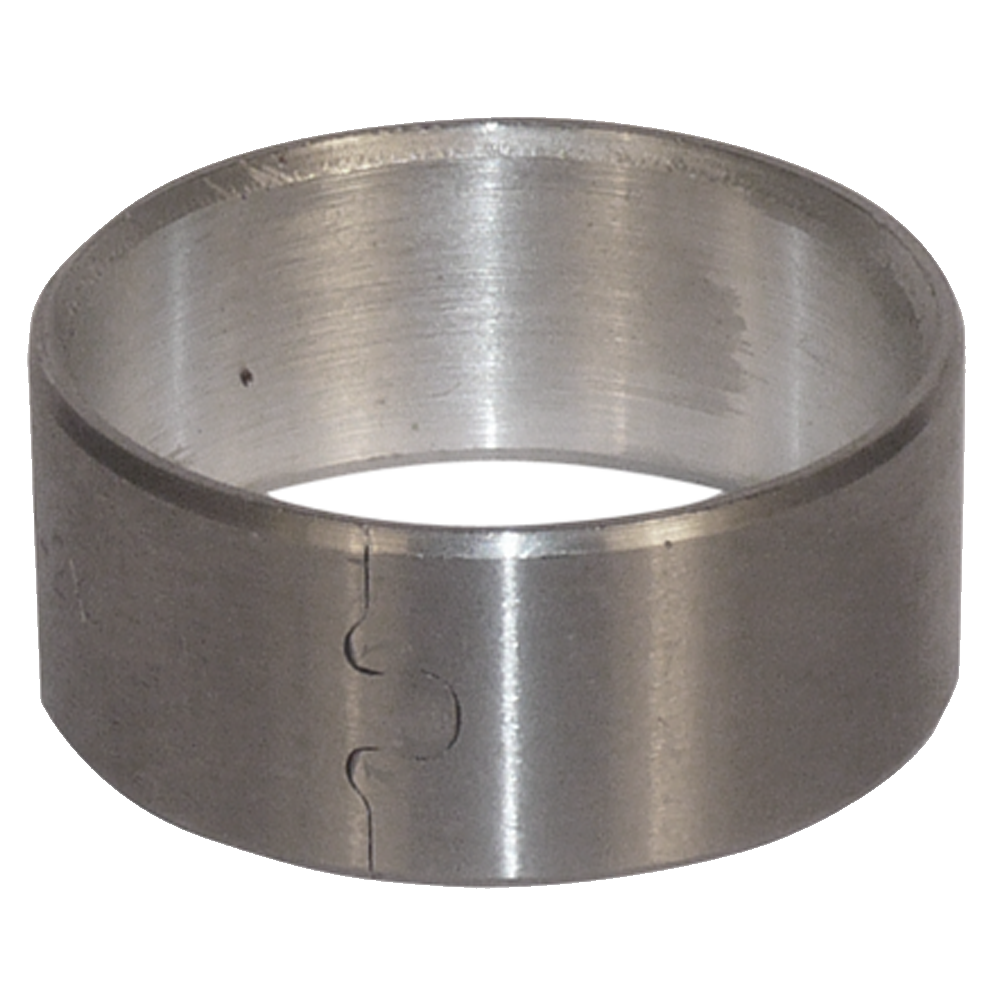

Bushing SB-18-2X
Hub &
  • Thickness: 0.600"
  • Housing Bore Dia: 1.563
  • Shaft Dia: 1.436
  • Material: Bi-metal
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Undersized (Semi-Finished I.D.)
3 Impeller Hub
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Height: 0.938
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Flange Dia: 2.23"
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"

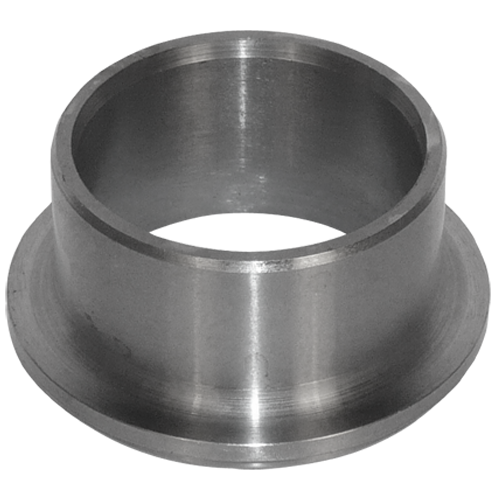

 SH-1-17GRC
Impeller Hub SH-1-17GRC
&
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Height: 0.938
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Flange Dia: 2.23"
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
3 Impeller Hub
  • Journal Dia: 1.789"
  • Height: 0.825"
  • Inside Dia: 1.563"
 SH-1-BU-21G
Impeller Hub SH-1-BU-21G
&
  • Journal Dia: 1.789"
  • Height: 0.825"
  • Inside Dia: 1.563"
3 Impeller Hub
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Hub Mount: Flanged
  • Flange Dia: 2.62"
  • Inside Dia: 2.23"

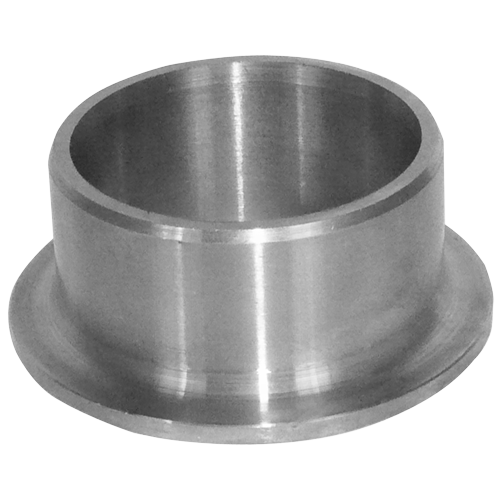

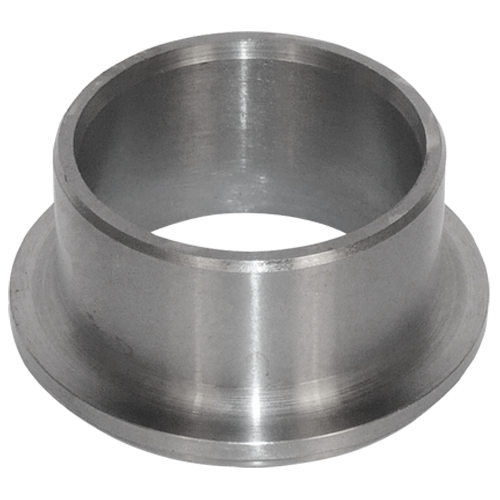

 SH-1-17G
Impeller Hub SH-1-17G
&
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Hub Mount: Flanged
  • Flange Dia: 2.62"
  • Inside Dia: 2.23"
3 Impeller Hub
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Inside Dia: 2.23"
 SH-1-45G
Impeller Hub SH-1-45G
&
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Inside Dia: 2.23"
3 Impeller Hub
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"

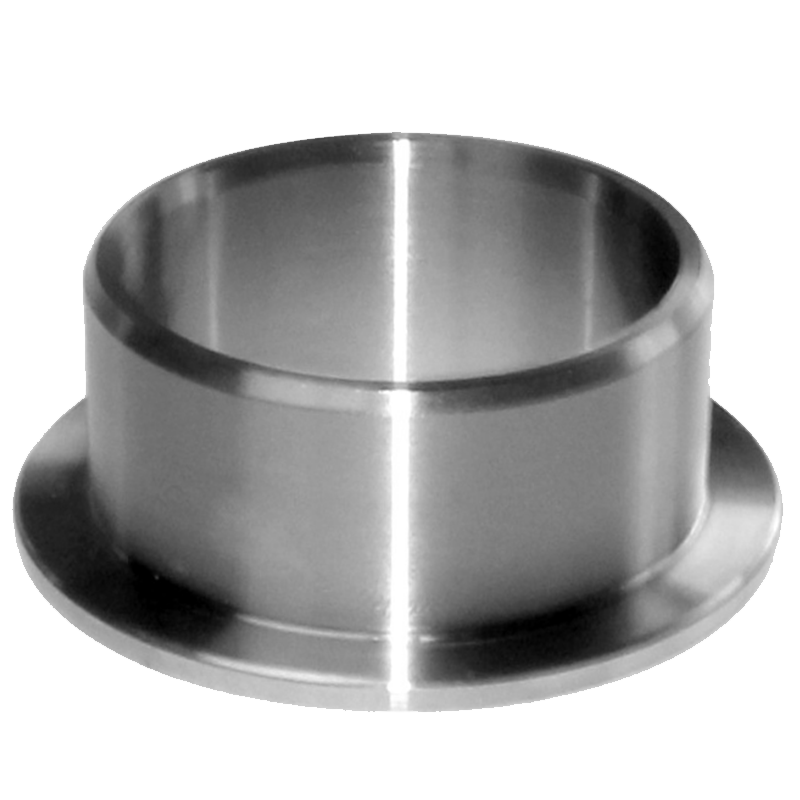

 SH-1-45GRC
Impeller Hub SH-1-45GRC
&
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
3 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.125"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"

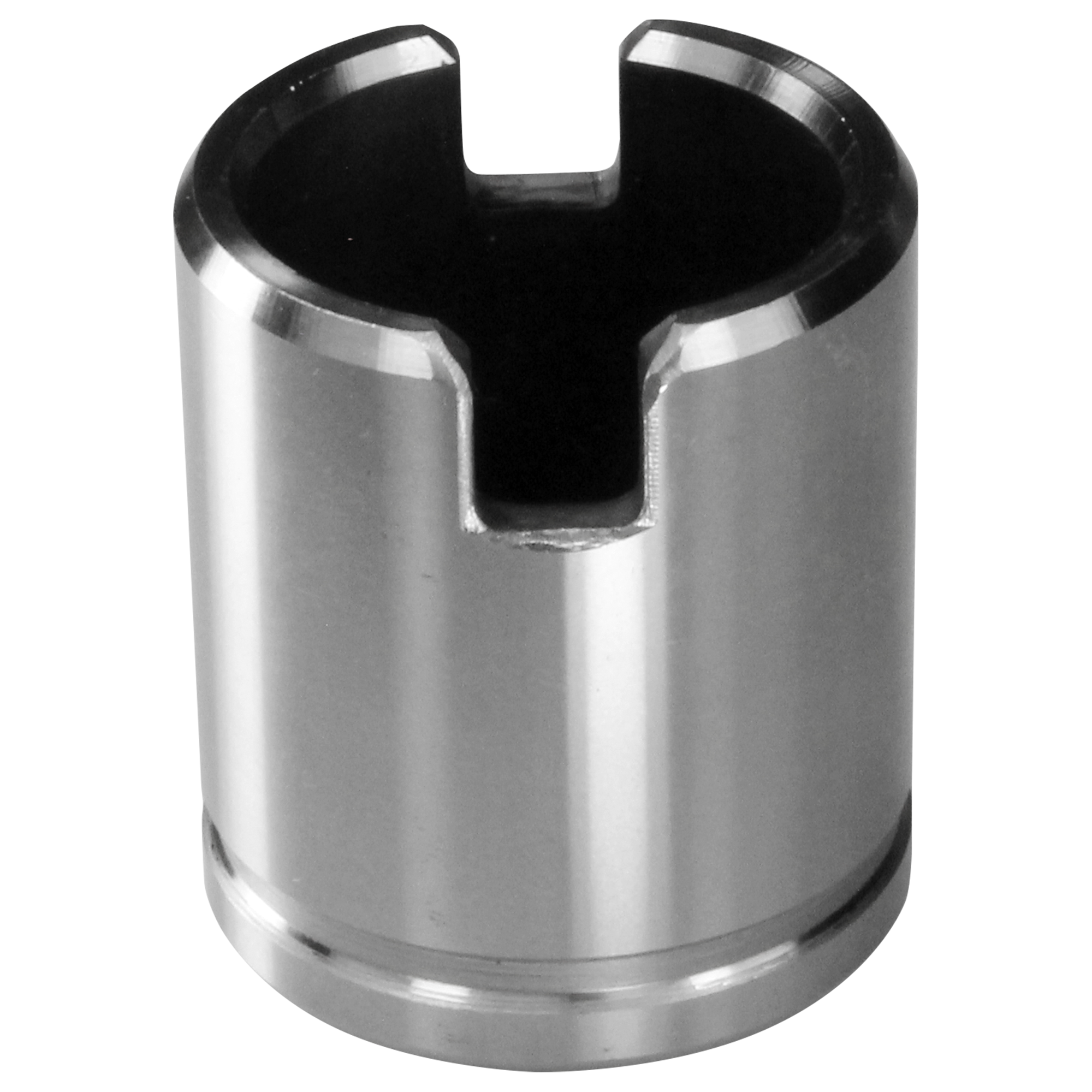

 SH-1-44GRC
Impeller Hub SH-1-44GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.125"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
4 Impeller NPN-1-10-4
Impeller NPN-1-10-4
&
5 Bearing 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
6 Shim Under Bearing
  • Thickness: .010"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"

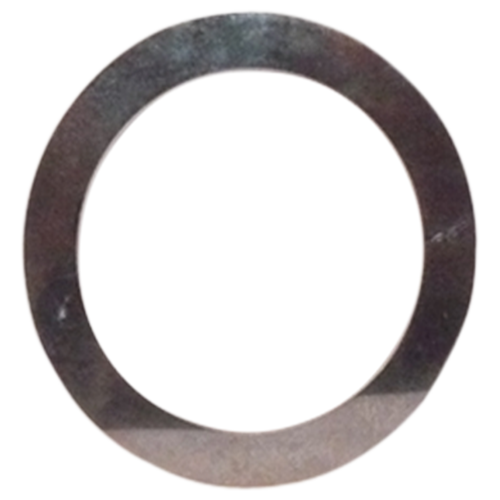

 SW-2-110
Shim SW-2-110
& Under Bearing
  • Thickness: .010"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"
6 Shim
  • Thickness: .020"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"

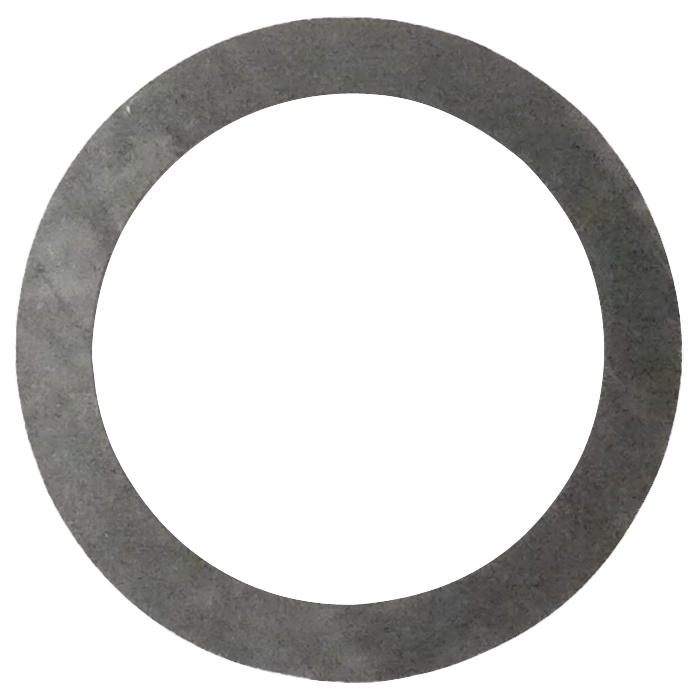

 SW-2-120
Shim SW-2-120
&
  • Thickness: .020"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"
6 Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 3.275"
  • Inside Dia: 2.500"
 SW-2-130

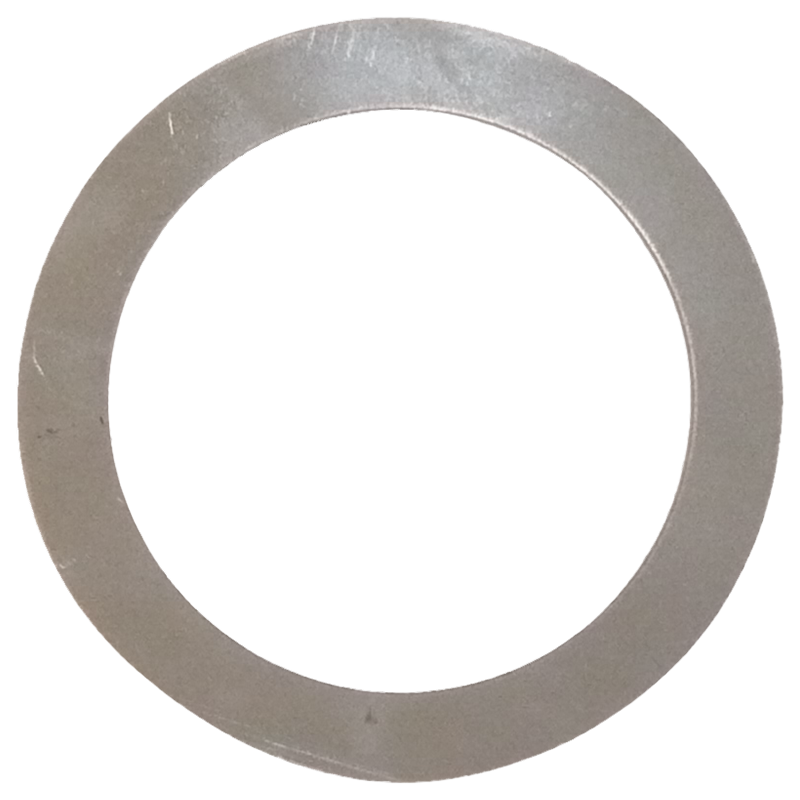

Shim SW-2-130
&
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 3.275"
  • Inside Dia: 2.500"
7 Snap Ring NPN-1-10-7
Snap Ring NPN-1-10-7
&
8 Stator Cap 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"
 SW-4-18
Stator Cap SW-4-18
& 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"
9 Stator NPN-1-10-9
Stator NPN-1-10-9
&
10 Cam Stator NPN-1-10-10
Cam NPN-1-10-10
Stator &
10 Misc 9 Pieces Required. NPN-SPL
Misc NPN-SPL
& 9 Pieces Required.
11 Accordion Spring 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
 SS-6-4
Accordion Spring SS-6-4
& 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
12 Roller 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
 SR-7-4
Roller SR-7-4
& 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
13 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
Inner Race SX-14-2
Stator &
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
13 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"

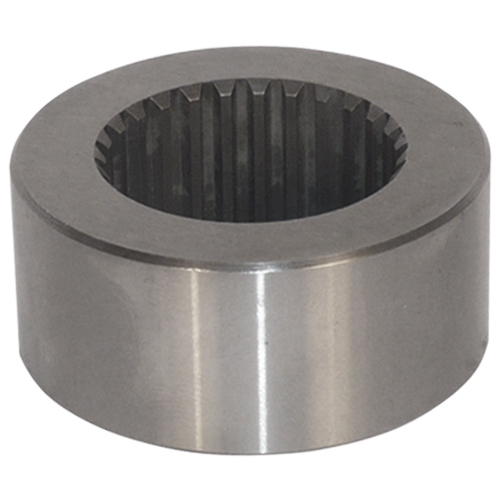

 SX-14-3
Inner Race SX-14-3
Stator &
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
14 Rivet
  • Length: 0.27"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.26"
 SX-12-12
Rivet SX-12-12
&
  • Length: 0.27"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.26"
15 Turbine Hub NPN-1-10-15
Turbine Hub NPN-1-10-15
&
16 O-Ring
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
 SO-23-26
O-Ring SO-23-26
&
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
16 Seal Ring Solid for Late Model
  • Height: 0.086
  • Width: 0.094
  • Color: White
  • Material: PTFE
  • Height Metric: 2.1844
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
 SO-23-35
Seal Ring SO-23-35
Solid & for Late Model
  • Height: 0.086
  • Width: 0.094
  • Color: White
  • Material: PTFE
  • Height Metric: 2.1844
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
17 Turbine NPN-1-10-17
Turbine NPN-1-10-17
&
17 Rivet 10 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 10 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
17 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
17 Rivet 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
17 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
18 Clutch Plate Assembly With 4 Double Springs SX-23-36
Clutch Plate Assembly SX-23-36
With 4 Double Springs &
18 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
18 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
18 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
Lining (Friction Ring,Wafer) PX-23-9
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
19 Lining (Friction Ring,Wafer) For B-21 Converters. AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.5
  • Inside Dia: 7.5
 SX-23-58
Lining (Friction Ring,Wafer) SX-23-58
& For B-21 Converters. AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.5
  • Inside Dia: 7.5
20 Insert Pump Drive
  • Height: 0.78"
  • Internal Teeth: 14 (2 removed)
  • Outside Dia: 0.76"
 SX-22XA

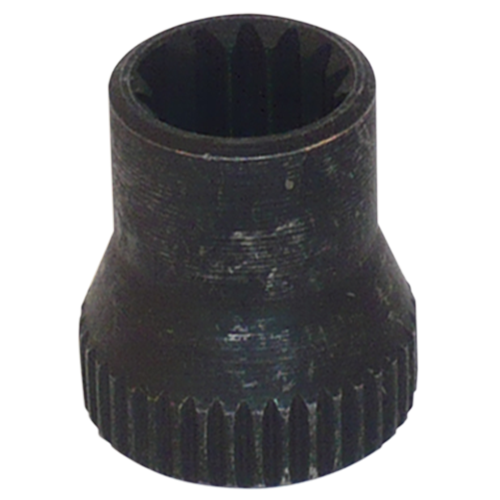

Insert SX-22XA
Pump Drive &
  • Height: 0.78"
  • Internal Teeth: 14 (2 removed)
  • Outside Dia: 0.76"
21 Front Cover NPN-1-10-21
Front Cover NPN-1-10-21
&
22 Bolt Hex Head
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
 B-79
Bolt B-79
Hex Head &
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
