Torque Converter | GM | 258mm LU (TH700-R4 / 4L60-E, 5L40-E) | General Motors

Ill.# Image Description Specification Part #
Piston Plate 4L60E,4T65E,6L80 300mm SX-23-73
Piston Plate SX-23-73
4L60E,4T65E,6L80 300mm &
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Misc NPN-SPL
Misc NPN-SPL
&
2 Impeller Hub SH-1-12
Impeller Hub SH-1-12
&
2 Impeller Hub 4L60E
  • Journal Dia: 1.748"
  • Height: 2.175"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-12GRC
Impeller Hub SH-1-12GRC
& 4L60E
  • Journal Dia: 1.748"
  • Height: 2.175"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

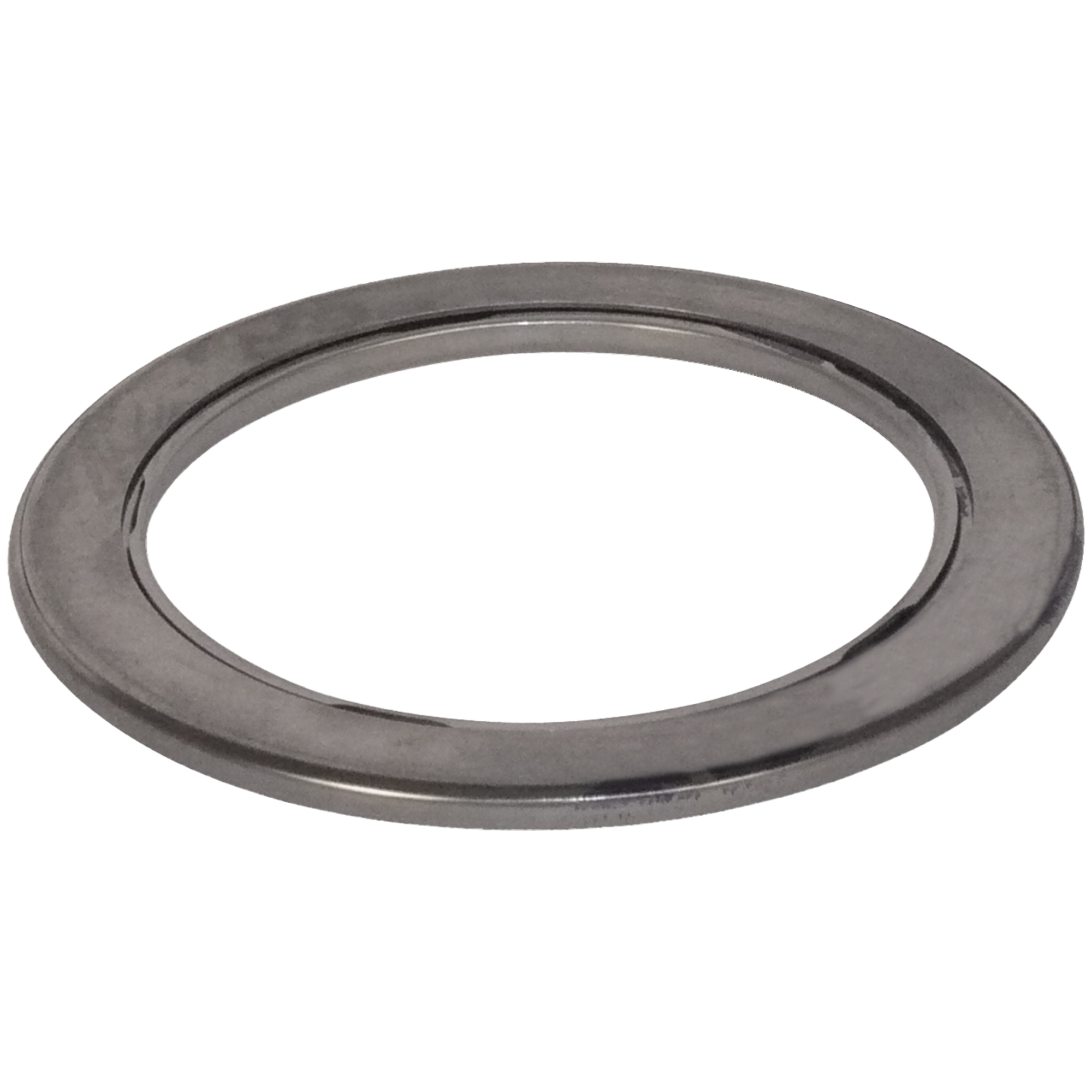

4 Bearing 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5

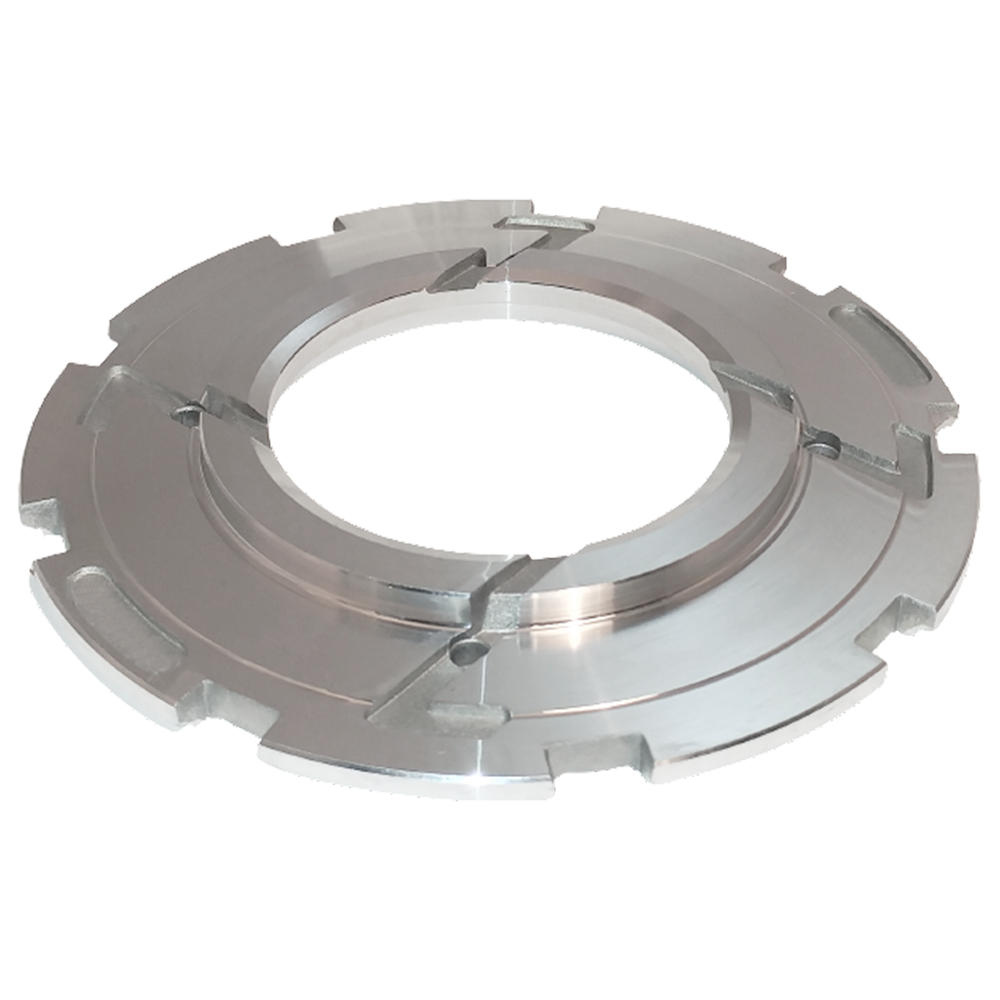

6 Stator Cap 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"
 SW-4-18
Stator Cap SW-4-18
& 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"

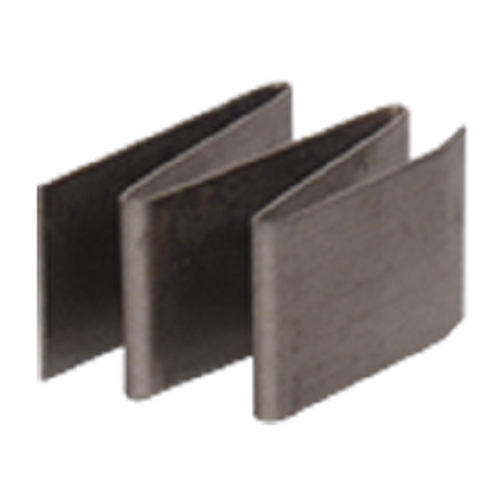

9 Accordion Spring 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
 SS-6-4
Accordion Spring SS-6-4
& 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
10 Roller 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
 SR-7-4
Roller SR-7-4
& 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
11 Inner Race Stator Converts GM 6L80, 6L90 (300mm), GM 258mm LU (4L60-E, 5L40-E) or GM 265mm LU (4T60-E, 4T80-E) converter to a 37- inner tooth, for use in GM 4L80-E single stator applications.
  • Length: 0.875"
  • Internal Teeth: 37
  • Outside Dia: 2.156"
 SX-14-9
Inner Race SX-14-9
Stator & Converts GM 6L80, 6L90 (300mm), GM 258mm LU (4L60-E, 5L40-E) or GM 265mm LU (4T60-E, 4T80-E) converter to a 37- inner tooth, for use in GM 4L80-E single stator applications.
  • Length: 0.875"
  • Internal Teeth: 37
  • Outside Dia: 2.156"
13 Seal Ring Scarf Cut
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006
 JO-25-9
Seal Ring JO-25-9
Scarf Cut &
  • Height: 0.092"
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.3368
  • Seal Type: Scarf Cut
  • Outside Dia: 1.689
  • Outside Dia Metric: 42.9006
13 Seal Ring Solid
  • Height: 0.086
  • Width: 0.094
  • Color: White
  • Material: PTFE
  • Height Metric: 2.1844
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
 SO-23-35
Seal Ring SO-23-35
Solid &
  • Height: 0.086
  • Width: 0.094
  • Color: White
  • Material: PTFE
  • Height Metric: 2.1844
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
15 Rivet 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
Rivet PX-12
& 12 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
15 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
Rivet PX-12-1L
& 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
15 Rivet 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
Rivet RX-12
& 12 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
15 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
Rivet TX-12-7
& 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
16.2 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"

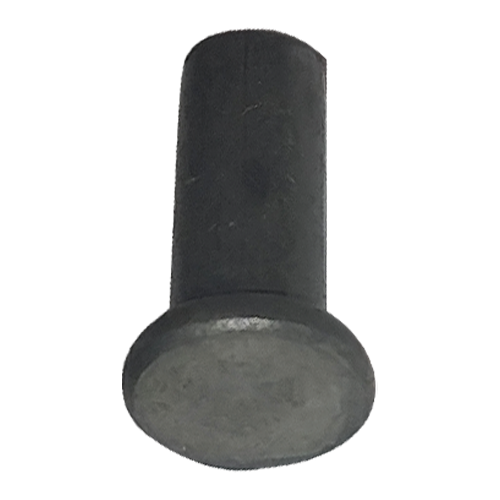

16.2 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16.2 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
17 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
Lining (Friction Ring,Wafer) PX-23-9
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
