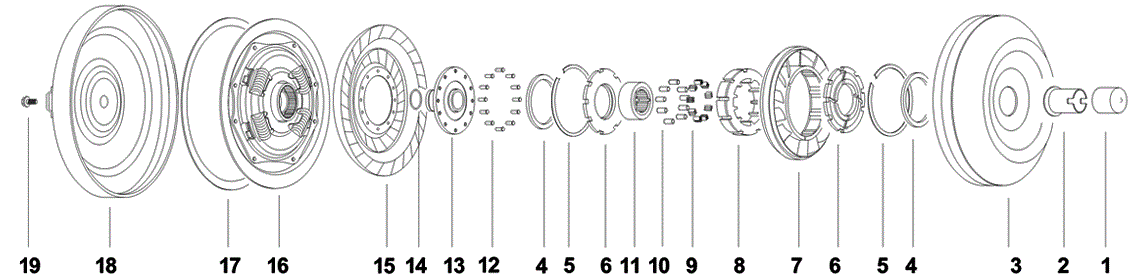

Torque Converter | GM | 245mm Lockup 5L40E, BMW/Euro | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Hub Mount: Flanged
 NPN-1-42-2
Impeller Hub NPN-1-42-2
&
  • Hub Mount: Flanged
2 Impeller Hub
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-56GRC
Impeller Hub SH-1-56GRC
&
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
3 Impeller NPN-1-42-3
Impeller NPN-1-42-3
&
4 Bearing 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
5 Snap Ring NPN-1-42-5
Snap Ring NPN-1-42-5
&
6 Stator Cap 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"
 SW-4-18
Stator Cap SW-4-18
& 2 Pieces Required.
  • Thickness: 0.326"
  • Material: Aluminum
  • Outside Dia: 3.95"
  • Inside Dia: 1.925"
7 Stator NPN-1-42-7
Stator NPN-1-42-7
&
8 Cam Stator NPN-1-42-8
Cam NPN-1-42-8
Stator &
9 Accordion Spring 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
 SS-6-4
Accordion Spring SS-6-4
& 9 Pieces Required.
  • Width: 0.265"
  • Relaxed Length: 0.425"
  • Folds: 2
  • Relaxed Height: 0.525"
10 Roller 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
 SR-7-4
Roller SR-7-4
& 9 Pieces Required.
  • Dia: 0.358"
  • Length: 0.535"
11 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
Inner Race SX-14-2
Stator &
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
11 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-3
Inner Race SX-14-3
Stator &
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
12 Rivet 12 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.26"
 SX-12-12
Rivet SX-12-12
& 12 Pieces Required.
  • Length: 0.27"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.26"
13 Turbine Hub
  • Hardness: Heat-Treated (hardened)
 SX-13-56HT
Turbine Hub SX-13-56HT
&
  • Hardness: Heat-Treated (hardened)
14 O-Ring
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
 SO-23-26
O-Ring SO-23-26
&
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
15 Turbine NPN-1-42-15
Turbine NPN-1-42-15
&
16 Clutch Plate Assembly With 4 Double Springs SX-23-36
Clutch Plate Assembly SX-23-36
With 4 Double Springs &
16.1 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16.1 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
16.1 Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
 PX-23-9
Lining (Friction Ring,Wafer) PX-23-9
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500
  • Inside Dia: 8.250
18 Front Cover NPN-1-42-18
Front Cover NPN-1-42-18
&
19 Bolt Hex Head 3 Pieces Required.
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
 B-79
Bolt B-79
Hex Head & 3 Pieces Required.
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
