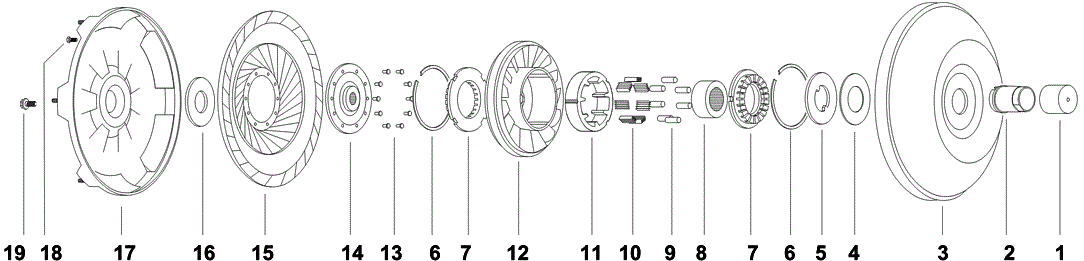

Torque Converter | Ford | C-3, 10-1/4"

Ill.# Image Description Specification Part #
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Misc NPN-SPL
Misc NPN-SPL
&
Hubcap Fits 2" (50.8mm). Length: 1-1/2" C-4
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" & C-4
  • Color: Red
  • Fits 2" (50.8mm)
Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75"
 FH-1-CB13GRC
Impeller Hub FH-1-CB13GRC
&
  • Journal Dia: 1.997"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75"
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8" C3
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" & C3
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Pump Drive Type: Flats
 FH-1-14TGMSRC
Impeller Hub FH-1-14TGMSRC
&
  • Pump Drive Type: Flats
2 Impeller Hub FH-1-30FGHT
Impeller Hub FH-1-30FGHT
&
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 FH-1-14TGMRC
Impeller Hub FH-1-14TGMRC
&
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-31FGRC
Impeller Hub FH-1-31FGRC
&
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-14TGRC
Impeller Hub FH-1-14TGRC
&
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
 FH-1-30FG
Impeller Hub FH-1-30FG
&
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
 FH-1-CB30G
Impeller Hub FH-1-CB30G
&
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
2 Impeller Hub Unfinished
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
 FH-1-31F
Impeller Hub FH-1-31F
Unfinished &
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-CB30GRC
Impeller Hub FH-1-CB30GRC
&
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-15TGRC
Impeller Hub FH-1-15TGRC
&
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-16FGRC
Impeller Hub FH-1-16FGRC
&
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36

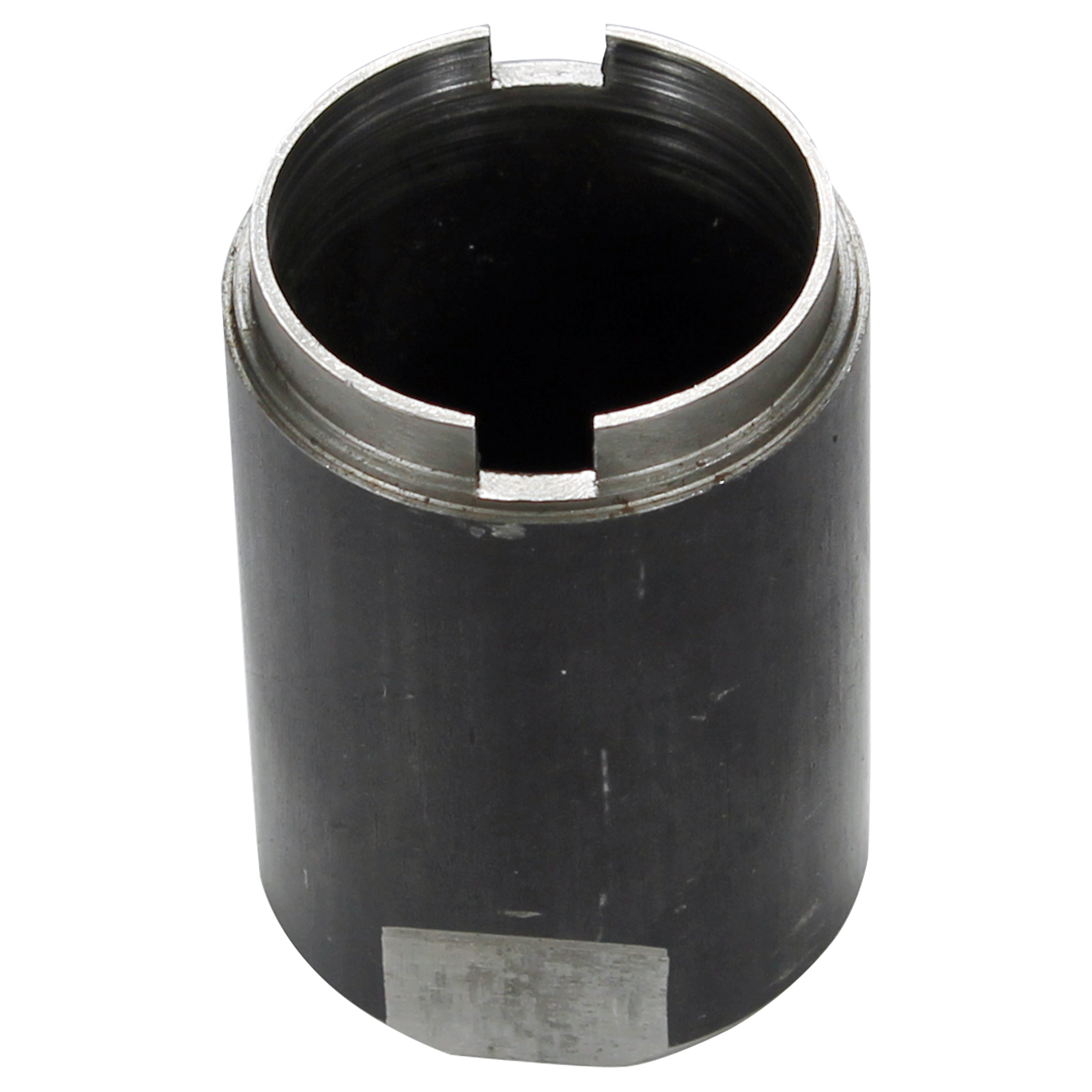

2 Impeller Hub Unfinished, Without Weld Groove
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
 FH-1-8FW
Impeller Hub FH-1-8FW
Unfinished, Without Weld Groove &
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
 FH-1-8FG
Impeller Hub FH-1-8FG
&
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Length: 2.997"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
 FH-1-8FGRC
Impeller Hub FH-1-8FGRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.696"
  • Length: 2.997"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
3 Impeller NPN-2-2-3
Impeller NPN-2-2-3
&
4 Shim C-4
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
& C-4
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim C-4
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
& C-4
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim C-4
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
& C-4
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim C-3
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
& C-3
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
4 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
&
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
4 Shim C-3
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
& C-3
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim C-3
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
& C-3
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"

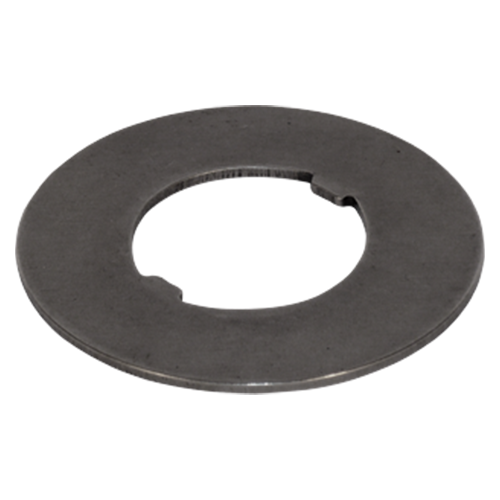

5 Washer
  • Material: Steel
 FW-2-30
Washer FW-2-30
&
  • Material: Steel
6 Snap Ring 2 Pieces Required. FX-20-10
Snap Ring FX-20-10
& 2 Pieces Required.

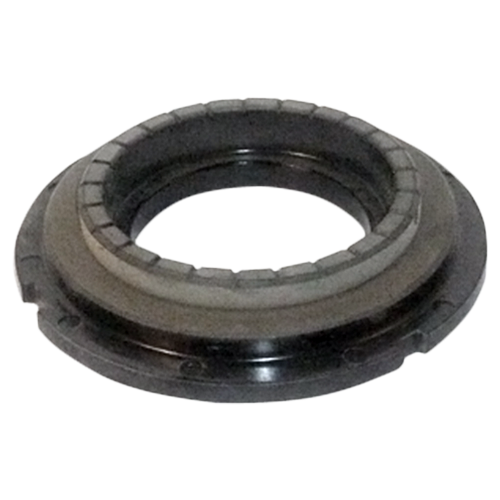

6.1 Stator Cap
  • Thickness: 0.560"
  • Material: Phenolic
  • Functional Thickness: 0.369"
  • Outside Dia: 3.34"
  • Inside Dia: 1.690"
  • Use With Bearing SW-2-12
 FW-4-17
Stator Cap FW-4-17
&
  • Thickness: 0.560"
  • Material: Phenolic
  • Functional Thickness: 0.369"
  • Outside Dia: 3.34"
  • Inside Dia: 1.690"
  • Use With Bearing SW-2-12
7 Stator Cap 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.5"
  • Inside Dia: 1.7"
 FW-4-2A
Stator Cap FW-4-2A
& 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.5"
  • Inside Dia: 1.7"
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • OE#: C8DP-7937A D5ZP-7937AA
 FW-4-2P
Stator Cap FW-4-2P
& 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • OE#: C8DP-7937A D5ZP-7937AA
8 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
 FX-14-30
Inner Race FX-14-30
Stator &
  • Height: 0.985"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
9 Roller 7 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& 7 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
10 Accordion Spring 7 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& 7 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
11 Outer Race (Cam) Stator
  • Outside Dia: 3.360"
 FX-15-3
Outer Race (Cam) FX-15-3
Stator &
  • Outside Dia: 3.360"
12 Stator NPN-2-2-12
Stator NPN-2-2-12
&
13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Turbine Hub
  • Internal Teeth: 21
  • Outside Dia: 3.85"
 FX-13-30
Turbine Hub FX-13-30
&
  • Internal Teeth: 21
  • Outside Dia: 3.85"
14 Turbine Hub
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.85"
 FX-13-30HT
Turbine Hub FX-13-30HT
&
  • Internal Teeth: 21
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.85"
15 Turbine
  • Outside Dia: 10-1/4"
 NPN-2-2-15
Turbine NPN-2-2-15
&
  • Outside Dia: 10-1/4"
16 Turbine Washer
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4T
Turbine Washer FW-9-4T
&
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4TF
Turbine Washer FW-9-4TF
&
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4A
Turbine Washer FW-9-4A
&
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4AF
Turbine Washer FW-9-4AF
&
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4B
Turbine Washer FW-9-4B
&
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4BF
Turbine Washer FW-9-4BF
&
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4C
Turbine Washer FW-9-4C
&
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
16 Turbine Washer
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4CF
Turbine Washer FW-9-4CF
&
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
16 Turbine Washer
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4D
Turbine Washer FW-9-4D
&
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DF
Turbine Washer FW-9-4DF
&
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DS
Turbine Washer FW-9-4DS
&
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4E
Turbine Washer FW-9-4E
&
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4EF
Turbine Washer FW-9-4EF
&
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4F
Turbine Washer FW-9-4F
&
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4FF
Turbine Washer FW-9-4FF
&
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4GF
Turbine Washer FW-9-4GF
&
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3
Turbine Washer CW-9-3
&
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3B
Turbine Washer CW-9-3B
&
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3BF
Turbine Washer CW-9-3BF
&
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .125"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3F
Turbine Washer CW-9-3F
&
  • Thickness: .125"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4G
Turbine Washer FW-9-4G
&
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"

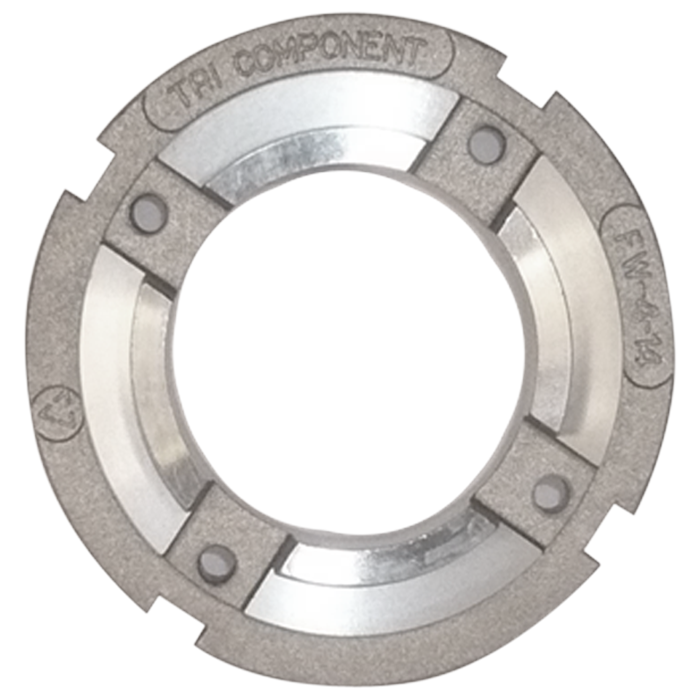

16.1 Stator Cap Bearing Adapter for 10 -1/4"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.690"
 FW-4-17A
Stator Cap FW-4-17A
Bearing Adapter & for 10 -1/4"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.690"
16_N.I. Salvage Ring™ Coresaver™ NPN-2-2-16_N.I.
Salvage Ring™ NPN-2-2-16_N.I.
Coresaver™ &
17 Front Cover NPN-2-2-17
Front Cover NPN-2-2-17
&
17.1 Studcap Plastic Stud Protector
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector &
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
17.1 Studcap
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
&
  • Inside Dia: 0.375
18 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
18 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
18 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
18_N.I. Mounting Pad Threaded M10 X 1.00 (Fine) FX-10-30
Mounting Pad FX-10-30
Threaded M10 X 1.00 (Fine) &
18_N.I. Mounting Pad Threaded M10 X 1.50 (Coarse) FX-10-31
Mounting Pad FX-10-31
Threaded M10 X 1.50 (Coarse) &
19 Bolt Fine
  • Dimensions: M10 x 1.0mm
  • Length: 14mm
 FX-10-100
Bolt FX-10-100
Fine &
  • Dimensions: M10 x 1.0mm
  • Length: 14mm
19 Bolt (Coarse)
  • Dimensions: M10 x 1.5mm
  • Length: 14mm
 FX-10-150
Bolt FX-10-150
(Coarse) &
  • Dimensions: M10 x 1.5mm
  • Length: 14mm
19_N.I. Pilot Unfinished
  • Length: .88"
  • Outside Dia: 0.875
 FX-17-30
Pilot FX-17-30
Unfinished &
  • Length: .88"
  • Outside Dia: 0.875

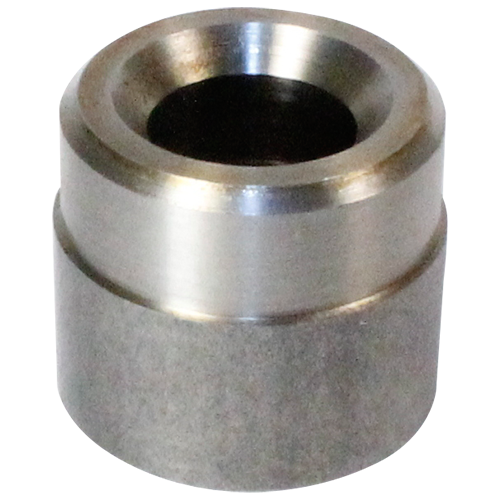

19_N.I. Pilot Sleeve, Convert To Fairmont,
  • Outside Dia: 1.38"
  • Inside Dia: 1.25"
 FX-17-31
Pilot FX-17-31
Sleeve, Convert To Fairmont, &
  • Outside Dia: 1.38"
  • Inside Dia: 1.25"
