Torque Converter | Ford | AOD (FIOD)

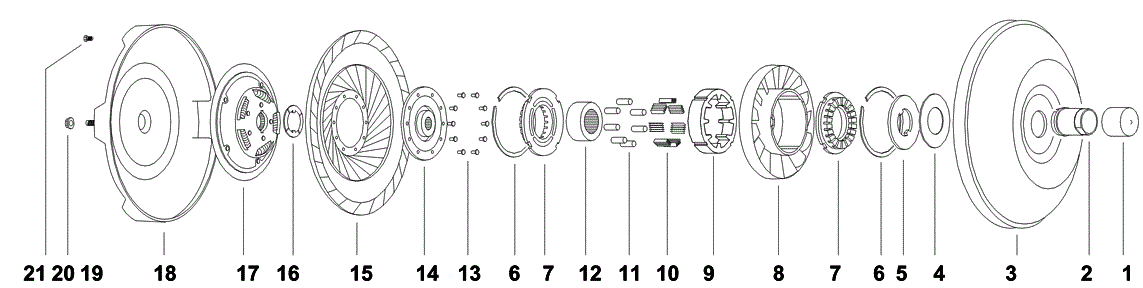

Ill.# Image Description Specification Part #
Stator Cap Bearing Adapter Fits SW-2-12 bearing
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14A
Stator Cap FW-4-14A
Bearing Adapter & Fits SW-2-12 bearing
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
0 Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
Impeller Hub FH-1-2312GRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRCD
Impeller Hub FH-1-5FGRCD
&
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-6F
Impeller Hub FH-1-6F
&
  • Inside Dia: 1.75
2 Impeller Hub Heat Treated
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
Impeller Hub FH-1-3107GRC
Heat Treated &
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Inside Dia: 1.688
 FH-1-CB6
Impeller Hub FH-1-CB6
&
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB5GRC
Impeller Hub FH-1-CB5GRC
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
 FH-1-CB6G
Impeller Hub FH-1-CB6G
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
2 Impeller Hub Flanged, AOD, C-6, C-4
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
Impeller Hub FH-1-25FLG
Flanged, AOD, C-6, C-4 &
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRC
Impeller Hub FH-1-5FGRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-6FGRC
Impeller Hub FH-1-6FGRC
&
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB6GRC
Impeller Hub FH-1-CB6GRC
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
3 Impeller NPN-2-30-3
Impeller NPN-2-30-3
&
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
5 Washer Standard
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
 FW-2-1
Washer FW-2-1
Standard &
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
5 Washer Oversized
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
 FW-2-1A
Washer FW-2-1A
Oversized &
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
Snap Ring FX-20-11
& 2 Pieces Required.
  • Inside Dia: 3.600"
7 Stator Cap Plastic 2 Pieces Required.
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
 FW-4-3
Stator Cap FW-4-3
Plastic & 2 Pieces Required.
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
Stator Cap FW-4-3A
& 2 Pieces Required.
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
Stator Cap FW-4-13
& 2 Pieces Required.
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
 FW-4-15
Stator Cap FW-4-15
& 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
7 Washer 2 Pieces Required.
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
 FW-4-8
Washer FW-4-8
& 2 Pieces Required.
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
7 Stator Cap Heavy Duty 2 Pieces Required.
  • Thickness: 0.69"
  • Material: Phenolic
  • Outside Dia: 3.60"
  • Inside Dia: 2"
  • OE# F7AP-7937-AA
 FW-4-19
Stator Cap FW-4-19
Heavy Duty & 2 Pieces Required.
  • Thickness: 0.69"
  • Material: Phenolic
  • Outside Dia: 3.60"
  • Inside Dia: 2"
  • OE# F7AP-7937-AA
7 Stator Cap Bearing Adapter Use With Bearing SW-2-12
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14
Stator Cap FW-4-14
Bearing Adapter & Use With Bearing SW-2-12
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12

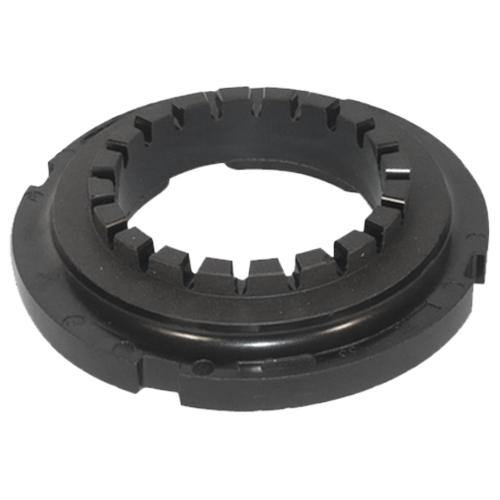

7 Stator Cap Bearing Adapter Use With Bearing SW-2-12
  • Thickness: .66"
  • Material: Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14P
Stator Cap FW-4-14P
Bearing Adapter & Use With Bearing SW-2-12
  • Thickness: .66"
  • Material: Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
7 Stator Cap Bearing Adapter
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18
Stator Cap FW-4-18
Bearing Adapter &
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
7 Stator Cap Bearing Adapter
  • Thickness: .56"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18A
Stator Cap FW-4-18A
Bearing Adapter &
  • Thickness: .56"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
8 Stator NPN-2-30-8
Stator NPN-2-30-8
&
9 Outer Race (Cam) Stator Early
  • Height: .90"
  • Outside Dia: 3.60"
 FX-15-4
Outer Race (Cam) FX-15-4
Stator & Early
  • Height: .90"
  • Outside Dia: 3.60"
10 Accordion Spring 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
10 Accordion Spring 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
 FS-6-11
Accordion Spring FS-6-11
& 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
10 Accordion Spring 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-8
Accordion Spring FS-6-8
& 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
Roller 12960R
& 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
Roller FR-7-2
& 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
12 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-1
Inner Race FX-14-1
Stator &
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
12 Inner Race Stator
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-5
Inner Race FX-14-5
Stator &
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.375"

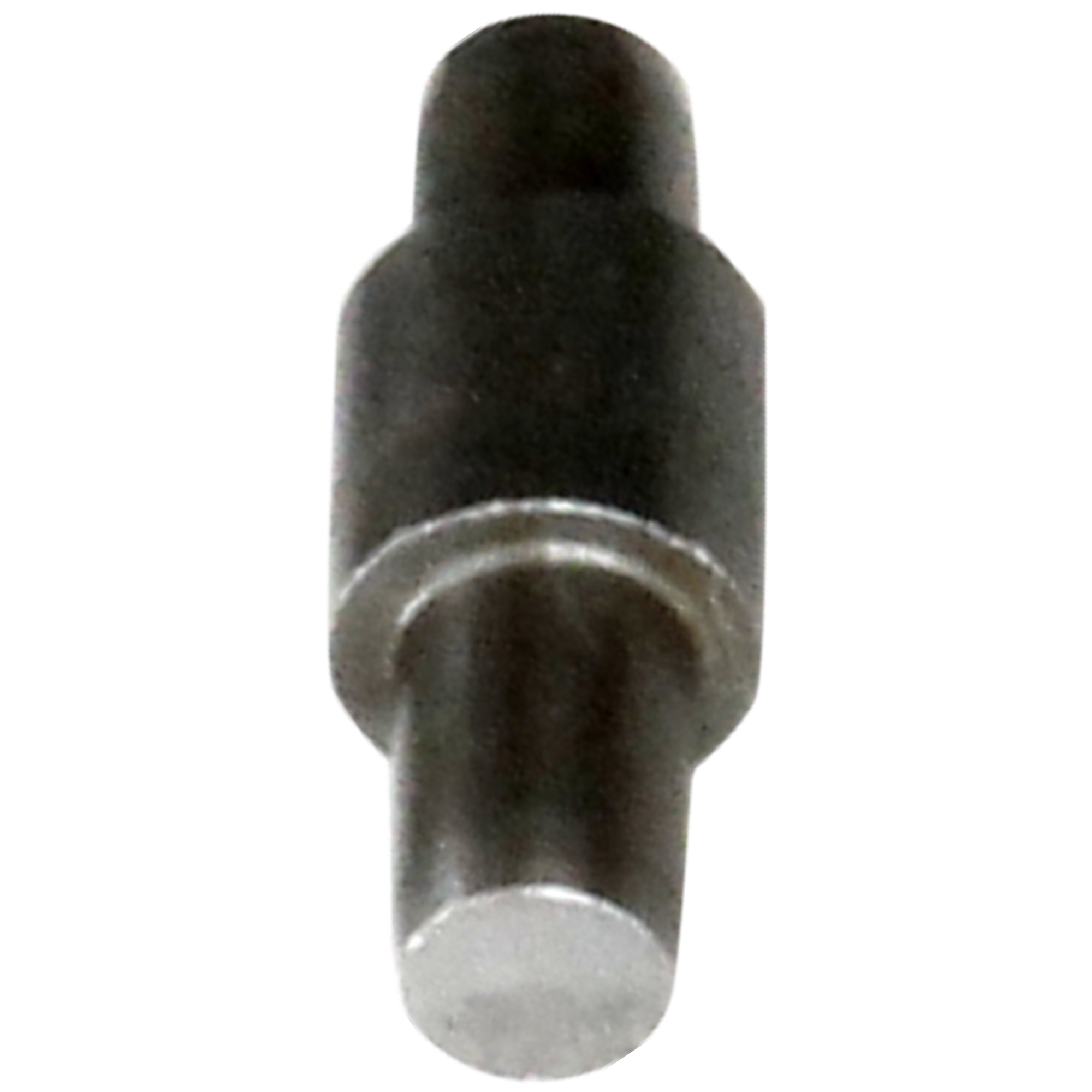

13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

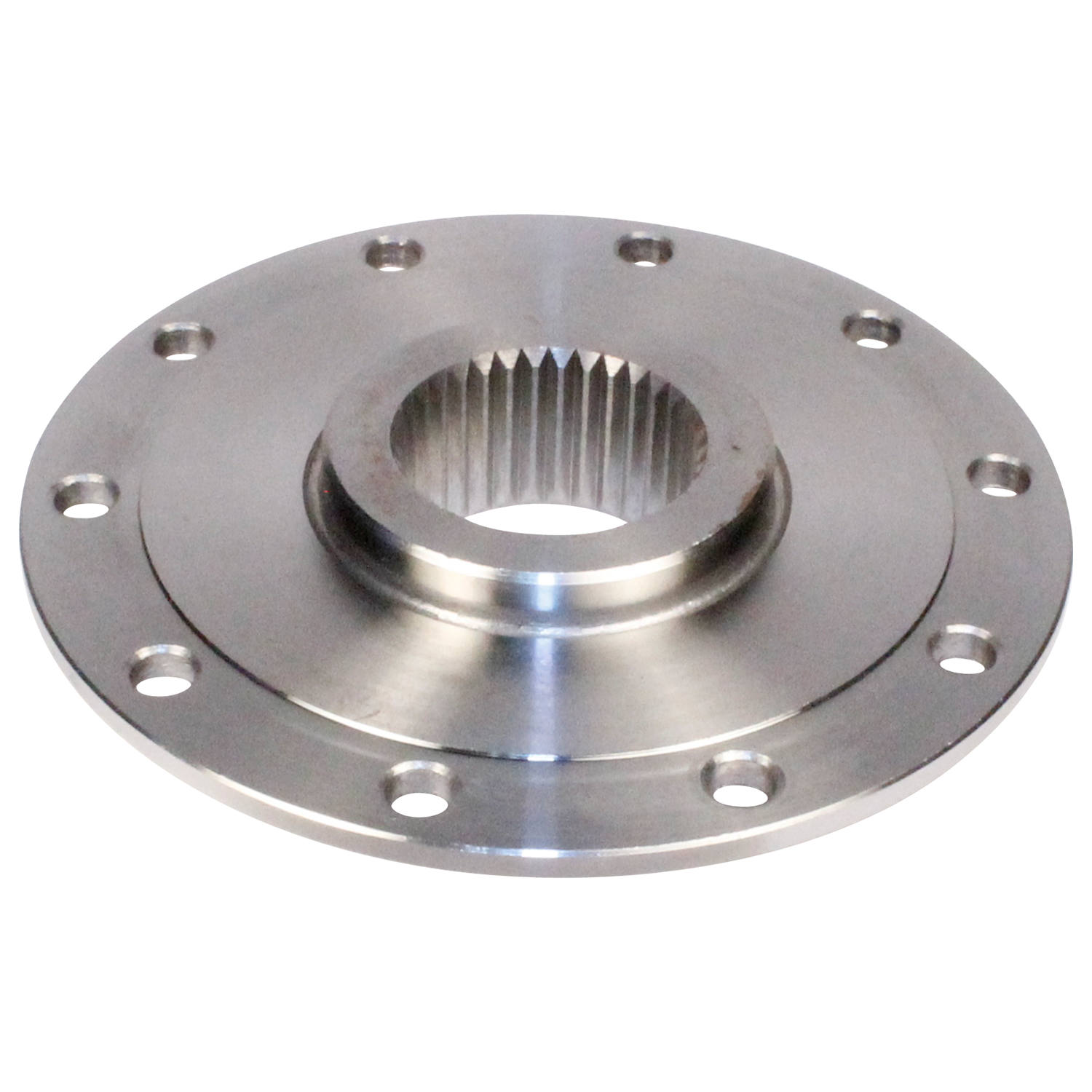

14 Turbine Hub
  • Internal Teeth: 35
  • Outside Dia: 3.85"
 FX-13-10
Turbine Hub FX-13-10
&
  • Internal Teeth: 35
  • Outside Dia: 3.85"
14 Turbine Hub
  • Internal Teeth: 35
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.85"
 FX-13-10HT
Turbine Hub FX-13-10HT
&
  • Internal Teeth: 35
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.85"

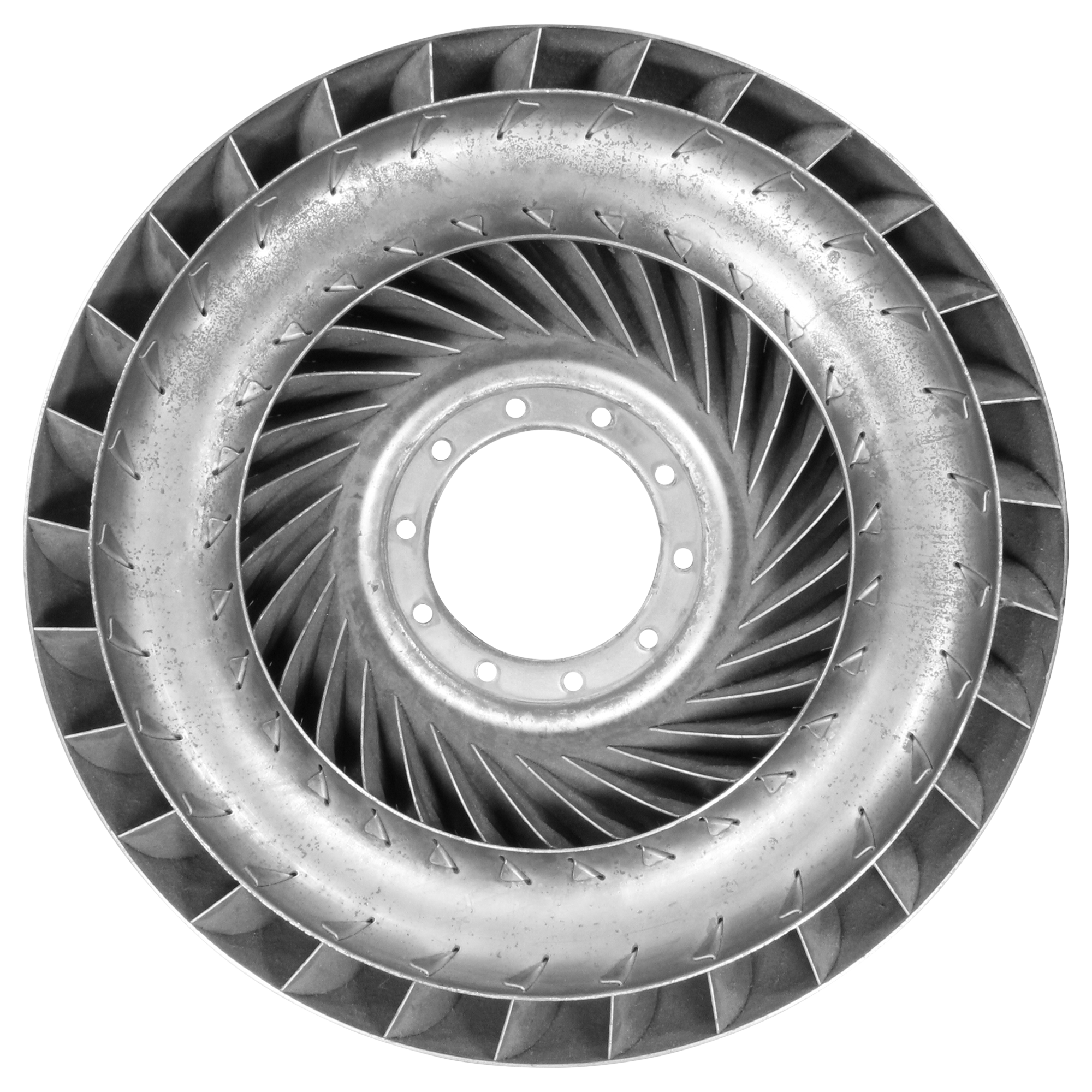

15 Turbine 12" FX-8-14
Turbine FX-8-14
12" &
15 Turbine
  • Outside Dia: 12"
 NPN-2-30-15
Turbine NPN-2-30-15
&
  • Outside Dia: 12"
16 Turbine Washer
  • Thickness: .060
  • Material: BIMETAL
  • Lug Count: 2
  • Outside Dia: 2.760
  • Inside Dia: 1.500
 FW-9-6
Turbine Washer FW-9-6
&
  • Thickness: .060
  • Material: BIMETAL
  • Lug Count: 2
  • Outside Dia: 2.760
  • Inside Dia: 1.500
16 Turbine Washer
  • Material: Bronze
  • Outside Dia: 2.760
  • Inside Dia: 1.500
 FW-9-6B
Turbine Washer FW-9-6B
&
  • Material: Bronze
  • Outside Dia: 2.760
  • Inside Dia: 1.500
16 Turbine Washer
  • Material: Plastic
  • Lug Count: 2
  • Outside Dia: 2.760
  • Inside Dia: 1.500
 FW-9-6P
Turbine Washer FW-9-6P
&
  • Material: Plastic
  • Lug Count: 2
  • Outside Dia: 2.760
  • Inside Dia: 1.500
16 Turbine Washer
  • Thickness: .040"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.46"
 FW-9-13
Turbine Washer FW-9-13
&
  • Thickness: .040"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.46"
16 Turbine Washer
  • Thickness: .063"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 TW-9-5A
Turbine Washer TW-9-5A
&
  • Thickness: .063"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
16 Turbine Washer Early
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5AF
Turbine Washer TW-9-5AF
& Early
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
17 Damper Assembly Bullet Proof™ FX-22-8A
Damper Assembly FX-22-8A
Bullet Proof™ &

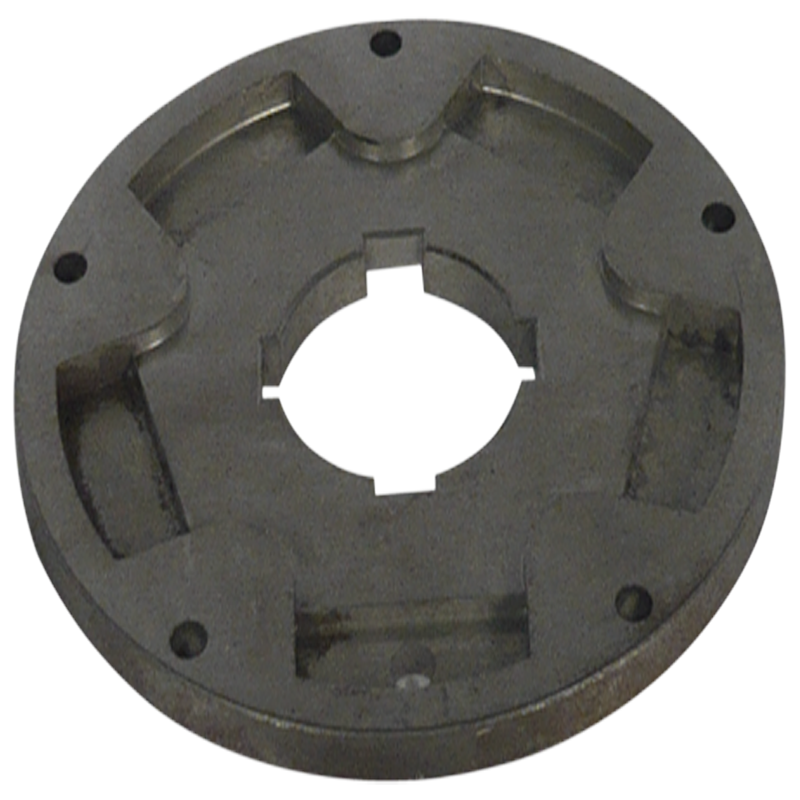

17.1 Clutch Plate Assembly Cover, AOD FX-22-1
Clutch Plate Assembly FX-22-1
Cover, AOD &
17.1 Rivet
  • Length: .840.220/.320"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.2"
  • Rivet Head Dia: 0.2"
 FX-22-2
Rivet FX-22-2
&
  • Length: .840.220/.320"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.2"
  • Rivet Head Dia: 0.2"

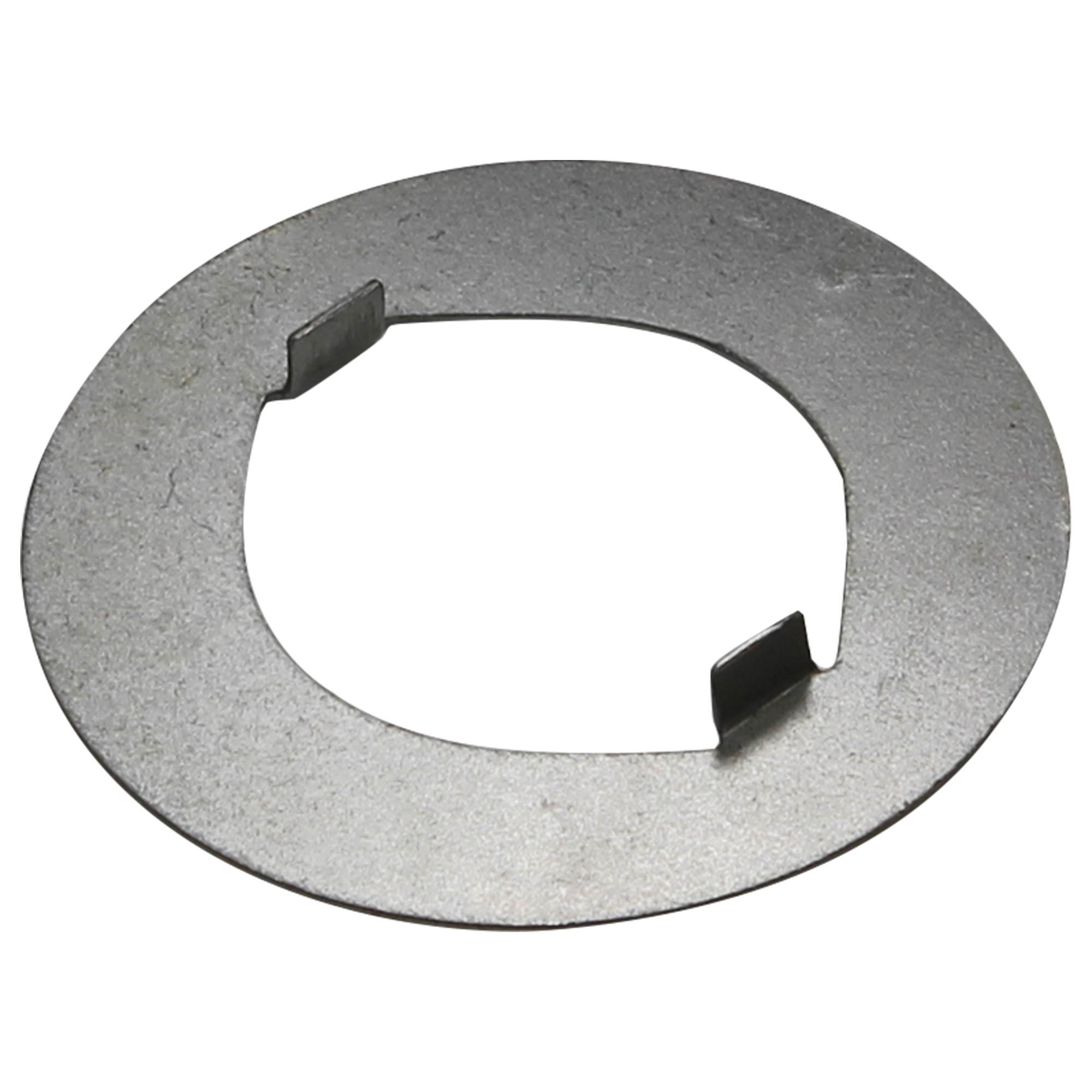

17.1 Washer 2 Lugs FX-22-5
Washer FX-22-5
2 Lugs &
17_N.I. Plate Hex FX-22-26
Plate FX-22-26
Hex &
17_N.I. Damper Eliminator Used with FX-13-10 FX-22-26K
Damper Eliminator FX-22-26K
& Used with FX-13-10

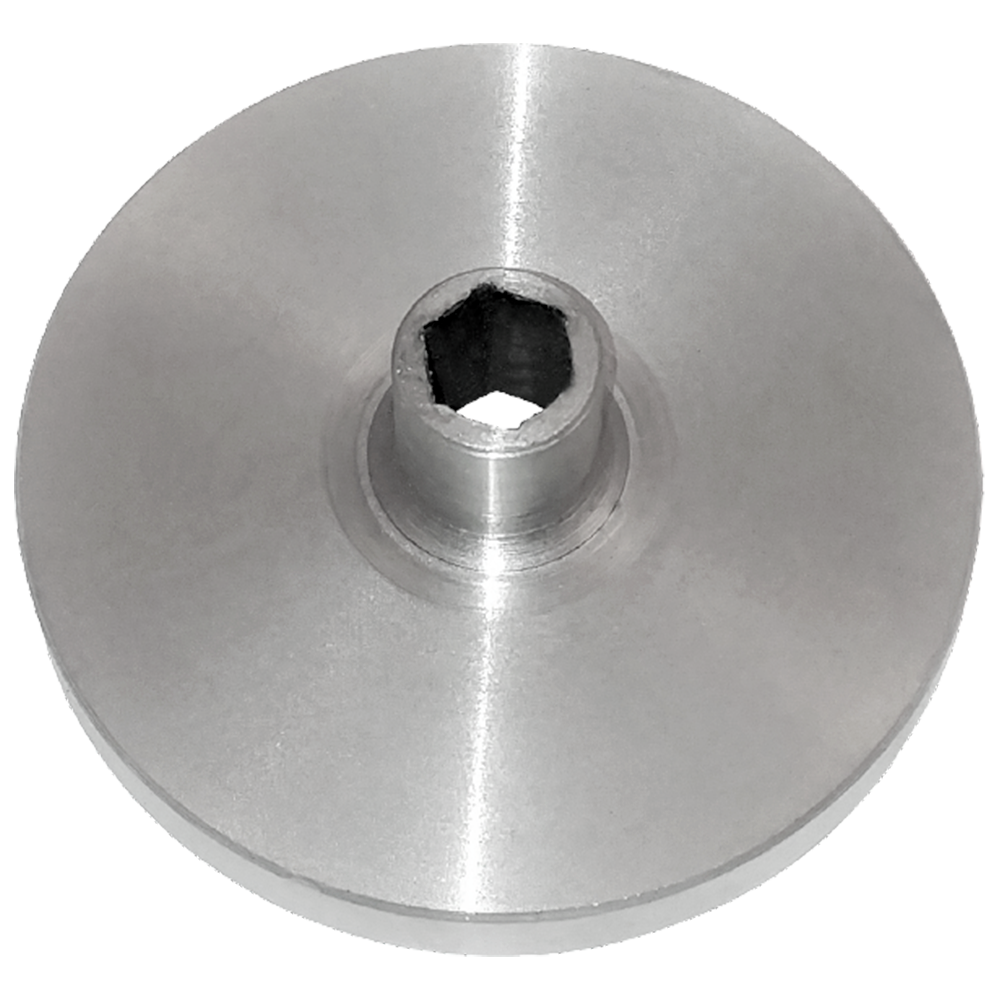

17_N.I. Driver FX-22-6
Driver FX-22-6
&
17_N.I. Hub Splined
  • Solid Steel, Bullet Proof™, Problem Solver
 FX-22-6BHD
Hub FX-22-6BHD
Splined &
  • Solid Steel, Bullet Proof™, Problem Solver
17_N.I. Floating Ring Used with hub, damper FX-22-6BHD
  • Thickness: 0.070"
  • Material: Red
  • Outside Dia: 2.312"
  • Inside Dia: 1.687"
 FX-22-6L
Floating Ring FX-22-6L
Used with hub, damper FX-22-6BHD &
  • Thickness: 0.070"
  • Material: Red
  • Outside Dia: 2.312"
  • Inside Dia: 1.687"
17_N.I. Salvage Ring™
  • Width: 0.375"
  • Outside Dia: 12.92"
  • Restores Engagement Step
 FX-21-1005
Salvage Ring™ FX-21-1005
&
  • Width: 0.375"
  • Outside Dia: 12.92"
  • Restores Engagement Step
17_N.I. Salvage Ring™ Coresaver™
  • Width: 0.250"
  • Outside Dia: 12.92"
 FX-21-1005NR
Salvage Ring™ FX-21-1005NR
Coresaver™ &
  • Width: 0.250"
  • Outside Dia: 12.92"
18 Front Cover NPN-2-30-18
Front Cover NPN-2-30-18
&
19 Stud Thin Head Type 4 Pieces Required.
  • (Use FX-10-4)
 FX-10-2
Stud FX-10-2
Thin Head Type & 4 Pieces Required.
  • (Use FX-10-4)
19 Stud 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
Stud FX-10-4
& 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
19_N.I. Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
19_N.I. Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
20 Nut Converter 4 Pieces Required. 26761
Nut 26761
Converter & 4 Pieces Required.
20 Nut Special Locking 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
Nut FX-10-7
Special Locking & 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
20 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
Nut & Studcap Kit FX-10-7K4STD
4 Pieces Each &
20 Nut Hex 4 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
Nut N-63
Hex & 4 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
21 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
21 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
21 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
