Torque Converter | Ford | 6R140

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
2 Impeller Hub Flanged, PTO Drive: Internal
  • Journal Dia: 2.508"
  • Installed Height: 2.672"
  • Height: 2.800"
  • Hub Mount: Flanged
  • Pump Drive Type: External Spline
  • Flange Dia: 4.500"
  • Material: Chrome-Moly Steel
  • Inside Dia: 4.500"
 FH-1-46FLG
Impeller Hub FH-1-46FLG
Flanged, PTO Drive: Internal &
  • Journal Dia: 2.508"
  • Installed Height: 2.672"
  • Height: 2.800"
  • Hub Mount: Flanged
  • Pump Drive Type: External Spline
  • Flange Dia: 4.500"
  • Material: Chrome-Moly Steel
  • Inside Dia: 4.500"

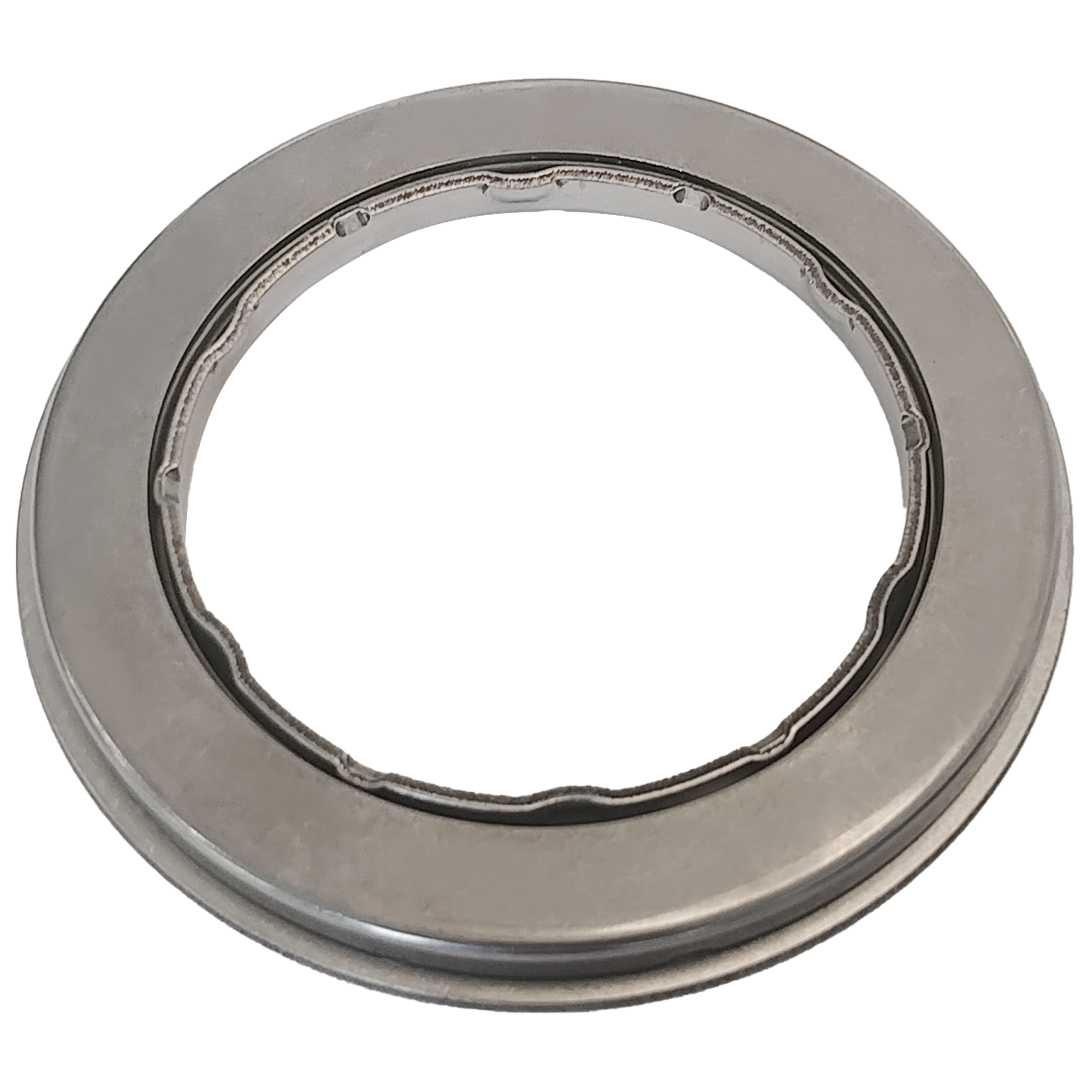

3 Bearing
  • Thickness: 0.288
  • Thickness metric: 7.32
  • Bearing type: Enclosed
  • Outside Dia: 3.771
  • Inside Dia: 2.673
  • Outside Dia Metric: 95.78
  • Inside Dia metric: 67.89
 FW-2-12
Bearing FW-2-12
&
  • Thickness: 0.288
  • Thickness metric: 7.32
  • Bearing type: Enclosed
  • Outside Dia: 3.771
  • Inside Dia: 2.673
  • Outside Dia Metric: 95.78
  • Inside Dia metric: 67.89
4 Sprag
  • Thickness: 0.792"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 3.031"
  • Inner Race Outside Dia: 2.375"
 FC-6-11
Sprag FC-6-11
&
  • Thickness: 0.792"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 3.031"
  • Inner Race Outside Dia: 2.375"
5 Stator Cap
  • Thickness: 0.460"
  • Material: Aluminum
  • Functional Thickness: 0.197"
  • Outside Dia: 4.265"
  • Inside Dia: 1.980"
 FW-4-38
Stator Cap FW-4-38
&
  • Thickness: 0.460"
  • Material: Aluminum
  • Functional Thickness: 0.197"
  • Outside Dia: 4.265"
  • Inside Dia: 1.980"

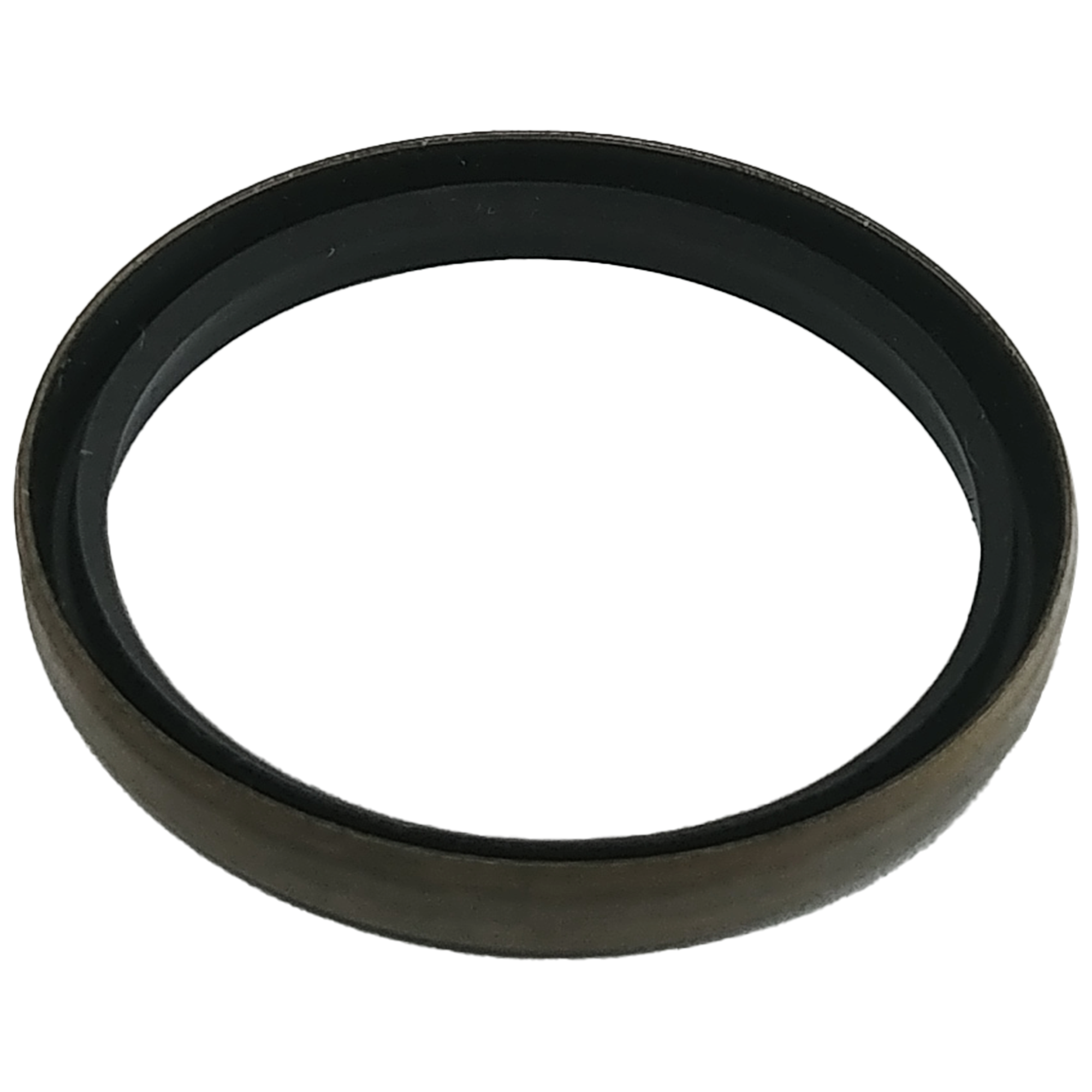

6 Metal Clad Seal
  • Housing Bore Dia: 1.851
  • Housing Bore Dia Metric: 47
  • Shaft Dia metric: 39.5
  • Shaft Dia: 1.554
  • Material: Fluorocarbon
 FO-25-24
Metal Clad Seal FO-25-24
&
  • Housing Bore Dia: 1.851
  • Housing Bore Dia Metric: 47
  • Shaft Dia metric: 39.5
  • Shaft Dia: 1.554
  • Material: Fluorocarbon
8 D-Ring Seal Outer Piston Seal
  • Height: 0.147
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.7338
  • Seal Type: D-Ring
  • Inside Dia: 11.04
  • Inside Dia metric: 280.4
 FO-25-33
D-Ring Seal FO-25-33
Outer Piston Seal &
  • Height: 0.147
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.7338
  • Seal Type: D-Ring
  • Inside Dia: 11.04
  • Inside Dia metric: 280.4
9 D-Ring Seal Inner Piston Seal, 4-Stud, 6.2L engine.
  • Height: 0.14
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.556
  • Seal Type: D-Ring
  • Inside Dia: 7.816
  • Inside Dia metric: 198.5
 FO-25-32
D-Ring Seal FO-25-32
& Inner Piston Seal, 4-Stud, 6.2L engine.
  • Height: 0.14
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.556
  • Seal Type: D-Ring
  • Inside Dia: 7.816
  • Inside Dia metric: 198.5
10 D-Ring Seal Outer Piston Seal, 6 & 8 Stud
  • Height: 0.145
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.683
  • Seal Type: D-Ring
  • Inside Dia: 5.114
  • Inside Dia metric: 129.9
 FO-25-31
D-Ring Seal FO-25-31
& Outer Piston Seal, 6 & 8 Stud
  • Height: 0.145
  • Width: 0.085
  • Material: Fluorocarbon
  • Height Metric: 3.683
  • Seal Type: D-Ring
  • Inside Dia: 5.114
  • Inside Dia metric: 129.9

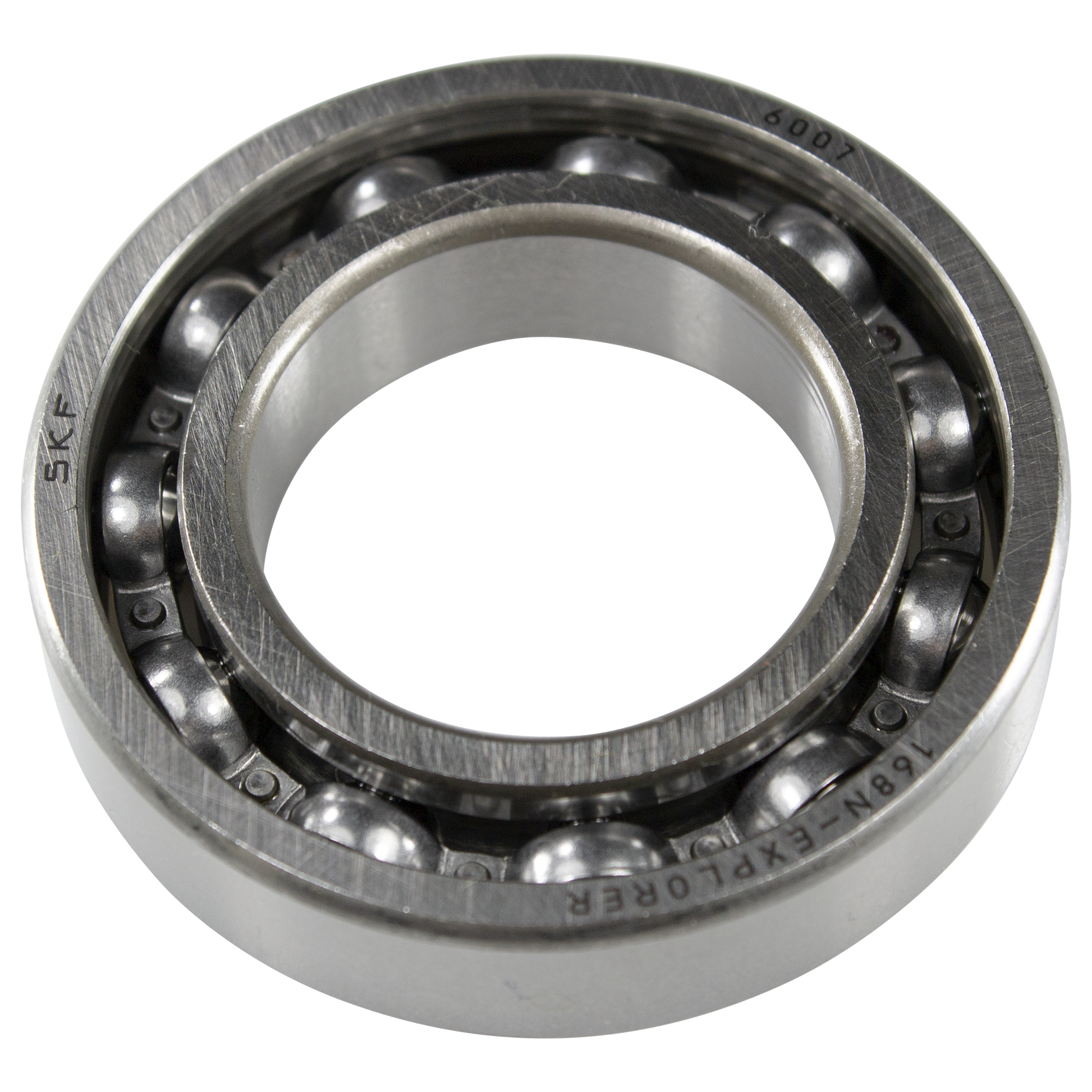

11 Bearing 4-Stud & 6-Stud
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm
 FW-2-14
Bearing FW-2-14
& 4-Stud & 6-Stud
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm

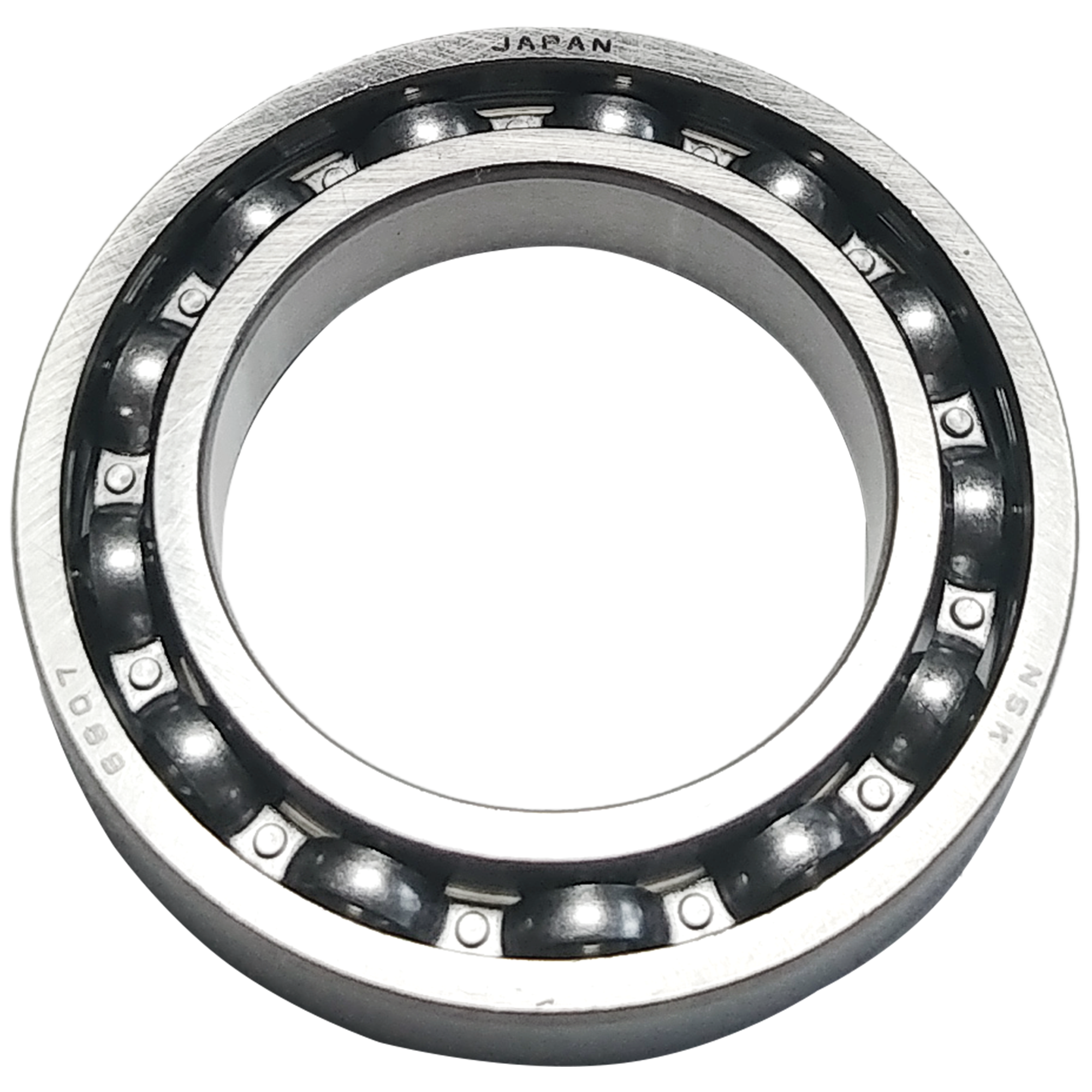

12 Bearing 8-Stud
  • Thickness: 0.394
  • Thickness metric: 10.01
  • Bearing type: Ball Bearing
  • Outside Dia: 2.165
  • Inside Dia: 1.378
  • Outside Dia Metric: 55
  • Inside Dia metric: 35
 FW-2-16
Bearing FW-2-16
& 8-Stud
  • Thickness: 0.394
  • Thickness metric: 10.01
  • Bearing type: Ball Bearing
  • Outside Dia: 2.165
  • Inside Dia: 1.378
  • Outside Dia Metric: 55
  • Inside Dia metric: 35
13 Nut
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
&
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
24 Friction Plate
  • Thickness: 0.118"
  • Internal Teeth: 30
  • Tab Count: 30 Internal Flat Tab bonded to each side
  • Outside Dia: 11.500"
  • Inside Dia: 9.770"
 FX-23-81
Friction Plate FX-23-81
&
  • Thickness: 0.118"
  • Internal Teeth: 30
  • Tab Count: 30 Internal Flat Tab bonded to each side
  • Outside Dia: 11.500"
  • Inside Dia: 9.770"
