Torque Converter | Ford | 5R55N, 5R55S, 5R55W

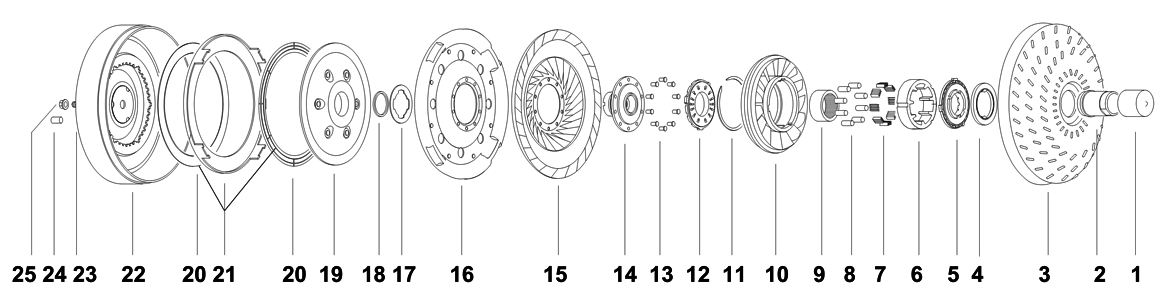

Ill.# Image Description Specification Part #
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 7.375"
 FX-23-71
Lining (Friction Ring,Wafer) FX-23-71
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 7.375"
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.812"
  • Inside Dia: 9.063"
 FX-23-88
Lining (Friction Ring,Wafer) FX-23-88
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.812"
  • Inside Dia: 9.063"
Misc NPN-SPL
Misc NPN-SPL
&
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 7.75"
 SX-23-13
Lining (Friction Ring,Wafer) SX-23-13
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 7.75"
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Pump Drive Type: Flats
 FH-1-14TGMSRC
Impeller Hub FH-1-14TGMSRC
&
  • Pump Drive Type: Flats
2 Impeller Hub FH-1-30FGHT
Impeller Hub FH-1-30FGHT
&
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats

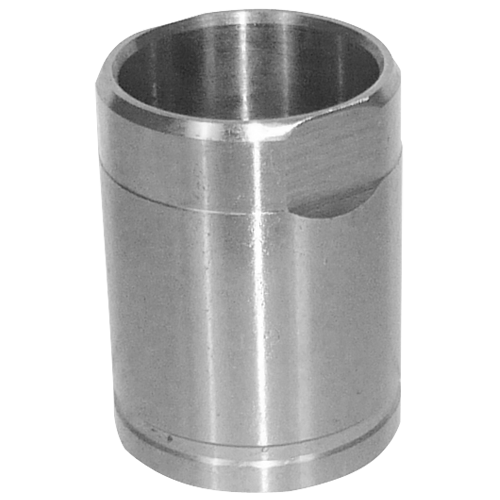

 FH-1-14TGMRC
Impeller Hub FH-1-14TGMRC
&
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-31FGRC
Impeller Hub FH-1-31FGRC
&
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-14TGRC
Impeller Hub FH-1-14TGRC
&
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
 FH-1-30FG
Impeller Hub FH-1-30FG
&
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
2 Impeller Hub Unfinished
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats

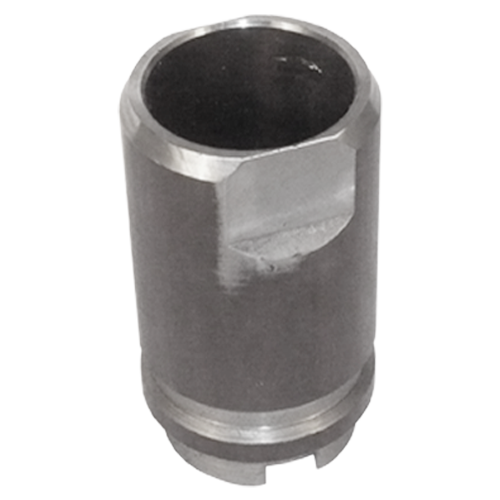

 FH-1-31F
Impeller Hub FH-1-31F
Unfinished &
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36

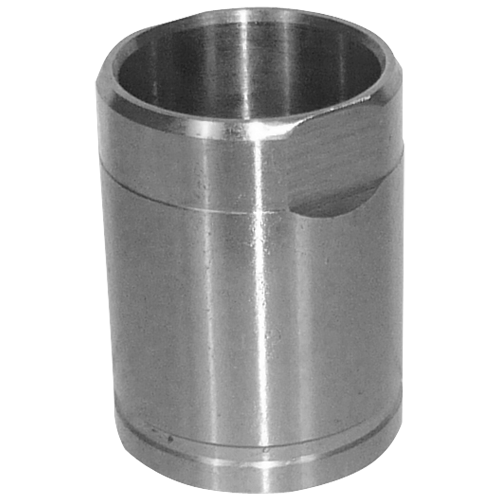

 FH-1-15TGRC
Impeller Hub FH-1-15TGRC
&
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-16FGRC
Impeller Hub FH-1-16FGRC
&
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-2-28-3
Impeller NPN-2-28-3
&
4 Bearing
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Lug Count: 2 Internal
  • Outside Dia: 2.88
  • Inside Dia: 1.992
  • Outside Dia Metric: 73.15
  • Inside Dia metric: 50.6
 FW-2-9
Bearing FW-2-9
&
  • Thickness: 0.197
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Lug Count: 2 Internal
  • Outside Dia: 2.88
  • Inside Dia: 1.992
  • Outside Dia Metric: 73.15
  • Inside Dia metric: 50.6
5 Stator Cap OE # XW4P-7A869-AA
  • Thickness: .44"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.55"
 FW-4-33
Stator Cap FW-4-33
& OE # XW4P-7A869-AA
  • Thickness: .44"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.55"
6 Outer Race (Cam) Stator
  • Height: 3.35"
  • Outside Dia: .88"
 FX-15-7
Outer Race (Cam) FX-15-7
Stator &
  • Height: 3.35"
  • Outside Dia: .88"
7 Accordion Spring 7 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
 CS-6
Accordion Spring CS-6
& 7 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
7.1 Sprag Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
 PC-6
Sprag PC-6
& Fits a variety of ZF units,Ford 5R55S, Ford Ranger 2000-2009
  • Thickness: 0.457"
  • Material: Steel
  • Cam Count: 18 elements
  • Outer Race Inside Dia: 2.615"
  • Inner Race Outside Dia: 1.958"
8 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.775"
 FR-7-3
Roller FR-7-3
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.775"

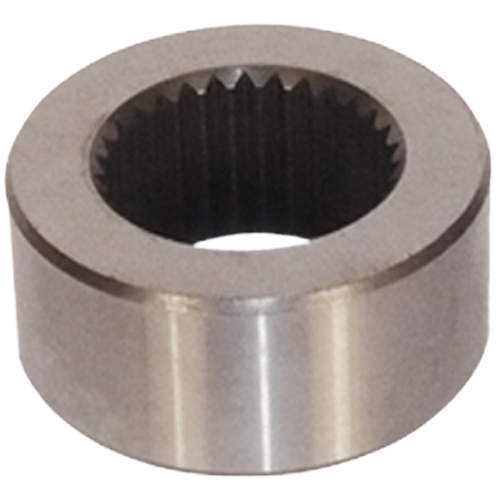

9 Inner Race Stator
  • Height: 0.860"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
 FX-14-6
Inner Race FX-14-6
Stator &
  • Height: 0.860"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
10 Stator
  • OE # XW4P-7934-CB
 FX-5-9
Stator FX-5-9
&
  • OE # XW4P-7934-CB
11 Snap Ring FX-20-10
Snap Ring FX-20-10
&
12 Stator Cap OE # 3XW4P-7937-AA
  • Thickness: 0.38"
  • Material: Phenolic
  • Outside Dia: 3.345"
  • Inside Dia: 1.770"
  • Tab O.D.: 3.550" Total Thickness: 0.385" Tab Count: 3

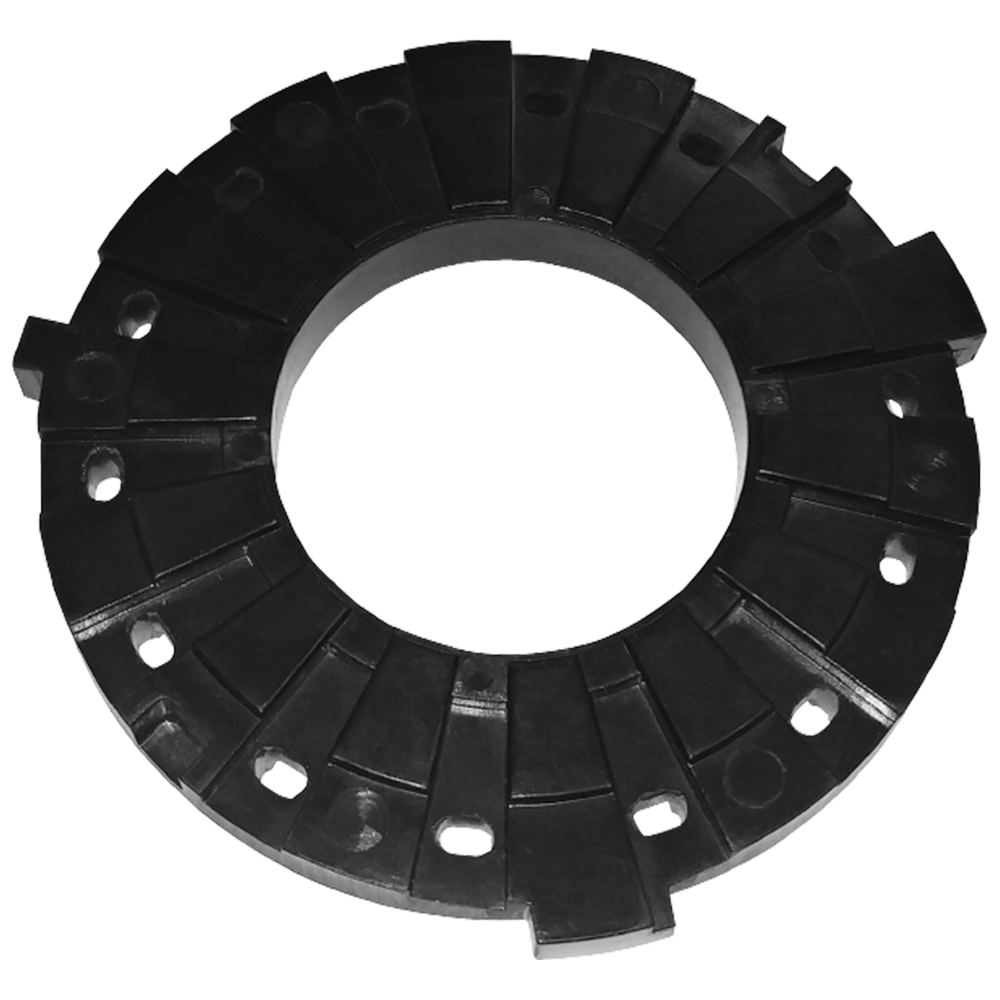

 FW-4-30
Stator Cap FW-4-30
& OE # 3XW4P-7937-AA
  • Thickness: 0.38"
  • Material: Phenolic
  • Outside Dia: 3.345"
  • Inside Dia: 1.770"
  • Tab O.D.: 3.550" Total Thickness: 0.385" Tab Count: 3
13 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
13 Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Turbine Hub
  • Internal Teeth: 21 (6 Removed)
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.80"
 FX-13-44HT
Turbine Hub FX-13-44HT
&
  • Internal Teeth: 21 (6 Removed)
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.80"
15 Turbine NPN-2-28-15
Turbine NPN-2-28-15
&
16 Damper Assembly NPN-2-28-16
Damper Assembly NPN-2-28-16
&
17 Turbine Washer
  • Thickness: .06"
  • Material: Plastic
  • Outside Dia: 2.63"
  • Inside Dia: 1.68"
 FW-9-26
Turbine Washer FW-9-26
&
  • Thickness: .06"
  • Material: Plastic
  • Outside Dia: 2.63"
  • Inside Dia: 1.68"
18 Seal Ring OE # XW4P-7A869-
  • Height: 0.114
  • Width: 0.100"
  • Color: White
  • Material: PTFE
  • Height Metric: 2.8956
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
 FO-25-14
Seal Ring FO-25-14
& OE # XW4P-7A869-
  • Height: 0.114
  • Width: 0.100"
  • Color: White
  • Material: PTFE
  • Height Metric: 2.8956
  • Seal Type: Solid
  • Outside Dia: 1.73
  • Outside Dia Metric: 43.942
18 Seal Ring Scarf Cut
  • Height: 0.111
  • Width: 0.1
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 1.71
  • Outside Dia Metric: 43.434
 FO-25-15
Seal Ring FO-25-15
Scarf Cut &
  • Height: 0.111
  • Width: 0.1
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 1.71
  • Outside Dia Metric: 43.434
19 Pressure Plate NPN-2-28-19
Pressure Plate NPN-2-28-19
&
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.281"
 FX-23-47
Lining (Friction Ring,Wafer) FX-23-47
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.25"
  • Inside Dia: 7.281"
21 Friction Plate O.E. Type
  • Thickness: 0.94"
  • Lining Count: 2
  • Outside Dia: 9.55"
  • Inside Dia: 7.25"
  • 4 Outer Lugs . Lining Part-ID: FX-23-47MK (Grooved).
 FX-23-53
Friction Plate FX-23-53
O.E. Type &
  • Thickness: 0.94"
  • Lining Count: 2
  • Outside Dia: 9.55"
  • Inside Dia: 7.25"
  • 4 Outer Lugs . Lining Part-ID: FX-23-47MK (Grooved).
21 Friction Plate Optional
  • Thickness: 0.94"
  • Lining Count: 2
  • Lug Count: 4
  • Outside Dia: 9.55"
  • Inside Dia: 7.87"
  • 4 Outer Lugs . Lining Part-ID: FX-23-29MK .
 FX-23-31
Friction Plate FX-23-31
& Optional
  • Thickness: 0.94"
  • Lining Count: 2
  • Lug Count: 4
  • Outside Dia: 9.55"
  • Inside Dia: 7.87"
  • 4 Outer Lugs . Lining Part-ID: FX-23-29MK .
21 Conversion Plate Non-Bonded), 5R55N/S/W
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"

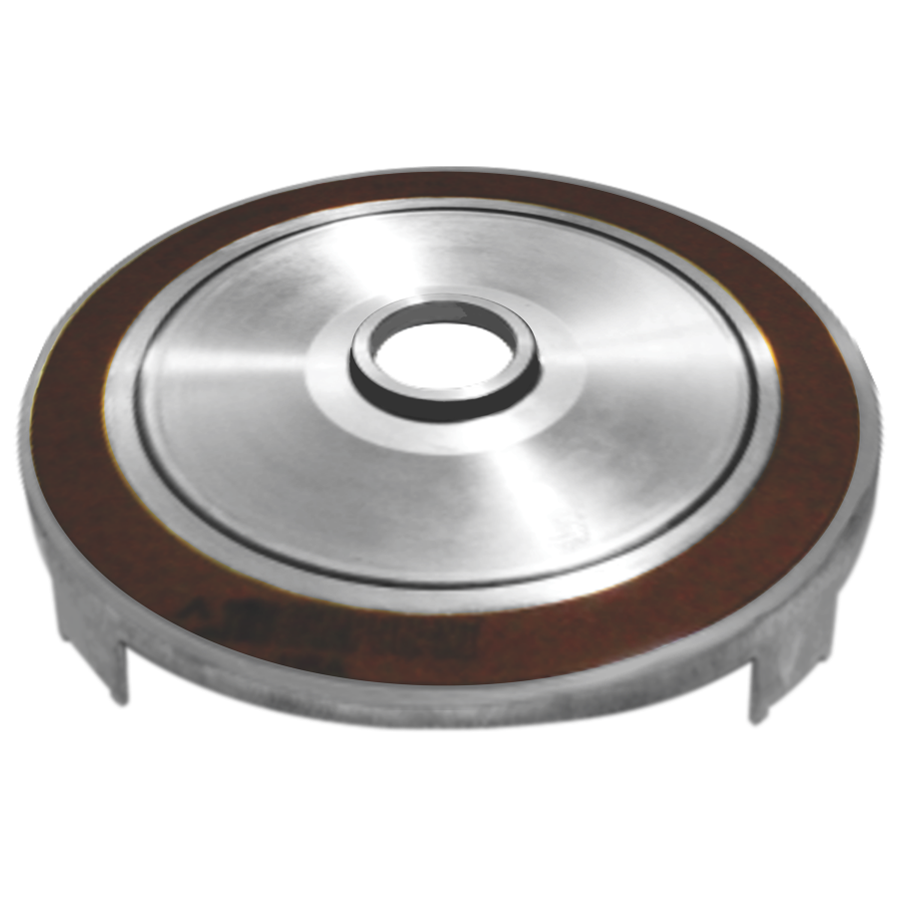

 FX-23-60
Conversion Plate FX-23-60
Non-Bonded), 5R55N/S/W &
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"
21 Conversion Plate Friction, High-Carbon, 5R55N/S/W
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"

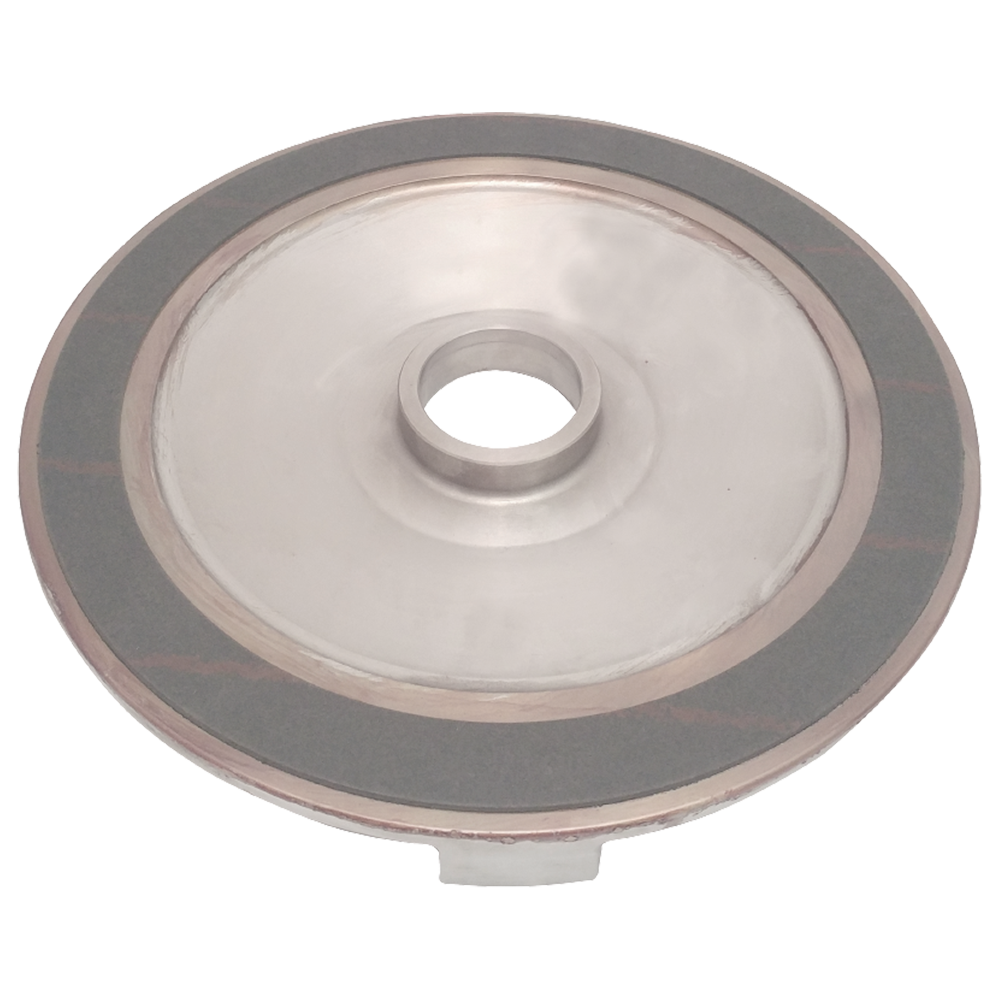

 FX-23-60HC
Conversion Plate FX-23-60HC
Friction, High-Carbon, 5R55N/S/W &
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"

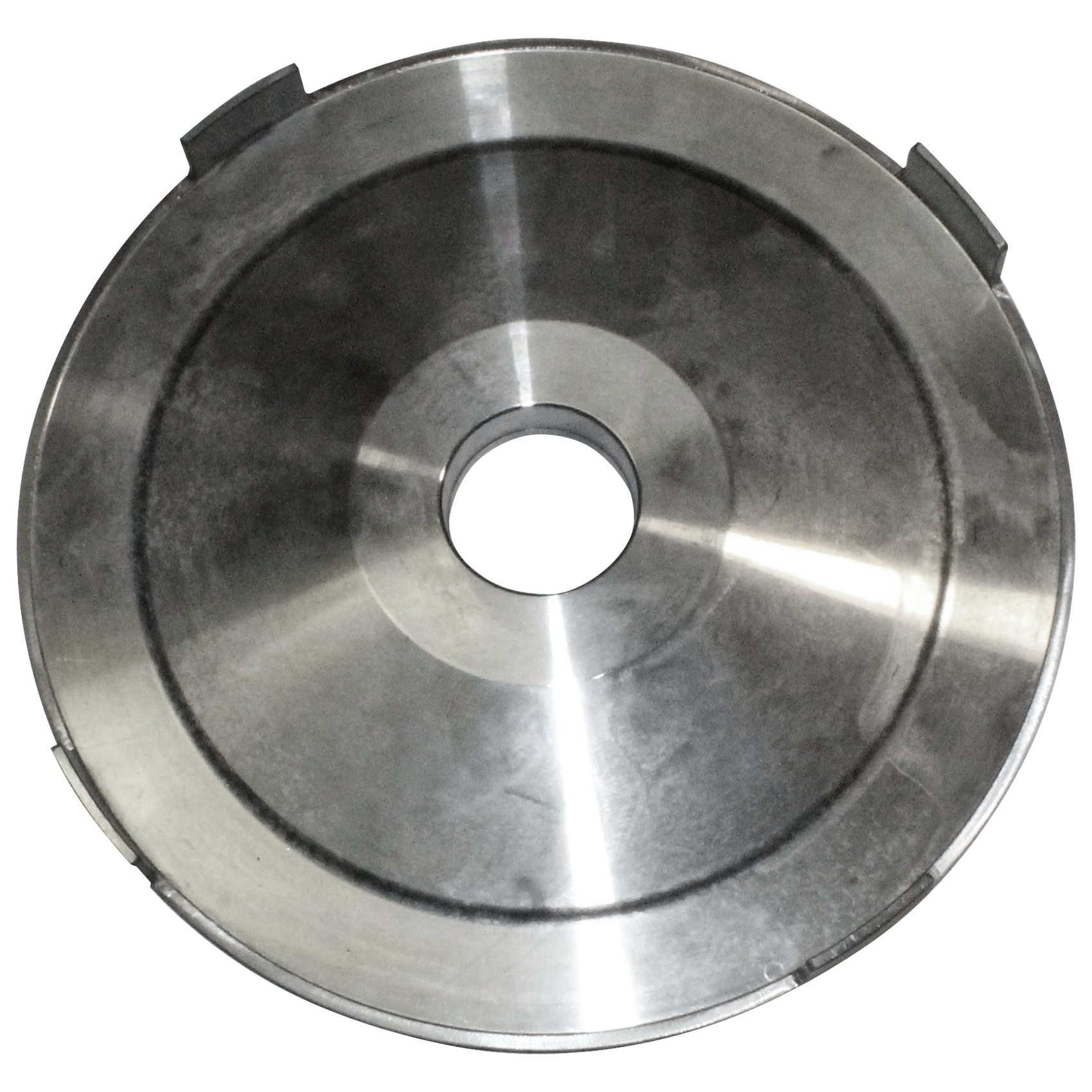

21 Conversion Plate Friction, Kevlar®,5R55N/S/W
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"

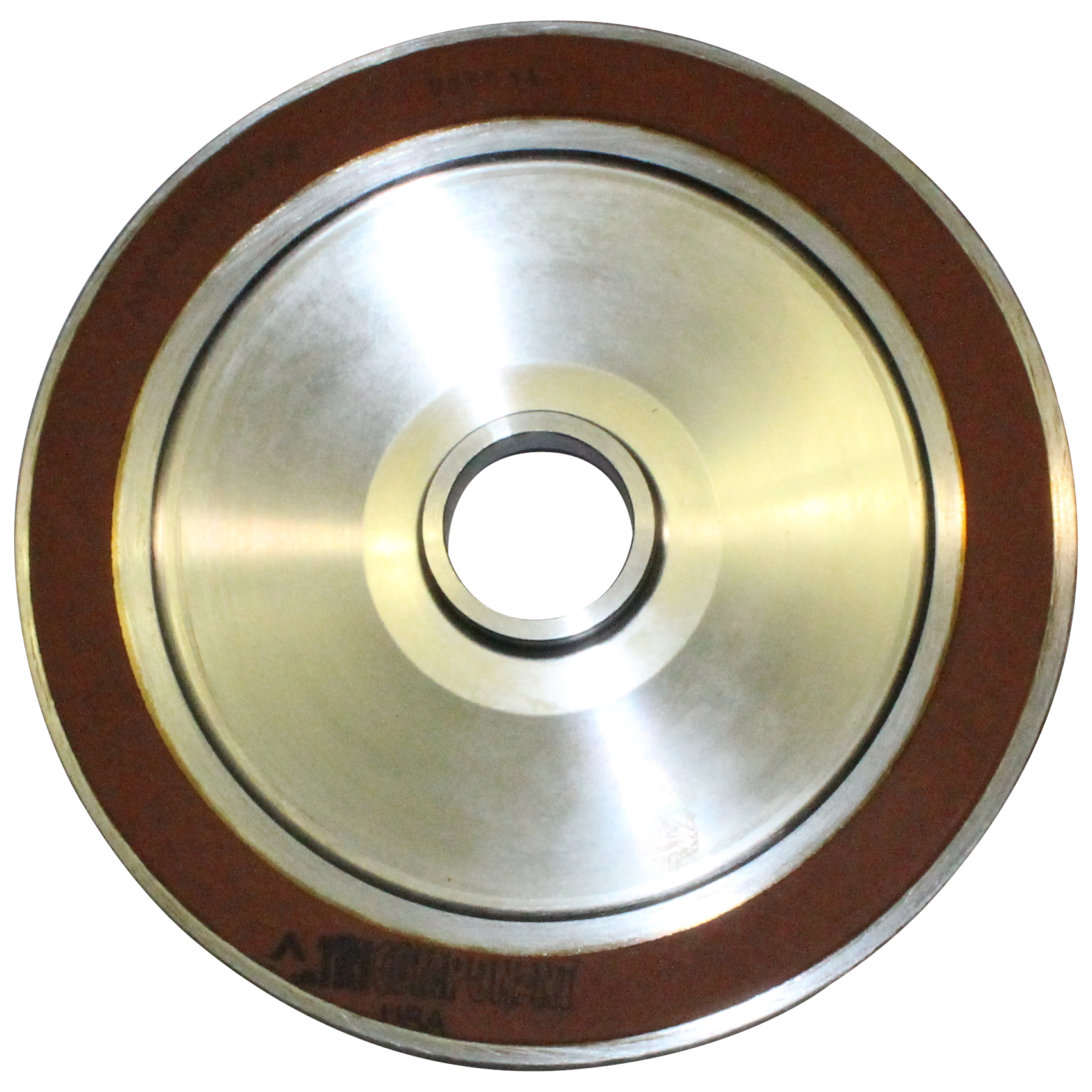

 FX-23-60K
Conversion Plate FX-23-60K
Friction, Kevlar®,5R55N/S/W &
  • Thickness: 0.200"
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"
21.1 Conversion Plate Friction, 5R55N/S/W
  • Thickness: 0.27"
  • Lining Count: 1
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"
  • 4 Outer Lugs. Core thickness is 0.200" and 0.270" with lining. Lining Part-ID: TX-23-5X70HC.
 FX-23-60A
Conversion Plate FX-23-60A
Friction, 5R55N/S/W &
  • Thickness: 0.27"
  • Lining Count: 1
  • Outside Dia: 9.55"
  • Inside Dia: 1.66"
  • 4 Outer Lugs. Core thickness is 0.200" and 0.270" with lining. Lining Part-ID: TX-23-5X70HC.
22 Front Cover NPN-2-28-22
Front Cover NPN-2-28-22
&
23 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
23 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
24 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
24 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
25 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
& 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
