Torque Converter | Chrysler | Dodge Colt, Plymouth Arrow & Cricket & Japanese Chrysler, '74-'78

Ill.# Image Description Specification Part #
1 Impeller Hub Heat Treated, Dodge Colt
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-9GRC
Impeller Hub TH-1-9GRC
Heat Treated, Dodge Colt &
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
1 Impeller Hub Unfinished
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 TH-1-9
Impeller Hub TH-1-9
Unfinished &
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots

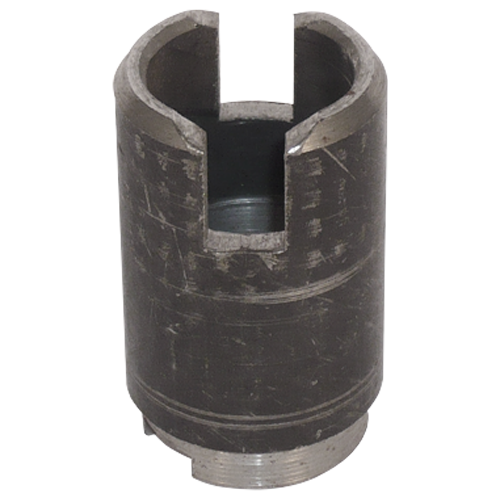

1 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 TH-1-9G
Impeller Hub TH-1-9G
&
  • Journal Dia: 1.498"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
2 Washer Steel TW-2-9
Washer TW-2-9
Steel &
3 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
Washer TW-3
&
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
3 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
Washer TW-3-3
&
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
3 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
Washer TW-3-3AT
&
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
3 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
Washer TW-3-3E
&
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
6 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
6 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
6 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
8 Vane BX-8-31
Vane BX-8-31
&
8 Vane Kit 31 Pieces BX-8-31K
Vane Kit BX-8-31K
31 Pieces &
8 Retainer Vane, Core Ring BX-8R
Retainer BX-8R
Vane, Core Ring &

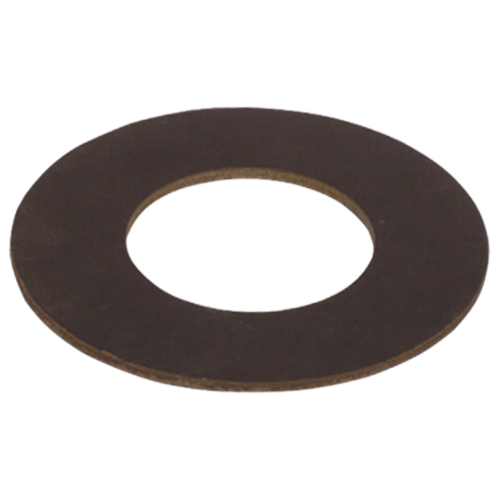

9 Turbine Washer Fiber
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.43"
  • Inside Dia: 1.26"
 FW-9
Turbine Washer FW-9
Fiber &
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.43"
  • Inside Dia: 1.26"
12 Rivet
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.37"
 SX-12
Rivet SX-12
&
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.37"
13 Insert
  • Height: 1.370
  • Internal Teeth: 27
  • Outside Dia: 1.12"
 TX-13-27
Insert TX-13-27
&
  • Height: 1.370
  • Internal Teeth: 27
  • Outside Dia: 1.12"
13 Turbine Hub
  • Internal Teeth: 27
 TX-13-9
Turbine Hub TX-13-9
&
  • Internal Teeth: 27
14 Inner Race Stator
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.820"
 TX-14-9
Inner Race TX-14-9
Stator &
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.820"
18 Bushing cover
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
 CB-18
Bushing CB-18
cover &
  • Thickness: 0.437"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.246"
  • Material: Babbit
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
  • Type: Precision
18 Bushing Sintered
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 CB-18P
Bushing CB-18P
Sintered &
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
18 Bushing Cover
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
 TB-18-9
Bushing TB-18-9
Cover &
  • Thickness: 0.44"
  • Housing Bore Dia: 1.375"
  • Shaft Dia: 1.245"
  • Material: Bronze
  • Outside Dia: 1.375"
  • Inside Dia: 1.248"
21 Vane BX-21-30
Vane BX-21-30
&
21 Vane Kit Standard "Straight" Type, 30 Pcs. BX-21-30K
Vane Kit BX-21-30K
Standard "Straight" Type, 30 Pcs. &
